Lopi 21 TRV User manual

DIRECT VENT
GAS FIREPLACES
Only the most professional specialty hearth retailers are selected to sell Lopi stoves, inserts and
fireplaces. They represent our total commitment to exceptional products and excellent service.
In addition, they have successfully completed special training programs in the proper selection,
installation and service of all Lopi products.
Your professional Lopi hearth dealers are experts who can advise you on everything from
customizing the color of your appliance to selecting appropriate venting and chimney materials.
They can show you Lopi models on display, including working models actually burning.
Lopi reserves the right to alter or improve its products at any time without notification.
Ember-Fyre™ is a registered trademark of Travis Industries, Inc. All other trademarks also belong to Travis Industries.
© 2006 T. I. Images are for descriptive purposes only. Printed in U.S.A. #98800233
Your Lopi Authorized Dealer:
Lopi also produces a wide variety of quality wood, pellet and gas stoves and inserts .
Ask your dealer for details
Find your favorite fire today by visiting www.lopifire.com
Lopi products are made
in the U. S. A. with pride.

1
DIRECT VENT GAS FIREPLACES
Lopi features the patented Ember-Fyre™ burner system in all our gas fireplaces. Popular
Science® magazine awarded the prestigious “BEST OF WHAT’S NEW” award to the Ember-
Fyre as one of the year’s top achievements in Science and Technology. This combustion
system delivers an efficiency of up to 86%. The level of realism is so remarkable
it is difficult to tell apart from our wood burning appliances. Unlike other
gas burners, the pilot is hidden. There are no unsightly burner tubes or
metal pans and the fire and glowing embers are just as beautiful
on the low flame setting as they are on high.
HOW IT WORKS:
1. Natural gas or propane is piped to a sophisticated SIT™
1. gas valve and started with the reliable Pizeo ignition
1. system. This gas burner is designed to provide reliable,
1. continuous operation even if the power goes out in
1. your home.
2. The low-pressure gas then flows to a precisely engineered
1. burner orifice.
3. A hidden mixing tube mixes the gas with outside air. (The standard
1. mix is set by the installer to compensate for variations in altitude,
1. fuel type, and line pressure).
4. The gas/air mixture flows through a unique array of burner ports
1. in the ceramic base, where it ignites and burns.
5. As the Ember-Fyre heats to a deep red 1200˚F, it mimics the
1. look of glowing wood embers and charred logs. 1.
1. Dancing yellow flames further enhance the look and
1. feel of a real wood fire.
6. For hands-free operation the optional remote control or wall
1. thermostat allows you to set and maintain the comfort level of
1. your home.
IS IT A WOOD OR GAS FIRE?
PATENTED EMBER-FIRE™BURNER
U. S. Patented # 6,602,068, 6,443,726 and other patents pending
18
1
6
32
4
5
GAS GETS REAL

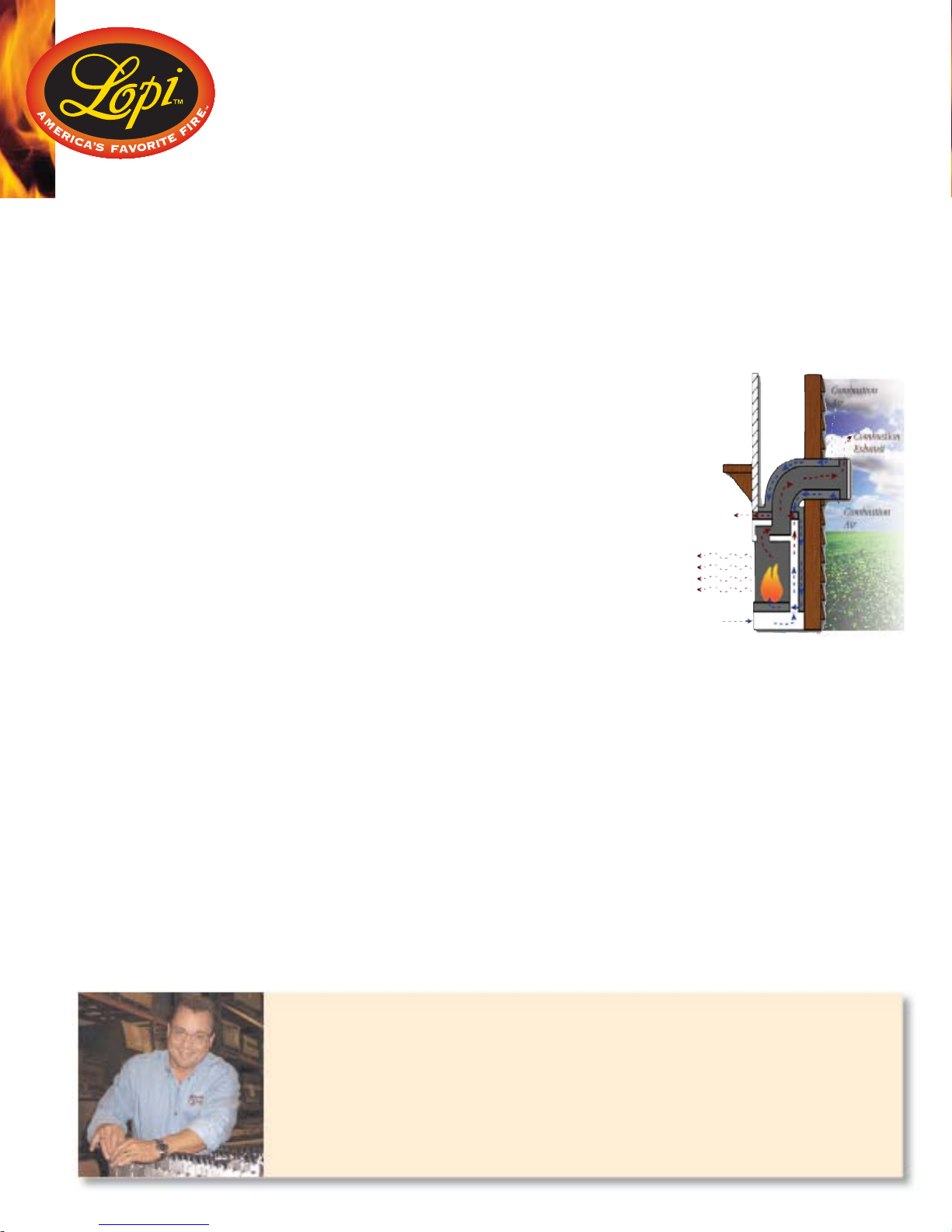

WHY CHOOSE A DIRECT VENT SYSTEM?
The American Lung Association discourages the use of ventless fireplaces for
health and environmental reasons. They recommend homeowners choose only
sealed, direct vent gas fireplaces to preserve indoor and outdoor air quality and
to prevent by-products such as carbon monoxide, soot and nitrogen dioxide from
entering your home. Sealed gas fireplaces also prevent excess moisture from
building up in your house. All Lopi direct vent gas fireplaces are sealed and
meet the guidelines of the American Lung Associations Health House program.
HOW DO YOU SAY LOPI?
We hear a lot of different pronunciations - Lopey...loopee...loppy!
It's actually pronounced Low-pie, and was created by our president, Kurt Rumens. The name was inspired by a love
of the Northwest, a fascination with Native American culture and the nature and wildlife that live in this
beautiful place. Lopi means beauty, strength and independence and has become a legend all its own.
SEVEN YEAR “REAL WORLD” WARRANTY
Lopi’s “Real World Warranty” puts other manufacturers limited lifetime warranties to shame. You will have the
peace of mind knowing that your gas fireplace is supported by certified factory trained installers and retailers.
The firebox on Lopi gas fireplaces is covered for a FULL 7 YEARS. All parts and labor are covered for a FULL 2
YEARS. Compare our Warranty to other manufacturer’s and you will find most won’t tell you about their one year
parts warranty or that there is no labor coverage after the first year on ANYTHING! Lopi truly offers the BEST
WARRANTY ON GAS APPLIANCES!
"Lopi is not so much a brand name as it is a tradition - of craftsmanship
in the construction of our gas fireplaces, and of pride to the families who
own them. We invite you to share this proud tradition."
Kurt Rumens
President
AMERICA’S FAVORITE FIRE
Lopi heating appliances are designed and hand-assembled at our state-of-the-art plant in Mukilteo, Washington.
With over 25 years of experience manufacturing innovative hearth products, Lopi has gained a reputation for standing
behind every single product we make. And one thing that hasn't changed through the years is the beauty
of our fireplaces, along with performance you can trust and our commitment to your satisfaction.
Whether you are new to the family of Lopi heating appliances or already a part of our family, we invite you to
take a look at our newest line of gas fireplaces. We know you'll find your favorite fire.
Cool
Room Air
Radiant
Heat
Heated
Room Air Combustion
Air
Combustion
Air
Combustion
Exhaust

20 1/2”
44 1/4”
473/4
”
2
Two Styles
Of Fireplaces For Any Need
17
Landscape-Style DVS and DVL
Fireplace Framing Specifications
1 DVS - Direct Vent Small Lopi Portrait-Style gas fireplaces are a cozy and
convenient way to provide warmth and the beauty
of fire to rooms not normally considered for fireplaces.
They’re designed for corner or limited space
installations in small intimate settings such as
bedrooms, baths, dining rooms or kitchens. These
fireplaces have the flexibility to be installed at eye
level or directly on the floor. Compact and easy to
install, the applications are limited only by your
imagination!
Choose from two face styles, the cast iron Looking
Glass in black painted or porcelain enamel or the
Wilmington, in black painted or pewter plated finish.
Both designs, with the many custom options, offer
unlimited possibilities for your homes decor.
Model 21DV
Rated to heat up to 650 sq. ft.
and delivers a Btu input
on high of 16,500 Btu’s/hour.
Lopi landscape-style gas fireplaces are our traditional looking fireplaces and are furnace rated and ideal for both
zonal heating specific area of your home or as your primary heat source.
Lopi makes two models of landscape fireplaces: the DVS (Direct Vent Small) and DVL (Direct Vent Large).
Both DVS and DVL models are available in a selection of designer faces with different finishes.
As an added value, both DVS and DVL fireplaces offer standard, 130 CFM fans to aid in the circulation of heated
air within your home.
Model DVS is rated to heat
up to 1,500 sq. ft.
and delivers a Btu input
on high of 31,000 Btu’s/hour.
Model DVL is rated to heat
up to 2,000 sq. ft.
and delivers a Btu input
on high of 40,000 Btu’s/hour.
2 DVL - Direct Vent Large
Bedford Face Design
(DVS only)
Wilmington Face Design
Discovery Face Design
19 5/8”
37 1/4”
35”
36”
When using an
elbow off the top of
the unit the fireplace,
allow for a 2”
clearance above the
vent and 1” to the
sides and bottom.
When venting to the
rear, allow a min.
8 5/8” gap centered
behind the fireplace
for the vent and wall
thimble.
When using an
elbow off the top of
the unit the fireplace,
allow for a 3”
clearance above the
vent and 1” to the
sides and bottom.
When venting to the
rear, allow a min.
10” gap centered
behind the fireplace
for the vent and wall
thimble.
Please refer to the Owner’s Manual for all installation information. Owner’s Manuals can be
downloaded from the Lopi website under the specific product -- www.lopistoves.com.
463/4
”
The fireplace
enclosure must not
be less than 54 3/4”
above the base of
the fireplace
Hearth Requirements:
A non-combustible hearth is required. Non-combustible hearth must be a minimum of 32 3/4” to 37 5/8” wide (depending on face)
x 12” deep and a minimum of 3/4” thick. When fireplace is raised a minimum of 3”off of the floor surface, no hearth is required.
Hearth Requirements:
A non-combustible hearth is required. Non-combustible hearth must be a minimum of 29 7/8” to 33 1/8” wide (depending
on face) x 12” deep and a minimum of 1 1/4” thick.
463/4”
65 3/4”
37”
14 3/8”
135/8
”
193/8”
13”
Corner Installations
475/8”
44 1/4”
133/4
”
193/8”
14 3/4”
Corner Installations
Minimum 1”
clearance to
fireplace enclosure
1” Stand offs
Fireplace includes
1/2” stand offs
Lopi has joined with several custom cabinet
manufacturers to offer one-stop solutions to easily finish
your fireplace without the cost of custom finish work.
Ask your Lopi dealer or visit one of the websites below
for details.
J. C. Huffman Cabinetry
www.jchuffman.com
Grand Mantel
www.grandmantel.com
1 Portrait-Style Fireplaces
2 Landscape-Style Fireplaces
Pewter Wilmington face design in
floor mounted cabinet Taupe porcelain Looking Glass face design in tall corner cabinet.

14
Pewter Plated DoorBlack Painted Door Antique Gold Plated Door
Minimum Output Btu’s/Hr
10,500 (NG) 9,380 (LP)
Turn your fireplace into the focal point of your home. Enjoy the warmth
as flames leap above the glowing logset. The Patented Ember-Fyre™ burner
and efficent two-stage heat exchange system makes both DVS and DVL
fireplaces ideal for zonal heating a room or two or as the primary heat
source in your home.
The Discovery’s outstanding flush-to-the-fireplace face design features an
arched framed window in your choice of black paint, 24 karat antique
gold or pewter plated surfaces. Beautiful curved side columns and a finely
detailed mantle-like details will make this fireplace a stricking addition to
your home that compliments any decor.
The DVL fireplace above is shown with the optional pewter door.
Steady State Efficiency
Up to 77.2% (NG) 74.5% (LP)
Heating Capacity
Up to 650 Sq. Ft.
The Looking Glass is shown in the Oxford
Brown porcelain enamel finish. Shown with
optional Cast Shell Interior and pre-
manufactured tall corner cabinet that has been
painted to match the room decor.
Looking Glass™Portrait-Style Gas Firepla ce
3

Maximum Input Btu’s/Hr
16,500 (NG & LP) Minimum Output Btu’s/Hr 10,500 (NG) 9,380 (LP)
The Looking Glass™ portrait style fireplace offers you
unique features and options that cannot be found in any
other hearth product. This Lopi fireplace gives you another
dimension of installation opportunities in virtually every
room in your home. The Looking Glass is ideal for
bedrooms, bathrooms, kitchens, dens, entry ways, or
hallways. Customize your Looking Glass installation with
the amazing one-way mirror glass, soothing
Aromatherapy, or one of three firebox liners - Cast Shell,
Travertine or Brick Beehive.
Add the optional
Aromatherapy Tray
and Essential Oils.
Aromatherapy oil
soothes the spirit,
invigorates the
mind and relaxes
the body.
The Looking Glass fireplace is available in your choice of
New Iron paint finish, and Oxford Brown or Taupe
porcelain enamel finishes. This allows you the opportunity
to match the decor you already have, or one you want to
design around. Recognized for innovation by hearth
industry experts with the VESTA®* award for the year’s
best new gas fireplace.
*The VESTA award is given by the Hearth, Patio and Barbecue Association.
The Looking Glass above is shown in the Taupe porcelain enamel finish.
Options shown are Travertine Interior, Antique Pewter Arabesque Grills,
Palladian Double Doors and Pendant.
363/4”
23 1/2”
Glass Area: 293 sq. in.
4
Discovery™Landscape-Style Fireplaces
The DVS fireplace is shown with the Discovery
face with the optional antique gold plated
door and weathered brick fireback.
13
ce
