Lorex LW2300 Series User manual

www.lorexcctv.com LW2300 Series Quick Start Guide_R1 Page 1
Mount camera stand to
the wall.
NOTE: Wireless cameras require a power
source to operate.
NOTE: Before you install a camera, carefully plan where
and how it will be positioned, and where you will route the
cable that connects the camera to the power adaptor.
Before starting permanent installation, verify its
performance by observing the image on a monitor when
the camera is positioned where it will be permanently
installed.
Skill Level
Intermediate
easy advanced
Time
under 30 minutesunder 15 minutes under 60 minutes
Hand Tools Hardware
Router
Hi Speed
over 60 minutes
Skill Level
Intermediate
easy advanced
Time
under 30 minutesunder 15 minutes under 60 minutes
Hand Tools Hardware
Router
Hi Speed
over 60 minutes
Time Tools Skills - Easy
Under 20 Minutes*
Hand Tools Plug & Play connections,
On screen set up
* Installation time may vary
based on application and
camera location
ULTRA DIGITAL WIRELESS VIDEO
RECORDING SYSTEM
LW2300 SERIES - QUICK START GUIDE
NOTE: AVOID INSTALLING IN A LOCATION
WHICH REQUIRES THE WIRELESS SIGNAL
TO PASS THROUGH CEMENT, CONCRETE
AND METAL STRUCTURES. THIS WILL
REDUCE THE TRANSMISSION RANGE.
Getting Started
This Ultra Digital Wireless Video
Recording System comes with the
following components:
• Color Outdoor Night Vision
Camera*
• Camera Stand*
• Wireless Receiver
• SD Memory Card
• Audio/Video Cable
• Remote Control
• Wall Mounting Kits*
• Wireless Antennas (for receiver
and camera)*
• Power Adapters (for receiver
and camera)*
• IR Extender
• Instruction Manual
*
* Number of cameras may vary
by model. Check your package
for specific content information.
A. Connect the Wireless Camera
Connect power adaptor to local
120V AC power outlet.
4Connect one end of the camera
Power Adapter to the camera
and the other end to an
electrical outlet.
3Secure Camera to the mounting
stand. Adjust the angle of the camera
until the desired view is set. Tighten
the thumbscrews to secure the
desired camera position.
1
B. Connect the Receiver to a TV/Monitor
Connect one end of the
Receiver Power Adaptor to
the receiver and the other
end to an electrical outlet.
The receiver will power on
automatically.
3
ATTENTION: Make sure to first connect
and power on the camera before
powering on the receiver; this will
ensure a proper connection.
1Connect the Black cable from the AV cable to AV Out port on
the left panel of the receiver. Connect the Yellow video cable
and White audio cable (mono) to your TV or monitor.
Insert the included SD
card into theSD Card slot
on the right panel of the
receiver until you hear a
“click.” Place the receiver
in a place that will have
clear
reception to your camera.
NOTE: The receiver is
compatible with most
major brands of SD cards
up to 16 GB.
2
OPTIONAL
Attach the included
Antenna to the camera
by screwing it on to the
back as shown
below.
2
NOTE: When adding cameras that were not
included in the original box, you will need
to pair up the camera with the receiver.
Please refer to the Camera Pairing
Section of the User Manual.
Connect the included IR extender
to the IR Extend port on the right
panel of the receiver. Use the IR
extender if you want to hide the
receiver from plain sight. Place
the IR Extender for example in a
bookcase or above a cabinet and
still fully control the system using
the included remote control.
NOTE: IR extender box needs to
have direct line-of-sight with remote
control.
4
All manuals and user guides at all-guides.com
all-guides.com

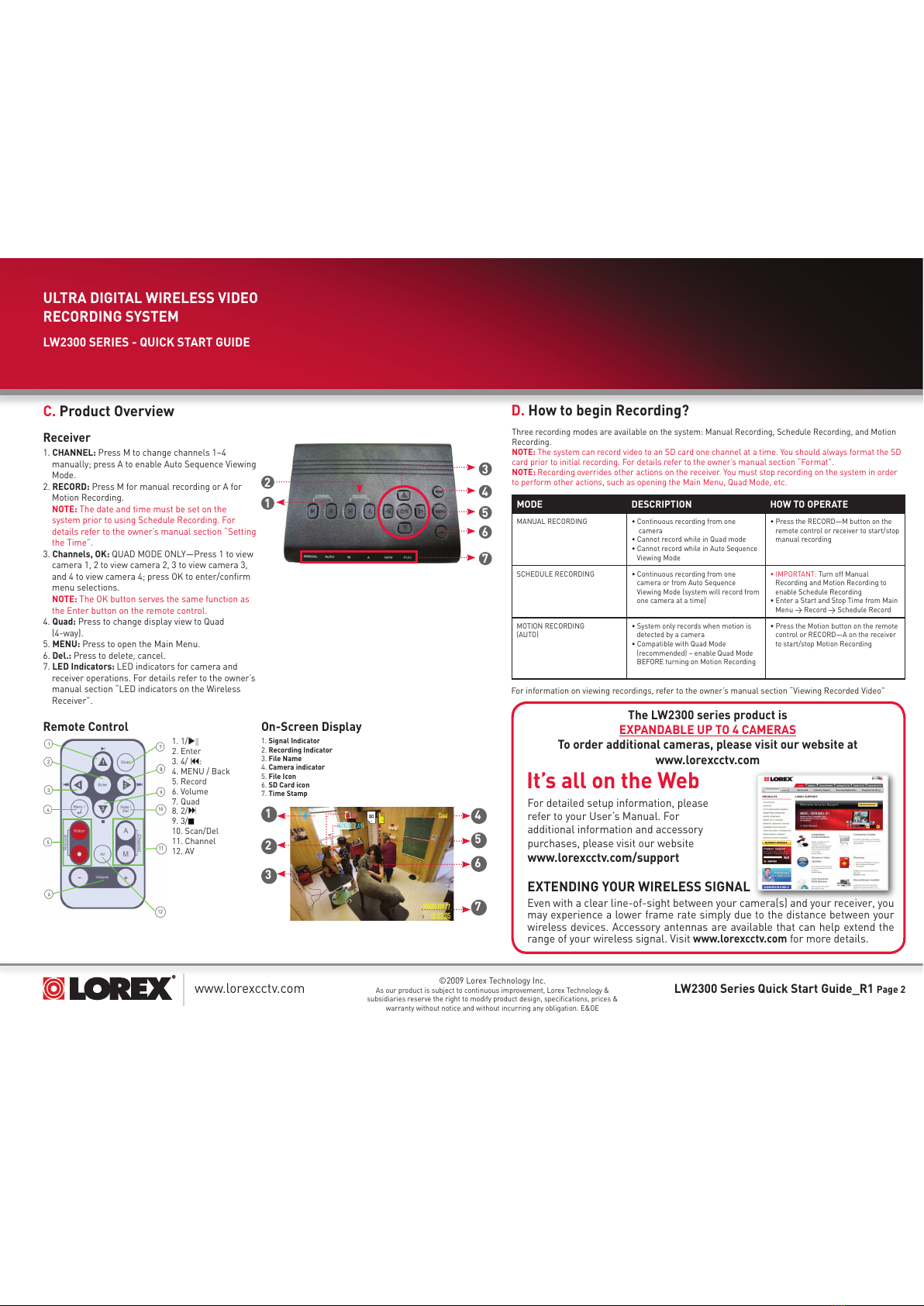

www.lorexcctv.com LW2300 Series Quick Start Guide_R1 Page 2
C. Product Overview
1. CHANNEL: Press M to change channels 1~4
manually; press A to enable Auto Sequence Viewing
Mode.
2. RECORD: Press M for manual recording or A for
Motion Recording.
NOTE: The date and time must be set on the
system prior to using Schedule Recording. For
details refer to the owner’s manual section “Setting
the Time”.
3. Channels, OK: QUAD MODE ONLY—Press 1 to view
camera 1, 2 to view camera 2, 3 to view camera 3,
and 4 to view camera 4; press OK to enter/confirm
menu selections.
NOTE: The OK button serves the same function as
the Enter button on the remote control.
4. Quad: Press to change display view to Quad
(4-way).
5. MENU: Press to open the Main Menu.
6. Del.: Press to delete, cancel.
7. LED Indicators: LED indicators for camera and
receiver operations. For details refer to the owner’s
manual section “LED indicators on the Wireless
Receiver”.
©2009 Lorex Technology Inc.
As our product is subject to continuous improvement, Lorex Technology &
subsidiaries reserve the right to modify product design, specifications, prices &
warranty without notice and without incurring any obligation. E&OE
4
5
6
7
1
2
3
Receiver
1. Signal Indicator
2. Recording Indicator
3. File Name
4. Camera indicator
5. File Icon
6. SD Card icon
7. Time Stamp
1
2
3
4
5
6
7
Three recording modes are available on the system: Manual Recording, Schedule Recording, and Motion
Recording.
NOTE: The system can record video to an SD card one channel at a time. You should always format the SD
card prior to initial recording. For details refer to the owner’s manual section “Format”.
NOTE: Recording overrides other actions on the receiver. You must stop recording on the system in order
to perform other actions, such as opening the Main Menu, Quad Mode, etc.
D. How to begin Recording?
MODE DESCRIPTION HOW TO OPERATE
MANUAL RECORDING • Continuous recording from one
camera
• Cannot record while in Quad mode
• Cannot record while in Auto Sequence
Viewing Mode
• Press the RECORD—M button on the
remote control or receiver to start/stop
manual recording
SCHEDULE RECORDING • Continuous recording from one
camera or from Auto Sequence
Viewing Mode (system will record from
one camera at a time)
• IMPORTANT: Turn off Manual
Recording and Motion Recording to
enable Schedule Recording
• Enter a Start and Stop Time from Main
Menu > Record > Schedule Record
MOTION RECORDING
(AUTO)
• System only records when motion is
detected by a camera
• Compatible with Quad Mode
(recommended) – enable Quad Mode
BEFORE turning on Motion Recording
• Press the Motion button on the remote
control or RECORD—A on the receiver
to start/stop Motion Recording
ULTRA DIGITAL WIRELESS VIDEO
RECORDING SYSTEM
LW2300 SERIES - QUICK START GUIDE
1. 1/||
2. Enter
3. 4/􀀜:
4. MENU / Back
5. Record
6. Volume
7. Quad
8. 2/
9. 3/
10. Scan/Del
11. Channel
12. AV
Remote Control On-Screen Display
It’s all on the Web
For detailed setup information, please
refer to your User’s Manual. For
additional information and accessory
purchases, please visit our website
www.lorexcctv.com/support
EXTENDING YOUR WIRELESS SIGNAL
Even with a clear line-of-sight between your camera(s) and your receiver, you
may experience a lower frame rate simply due to the distance between your
wireless devices. Accessory antennas are available that can help extend the
range of your wireless signal. Visit www.lorexcctv.com for more details.
The LW2300 series product is
EXPANDABLE UP TO 4 CAMERAS
To order additional cameras, please visit our website at
www.lorexcctv.com
For information on viewing recordings, refer to the owner’s manual section “Viewing Recorded Video”
