Lotim Cloud LCV07 Owner's manual

User Manual Book
4G Vehicle GPS Tracker
Model: LCV07

2/ 12
We’re appreciated that you choose on LCV07, an affordable 4G Vehicle
GPS Tracker as a tracking guard of your vehicles. Please read this user
manual book carefully and follow the instruction. It is suggested that you
keep this user manual book for future use.
CATALOG
1. Product description ..................................................................3
2. Warning ....................................................................................3
3. Precautions...............................................................................3
4. Production composition ...........................................................4
5. Hardware operation .................................................................4
5.1 Insert SIM Card .................................................................4
5.2 Wiring ...............................................................................5
5.3 Place on Car/Vehicle .........................................................6
6. Operation of indicator light ...................................................... 7
7. Common command list.............................................................7
7.1 Query ................................................................................7
7.2 Setting...............................................................................7
8. Data sheet ................................................................................9
9. Troubleshooting .....................................................................10
10. Repair and disposal...............................................................11
11. Warranty card.......................................................................12

3/ 12
1. Product description
LCV07 4G Vehicle GPS Tracker is a mini, easy-installation, 4G LTE network
supported vehicle GPS Tracker, it supports 9-90V wide range power input.
It could widely applied in monitoring the trucks, cars, motorcycle, electric
scooters, etc. It has powerful and accurate satellite location feature with
25*25mm GPS antenna. Optionally, it supports TTL/UART Port, Bluetooth
4.2 communication.
2. Warning
1) This device is suitable for adults. People with physical disability and
cognitive impairment must use it under the supervision of guardian.
2) Keep the product accessories and packaging materials away from
children, otherwise there may be accidents or choking hazard.
3) Do not use if it is damaged obviously.
4) The device is only used for its designed purpose and must be used in the
manner indicated. The manufacturer shall not be responsible for any
damage caused by any improper or reckless act.
5) It is strictly forbidden to use the equipment in violation of the operating
instructions, disassemble it without permission, collide, charge, soak in
water, exceed 80℃, man-made failure, force majeure damage, etc.,
otherwise it may cause short circuit, insufficient working time, battery
deformation, night leakage, explosion, etc. Loss, no warranty and
compensation will be made.
6) Clean the equipment in the prescribed way. Do not use any solvents and
disconnect the power supply in advance when cleaning.
3. Precautions
1) Do not exposed this device to rain and high temperature during
installation and use.
2) This product uses GPS and BeiDou satellite positioning, and there are
irresistible factors that cause positioning failure or abnormal
communication, such as bad weather, artificial shielding of wireless
signals, blind areas of wireless signal coverage, etc.

4/ 12
3) This device supports 4G CAT1 wireless communication network. To
achieve better communication and positioning performance, please be
sure not to place it in metal shielding boxes or under place with metal
surface.
4) This device requires the cooperation of the monitoring platform to
implement all its features. For details, please refer to the relevant
monitoring platform usage specifications.
5) The contents of this manual may be subject to change without notice.
Please refer to the actual product.

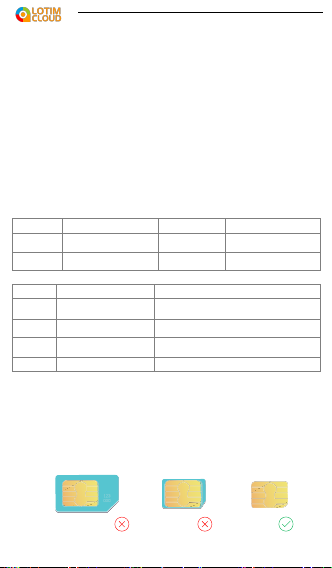

4. Production composition
No.
Item
Quantity
Note
1
Main Unit
1PCS
2
Power Cable
1PCS
Length=1 meter
No.
Feature
Instruction
1
Power Positive Red, input range from 9V to 90V
2
Power Negative
Black cable
3
ACC Input Orange, connect to ACC signal
4
Relay Output
Yellow, connect to external relay
5. Hardware operation
5.1 Insert SIM Card
Please purchase the right SIM card instructed as below. And confirm with
the carrier if these SIM cards have 4G CAT-1 network well supported.
Normal Micro Nano

5/ 12
Inset the SIM card as guide below. Please make sure the device is power
off before insert or remove the SIM card.
;
Precautions:
1) The terminal SIM card needs to activate SMS and network
communication function.
2) SIM must not be insert reversely; SIM should be 4G CAT 1 network
supported; Make sure the SIM with enough balance.
3) If your SIM card is turned on and you are required to enter the SIM PIN,
please refer to your mobile phone user manual to turn off the SIM PIN
input function.

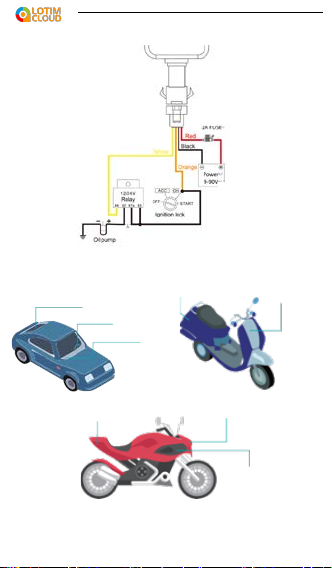

5.2 Wiring
The device supports power input from 9~90V, red cable for positive and
black for negative, to avoid the short cut, please correctly handle the wire
metal connections by electric tape. The side with LED is with GPS antenna,
please keep it face toward sky during installation.
Step 1: Uncover the case
Step 4: Switch to Power on and install case
Step 3: Insert the SIM card
Step 2: Open the SIM slot

6/ 12
5.3 Place on Car/Vehicle
To gain higher location accuracy, it is recommended to install the device in
car or vehicle as images shown.
Under the rear windshield
Near the dashboard
Under the front
windshield
Under the seat
Under the
front cover
Under the seat
Inside the LED
(near Dashboard)
Inside the front cover

7/ 12
6. Operation of indicator light
By checking the status indicator, you can understand the working status of
the device. The status of the indicator is described as follows:
LED Color
LED Status
Meaning
Red
--- Power
Solid bright
Working normally
Quick Flashing (0.3S on, 0.3s off)
Low
internal battery or error
Slow Flashing (0.3S on, 2s off)
External power disconnected
Off
Low external battery or internal error
Green
--- Network
Solid bright
GSM network
online
Quick Flashing (0.3S on, 0.3s off)
GSM initializing
Slow Flashing (0.3S on, 0.3s off)
GSM signal working
Off
No SIM or GSM detected
Bl u e
--- Satellite
Solid bright
GNSS locating successfully
Quick Flashing (0.3S on, 0.3s off)
GNSS satellites
searching
Off
GNSS sleeping or not working
7. Common command list
7.1 Query
1 CHI#
Inquiry hardware info
Reply info including: hardware version, external battery voltage,
internal battery voltage, ACC status, fuel/oil connection status,
GSM/LTE signal strength
2 CSI#
Inquiry firmware info:
Reply info including: firmware version, IMEI or SN No., server
IP/Port or Domain/Port, APN setting
3 POS# Location inquiry
4
POSURL#
Location URL inquiry
7.2 Setting
Format
Description
1 MIP set up server IP and Port or Domain and Port

8/ 12
2 APN Set up APN (Access Point Name)
APN=ANPNAME|USER|PWD, USER and PWD depends on
the operator's configuration
APN=D meaning to delete APN information
3 TZO Set up Time Zone, in default device can automatically
recognizes its time zone
TZO=+/-N, N in minutes
TZO=D delete the set up
4 FREQ Set up location report frequency
FREQ=T1|T2
T1: ACC on
T2: A CC o ff
T1,T2 both range from 1-600 seconds
in default T1=T2=10s
5 SOS Set up SOS number for receiving alarms and authorization
function, 3 SOS numbers at
max.SOS=SOSNUM1|SOSNUM2|SOSNUM3SOS=D meaning
delete the SOS number
6 OIL Control the fuel/oil connection
OIL[ID],status, ID=1, status=1/0, 1=cut-off engine, 0=restore
engine
Only SOS number or center number are authorized to set
up
7 SPDALM Set up overspeed threshold, unit in KM/H
SPDALM,ON/OFF,T,SPEED,SMS,CALL#
T: overspeed duration in seconds, range 3-60, SPEED: for
overspeed, range 1-255KM/H
SMS/CALL=1/0, 1=turns on SMS/CALL alarm, 0=turn off
SMS/CALL alarm
SPDALM,OFF# turn off overspeed alarm (Default set up)
8 VOLFREQ Set up the external battery voltage reporting frequency
KWSET,1,VOLFREQ=T#, T means interval, range 10-3600
seconds
9 POFALM Set up External power cut off alarm
POFALM,ON/OFF,SMS,CALL#
SMS/CALL=1/0, 1=turns on SMS/CALL alarm, 0=turn off
SMS/CALL alarm

9/ 12
Switch off: POFALM,OFF#
10 ACCALM ACC on/off alarm
ACCALM,ON/OFF,MODE,SMS,CALL
MODE 0= both ACC on and off alarm, MODE 1= ACC on
Alarm, MODE 2= ACC off alarm
SMS/CALL=1/0, 1=turns on SMS/CALL alarm, 0=turn off
SMS/CALL alarm
ACCALM,OFF#, switch off ACC alarm (Default set up)
8. Data sheet
HARDWARE
Location technology
GPS/Beidou
Receiver
25*25*2mm, 66channels
GNSS sensitivity
Tracking: -165dBm
Acquisition: -148dBm
Accuracy
10m
Hot/ Cold start
<5s/<32s (open sky)
Cellular technology
4G CAT-1 network
FDD: B1/B3/B5/B8
TDD: B34/B38/B39/B40/B41
SIM slot
Nano SIM Card
Battery
55mAh/3.7V Lithium-polymer battery
Internal memory
8MB
Using environment
Working Temperature: -20
℃
~70
℃
Storage Temperature: -40℃~80℃
Humidity: 20%~80%
Power input
9~90V (suitable for electricity input 12V, 24V, 36V, 48V,
72V)
Wires
4 Cables (power +, power -, relay, ACC)
Working Current
<5mA (built-in battery)
Power anti-reversing
connection
Supported
Surge protection
Supported, up to 1500W
INTERFACE
Antenna
GNSS/GSM
Sensors
3D G-Sensor
Indication
3 LEDs (Red, Green, Blue)
SOFTWARE
Firmware update
OTA

10 / 12
Protocols
JT/T 808 Protocol
More features
Geo-fence, GNSS location, tow alarm, overspeed alarm,
UBI, auto-defensing, vibration alarm, external battery
voltage detection, vehicle battery low alarm, remote cut-
off engine, etc.
Bluetooth
communication
Optional
UART Po rt
Optional
PHYSICAL SPECIFICATIONS
Dimensions
75*30*13mm
Net weight
30g
CERTIFICATIONS & APPROVALS
Regulatory (Pending)
CE, FCC
9. Troubleshooting
FAQ
Reason
Solution
Bad Signal
When using terminals in areas with
poor signal reception, such as near tall
buildings or
in
basements, radio waves
cannot be effectively transmitted.
Use the terminal in a
n open air
area
Can't co nnect to the
network
The SIM card is not installed
Check the SIM card
Dirt on the metal surface of the SIM
card slo t
Wipe with a clean cloth
SIM card is invalid
Contact your network service
provider
Out of GSM service area
Please move to the network
service provider service area
Weak signal
Please move to a place with
strong signal and try again
Unable to charge
The voltage is inconsistent with th e
range marked by the charger
Please use the same voltage as
the charger
Use a non
-standard charger
Please use the charger provided
by the factory
Bad
Signal
Poor contact
Check if the plug is connected
When using terminals in areas with
poor signal reception, such as near tall
buildings or basements, radio waves
cannot be effectively transmitted
Use the terminal in a location
with good signal
Can’t turn on device
Battery Dead
Use after charging
Can't co nnect to the
network
The SIM card is not installed
Check the SIM card
Dirt on the metal surface of the SIM
card
Wipe with a clean cloth

11 / 12
SIM card is invalid
Contact your network service
provider
Out of GSM service area
Please move to the network
service provider service area
Weak signal
Please move to a place with
strong signal and try again
Unable to charge
The voltage is inconsistent with th e
range marked by the charger
Please use the same voltage as
the charger
Use a non
-standard charger
Please use the charger provided
by the factory
Poor contact
Check if the plug is connected
10. Repair and disposal
1) Never attempt to repair the instrument or adjust it yourself. We can no
longer guarantee perfect functioning if you do it.
2) Repairs may only be performed by Customer Service or authorized
dealers.
3) For environmental reasons, do not dispose of the device in the
household waste at the end of its useful life. Dispose of the unit at a
suitable local collection or recycling point. Dispose of the device in
accordance with EC Directive ‒ WEEE (Waste Electrical and Electronic
Equipment).
4) If you have any questions, please contact the local department
responsible for waste disposal.

12 / 12
11. Warranty card
Maintenance Card
Maintenance
shop
Delivery information
Fault
description
Maintenance result
IMEI
number
O
perator
