Lotus PC-94G User manual

Translation of the original instructions
Installation and operating instructions
KITCHEN WITH OVEN FOR
PROFESSIONAL USE
PC-94G PC-98G PC-912G PC-916G PCT-94G PCT-98G PCT-912G
PCT-916G CF4-98G CF4-98GE CF6-912G CF6-912GV CF6-912GEV
CF6-912GE CF8-916G CF8-916GV CF8-916GEV CF8-916GE CFV4-98GE
CFV6-912GEV
Model LIBR.ISTR.PC CF90G GE
Code 563009002
Review 1
Edition date 18/10/2018
Language English
LOTUS S.p.A.
Via Calmaor, 46
31020 San Vendemiano
[phone]
[phone]

Contents
Translation of the original instructions
2
Contents
1 INTRODUCTION......................................................................................................................... 3
1.1 Installation drawing...................................................................................................................... 3
1.2 Components................................................................................................................................. 4
1.3 Example installation of the appliance........................................................................................... 11
2 GENERAL INFORMATION......................................................................................................... 12
2.1 Declaration of compliance............................................................................................................ 12
2.2 User information, RAEE Directive on waste electrical and electronic equipment ........................ 13
2.3 Technical data table..................................................................................................................... 14
3 INSTALLATION........................................................................................................................... 16
3.1 Delivery checks ............................................................................................................................ 16
3.2 Removing the packaging ............................................................................................................. 16
3.3 Mechanical installation ................................................................................................................. 16
3.4 Electrical/gas connections ........................................................................................................... 16
4 BURNERS TECHNICAL DATA TABLE (ITGB).......................................................................... 21
4.1 Burners technical data table ........................................................................................................ 21
5 INSTRUCTIONS FOR USE......................................................................................................... 22
5.1 General information ..................................................................................................................... 22
5.2 Lighting and adjusting the open rings.......................................................................................... 22
5.3 Starting the main burner and adjusting the temperature.............................................................. 22
5.4 Switching the main burner off ...................................................................................................... 23
5.5 Turning the appliance off.............................................................................................................. 23
5.6 Lighting and regulating gas oven burner...................................................................................... 23
5.7 Turning on and adjusting the static oven ..................................................................................... 23
5.8 Turning on and adjusting the fan oven ......................................................................................... 24
5.9 Cooking table for the fan oven ..................................................................................................... 25
6 MAINTENANCE.......................................................................................................................... 27
6.1 Routine......................................................................................................................................... 27
6.2 Changing the open ring nozzles (fig. C)....................................................................................... 27
6.3 Substituting the nozzle in the pilot burner (fig. D)........................................................................ 27
6.4 Substituting the nozzle in the oven burner ................................................................................... 28
6.5 Minimum setting ........................................................................................................................... 28
6.6 Spare parts .................................................................................................................................. 28
7 CLEANING.................................................................................................................................. 29
7.1 Routine cleaning.......................................................................................................................... 29

INTRODUCTION
Translation of the original instructions
3
1 INTRODUCTION

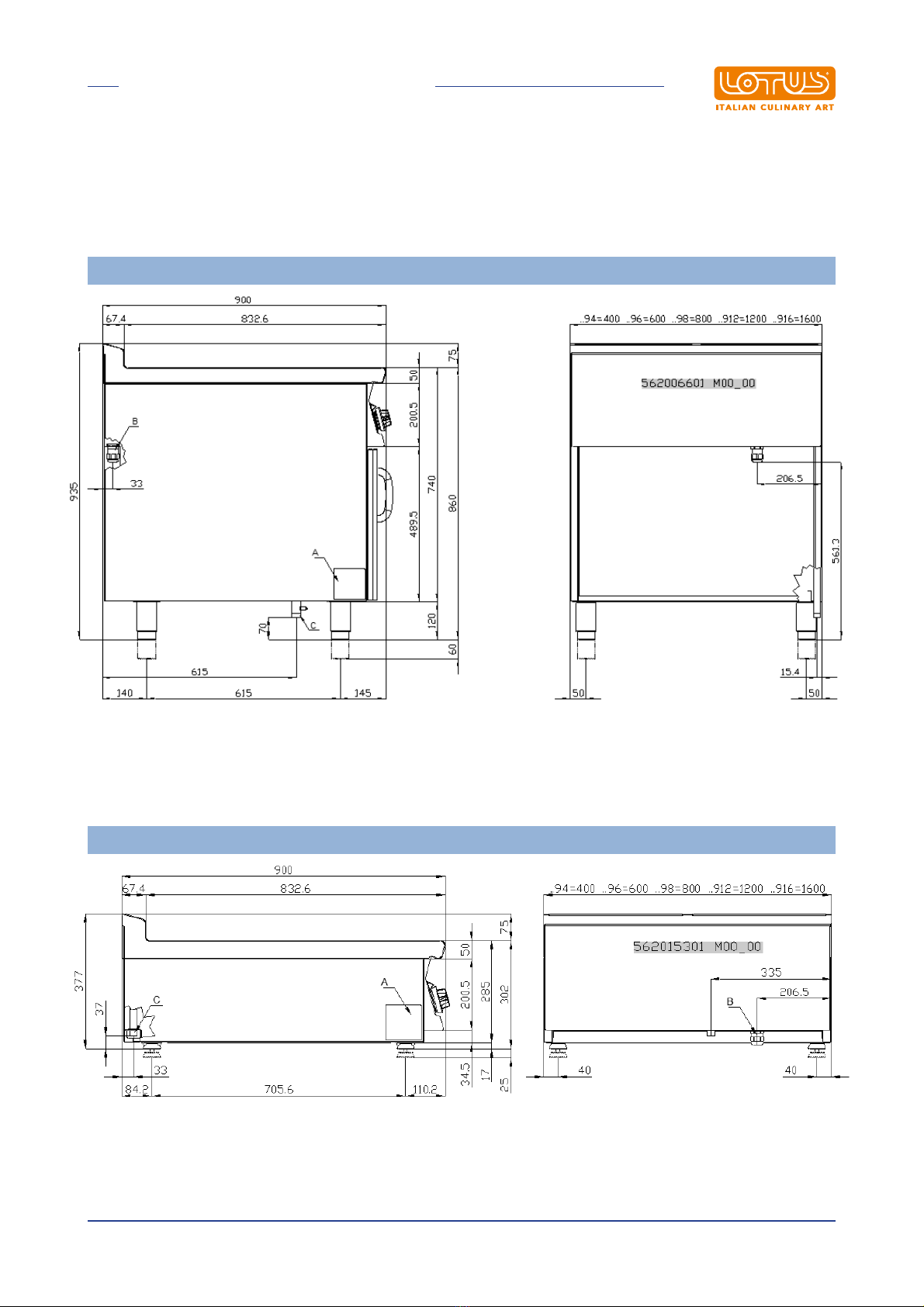

1.1 Installation drawing
FIG. 1 PC…, CF…
A Data Plate
B Electrical connection
C Gas connection

FIG. 2 PC...T
A Data Plate
C Gas connection

INTRODUCTION
Translation of the original instructions
4
1.2 Components
FIG. H

INTRODUCTION
Translation of the original instructions
5
FIG. B
1 Flame open by-pass
2 Oven by-pass

FIG.C (FLAMES)
1 Flame injector
2 Air adjustment
3 Pilot


INTRODUCTION
Translation of the original instructions
6
FIG. D (Fire pilot)
1 Pilot bracket screw
2 Pilot bracket
3 Pilot air bushing
4 Pilot injector
5 Injector screw
6 Spring
7 Extends drainage

FIG. E
1 Oven injector
2 Oven air regulation


INTRODUCTION
Translation of the original instructions
7

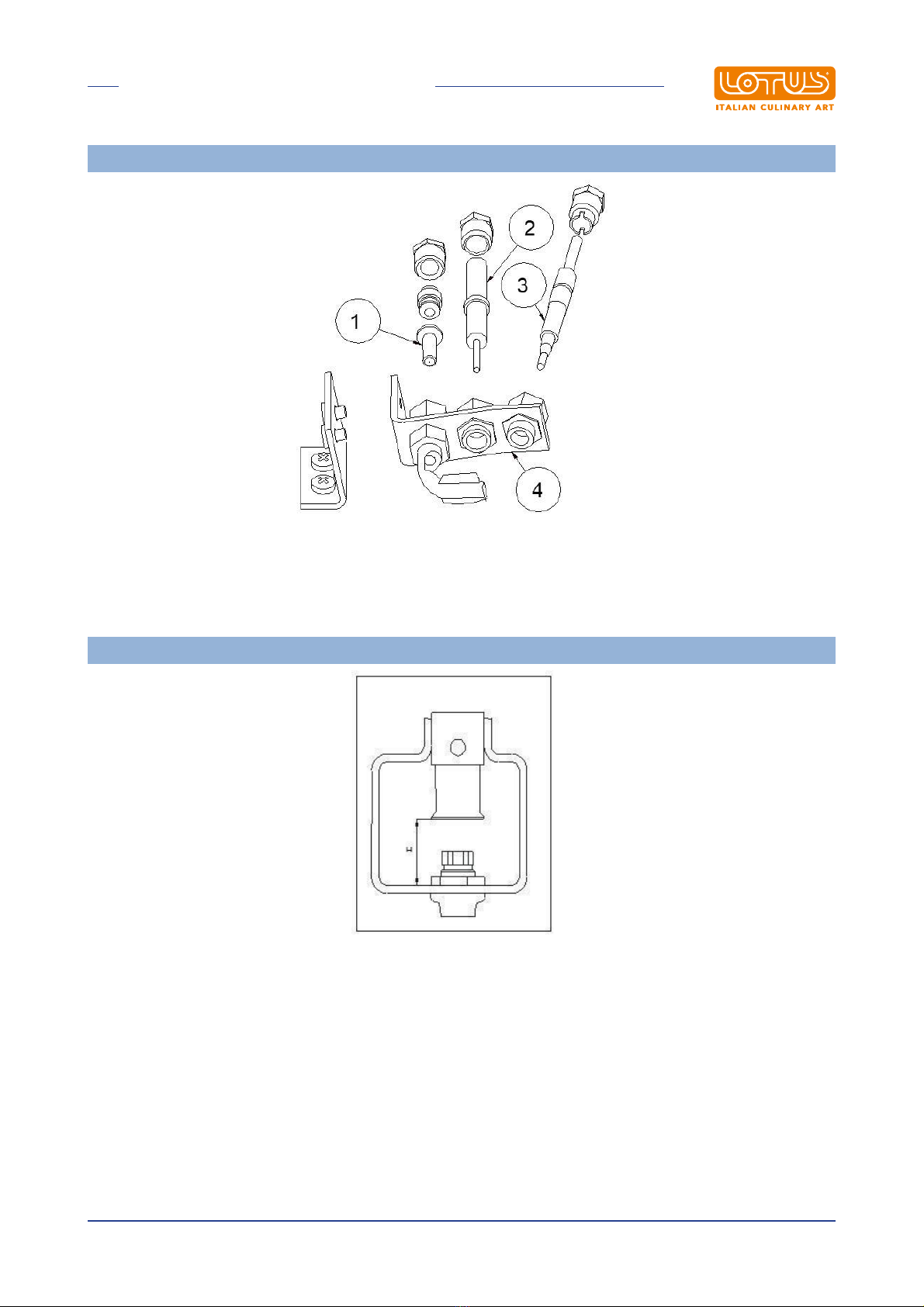

FIG. F (Oven pilot)
1 Pilot light nozzle
2 Ignition spark plug
3 Extends drainage
4 Pilot bracket

FIG. G
Burner air adjustment


INTRODUCTION
Translation of the original instructions
8
WIRING DIAGRAM OVEN GN 2/1 (H)
1 Switch
2 Power supply terminal board
3 Heating element
4 White indicator light
5 Green indicator light
6 Thermostat
7 Safety thermostat


INTRODUCTION
Translation of the original instructions
9
WIRING DIAGRAM OVEN GN 3/1 (I)
1 Switch
2 Power supply terminal board
3 Heating element
4 White indicator light
5 Green indicator light
6 Thermostat
7 Safety thermostat


INTRODUCTION
Translation of the original instructions
10

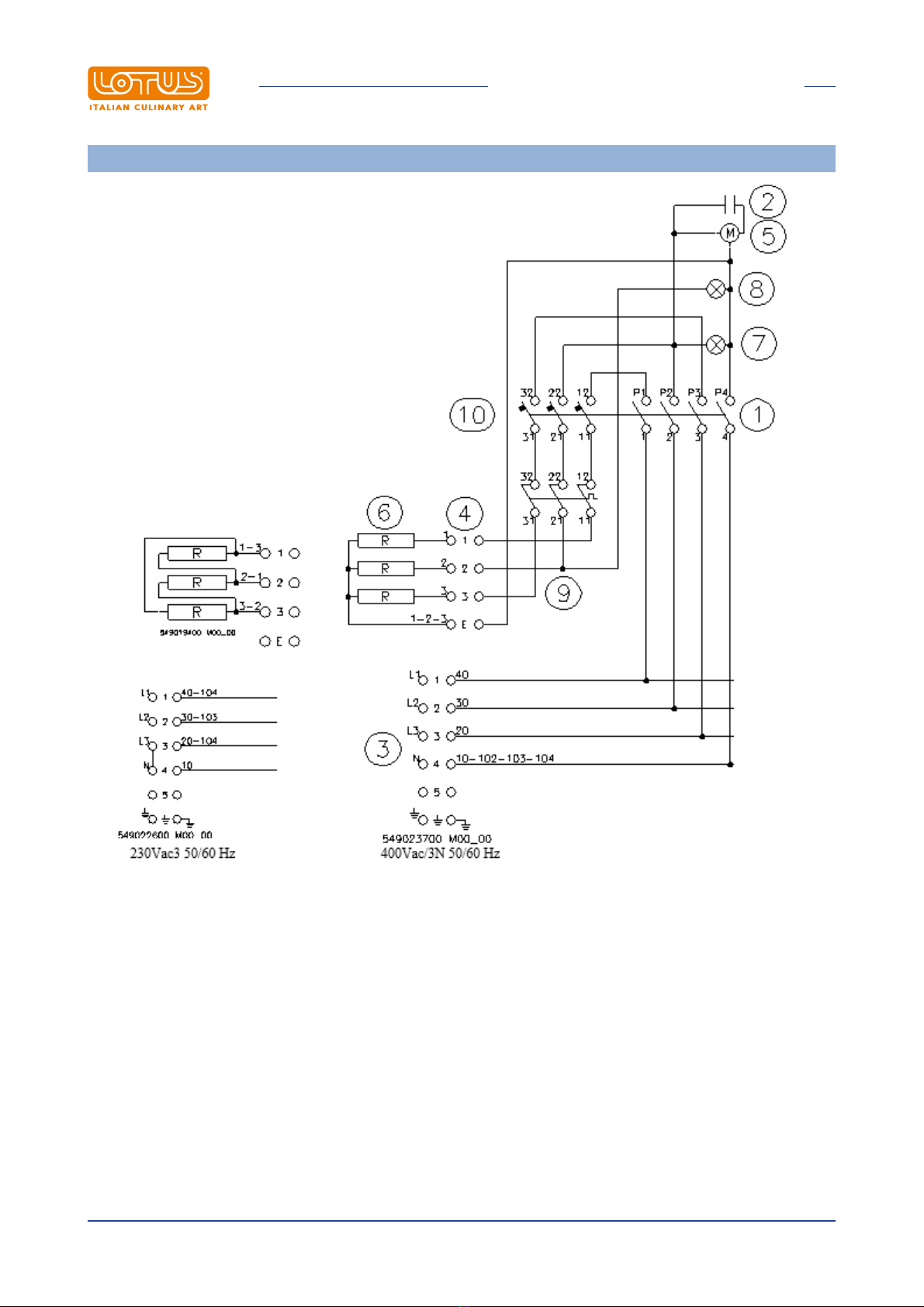

VENTILATED ELECTRICAL OVEN
1 Switch
2 Condenser
3 Power supply terminal board
4 Switching terminal board
5 Motor
6 Heating element
7 White indicator light
8 Green indicator light
9 Safety thermostat
10 Thermostat

