Lotus ATS-500R User manual

User Manual
Warranty(24~25)
“Important safeguards/general cautions ” are information that can protect the user from safety hazards and also prevent
losses. Please be sure to read the manual correctly for proper usage.
• Please read the manual carefully before installation and utilization.
• This product is made for the US and Canada.
• The function and design of the product may be changed for quality improvements.
ATS-500/ATS-500R

2 3
Contents
Preparation
Others
0peration
&
Cleaning
IMPORTANT SAFEGUARDS
General cautions
Product structure and designations
(Product components)
Control designations
Trouble shooting
Specications
Warranty
22
23
24-25
4
6
8
9
Installation and cautions
Initial operation
Separation of the unit from toilet bowl
Basic operation
Detailed operation
Maintenance
Draining water
Winter usage
12
14
15
16
17
20
21
21

4 5
1
IMPORTANT SAFEGUARDS
2
Cautions Before Installation
•READ ALL INSTRUCTIONS BEFORE INSTALLATION AND USE
DANGER - To reduce the risk of electrocution:
WARNING - To reduce the risk of burns, electrocution, re, or injury to persons.
1. Do not place or store product where it can fall or be pulled into a tub or sink.
2. Do not place in or drop into water or other liquid.
3. Do not reach for a product that has fallen into water.
If this happens unplug the unit and then remove item from water immediately.
1. Close supervision is necessary when this product is used by, on, or near children or invalids.
2. Use this product only for its intended use as described in this manual.
Do not use attachments not recommended by the manufacturer.
3. Never operate this product if it has a damaged cord or plug or if it is not working properly,
if it has been dropped or damaged, or dropped into water. Return the product to a service center for
examination and repair.
4. Keep the cord away from heated surfaces.
5. Never block the air openings of the product or place it on a soft surface, such as a bed or couch,
where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
6. Do not use the unit if you are sleeping or tired to the point of being drowsy.
7. Never drop or insert any object into any opening or hose.
8. Do not use outdoors or operate where aerosol (spray) products are being used or when oxidated products
are being administered.
9. Unplug this product before lling. Fill (reservoir) with water. Do not overll (or specify lling instructions)
SAVE THESE INSTRUCTIONS
THIS PRODUCT MUST BE PLUGGED into a regular voltage Grounded GFCI outlet (North America
120V AC, 60Hz). The rated power consumption is 660W / 600-700W. In locations where only a
standard two-prong outlet is available, it is the responsibility of the user to install a grounded
three-prong outlet. Using higher voltage is dangerous and may result in a re or other accident.
This product is not responsible for damage resulting from the use of it on other than specied
voltage, or operating it without proper grounding.
• Instruction and caution statements for cleaning, user maintenance, operations recommended by the manufacturer,
such as lubrication or nonlubrication, and a warning to the user that any other servicing should be performed by
an authorized service representative or that the product has no user serviceable parts.
This product has to be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with a
grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
Danger - Improper use of the grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either at blade terminal.
Consult with a licensed electrician if you have concerns about whether the product is properly grounded.

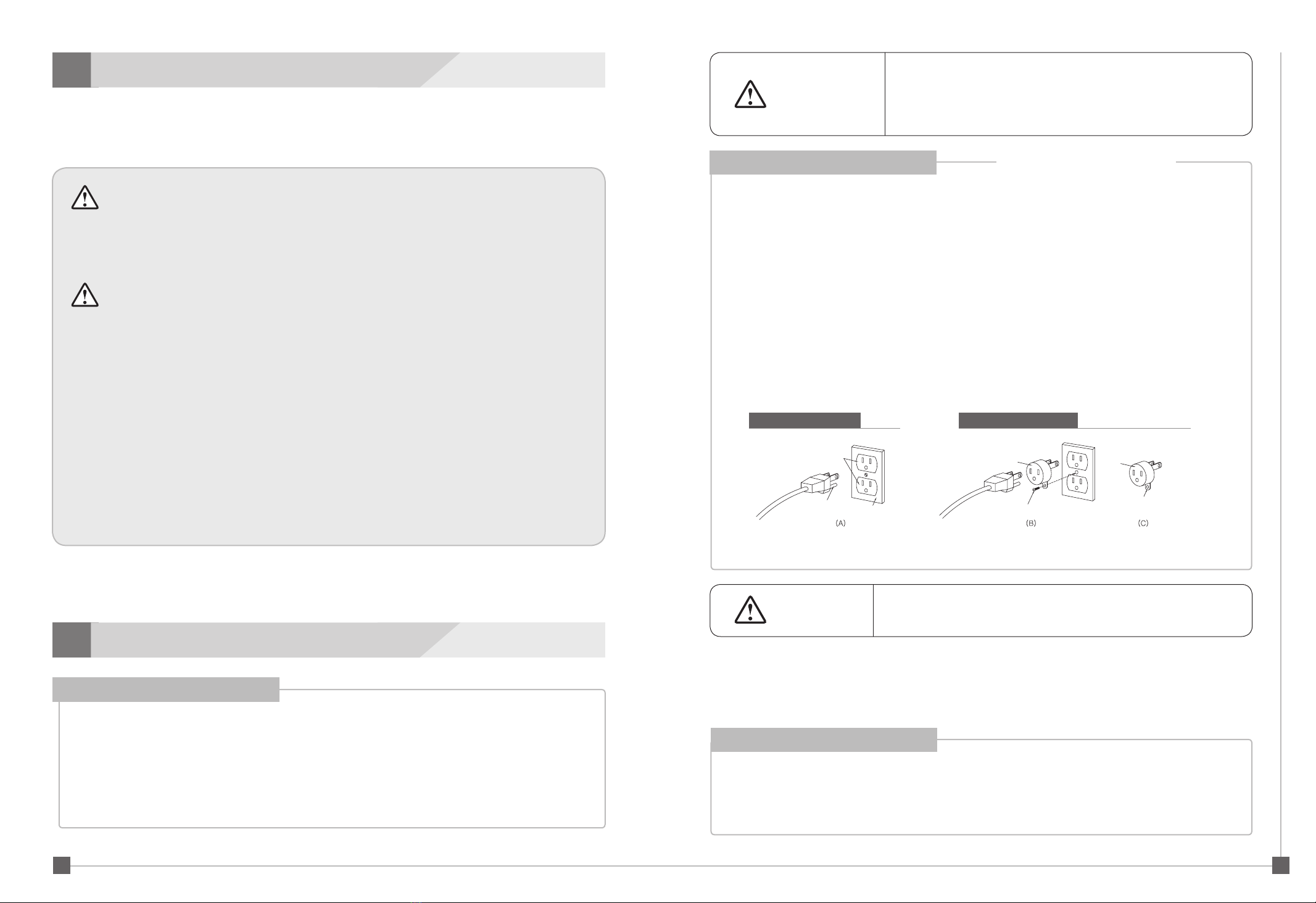

This product is for use on a normal 120 V circuit, and has a grounding plug that looks like the plug illustrated in sketch A
in Figure 1. A temporary adapter, which looks like the adapter illustrated in sketches B and C, may be used to connect this
plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not available. The temporary adapter
should be plugged into a properly grounded outlet (sketch A) and should be installed by a licensed electrician.
The green colored rigid ear, lug, and the ike extending from the adapter must be connected to a permanent ground such
as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in place by the screw.
WIRING REQUIREMENT
WIRING REQUIREMENT
GROUND INSTRUCTIONS
WARNING
DANGER
This Product must be on a separated circuit. No other appliance should share
the circuit with this product.
Sharing a circuit could cause the branch circuit fuse to blow
or the circuit breaker to trip. Continuous usage under these conditions may
result in re or property damage.
IMPROPER GROUNDING CAN RESULT IN A RISK OF ELECTRIC SHOCK.
Electric wiring has to be done in accordance with all local codes,
or in the absence of local codes, with National Electrical Codes.
GROUNDING PIN
ADAPTER ADAPTER
METAL SCREW
TAB for
Grounding Screw
GROUNDED
OUTLET
- Figure 1-
GROUNDED
OUTLET BOX
Preferred Connection Temporary Connection
The use of an extension cord is not recommended or advised. If it is necessary to use an extension cord, use only a three-prong
extension cord (one to one), and a three slot built-in GFCI receptacle that will accept the plug on this product. The marked rating
of the extension cord should be equal to or greater than the electrical rating of the unit (10amp). Consult a licensed electrician if
you are not sure whether the unit is properly grounded.
This appliance has to be grounded.

6 7
3
General Caution
Warning
Cautions
Disassembling
remodeling prohibited
Unplugging the
power cord
Observe at all times
Do not spray water
Grounding
Wet hands prohibited
Observe at all times
Use of fire prohibited
Prohibited
Prohibited
Prohibited
Prohibited Prohibited
Prohibited Prohibited
Prohibited Prohibited
Observe at all times Observe at all times
Prohibited
Do not separate, disassemble, repair or remodel the unit,
or allow foreign substances inside the unit.
• This can cause a re or electric shock.
• Only qualied service personnel should repair this product.
For safety purposes, unplug the power cord either when cleaning
the product or detaching the unit from the toilet bowl.
• Failure to do so can cause an electric shock.
• Children, elderly, patients and those who are physically limited should us the low temperature setting for
the seat, water and dryer.
• After using the unit at high temperatures, the temperature should be readjusted to‘low’ for the elderly,
children and for those with sensitive skin.
• Those who cannot adjust the temperature or those who have sensitive skin should take special precautions.
Do not use a damaged power cord or a loosely tted electric outlet.
• This can cause an electric shock.
When cleaning, do not use cleaning detergents (oxidized products, sink products, toilet cleaning
products, and any types of stain removers) on the external surface of the electronic toilet seat,
do not spray air fresheners or aromatic products onto seat in attempts to eliminate odors.
• Using cleaning detergents or air fresheners can change the color of the external surface and
can also cause problems with the seats functioning
Do not splash water on the main unit or power cord, and do not utilize it in areas of high
levels of humidity.
• This can cause a re or electric shock.
This product must be grounded before usage and
plugged into an AC 120V/60Hz power outlet.
• If grounding is not done, it can cause re or electric shock .
Do not stand on top of the seat
cover, seat or main body unit. This
can damage or break the unit.
• Do not use a broken product.
• As the unit is a bathroom appliance,
do not use it for any other purposes.
Do not slam or close the seat or
seat cover forcefully.
Prevent children from putting foreign
substances or inserting their hands
into the dryer outlet or onto the nozzle.
Do not pull the connecting
hose forcefully or bend it.
Never put the product
in water.
Do not let urine contact the dryer
outlet or nozzle area.
When cleaning or not using
the product over a long period
of time, be sure to unplug the
unit. (refer to page 19)
Do not touch the power cord with wet hands.
• Do not plug or unplug the power cord with wet hands as it can
cause electric shock or bodily injury.
Do not supply electrical power to the product until it is installed on the toilet and the water
supply hose is properly connected.
• This can cause a re or damage the product.
Do not connect several power cords into one outlet.
• This unit uses 120V power outlet.
• Can cause overheating or re hazards.
• Plug in the power cord properly into the power outlet.
Please use public water supply.
Please do not connect the unit to industrial water or greywater.
• This can cause skin infections or urinary tract infections and also damage the unit.
Keep the cord away from cigarettes or ammable substances.
• This can cause electric shock or bodily injury.
When the following people sit down on the seat, a guardian should pay extra attention so that they will not fall when sitting
on the toilet seat or standing up from it.
- Children, elderly, or those who cannot independently sit or stand on the seat.

8 9
4

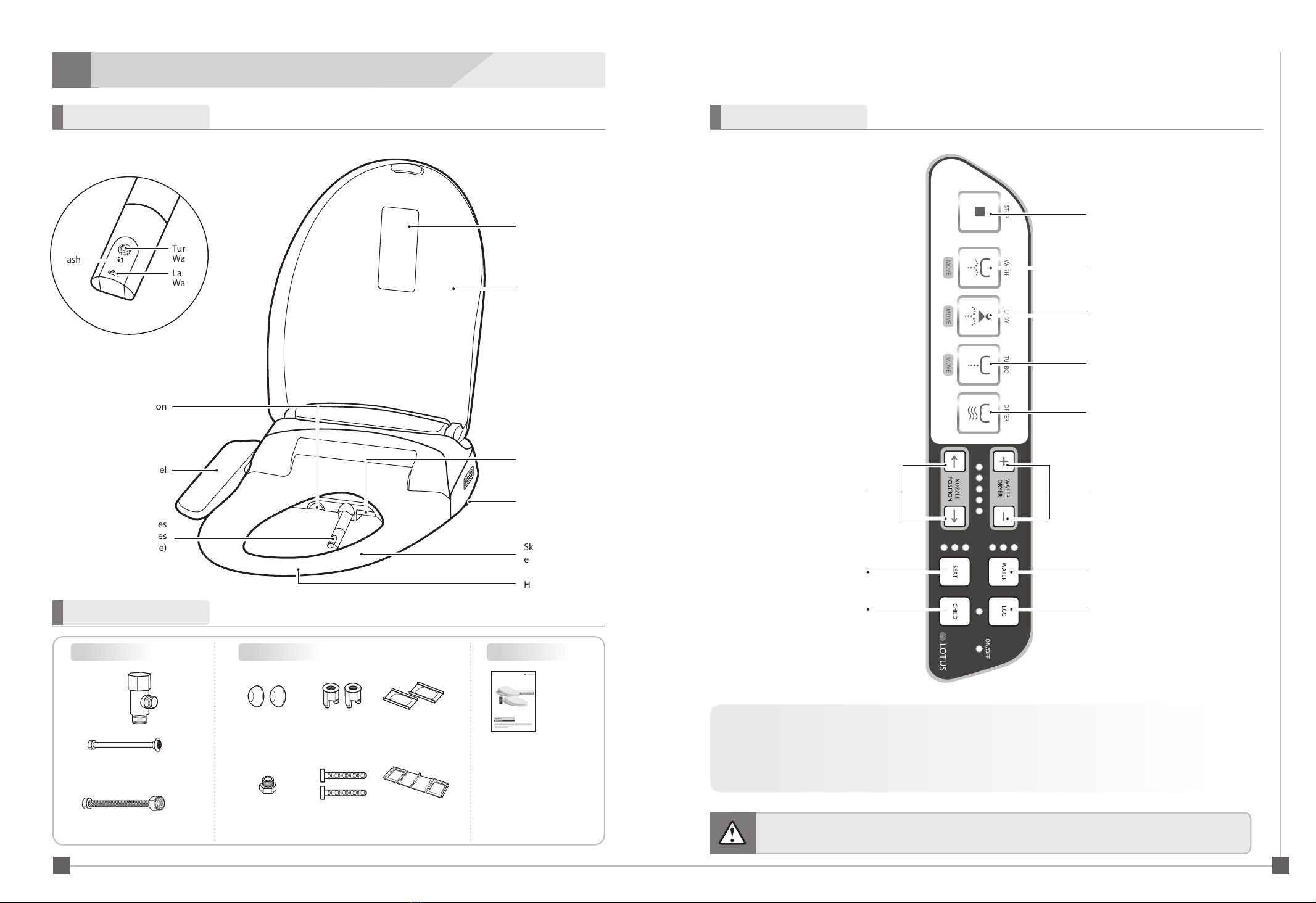

Product structure and designations
Main unit ATS-500 Control Panel
Product components
T-Valve
Water supply hose
(for electrical toilet seat)
Cone packing
(2pcs)
Mounting bolts
(2pcs)
Base Plate
(1pcs)
Nuts
(2pcs)
Bolt Case
(2pcs) User manual
Water supply hose
(for toilet flush water tank)
Lady
Wash
Caution label
Lid
Wash
Turbo
Wash
Warm air dryer
Heated seat
Unit Separation
Button
Skin sensor is
embedded in seat
Control Panel
Drain button
Dierent types
of nozzles
(refer above)
For plumbing For product xation Installation instructions
Stop all operations
Wash (Twice to oscillate)
Lady (Twice to oscillate)
Turbo (Twice to oscillate)
Warm Air Dryer
Adjust the water pressure
air dryer temperature.
Adjust the oscillation
function and nozzle
position (5 levels).
Seat Temperature
Child Wash
Water Temperature
Energy Saving mode.
• Always sit on the middle of the unit and do not sit on the side of the seat.
(The basic functions will not work if the skin sensor is not active.)
• When operating For Wash / Lady / Turbo, if the water temperature is low and
cold water comes out after using it for a period of time, pause and wait for 3 minutes for warm water to be provided.
• Drying will occur quicker if toilet paper is used to wipe away excess water prior to using the dryer function.
Sitting on the heated seat or using the dryer for an extended period of time can potentially cause low degre burning.
Special precautions should be taken for children, those who cannot adjust the temperature, and those who have sensitive skin.
Spare Nut
(With Packing)

10 11
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECOCHILD
Stop all operations
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECOCHILD
Wash
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECOCHILD
Lady
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECOCHILD
Turbo
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECOCHILD
Warm Air Dryer
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECOCHILD
Adjust the water pressure
air dryer temperature.
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECOCHILD
Adjust the oscillation
function and nozzle
position (5 levels).
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECOCHILD
Water Temperature
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECOCHILD
Seat Temperature
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECO
CHILD
Child Wash
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECOCHILD
Nozzle is operating back
and front.
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECO
CHILD
Energy Saving mode.
0/

0''
0/

0''
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECOCHILD
4
Product structure and designations
Main unit Remote control
Simple key
Product components
T-Valve
Water supply hose
(for electrical toilet seat)
Cone packing
(2pcs)
Mounting bolts
(2pcs)
Base Plate
(1pcs)
Nuts
(2pcs)
Bolt Case
(2pcs) User manual
Water supply hose
(for toilet flush water tank)
For plumbing For product xation Remote controller
material Installation instructions
• Always sit on the middle of the unit and do not sit on the side of the seat.
(The basic functions will not work if the skin sensor is not active.)
• When operating For Wash / Lady / Turbo, if the water temperature is low and
cold water comes out after using it for a period of time, pause and wait for 3 minutes for warm water to be provided.
• Drying will occur quicker if toilet paper is used to wipe away excess water prior to using the dryer function.
Sitting on the heated seat or using the dryer for an extended period of time can potentially cause low degre burning.
Special precautions should be taken for children, those who cannot adjust the temperature, and those who have sensitive skin.
Spare Nut
(With Packing)
ATS-500R
Lady
Wash
Caution label
Lid
Wash
Turbo
Wash
Warm air dryer
Heated seat
Unit Separation
Button
Skin sensor is
embedded in seat
Simple key
Drain button
Dierent types
of nozzles
(refer above)
Remote control
Remote control
xed panel
Remote
control
Remote
control fixed
panel
AA battery
(2 pcs)
Stop all operations
Lady Wash
IR receiver part

12 13
5
Installation
Caution
• This product requires 120V usage.
• Please do not plug in the electrical cord prior to installation.
• Please consult with a licensed electrician if electrical work is needed, and in case a grounded outlet
is not available, grounding should be done in order to prevent short circuits or electric shock.
Check the water valve
Installation steps
Check the water valve in the bathroom. You may need to consider purchasing additional components.
For the following case, the T-valve alone is sucient for connection.
Shut water supply by turning it to the right
and disassemble the water hose.
Put the bolt into the bolt case and align it with the
top of the base plate. Insert bolt with bolt case onto
the base plate. After this is done hold the bolts,
slide it into the bottom of the unit until it snaps in
place.
Once the base plate is attached to the unit, align
the unit and toilet xture facing front, and then
insert the mounting bolts to the toilet
mounting holes.
Place 1.5V(AA) batteries properly and shut the cover.
Take o the cover on the adhesive tape on remote
control xed panel and stick the remote control xed
panel on the wall.
ATS-500R Only
Install the main unit and insert the mounting
bolts to the toilet mounting holes.
Connect the exible tube from side of
T-valve to the unit. Turn the water
valve to the left to allow water to ow.
Then slide remote control on to remote control
xed panel.
※Customers should use the new hose set provided
with the product. Do not use used set again.
Disconnect existing hose from water tank.
Connect the T-valve to the water tank.
Connect the water supply hose to the
assembled T-valve.
Remove existing seat and lid.
• Water supply valve
Minus home Handle Inner bolt for water valve
• Inner bolt water valve
• Release the bolts on both
sides of the existing toilet
seat to remove the seat
and lid.
• Store the removed seat,
nut and water hose in a
safe area in case you
move or it needs to be
reinstalled.
Exisiting toilet
seat
Toilet
body
Nut
Water supply hose
Installed bolt case
Cone Packing
Cone Packing
Back
Bolt
Water supply hose
Water supply valve
Nut
Nut
Base plate
Bolt
Water valve
T-valve
(with packing)
Water Tank
Shut off Valve
• Professional engineering is needed for plumbing work
on specialized water pipes and ush valve pipes.
• Please consult with a qualied specialist.
• Please put the unused water hose in a secure area.
󱀷
󱀻
󱀽
󱀿
󱀼
󱀾
󱁀
󱀸
󱀹 󱀺
B
attery cover

14 15
6

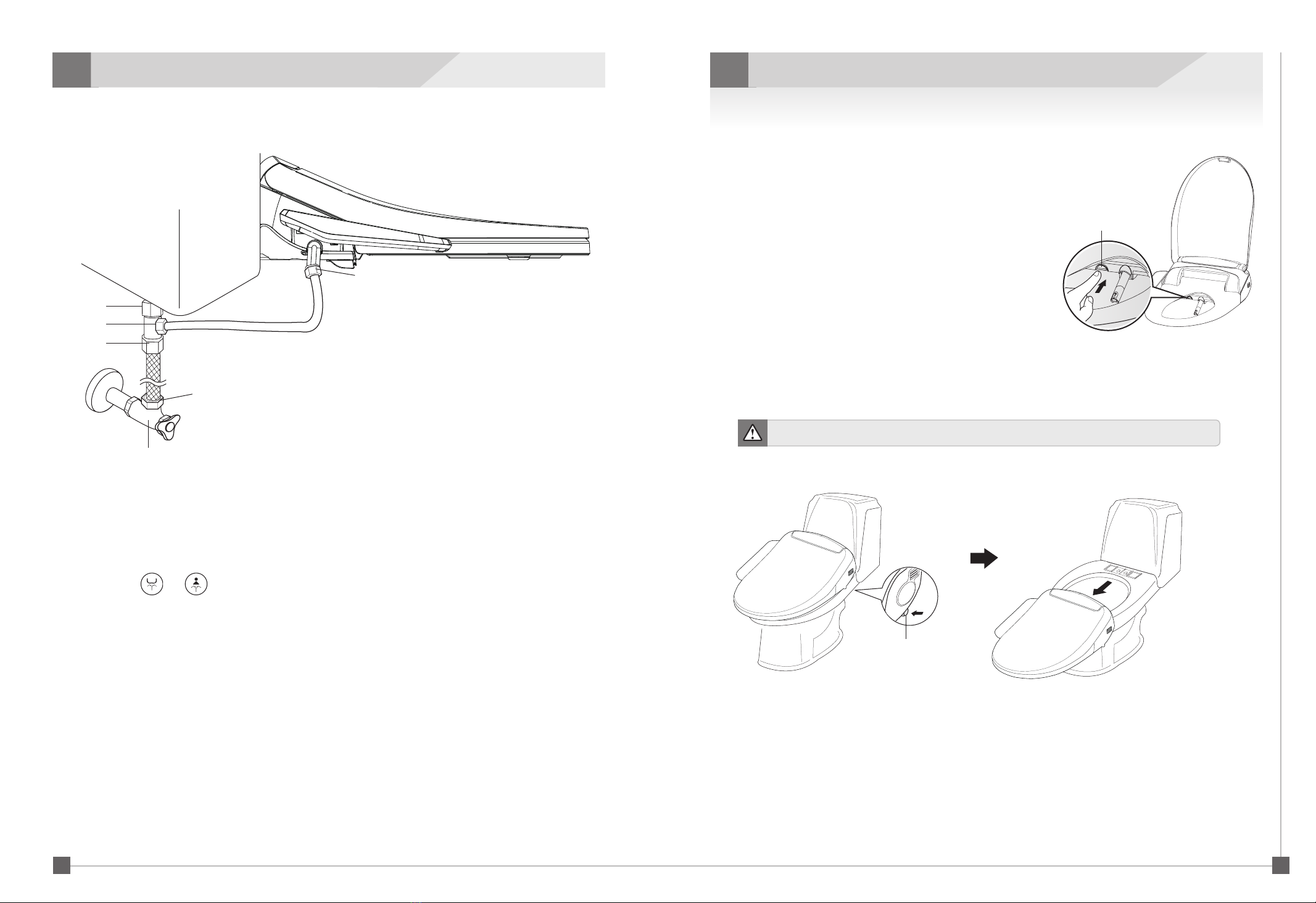

Initial Operation 7 Separation of unit from the toilet bowl
Turn the water valve to the left and see if there is any water leaking from the hose.(1~5)
Disconnect the power plug
Shut the water supply valve
Push and hold the button on the right side of the unit to completely
drain the water from the water tank.
Disconnect the T-valve from the water supply. (Refer to page 10~11)
Unit separation button
Connect the water hose to the toilet which was disassembled while installing the electronic toilet seat,
and turn the water valve to the left to open it. See if there is any leaking from the water hose connection.
Re-install the toilet seat and lid that was separated when installing the electronic toilet seat.
• As explained above, steps 1~4 are instructions for separation of the unit for basic cleaning purposes,
and steps 5~7 are instructions for separation when moving, etc.
Loosen the nut on the hose that is connected to the unit, and
then separate the electronic toilet seat from the toilet in the
following order as illustrated.
• While pushing the button (area shown as an arrow) push the electronic toilet seat slightly toward to the front
and then the body unit will begin to slide out.
Next, lightly pull the unit toward the front and it will detach from the toilet.
Please follow the instructions below when moving or separating the unit from the toilet for cleaning purposes
Connect the power cord to the 120V electric outlet.
Water supply valve
If you press or button, the water will begin to enter the heated water tank.
Function Check
• If the tank is full, then a low beeping sound will occur which indicates that
preparation is complete.
• In order to check whether the functions work, you will rst need to touch the seat or sit on it to
activate the skin sensor.
• Please be aware that water will come out. This product can only operate when the user sits on the
electronic toilet seat.
󱎲
󱎲
󱎳
󱎴
󱎶
󱎷
󱎸
󱎵
󱎳
󱎴
󱎵
󱃦
󱃧
󱃨
󱃩
󱃪
Do not turn the seat upside-down. This can cause damage to the unit as well as re hazard.
Drain button

16 17
Caution
8

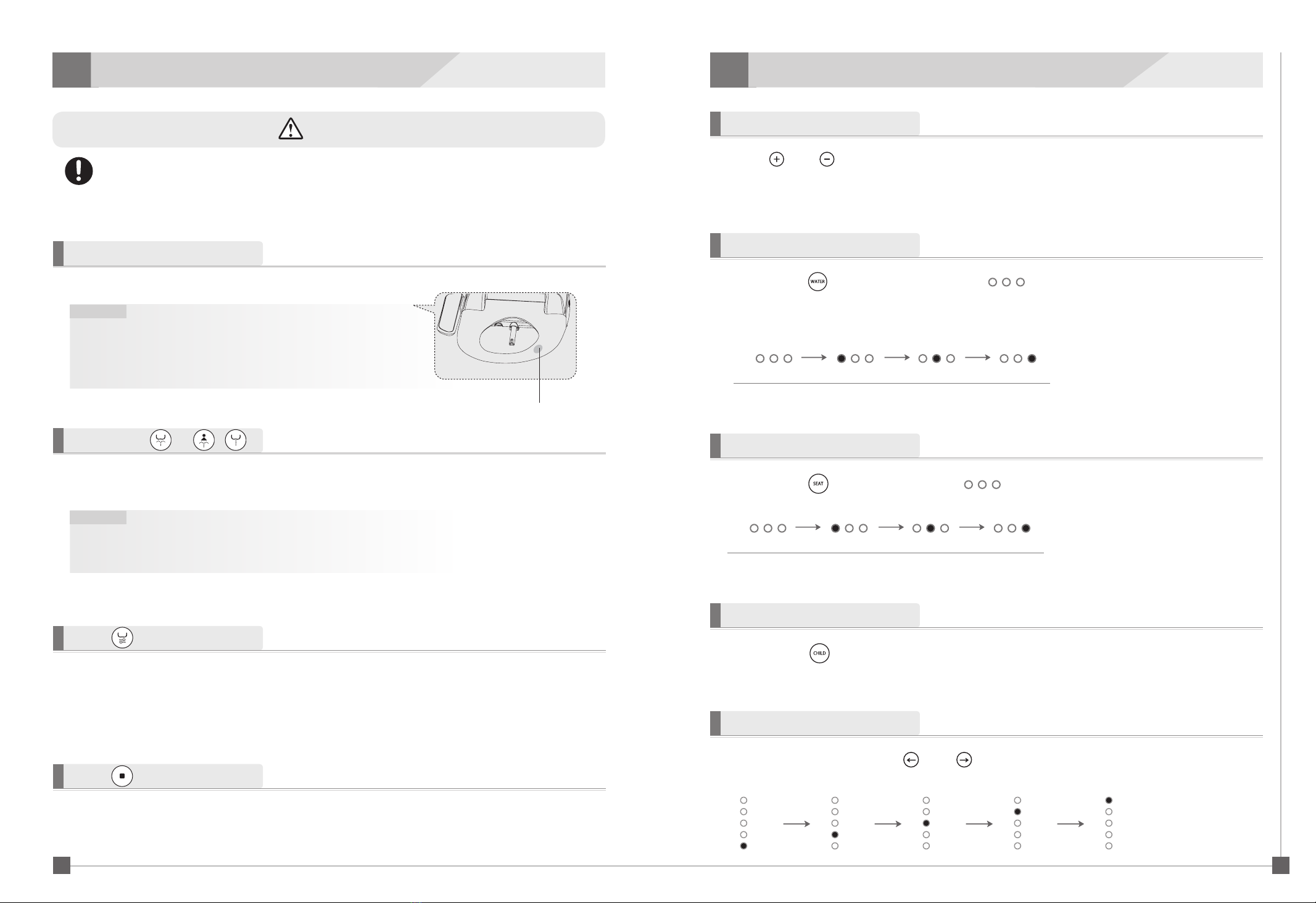

Operation (Basic) 9 Operation (Instructions to operate each function)
Cautions
Please press the‘o’ or ‘low’ button for seat temperature when the following persons use it.
Special precautions should be taken for children, those who cannot adjust the temperature, and
those who have sensitive skin.
• Sit on the toilet seat so that the skin sensor can fully be activated.
• To Stop Wash, Lady Wash, Turbo Wash and Air Dryer.
• Rear Wash, Lady Wash, Turbo Wash.
• The selected function can be used for up to 1 minute.
• The display light for the (high), (low) on the control panel will turn on while the
dryer is activated.
• The selected function can be used up to 3 minutes.
• Before using the dryer, wiping the wet area with toilet paper will let drying occur more quickly.
Sit on the seat.
Please press or ,
Press
Press
• Do not press the control buttons harder than needed. This can cause damage.
• The skin sensor of the seat is only activated with bodily contact,
please be sure to pull down your clothes amply and do not cover the seat
with any clothing items, as it can prevent the seat from activating.
• The wash functions will automatically stop after one minute.
If you want to use it continuously press the button again.
Warning
Warning
Skin sensor
• Press (high), (low) for the Water/Dryer (Water pressure can be adjusted 1~5 levels.)
• It is recommended that the water lter (strainer) is cleaned periodically, as water pressure
can be weakened if foreign substances cling onto the water lter (strainer).
Water pressure
• When pressing (WATER) button the display light ( ) will change to allow the adjustment
of the water temperature to the desired level.
• Average maintenance time for warm water: This product can maintain the warm water
level for up to 50 seconds during a 1 minute wash session.
Water temperature adjustment
Low - High
Room temperature
Low - High
Low
Low - High
Normal
Low - High
High
• When pressing (SEAT) button display light ( ) will change.
Temperature can be adjusted to the desired level.
Seat temperature
Low - High
Room temperature
Low - High
Low
Low - High
Normal
Low - High
High
• When pressing (CHILD) button the unit will automatically run Rear Wash for 30 seconds then Dryer for 1 minute.
• This function adjusts nozzle position and dryer temprature for a child’s specification.
Child Wash
• When using the wash functions use (front), (back) buttons to adjust the nozzle to t to your body.
• LED level
Nozzle position adjustment
Front
I
Back
Front
I
Back

18 19
9
Operation (Instructions to operate each function)
Automated water drainage
• When Power OFF mode is set, and the product is not being used for 72 hours, the product will automatically
drain the water in water tank to prevent contamination of germs and mold in water tank.
Automatic self cleaning nozzle
• Before and after using For Wash / Lady Wash / Turbo, the nozzle will automatically clean itself.
Warm air dryer adjustment
• The ( ) display lamp for the Water pressure / Dryer will change when using the dryer function.
• Adjust the dryer temperature by pressing (Strong), (Weak).
• The drying functions can be adjusted up to 5 levels.
• LED level
Strong
I
Weak
Strong
I
Weak
Energy saver
• When pressing (ECO) the energy saver light on the electronic toilet seat will turn on.
• Energy saver mode automatically maintains a water and seat temperature of 89.6.
• If you want to turn o the energy saver function,
press the (ECO) button again and the display light will turn o.
• The energy saver function will automatically cancel when using the unit during a
power outage, and also after standing up from the seat.
In order to save energy, please abide by the following instructions:
• Keep seat cover closed when not in use to prevent heat from being lost.
• Keep temperature set to low.
• Unplug the power cord if you do not plan to use it for a long period of time.
Other energy saving tips
During a power outage, the water or seat heating temperature could appear to be lower than
the actual temperature setting.
Oscillate
• The nozzle will automatically move back and forth covering a wider area for washing.
[ATS-500] While using Wash, Lady or Turbo; press the same button again to oscillate nozzle.
[ATS-500R] While using Wash, Lady or Turbo; press the (MOVE) button again to oscillate nozzle.
• Press button again to stop oscillation.
• Auto-Setting of Oscillation Feature :
You can set this function to automatically oscillate whenever the seat is occupied and
the Posterior or Feminine washes are in operation.
[ATS-500] Press the (Nozzle position 'Front') button for 3 seconds.
[ATS-500R] Press the (MOVE) button for 3 seconds.
(Active single‘beep’ sound/ deactivate ‘be-beep’sound)
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECOCHILD
STOP WASH
LADY TURBO
DRYER
MOVE
NOZZLE POSITION
WATER DRYER
WATER
SEAT
ECOCHILD
Skin sensor
• User can turn off the skin sensor on the product.
• Deactivation of Skin Sensor :
Press the + (STOP + WASH) button for more than 3 seconds while unseated.
* Press STOP + WASH button on the simple key for ATS-500R.
(Active single‘beep’ sound/ deactivate ‘be-beep’sound)
Temperature/Eco lock mode (ATS-500 only)
• Warm water temperature, seat temperature, and eco button can be locked.
• Deactivation of Temperature/eco lock mode :
Press the + (STOP + ECO) button for more than 3 seconds while unseated.
(Active single‘beep’ sound/ deactivate ‘be-beep’sound)
Power ON/OFF
• Turn off the product power when the product is not used in long period by pressing (stop/power) button.
*Press stop/power button on the simple key for ATS-500R.
• Power OFF mode ('be-beep')
Press (Stop/Power) button over 3seconds
• Power ON mode ('beep')
Press (Stop/Power) button shortly, while Power OFF mode.

20 21
10
Maintenance 11 Draining water from tank
12
Maintenance for winter season
Cleaning the body unit
Cleaning the water lter (strainer)
• Beware to not use any bathroom cleaning detergents such as benzene acid chemical detergent on the seat exterior.
- Using any type of chemical products or rough scrubbers on the electronic toilet seat surface,
which is made out of plastic material can either damage or change its color.
• Do not spray water directly or use a shower hose on the main body unit.
- Can cause fire or damage to the unit.
• When cleaning, the power cord must be unplugged from the power outlet,
and make sure water does not contact the cord and/or outlet.
• After cleaning, use a soft cloth to dry the unit.
1) Close the water shut off valve.
2) Flush the toilet to empty the water reservoir.
3) Unscrew the water hose nut.
Water supply valve
Water filter
(Strainer)
Do not use any cleaning products such as Oxy Clean.
4) Clean the strainer with a small brush or water
5) Re-screw the water hose nut.
6) Open the water shut off valve.
Disconnect the power plug.
󱎲
Check if the power cord is plugged in securely.
󱎲
Adjust the button to "low" to prevent water from freezing.
󱎳
If the product is not used for a long period of time,
please disconnect the power cord and
drain the water from the internal unit.
󱎴
Please do not keep this product outdoors during the winter
as the cold temperature may damage the product.
󱎵
Shut the valve by turning it to the right.
󱎳
Press the drain lever until the water is completely drained from water tank.
󱎴
To re-supply water after draining, open the water shut o valve.
󱎵
Do not drink the drained water.
Do not insert finger into the drain hole.
Before draining, unplug the power cord and wait 30 minutes until the unit has cooled down.
Drain button
Cleaning the nozzle
• Please perform the actions below without sitting on the toilet seat
• On control panel press and hold the button for three(3) seconds and the nozzle will extend.
And nozzle stop during two minutes.
*Press WASH button on the simple key for ATS-500R
• If nozzle tip pulls forward after rotating clockwise nozzle tip, it is separated from nozzle.
• To clean use a soft brush or a soft cloth
• Assemble in the reverse order of when nozzole tip to replace a new nozzle tip or finished cleaning.
• If push button, nozzle will retracked back to its original position and will perform it's self-cleaning function.
Separation of the nozzle Assembly of the nozzle

22 23
• The design and function of this product could be changed without notice for the improvement of its quality.
13
Trouble shooting 14 Specications
• Please be sure to check the following aspects before asking for help.
Troubleshooting Factors to check
The water does not spray
• Check if the water tank is lled.
• See if the water valve is closed.
• Check if the water lter (strainer) is clogged.
The unit is not operating
• Check if the power cord is connected.
• See if the power is turned o from the main unit.
• See if you are correctly sitting on the seat so that
the skin sensor switch will function properly.
(Make sure that the Skin sensor on the seat touches your skin when you sit on the seat.)
Water is leaking • After checking if the plumbing is correctly connected, if water is leaking
from the main unit disconnect and contact service personnel.
Water pressure is weak • Check if the water pressure is set at “low”.
• Check if the water lter (strainer) is clogged.
Seat, water and
dryer is not warm
• See if the water temperature is set to “low”.
• Check if the dryer temperature is set to“low”.
When the nozzle doesn’t
come out
• See if the skin sensor on the seat is touching the skin.
When water is cold or warm
• Adjust the temperature to (mid, high).
• If someone has already used the wash function, wait about 3 minutes to use it.
• Sit on the seat for approximately 3 minutes and then use it.
Body unit shakes • Tighten the bolt (do not over-tighten)
Dryer does not work • See if the skin sensor on the seat is touching the skin.
Specication ATS-500 ATS-500R
Power rating 120V / 60Hz / 670W
Water inlet
type
Type Direct Inlet Flow Type
Water inlet pressure 0.07 ~ 0.74MPa
Wash
device
Wash Max. 700cc ± 100cc / min.
Lady Wash Max. 700cc ± 100cc / min.
Turbo Wash Max. 700cc ± 100cc / min.
Water pressure
adjustments 5 levels
Warm water temperature
control Room Temp. ~ Low, Normal, High
Heater 600W
Safety device Thermal fuse, Thermal switch, Float switch
Heated
seat
Temperature control Room Temp. ~ Low, Normal, High
Heater 55 W
Safety device Thermal fuse
Warm Air
Dryer
Device
Warm air control Room temp ~ 131° F , 5 levels
Heater 250W
Safety device Thermal fuse, Bimetal
ECO
о
DRYER
о
Remote control -
о
Inlet water temperature 41 °F ~ 95°F (5°C ~ 35°C)
Ambient temperature 41 °F ~ 104°F (5°C ~ 40°C)
Dimensions
Elongated Elongated
W : 17.3 inch (440mm)
L : 20 inch (508mm)
H : 6.06 inch (154mm)
W : 15.4 inch (392mm)
L : 20 inch (508mm)
H : 6.06 inch (154mm)
Weight (Ibs) 9.7 lbs (Packed : 12.8 lbs)

24 25
Information to the user
Warranty
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio commu-
nications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the
following measures:
This limited warranty gives you specific legal rights, and you may also have other rights that may vary
from state to state or according to other conditions.
General Limited Warranty Covered The Manufacturer, Lotus Hygiene Systems Inc. will warrant to the
original retail buyer only, which fails in normal use and within the applicable periods specified below,
following the terms of this warranty. Lotus Hygiene Systems Inc. replacement will be warranted to the
original purchaser of the products.
The Parts Warranty If the parts fail within Twelve (12) months after original installation following the
installation manual and normal operation, Lotus Hygiene Systems Inc. will furnish a replacement part(s).
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications not expressly approved by the manufacturer could void the
users authority to operate the equipment and limited warranty.
WARNING
• This Warranty does not cover the following
Lotus Hygiene Systems Inc.
Limited Warranty
1. Defects and/or malfunctions from failure to properly install, operate and/or maintain the unit in
accordance with the installation manual.
2. Damage from abuse, fire, flood, freeze, and any other acts of Nature.
3. Damage resulting from unauthorized alterations, attachments and/or repairs.
4. If the product was not installed properly.
5. Damage to the unit by animals, mice or insects.
6. Damage caused by excess moisture or from water clogging the bathroom or restroom.
7. Damage from not being installed in accordance with all applicable local codes, ordinances and
good trade practices.
8. Color fading due to use in wrong environment.
9. Damage from chemials.
10. The warranty will not be covered without providing the date of purchase with original receipt.
*The serial number is located in the lid of the unit.
PLEASE
SEND
TO
WARRANTY REGISTRATION
Purchaser
Dealer(Company)
To ensure your warranty protection, you must complete and return this
registration with a copy of the original sales receipt to Lotus Hygiene
System Inc. within 15 days after data of purchase to validate your warranty.
1621 E. Saint Andrew Pl.
Santa Ana, CA 92705
www.LotusSeats.com
[email protected]om
For warranty
registration, please visit
www.LotusSeats.com
Model
Company
City Country
Dealer Code
Address
Address
* Serial Number #

MEMO MEMO

Lotus Hygiene Systems Inc.
www.LotusSeats.com
Tel: [phone]
Email: [e-mail]
2020 DEC 1.2
