Kohler K-5171K Assembly instructions

Installation and Care Guide
One-Piece Toilet


1210096-X2-F ©2017 Kohler Co.
K-5171K, K-5171X K-30313X

1210096-X2-F 2 Kohler Co.

Thank You For Choosing Kohler Company
Thank you for choosing Kohler. Kohler craftsmanship oers you a rare
combination of proven performance and graceful sophistication that will
satisfy you for years to come. The dependability and beauty of your Kohler
product will surpass your highest expectations. We’re very proud of our
products here at Kohler and we know you will be too.
Please take a few minutes to review this manual before you start installation. If
you encounter any installation or performance problems, please don’t hesitate
to contact us. Our phone numbers and website are listed on back cover.
All information in this manual is based upon the latest product information
available at the time of publication. At Kohler, we constantly strive to improve
the quality of our products. We reserve the right to make changes in product
characteristics, packaging or availability at any time without notice.
Thank you for choosing Kohler Company.
  
 
 
 
 

  

 


 

Kohler Co. 3 1210096-X2-F
Before You Begin

Important Information
IMPORTANT NOTICE TO INSTALLERS!: Please leave these instructions for
the consumer. They contain important information.
In addition to installation procedures, this manual contains important care and
cleaning. Please retain for future reference.
NOTE: The toilet pictured in the installation steps may dier from the model
being installed.
 
 

 

CAUTION: Risk of personal injury or product damage. Handle with
care. Product can break, chip, or cause injury if handled carelessly.
¨Observe all local plumbing and building codes.
¨Prior to installation, unpack the new product and inspect it for damage.
Return the product to its protective carton until you are ready to install it.
¨Failure to follow these precautions may result in a poor installation.
¨ If the existing toilet does not have a supply shut-o valve below the tank,
install one before installing the new toilet.
¨Do not use white cement or high lime content cements to install this toilet.
The expansion of cement due to a rise in temperature may make the toilet
crack or cause damage. Kohler is not responsible for any damage caused by
installation with the use of cement.
¨Fixture dimensions are nominal and conform to tolerances established by
Standards TIS.
CAUTION: Risk of property or product damage. Turn on the water
and allow water to ow through the supply pipe to ush the system of
any debris before connecting ll valve.
CAUTION: Risk of hazardous gases. If the new toilet is not installed
immediately, temporarily place a rag in the closet ange.

1210096-X2-F 4 Kohler Co.

Tools/


 
¨ 
¨ 

¨ 
¨  

¨  
 

¨ 




 


Kohler Co. 5 1210096-X2-F
Installation/
1
Verify inlet and outlet position.

3 4
2



305
180
160
1/2"
Supply
เกลียวท่อนํ�าดี
Position the template on the floor to
ensure the template against the wall.
Tape in place.
10
mm/มม.
Position the brackets as shown on
the template and install.



Draw centerline
on the floor.


Drill 2 floor mounting holes and
3 flange holes. Insert anchors.

1210096-X2-F 6 Kohler Co.
Installation/

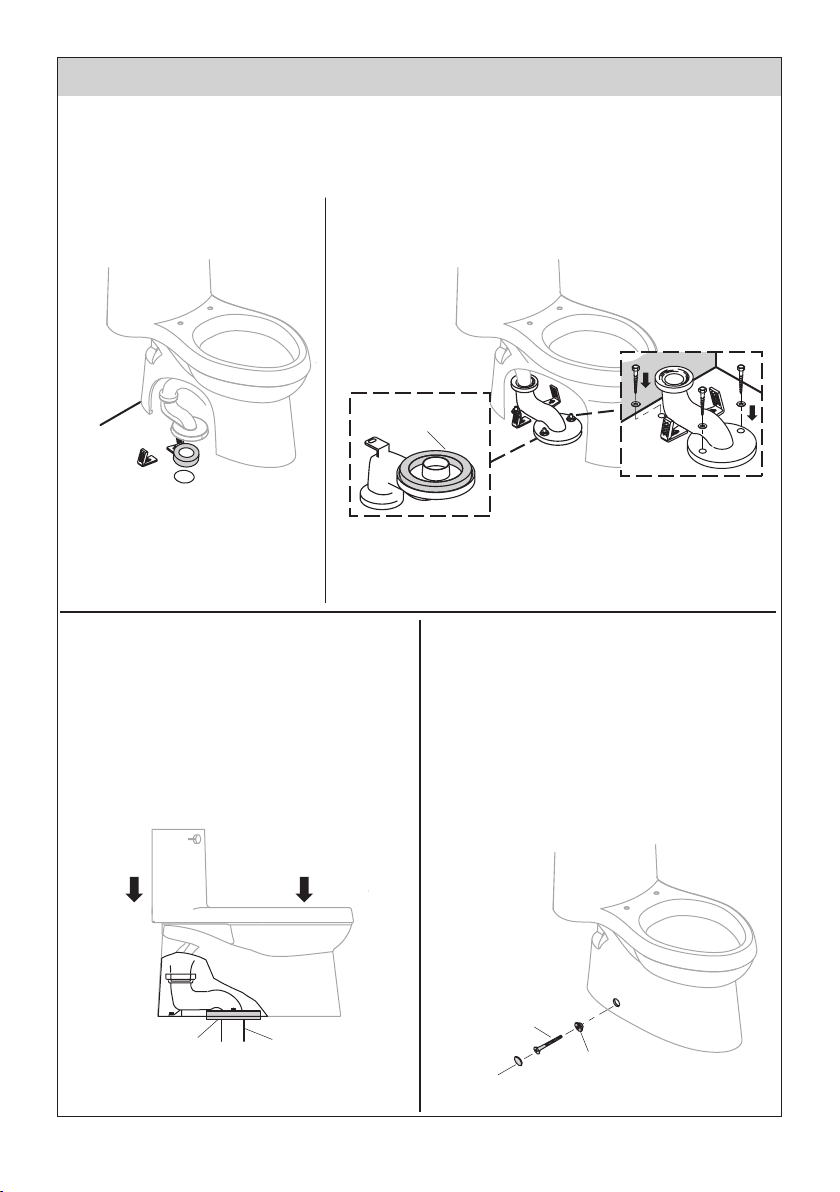

5


6 7



อย่าขันแน่นจนเกินไป!


Firmly press the wax ring onto the connector. Install the bowl.
Carefully align and lower the bowl.
Apply weight to the bowl rim.
Carefully thread the screws into the
brackets, until toilet is secure.
Alternately tighten left and right sides
to prevent pulling the toilet off center.
Do not overtighten!
ฝาครอบ
สกรู
ปลอก
Cap
Screw
Bushing
Install the connector
with screw kit.
Plastic Trap Outlet
ท่อนํ�าทิ�งพลาสติก
Ceramic Trap Outlet
ท่อนํ�าทิ�งเซรามิก
ขี �ผึ �ง
Wax Ring Waste Pipe
ท่อนํ�าเสีย
ขี �ผึ �ง
Wax Ring

Kohler Co. 7 1210096-X2-F

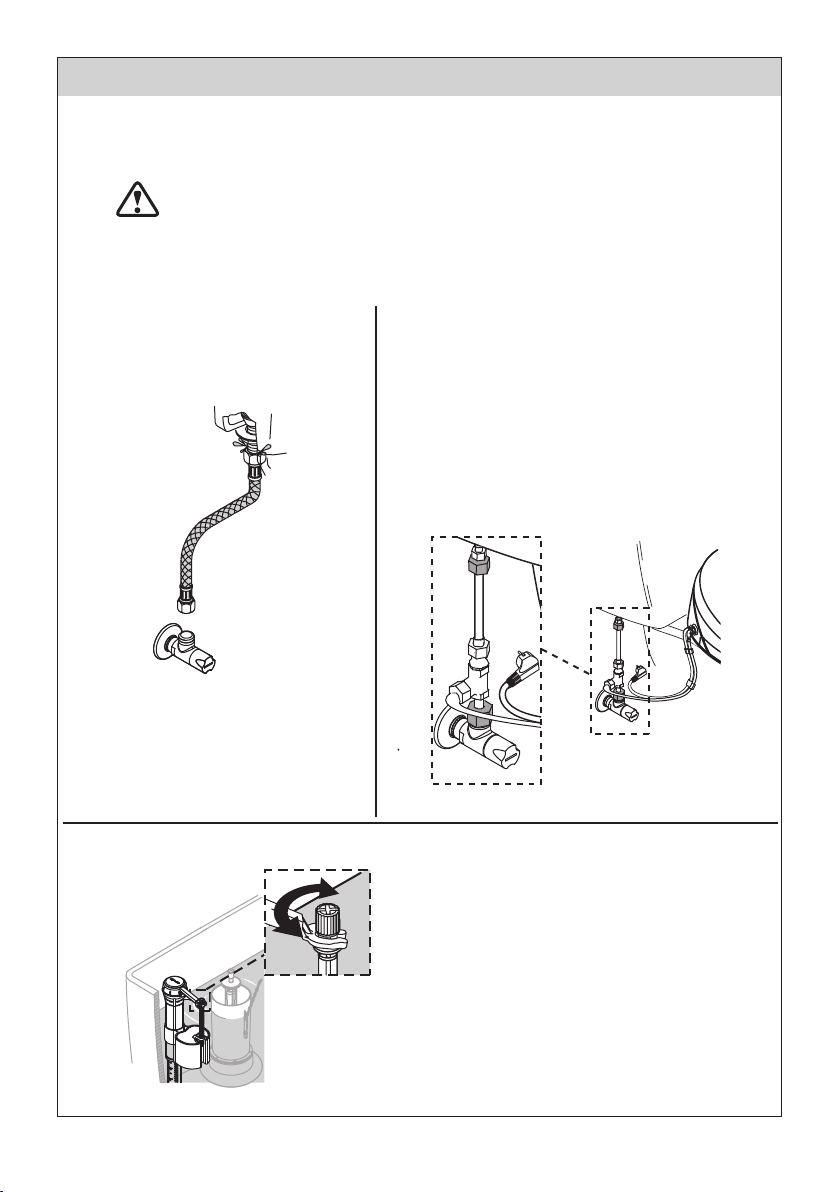

8Connect the supply hose. Flush several times and check for leaks.
  
9
Turn here to adjust the water level if needed.

For Installtion with Normal Seat

For Installtion with Bidet Seat

CAUTION: Turn on the water and allow water to flow through the supply pipe
to flush the system of and debris for connecting fill valve.


Connect T-valve and adapter (Provided) to the
stop and connect the water supply.



+
-
Installation/

1210096-X2-F 8 Kohler Co.
Installation/

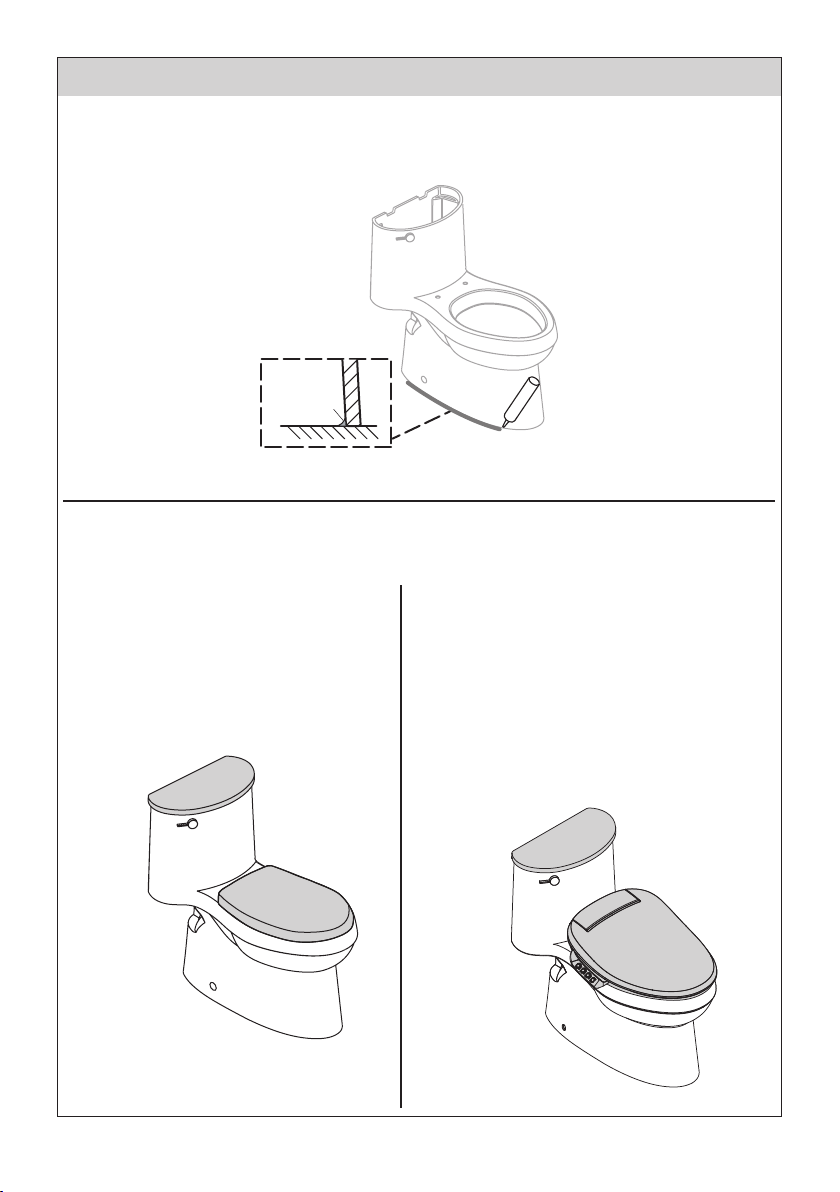

11
10
Install the tank cover and the seat.


Silicone
ยาซิลิโคน
Apply silicone around base.
Connect the supply hose seat and
install the electric outlet and seat
according to the toilet seat instructions.



For Normal Seat
สําหรับฝารองนั�งทั�วไป
For Bidet Seat
สําหรับฝารองนั�งอเนกประสงค์

Kohler Co. 9 1210096-X2-F

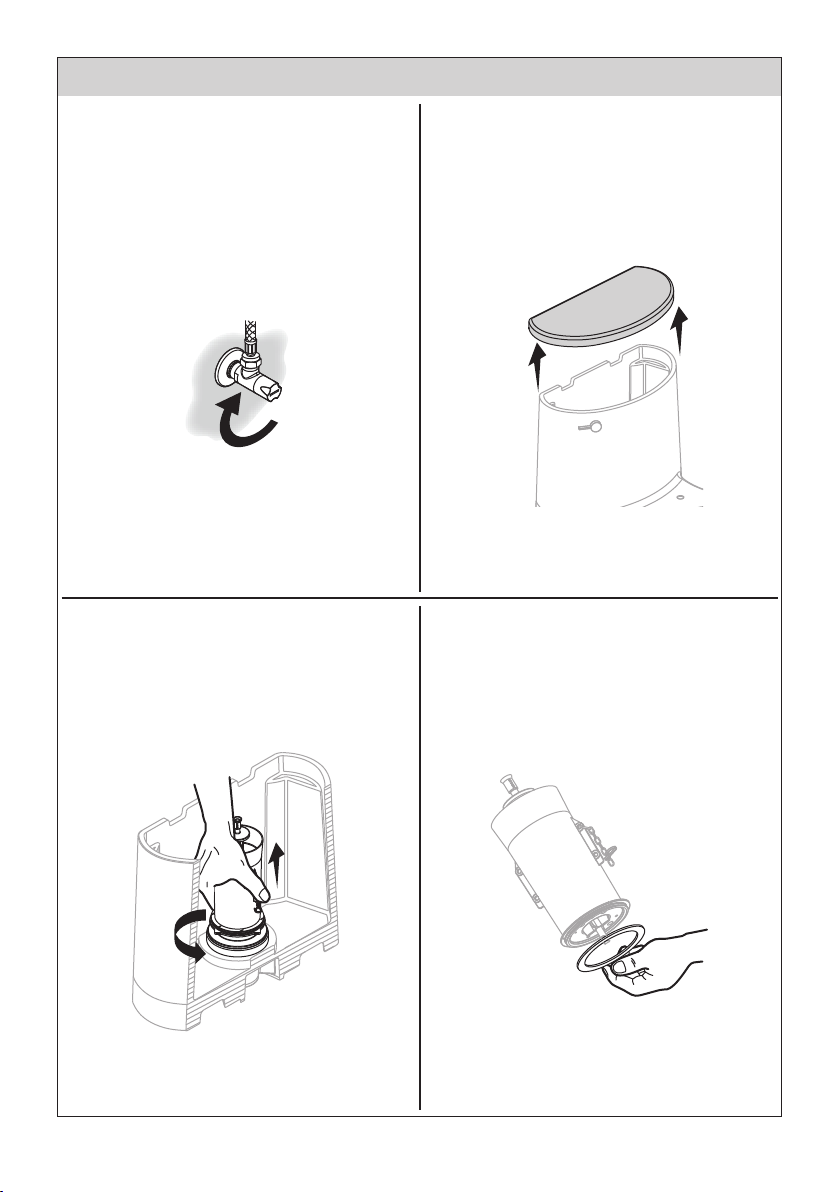

Replace the Seal/
1
Shut off the water supply.
 2
Lift the tank cover up.

3 4
 
Remove and replace the seal.
Turn the flush valve counterclockwise
and pull up.

1210096-X2-F 10 Kohler Co.
Replace the Seal/
5


6
Install the tank cover.

7 8


อย่าขันนอตแน่นเกินไป!
Flush several times and check for leaks.
Do not overtighten!
Open the water supply.
Place the flush valve in the position.
Turn the flush valve clockwise.


Kohler Co. 11 1210096-X2-F
Care and Cleaning
For best results, keep the following in mind when caring for your product:
• Carefully read the cleaner product label to ensure the cleaner is safe for use
on the material.
• Always test your cleaning solution on an inconspicuous area before applying
to the entire surface.
• Wipe surfaces clean and rinse completely with water immediately after
cleaner application. Rinse and dry any overspray that lands on nearby
surfaces.
• Do not allow cleaners to sit or soak on the surface.
• Use a soft, dampened sponge or cloth. Never use an abrasive material such as
a brush or scouring pad to clean surfaces.
• Be careful not to leave staining materials in contact with the surface for
extended periods of time.
• The ideal cleaning technique is to rinse thoroughly and blot dry any water
from the surface after each use.
WARNING: Risk of property or product damage. Do not use in-tank
cleaners in your toilet. Products containing chlorine (calcium hypochlorite)
can seriously damage ings in the tank. This damage can cause leakage
and property damage.

1210096-X2-F 12 Kohler Co.

 

•   

•  

•  

• 
•      

• 
•   


 



Kohler Co. 13 1210096-X2-F
Troubleshooting Guide
Symptoms Recommended Action
1. Poor ush. A. Adjust the tank water level to match the waterline.
B. Fully open the water supply shut-o valve.
C. Clear obstructions from the trapway, jet, or bowl rim
holes.
D. Clear obstructions from the waste line.
2. No ush. A. Reconnect the apper chain to the trip lever or ush
valve.
B. Adjust the apper chain assembly to remove
excessive slack.
3. The ll valve
turns on/o by
itself without
the toilet being
ushed, or it
runs, allowing
water to enter
the tank.
A. Adjust the apper chain for proper slack so the
apper closes.
B. Clean or replace the apper if it is worn, dirty, or
misaligned with the opening.
C. Clean the area around the opening to allow the
apper to seal.
D. Adjust the tank water level if it is too high.
E. Replace the ll valve if the valve oat sinks.
4. Tank takes
excessive time
to ll.
A. Fully open the water supply shut-o valve.
B. Check the exible supply line (if applicable) for
a kink. Remove the kink.
C. Clean the valve inlet, valve head, or supply line.
Flush the lines.
5. There is
excessive noise
when the tank
is lling.
A. Partially close the water supply shut-o valve if the
waterpressure to the toilet is too high. Check the
toilet performance following any such adjustment.
B. Remove dirt or obstructions from the valve head.
Flush the lines.

1210096-X2-F 14 Kohler Co.

 
1. 


 






2. 
 




3. 




 








 


4. 



 





5. 


 




Kohler Co. 15 1210096-X2-F
