Owners Manual
www.Louisiana-Grills.com
LG700
LG900
LG1100
1-877-303-3134
Customer Service
You MUST read this manual
before operating your grill!
“Please read the entire manual before installation and use of this pellet fuel-burning appliance.
Failure to follow these instructions could result in property damage, bodily injury or even death.”
Contact local building or re ofcials about restrictions and installation inspections required in your area.

2
Dangers & Warnings
“A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR
SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS
PRODUCT BE INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.”
It is a ig ly recommended practice to always go t roug t e basic SET-UP Procedures after
every 1 to 2 cooking's. T is will ensure proper ignition, eat output and many appy grilling
experiences.
•DO NOT use your grill in the rain or around any water source.
•Always unplug the grill before performing any service or maintenance .
•If the LG moker is stored outside during the rainy season or seasons of high humidity, care should be taken to
insure that water does not get into the pellet hopper. Wood pellets, when wet or exposed to high humidity, expand
greatly, break apart, and could jam the feed system.
•Disposal of ashes— Ashes should be placed in a metal container with a tight-fitting lid. The closed container of
ashes should be placed on a non-combustible floor or on the ground, well away from ALL combustible materials,
pending final disposal. When ashes are disposed by burial in soil or otherwise locally dispersed, they should be
retained in the closed container until all cinders have thoroughly cooled.
•Keep the entire grill a minimum 12 inches, or a safe distance, from all combustibles.
•Do not install or operate grill under a combustible ceiling or overhang.
•Do not enlarge burn grate orifices, igniter holes or burn pots
•LG mokers should be cleaned and maintained on a regular basis
•After a period of storage, and/or non-use, the Louisiana Grill moker should be checked for burn grate
obstructions, foreign objects both inside the grill and the hopper, and air blockage, before use. ee instructions in
this manual for correct procedures
•Do not put a barbeque cover or anything flammable on, or in the storage space area under the barbeque.
•Children should never use your LG moker barbeque while unattended. Accessible parts of the barbeque may be
very hot. Keep young children away while it is in use.
•Do not use lava rock, wood chucks or charcoal in your moker.
•Do not use accessories not specified for use with this appliance
•Never lean over open grill or place hands or fingers on the front edge of the cooking box or in the hopper.
•hould a grease fire occur, turn “Off” the control and leave lid closed until the fire is out. DO NOT unplug the power
cord. DO NOT throw water on it. DO NOT try to smother the fire.
WARNING:
DO NOT touc any part of your “LG Series Smoker” w ile t e smoker is HOT.
Serious bodily injury could result.
WARNING:
DO NOT transport your “LG Series Smoker” w ile operating or w ile t e grill is HOT.

3
Dangers & Warnings
FUEL—WOOD PELLETS
•This pellet cooking appliance is designed and approved for pelletized, all natural, wood fuel only. Any other type of
fuel burned in this appliance will void the warranty and safety listing.
•Use only all natural wood pellets, designed for burning in grills.
•Do not us fuel labeled as having additives.
•At this time of printing, there is no “ tandard” for BBQ wood pellets, although most pellet mills do use the same
standards used to make “Home Heating” wood pellets. Further information on this “ tandard” can be found at
www.pelletheat.org or the Pellet Fuel Institute.
•Check with your local dealer on the quality of pellets in your area and for information on what can be expected from
various brands.
•NOTE: ince Dansons Inc. has no control over the quality of pellets, that you use, we assume no liability caused by
the quality of fuel used.
CREOSOTE
•Do Not operate the appliance if the flame becomes dark and sooty or if the burngrate overfills with pellets. Push the
OFF touch pad, let the appliance cool completely, and then inspect the unit. oot or Creosote may accumulate in the
main barrel and along any air leakage or exhaust areas when the appliance is operated under incorrect conditions,
such as incorrect burn grate position, blockage of the combustion fan, failure to clean and maintain the burn area, etc.
•oot or creosote is formed when pellets are burned without the correct amount of air to fuel. or incomplete combustion,
thus producing a tar like substance and other organic vapours that combine with expelled moisture. The smoke will
have a black color to it and the residue left behind on surfaces, will also be black in color.
•When ignited, this creosote makes an extremely hot and out of control fire, similar to a grease fire.
•If creosote has formed within the unit; allow the unit to warm up at a LOW temperature, turn OFF the appliance, then
wipe out any formation with a hand towel. Creosote is similar to tar, when warmed it will begin to run, become like
liquid, and is easier to clean in this state.
•hould a grease or creosote fire occurs, turn “Off” the control and leave lid closed until the fire is out. DO NOT unplug
the power cord.
WARNING:
DO NOT over-fire your “LG Series Smoker”. Improper Use Can Cause Uncontrolled Fire.
CARBON MONOXIDE: “T e Silent Killer”
FOLLOW THE E GUIDELINE TO PREVENT THI COLORLE , ODORLE GA FROM POI ONING YOU, YOUR
FAMILY OR OTHER :
•Know the symptoms of carbon monoxide poisoning: Headaches, Dizziness, Weakness, Nausea, Vomiting, leepiness,
and Confusion. Carbon Monoxide reduces the blood’s ability to carry oxygen. Low blood oxygen levels can result in
loss of consciousness and death.
•ee a doctor if you or others develop cold or flu-like symptoms while cooking or in the vicinity of the appliance Carbon
monoxide poisoning, which can easily be mistaken for a cold or flu, it often detected to late.
•Alcohol consumption and drug use increase the effects of carbon monoxide poisoning.
•Carbon monoxide is especially toxic to mother and child during pregnancy, infants, the elderly, smokers, and people
with blood or circulatory system problems, such as anemia, or heart disease.
WARNING:
IF A UNCONTROLLED FIRE DOES OCCURE: CALL FIRE DEPARTMENT.
DO NOT: try to move appliance, try to smot er t e fire, or put water on t e fire.

4
Dear “Louisiana Grill” Wood Pellet Barbecue Owner:
T ank you for c oosing to purc ase a “Louisiana Grill Series” wood pellet smoking’ grill.
Cooking with your Louisiana Wood Pellet Grill is about to bring you full circle from the days of
the caveman when cooking outdoors with wood was a necessity, to cooking indoors in your
modern kitchen and now back to the great outdoors and that savory wood flavor.
Think of your “Louisiana Grill” as an extra stove available to bake, roast, grill, sear and smoke
food. Anything that can be done in your indoor kitchen can be done on your grill.
Barbecuing is a culture all on its own. Barbecuing provides a form of entertainment, which is
relaxed and casual. Your meals can be completely cooked outdoors and the chef is one of the crowd. Keep it simple,
be creative, and have some fun.
We’d like to take this opportunity to pass on a few important tips concerning grilling with wood pellets.
•Initial set-up of your “Louisiana Grill” is the most important step to ensure the efficient and
satisfactory operation of your barbecue for many years to come.
•Be diligent in your cleaning and maintenance program. Taking care of your grill will add years of life
and keep it looking great.
•Use only all natural wood pellets designed to burn in pellet grills.
•Ensure your pellet fuel stays moisture free. Open bags of fuel should be stored in an airtight container and
empty the hopper if you are not using the grill over longer periods.
Our loyal staff, valued customers, friends and our loving families have all contributed recipes to our cookbook. We
have tried to include a broad range of cuisines and styles, starting with Mom’s Great Home Cooking and many, many,
many, catering and entertaining experiences to current classics and new soon to be classics.
WE WANT YOU!
If you are interested in contributing a family favourite or competition winner,
or any recipe, (especially if it contains bacon) please share it with us.
Fax: [phone], Web www.louisiana-grills.com, Email: [email protected]
or nail Mail: to the address below.
Now go, fill up the hopper, light up that grill and get ready to enjoy
World Class BBQ In Your Own Backyard!
Again, we want to say THANK-YOU for your purchase
Staff and Management
Dansons Inc.
COPYRIGHT NOTICE
Copyright 2014,
All rights reserved.
No part of this manual may be copied, transmitted, transcribed, stored in a retrieval system, in any form
or by any means without the expressed written permission of,
Dansons Inc.
1460 —134th Ave., Edmonton, AB, Canada T5L 4T4

5
2
6
DANGERS & WARNINGS
SAFETY TESTING
UNPACKING YOUR LG SMOKER 6
8
10
12
13
ASSEMBLY INSTRUCTIONS
Leg Assembly & CASTERS
SERIES 4C HOPPER ASSEMBLY

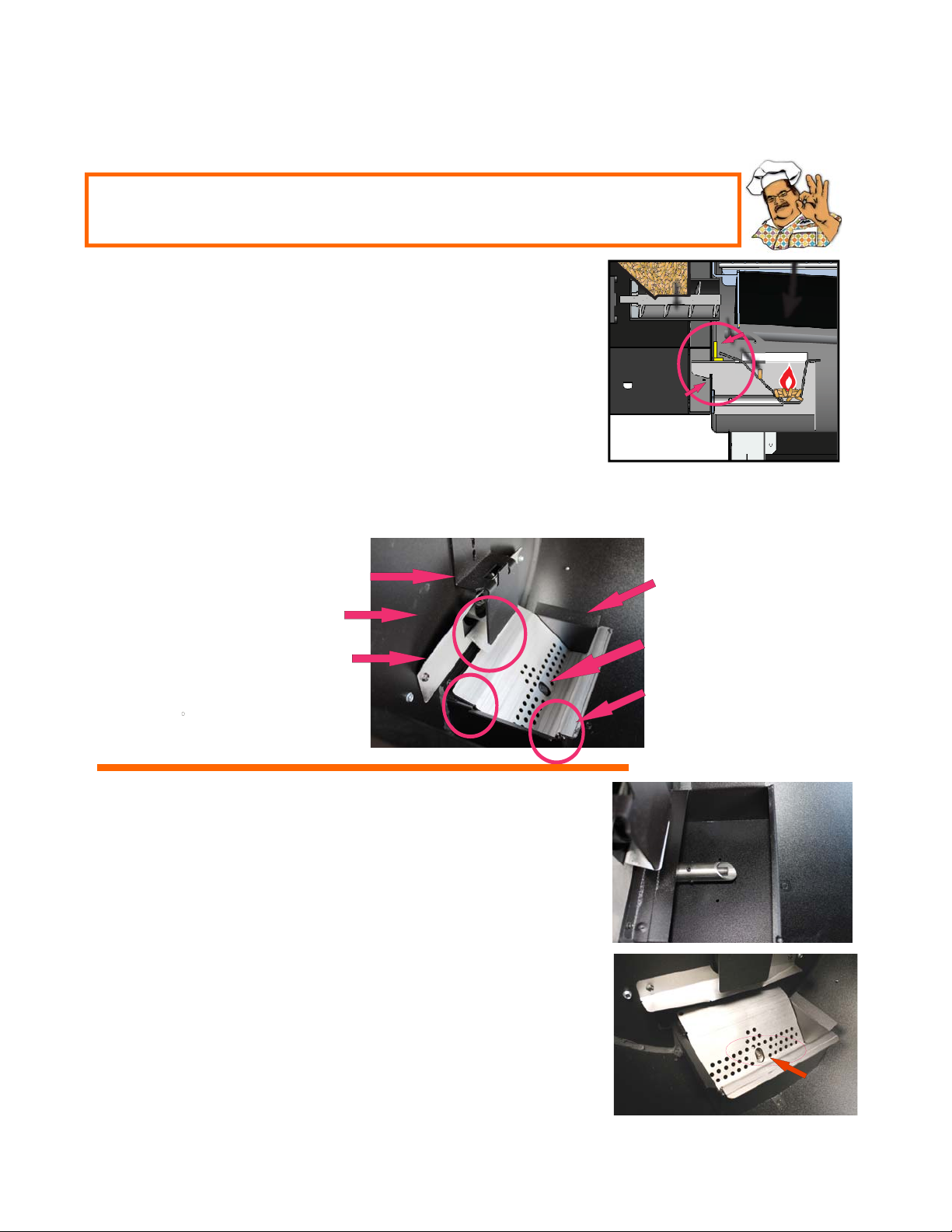

BURN Grate, IGNITER
FLAME BROILER, HANDLE, THERMOMETER

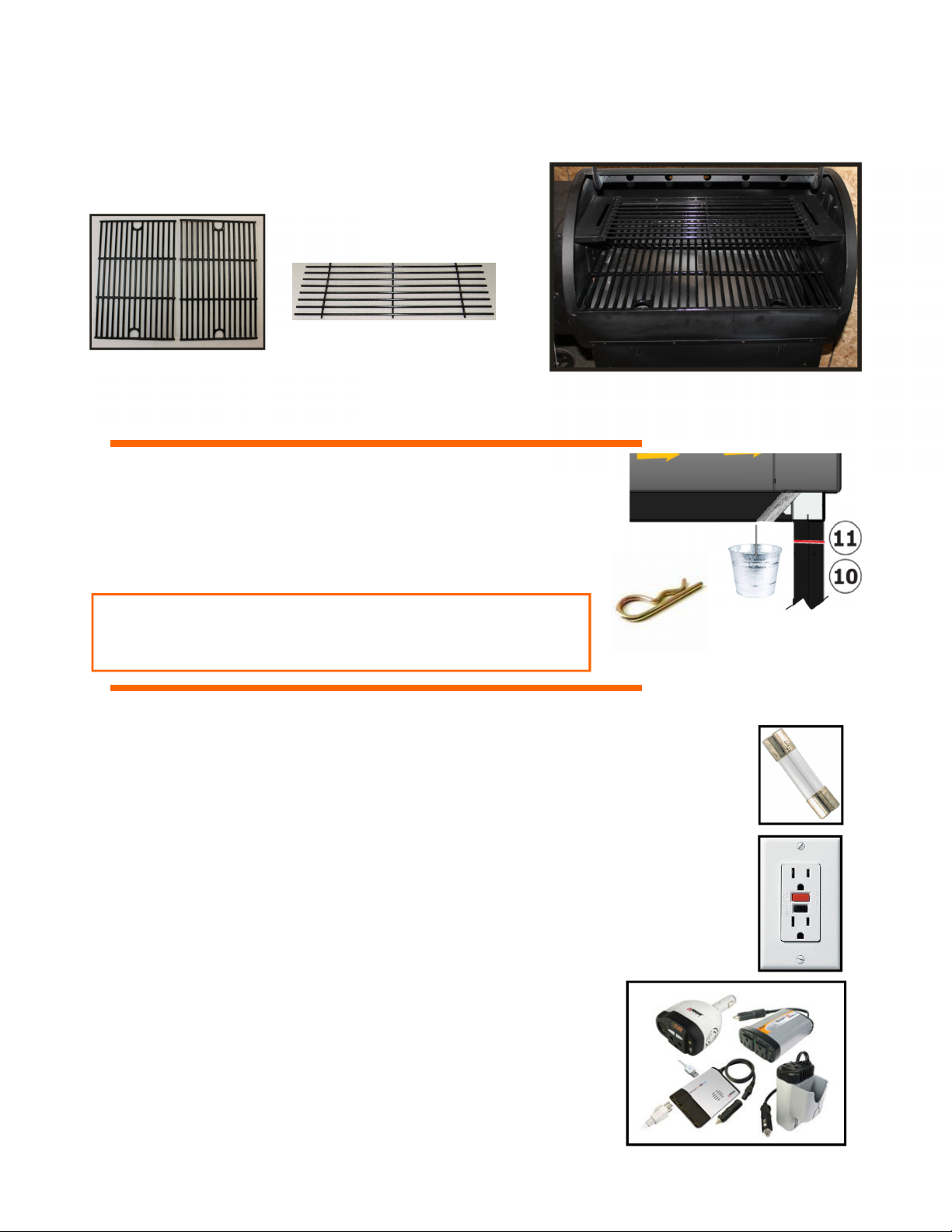

GRIDS, BUCKET & POWER 14
15
16
17
17
17
17
18
19
19
19
19
KNOWLEDGE IS POWER
HOW YOUR LG SMOKER WORKS
SPECS
ARCHED FLAME BROILER
IGNITER
BURN POT & BURN GRATE
AUGER FEED

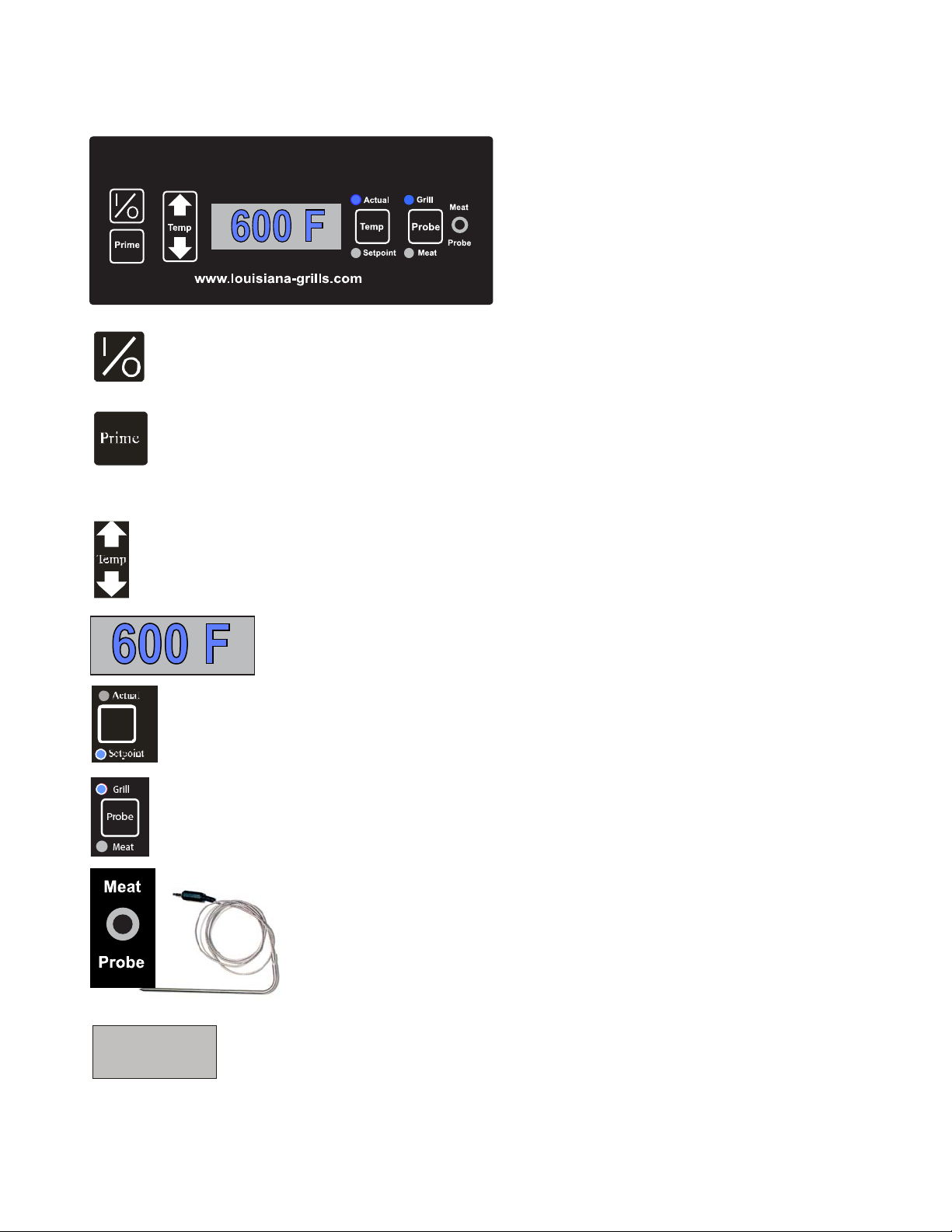

DIGITAL CONTROL CENTER
HOPPER
POWDER COAT FINISH
COOKING GRIDS
GREASE BUCKET

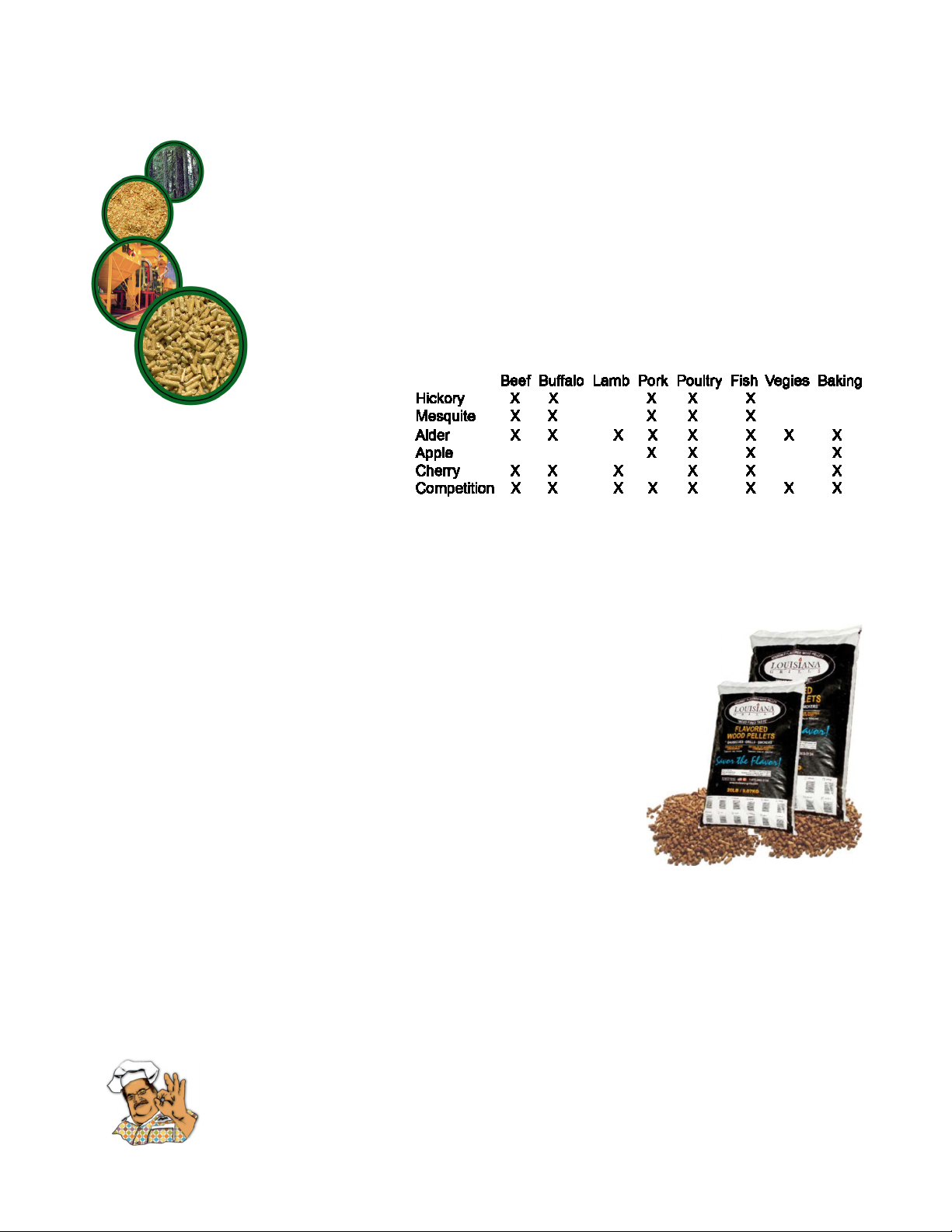

ABOUT WOOD PELLETS 20
21
22
23
24
OPERATION
SET-UPPROCEDURE
GETTING STARTED
LIGHTING - AUTOMATIC / MANUAL
PROGRAMMABLE MEAT PROBE
SHUTTING OFF YOUR SMOKER 26
MAINTENANCE 28
GRILLING TIPS AND TECHNIQUES 29
TROUBLE SHOOTING 32
PARTS LIST 35
LIMITED WARRANTY 36
Contents

6

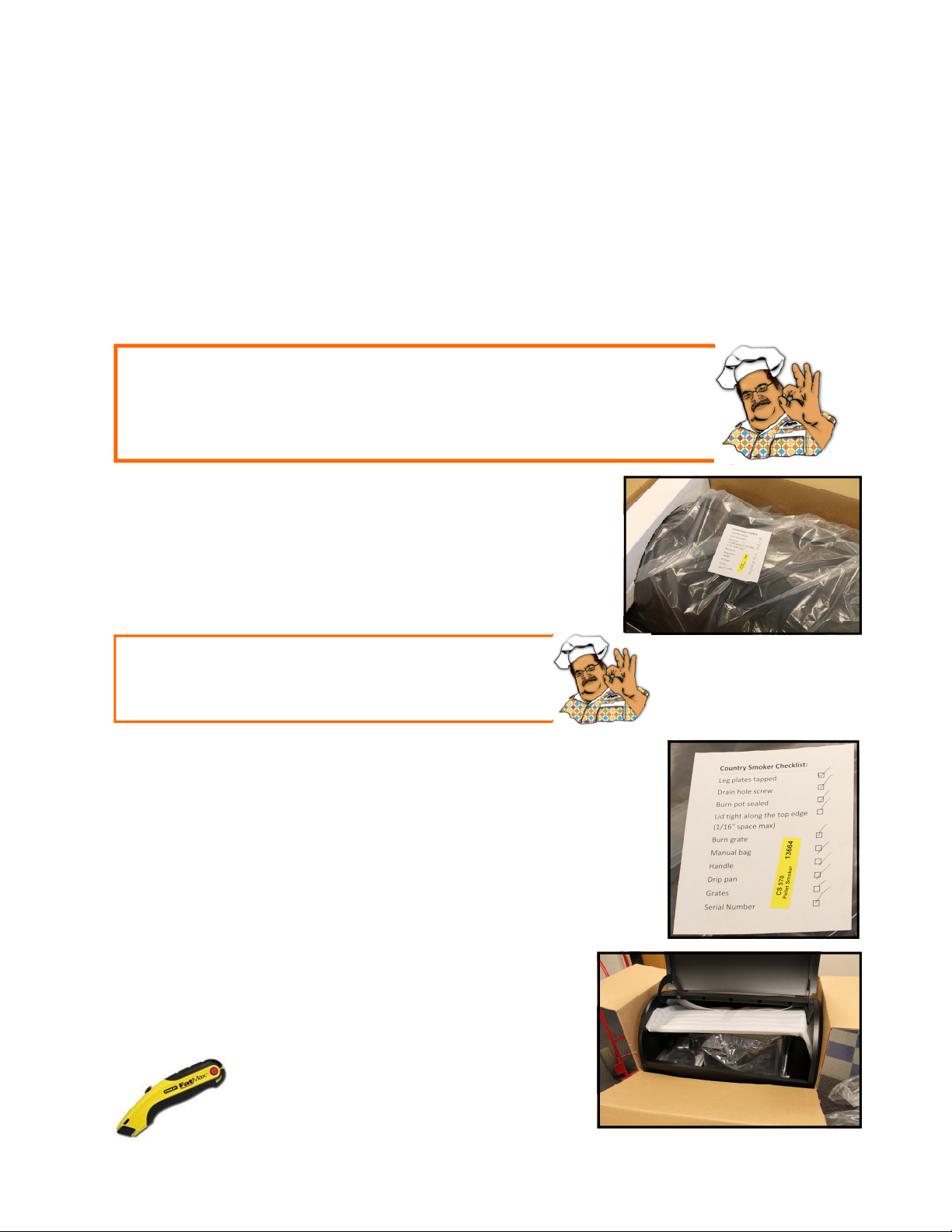

Unpacking Your LG Series Smoker
IMPORTANT NOTICE
* Be sure to inspect the entire grill after removing the protective
shipping carton.
* Report any damage to your local dealer immediately.
* hipping damage is not covered under warranty.
Opening the top of the shipping crate
When you opened the top of the protective shipping carton you found
the unit covered in a protective cover bag, 2 protective tyrofoam fillers
and a “Quality Control Checklist”.
WARNING! Please discard the plastic bag properly and in a timely
matter, as it can be dangerous and can lead to suffocation.
Quality Control Checklist (diagra B)
The team at Louisiana Grills take pride in what we manufacture and sell.
This checklist is our way of ensuring every Country moker we make is
complete when you open it.
It also contains the Model and erial Number you will need when you
communicate with your local Authorizer Louisiana Grill Dealer or Dansons.
Tip !
taple your “Quality Control Checklist” to the
inside of this Owners Manual
Re oving the Country S oker (diagra C)
The protective cardboard shipping crate makes the perfect protective
material while assembling your Country moker.
A
B
Using a sharp utility knife, simply cut carefully down both sides of the
front of the box, from the top to bottom. This will give you easy access
to remove the contents from inside the barrel.

7
Unpacking Your LG Series Smoker
W en you open your smoker/grill, please ensure you ave and can identify all t e following parts:
NOTE: Numbers following parts names throughout this manual refer to the component diagram below.
Items found in t e box
1. Burn Pot— Installed and sealed
2. Burn Grate—tainless teel
3. Arched “Flame Broiler” - 2 pc.
4. eries 4 Hopper w/Digital Control Center
A. Grill Probe (installed)
B. Programmable Meat Probe
5. Grease Bucket
6. tainless teel Handle Assembly
Washers, large and small X 2
#250 x 5/8" Threaded Multi-Head crews X 2
7. Porcelain Cast Iron Cooking Grid (s)
8. Porcelain Upper Cooking Grid
Items found in t e parts bag
W eels and levelers
9. 6” Diameter Wheels X 2
Wheel Axles X 2
#3 Hitch Pins X 2
Fender Washers X 2
10. 3” Diameter Casters X 2
Mounting Hardware—Hopper to Barrel
6 x # 180 x 3/8" Black Multi-head Machine Srews
-4 for mounting hopper to barrel
- 2 for mounting igniter to hopper
26 x # 250 x 3/8" Multi-Head Machine Screws
- 24 for Leg Assembly
Printed Material
Owners Manual
Cooking Guide—40 page
1
2
10
3
4
6
7
9
Ser ies 4C
Dome Thermometer
Large Finishing Washer
Large Felt Spacer
9 /16" Nut and Washer

8

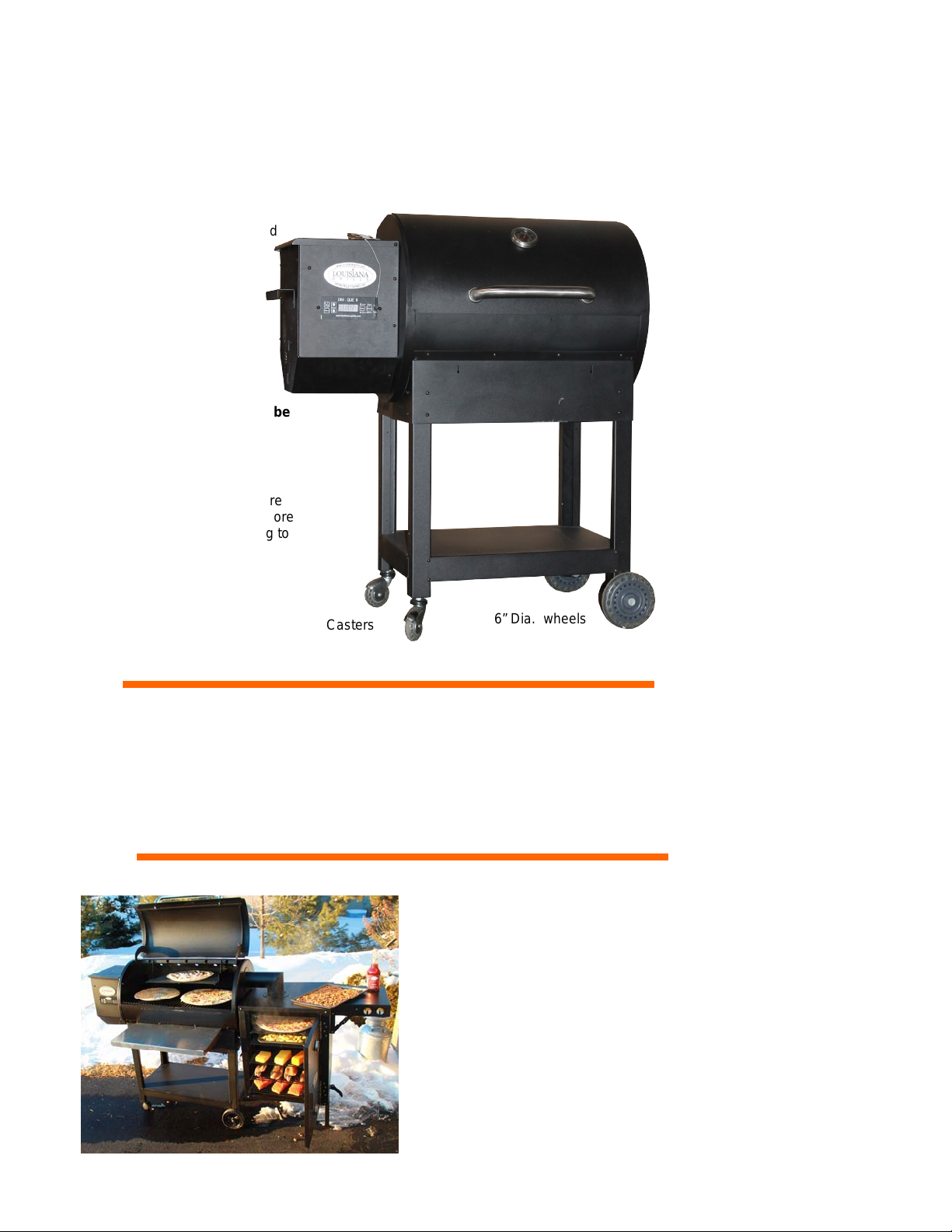

INSTALLING THE CART KIT
Tools Required
Installation
Step 1 Attach legs to botto shelf
The bottom portion of each of the 21” legs has a threaded plate installed to
allow for 2 casters to be installed. The 2 x 23” legs have holes punched
through to accept the wheel axles.
• To ease installation, assemble leg components and shelf upside
down. The shelf mounting holes being on top.
• Ensure that the shelf is facing with the flat surface facing downwards
toward your working surface.
• Using a Phillips head driver, install 4 of the supplied
screws into each leg, to secure each leg to the shelving unit.
NOTE: It is best to start eac t readed screw by and, to ensure t e
t read DOES NOT cross t read or strip.
• Ensure that ALL screws are firmly, hand-tight, secured.
1 Bottom S elf
Assembly Instruction
Parts Included
2 x 21” long legs
2 x 23” long legs
2 x 6” Wheels
- 2 axles
- 2 cotter pins
- 2 washers
2 x 3” Threaded Casters
24 x Multi-head machine
screws
Large Phillips crewdriver or
Phillips Drive Bit and Drill

9
INSTALLING THE CART KIT ...CON’T
Final Step Attaching the Cart to the Barrel
•Ensure that when you install the Barrel moker onto the Leg Cart
that the Caster Legs are on the hopper end of the grill. This will
give stability to completed unit and allow for easy movement.
•Carefully lift the Barrel moker up and unto the Leg assembly.
Note: This may require 2 people.
The Barrel moker will slide down and over the leg assembly .
•tarting at one leg:
Line up the pre-drilled and cinch nut installed holes on the leg,
ee diagram for location, and the punched hole on the side of the
smoker. There is one on the front and one of the side of each leg.
•Using a Phillips head driver, install 2 of the supplied
screws into each leg, to secure each leg to the Barrel.
NOTE: It is best to start eac t readed screw by and, to ensure
t e t read DOES NOT cross t read or strip.
•When one leg is complete, continue the same steps
On the remaining 3 legs.
Step 2 Install the Casters:
The bottom portion of each of the 21” long legs has a threaded plate installed to
allow for the installation of a thread caster.
You will use both Threaded Casters.
•Hand install the casters on the 21” (shorter of the two) legs.
•Using your 1/2” wrench, turn each of the casters in a clockwise direction
into the bottom leg plate. Turn ALL the way in.
Step 3 Install the Wheel Asse blies
Each 23” long leg has a solid bottom plate, as well as a hole punched through
the leg to accept a wheel axle.
You will use both Wheels, 2 x Axels, 2 x Fender Washers and 2 Cotter Pins
•Install the wheel assemblies on the 23” (longer of the two) legs.
•Insert the axle through the wheel, the leg assembly and finally the
fender washer.
The wheel should be on the outside edge of the assembly, next the leg
and then finally the fender washer.
•Insert the hitch pin clip through the hole found at the end of the axel.
Assembly Instruction
C

10
Assembly Instruction
Phillips & tandard
crewdrivers
A
B
Phillips crew Driver Bit
Cordless Drill
Parts Included
eries 5C Hopper Assembly
Mounting hardware
2 x #10 x 16 x1/2” screws,
4 x 1/4 x 20 x 1/2” screws
Tools Required
Installation

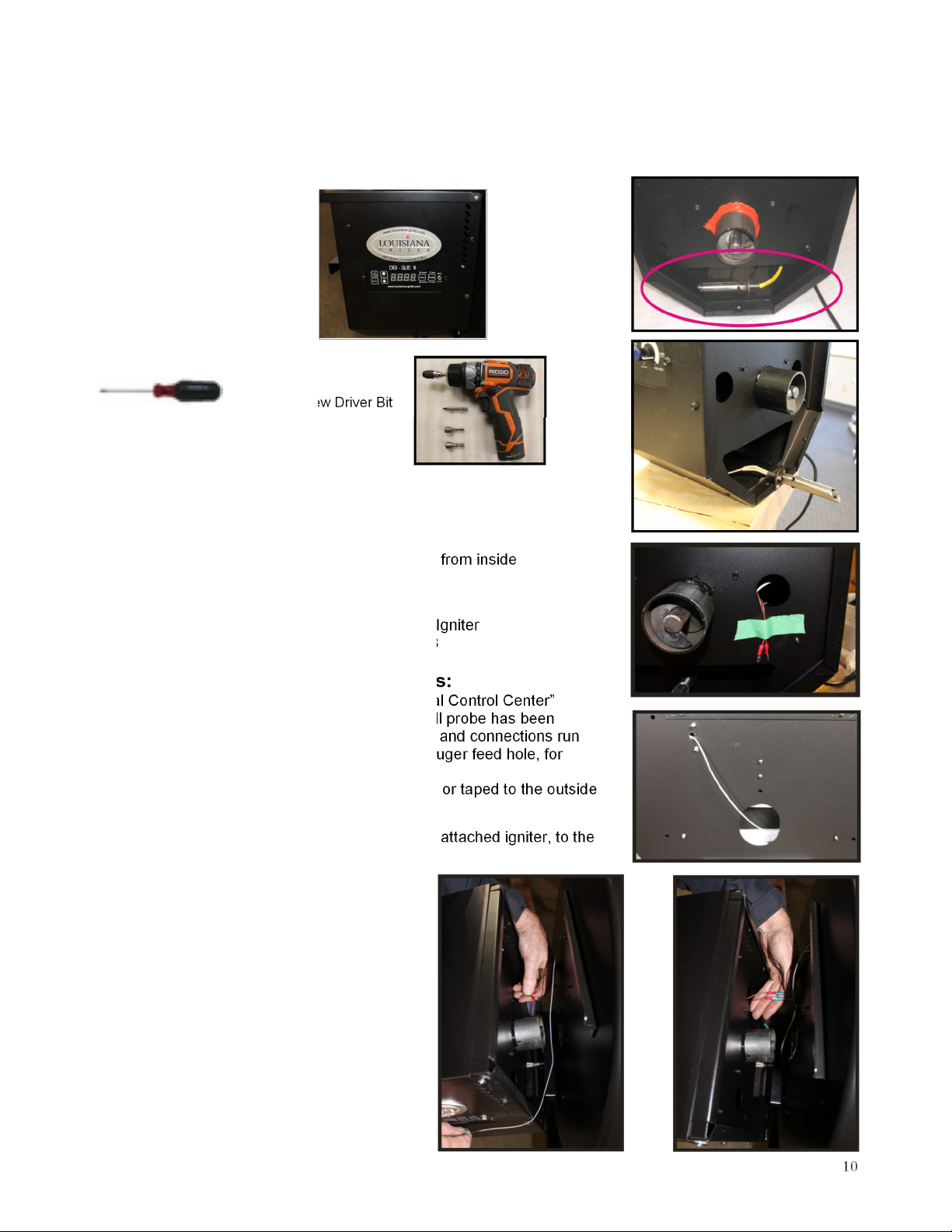

Step 1 Attac ing t e Igniter to t e Hopper:
•Carefully remove the igniter and its packaging from inside
the hopper. Diagram A
•Using your Phillips Srewdriver and the 2 (two)
#180 x 3/8” screws, secure the Igniter to the
outside of the hopper. Diagram B
Step 2 Attac ing t e Grill Probe Wires:
Your Grill/ moker comes complete with the “Digital Control Center”
complete with grill probe and meat probe. The grill probe has been
factory installed in the barrel, with the excess wire and connections run
out through the barrel end and threaded into the auger feed hole, for
shipping reasons. Diagram C
The wire connections to the board can be found in or taped to the outside
of the hopper. Diagram D
•To connect, carefully lift the entire hopper and attached igniter, to the
left handside of the main barrel.
•Begin by slightly inserting the igniter into the
installed Burned Pot at the bottom side of the
barrel. upport the hopper on your leg as
you connect the two spade connections.
Diagram E
•Carefully thread ALL excess wire, as well as
the connections, back into the hopper. The
wiring must not come in contact with either
the fan blades, or the metal auger tube.
Diagram F
Installing the Hopper and Grill Probe
C
F
E
D

11
INSTALLING THE HOPPER, IGNITER & PROBE WIRE

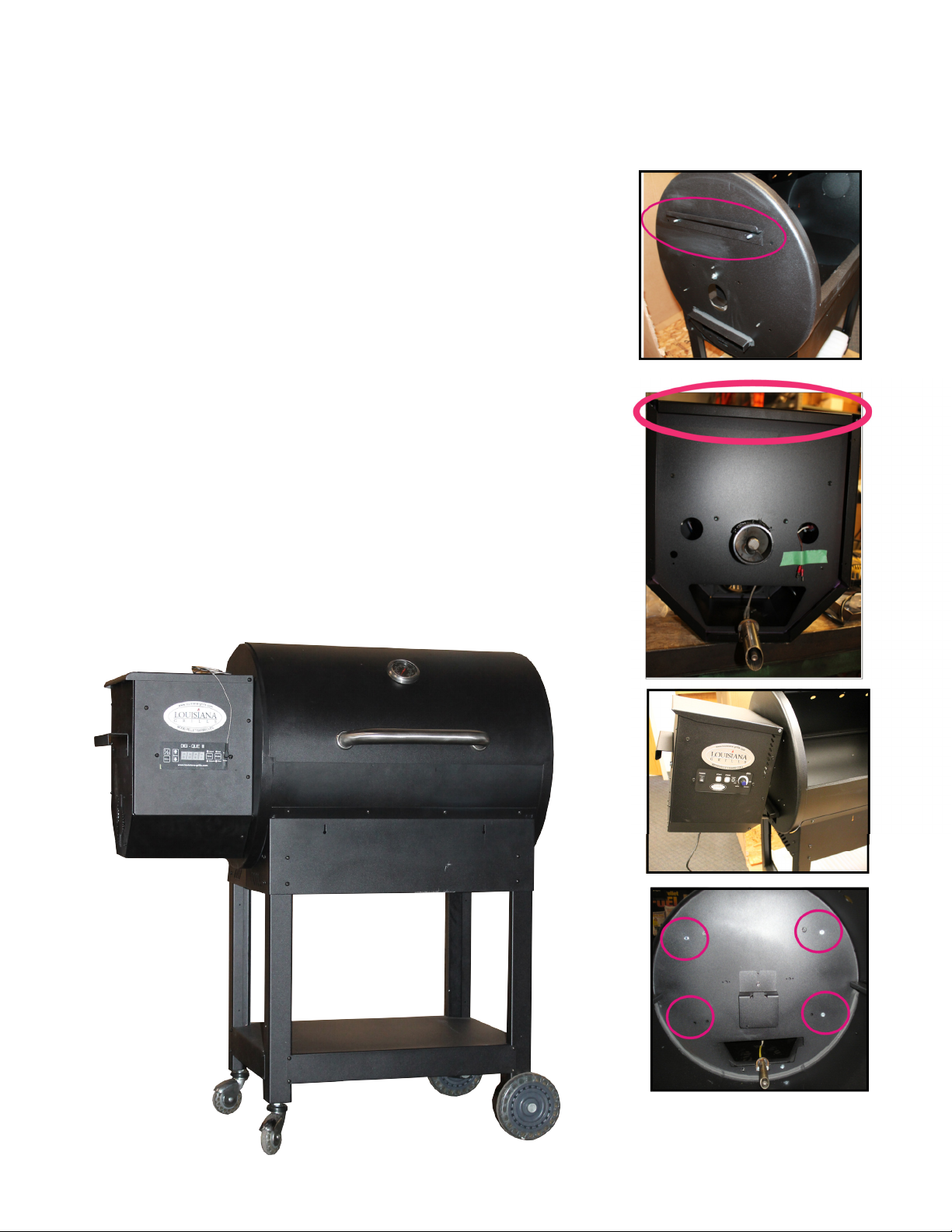

Step 3 Attac ing t e opper to t e barrel:
•The mounting bracket on the rear of the hopper (B) must be raised
slightly higher then the receiving bracket on the barrel. (A)
Diagram A & B
•Begin by slightly inserting the igniter into the installed Burned Pot
at the bottom side of the barrel.
Next slightly insert the Auger Feed tube into the correct hole.
. It might be necessary to raise the hopper slightly to ensure the
mounting bracket on the hopper will go over the receiving
bracket on the barrel.
•Push Hopper tightly against the main barrel.
Next holding the hopper fairly level, press downward to clip the
hopper onto the mounting bracket. Diagram C & A
•Using your 5/16” nut driver or standard screwdriver and the
4 1/4x20-1/2” hex screws, secure hopper to barrel through
the holes provided, inside the barrel. Diagram D
NOTE: If t e oles do not line up,
t e opper may need to
be fully clipped into place. B
C
D
A
Assembly Instruction

12
Assembly Instructions
POSITIONING THE IGNITER:
Confirm the positioning of the Igniter Diagram C
It is extremely important to have the igniter and the igniter hole in
the burn grate line-up.
The burn grate should not be sitting on top of the igniter or the
hot rod.
It may be necessary to remove the burn grate, then gently
holding onto the igniter assembly, gently lift or lower the
Igniter until it lines up properly.
Confirm the positioning of the Burn Pot Diagram A
 Confirm that the back of the burn pot has been pushed tight, into the
hopper and against the end wall of the grill ( A & B).
 Confirm that the burn pot has been sealed with high temp caulking
around the inside of the barrel end.
Install the Burn Grate Diagram B
 The larger lip of the grate installs under the pellet fuel deflector (A)
 The front lip of the burn grate should be sitting flush along the top of the burn pot . (C)
 The bend at the rear of the grate should also being sitting tight to the back of the burn pot. (B)
A
B
POSITIONING THE BURN GRATE:
Tip ! The placement of the burn pot and burn grate is VITAL to a happy and
full range cooking experience!
A
BC
Fuel Deflector
Barrel End
Flame Broiler
Bracket
Igniter
Burn Grate
Burn Pot
A
B
C
Igniter

13
Assembly Instructions

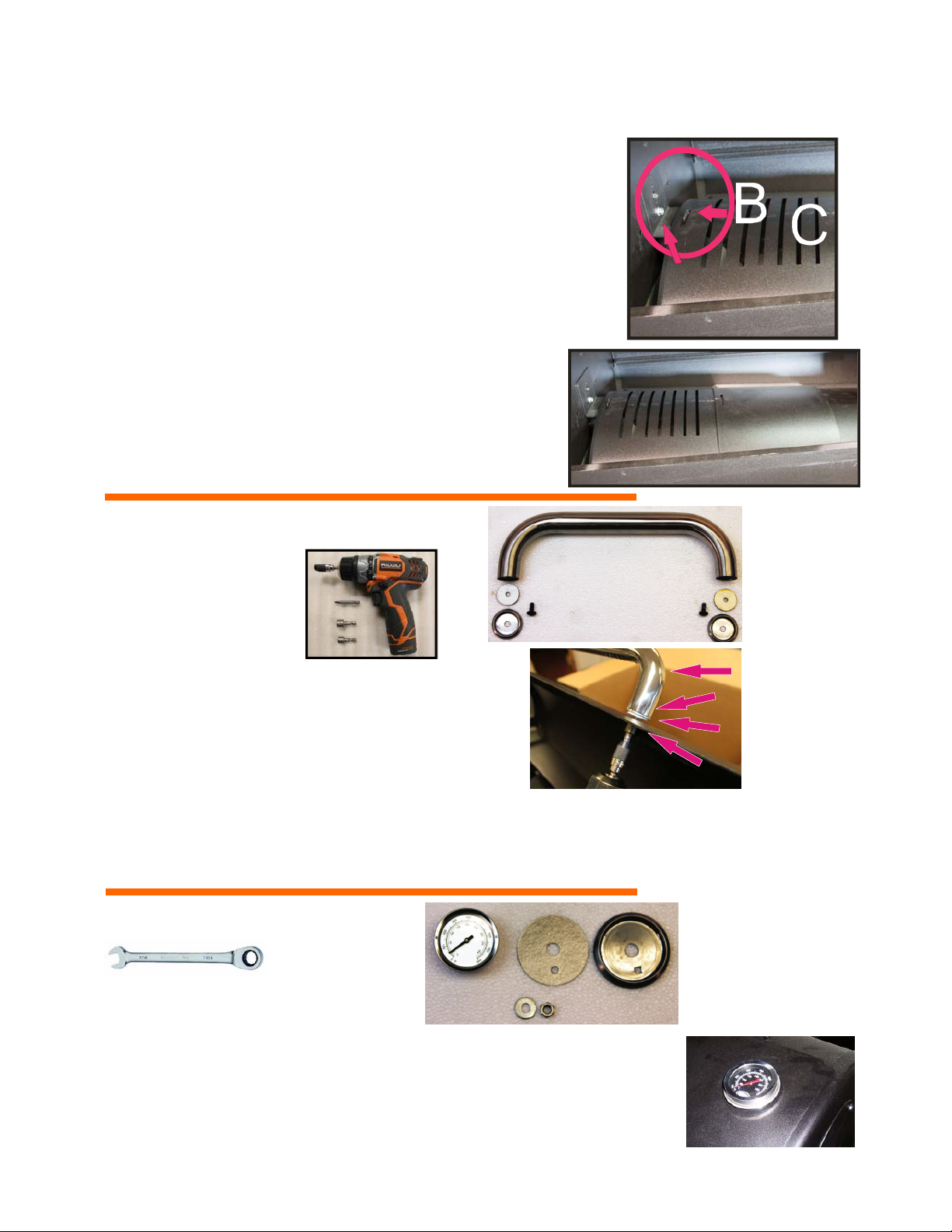

INSTALLING THE “ARCHED FLAME BROILER”:
 To ensure proper height, the bottom of the mounting bracket (A)
should not be within the pellet drop chute area.
If you do need to adjust the bracket, loosen off the 2 (two)
Phillips screws, lift the bracket and re-tighten the screws.
 Take the Arched Flame Broiler ( C) and hold it so that the end with
the cut out and slots is in your left hand. The plate then clips
easily over the adjustable mounting bracket. (B)
 Take the Arched Flame Broiler Cover Plate (D) and place it on
top of the main piece ( C). This plate is used to slide
over the flame broiler opening, to open or close “Diirect”
flame searing.
INSTALLING THE HANDLE:
Tools Required:
9/16” Wrench
Insert one scew through the hole provided in the barrel
Install the LARGE Decorative Washer, then the
smaller washer on the screw end sticking through the
barrel.
Hand threadand tighten this screw to one of the ends
of the one piece stainless steel handle. .
Follow the same procedure to secure the other end of the handle to the barrel.
Using a screw driver firmly tighten both bolts until handle feels firm.
CAUTION! DO NOT OVERTIGHTEN! Only a snug fit is required.
INSTALLING THE THERMOMETER:
The thermometer comes complete with its own threaded nut
already installed on the thermometer.
Simply spin off the threaded nut and small washer.
Insert the Dome thermometer, along with the large finiishing washer as
well as the protective felt, through the hole provided in the top of the
hood,
•
Then firmly hand tighten the nut back onto the thermometer.
Handle
Phillips Screw Driver
Cordless Drill & Phillips Bit
A
D
Large Decorative
Washer
Small Washer
#250 5/8"
Machine Screw
Dome Thermometer
Large Protective Felt
Large Finishing Washer
Washer & 9/16” Nut
•

14
Assembly Instructions
INSTALLING THE PORCELAIN COATED GRIDS:
Your LG ERIE moker comes complete with 2
Porcelain Coated Cast Grids for the Main cooking surface.
Your LG ERIE moker comes complete with 1
Porcelain Coated Grid for the Upper Cooking Rack.
•NOTE: To maintain the searing and grilling performance of your grid, as well as their longevity,
some
INSTALLING THE GREASE BUCKET:
imply place the handle of the bucket into the
slot of the grease drop chute (11).
NOTE: any metal bucket and any size could also be used.
Ensure that the handle can safely clip into the
slotted grease drop.
HOOKING UP TO POWER:
AT HOME
• This appliance requires 110 Volt, 60Hz, 5amp service.
• It must use a 3 prong grounded plug.
• Both the “Deluxe Temperature Control” and “Digi-Que” controls use a 5 amp fuse to
protect the board from the igniter.
GFI Outlets
• This appliance will work on most GFI Outlets. Recommended size 15 amp.
• If your GFI outlet is highly sensitive to power surges, it will very likely trip during the ignition phase
of operation. During the ignition phase, the igniter is drawing 300—700 watts of electricity which
can be too much power for a GFI outlet to handle. The quality of the GFI does not matter, rather
the sensitivity matters. Each time a GFI trips it does increase in sensitivity.
Solution: 1. Install a brand new GFI .
2. Plug the appliance into a non-GFI outlet.
ON THE ROAD
• By disconnecting the Igniter, from the main wiring harness, your Country
moker can be run using a 12 volt , 100 watt inverter plugged into your au-
tomobile outlet. Then light your smoker using the manual method. ( found
in lighting instructions)
• If you do want to continue to use the automatic igniter, it is recommended to
use a minimum of a 1000 watt inverter.
Tip ! After installing the bucket on the grease drop chute, install
a #3 Hitch Pin up through the drop chute. This will secure the
bucket handle and avoid those accidental bucket spills.

15
Knowledge is Power

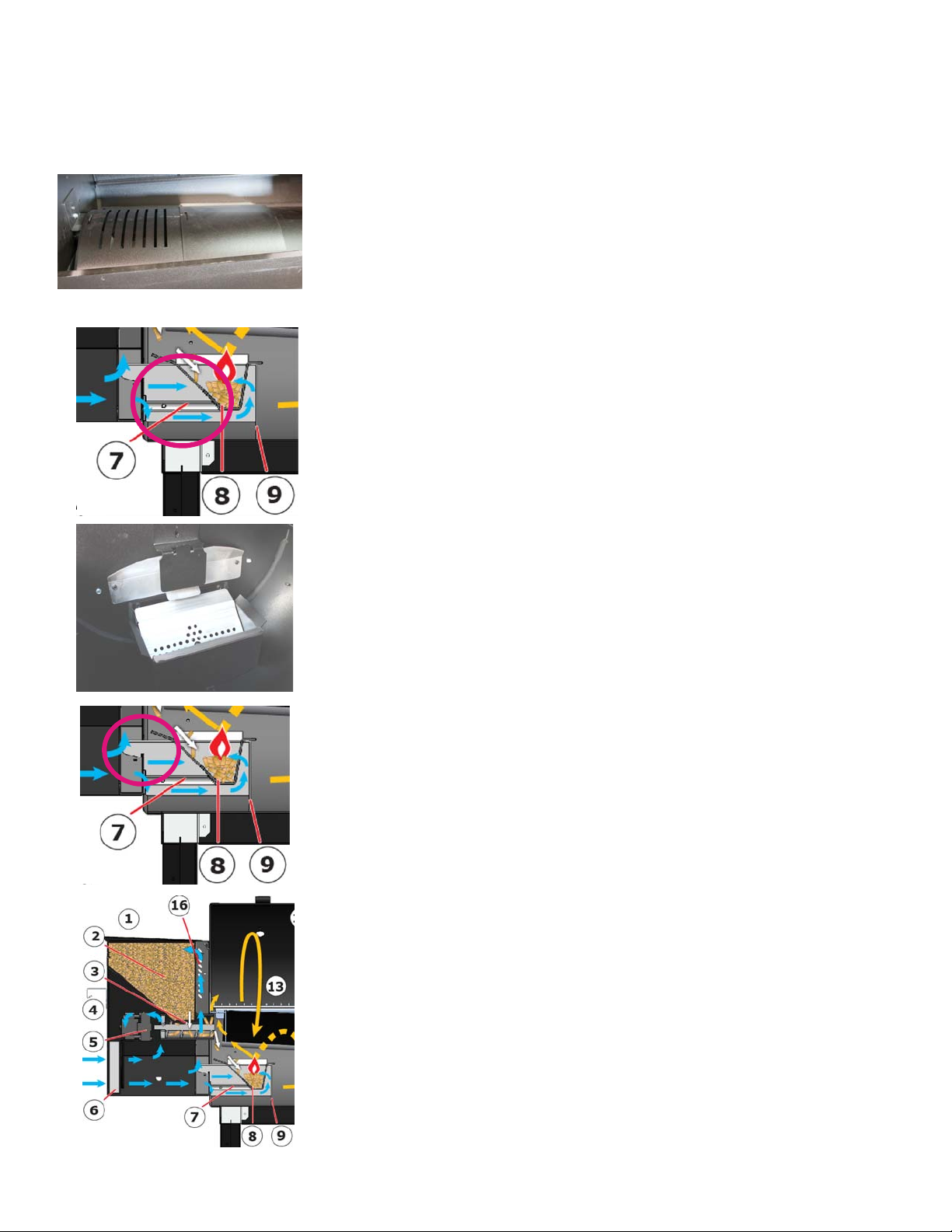

HowYourLG SmokerWorks101
TIP Your LG Smoker Grill can run efficiently over extended periods of time
and at different heat output levels, as long as the fuel supply is dry,
uninterrupted and timely cleaning and maintenance is performed.
 The perfect barbecue experience starts with filling your hopper (2) with all natural wood pellets.
 Press the “START” touch pad (18), this activates the “Fan” (6) which is used to cool the hopper (2),
cause the pellets to burn (8) and results in convection cooking (14). It also activates the electronic Auto Igniter
(7), and the pellet feed system (3,5).
 A motorized Auger Motor (5) and Metal Auger Shaft (3), deliver the pellets to the burn grate (8). Your Country
Smoker uses “Top Feed” technology, which means the Auger (3,5) delivers the pellets up above the burn grate (8)
and then the fuel drops into the burn grate. The strength of the auger motor (5), the metal shaft (3) and the open
design reduce the possibilities of “jams” and allows for the use of less than premium quality fuel.
 Adjusting the temperature setting on the “Digital Control Center” Board (18) sets the speed of the feed, thus the
temperature output. This control is fully adjustable, from hot smoke 170° F to 600° F searing and shows both
“Desired” and “Actual” grill and meat probe temperature readings.
 The “Electronic Auto Igniter” (7) activates until the unit reaches 150°F, igniting the pellets in the burn grate (8).
 The Combustion / Cooling fan (6) cools the hopper (16); provides combustion air to the burn grate (8); and causes
air movement in the cooking area (14), resulting in convection cooking.
 The fuel burns in the burn grate (8) hot and intense, somewhat like a forge. The fly ash is directed downward by
the “Arched Flame Broiler” (12) and can be cleaned out periodically from inside the bottom of the barrel.
 A CLOSED “Arched Flame Broiler” (12) protects the food from direct contact with the flame; gives a large hot
metal area to help evaporate the juices back into the cooking resulting in added flavor; channels excess grease
directly to a grease pail (11); and distributes the heat evenly throughout the cooking area.
 The natural smoke flavor produced by the burning pellets, the “Arched Flame Broiler” (12) and the fan induced
“Convection Cooking” (14) combine to give you the savory flavor and even cooking that is unique to pellet grills
and will win you rave reviews each time you use it.
1. Hopper Lid
2.14lb. Hopper
3.Metal Auger Feed
4.Stay Cool Handle
5.Feed Motor
6.Combustion / Cooling Fan
7.300 Watt Electric Igniter
8.Stainless Burn Grate
9.Sealed Burn Pot
10.Heavy Duty Steel Tube Legs
11. Grease Bucket
12.Arched “Flame Broiler”
13.Porcelain Cast Cooking Grids
14. Convection Cooking Chamber
15.Dome Thermometer
16.Air Cooled Vented Hopper
17.Convection Air Exhaust
18.Digital Control Center
19.Solid Bottom Shelf
20. Wheels
21.Casters
Powder Coat Finish
Series 4C Pellet Smokers/Grills
Standard Features
Digital Control Center

16
Knowledge is Power
YourNew LG SERIES 700, 900 & 1100
WoodPelletFiredSmokinGrills
MODEL UNIT COOKING AREA ELECTRIC SIZE H X W X D WEIGHT
LG 700 707 sq. in. TOTAL 110 Volt 60Hz 5 Amp
3 prong grounded plug
15 amp GFI
43 x 39.5 x 23 122 lbs..
LG
900 913 sq. in. TOTAL Same 43 x 45 x 23 140 lbs.
LG
1100 1061 sq. in. TOTAL Same 43 x 51 x 23 159 lbs.
OPTIONS Hopper Extension
Easy add-on w/ lid
Adds extra 20 lbs.
Large 14lb. Hopper capacity
Easy flip up top, with rounded
edges
Time proven Metal
Auger Feed System
Fan Forced Combustion,
Cooling and
Convection Cooking.
Electric Igniter eliminates the
need for matches & starter
fluids.
Full Range Oven Temperature
170 to 600 degrees, giving more
cooking options; hot smoking to
searing.
Primer Button aids in
quicker heat recovery or
increasing smoke intensity. Casters 6” Dia. wheels
Dome Thermometer
Stainless Steel
Handle to open lid
Heavy-duty engineered
Legs and Shelf frame
“Digital Control Center” Control
w/ Programmable Meat Probe
14 Gauge Steel Construction
Custom Cover
Silk Screened heavy duty 600 danier,
polyester canvas, double stitched,
Polyurethane interior, tighting strap.
Clip-on Flip Down
Side or Front Shelf
12” W x 14.5” D
Powder coat or Stainless Steel
finish with tool hang-
Deluxe Front Shelf
12” D x 24” W
Clip-on Flip Down
Stainless Steel Finish
Cart Enclosure Kit
2 swing open doors
2 side panels
1 rear panel
Stainless Steel or
Powder Coat Finish
Cold Smoker
Attachment
5 pullout shelves
Can add additional
5 shelfs
Cold Smoker or
Warming Oven
Not Seen
Porcelain Cast Iron
Cooking Grids
Upper Cooking Rack

16
Knowledge is Power
ArchedFlameBroiler
All LG Smoker models come with a 14 gauge “Arched Flame Broiler”, designed to
withstand high temperature and give years of performance. The Arched Flame Broiler,
when closed, has been designed to keep the flame out of direct contact with your
cooking surface, thus helping to reduce the chance of flare-ups. The arched design
increases the amount of hot surface area to allowmore fats and juices from the meats
to evaporate a smoke flavor, back into meat. As well you will note the bent edges
running down the length of the back and front of the angled, arched steel, these are to
help in channeling the excess grease directly to the one end of the smoker where it is
then allowed to collect in a convenient removable pail. The unique design also directs
the majority of fly ash down toward the bottom of the barrel, while allowing for the fan
forced heated air to circulate around the barrel causing convection cooking.
Sliding the Flame Broiler OPEN allows for “Direct Flame” cooking and temperatures
as high as 1000 F.This is used to “Flame Kiss” or broil steaks, roasts, or vegetables.
AutomaticIgniter (#7)
The 300 watt electric igniter eliminates the need for messy starter fluids or gels. It is
safe and easy to start, even the little beginner “Pit Master” can start a LG Smoker. The
igniter is simply a hot rod encased in a stainless steel holder. This style of igniter has
been used throughout the pellet stove industry for years. The combustion/cooling fan
blows air into the back of the igniter assembly, surrounding the hot rod. Then the super
heated air exits through the open end, near the back of the burn grate. As the pellets
begin to heat up they eventually break out in flames, this is known as spontaneous
combustion. The igniter will stayactivated for 7-15 minutes.
If for any reason the igniter fails, you can start the grill manually.
NOTE: The igniter can be disconnected, to allow your LG smoker to run with a
minimum 100 watt inverter. (see manual starting procedures, further in this manual.)
BurnGrate (#8)
The burn grate is constructed out of stainless steel and is the heart of your grill. The
burning temperature in the grate can reach temperatures of 1700 to 2000°F. The air
holes are designed to allow the right combination of fan forced air to force the wood
pellets to burn hot and clean while grilling or allowthem to smolder and produce the
savory smoke while in the smoke temperature. The back of the burn grate has a large
oblong hole in the back to allow the hot igniter air to come through, causing the pellets to
catch fire.
NOTE: The burn grate should be checked after every MAJOR use to ensure that the
combustion air holes are not clogged and to ensure the igniter hole is clean.
BurnPot (#9)
The burn pot is used to hold the Burn Grate, the igniter assembly, and to channel the fan
forced combustion air. The pot has been designed to be moved easily to aid in cleaning
and replacement of the igniter. It is very important that the burn pot is seated and
secured properly in order to ensure proper combustion andheat output. The burn
pot needs to be pushed in tightly against the side of the barrel, and secured with a
screw into the bottom of the barrel (see installing the burn pot and diagram).
Ensure that there is no foreign matter under the burn pot that maylift it off the bottom of
the barrel. This will allow combustion air to leak out, thus reducing the heat output of
your grill.
AugerFeedSystem
The heart of the feed system is a time proven, metal auger (4) and high torque auger
motor (5). This combination allows for different quality of pellet fuels to be used while
reducing the possibilities of “jams” taking place. The metal auger design also helps in
maintaining a constant and even feed of the fuel to the fire, resulting in better and
consistent temperature control. The Auger Feed System is run by a 2 rpm motor.
(see control board, Digital Control Center, for further information).
Unique Feature

18
Knowledge is Power
Digital Control Center
This control is very much the same as the control on
your kitchen oven. The main advantages ar the ability to
automatically compensate for the different ambient
conditions and fuel types allowing for longer, carefree
bbq as well as the Programmable Meat Probe function.
Remember: Much like your kitchen oven, the ACTUAL
temperature does fluctuate up and down depending on
weather, the flavor of pellets being used, and the
amount of food on the grill.
Programmable Meat Probe
Designed using the latest in solid state electronics, the Digital Control Center now makes
it even easier for anyone to slow smoke, bake or sear like a professional “Pitmaster”. Not
only will the control give you the ability to set and automatically maintain your desired
cooking temperature (170 °F Hot Smoke to 600 °F Searing) just like your indoor oven, but
now with the addition of a separate food probe, it will cook your food to your desired
internal temperature, then adjust the control to a “keep warm” temperature. Along with the
true convection cooking within the grill, keeping your culinary delight from drying out, all
you have to do is to set it, then relax or even sleep soundly, while the Digital Control
Center will do the rest.
This screen is used to display that there is no internal (meat) connected to the Digital
Command Center, when the meat probe selection has been active.
ON / OFF TOUCH PAD
This pressure sensitive touch pad is used to turn the control “ON”, which initiates the Automatic “START-UP”
Mode. This is also used to turn the control “OFF”, or activate the “SHUT DOWN” MODE.
PRIME TOUCH PAD
This touch pad performs the same function as it has with any Louisiana Grills board. Asked for from the
competition cookers. When the touch pad is pressed and held, the FUEL FEED system will turn and feed
more pellets to the burn grate. This can be used to add more fuel just before opening the grill lid, resulting in
a quicker heat recovery time. It can also be used to add more fuel, while smoking, to increase the amount of
clean smoke flavor intensity.
COOK TEMPERATURE UP and DOWN TOUCH PAD
By pressing either the UP or DOWN arrows, the LED read-out can be moved by 5 degree increments.
The temperature can be set as low as 170°F, for hot smoking to a high of 600°F, for searing your steaks and
hamburgers. Also used with the meat probe.
LED DISPLAY SCREEN
This screen is used to display temperature readouts, as well as displaying error messages, and
power up readouts. Temperatures can be displayed in either Fahrenheit or Celsius.
TEMPERATURE DISPLAY
By pressing the TEMP display touch pad, the LED display screen will show and allow movement in either the
“ACTUAL” temperature read out or the “SETPOINT” or desired temperature. The small LED beside both
settings is used to indicate which temperature is presently being displayed.
Temp
PROBE SELECTION
By pressing the PROBE display touch pad, the LED display screen will show and allow movement in either
the “GRILL” probe temperature read outs or the “MEAT” probe temperature readings. The small LED beside
both settings is used to indicate which probe temperature is presently being displayed.
noPr
Digital Control Center

19
Knowledge is Power
FanCooledHopper
The entire line of LG SERIES Smokers utilize the exact same hopper and component
parts. To increase the life of your grill and its main working component parts the
Combustion / Cooling fan is used to perform 3 main functions:
1. Pressurize the internal hopper compartment to cool the wiring, electrical
component parts and the wood pellets.
2. Forces constant air movement between the hopper and the grill barrel wall.
Because of higher temperatures needed for searing and because of the longer
length of time a pellet grill can operate, such as slow smoking a whole hog, air
movement is used to provide an air barrier between the two surfaces.
Ensure the air slots found on the front and back of the hopper do not get
blocked off, at any time.
3. To provide combustion air, allowing the pellet fuel to burn properly. The fan
forced air is then used to provide “Convection Cooking” within the smoking grill.
Convection cooking locks in the juices and distributes the heat evenly
throughout the grill resulting in that savory flavor and near perfect cooking.
PowderCoatFinish
Louisiana Grills uses a “High Heat Powder Coat” finish throughout the entire line of the
Smokers. This High Heat finish is rated for 1000°F. This is done to allow for easy and
trouble free maintenance, and adding to the life of your smoking grill. Powder coating
is environmentally friendly and produces an excellence and superiority of finish that
customers count on. Maintaining the initial appearance of a powder coating is a simple
matter. If the finish does scratch, flake, rust or just needs to be “freshened- up”
it is important to use a touch-up paint ( High Heat BBQ) to repair it as soon as
possible. (see maintenance for further detail)
GreaseCatcher
All LG Smokers use the “Arched Flame Broiler” system that channels any excess
grease, that does not evaporate, directly to a sealed grease catch area. From here any
excess grease is directed to the drop spout where it is disposed in, an easy to clean or
replace, metal bucket. The metal handle of the bucket simply hooks on the notched
out grove of the grease spout. Allow the grease to cool before removing the pail.
TIP: if you want to replace your grease fill bucket with a new one, save any small
metal buckets that you acquire from yard candles, etc. .
START-UP mode
Allows electricity to flow to all the electrical components for 20 minutes. This is a software set program that will
automatically start the combustion/cooling fan, the igniter and the feed system at a preset rate, until the grill probe reaches
a temperature of 150°F. Once met, the igniter will shut off and the feed rate is controlled by the control board..
If for any reason the 150°F is not reached in 20 minutes, the control will turn OFF and an ER-2 will display on the screen.
SHUT DOWN mode
When finished “Savoring the Flavor”, simply push the OFF touch pad. The control will turn off only the feed system,
allowing the fan to continue to run not only to burn out the fuel, clean and efficiently, but also to cool down the grill. When
the grill probe reaches 130°F the control will shut off completely.
How the Board Works 101

20
Knowledge is Power
TIP Always store your pellets in a dry area. Avoid any contact or exposure to
moisture. This will cause the pellets to absorb the moisture and will
result in lower BT output or cause the pellets to swell and break apart.
se a moisture proof re-sealable tub or bucket.
100% Natural Hardwood Wood Pellets
They are no thicker than the eraser on the end of a pencil. People who see them for the first time
think they look like rabbit food, but there is nothing small about the heat energy or flavor in a wood
pellet. These clean burning wood pellets generate about 8200 BTU’s per pound with very little ash
(.3lb/40lb bag) and low moisture content (5-7%) and are “carbon neutral”.
Barbeque wood pellets are produced in the same matter as wood pellet fuel is produced for home
heating, PFI tandard Premium Grade (see pelletheat.org). Pure raw material (sawdust) is
pulver-ized with a hammer-mill and the material is pushed through a die with pressure. As the
pellet is forced through the die it is sheared off at a specific maximum length, cooled, screened,
vacuumed, and then bagged into 20 or 40 lb. bags.
BBQ wood pellets differ from smoking pellets, used in gas or propane grills, in that most are a
combination of the main flavor and a neutral flavor.
Flavor Guide Lines
isconsin Hickory and Maple blend 40/60
Rich, smoky bacon like flavor. Considered the “Kings of the Woods”
M
N
P
C
innesota Maple 100% Eastern and Midwest
Mild, neutral, hint of sweetness.
ew England Apple and Maple blend 40/60
moky, mild sweetness flavor. Highly recommended for baking.
as ington Alder 100% Pacific Northwest
Mild, neutral, hint of sweetness, Used for over 100 years with salmon.
ennsylvania C erry and Maple blend 40/60
lightly sweet but also tart. Gives a rosey tint to light meats.
ompetition Blend
50% Maple. 25% Hickory. 25% C erry
Perfect blend of sweet, savory and tart. Used by many professional “Pitmasters”.
Louisiana Grills is always looking for new existing blends of wood, from coast to coast.
Texas Mesquite and Maple blend 35/65
trong, tangy, spicy flavor. Think Tex-Mex cuisine.
Georgia Pecan and Maple blend 40/60 outheast delicate flavor.
mokey, Bacon-like flavor. imilar to Hickory but not as strong.
ennesse W iskey Barrel - Premium Blend
80% Oak. 20% W iskey Barrel
trong, sweet smoke with aromatic tang. Perfect for red meats.
T
W
W
