Louroe Electronics DA-4 User manual

DESCRIPTION
The Model DA-4 is an Audio Distribution Amplifier with one audio input and four
audio outputs. It receives line level audio signals from a Louroe base station or
Louroe microphone and distributes it to up to four devices such as DVR’s, VCR’s,
CCTV monitors with amplifiers or other audio devices that accept line level input.
Each output of the DA-4 has a gain adjust potentiometer for correcting audio level.
Maximum gain is 15dB when potentiometer is fully engaged. Included with the
DA-4 are five RCA connector cables and a 12Vdc power supply.
AUDIO DISTRIBUTION AMPLIFIER
DA-4
INSTALLATION AND OPERATING INSTRUCTIONS
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: [phone] / FAX: [phone]
/ www.louroe.com[email protected]
®
Page 1 of 8
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
DA_4_inst_3/15
Contents Description
DA-1 Distribution Amplifier. Distributes 1 audio
input to 4 audio outputs. Usually connected
between a base station with single audio
output and 4 receiving devices.
AD-1 listed AC ADAPTER.
Supplies 12 Vdc to DA-1
5 Single RCA Cables For connecting DA-4 to other devices.
U
®
MODEL DA-4 AD-1 POWER SUPPLY
(5) SINGLE RCA CABLES

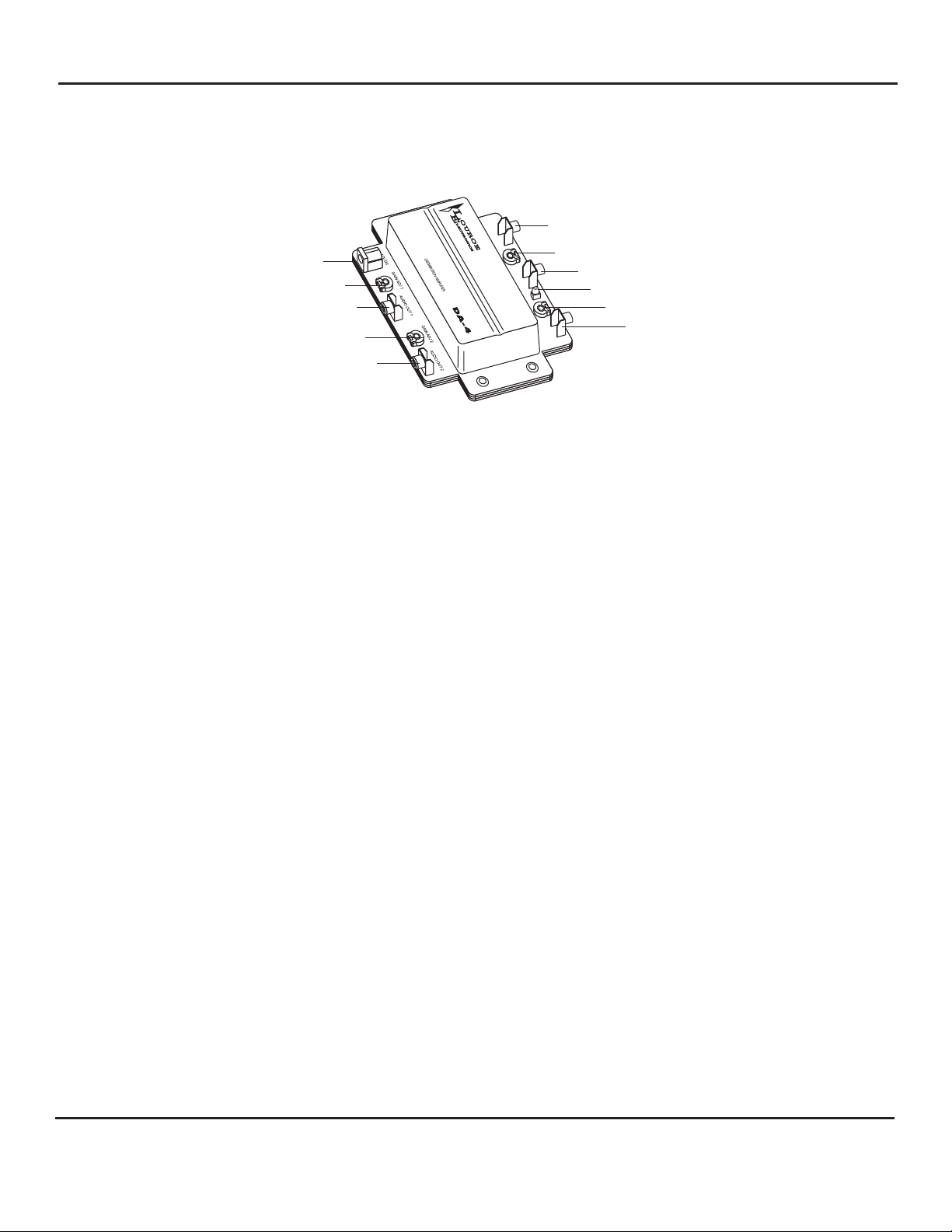

AUDIO INPUT
GAIN ADJUST FOR AUDIO OUT #4
AUDIO OUTPUT #4
POWER LED
GAIN ADJUST FOR AUDIO OUT #3
AUDIO OUTPUT #3
12 VDC POWER JACK
GAIN ADJUST FOR AUDIO OUT #1
AUDIO OUTPUT #1
GAIN ADJUST FOR AUDIO OUT #2
AUDIO OUTPUT #2
Description of Functions
Fig. 1
Connecting a Louroe microphone directly to the DA-4
(Refer to figure 3, page 5 of this instruction)
All Louroe microphones contain a 3-pin terminal block marked A, B, C
A = +12Vdc power red wire
B = Audio Output black wire
C = Ground bare wire
Microphone’s current drain is 10mA.
IApplying Power to the Microphone
Apply 12Vdc power to terminals A and C. A is positive and C is negative
Microphone Connection to DA-4
a. Referring to the microphone 3-pin terminal block, connect a 22 gauge shielded cable to terminal B
and a ground wire to terminal C. (Terminal C is common for both 12Vdc power and audio output).
b. Run other end of cable to DA-4 and solder to an RCA plug. Wire from terminal B of microphone
goes to the tip of the RCA plug and ground wire goes to the sleeve.
c. Connect RCA plug to “Audio Input” RCA jack of DA-4
INSTALLATION AND OPERATING INSTRUCTIONS
Page 2 of 4
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
DA_4_inst_3/15

Connecting a Louroe Microphone to a Louroe Base Station and to DA-4
a. If microphone is to be first connected to a Louroe base station, follow the instructions that accompany
the specific base station (APR-1) for making wiring connections
b. For connecting base station to DA-4 use supplied RCA cable and go “Audio Out” (RCA) of base station
to “Audio Input” of DA-4
Connecting DA-4 to Audio Receiving Devices (DVR, VCR, CCTV Monitor)
a. The DA-4 has 4 RCA audio out jack. Using supplied RCA cables connect “Audio Output” of DA-4 to
Audio in (or line in) of the receiving devices.
b. Apply +12Vdc power to DA-4 using the 120V/12Vdc power supply (included). Connect small 90° plug
into the 12Vdc power jack located on DA-4. Connect the two-pin large plug to a standard 120 Vac wall
outlet or power strip. The green power LED will illuminate.
c. Each of the four audio outputs has a gain adjust potentiometer. Using a small screw driver, the desired
level of audio can be obtained by rotating clockwise to increase, or counterclockwise to decrease.
d. Microphone sensitive switch. Located on the backside of microphone is a sensitivity switch marked N
(normal) and L (low). If application requires less microphone sensitivity, move slide switch to “L”
position. This will lower the gain (-6dB output into 600W).
NOTE: Should audio receiving device (DVR, PC
soundcard module, etc.) contain a
3.5mm audio input ( or line input).
Connect an RCA to 3.5mm adapter to the
RCA plug and insert. Check
specifications or DVR, etc. to determine if
audio input is mono or stereo.
SPECIFICATIONS
Type of audio connections
Current drain
Output
Maximum gain (per output)
RCA
Line Level (0dBV, 1kW@ 1kHZ)
+15dB
Power input 12 Vdc, 500mA
Dimensions
Weight
Shipping Weight
6 1/8”L x 4 5/8”W x 1 3/8”H
8 oz
2 lbs
25 mA
INSTALLATION AND OPERATING INSTRUCTIONS
Page 3 of 8
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
DA_4_inst_3/15

LOUROE
MODEL DA-4
DISTRIBUTION AMP
AD-1
+12 Vdc
POWER
SUPPLY
DISTRIBUTION AMPLIFIER
E
LOUR OE
LECTR ONIC S
12 Vdc
DA-4
AUDIO OUT 1
TV MONITOR W/ AUDIO,
DVR, VCR, ETC.
OUT IN
AUDIO
AUDIO OUT 2
AUDIO OUT 3 AUDIO OUT 4
GAIN ADJ 1 GAIN ADJ 2 GAIN ADJ 1 GAIN ADJ 2
GAIN ADJ 4GAIN ADJ 3
AUDIO IN
TV MONITOR W/ AUDIO,
DVR, VCR, ETC.
OUT IN
AUDIO
TV MONITOR W/ AUDIO,
DVR, VCR, ETC.
OUTIN
AUDIO
TV MONITOR W/ AUDIO,
DVR, VCR, ETC.
OUTIN
AUDIO
N
I
E
D
U
A
S
A
M
+12 Vdc INPUT OUTPUT
AUDIO
BA C
MIC INPUT
VAN NUYS, CA
L N
A
BARE
A B C
VE RI FACT A
L
N
BLACK
RED
LOUROE APR-1 BASE STATION
VERIFACT A MICROPHONE SHOWN
INDICATES AUDIO PATH
BARE
BLACK
RED
FIG 2
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
WIRING REQUIREMENTS
West Penn 452 or equivalent
INTERCONNECTION DIAGRAM
LOUROE MICROPHONE TO APR-1 BASE STATION TO MODEL DA-4
DISTRIBUTION AMP AND TO 4 RECEIVING DEVICES (CCTV MONITORS, ETC.)
INSTALLATION AND OPERATING INSTRUCTIONS
Page 4 of 8
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
DA_4_inst_3/15
®

AD-1
+12 Vdc
POWER
SUPPLY
DISTRIBUTION AMP LIFIER
E
LOUR OE
LECTR ONIC S
12 Vdc
DA-4
AUDIO OUT 1
TV MONITOR W/ AUDIO,
DVR, VCR, ETC.
OUT IN
AUDIO
AUDIO OUT 2
AUDIO OUT 3 AUDIO OUT 4
GAIN ADJ 1 GAIN ADJ 2 GAIN ADJ 1 GAIN ADJ 2
GAIN ADJ 4GAIN ADJ 3
AUDIO IN
TV MONITOR W/ AUDIO,
DVR, VCR, ETC.
OUT IN
AUDIO
TV MONITOR W/ AUDIO,
DVR, VCR, ETC.
OUTIN
AUDIO
TV MONITOR W/ AUDIO,
DVR, VCR, ETC.
OUTIN
AUDIO
AD-1
+12 Vdc
POWER
SUPPLY
VERIFACT D MICROPHONE SHOWN
GROUND (C)
AUDIO (B)
B+ (A)
FIG 3
INDICATES AUDIO PATH
INTERCONNECTION DIAGRAM
LOUROE MICROPHONE DIRECTLY CONNECTED TO MODEL DA-4 DISTRIBUTION
AMP AND TO 4 RECEIVING DEVICES (CCTV MONITORS, ETC.)
LOUROE
MODEL DA-4
DISTRIBUTION AMP
INSTALLATION AND OPERATING INSTRUCTIONS
Page 5 of 8
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
DA_4_inst_3/15
®

NOTES
Page 6 of 8
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
INSTALLATION AND OPERATING INSTRUCTIONS
DA_4_inst_3/15

IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
decal notice is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
Page 7 of 7
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
AUDIO
MONITORING
On
These Premises
®
INSTALLATION AND OPERATING INSTRUCTIONS
DA_4_inst_3/15
WARRANTY
LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material
and workmanship. Should a defect appear within five years (60 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair
or replace the defective equipment. This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS .
This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of
installation instructions provided by LOUROE ELECTRONICS.
Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best
way.
