Louroe Electronics DA-8 User manual

DESCRIPTION
The Model DA-8 is an Audio Distribution Amplifier with one audio input and eight
audio outputs. It receives line level audio signals from a Louroe base station or
Louroe microphone and distributes it to up to eight devices such as DVR’s, VCR’s,
CCTV monitors with amplifiers or other audio devices that accept line level input
(0dB @ 600W). Each output of the DA-8 has a gain adjust potentiometer for
adjusting audio level. Maximum gain is 15dB when potentiometer is fully
engaged. Included with the DA-8 are nine RCA connector cables and a 12Vdc
power supply.
MODEL DA-8
AUDIO DISTRIBUTION AMPLIFIER
DA-8
INSTALLATION AND OPERATING INSTRUCTIONS
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: [phone] / FAX: [phone]
/ www.louroe.com[email protected]
®
Page 1 of 8
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
DA_8_inst_8/11

INSTALLATION AND OPERATION
1) Connecting a Louroe microphone directly to the DA-8
(Refer to figure 3, page 5 of this instruction)
All Louroe microphones contain a 3-pin terminal block marked A, B, C
A = +12Vdc power red wire
B = Audio Output black wire
C = Ground bare wire
2) Microphone Connection to DA-8
a. Referring to the microphone 3-pin terminal block, connect a 22 gauge shielded
cable to terminals A, B and C. Using the recommended cable connect RED wire to
A, BLACK wire to B and BARE wire to C.
b. Run other end of cable to the DA-8 3-pin terminal block also marked A, B and C.
Connect RED wire to A, BLACk wire to B and BARE wire to C (shown in the
diagram)
Page 2 of 4
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
DA_8_inst_8/11

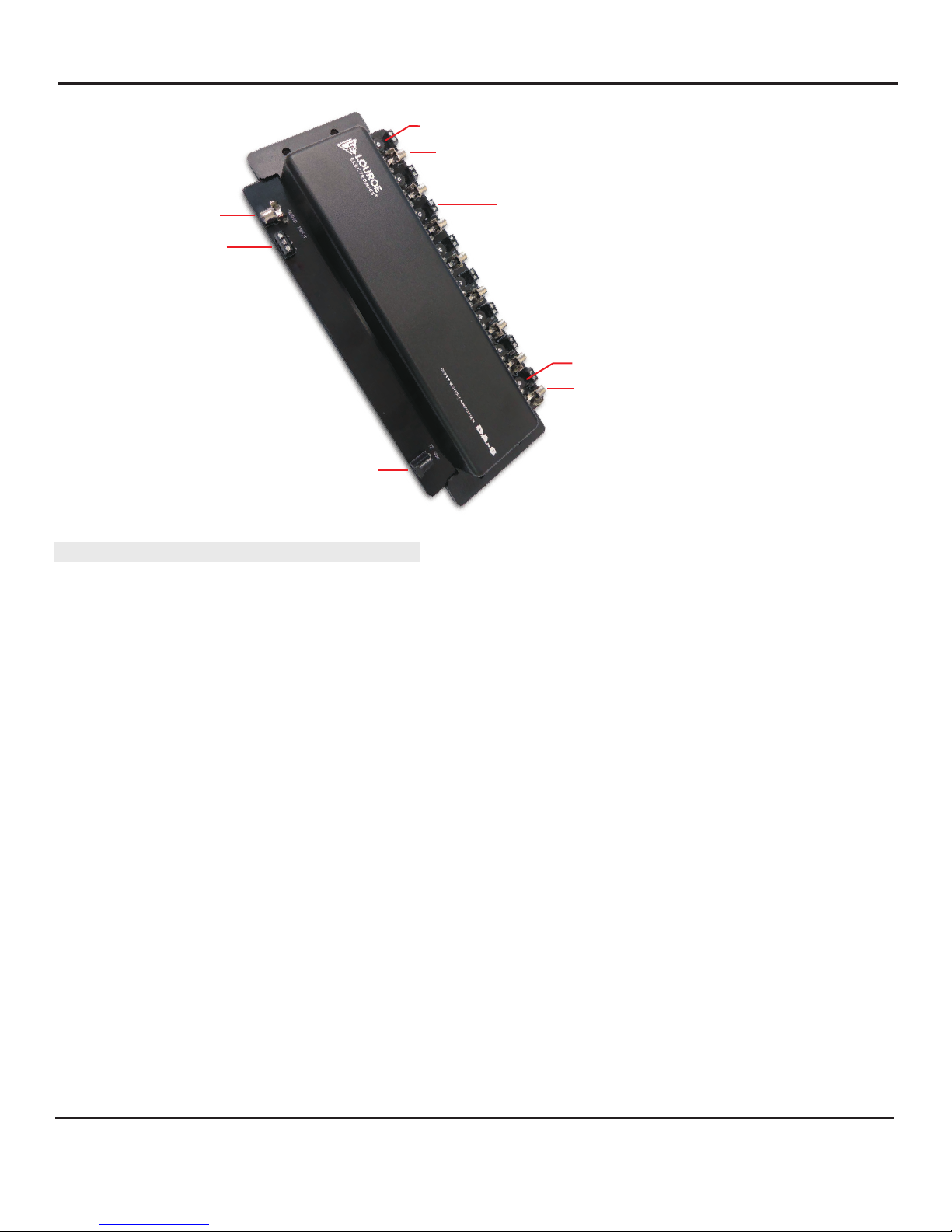

AUDIO INPUT
CONNECTS TO VERIFACT™
MICROPHONE
INSTALLATION AND OPERATING INSTRUCTIONS
12 VDC POWER JACK
AUDIO OUTPUT #1
AUDIO OUTPUT #8
2 PIN TERMINAL BLOCK
(THESE CAN BE USE INSTEAD OF THE RCA
IF THE DISTANCE BETWEEN THE DA-8
AND RECEIVING DEVICE IS FAR)
GAIN ADJUST FOR AUDIO OUT #1
GAIN ADJUST FOR AUDIO OUT #8
Description of Functions

4) Connecting a Louroe Microphone to a Louroe Base Station and to DA-8
(Refer to Fig 2 on page 4 of this instruction)
a. If microphone is to be first connected to a Louroe base station, follow the instructions
that accompany the specific base station (APR-1) for making wiring connections
b. For connecting base station to DA-8 use supplied RCA cable and go “Audio Out”
(RCA) of base station to “Audio Input” of DA-8
5) Connecting DA-8 to Audio Receiving Devices (DVR, VCR, CCTV Monitor)
a. The DA-8 has 8 RCA audio out jack. Using supplied RCA cables connect “Audio
Output” of DA-8 to Audio in (or line in) of the receiving device.
b. Apply +12Vdc power to DA-8 using the 120V/12Vdc power supply (included). Connect
small 90° plug into the 12Vdc power jack located on DA-8. Connect the two-pin large
plug to a standard 120 Vac wall outlet or power strip.
c. Each of the eight audio outputs has a gain adjust potentiometer. Using a small screw
driver, the desired level of audio can be obtained by rotating clockwise to increase, or
counterclockwise to decrease.
d. Microphone sensitive switch. Located on the backside of microphone is a sensitivity
switch marked N (normal) and L (low). If application requires less microphone
sensitivity, move slide switch to “L” position. This will lower the gain (-6dB output into
1KW).
NOTE: Should audio receiving device (DVR, PC soundcard
module, etc.) contain a 3.5mm audio input ( or
line input). Connect an RCA to 3.5mm adapter to
the RCA plug and insert. Check specifications or
DVR, etc. to determine if audio input is mono or
stereo.
The 2 pin-terminal blocks can be use instead of
the RCA output jacks if the distance between the
DA-8 and receiving devices are far.
SPECIFICATIONS
Type of audio input connection (1)
Type of audio output connection (8)
Output
Maximum gain (per output)
RCA
Line Level (0dB @ 1KW)
+15dB
Power input 12 Vdc, 500mA
Dimensions
Weight (net), incl. power supply and cables 1.5 lb (0.7 Kg)
RCA
INSTALLATION AND OPERATING INSTRUCTIONS
Page 3 of 8
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
DA_8_inst_8/11
11 1/2”L X 4 3/4”W X 1 1/4”H

INDICATES AUDIO PATH
FIG 2 2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
WIRING REQUIREMENTS
West Penn 452 or equivalent

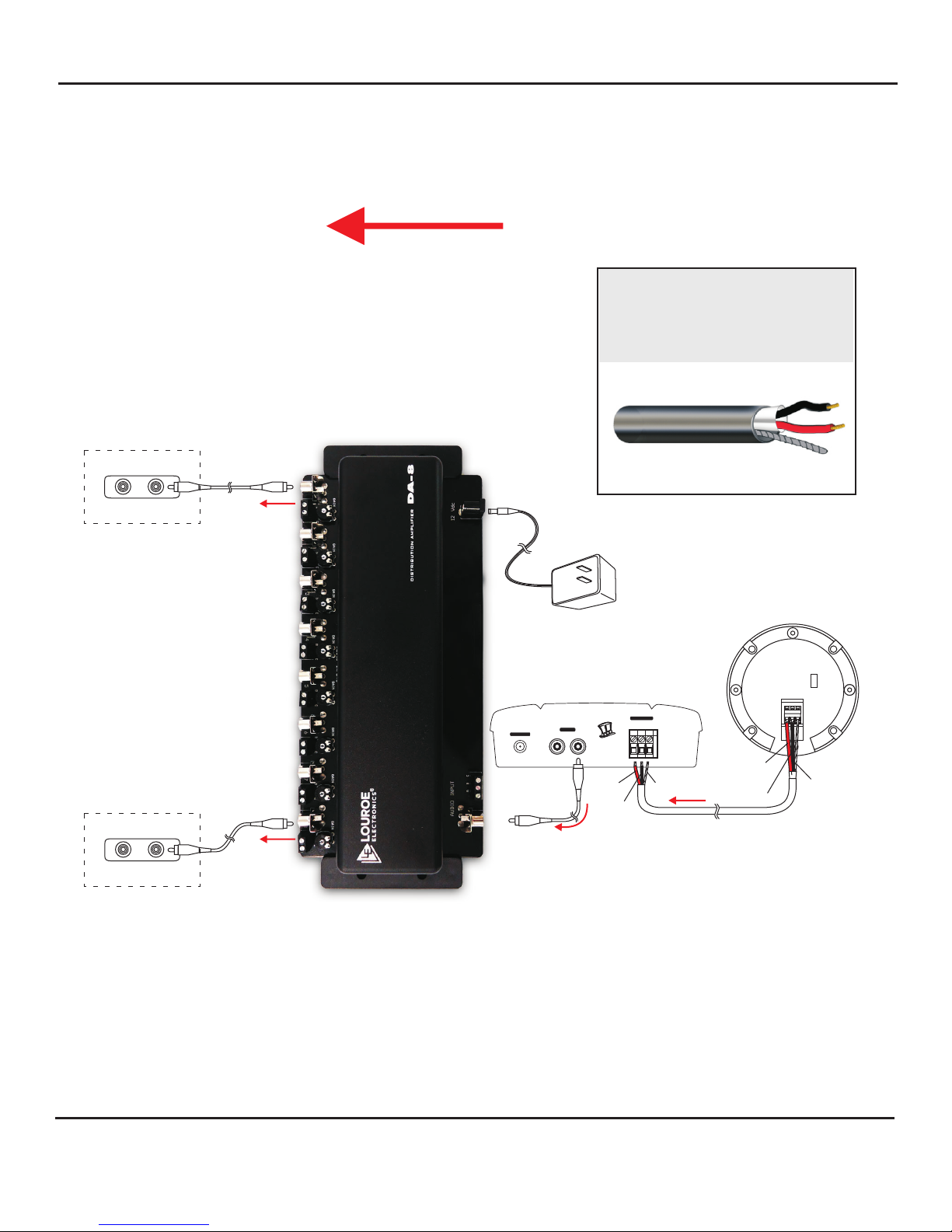

INTERCONNECTION DIAGRAM
LOUROE MICROPHONE TO APR-1 BASE STATION TO MODEL DA-8 DISTRIBUTION AMP AND
TO 8 RECEIVING DEVICES (CCTV MONITORS, ETC.)
INSTALLATION AND OPERATING INSTRUCTIONS
Page 4 of 8
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
DA_8_inst_8/11
N
I
E
D
U
A
S
A
M
+12 Vdc INPUT OUTPUT
AUDIO
BA C
MIC INPUT
VAN NUYS, CA
L N
A
BARE
A B C
VERIFACT A
L
N
BLACK
RED
LOUROE™APR-1 BASE STATION
VERIFACT™A MICROPHONE SHOWN
12VDC POWER SUPPLY
BARE
BLACK
RED
TV MONITOR W/ AUDIO,
DVR, VCR, ETC.
OUT IN
AUDIO
TV MONITOR W/ AUDIO,
DVR, VCR, ETC.
OUT IN
AUDIO

FIG 3
INDICATES AUDIO PATH
INTERCONNECTION DIAGRAM
LOUROE MICROPHONE DIRECTLY CONNECTED TO MODEL DA-8 DISTRIBUTION AMP AND
TO 8 RECEIVING DEVICES (CCTV MONITORS, ETC.)
INSTALLATION AND OPERATING INSTRUCTIONS
Page 5 of 8
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
DA_8_inst_8/11
+12 Vdc
TV MONITOR W/ AUDIO,
DVR, VCR, ETC.
TV MONITOR W/ AUDIO,
DVR, VCR, ETC.
OUT IN
AUDIO
OUT IN
AUDIO
2 CONDUCTOR
SHIELDED
22 GAUGE
WEST PENN
452 OR EQUIV.
LN
A
ABC
VERIFACT A
L
N
A B C
BARE
BLACK
RED
VERIFACT™ A MCIROPHONE

NOTES
Page 6 of 8
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
INSTALLATION AND OPERATING INSTRUCTIONS
DA_8_inst_8/11

IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
decal notice is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
Page 7 of 7
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
AUDIO
MONITORING
On
These Premises
®
WARRANTY
