Louroe Electronics Verifact K User manual

The Verifact™ K is a dynamic line level microphone with pre-amp and is designed
for areas with excessive background noise or where the ambient sound level is high.
The modified omni-directional pattern is one in which the audio pickup is more from
the front of the microphone and less from the sides and back.
When mounting, position the Verifact™ K so that the front part (white screen) is
facing the desired area of coverage. Microphone functions best when it is mounted
close to the source, 3’ - 8’ away.
IMPORTANT - REDUCE VIBRATION
If installation is in a moving vehicle
(bus, police van, tram, etc.), The
Verifact™ K may require a Louroe™
shock mount assembly to reduce
vibration and to enhance clarity of both
live and recorded audio. Model number
is Verifact™ K Shock Mount.
Verifact™Model
K Microphone
Verifac™t K Shock Mount
(optional)
VERIFACT™K
MICROPHONE
INSTALLATION AND OPERATING INSTRUCTIONS
Page 1 of 4 K_mic_inst_4/11
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: [phone] / FAX: [phone]
/ www.louroe.com[email protected]
®

CONNECTION TO A LOUROE BASE STATION OR TO IF-1, IF-4, IF-8 INTERFACE
ADAPTER:
After microphone connection has been made, run cable to the Louroe Base Station or Interface Adapter. All
Louroe Base Stations and Interface Adapters have a corresponding terminal block (A, B, C) for each zone.
Make connections to the terminal block from microphone wire, matching A to A, B to B and C to C. If using
cable from other manufacturers with a different color code, make certain that wire colors are properly matched
between microphone and base station.
CONNECTION TO A LOUROE MICROPHONE MIXER (RN-2 or MLA-6)
Refer to Installation Instructions for the specified mixer.
IF MODEL K MICROPHONE IS BEING CONNECTED DIRECTLY TO A SOURCE OTHER THAN A LOUROE
BASE STATION OR INTERFACE ADAPTER (DVR, IP NETWORK CAMERA, ETC), CONNECT AS
FOLLOWS:
1. Apply 12Vdc power to terminals A and C.
(A is positive, C is negative)
2. Connect Terminal B (audio out) and Terminal C of Verifact™ K Microphone to the recorder or audio source
using single conductor shielded cable, 22 gauge with a drain wire.
3. If the audio input of the recorder (or other source) is an RCA receptacle, solder on an RCA plug with
terminal B wire going to tip of jack, and terminal C wire soldered to sleeve of jack.
MICROPHONE CONNECTION
On the back plate of the Verifac™t K is a terminal strip
marked A, B, C:
A = 12Vdc (positive) Red Wire
B = Audio Out Black Wire
C = Ground (negative) Bare Wire
Using recommended wiring:
1 - Connect RED wire to terminal A
2 - Connect BLACK wire to terminal B
3 - Connect Bare wire to terminal C
2 Conductor shielded cable, 22
gauge with a 24 gauge drain
wire.
West Penn 452 or equivalent
NOTE: Unshielded cable is not
satisfactory for audio
systems.
WIRING REQUIREMENTS
VERIFACT™MODEL K MICROPHONE

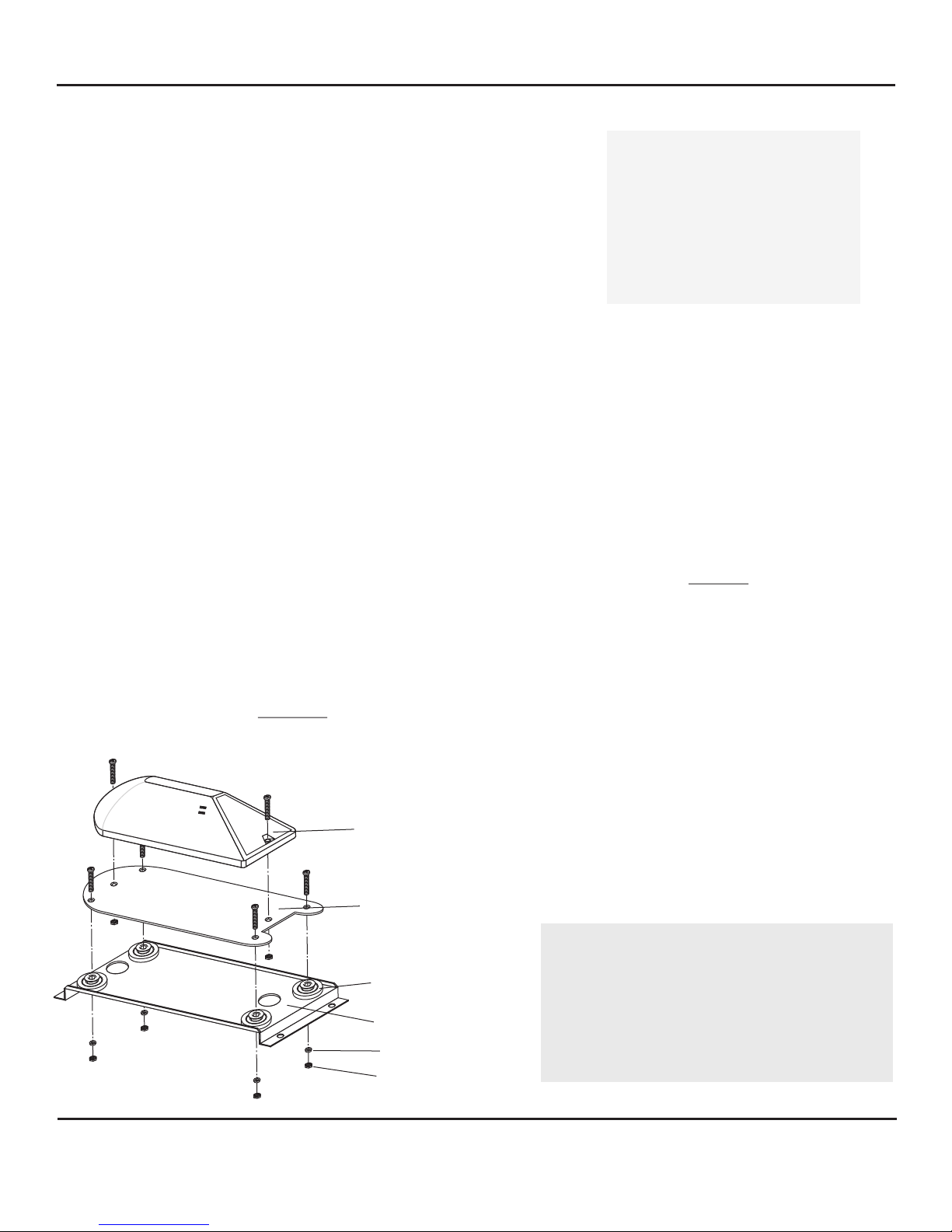

WITH SHOCK MOUNT ASSEMBLY
MODEL K MICROPHONE
MOUNTING SHOE
MOUNTING PLATE
NYLON WASHER
LOCK NUT
SHOCK ABSORBERS
(Screws provided)
(6-32x¾) IMPORTANT: Make certain that wires are
attached to
microphone’s terminal
strip BEFORE installing
microphone to shock
mount assembly.
INSTALLATION AND OPERATING INSTRUCTIONS
Page 2 of 4
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
K_mic-inst_4/11

VERIFACT™K MICROPHONE CONNECTION
TO A LOUROE™BASE STATION
OR
IF-1, IF-4, IF-8 AUDIO INTERFACE ADAPTER
Back side of
Verifact™ K
Microphone
A = 12Vdc
B = Audio Output
C = Ground
SENSITIVITY SWITCH
N = Normal
L = Low
Position L lowers the gain
by -6dB output into 1KΩand
is used when there is
excessive background
noise, or if less microphone
sensitivity is desired.
2 CONDUCTOR
SHIELDED
22 GAUGE
WITH A 24 GAUGE
DRAIN WIRE
WEST PENN
452 OR EQUIV.
C
B
A
BLACK BARE
RED
BARE
RED
N
L
A B C
BLACK
Verifact™ K
Microphone
To Receiving Device
(Base Station, Interface Adapter or Mixer)
INSTALLATION AND OPERATING INSTRUCTIONS
Page 3 of 4
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
website: www.louroe.com e-mail: [email protected]
(818)
®
K_mic-inst_4/11

SPECIFICATIONS
Frequency Response
Output
Current Drain
100 Hz to 15 kHz ± 1 dB
Line Level (0 dB @ 1000Ω)
4 mA
Supply voltage 12 Vdc
Output Impedance (Mic only) 600 , unbalanced
Dimensions 5 7/8”L x 3 1/8 “W
Type Dynamic
Polar Pattern Modified Omni-Directional
