Figure 236, Page 1
P324-776
Owner’s Manual
Outdoor Gas Fire Pit
IMPORTANT, RETAIN FOR FUTURE REFERENCE:
READ CAREFULLY
MADE IN CHINA
Questions, problems, missing parts?
Before returning to your retailer, call our customer service
department at
1-866-839-2888
8 a.m. - 5 p.m., EST, Monday - Friday
(Canada and United States only)
English and French speaking representatives available
This item is intended for outdoor domestic use only. Not for commercial use.

SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product. This appliance has been tested to and complies with the ANSI Z21.97-2014, Outdoor
Decorative Gas Appliances. When connecting to a xed piping system, the installation must conform to
local codes or in the absence of local codes, to the National Fuel Gas Code. ANSI Z223.1.NFPA 54;
National Fuel Gas Code; National Gas and Propane Installation Code, CSA B149.1; or Propane
storage and Handing Code, CSA B149.2, as applicable. This manual contains important information about
the assembly, operation and maintenance of this re pit. Keep this manual for future reference and
to educate new users of this product. This manual should be read in conjunction with the labeling on the
product. Safety precautions are essential when any mechanical or propane fueled equipment is involved.
These precautions are necessary when using, storing, and servicing. Using this equipment with the
respect and caution demanded will reduce the possibilities of personal injury or property damage.
The following symbols shown below are used extensively throughout this manual. Always heed these
precautions, as they are essential when using any mechanical or fueled equipment.
DANGER
WARNING
WARNING
WARNING
DANGER
DANGER
If you smell gas:
●Shut o󰀨 gas to the appliance.
●Extinguish any open ame.
●If odour continues, keep
away from the appliance and
immediately call your gas
supplier or re department.
This appliance can
produce carbon monoxide
which has no odour. Using
it in an enclosed space
can kill you.Never use this
appliance in an enclosed
space such as a camper,
tent or home.
Do not store or use gasoline, or
other flammable vapours and
liquids in the vicinity of this
or any other appliance. An LP-
cylinder not connected for use
shall not be stored in the vicinity
of this or any other appliance.
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, injury or death.
Read the installation, operation and
maintenance instructions thoroughly
before installing or servicing this
equipment.
For Outdooe Use Only.
CARBON MONOXIDE
HAZARD
Figure 236, Page 2

Figure 236, Page 3
SAFETY INFORMATION
DANGER
DANGER
WARNING
WARNING
Certain materials or items, when stored under the
re pit, will be subjected to radiant heat and could be
seriously damaged.
Alert children and adults to the hazards of high surface
temperatures. Stay away from these surfaces to avoid
burning skin or igniting clothing.
Carefully supervise young children when in the vicinity
of the re pit.
Do not hang clothing or any other ammable materials
from the re pit, or place on or near the re pit.
Replace any guard or protective device removed for
servicing the appliance prior to placing back in service.
Installation and repair should be done by a qualified
service person. The re pit should be inspected before
use and annually by a qualified service person. More
frequent cleaning may be required as necessary. It is
imperative that the control compartment, burners, and
circulating air passageway of the appliance be kept
clean.
• This product is fueled by propane gas. Propane
gas is invisible, odourless, and flammable. An
odourant is normally added to help detect leaks
and can be described as a “rotten egg” smell. The
odourant can fade over time so leaking gas is not
always detectable by smell alone.
• Propane gas is heavier than air and leaking
propane will sink to the lowest level possible. It
can ignite by ignition sources including matches,
lighters, sparks or open ames of any kind many
feet away from the original leak. Use only propane
gas set up for vapor withdrawal.
• Store or use propane gas in compliance with
local ordinances and codes or with ANSI/NFPA 58.
Turn o󰀨 propane when not in use.
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
Failure to comply with the
precautions and instructions
provided with this fire pit can
result in death, serious bodily
injury and property loss or damage
from hazards of fire, explosion,
burn, asphyxiation, and/or carbon
monoxide poisoning. Only persons
who can understand and follow the
instructions should use or service
this re pit.
• EXPLOSION - FIRE HAZARD
• Keep solid combustibles,
such as building materials, paper or
cardboard, a safe distance away from
the fire pit as recommended by the
instructions.
• Provide adequate clearances around
air openings into the combustion
chamber.
• Never use the re pit in spaces which
do or may contain volatile or airborne
combustibles, or products such as
gasoline, solvents, paint thinner, dust
particles or unknown chemicals
• During operation, this product can
be a source of ignition. Keep fire pit
area clear and free from combustible
materials, gasoline, paint thinner,
cleaning solvents and other ammable
vapours and liquids. Do not use fire
pit in areas with high dust content.
Minimum fire pit clearances from
combustible materials: 90 cm (3 ft)
from the sides and 90 cm (3 ft) from
the rear, 1.8 m (6 ft) feet from ceiling.

Figure 236, Page 4
SAFETY INFORMATION
WARNING
DANGER
WARNING
We cannot foresee every use which may be made of
our re pit.
Check with your local re safety authority if you have
questions about re pit use.
Other standards govern the use of fuel gases and
heat producing products for specic uses. Your local
authorities can advise you about these.
If no local codes exist, follow National Fuel Gas Code,
ANSI Z223.1. In Canada, installation must conform to
local codes. If no local codes exist, follow the current
National standards of CANADA CAN/CGA-B 149.2.
Do not store or use gasoline or other ammable
vapours and liquids in the vicinity of this or any other
appliance. An LP-cylinder not connected for use
shall not be stored in the vicinity of this or any other
appliance.
Never leave re pit unattended when hot or in use.
Keep out of reach of children.
Improper installation, adjustment,
alteration, service or maintenance
can cause property damage, injury or
death. Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
DANGER
CARBON MONOXIDE HAZARD
This re pit is a combustion appliance.
All combustion appliances produce
carbon monoxide (CO) during the
combustion process. This product
is designed to produce extremely
minute, non-hazardous amounts of CO
if used and maintained in accordance
with all warnings and instructions. Do
not block air ow into or out of the re
pit. Carbon Monoxide (CO) poisoning
produces flu-like symptoms, watery
eyes, headaches, dizziness, fatigue
and possibly death. You can't see it
and you can't smell it. It's an invisible
killer. If these symptoms are present
during operation of this product get
fresh air immediately!
For outdoor use only.
Never use inside house, or other
unventilated or enclosed areas.
This fire pit consumes air (oxygen).
Do not use in unventilated or enclosed
areas to avoid endangering your life.
WARNING
Don’t burn solid fuels in this
appliance

Figure 236, Page 5
OPERATION CHECKLIST
Operation Checklist
Before Operating:
After Operation
For a safe and pleasurable heating experience, perform this check before each use.
1. Gas control is in OFF position.
2. Gas tank valve is OFF.
3. LP/NG is disconnected.
4. After each use, cap on tank is replaced.
1. I am familiar with the entire owner’s manual and understand all precautions noted.
2. All components are properly assembled, intact and operable.
3. No alterations have been made.
4. All gas connections are secure and do not leak.
5. Wind velocity is below 16 km/h (10 mph).
6. Unit will operate at reduced e󰀩ciency below 4.44°C /40°F
7. Fire pit is outdoors (outside any enclosure).
8. There is adequate fresh air ventilation.
9. Fire pit is away from gasoline or other ammable liquids or vapours.
10.Fire pit is away from windows, air intake openings, sprinklers and other water sources.
11.Fire pit is at least 90 cm (36 in) on rear and at least 90 cm (36 in) on sides from combustible materials.
12.Fire pit is on a hard and level surface.
13.There are no signs of spider or insect nests.
14.All burner passages are clear.
15.All air circulation passages are clear.
16.Children and adults should be alerted to the hazards of high surface temperatures and should keep
away to avoid burns or clothing ignition.
17.Young children should be carefully supervised when they are in the area of the re pit.
18.Clothing or other protective material should not be hung from the re pit, or placed on or near re pit.
19.Any guard or other protective device removed for servicing the fire pit must be replaced prior to
operating the re pit.
20.Installation and repair should be done by a qualified service person. The fire pit should be
inspected before use and at least annually by a qualied service person.
21.More frequent cleaning may be required as necessary. It is imperative that control burner and
circulating air passageways of the re pit be kept clean.
22.Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas control
that has been under water.

EXPLODED VIEW Figure 236, Page 6
Lava rock
(4kg)
Back post
Table top
Top cover
Battery
Ignition side
Side
Back post
Side
Front right post
Door
Front left post
Base
Allen key
Bolt
Washer
Washer

ASSEMBLY INSTRUCTIONS FOR LP

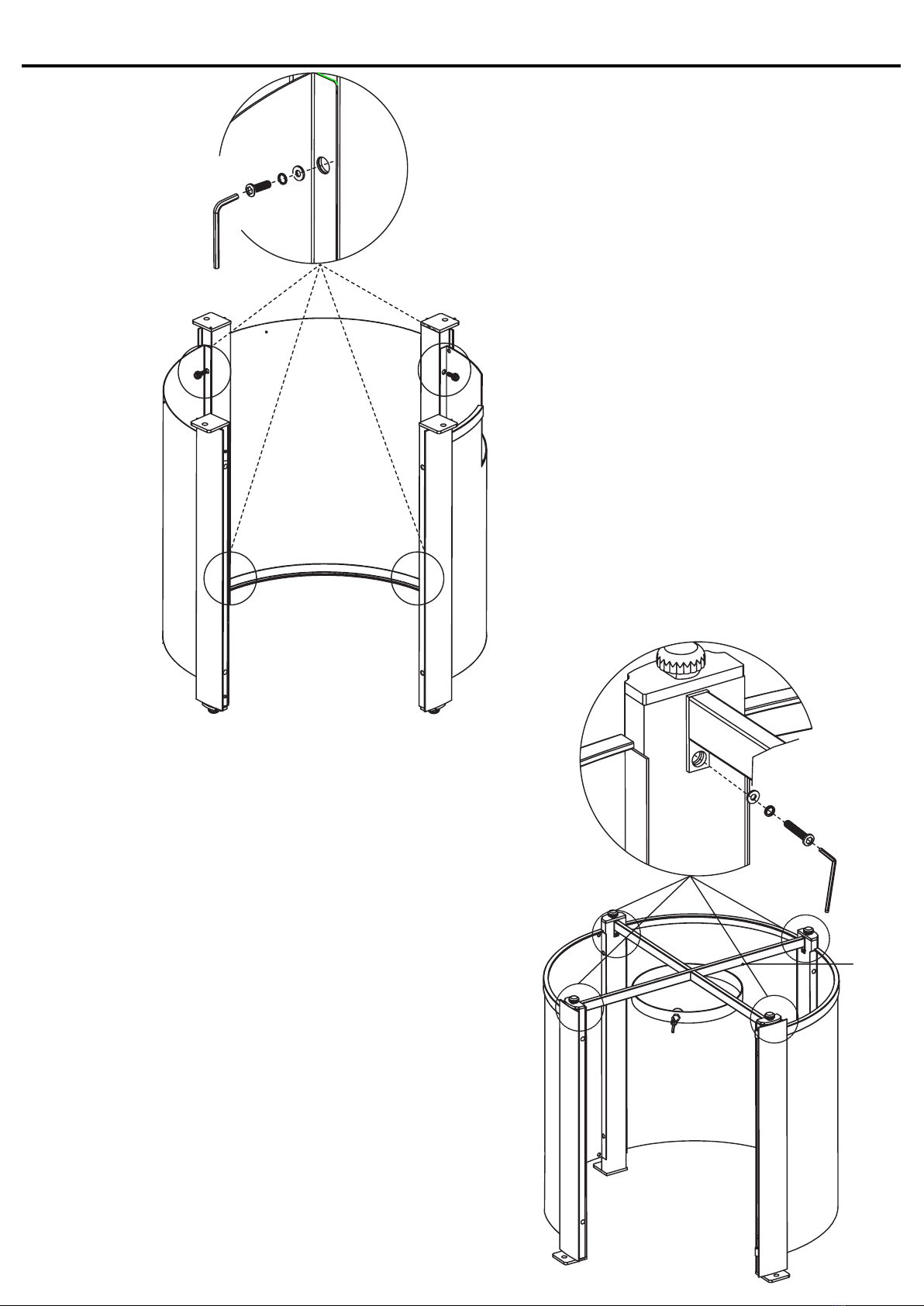

Step 1
Step 2
Figure 236, Page 7

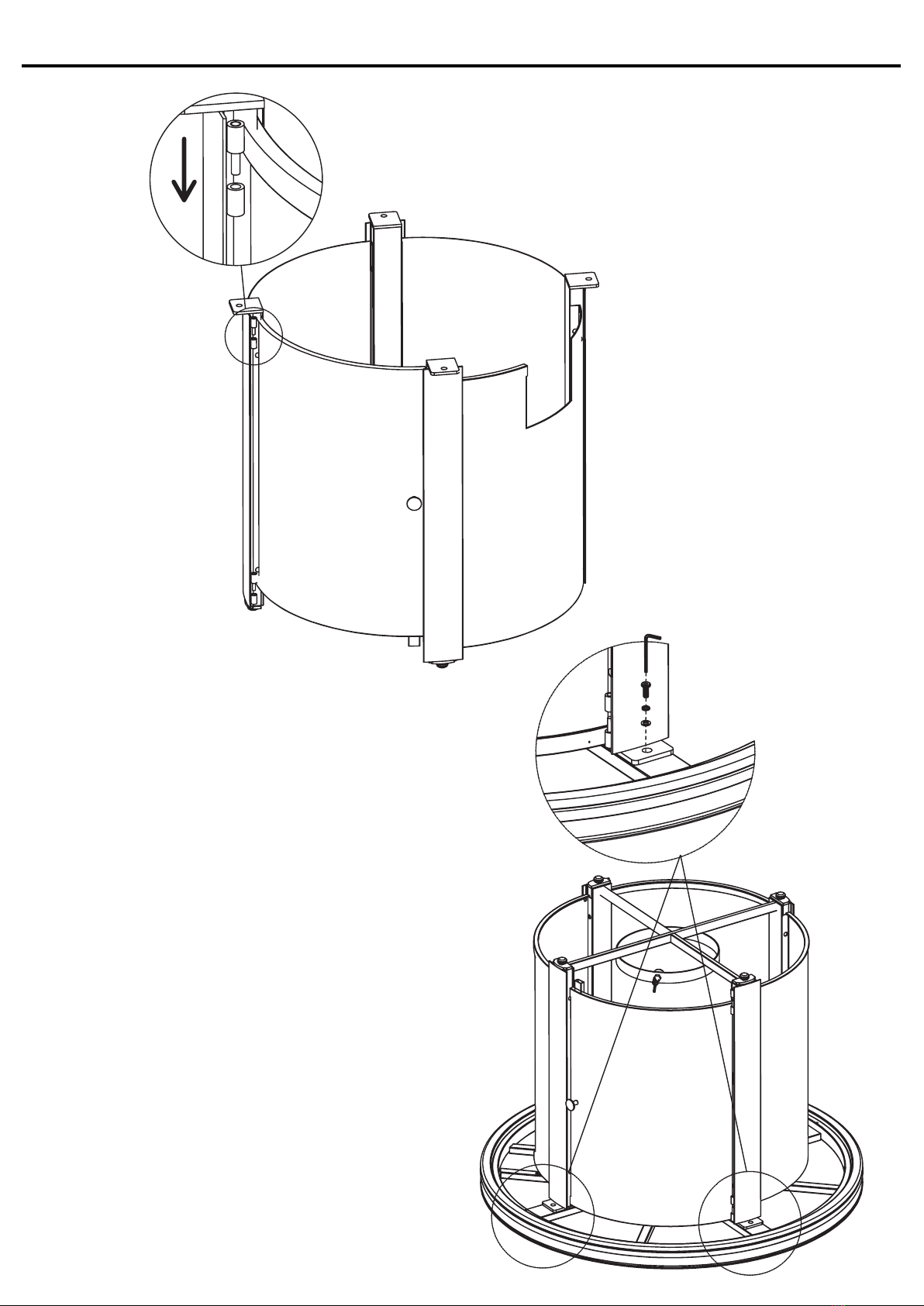

ASSEMBLY INSTRUCTIONS FOR LP
Step 3
Step 4
Figure 236, Page 8

ASSEMBLY INSTRUCTIONS FOR LP
Step 5
Step 6
Figure 236, Page 9

ASSEMBLY INSTRUCTIONS FOR LP

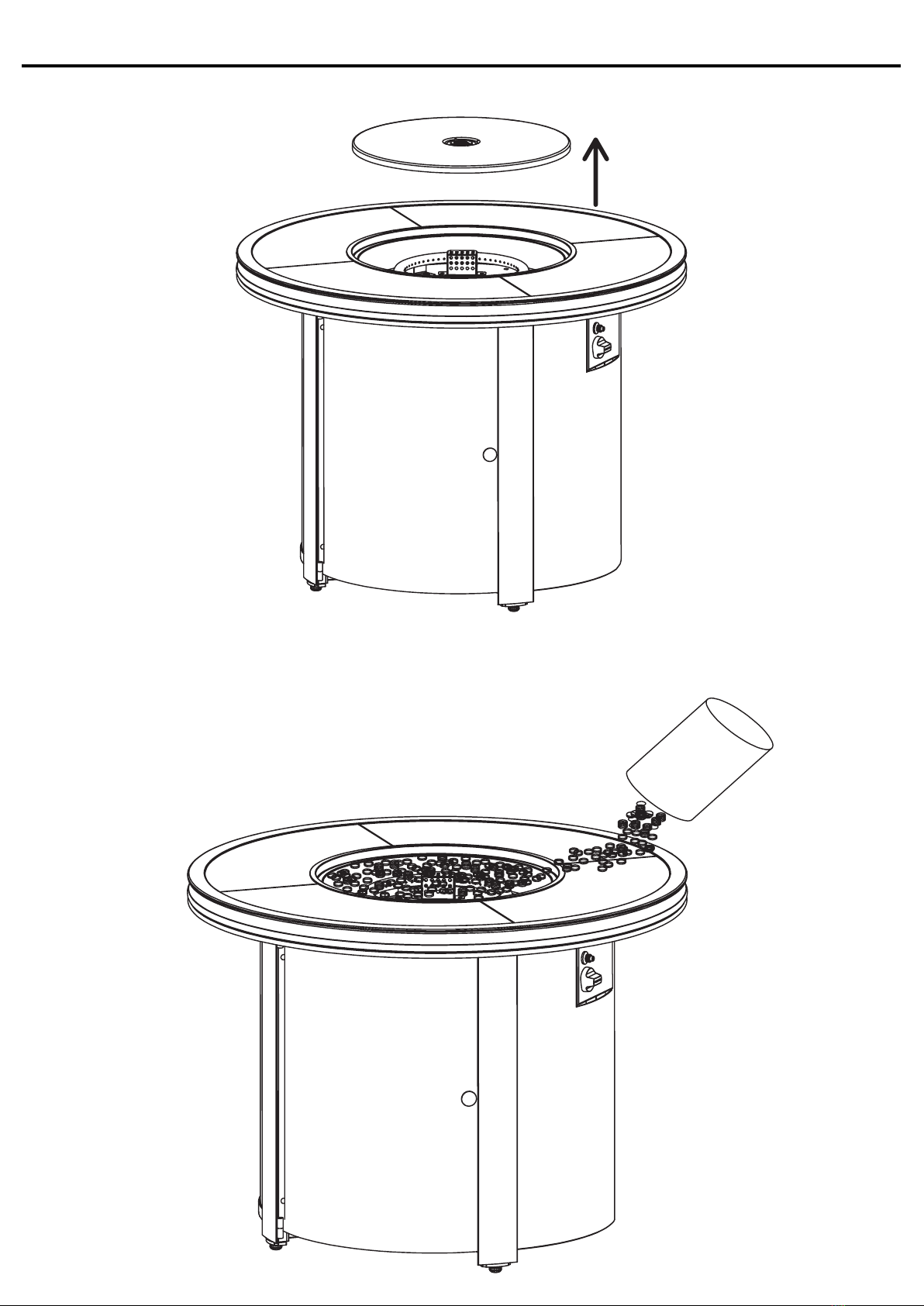

Step 7
Figure 236, Page10

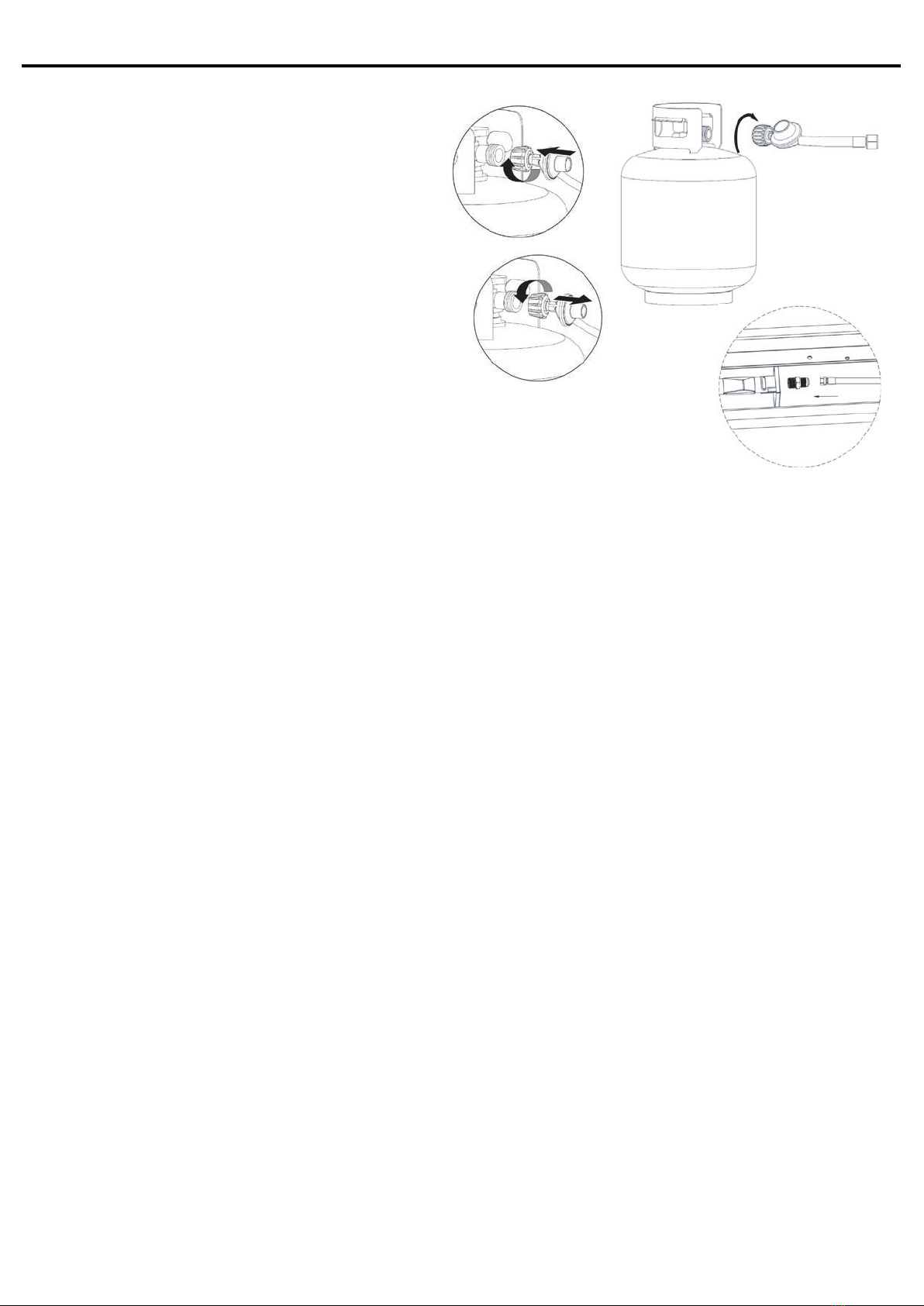

• Connecting LP Gas Tank
• Disconnecting LP Gas Tank
• Connecting NG
• Disconnecting NG
This appliance can use two types of fuel/gas: LPG-Propane OR Natural Gas
Suitable LP gas tank size for this appliance is 20 lb (9.1 kg)
Do not ll the LP gas tank with more than 80% liquid gas
The inlet gas supply pressure for the purpose of input adjustment pressure:
LPG-Propane 28 cm (11 in) w.c. (2.74kPa)
Natural Gas 18 cm (7 in) w.c. (1.74kPa)
The appliance must be isolated from the gas supply piping system by closing its individual
manual shut o󰀨 valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psi (3.5kPa).
The LP-gas supply cylinder to be used must be:
• Constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specications for LP-Gas Cylinders;
• Provided with a listed overlling prevention device, and provided with a cylinder connection
device compatible with the connection for the appliance.
WARNING: Make sure LP gas tank valve is closed. Close by turning valve clockwise.

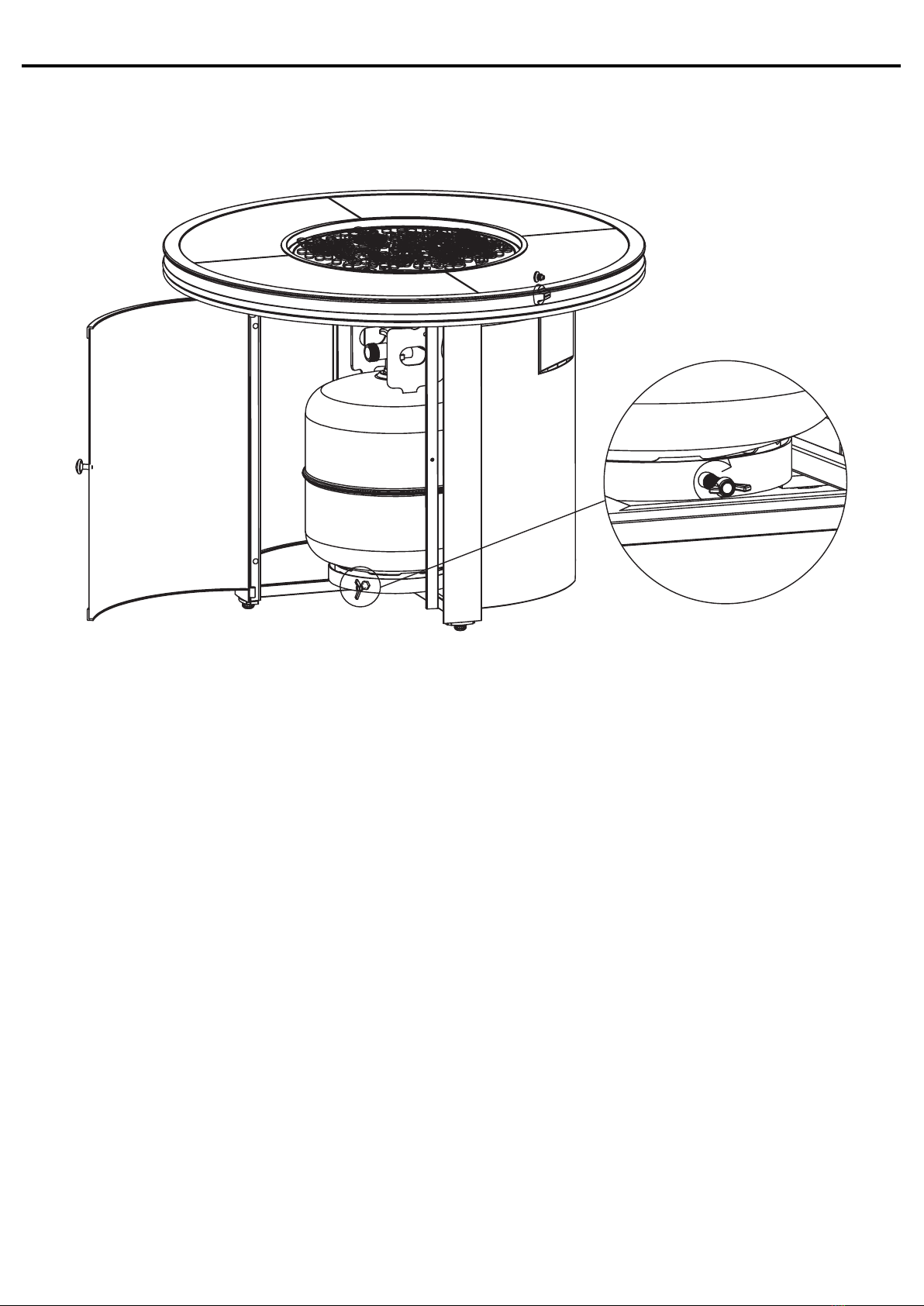

Place the LP gas tank upright into the tank tray and secure the tank by screw.
CONNECTING AND DISCONNECTING LP & NG
Before connecting, be sure that there is no debris
caught in the head of the LP gas tank, head of
the regulator valve or in the head of the burner
and burner ports.
Connect regulator/hose assembly to tank by
turning knob clockwise.
Before disconnecting make sure the LP gas tank valve
is "CLOSED."
Disconnect regulator/hose assembly from LP gas tank
by turning knob counterclockwise until it is loose.
Caution: LP gas tank must be properly disconnected
and removed prior to moving this pit.
1. A professionally-installed shut-o󰀨 valve between the supply piping and the socket is
recommended, but not required, by the National Fuel Gas Code. Socket connection
must be made outdoors.
2. Coat the gas supply pipe nipple with gas-resistant pipe dope or approved teon tape. Screw socket onto gas
supply pipe (house gas source), and wrench-tighten.
3. Pull back the sleeve on the quick disconnect socket and insert the unattached end of the gas hose into the
socket. Release the sleeve and continue pushing the hose into the socket until the sleeve snaps into the
locked positon.
4. When the quick disconnect socket and the gas hose are connected, a valve in the socket opens automatically
to permit full gas ow. When the gas hose is disconnected, the valve in the socket instantly and positively
shuts o󰀨 the ow of gas, the grill can be disconnected from the gas source by disconnecting the gas hose
from the quick disconnect socket. The socket should be left attached to the gas source (hose piping).
With proper assembly, the gas hose cannot be removed without pushing the quick disconnect sleeve back. To
disconnect, push sleeve back and pull plug out of sleeve (this automatically shuts o󰀨 gas). The appliance and its
individual shut o󰀨 valve must be disconnected from the gas supply piping system during any pressure testing on
that system at test pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its individual manual shut o󰀨 valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5kPa).
LP GAS
NG
Figure 236, Page 11

LEAK TESTING
WARNING: Before using this outdoor re pit, make sure you have read, understand and
are following all information provided in the Dangers and Warnings. Failure to follow
those instructions can cause death, serious injury or property damage.
WARNING
DANGER
CAUTION Strong odours, colds, sinus congestion, etc. may prevent the detection of
propane by smell. Use caution and common sense when testing for leaks.
WHEN TO PERFORM A LEAK TEST:
Never use your re pit without leak testing all gas connections, hoses and propane tank.
To prevent re or explosion hazard:
• DO NOT smoke or permit ignition sources in the area while conducting a leak test.
• Perform test OUTDOORS in a well-ventilated area that is protected from the wind.
• Never perform a leak test with a match or open ame.
• Never perform a leak test while the re pit is in use or while the re pit is still hot.
• After assembling your re pit and before lighting for the rst time, even if purchased fully-assembled.
• Every time the LP gas cylinder is relled, exchanged or if any of the gas components are disconnected
or replaced.
• Any time your re pit has been moved.
• At least once per year or if your re pit has not been used for more than 60 days.
1. Create a mixture of 50% water and 50% liquid dishwashing soap.
2. Ensure all control knobs are set to the OFF position.
3. Turn on the gas at the cylinder valve. Turn the cylinder valve knob counter-clockwise until
fully opened. If you hear a rushing sound or smell gas, turn the gas off. Tighten any leaking
connections. If the leak is detected at connection nut and tightening does not stop leak, re-inspect
propane tank rubber seal.
4. Apply the soapy water mixture to the following:
A) Supply tank (cylinder) welds B) Connection nut to tank valve
C) Back side of connection nut to brass nipple D) Brass nipple connection into regulator
E) Regulator connections to gas supply hoses F) Hose connection to gas manifold
G) The full length of gas supply hose H) Tank valve to cylinder
5. Check each place listed (A-H) for growing bubbles, which indicates a leak. Large leaks may not be
detected by bubbles but should produce a rushing sound or gas smell.
6. Turn o󰀨 gas supply at cylinder valve.
7. Turn on control knobs to release gas pressure in hose.
8. Turn control knobs to OFF position.
9. Tighten any leaking connections. If leak is detected at connection nut and tightening does not stop
leak, re-inspect propane tank rubber seal.
10.Repeat soapy water test until no leaks are detected.
11. Turn o󰀨 gas supply at cylinder valve until you are ready to use your re pit.
12.Wash o󰀨 soapy residue with cold water and towel dry.
Note: The leak test must be performed in an area that has adequate lighting in order to see if bubbles are
developing and not in a windy or noisy area so larger leaks can be detected by smell or sound.
CAUTION Natural Gas leak testing is similar to LP Gas leak testing. The di󰀨erence is you
need to apply the soapy water mixture to the gas supply pipe nipple.
Figure 236, Page 12

BATTERY INSTALLATION
1x AAA Battery (included)
Figure 236, Page 13
OFF

LIGHTING INSTRUCTIONS
Caution:
Caution:
Caution:
Caution:
Keep outdoor gas cooking appliance area clear and free from combustible materials,
gasoline and other ammable vapours and liquids.
Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can lead to
a re beneath the grill.
Do not obstruct the ow of combustion and ventilation air.
Attempting to light the burner with the lid closed may cause an explosion.
1. Read instructions before lighting.
2. Control knob must be in the OFF position.
3. Connect propane cylinder/open the gas supply line.
4. Push and turn control knob couter clockwise to LOW. Hold the knob, until just before the ames go out.
5. Press the IGNITION button and hold for up to 5 seconds to light burner.
6. Release control knob after 45 seconds.
7. If ignition does not occur in 45 seconds, push and turn burner control knob to OFF, wait 5 minutes,
and repeat lighting procedure.
8. If igniter does not light the burner, use a long match or long butane lighter.
9. Adjust to desired ame level with the control knob.
Minimum clearance: Top: 1.8 m (6 ft /72 in) sides: 90 cm (3 ft /36 in)
Minimum clearance from sides and back of unit to adjacent combustible construction below top of unit,
90 cm (36 in) from sides, 90 cm (36 in) from back.
CAUTION: 9 kg (20 lb) LP cylinder only
Figure 236, Page 14
• Lighting
90 cm / 36 in / 36 po
90 cm / 36 in / 36 po

TROUBLESHOOTING
Burner won’t light
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Propane cylinder is empty Replace propane cylinder
Clear blockage
Turn control knob to ON
Use a full cylinder
Clean reector and burner screen
Check burner and orices for
blockage
Remove blockage and clean burner
inside and outside
Turn cylinder valve OFF and ll the
cylinder
Blockage in orice
Control knob is not in ON position
Gas pressure is low
Control knob fully ON
Dirt or lm on reector and burner screen
Blockage in burner
Outdoor temperature is less than
4.4 ºC/40 ºF and tank is less than 1/4 full
Burner ame is low
Carbon build-up
Thick black smoke
Figure 236, Page 15

CARE AND MAINTENANCE
CAUTION:
Notices
Before Each Use
Cleaning Surfaces
Storage
During periods of extended inactivity or when transporting:
All cleaning and maintenance should be done when re pit is cool and with the fuel
supply disconnected.
1. DO NOT clean any outdoor re pit part in a self cleaning oven. The extreme heat will damage the nish.
2. Do not enlarge valve orices or burner ports when cleaning the valves or burners.
1. This outdoor re pit should be thoroughly cleaned and inspected on a regular basis.
2. Abrasive cleaners will damage this product.
3. Never use oven cleaner to clean any part of outdoor replace.
1. Keep the outdoor re pit area clean and free from any combustible materials, gasoline, and other ammable
vapours and liquids.
2. Do not obstruct the ow of the combustion of LP and the ventilation air.
3. Keep the ventilation opening of the LP gas tank area free and clear from debris.
4. Visually check the burner ames to make sure your outdoor re pit is working properly.
5. See sections below for proper cleaning instructions.
6. Check all gas connections for leaks.
7. Check components for any signs of damage or rust.
8. Check and clean the burner/venturi tubes for insects and insect nests. A clogged tube can lead to a fire
beneath the outdoor re pit.
9. If damage to any component is detected, do NOT operate until repairs are executed.
1. Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water.
2. For stubborn surfaces use a citrus based degreaser and a nylon scrubbing brush.
3. Rinse clean with water.
4. Allow to air dry.
Before each use of appliance, inspect the hose and make sure to properly locate the gas. Always inspect
the hose for evidence of excessive abrasion, cuts or wear prior to use, and make sure to leak test. The hose
assembly must be replaced prior to the appliance being put into operation if there is evidence of excessive
abrasion or wear or if the hose is damaged. The replacement hose assembly shall be that specified by the
manufacturer.
Between uses:
• Turn control knob OFF.
• Disconnect LP source.
• Store re pit upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail,
snow, dust and debris).
• If desired, cover re pit to protect exterior surfaces and to help prevent build-up in air passages.
Note: Wait until re pit is cool before covering.
• Turn Control Knob OFF.
• Disconnect LP source and move to a secure, well-ventilated location outdoors.
• Store re pit upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail,
snow, dust and debris).
• If desired, cover re pit to protect exterior surfaces and to help prevent build-up in air passages. Never leave
LP cylinder exposed to direct sunlight or excessive heat.
Note: Wait until re pit is cool before covering.
Figure 236, Page 16

CARE AND MAINTENANCE / ENTRETIEN ET MAINTENANCE / CUIDADO Y MANTENIMIENTO
FOR DOMESTIC USE ONLY. POUR USAGE DOMESTIQUE SEULEMENT. SÓLO PARA USO DOMÉSTICO.
WICKER: CLEANING – UV protected
synthetic wicker allows colour retention after
hours of outdoor use. Hose o󰀨 outdoors for
easy cleaning. Wipe up minor spills with a
mild soap and damp cloth.
OSIER : NETTOYAGE – La protection UV de
l’osier synthétique lui permet de garder sa
couleur après des heures d’usage extérieur.
Arroser à l’extérieur pour un nettoyage facile.
Essuyer les dégâts mineurs à l’aide d’un linge
humide et d’un savon doux.
MIMBRE: LIMPIEZA – La protección UV del
mimbre sintético le permite conservar su color
después de muchas horas de uso al exterior.
Lávelo al exterior con una manguera para
facilitar la limpieza. Utilice un jabón suave
y un paño húmedo.
MESAS EN PIEDRA O DE CERÁMICA – No
utilice los limpiadores abrasivos ásperos en
ninguno de estos productos. Para
mantenimiento diario, utilice un paño húmedo
y un limpiador líquido suave.
MANTENIMIENTO – Guarde en un lugar
seco alejado de la intemperie, o cúbralo con
fundas protectoras para muebles cuando no
está en uso.
MESA DE VIDRIO: LIMPIEZA – Utilice un
jabón suave y agua o limpiadores de vidrio.
No utilice materiales ni limpiadores
abrasivos.
ENTRETIEN – Entreposer dans un endroit sec à
l’abri des éléments ou couvrir à l’aide d’une
housse lorsque le produit n’est pas utilisé.
DESSUS DE TABLES EN VERRE :
NETTOYAGE – Utiliser de l’eau et un savon
doux ou des nettoyants à vitre. Ne pas utiliser de
matériaux abrasifs.
DESSUS DE TABLES EN PIERRE OU EN
CÉRAMIQUE – Ne pas utiliser de nettoyants
abrasifs sur aucun de ces produits. Pour
l’entretien quotidien, utiliser un chi󰀨on humide et
un nettoyant liquide doux.
GLASS TABLE TOPS: CLEANING – Use
mild soap and water or glass cleansers. Do
not use abrasive materials or cleansers.
STONE OR CERAMIC TOPS – Don’t use
harsh abrasive cleansers on any of these
products. For daily maintenance, use a wet
cloth and a soft liquid cleaner.
MAINTENANCE – Store in a dry area out of
the elements, or cover with furniture covers
when not in use.
MADE IN CHINA / FABRIQUÉ EN CHINE / HECHO EN CHINA
Figure 236, Page 17
