Lowrance Elite-5 HDI User manual

Installation & Operation
manual
Elite-5 HDI Combo
Operation manual

Copyright © 2013 Navico
All rights reserved.
Lowrance® and Navico® are registered trademarks of Navico.
Fishing Hot Spots® is a registered trademark of Fishing Hot Spots Inc.
Navionics® is a registered trademark of Navionics, Inc.
Navico may nd it necessary to change or end our policies, regulations and special oers at any time. We reserve
the right to do so without notice. All features and specications subject to change without notice.
Compliance Statements
Lowrance Elite-5 HDI
• meets the technical standards in accordance with Part 15.103 of the FCC rules
• complies with CE under RTTE directive 1999/5/EC
• complies with the requirements of level 2 devices of the Radiocommunications (Electromagnetic
Compatibility) standard 2008
For more information please refer to our website: www.lowrance.com.

PB 1
WARNING: When a GPS unit is used in a vehicle, the vehicle operator is solely responsible for operating
the vehicle in a safe manner. Vehicle operators must maintain full surveillance of all pertinent driving or
boating conditions at all times. An accident or collision resulting in damage to property, personal injury or
death could occur if the operator of a GPS-equipped vehicle fails to pay full attention to travel conditions
and vehicle operation while the vehicle is in motion.
Warning
The user is cautioned that any changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that of the receiver
• Consult the dealer or an experienced technician for help

23
Table of Contents | Elite-5 HDI Table of Contents | Elite-5 HDI
Introduction...................................... 4
Unit Controls............................................4
Inserting microSD cards ..........................5
Basic Operation............................... 6
Setup wizard............................................6
Pages ......................................................6
Selecting Pages.......................................6
Page menus ............................................6
Accessing the Settings menu ..................7
Accessing menu items.............................8
Working with menus ................................8
Dialogs.....................................................8
Entering text ............................................9
Fishing Modes .........................................9
Cursor....................................................10
Goto cursor............................................10
Advanced Mode .................................... 11
Standby mode ....................................... 11
Restore defaults .................................... 11
Pages.............................................. 12

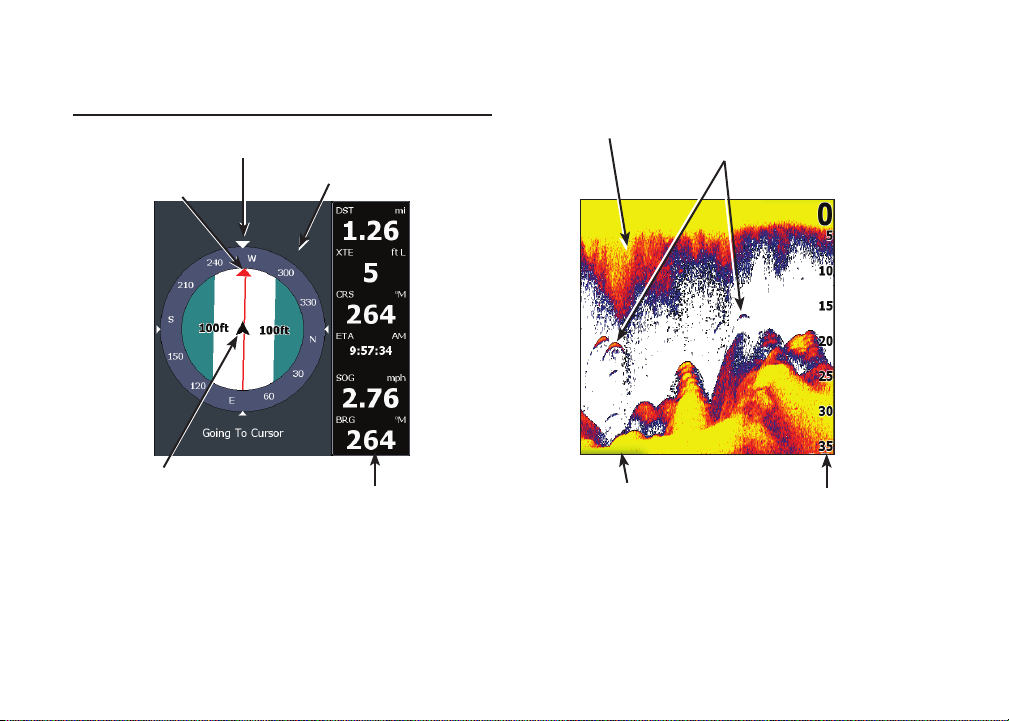

Steer Page.............................................12
Sonar Page............................................12

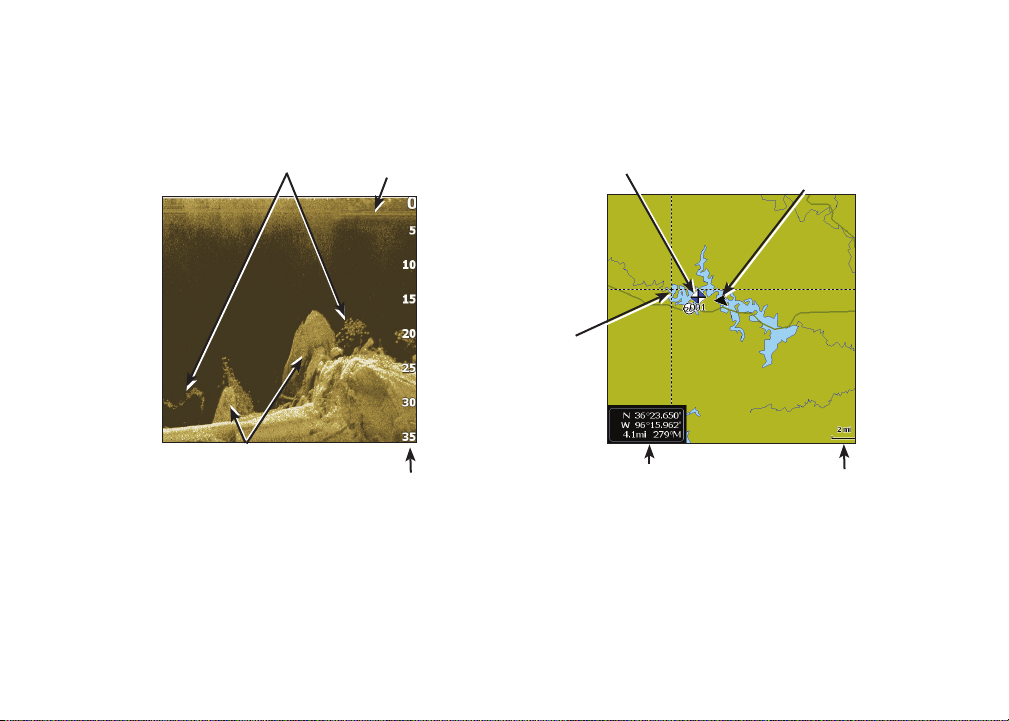

DownScan page ...................................13
Chart Page ............................................13
Combo pages ........................................14

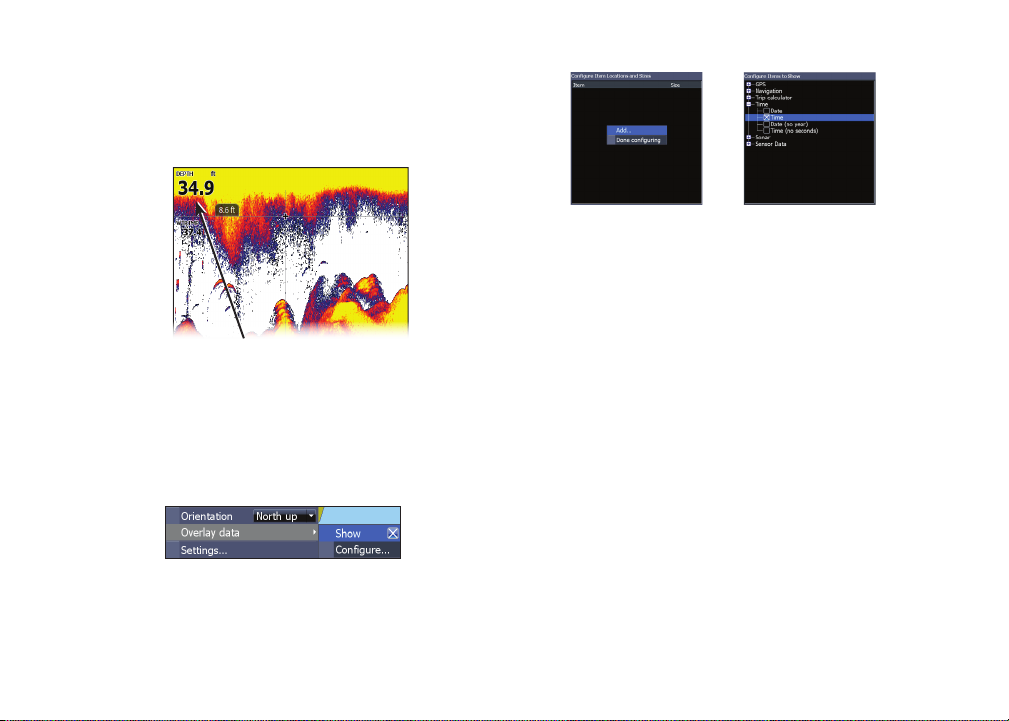

Overlay Data..........................................15
Table of contents

23
Table of Contents | Elite-5 HDI Table of Contents | Elite-5 HDI
DownScan Operation .................... 17
Trackback ............................................. 17
Ping Speed............................................19
DownScan options.................................20
Sonar Operation ............................ 22
Trackback .............................................. 22
Sensitivity ..............................................24
Colorline ................................................24
Range....................................................24
Frequency .............................................25
Ping Speed............................................25
Fish ID ..................................................27
Sonar Settings.......................................28
Installation .............................................30
Chart Operation ............................. 31
Waypoints, Routes, Trails...................... 32
Routes Screen.......................................34
Trails Screen ......................................... 38
Orientation.............................................40
Overlay Data..........................................40
Settings..................................................40
Chart Settings........................................41
Navigation Settings ...................................42
Settings .......................................... 44
Settings menu........................................44
System...................................................44
Saving Screenshots...............................46
Alarms ..................................................46
Specications ................................ 48
Index ............................................... 49

45
Introduction | Elite-5 HDI Introduction | Elite-5 HDI
Getting Started
Turn unit
on/o
To turn on/o the unit, press and hold
the LIGHT/POWER key for three
seconds.
Man
Overboard
waypoint
Press the ZOOM IN and ZOOM OUT
keys at the same time to set a Man
Overboard waypoint. Your system will
automatically create an active route
back to the MOB waypoint. You must
cancel navigation to terminate the
function.
Adjusting
the
backlight
This unit has 11 backlight levels. Press
the LIGHT/POWER key to switch
backlight levels.
Muting
Audio
Select Audio from the System menu.
Select Mute and press ENTER.
Selecting a
GPS source
Select GPS from the System settings
menu. Press MENU, select GPS
source and choose the desired
source.
Unit Controls
LIGHT/POWER: controls backlight level
and turns unit on/o
KEYPAD: controls cursor & selects items
on menus
PAGES: allows you to select a page to view
MENU: opens settings, context and page
menus
ENTER: nalizes menu selections; save
waypoint at cursor position
MOB: press and hold both Zoom keys to
create a Man Overboard waypoint
ZOOM KEYS: (+) used to zoom in; (-)
used to zoom out
microSD slot: insert a blank microSD card to save
screen captures, sonar logs, waypoints, routes and
trails; or insert a microSD mapping card to use
mapping data
Introduction

45
Introduction | Elite-5 HDI Introduction | Elite-5 HDI
Inserting microSD cards
Carefully slide the microSD card into the slot until
it clicks into place.
To remove, carefully push in the card until it clicks
out of place.
Conventional sonar and DownScan
This unit supports two types of sonar: Conventional
and DownScan.
Refer to the “Sonar Operation” section for
information about conventional sonar features and
settings.
DownScan features and settings are covered in the
“DownScan Operation” section.
Conventional DownScan

67
Basic Operation | Elite-5 HDI Basic Operation | Elite-5 HDI
Selecting Pages
To select a page, press the keypad in the direction
of the desired page and press ENTER.
Page menus
The Steer, DownScan, Sonar and Chart pages have
menus that can only be accessed when those
pages are displayed.
Setup wizard
The Setup wizard will appear when the unit is
turned on for the rst time. To choose your own
settings, do not run the setup wizard. To restart the
Setup wizard, restore defaults.
Pages dialog
Pages
This unit has eight pages: Steer, DownScan, Sonar,
Chart, Chart/Sonar, Chart/DownScan, Sonar/
DownScan and Chart/Sonar/DownScan.
Steer page
Steer menu
Basic Operation

67
Basic Operation | Elite-5 HDI Basic Operation | Elite-5 HDI

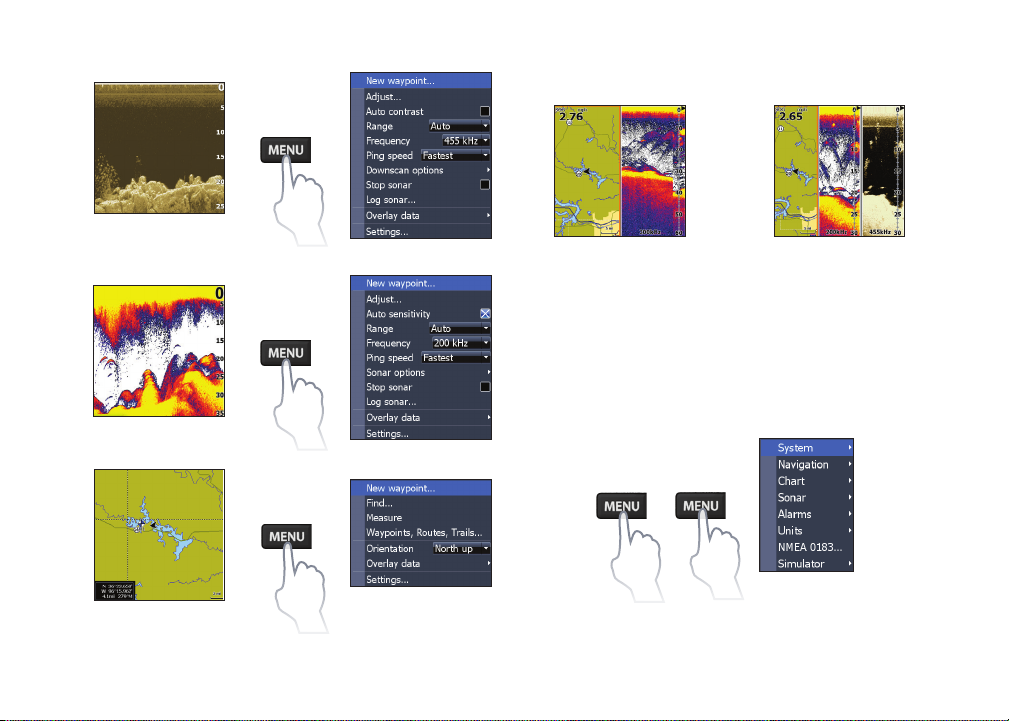

Combo pages
Press the PAGES key twice to switch active
panels. The page menu for the active page will be
displayed when the MENU key is pressed.
Accessing the Settings menu
Chart page Chart menu
DownScan page
DownScan menu
Sonar page
Sonar menu
Two-panel page Three-panel page

89
Basic Operation | Elite-5 HDI Basic Operation | Elite-5 HDI
On/Off features
Select an on/o menu item and
press ENTER to turn it on/o.
Dropdown menus
Access the dropdown
menu and press the
keypad up/down to select
the desired item and press
ENTER.
Dialogs
Dialogs are used for user input or
for presenting information to the
user. Depending on the type of
entry, dierent methods are used
to conrm, cancel or close the
dialog.
Accessing menu items
The keypad and ENTER key are used to select
menu items and open submenus. Use the keypad
to highlight the desired item and press ENTER.
Working with menus
There are several menu types used to make
adjustments to options and settings, including
scrollbars, on/o features and dropdown menus.
Scrollbars
Select the scrollbar and press the
keypad left (decrease) or right
(increase).
NOTE: Press the MENU key to exit
menus.

89
Basic Operation | Elite-5 HDI Basic Operation | Elite-5 HDI

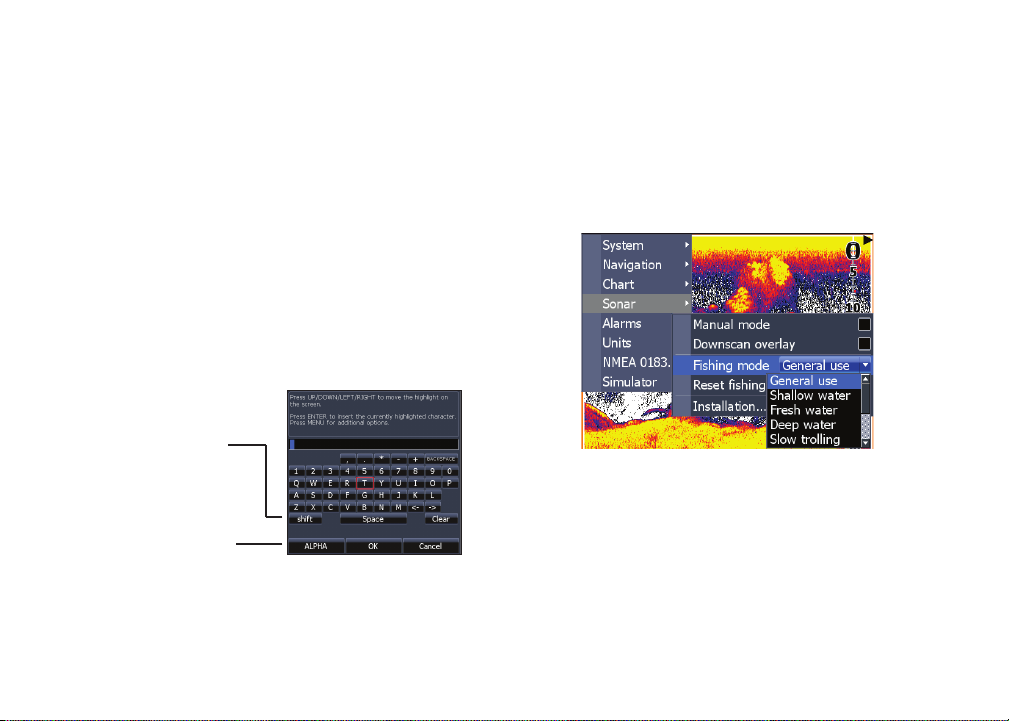

Fishing Modes
(Conventional sonar only)
Fishing modes enhance the performance of your
unit by providing preset packages of sonar settings
geared to specic shing conditions.
Switches keyboard
between ALPHA and
QWERTY layout
Switches letters
to uppercase/
lowercase
Entering text
Some functions, like naming a waypoint, route or
trail, will require you to input text.
To input text:
1. Use the keypad to select the desired
character and press ENTER.
2. Repeat Step 1 for each character.
3. When entry is completed, highlight OK
and press ENTER.

10 11
Basic Operation | Elite-5 HDI Basic Operation | Elite-5 HDI
Cursor
The keypad moves the cursor around the display,
allowing you to scroll the map, select map items
and review sonar history.
Press MENU and select Return to vessel or Exit
cursor mode to clear the cursor.
Goto cursor
Used to navigate to the cursor.
1. Move the cursor to a desired location
and press MENU.
2. Select Goto cursor and press ENTER.
Fishing Mode Options
General Use 1000ft or less Coastal
Shallow
Water 60ft or less Shallow weedy bottoms
Fresh Water 400ft or less Inland/Near coastal
Deep Water 1000ft or more Offshore
Slow
Trolling 400ft or less Inland/Coastal
Fast
Trolling 400ft or less Inland/Coastal
Clear Water 400ft or less Inland/Coastal
Brackish
Water 400ft or less Fresh-Saltwater mix
Ice 400ft or less Ice shing

10 11
Basic Operation | Elite-5 HDI Basic Operation | Elite-5 HDI

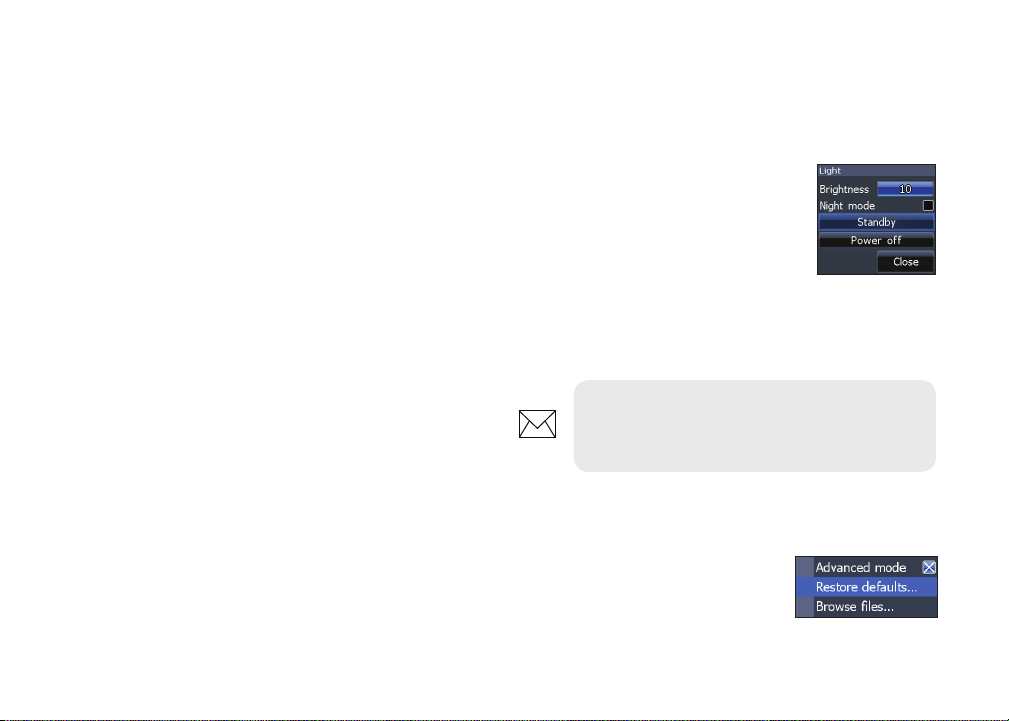

Standby mode
Lowers power consumption by turning o sonar
and the display.
1. Press the PWR/LIGHT
key to access the Back-
light dialog.
2. Select Standby and
press ENTER.
3. Press any key to resume normal
operation.
Restore defaults
Sets unit options and settings
to default values.
Advanced Mode
Enables advanced features and settings.
The following features are enabled when Advanced
mode is turned on:
• Navigation (Enables arrival radius, off-
course distance and Bearings setting)
• Alarms (Enables arrival, off course and
anchor alarm options)
• NMEA 0183 conguration options
• Units (Enables distance, speed, depth,
temperature and bearings conguration
options) NOTE: Leaving your unit in Standby
mode when your boat is not in use will run
down your battery.

12 13
Pages | Elite-5 HDI Pages | Elite-5 HDI
Steer Page
The Steer page has a compass that shows your
current track, the direction to your destination, and
a digital data navigation panel.
Current vessel location
Course over ground
Compass
Direction to destination
Navigation
information
Sonar Page
Displays the water column moving from right to
left on your unit’s screen.
Fish arches
Surface Clutter
Range
Scale
Colorline
Pages

12 13
Pages | Elite-5 HDI Pages | Elite-5 HDI
DownScan page
The DownScan page shows the water column
moving from right to left. You can overlay
DownScan sonar on the conventional sonar page
by selecting DownScan Overlay on the Sonar
settings menu.
Chart Page
Consists of map that moves in real-time as you
move. By default, the map is shown from a birds-
eye view with North at the top of the screen.
Structure
Baitsh Surface clutter
Range scale
Current vessel location
Waypoint
Current location and distance/
bearing from vessel to cursor Zoom
Range
Cursor

14 15
Pages | Elite-5 HDI Pages | Elite-5 HDI
Combo pages
This unit has four pre-congured combo pages.
Chart/Sonar Chart/DownScan
Sonar/DownScan Chart/Sonar/DownScan
NOTE: Press the PAGES key twice to
switch active panels.
Customizing combo pages
You can adjust the panel size of combo
pages and control how the
pages will be arranged on
the screen: vertically (side) or
horizontally (over).

14 15
Pages | Elite-5 HDI Pages | Elite-5 HDI
To add overlay data:
1. From the Sonar, Chart or DownScan
page, press MENU.
2. Select Overlay data and press ENTER.
3. Select Congure and press ENTER.
4. Press Menu and select Add. Press
ENTER.
5. Select a data category and press
ENTER.
6. Select the desired data and press
ENTER.
7. Repeat Steps 5 and 6 to add more data.
8. Press MENU and select Return to
Overlays. Press ENTER.
9. Press MENU, select Done Conguring
and press ENTER.
Overlay Data
Used to select data shown on the Sonar, DownScan
and Chart pages.
Show
Enables/disables the display of overlay data,
allowing you to remove overlay data from the
screen without deleting the current overlay data
conguration.
Congure
Allows you to select/customize overlay data.
Overlay data

16 PB
Pages | Elite-5 HDI Pages | Elite-5 HDI
Customizing Overlay Data
You can add/remove data
and adjust the size and
position of overlay data on
the screen.
Select the desired overlay
data from the “Congure
Item Locations and Sizes
dialog” and press MENU. The conguration menu
will appear.

PB 17
DownScan Operation | Elite-5 HDI DownScan Operation | Elite-5 HDI
This unit supports two types of sonar: Conventional
and DownScan.
The features described in this section are for
DownScan sonar. Refer to the “Sonar operation”
section for information on conventional sonar
features.
Trackback
You can review your sonar history by pressing the
keypad to the left until the screen starts to move
in reverse and the sonar history bar appears at the
bottom of the screen.
DownScan menu
Press MENU from the DownScan page to view the
DownScan menu.
DownScan Operation
Stops sonar
transmission;
pauses sonar
scroll
Move the sonar history bar all the way to the right
to resume normal sonar scrolling, or press MENU
and select Exit cursor mode.
DownScan history bar

18 19
DownScan Operation | Elite-5 HDI DownScan Operation | Elite-5 HDI
Contrast
Adjusts the brightness ratio between light and dark
areas on the screen, making it easier to distinguish
suspended objects from the background.
DownScan units do not have a Sensitivity setting
like traditional sonar units. Contrast functions as
the sensitivity setting for DownScan units.
Auto Contrast
Automatically adjusts contrast settings to a level
that works best with current water conditions.
Adjust
Access the Adjust menu to make
adjustments to the contrast level.
New Waypoint
Places a waypoint at your current position or at the
cursor position. From the new waypoint menu, you
can input a waypoint name, select an icon and
input a desired latitude/longitude.
New waypoint menu
Contrast set
to 40%
Contrast set
to 60%
Contrast set
to 80%
