Lowrance ELITE TI User manual

ENGLISH
ELITE Ti
Installation Manual
lowrance.com

Preface
Disclaimer
As Navico is continuously improving this product, we retain the
right to make changes to the product at any time which may not be
reflected in this version of the manual. Please contact your nearest
distributor if you require any further assistance.
It is the owner’s sole responsibility to install and use the equipment
in a manner that will not cause accidents, personal injury or
property damage. The user of this product is solely responsible for
observing safe boating practices.
NAVICO HOLDING AS AND ITS SUBSIDIARIES, BRANCHES AND
AFFILIATES DISCLAIM ALL LIABILITY FOR ANY USE OF THIS PRODUCT
IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR THAT MAY
VIOLATE THE LAW.
Governing Language: This statement, any instruction manuals, user
guides and other information relating to the product
(Documentation) may be translated to, or has been translated from,
another language (Translation). In the event of any conflict between
any Translation of the Documentation, the English language version
of the Documentation will be the official version of the
Documentation.
This manual represents the product as at the time of printing.
Navico Holding AS and its subsidiaries, branches and affiliates
reserve the right to make changes to specifications without notice.
Copyright
Copyright © 2016 Navico Holding AS.
Warranty
The warranty card is supplied as a separate document.
In case of any queries, refer to the brand website of your unit or
system: lowrance.com.
Regulatory statements
This equipment is intended for use in international waters as well as
coastal sea areas administered by the USA, and countries of the E.U.
and E.E.A.
Preface | ELITE Ti Installation Manual 3

This equipment complies with:
•CE under 2014/53/EU Directive
•The requirements of level 2 devices of the Radio communications
(Electromagnetic Compatibility) standard 2008
•Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired
operation.
The relevant Declaration of conformity is available on the following
website: lowrance.com.
Industry Canada
IC RSS-GEN, Sec 7.1.3 Warning Statement- (Required for
license exempt devices)
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie
Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes: (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en compromettre le fonctionnement.
Warning
The user is cautioned that any changes or modifications not
expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that the
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
4Preface | ELITE Ti Installation Manual

and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and receiver
•Connect the equipment into an outlet on a circuit different from
that of the receiver
•Consult the dealer or an experienced technician for help
Countries of intended use in the EU
AT - Austria
BE - Belgium
BG - Bulgaria
CY - Cyprus
CZ - Czech Republic
DK - Denmark
EE - Estonia
FI - Finland
FR - France
DE - Germany
GR - Greece
HU - Hungary
IS - Iceland
IE - Ireland
IT - Italy
LV - Latvia
LI - Liechtenstein
LT - Lithuania
LU - Luxembourg
MT - Malta
NL - Netherlands
NO - Norway
PL - Poland
PT - Portugal
RO - Romania
SK - Slovak Republic
Preface | ELITE Ti Installation Manual 5

SI - Slovenia
ES - Spain
SE - Sweden
CH - Switzerland
TR - Turkey
UK - United Kingdom
Trademarks
Lowrance®and Navico®are registered trademarks of Navico.
Simrad®is used by license from Kongsberg.
Navionics®is a registered trademark of Navionics, Inc.
NMEA®and NMEA 2000®are registered trademarks of the National
Marine Electronics Association.
Fishing Hot Spots®is a registered trademark of Fishing Hot Spots Inc.
Copyright© 2012 Fishing Hot Spots.
C-MAP is a trademark of Jeppesen.
SD™and microSD™are trademarks or registered trademarks of
SD-3C, LLC in the United States, other countries or both.
Wi-Fi®is a registered trademark of the Wi-Fi Alliance®.
Additional mapping data: Copyright© 2012 NSI, Inc.: Copyright©
2012 by Richardson’s Maptech.
Bluetooth®is a registered trademark of Bluetooth SIG, Inc.
Power-Pole®is a registered trademark of JL Marine Systems, Inc.
C-Monster™is a trademark of JL Marine Systems, Inc.
Navico product references
This manual refers to the following Navico products:
•Broadband Sounder™ (Broadband Sounder)
•DownScan Overlay™ (Overlay)
•GoFree™ (GoFree)
•INSIGHT GENESIS® (Insight Genesis)
•StructureMap™ (StructureMap)
•StructureScan® (StructureScan)
•StructureScan® HD (StructureScan HD)
6Preface | ELITE Ti Installation Manual

About this manual
This manual is a reference guide for installing the ELITE Ti.
Important text that requires special attention from the reader is
emphasized as follows:
ÚNote: Used to draw the reader’s attention to a comment or
some important information.
Warning: Used when it is necessary to warn
personnel that they should proceed carefully to
prevent risk of injury and/or damage to equipment/
personnel.
Preface | ELITE Ti Installation Manual 7

8Preface | ELITE Ti Installation Manual

Contents
11 Check the contents
12 Overview
12 Front controls
13 Rear connections
14 Card reader
16 Installation
16 Mounting location
17 Quick release bracket mounting
19 Panel mount
22 Mounting the transducer
22 Research
22 Select a transducer location
24 Attaching the transducer
25 Adjusting the transducer
26 Wiring
26 Guidelines
27 Power connection
27 Transducer connection
28 NMEA 2000 backbone
30 NMEA 0183 device connection
31 Software Setup
31 First time startup
31 Time and Date
32 Data source selection
34 Device list
34 Diagnostics
36 Damping
36 Sonar setup
38 StructureScan
38 Autopilot setup
38 Fuel setup
41 Wireless setup
44 Bluetooth wireless technology
Contents | ELITE Ti Installation Manual 9

44 NMEA 2000 setup
45 NMEA 0183 setup
46 Touchscreen calibration
47 Software updates and data backup
50 Accessories
50 NMEA 2000
50 ELITE Ti accessories
51 Sonar accessories
52 Supported data
52 NMEA 2000 compliant PGN List
56 NMEA 0183 supported sentences
58 Specifications
60 Dimensional drawings
60 ELITE-5Ti Dimensional drawings
60 ELITE-7Ti Dimensional drawings
10 Contents | ELITE Ti Installation Manual

Check the contents
5
7
3
4
8
9
10
6
2
1
1ELITE Ti
2Sun cover
3Power and NMEA 0183 cable
47-pin to 9-pin transducer adapter cable. Included only with
units that do not include transducers.
5Fuse holder (ATC blade)
6Quick release mounting bracket
7Fuse (3 amp)
8Quick release mounting bracket screws (4 x #10 x 3/4 PN HD
SS screws)
9Bracket locking bolt and knob. (ELITE-7Ti only)
10 Documentation pack
1
Check the contents | ELITE Ti Installation Manual 11

Overview
The unit has a built-in CHIRP/Broadband and StructureScan sonar.
The ELITE-7Ti can network over NMEA 2000, this allows access to
sensor data.
The ELITE-5Ti and ELITE-7Ti can send and receive data via NMEA
0183.
The unit has built-in high speed GPS receiver (10Hz) and supports
Insight charts from Navico including Insight Genesis. The system
also supports charts from Navionics and Jeppesen as well as
content created by a variety of third party mapping providers in the
AT5 format. For a full selection of available charts, visit
gofreeshop.com, c-map.jeppesen.com, or navionics.com.
The unit may be mounted to the vessel with the supplied mounting
bracket, or panel mounted on the dash.
The unit is intended for 12 V DC operation and will accept the
moderate fluctuations commonly seen in DC systems.
Front controls
2
3
4
5
6
1
1 Touch screen
2 Pages
3 Zoom out / Zoom in (combined press = MOB)
2
12 Overview | ELITE Ti Installation Manual

4 New waypoint (long press = Find dialogue)
5 Power button
Press and hold to turn the unit ON/OFF.
Press once to display the System Controls dialog.
6 Card reader (behind logo)
Rear connections

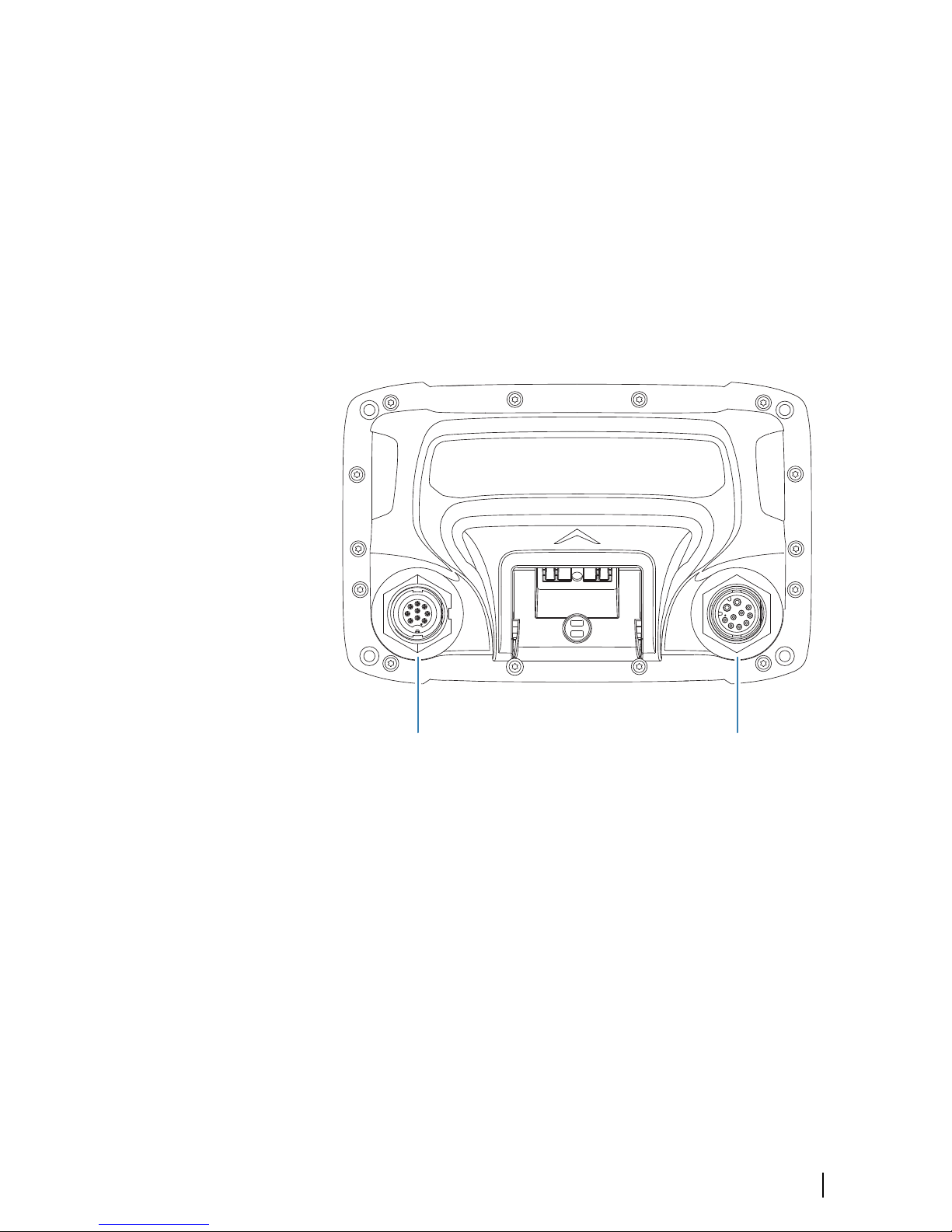

ELITE-5Ti rear connections
LTW
12
1 Sonar - CHIRP, Broadband, DownScan and SideScan
imaging
2 Power (12 V supply input) and NMEA 0183
Overview | ELITE Ti Installation Manual 13

ELITE-7Ti rear connections
1 2 3
1 Power (12 V supply input) and NMEA 0183
2 NMEA 2000 - data input / output
3 Sonar - CHIRP, Broadband, DownScan and SideScan
imaging
Card reader
Used for attaching a microSD memory card. The memory card can
be used for detailed chart data, software updates, transfer of user
data, and system backup.
The card reader door is opened by flipping back the logo and
pulling the rubber cover open.
14 Overview | ELITE Ti Installation Manual

The card reader door should always be securely shut immediately
after inserting or removing a card, in order to prevent possible water
ingress.
Overview | ELITE Ti Installation Manual 15

Installation
Mounting location
Choose the mounting locations carefully before you drill or cut. The
unit should be mounted so that the operator can easily use the
controls and clearly see the screen. Be sure to leave a direct path for
all of the cables. The unit has a high-contrast screen, and is viewable
in direct sunlight, but for best results install the unit out of direct
sunlight. The chosen location should have minimal glare from
windows or bright objects.
Ensure that any holes cut are in a safe position and will not weaken
the boat’s structure. If in doubt, consult a qualified boat builder, or
marine electronics installer.
Before cutting a hole in a panel, make sure that there are no hidden
electrical wires or other parts behind the panel.
Check that it is possible to route cables to the intended mounting
location.
Leave sufficient clearance to connect all relevant cables.
Do not mount any part where it can be used as a hand hold, where
it might be submerged, or where it will interfere with the operation,
launching, or retrieving of the boat.
The mounting location may affect the internal GPS receiver. Test the
unit in its intended location to ensure satisfactory reception. An
external GPS source can be added to overcome poor reception
areas.
Choose an area where the unit will not be subjected to excessive
vibration, or heat.
Good ventilation is required.
Warning: Inadequate ventilation may cause the unit
to overheat. The unit is designed to operate in
temperatures from -15° C to +55° C (+5° F to +131° F).
For overall width and height requirements, refer to "Dimensional
drawings" on page 60.
Choose a location that will not expose the unit to conditions that
exceed the IP rating - refer to "Specifications" on page 58.
3
16 Installation | ELITE Ti Installation Manual

Warning: When installing, ensure appropriate safety
equipment is used. For example, ear muffs, protective
glasses, gloves and a dust mask. Power tools may
exceed safe noise levels, and can cast off dangerous
projectiles. The dust from many materials commonly
used in boat construction may cause irritation or
damage to eyes, skin, and lungs.
Quick release bracket mounting
1. Place the bracket in the desired mounting location. Ensure that
the chosen location has enough height to accommodate the
unit fitted in the bracket, allows tilting of the unit and
connecting cables in the back.
ÚNote: Ensure that the chosen location has enough height
to accommodate the unit fitted in the bracket, allows tilting
of the unit and connecting cables in the back.
2. Mark the screw locations using the bracket as a template, and
drill pilot holes.
ÚNote: Use fasteners suited to the mounting surface
material. If the material is too thin for self-tappers, reinforce
it, or mount the bracket with machine screws and large
washers. Use only 304 or 316 stainless steel fasteners.
3. Screw down the bracket.

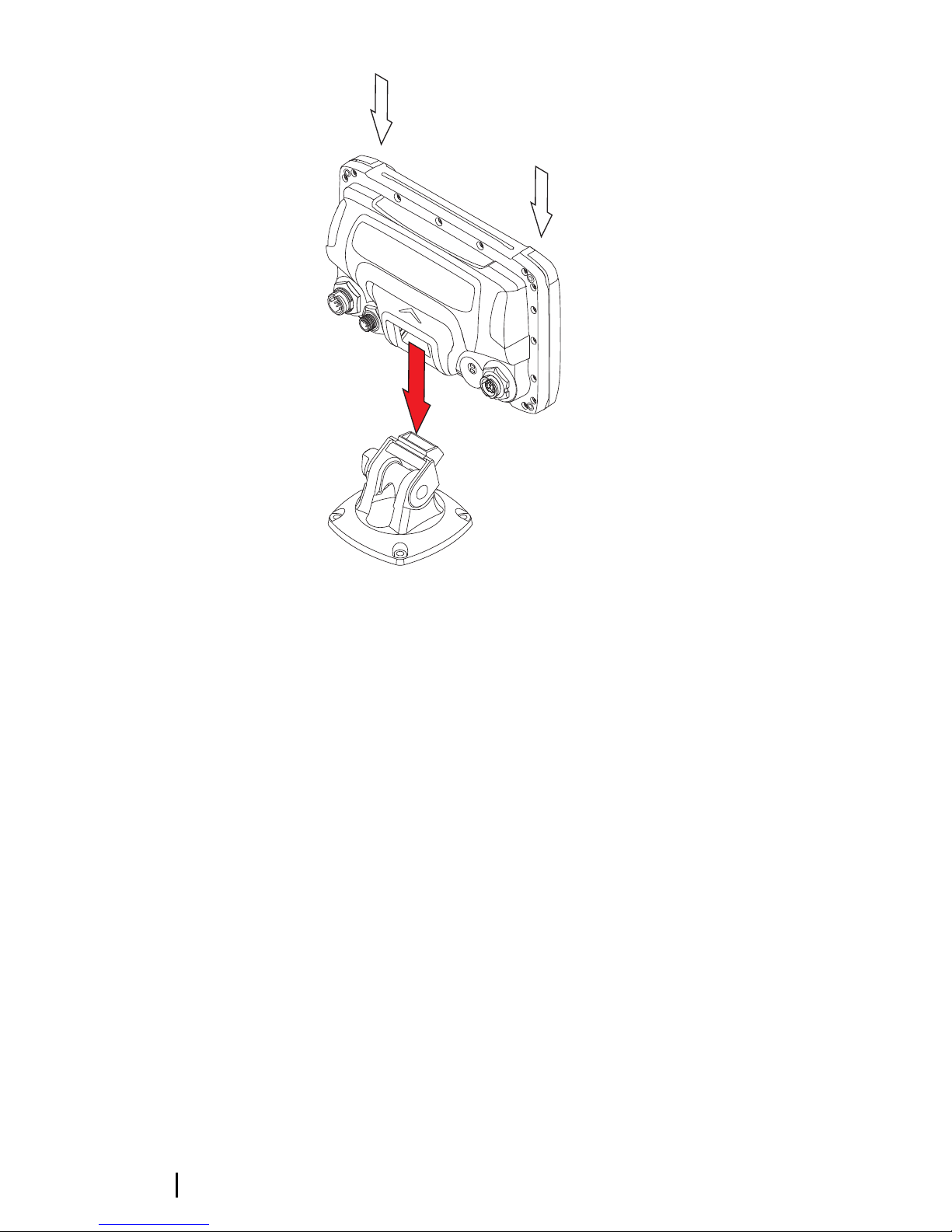

4. Snap the unit to the bracket.
Installation | ELITE Ti Installation Manual 17

5. Tilt the unit to the desired position angle.
6. For ELITE-7Ti only, set the desired angle and then insert the
locking bolt and knob. Tighten to stop angle movement
18 Installation | ELITE Ti Installation Manual

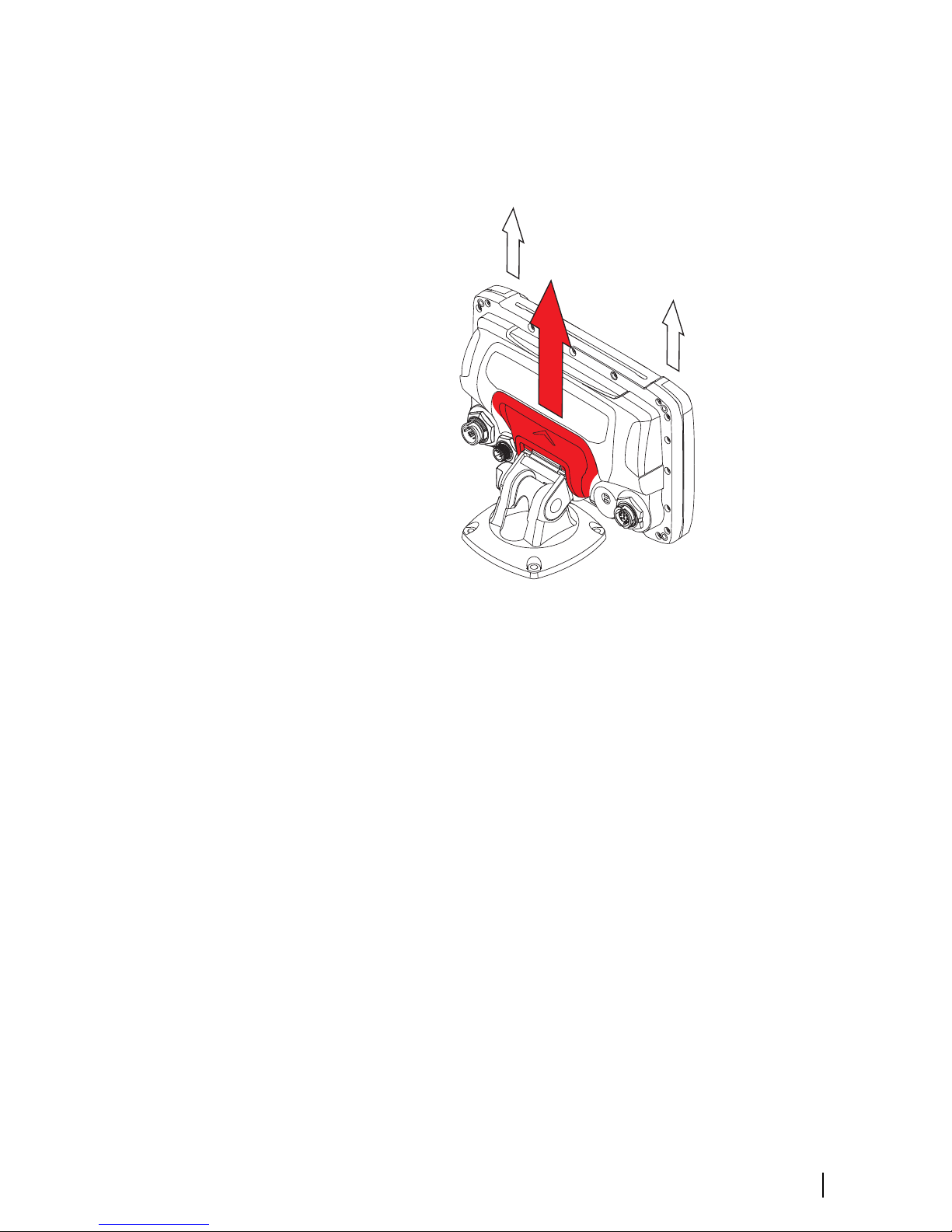

Removing the unit from the quick release bracket
Pull and hold the release handle and then pull the unit from the
bracket.
Panel mount
1. Check the Mounting Template for scaling accuracy, using a tape
measure or ruler against the ruler printed on the template.
2. Cut away excess paper, and tape down the template. Check that
it is correctly aligned to a vertical or horizontal reference. Do not
use a bubble level as the vessel might not be level. Adjust
where required.
3. Drill all marked pilot holes. For recommended pilot hole size,
refer to the Mounting Template.
4. Using an appropriate saw, cut through the template and
mounting surface, along the dotted line bordering the shaded
center of the template.

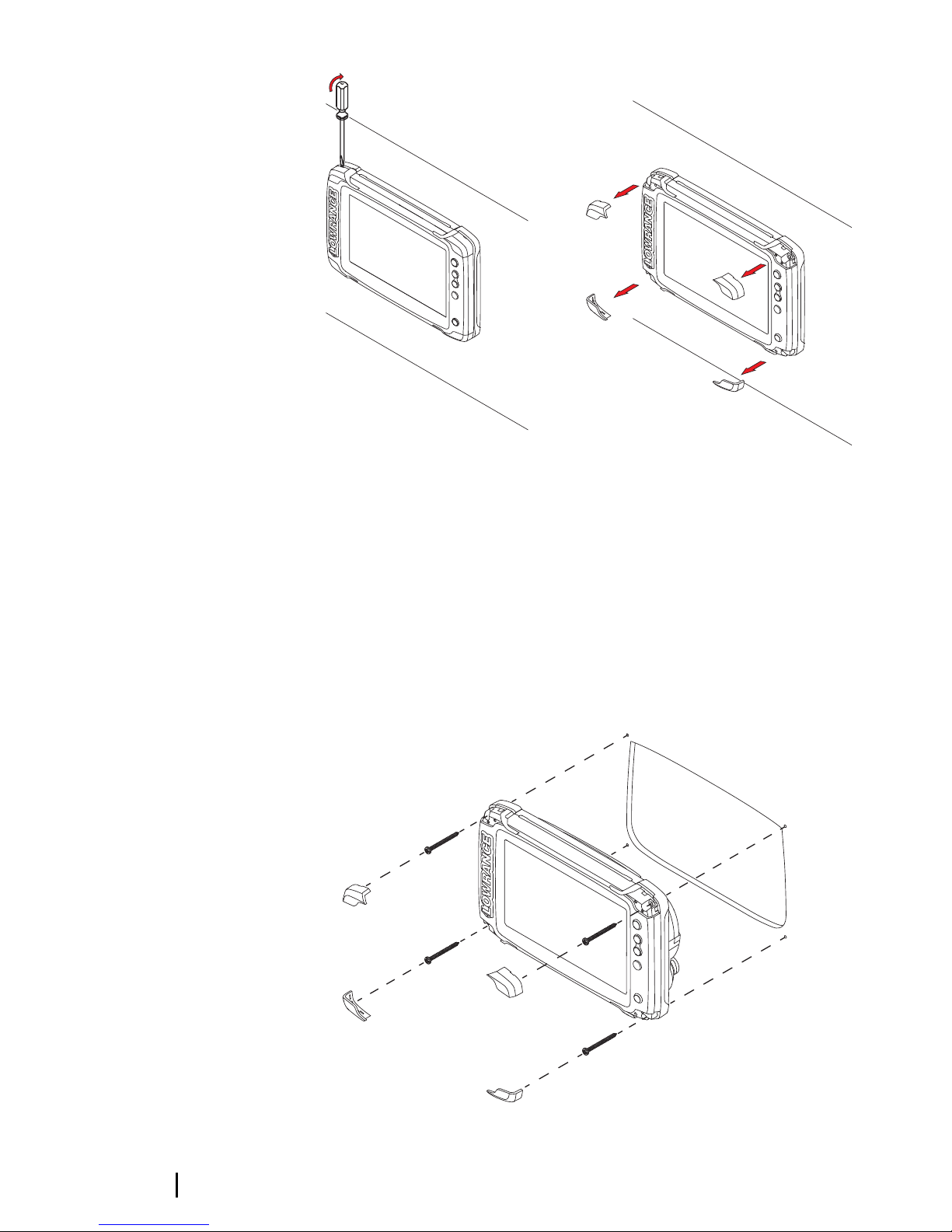

5. Using a fingernail or small flat screwdriver, pry off the corner
clips at the slotted points located at the top or bottom of each
corner clip.
Installation | ELITE Ti Installation Manual 19

6. Check the fit of the unit, and use a file to remove any remaining
obstructions. If water-tightness is required, apply a thin,
continuous bead of sealant to the back of the unit prior to final
installation. Sealant should be of a ‘neutral cure’ type to prevent
damage to the plastics.
7. Secure the unit with screws (not supplied). For recommended
screw size and type, refer to the mounting template. Once
screws are fully tightened, ensure there is complete contact
with the mounting surface.
8. Press the four corner clips back into position.
20 Installation | ELITE Ti Installation Manual
