LOXONE Weather Station Tree User manual

Technical Specifications
Power supply 10 ... 30VDC
Power consumption typ. 0.06W, max. 1.1W (when
rain sensor heating is on)
Rain sensor with integrated heating
Safety rating IP44
Ambient temperature -30 ... 70°C / -22 ... 158°F
Maintenance & Cleaning This device is free of main-
tenance and may only be
cleaned with a dry cloth.
Connection
Wire cross-section 0.08 ... 0.32mm² / AWG28 ... 22
Stripping length 3.5mm / 0.14"
Temperature resistance -40 … 125°C / -40 … 257°F
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com
Need Help?
loxone.com/support
Part No: 100246
Weather
Station
Tree
V100420
Power loss max. 1.1W
Interfaces Loxone Tree:
connection with Miniserver /
Tree Extension
Wind detection range 9 ... 145km/h / 5.6 ... 90mph
Brightness detection range 0 ... 188000lx
Temperature detection range -40 ... 125°C / -40 ... 257°F

About the product
The Weather Station Tree measures wind, rain, brightness and
temperature. You can use this data for a variety of functions
throughout your application.
Features
• Wind sensor
• Wind alarm
• Rain sensor
• Brightness sensor
• Temperature sensor
Information
Please note that the temperature sensor may not always
accurately record the external temperature. This is due to
direct sunlight warming the housing, which can influence the
temperature reading. Always select an installation place that’s
suitable for the application.
Installation
We suggest you install the weather station in a place where
wind, rain and brightness can be detected without interference.

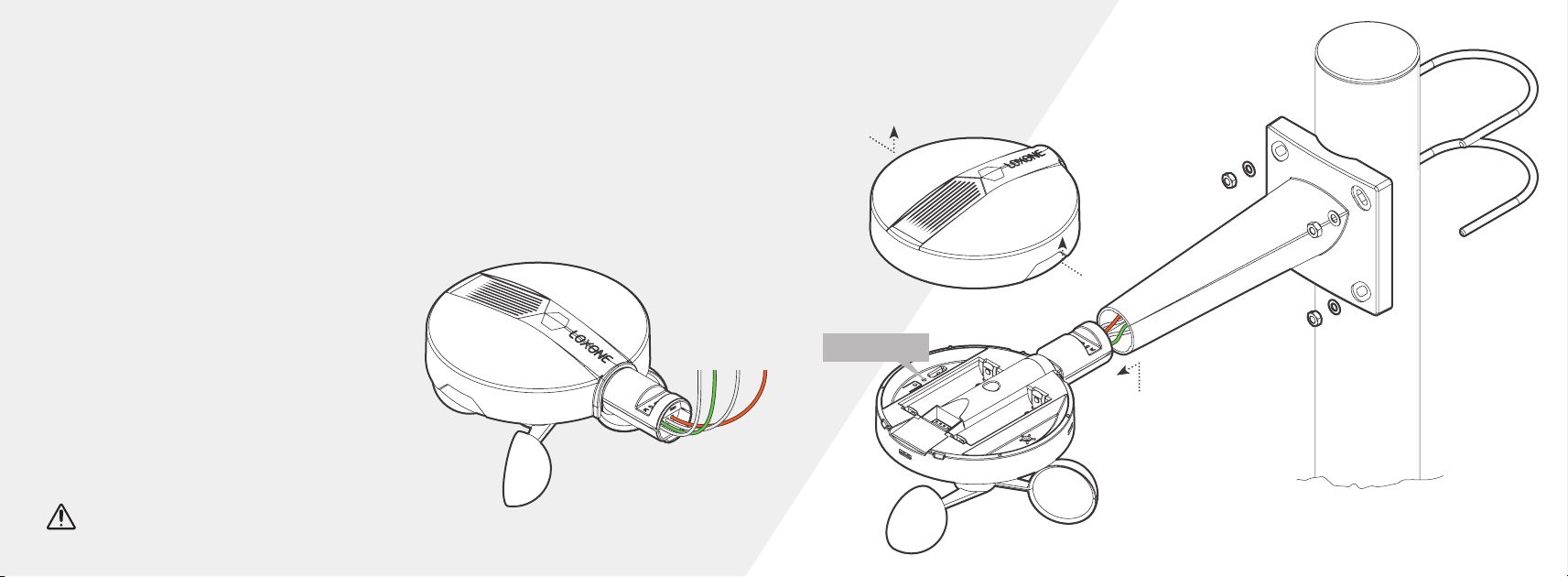

Install and connect the device as shown, either on a pole or
directly on the wall, with the provided accessories. Please note
that buildings or objects in close proximity to the Weather
Station could cause air turbulence which may influence the
accuracy of wind measurements.
For additional information, declaration of confirmity,
visit www.loxone.com/help/weather-station-tree
Status LED
Push on both side and
pull to open the top
Push and pull
to unlock
WH GN GND +24V
