Power Supply Module
NTM2408-1
Description
The Power Supply Module NTM2408-1 serves for the
safe supply of devices, which need a nominal voltage of
24VDC. The typical fi elds of application include fi re de-
tection systems and extinguishing controls or any other
applications requiring a safe power supply.
The output voltage of the integrated switched-mode
power supply is current-limited and short-circuit-protec-
ted.
The optional stand-by batteries guarantee an uninterrup-
ted power supply in the event of a mains power fault.
At a typical charging time of 24 hours, batteries with a
maximum capacity of 220Ah can be charged. The inte-
grated protection against total discharge and the tem-
perature compensated battery charging are the basis
for a long battery life.
The battery monitoring according to EN 54-4:2006 in-
cludes the periodical measurement of the battery volta-
ge under load and the internal resistance of the battery.
The integrated earth leakage monitoring of the module
can be deactivated for special applications.
The module is designed for installation into a power sup-
ply housing. For that purpose, three different housings
are available. At the front of the housing, seven light
emitting diodes indicate the operation as well as pos-
sible causes of faults.
By means of the integrated test function, a functional
check can be performed and the present value of the
internal resistance of the battery can be read out. With
that, the maintenance of power unit and batteries is es-
pecially easy and timesaving.
• Uninterrupted power supply for
devices with 24VDC, max. 8.4A
• Current-limited, short-circuit-
protected output
• Monitoring of battery charging and
internal resistance of the batteries
• Installation into wall-mount cabinet or
19“ housing
• Status display at the housing front
• Complies with EN 54-4:2006
Specifi cations
Operating voltage 230V +10/-20%, 47 – 63Hz
Output voltage typ. 27.6VDC
Output current max. 8.4A
Ambient temperature -5°C to +50°C
Relative humidity max. 95% (no condensation)
Dimensions L × W × D 290 × 220 × 70 (mm)
Weight 1.5kg
Approvals VdS G208125
0786-CPD-20529
Order number 317021
Order name Power Supply Module NTM2408-1

© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL [phone] • FAX [phone]
[email protected] • WWW.LST.AT • ALL RIGHTS RESERVED
NTM2408-1_DBL_LST_EN_0851.PDF • PAGE 2
ABuilding Safety. Building Security.
Power supply housings and accessories

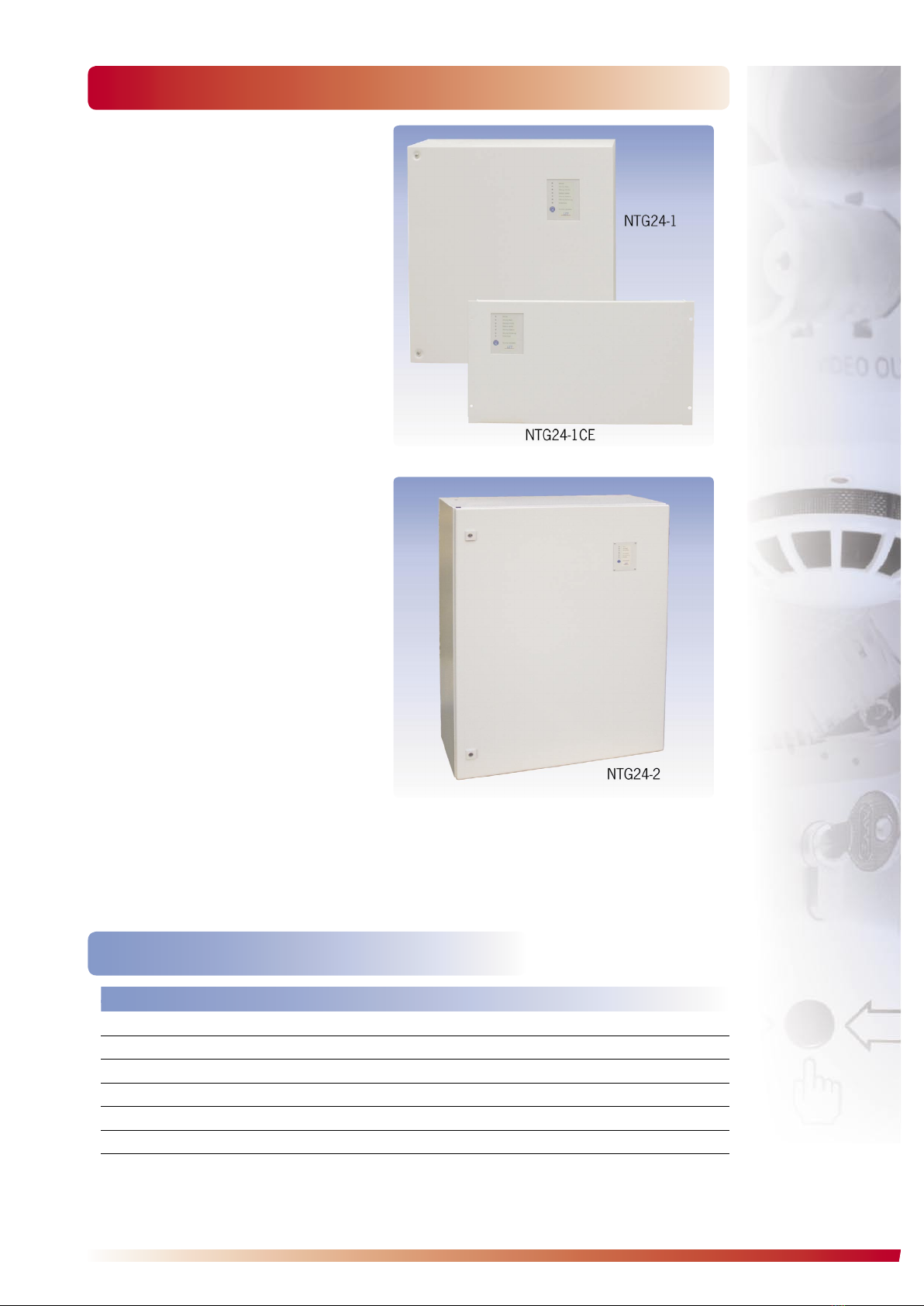

The wall-mount cabinet NTG24-1 provides space
for the power supply module as well as for the in-
stallation of 2 stand-by batteries with 12V/max.
45Ah, one Relay Module RL58-1 or RL58-2 and
one Multi Module MEA244-1/E. In this case, the
power supply module serves as power supply
for the multi module and the loads that are ac-
tuated via the 4 outputs. Furthermore, via the
inputs of the multi module, fault messages can
be forwarded to the fi re detection control panel.
If required, further modules can be mounted in
the cabinet door.
Thanks to the sophisticated design of the Po-
wer Supply Front Panel NTG24-1CE, it can be
mounted either on a 19“ pivoting frame or on the
mounting plate of a switch cabinet. In both ca-
ses, the optional stand-by batteries are accom-
modated in the interior of the switch cabinet.
In addition to the power supply module, the Po-
wer Supply Front Panel NTG24-1CE can also ac-
commodate a Relay Module RL58-1 or RL58-2.
The Power Supply Housing NTG24-2 provides
space for the power supply module as well as
for the installation of 4 stand-by batteries with
12V/max. 85Ah, one Relay Module RL58-1 or
RL58-2 and one Multi Module MEA244-1/E.
The Battery Bracket BK24-1 is used for installing
stand-by batteries into the Power Supply Hou-
sing NTG24-2 or into a switch cabinet. The solid
sheet steel console can accommodate either
one battery with 12V/max. 85Ah or 2 batteries
with 12V/max. 45Ah.
Power Supply Housing NTG24-1
Protection class IP30
Dimensions W × H × D 442 × 460 × 203 (mm)
Colour grey white, RAL 9002
Weight without installations approx. 7kg
Order number 317030
Order name Power Supply Housing NTG24-1
Specifi cations
All housings are made of powder coated sheet steel. At
the front of the housing, the built-in display and opera-
ting board allows the signalling of the most important
operating conditions as well as the resetting of the in-
ternal buzzer.
The display and operating elements can be labelled in
the respective national language by means of the sup-
plied insertable labelling strips.

© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL [phone] • FAX [phone]
[email protected] • WWW.LST.AT • ALL RIGHTS RESERVED
NTM2408-1_DBL_LST_EN_0851.PDF • PAGE 3
ABuilding Safety. Building Security.
Power Supply Front Panel NTG24-1CE
Dimensions W × H × D 478 × 266 (6 HU) × 20 (mm) (without power supply module)
Colour grey white, RAL 9002
Weight without installations 1.4kg
Order number 317031
Order name Power Supply Front Panel NTG24-1CE
Power Supply Housing NTG24-2
Protection class IP30
Dimensions W × H × D 800 × 1000 × 300 (mm)
Colour light grey, RAL 7035
Weight without installations approx. 65kg
Order number 317032
Order name Power Supply Housing NTG24-2
Battery Bracket BK24-1
Dimensions W × H × D 370 × 195 × 209 (mm)
Material steel sheet, zinc coated
Weight 1.8kg
Order number 317033
Order name Battery Bracket BK24-1
