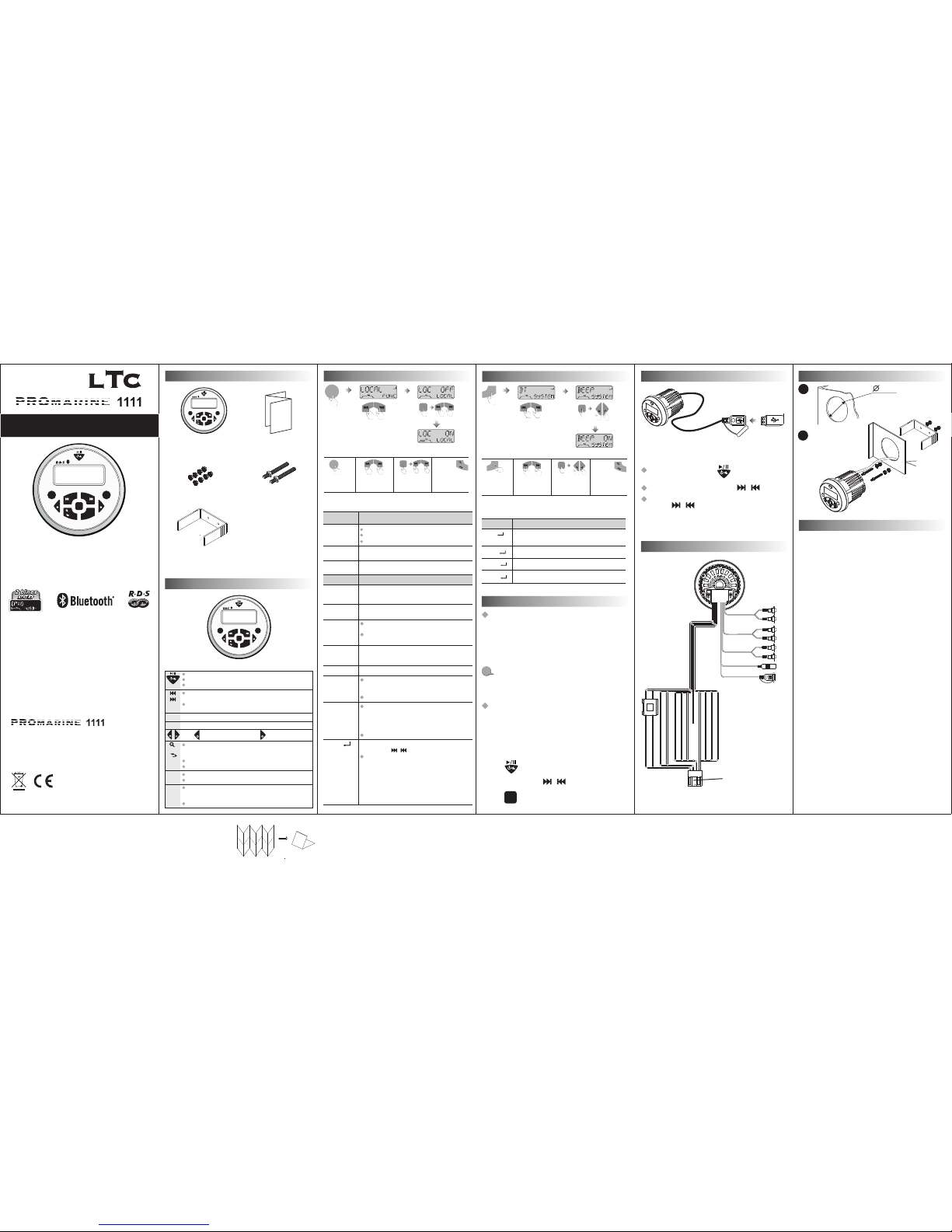

LTC PROMARINE 111 User manual

50w x4
USB
ENTER
DISP
SRC
VOL
MENU
BAND
FUNC
VOL
User Manual
IPX6 Waterproof Round Radio,
With BT Audio Streaming
Contents
Wire Connection
Key Functions
Wired Remote
Commander (1pcs)
Hexagon
(2pcs)
50wx4
USB
ENTER
DISP
SRC
VOL
MENU
BAND
FUNC
VOL
M4 (8pcs)
User Manual
(1pcs)
Metal Bracket
(1pcs)
50w x4
USB
ENTER
DISP
SRC
VOL
MENU
BAND
FUNC
VOL
Tuner Mode: Press to enter into the Manual Seek mode,
press and hold to enter into the Auto Seek mode.
Media Playback Mode: Press to track Up/Down, press and hold for
fast forward/backward.
Short press to mute or restore volume.
Turn the unit on. Press and hold again to turn the unit off.
Press to pause. Press again to resume playback.
Select the available Source.
Press to decrease the volume, press to increase the volume.
Press to enter into the Function mode.
SRC
FUNC
VOL VOL VOL
VOL
Fuse Box
Left Rear Speaker(+) Green
15A
Left Rear Speaker(-) Green/Black Left Front Speaker(+) White Left Front Speaker(-) White/Black Right Front Speaker(+) Gray Right Front Speaker(-) Gray/Black Right Rear Speaker(+) Purple Right Rear Speaker(-) Purple/Black
White
Red
Yellow
Aux-In
Left
Right
Black
Grey
Subwoofer
Rear Line Out
Front Line Out
White
White
Red
Red
Left
Left
Right
Right
Antenna
Black
Black USB
Turn On or Off the RDS function.
1
12
23 34 4
Press and hold
access into the
System Menu
Press and hold
access into the
Function mode
RDS On/Off
Press the
button to exit
Press the
button to exit
Press to select the
item to be adjusted
Press to select the
item to be adjusted
Press to select a
value / option
Press to select a
value / option
Adjust System Menu Settings
Adjust Function
MENU
ENTER
DISP
ENTER
DISP
MENU
ENTER
DISP
ENTER
DISP
VOL
BAND
BAND
Item
Media Playback
Mode
Tuner Mode
Selectable setting
Selectable setting
Selectable setting
This feature allows to Reconnect or Disconnect to the
paired mobile phone or Bluetooth device manually.
This function allows you to play tracks/songs from the
current album, songs or artists in a random order.
When one expected radio station has been detected,
press to store it in the memory.
This function allows you to play the first 10 seconds
to each track on the device.
Turn On or Off this beep sound.
To restore the factory defult settings.
To view the device hardward and software versions.
BT
Repeat
Auto Store
Random
On/Off
Manual Stroe
Introl
On/Off
Local On/Off
BEEP
RESET
ABOUT
When you press or hold the following button(s)...
When you press or hold the following button(s)...
FUNC
FUNC
ALL:
Song:
to repeat all tracks on the storage media
the current track will be repeated
Folder: repeats all tracks in the current folder
Press to access into Auto Store mode, the strongest
stations of the selected band will be saved in preset
channel automatically.
ON:
OFF:
only stations with strong signal can be broadcast.
The Local indicator will light up
Stations of both strong and weak signals can be
broadcast.
Area Select suitable country area for this unit:
EUROPE; RUSSIA; JAPAN; LATIN; MID-EAST;
OCEANIA; USA; ASIA
ON: The unit will search for another station with stronger
signal, but with the same program identification as the
current station automatically.
OFF: Turn off AF function
ON: When there is traffic announcement, unit will
automatically switch to the tuner mode (regardless of the
current mode) and begins to broadcast the announcemet
on traffic conditions. When the traffic announcement is
over, unit will automatically return to the previous mode.
OFF: Traffic announcement does not cut in.
AF On/off
TA On/off
Use Bluetooth Device
Pairing the Bluetooth device
On your Bluetooth-enabled device, follow the steps below.
1. Search for Bluetooth devices.
2. In the device list, select MGR001
3. “CONNECTED” will appear on the display.
4. The unit will automatically enter the BT Audio source and you can
now start streaming audio from your Bluetooth enabled device.
Bluetooth Audio Streaming A2DP
If the connected Bluetooth device supports Advanced Audio Distribution
Profile (A2DP), you can listen to the music stored on the device through
the unit. If the device also supports Audio Video Remote Control Profile
(AVRCP) profile, you can use the control on the unit or its remote control
to play music stored on the device.
If the mobile phone doesn't support SSP (Simple Secure
Pairing) Profile, please enter the pass code of ”0000”.
NOTE
Open the lid of USB socket, insert the USB device into the USB socket.
The unit starts playing from the USB device automatically.
Playing a USB Device
To pause the music play, press , press this button again to
resume music play.
To skip to the previous/next track, press / .
To search backward/forward rapidly within the current track , press
and hold / .
Tuner Mode: To change different Band.
Media Playback Mode: Press to .
Returns to the previous item.
Press and hold to
access into Auto Store mode, the strongest stations of the selected band
will be saved in preset channel automatically.
access into search Folder/File music mode
Tuner Mode: Press to view RDS received information.
Media Playback: Press to view ID3 informations.
Press to access into the Audio Menu mode to adjust the options:
EQ7 / XBASS / BASS / MIDDLE / TREBLE / BALANCE / FADER /
R-SUBW / SUBW / SUBW LPF / SUBW LEVEL
Press and hold to access into the System Menu.
BAND
ENTER
DISP
MENU
ISO Connector
Accessory(+12V) Red
Ground Black Battery(+12V) Yellow Power Anteena Blue
Once inside the PTY mode, press the get into program type
item, and press to selected category.
PTY
Available Program Type:
POP M; ROCK M; EASY M; LIGHT M; CLASSICS;
OTHER M; JAZZ M; COUNTRY; NATION M; OLDIES
M; FOLK M; A-TEST; ALARM; NEWS; AFFAIRS; INFO;
SPORT; EDUCATE; DRAMA; CULTURE; SCIENCE;
VARIED; WEATHER; FINANCE; CHILDREN; SOCIAL;
RELIGION; PHONE IN; TRAVEL; LEISURE; DOCUMENT
1. Press SRC repeatedly to select [BT AUDIO].
2. Press to start play, press it again to pause.
3. To track up/down, press / .
4. Press to view song title information.
ENTER
DISP
IPX6 Waterproof Round Radio, With
BT Audio Streaming
Size: 444x210mm (After Folding Size:74x105mm )
/
VOL VOL
VOL VOL
Installation
Make the mounting
hole as follows.
76mm
Specification
FM Tuner
Frequency Range.....................87.5~108MHz
Usable Sensitivity....................12dB (S/N=30dB)
AM Tuner
USB
Bluetooth
Aux In
Frequency Range.....................522~1620KHz
Usable Sensitivity....................40dB(S/N=20dB)
General
USB.........................................2.0 High Speed
USB Memory Size....................32G
Output Power.................................Class 2
Frequency Band..............................2.402GHz~2.48GHz ISM Band
Range.............................................3 Meters (Free Space)
Standard.........................................Bluetooth 2.1 Specification+EDR/V3.0
Maximum Power............................50Wx4
Power Supply Voltage ...................14.4V DC(10.8 to 15.6V allowable)
Grounding System..........................Negative Ground
Speaker Impedance........................4~8 ohms per channel
Pre-AMP Output Voltage................1.7V
Aux In Level.................................600mV
Frequency response.....................20Hz~20kHz
Signal/Noise Ratio........................>55dB
Distortion.....................................0.5%
1
2
MP3/WMA mode
MP3 sampling rate...................32kHz, 44.1kHz, 48kHz
MP3 bit rate............................32~384kbps
WMA bit rate...........................8~320kbps
Logical format..........................ISO9660, Joliet
Number of file..........................Maximum 65535
Max directory depth.................8
Max File/Directory Name..........64Byte
ID3 tag....................................V2.0 or later
