LTG LDB Series User manual

Installation Instructions
LTG Air Diffusers
AIR TECH
SYSTEMS
Linear air diffusers LDB
Installation in ceilings, walls and sills

© LTG Aktiengesellschaft Grenzstrasse 7 70435 Stuttgart Germany LDB-eng-MA (01/17)
Tel. [phone] Fax [phone] [e-mail] www.LTG.net
Former editions are invalid · Subject to technical modifications page 2 of 9
Installation Instructions
Linear Air Diffusers LDB
LTG Comfort Air Technology
Air Distribution
Air-Water Systems
Air Diffusers
Content Page
Safety instructions 3
Installation steps 3
Delivery 3
End caps 3
Angles 4
Connecting pieces 4
Throttling device DLU 5
Installation 6
Diffuser element adjustment after installation 8
Notes
Please note!
The profiles for our linear diffusers are exclusively
designed for use as decoration elements to cover the
gap between the ceiling and the diffuser. They are not
suitable for use as supporting profiles or fasteners!

© LTG Aktiengesellschaft Grenzstrasse 7 70435 Stuttgart Germany LDB-eng-MA (01/17)
Tel. [phone] Fax [phone] [e-mail] www.LTG.net
Former editions are invalid · Subject to technical modifications page 3 of 9
Installation Instructions
Linear Air Diffusers LDB
1. Safety Instructions
Be careful when performing
work on the air diffusers.
Profiles and and boxes are
sharp-edged.
Parts and tools
Be careful when working
overhead.
2. Sequence of installation
With air distribution box
- Makesurethatthedeliveryiscomplete
- Assembly end caps (if available)
- Adjust throttling device DLU
- Mount linear diffuser and plenum on the ceiling
or
first mount plenum, after painting the ceiling linear
diffuserscanbemountedviasecondfix.
- Mount connecting pieces (if available)
Without air distribution box
- Makesurethatthedeliveryiscomplete
- Assembly End caps (if available)
- Mount fixing brackets for blind attachment
(if available)
- Mount the linear diffuser after painting the ceiling
- Mount connecting pieces (if available)
3. Delivery
The accessories are packed in a separate carton and are labelled „Zubehör/accessories“.
4. End caps
By using end caps, a closed frame of linear diffusers is obtained.
25*
1,5
67 41
17
41
Example:
LDB 20classic/1/11 with end cap
Example:
LDB 20classic/1/00 with support
bracket
Example:
LDB 20classic/1/00 with end plate
LDB 20 classic :15or25mm*
LDB 50
maxx :20mm
LDB 12 clean and 20 classic:
4,5 mm; LDB 50 maxx :6mm
*15mmforborderprofile8
*25mmforborderprofile1
2
4
17
Adjustable height as required
3

© LTG Aktiengesellschaft Grenzstrasse 7 70435 Stuttgart Germany LDB-eng-MA (01/17)
Tel. [phone] Fax [phone] [e-mail] www.LTG.net
Former editions are invalid · Subject to technical modifications page 4 of 9
Installation Instructions
Linear Air Diffusers LDB
5. Angles
Corner pieces allow an optical solution (over corner so
lutions) for a continuous linear diffuser assembly.
Assembly occurs in Factory (if available).
L±0,5
L±0,5
Angle, Lmin = 250 mm
Displacement in height ± 0,5 mm
6. Connecting pieces / pins
A flush mounting of the diffusers is achieved by using
connecting pieces inserted in the guiding grooves of the
profiles.
Several linear diffusers may thus be connected to form
a continuous line.
For linear diffusers with additional profiles, a flush
mounting is achieved by using additional overlap pro
files or connecting pins.
Connecting pin when using
additional profiles (1)
Connecting piece (2)
(1) For painted profiles: Mat.-Nr. 1031710
For anodized profiles: Mat.-Nr. 760216
(2) Mat.-Nr. 666969. Not possible when using
additional profiles
Special profile 5
Special profile 8

© LTG Aktiengesellschaft Grenzstrasse 7 70435 Stuttgart Germany LDB-eng-MA (01/17)
Tel. [phone] Fax [phone] [e-mail] www.LTG.net
Former editions are invalid · Subject to technical modifications page 5 of 9
Installation Instructions
Linear Air Diffusers LDB

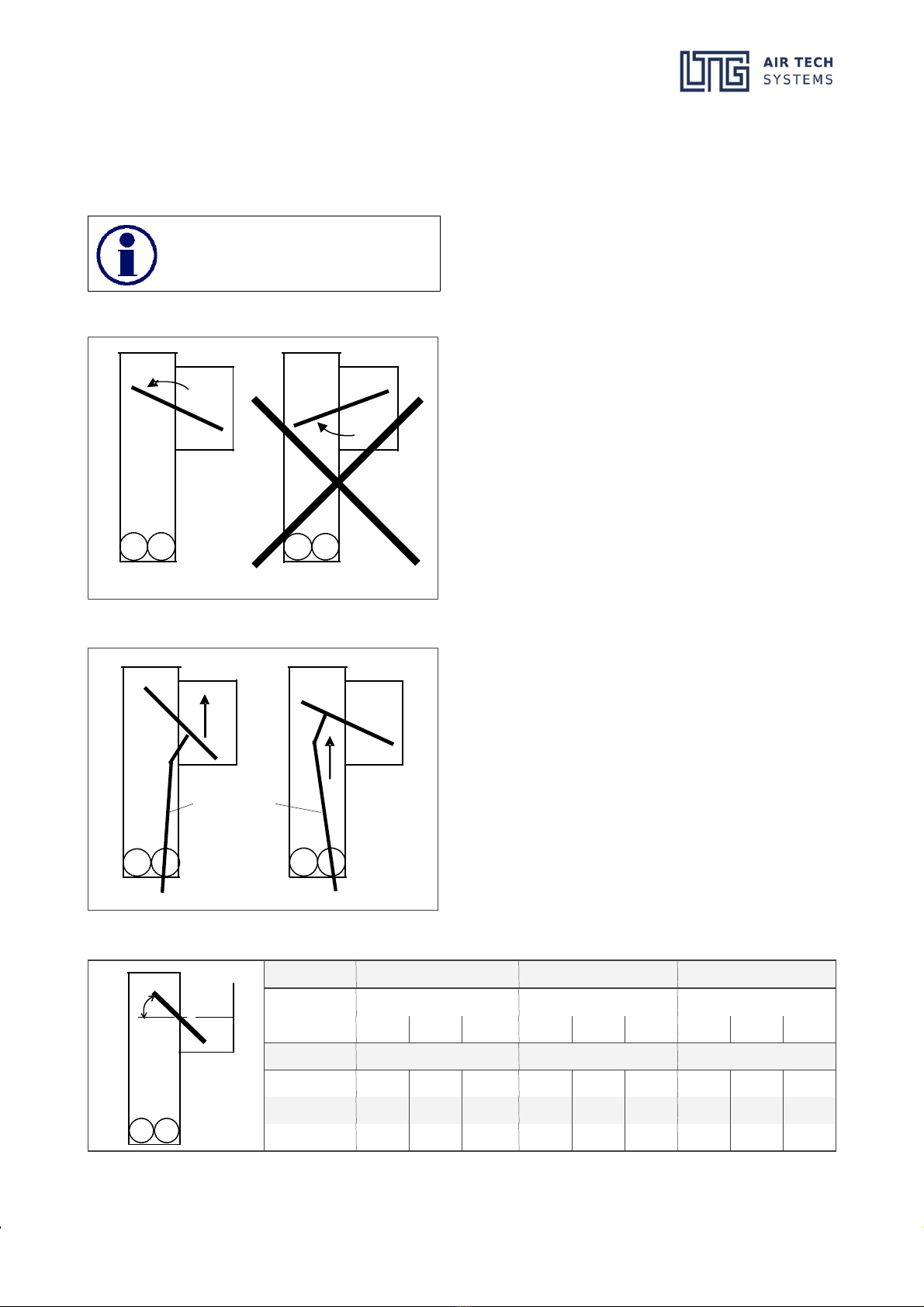

7. Throttling device DLU
Open the throttling device before
connecting the air ducts.
7.1 Open - optimum acoustics
Aware of the direction !
7.2 Adjustment of pressure drop
Open Close
DLU-
adjusting
lever
Mat.-Nr.
1020846
7.3 Additional pressure drop [Pa] of throttling device

DLU DN 100 DLU DN 125 DLU DN 140
Flow rate [m³/h] Flow rate [m³/h] Flow rate [m³/h]
60 80 100 100 120 140 100 140 180
Angle [°] Pressure drop [Pa] Pressure drop [Pa] Pressure drop [Pa]
90° 32 Pa 52 Pa 80 Pa 47 65 90 35 70 110
75° 18 Pa 32 Pa 50 Pa 22 33 45 19 30 50
60° 9Pa 17 Pa 26 Pa 13 17 25 815 26

© LTG Aktiengesellschaft Grenzstrasse 7 70435 Stuttgart Germany LDB-eng-MA (01/17)
Tel. [phone] Fax [phone] [e-mail] www.LTG.net
Former editions are invalid · Subject to technical modifications page 6 of 9
Installation Instructions
Linear Air Diffusers LDB

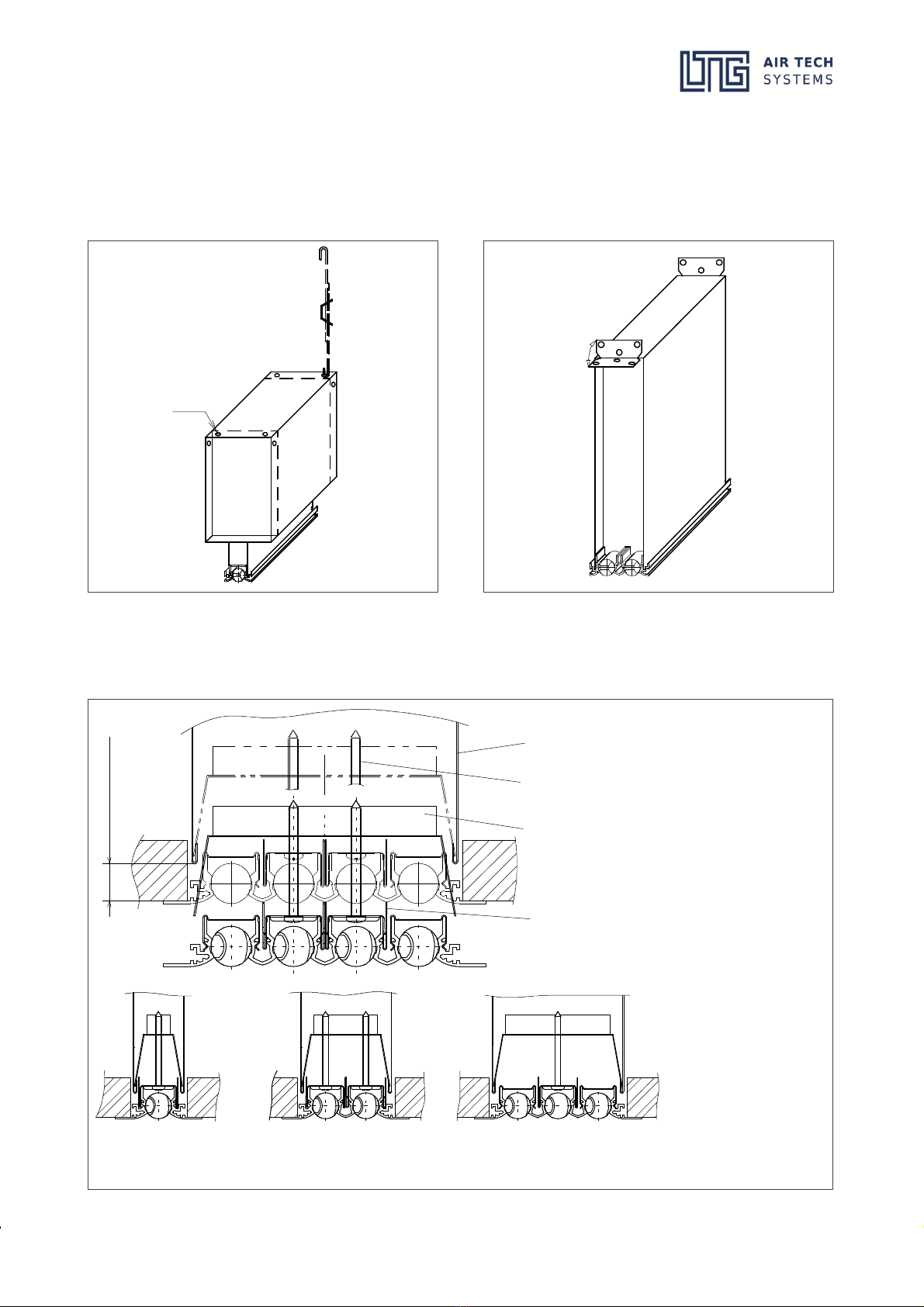

8. Installation
8.1 Insertion of the linear diffuser in the ceiling, completely with plenum box
Ø5
Example for installation of type LDB 20classic/1/00 with air
distribution box and continuously adjustable spring hanger
(adjusting range about 3/4 of the length of the hooked wire)
Example for installation of type LDB 20classic/2/00 with air
distribution box without insulation. The four suspension eyes
are included in the delivery of the narrow box.
8.2 Retrofitting via „Second-fix“-fixation
Sheet metal screw
4.8x70
Fixing bracket 4 slot rows
Clip with hole
Plenum box
12...20 mm
LDB 20classic/3
LDB 20classic/2
LDB 20classic/1
- The plenum box
must be installed
at a distance of
12…20 mm from
the underside of
the ceiling.
-Pushthescrews
through the dif
fuser elements
and the brackets,
-screw it on
slightly with the
fixing bracket,
- thenpushitcom
pletely into the
plenum box until
the fixing bracket
latches in the re
bate,
- now tighten the
screws firmly.
Mat.-Nr. 1002001
Mat.-Nr. 1002262
Mat.-Nr. 104699
Fixing bracket 1 slot row
Mat.-Nr. 1002259
Fixing bracket 2 slot rows
Mat.-Nr. 1002260
Fixing bracket 3 slot rows
Mat.-Nr. 1002261

© LTG Aktiengesellschaft Grenzstrasse 7 70435 Stuttgart Germany LDB-eng-MA (01/17)
Tel. [phone] Fax [phone] [e-mail] www.LTG.net
Former editions are invalid · Subject to technical modifications page 7 of 9
Installation Instructions
Linear Air Diffusers LDB

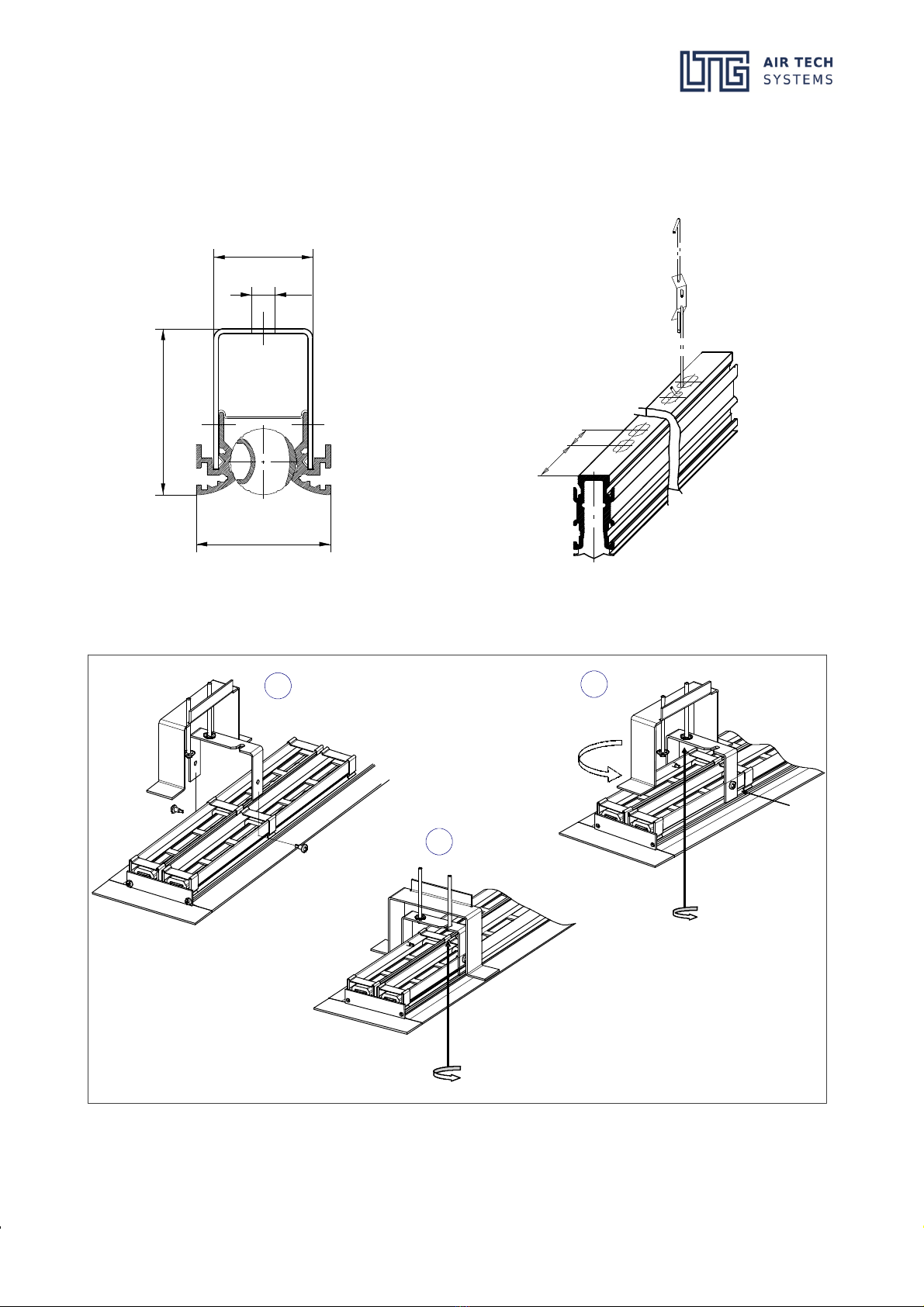

8.3 Blind attachment
30
41
50
Ø7
Example for installation of type LDB 20classic/1/00 with suspen-
sion bracket for blind attachment
Oblong holes 12,5 x 5
31
17
Example for installation of blind profiles type LDB 15eco
8.4 Double dummy brackets for clamping in the ceiling or air duct
12
3
Example LDB 20classic/2/11with double dummy brackets for blind attachment

© LTG Aktiengesellschaft Grenzstrasse 7 70435 Stuttgart Germany LDB-eng-MA (01/17)
Tel. [phone] Fax [phone] [e-mail] www.LTG.net
Former editions are invalid · Subject to technical modifications page 8 of 9
Installation Instructions
Linear Air Diffusers LDB
9. Adjustment of diffuser elements after installation
9.1 LDB 12
clean
Adjusting wrench for
LDB 12 clean
Mat.-Nr. 92961.4
Setting diffuser element position
2 or 3: apply the adjusting
wrench as shown, using the end
marked accordingly.
Setting diffuser element position
1 or close all the way: Insert a 1
mm thick pin into the hole as
shown.
9.2 LDB 20 classic
Adjusting wrench for
LDB 20 classic
Mat.-Nr. 80178.9
Setting diffuser element position
0, 1, 2 or 3: apply the adjusting
wrench as shown.
Closing the diffuser element po
sition: apply the other end of the
adjusting wrench as shown.

© LTG Aktiengesellschaft Grenzstrasse 7 70435 Stuttgart Germany LDB-eng-MA (01/17)
Tel. [phone] Fax [phone] [e-mail] www.LTG.net
Former editions are invalid · Subject to technical modifications page 9 of 9
Installation Instructions
Linear Air Diffusers LDB
9.3 LDB 50 maxx
Adjusting wrench for
LDB 50
maxx
Mat.-Nr. 64853.7
Setting diffuser element position
0, 1, 2 or 3: apply the adjusting
wrench as shown.
Closing the diffuser element po
sition: apply the other end of the
adjusting wrench as shown.
