Lucent Technologies CIB 2867 User manual

CIB 2867
(502A) Headset Adapter (3164-HFA)
CIB 2867
Comcode 103-980-009
Issue 3
CIB 2867
(502A) Headset Adapter (3164-HFA)
The Headset Adapter (Figure 1) allows a headset to be connected to
10-button and 34-button voice terminals.
Modular cord
FIGURE 1 Headset Adapter
Installing the Headset Adapter
1Place the Headset Adapter near the voice terminal to which it will be
connected.
2If your headset cord has a two-prong plug, insert it into the headset
jack on the front of the adapter (Figure 2).
iss 3, cib2867-1
FIGURE 2 Connecting a Headset With a Two-Prong Plug to the Headset Adapter
3If your headset cord has a modular plug, locate the smaller keyed
jack with the blue modular plug in it on the back of the adapter.
Remove the plug with a pair of small snub-nosed pliers by grasping
the outside edge of the blue tab with one tip of the pliers and insert-
ing the other tip into the blue modular plug’s center hole (Figure 3A).
Squeeze the plier’s handles together and pull the plug out of the jack.
Insert the headset’s modular plug into the empty jack (Figure 3B).
Smaller
Blue modular plug keyed jack
Larger
keyed jack
A
B
Removing the Blue Inserting the Headset
Modular Plug Modular Plug
FIGURE 3 Connecting a Headset With a Modular Plug to the Headset Adapter
4Plug one end of the D8AC modular cord (provided with the adapter)
into the larger keyed jack on the back of the adapter (Figure 3).
iss 3, cib2867-2
5Plug the other end of the modular cord into the jack labeled Other on
the bottom of your voice terminal (Figure 4).
Modular cord
10-button voice terminal
(bottom view) Headset adapter
Headset with a
2-prong plug
FIGURE 4 Connecting the Headset Adapter to Your Voice Terminal
Operating the Headset Adapter
Follow the instructions listed below to operate the headset connected to
your Headset Adapter:
To
place a call: Press the adapter On/Quiet button.
Dial number.
To answer a call: Press the adapter On/Quiet button.
To end a call: Press the adapter Off button.
To switch from Press the adapter On/Quiet button.
handset to headset: Hang up the handset.
To switch from
Pick up the handset.
headset to handset: Press the adapter Off button.
iss
3,
cib2867-3

This manual suits for next models

1

Other Lucent Technologies Adapter manuals

Lucent Technologies 9077 16S User manual

Lucent Technologies

Lucent Technologies 9077 16S User manual

Lucent Technologies CIB 3130 User manual

Lucent Technologies

Lucent Technologies CIB 3130 User manual

Lucent Technologies CIB 2863 User manual

Lucent Technologies

Lucent Technologies CIB 2863 User manual

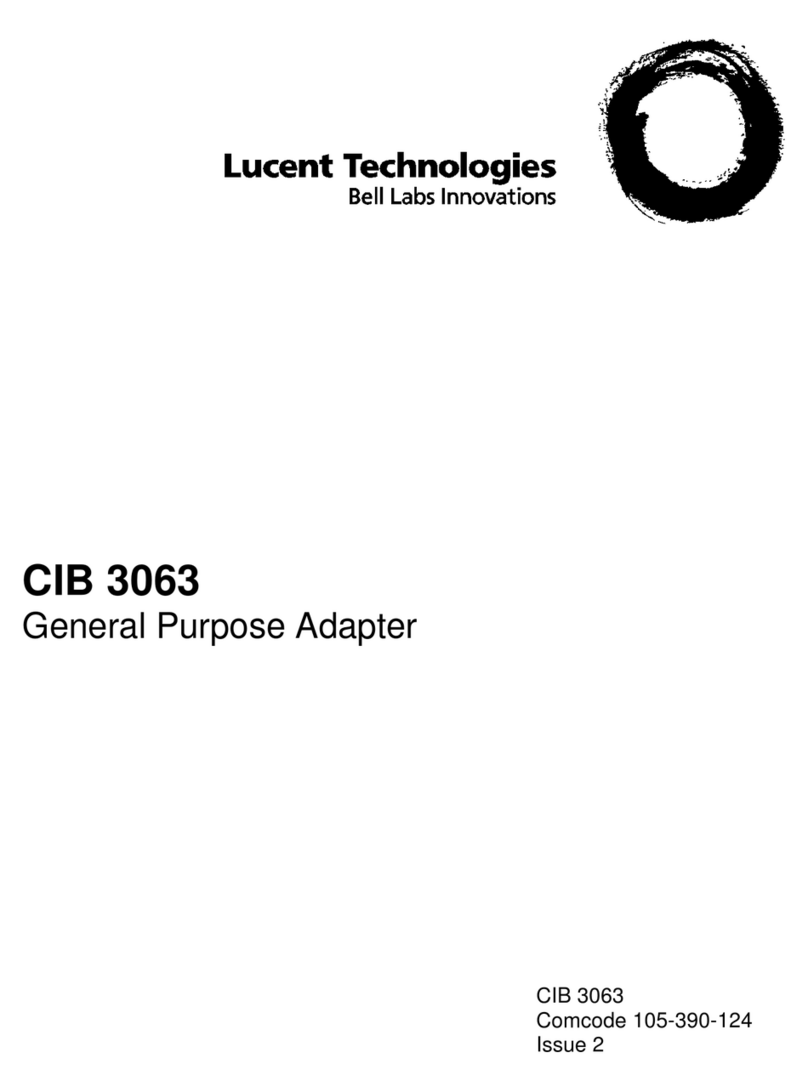

Lucent Technologies CIB 3063 User manual

Lucent Technologies

Lucent Technologies CIB 3063 User manual

Popular Adapter manuals by other brands

Belkin F5D6051 user manual

Belkin

Belkin F5D6051 user manual

Draytek VigorTalk ATA-24 SH installation guide

Draytek

Draytek VigorTalk ATA-24 SH installation guide

Yealink UVC50 quick start guide

Yealink

Yealink UVC50 quick start guide

Lenovo QLogic 8Gb FC Single-port Product guide

Lenovo

Lenovo QLogic 8Gb FC Single-port Product guide

NETGEAR XAV5601 user manual

NETGEAR

NETGEAR XAV5601 user manual

AED SLA-1C-GMSL instruction manual

AED

AED SLA-1C-GMSL instruction manual

Rockwell Automation Allen-Bradley PowerFlex 20-COMM-L user manual

Rockwell Automation

Rockwell Automation Allen-Bradley PowerFlex 20-COMM-L user manual

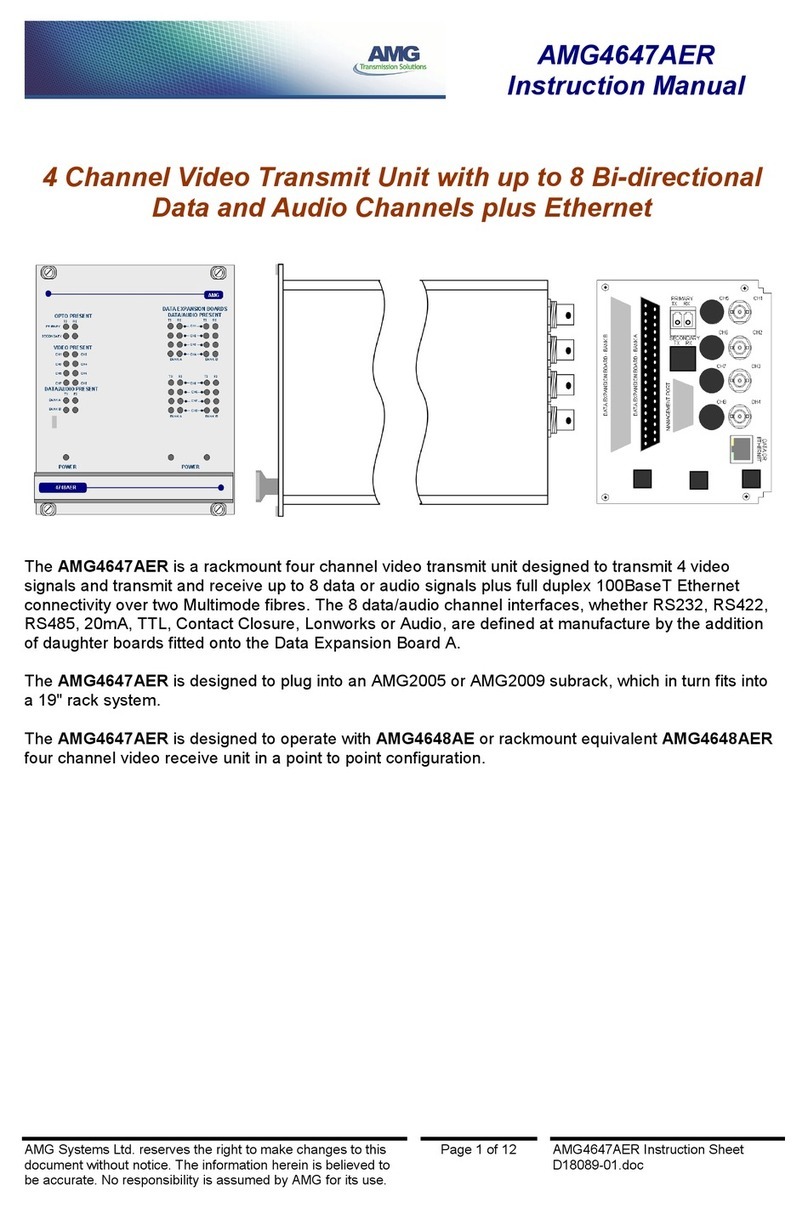

AMG AMG4647AER instruction manual

AMG

AMG AMG4647AER instruction manual

Hanlong Unicorn 3001 Quick installation guide

Hanlong

Hanlong Unicorn 3001 Quick installation guide

Honeywell Home C-Wire Adapter installation guide

Honeywell

Honeywell Home C-Wire Adapter installation guide

Hi-flying Elfin-EE1 Series Operation guide

Hi-flying

Hi-flying Elfin-EE1 Series Operation guide

StarTech.com USB2VGAE2 instruction manual

StarTech.com

StarTech.com USB2VGAE2 instruction manual

Grandstream Networks Handytone 502 Quick installation guide

Grandstream Networks

Grandstream Networks Handytone 502 Quick installation guide

SIIG CE-H23R11-S1 quick start guide

SIIG

SIIG CE-H23R11-S1 quick start guide

SMC Networks EZ Connect SMC2664W user guide

SMC Networks

SMC Networks EZ Connect SMC2664W user guide

Edimax EW-7833UAC Quick installation guide

Edimax

Edimax EW-7833UAC Quick installation guide

Vivo MOUNT-HP23XW instruction manual

Vivo

Vivo MOUNT-HP23XW instruction manual

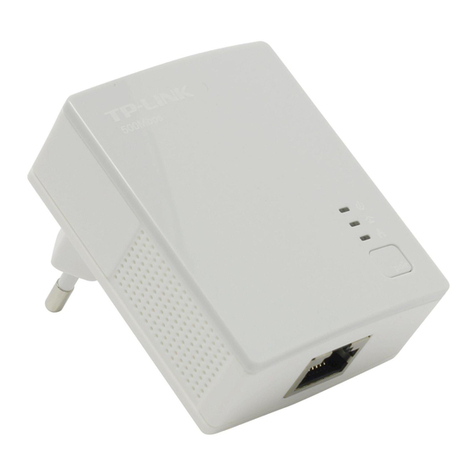

TP-Link TL-PA2010 user guide
