Lumel KS3.2 User manual

1
DIGITAL
SYNCHRONIZING
UNIT
KS3.2
SERVICE MANUAL
CERTIFIED
144 x 144 x 77 mm
www.materm.si
tel: [phone]

2
CONTENTS
1. APPLICATION ........................................................................................ 3
2. DELIVERY SPECIFICATION ................................................................. 3
3. BASIC SAFETY REQUIREMENTS AND USER´S SAFETY ................. 4
4. INSTALLATION ...................................................................................... 5
4.1. Fixing way ........................................................................................ 5
4.2. Scheme of external connections ..................................................... 6
5. SERVICE OF THE KS3-2 UNIT ............................................................. 7
5.1. Frontal plate ..................................................................................... 7
5.2. Working modes of the KS3-2 synchronizing unit ............................. 8
5.2.1. Measuring functions of the KS3-2 ............................................. 8
5.3. Configuration .................................................................................... 9
5.3.1. Alarm configuration .................................................................... 10
5.3.2. Interface configuration ................................................................ 12
6. RS-485 INTERFACE .............................................................................. 13
6.1. Description ....................................................................................... 13
6.2. Register map .................................................................................... 14
7. TECHNICAL DATA ................................................................................ 16
8. EXECUTION CODES AND ORDERING PROCEDURE ........................ 19
9. MAINTENANCE AND WARRANTY ...................................................... 20

3
1. APPLICATION
The KS3-2 digital synchronizing unit is destined to synchronize generators during their
coupling in parallel to the network or other generators working at the rated 50 or 60 Hz
frequency. The full synchronization is obtained at the moment when follows the equalization of
the voltage, frequency and phase angle. The phase angle difference of signals from the gene-
rator and the network is indicated by the synchroscope which has the shape of a circle of
diodes.The voltage difference between the generator and the network in the -20%...0...+20%
interval is indicated by the upper horizontal line ∆V, which the zero in the middle.
The lower horizontal diode line with the zero in the middle, designated ∆f, indicates the
frequency difference of signals from generator and the network in the -10%...0...+10%
(45...55 Hz) interval. The green diodes on horizontal bargraphs and diodes inside the circle
are lighting on the unit frontal plate at the moment when the synchronization is reached.
The unit includes two relay outputs. One of the relay signal indicates the moment when we
reach the synchronization. The second relay signals the measuring range exceeding of the
chosen quantity.
2. DELIVERY SPECIFICATION
The KS3-2 synchronizing unit set includes:
- KS3-2 synchronizing unit ......................................... 1pc
- screw holders fixing the unit on a panel ................. 4pcs
- service manual ........................................................ 1pc
- warranty card ........................................................... 1pc

4
3. BASIC REQUIREMENTS AND USERS SAFETY
KS3-2 synchronizing units are intended to be installed in panels, switchboards and cubicles
They are in conformity with IEC 1010-1+A1 (1996) safety requirements.
Remarks concerning safety:
The unit installation should be carried out by a qualified staff.
One must consider all accessible aspects of the protection.
The instrument lefs the factory in perfect condition regarding technical safety. In order to main-
tain this condition and to ensure safe operation, the user must comply with indications and
markings contained in the following instructions:
Before mounting, ensure that the operating voltage and mains voltage set are the same,
and then proceed with installation.
The power supply must be connected as shown in the relevant diagram.
Before the switching on, check the correctness of meter connections
Before any maintenance and/or repairs, whenever the instrument must be opened, it must be
disconnected from all power sources.
Maintenance and/or repairs must be carried out only by qualified authorized personnel.
If there is ever the suspicion that safe use is no longer possible, the instrument must be taken
out of service and precautions taken against accidental use.
Operation is no longer safe when:
- there is clearly visible damage,
- the instrument no longer functions,
- after lengthy storage in unfavorable conditions,
- after serious damage incurred during transport.
Operator safety
The instrument described in this service manual is intended for use by properly trained staff
only.
Maintenance and/or repairs must be carried out only by authorized personnel.
For proper, safe use of the instrument and for maintenance and/or repairs, it is essential that
the persons instructed to carry out these procedures follow normal safety precautions.

5
4. INSTALLATION
4.1. Fixing way
One should cut-out a hole of 138+0.5 x 138+0.5 mm dimensions in the panel and fix the synchro-
nizing unit by means of four screw holders. The unit housing, which overall dimensions are
144 x 144 x 77 mm, is made of self-extinguishing plastics. The screw terminal strips enable the
connection of external conductors which maximal cross-section is 2.5 mm2.
Precautions in case of breakdowns
If it is suspected that the instrument is no longer safe, for example due to damage incurred
during transport or use, it must be taken out of service and precautions taken to prevent any
accidental use.
Contact authorized technicians for checks and any repairs.
Fig. 1. Overall dimensions and fixing way of the KS3-2 unit

6
4.2. Scheme of external connections

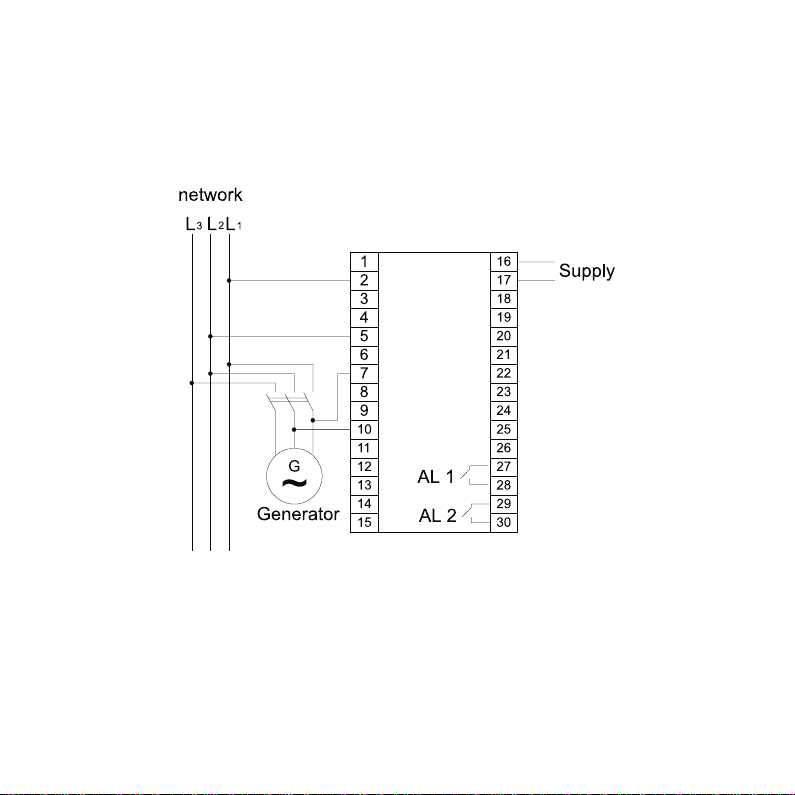

Fig. 2. Connection scheme
CAUTION: before connection check the phase sequence

7
Fig. 3. View of the KS3-2 unit frontal plate
5. SERVICE OF THE KS3-2 UNIT
5.1. Frontal plate

8
5.2. Working modes of the KS3-2 synchronizing unit.
After its switching on, the unit makes an autotest and lights all diodes. This sequence occurs
after each start of the unit. The measuring mode begins after carrying out tests.
5.2.1. Measurement functions of KS3-2.
Working mode calling Entry Exit
Designation
1. Measuring mode Through the entry into
another mode
2. Parameter configuration In the configuration or
mode procedure after the last parameter
3. Interface configuration In the configuration or
mode procedure after the last parameter
Table 1
The KS3-2 synchronizing unit ensures the measurement of: difference of RMS voltage and
frequency in measuring circuits of the network (Unetwork1, fnetwork1) and the generator (Ugen, fgen)
∆ U= ∆ f= and the phase angle (ϕ).
A lighting point on each bargraphs informs about the value of the given parameter. The syn-
chroscope enables the identification of the phase rotation direction, at ∆ f < 5% of the network
frequency. The lighting point of the synchroscope rotates in the clockwise direction when the
100
1
12 ⋅
−
L
LLUUU 100
1
12 ⋅
−
L
LL fff

9
frequency of the switched on generator is higher than the network frequency. At the generator
frequency smaller than the network frequency, the lighting point rotates in the anti-clockwise
direction. When one of the two quantities (∆ f, ∆ V) exceeds the measuring range, the Alarm2
(OUT) is being activated.
The signalling of each alarm can be confirmed by switching on the attributed relay. Functions
of ∆ f and ∆ V value interval atributions for the synchronization alarm switching on and the
activation of relay outputs are settled in the configuration alarm mode.
In the execution with an interface, the unit additionally ensures the measurement of the volta-
ge RMS value and the frequency in the network (Unetwork, fnetwork) and generator (Ugen, fgen)
measuring circuits. The KS3-2 synchronizing unit also enables the measurement of minimal
and maximal voltages and frequencies.
Voltages are multiplied by the set voltage ratio of measuring transformers.
5.3. Configuration
To enter into the configuration mode one should press two keys: and during
ca 3 seconds, till the switching of the sound signal off.
One choose the parameter by means of keys. The active parameter is
signalled by flashing.
Modifications are introduced by the key while increasing the interval and the
key while decreasing the interval.

10
The displayed interval is defined by two pairs of symmetrical diodes regarding the middle of
the line. Manufacturer′s values are: for ∆U=1% Unetwork and for ϕ = ±2° (el.)
5.3.1. Alarm configuration
Interval ∆∆
∆∆
∆V parameter
Position 1 2 3 4567
Displayed <-2,2> <-4,4> <-6,6> <-8,8> <-10,10> <-12,12> <-14,14>
value
Interval for
the synchro- ±0.2 ±0.4 ±0.6 ±0.8 ±1.0 ±2.0 ±3.0
nization
Table 2

11
Interval ϕϕ
ϕϕ
ϕ parameter
The range changes through the displacement of two lighted diodes on the synchroscope circle
symmetrically regarding the 0° point. While moving from this point away, one causes the
transition to the succeeding range.
Range 1 2 3 4 5 6 7 8 9 10
Interval 359...1 358...2 357...3 356...4 355...5 354...6 353...7 352...8 351...9 350...10
for the
synchro-
nization
The configuration for the alarm output is carried out by keys, by choosing
the screen of the appropriate alarm. The relay operation is activated by the key and
released by the key. The lighting of diodes in the alarm screen corresponds suitably
to this. When the relay is not assigned, the alarm is only signalled by lighting. This concerns
both the alarm synchronization and the measuring range exceeding. Marking the green dio-
des on the synchroscope circle, we set on the bargraph the automatic synchronization swit-
ching on after a supply voltage decay. The parameter switching off causes a lack of reaction to
the synchronization moment. In order to activate the process one must enter into the configu-
ration procedure and next, without changing the setting, come back into the measuring mode.
Parameter name Range Remarks / Description Manufacturer′′
′′
′s
value
Synchronization alarm, 0.2...1 [%] m.v. 1...10 (for the interface) 1
modification range of (step 0.2 [%] m.v.)
voltage difference 1...3 [%] m.v. 11...13 (for the interface)
(step 1 [%] m.v.)
Synchronization alarm, 1...10 [°]2
angle modification
range
m.v. = measured value
Table 3
Table 4

12
Fig. 5. Working modes of the KS3-2 unit.
5.3.2. Interface configuration
After pressing in the alarm mode we are configuring the RS-485 interface. The
interface has got a constant 9600 kBit/s baud rate. The device′s address (1...10) is modified
on the ∆V bargraph. To differentiate in the interface mode, the green diodes are constantly
lighted on the bargraphs and we read out the value from the graduation.

13
Device number: 1....10
Baud rate: 9600 kBit/sec
Working mode: 1...6 (8N1, 7E1, 7O1, 8N2, 8E1, 8O1)
where: N - no parity
E - even parity
O - odd parity
Fig. 6. Connection way of the KS3-2 interface.
6. RS-485 INTERFACE
6.1. Description
32 devices can work on one bus in the RS-485 standard. Interface sockets ( 2 x DB9) are
situated at rear of the housing. One must use a screened strand to make the connection.
The screening is necessary and the length of the installation can not exceed 1200 m.
The hardware configuration defines the device number, the baud rate and parameters of the
communication port.
An asynchronous character communication protocol MODBUS is used in the device.
This protocol is a standard taken by producers of industrial controllers for the asynchronous,
character exchange of information between devices of measuring and control systems.

14
It possesses such features as:
- simple access rule to the bus, based on the master-slave principle,
- safeguard of transmitted messages against errors,
- confirmation of remote command execution and signalling of errors,
- efficient mechanisms to secure against the system suspension,
- to take advantage of asynchronous character transmission.
The information unit is the frame in ASCII or RTU code.
6.2. Register map
Data are located in 16-bit or 32-bit registers in the KS3 - synchronizing unit.
Process variables and meter parameters are located in the register address space in the way
depended on the variable value type. Bits in the 16-bit register are numbered from the youn-
gest to the oldest (b0 - b15). 32-bit registers include numbers of float type in the IEEE-745
standard.
The register map has been divided into following areas:
Address range Value type Description
4000 - 4006 Integer The value is located in one 16-bit
(16 bits) register. The table 5 includes
the register description.
Registers can be read out and written.
7500 - 7518 Float The value is located in one 32-bit
(32 bits) register. The table 6 includes the
register description.
Registers can only be read out.
Contents of 16-bit registers with addressses from 4000 to 4007.

15
Table 6
Register address Symbol Unit Description address
7500 U1V Network voltage
7501 U2V Generator voltage
7502 f1Hz Network working frequency
7503 f2Hz Generator working frequency
7504 ∆U % Voltage difference
7505 ∆f % Frequency difference
7506 ∆ϕ ° (el) Phase angle
7507, 7508 minU1, maxU1 V Min. and max. value of the network voltage
7509, 7510 minU2, maxU2V Min. and max. value of the generator voltage
7511, 7512 minf1, max f2Hz Min. and max. value of the network frequency
7513, 7514 minf2, maxf2Hz Min. and max. value of the generator frequency
7515, 7516 min∆U, max∆U % Min. and max. value of the voltage difference
7517, 7518 min∆f, max∆f % Min. and max. value of the frequency difference
Table 5
Register address Unit, address Description address
4000 1...4000 Voltage transformer ratio
4001 0...9999 Access code
4002 0.1 Synchronization relay switching on 0 - OFF, 1 - ON
4003 0.1 Range exceeding relay switching on 0 - OFF, 1 - ON
4004 0...13 Settlement of the ∆V interval acc. table 4
4005 0...10 Settlement of the ϕ interval acc. table 4
4006 0...10 Delay of synchronization alarm switching on
4007 0.1 Automatic activation A1_0

16
7. TECHNICAL DATA
• Measuring ranges and admissible basic errors Table 7
Measured Range Basic error Notes Resolution
quantity
Voltage Ui* 100.0 V (Ku = 1) ±(0.2% m.v. +0.1% of range Ku=1...4000 -
110.0 V (Ku = 1) (max 400 kV)
230.0 V (Ku = 1)
400.0 V (Ku = 1)
Frequency f* 15.0...500.0 Hz ± 0.5% m.v. +2d -
Voltage
difference -20...0...20% ± 0.5% of range +1 diode 0.6% Unetwork
Frequency
difference -10...0...10% ± 0.2% of range +1 diode 0.3% fnetwork
Phase angle 0...360°± 1° 5°, 2°, ϕ < 3°
* quantities accessible through the interface
where: Ku = voltage transformer ratio, m.v. = measured values, d = digit
••
••
• Additional errors
in % of the basic error:
- from the fraquency of input signal < 50%
- from ambient temperature changes < 50%/10 °C
•Measuring inputs
- phase-to-phase input voltage Un = 100, 110, 230, 400 V
frequency = 15...45...65...500 Hz
sinusoidal signal (TDH ≤8%)
- momentary overload capacity (5 sec) 2Un (max. 1000 V)
- admissible voltage peak factor 2

17
••
••
• Supply
- supply voltage 18...30 V d.c. a.c., 40...400 Hz
85...250V d.c. a.c., 40...400 Hz
••
••
• Power consumption
- supply voltage ≤ 12 VA
- voltage circuit ≤ 0.5 VA
••
••
• Reaction to decays and supply recoveries
Data and state preservation of the
synchronization unit in case of any
decay (battery support).
Continuation of unit operation after
the supply recovery.
••
••
• Safety requirements acc. IEC 1010-1+A1 (1996)
- insulation ensured by the housing double
- insulation between circuits basic
- installation category III
- pollution degree 2
••
••
• Relay outputs
- relays voltage less make contacts
- load capacity 250 V~ / 0.5 A~
- life time depending on cosϕin the AC1 category:
1.5 x 105, cosϕ = 1
105, cosϕ = 0.4, 250 V a.c.
••
••
• Regarding field
- synchroscope circle with 72 diodes
- differential voltmeter bargraphs with 68 diodes and
the zero in the middle
- differential frequency meter bargraphs with 68 diodes and the
zero in the middle
••
••
• Interface RS-485
- baud rate 9600
- protocol MODBUS, ASCII, 8N1, ASCII 7E1
ASCII 701, RTU 8N2, RTU 8E1,
RTU 801

18
- max. working voltage in relation to the earth 600 V a.c.
••
••
• Housing protection degree
- from the frontal side IP40
- from the rear side IP10
••
••
• Electromagnetic compatibility:
- immunity EN - 5082-2 (1996)
- emission EN - 50081-2 (1996)
••
••
• Rated operational conditions
- input signal 0...0.01...1.2Un, for voltage
frequency 15...45...65...500 Hz
sinusoidal (THD ≤ 8%)
- ambient temperature 0...23...55°
- air relative humidity 25...95% (condensation inadmissible)
- external magnetic field 0...40...400 A/m
Housing
- frontal dimensions 144 x 144 mm
- panel cut-out 138+0.5 x 138+0.5 mm
- depth 77 mm
- weight 800 g (with packing)
- working position any

19
8. EXECUTION CODES AND ORDERING PROCEDURE
* The execution code will be settled by the manufacturer
ORDERING EXAMPLE
Code: KS3-2-04-1-0-00-1 means: a KS3 synchronizing unit, with bargraphs, input voltage:
400V, with an RS-485 interface, supply voltage 85...250 V d.c. a.c., standard execution, with
a quality inspection certificate.
Synchronizing unit - KS3 X XX X X XX X
Kind of display:
- digital displays 1
- bargraphs (diode lines) 2
Input voltage:
- 100 V 01
- 110 V 02
- 240 V 03
- 400 V 04
- on request, acc. order* XX
Digital output:
- without interface 0
- with an RS-485 interface 1
Supply voltage:
- 85...250 V d.c. a.c. 0
- 24 V d.c. a.c. 1
- on request, according order* X
Execution:
- standard execution 00
- custom-made execution* XX
Acceptance tests:
- without additional requirements 0
- with a quality inspection certificate 1
- other requirements* X
Table 8

20
KS3-2 synchronizing unit does not required any periodical maintenance. In case of some
incorrect unit operation:
1. In the period of 12 months from the date of purchase:
One should take the meter down from the installation and return to the LUMELs Quality
Control Dept. If the unit has been used in compliance with the instructions, LUMEL S.A.
warrants to repair it free of charge.
2. After the warranty period:
One should turn over the unit to repair in a certified service workshop.
The disassembling of the unit housing causes the cancellation of the granted warranty.
Spart parts are available for the period of 10 years from the date of purchase.
LUMEL S.A. reserves the right to make changes in design and specifications
of any products as engineering advances or necessity requires.
9. MAINTENANCE AND WARRANTY
