Lumo LU6Z-28WI19 User manual

Installation
LU6Z-28WI19
Operation Voltage
4.5V DC
Operation Frequency
434MHz/869.5MHz/916.5Mhz
Dimension(mm)
48 x 140 x 16
Remarks
RF Signal
Product Specification
Receiver Wiring Diagram
RGB RF/WIFI LED CONTROLLER
Description
The RGB WiFi LED controller is a remote controller designed with ultra sensitive glass touch color wheel to adjust color
tone fast and accurately and independent dimming function of each R, G, B, W channel. Each controller can control up
to 6 zones separately or synchronously with endless receivers in each zone. There are 10 built-in changing patterns with
pause function when played. Scene saving function is available when you do not like the built-in ones, and 6 scenes can
be saved for each zone. Independent brightness adjustment of each R, G, B, W channel enables the RGB WiFi LED
controller to achieve millions of colors. While receivers are working with WiFi-RF converter, they can be controlled by
WiFi via installing APP on IOS and Android systems.
Features
User-friendly interface, easy and simple operation
Operation return function
Control up to 6 zones, each zone can be set endless receivers, each receiver maximally be controlled by
8 different remotes
Set 6 scenes for each zone
Operation return function on this Remote WiFi LED dimmer
Preset 10 changing modes, with pause function
Synchronization function of pattern changes ensure consistent change forever
Receivers can work with RF-WIFI converter after installing software on IOS and Android system
Enable to dim brightness of each R, G, B, W channel, in order to mix millions colors
www.lumo.ae
LU6Z-28WI19
-
-
-
-
-
-
-
-
-
48
140
17
Dimension

www.lumo.ae

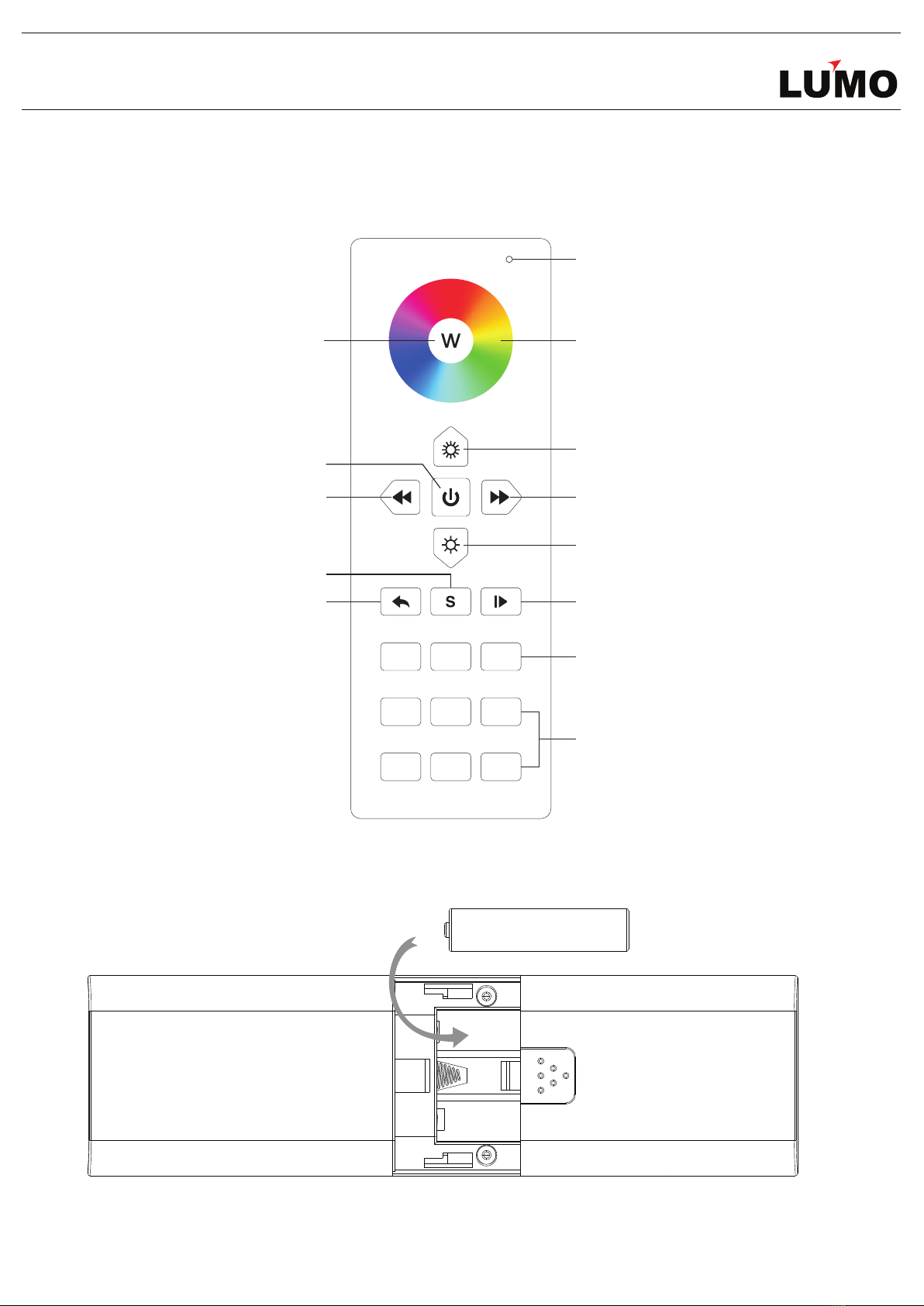

Function introduction
Important: Read All Instructions Prior to Installation
Front side
Bottom side
Indicator: indicate the
state of remote control
White channel: the 4th channel
Click to turn on/off, Press and hold down
to increase/decrease light intensity of the
channel
Press and hold down to increase/
decrease light intensity
Press and hold down to increase light
intensity of RGB channels
Press and hold down to speed up under
dynamic mode
Press and hold down to speed down
under dynamic mode
Press and hold down to decrease light
intensity of RGB channels
Click to turn ON/OFF all zones
R/G/B channels, Click to turn off/on the
channel, Press and hold down to increase/
decrease light intensity of R/G/B channel
Zone numbers:Click to choose the zone/
zones, Press and hold down to turn on/off
corresponding zone
3xAAA battery
56
23 1
R G B
4
Play/Pause button, click to play/pause
10 built-in modes
Click to return to previous status
Press and hold down to save colors/
scenes; Click to recall the saved
colors/ scenes
LU6Z-28WI19

www.lumo.ae
LU6Z-28WI19
Output RF signal
Operation Frequency 869.5/916.5/434MHz
Operating temperature 0-40°C
Relative humidity 8% to 80%
Dimensions 140x48x17mm
• Control 6 zones of RF receivers separately.
• RGBW color controller
• High sensitive & high stable fast & precise color control.
• Compatible with all universal series RF receivers
• 1 receiver can be paired by max 8 different remote controls.
• Waterproof grade: IP20
Product Data
Safety & Warnings
Power Supply 4.5V(3xAAA battery)
• This device contains AAA batteries that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
Pair with RF receiver(Method 1)
Step 4:Choose and click a zone number(e.g. zone 6)
Step 3:Click the “Learning Key” button on RF receiver or re-power on the receiver
three times continuously to set it into pairing status
Learning Key
RF LED Receiver
Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the
instruction of RF receiver that you would like to pair with.
Step 5:Touch the color wheel, LED lights connected with the RF receiver flicker
once means the receiver is paired with zone 6 successfully.
56
23 1
R G B
4
Step 2:Click ON/OFF button to activate the remote
Pair with RF receiver(Method 2)
Step 4:Choose and click a zone number(e.g. zone 3) twice, then press and hold it
continuously and quickly within 10 seconds, LED lights connected with the RF receiver
flicker once means the receiver is paired with zone 3 successfully.
Step 3:Power off and power on the receiver
Learning Key
RF LED Receiver
Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the
instruction of RF receiver that you would like to pair with.
56
23 1
R G B
4
Step 2:Click ON/OFF button to activate the remote

www.lumo.ae
LU6Z-28WI19
Save color/scene/mode
Step 2:Choose and click one or multiple paired zone numbers(e.g. zone 3)
56
23 1
R G B
4
Step 1:Click ON/OFF button to activate the remote
Step 3:Touch the color wheel or click the other buttons to select the scene
you like
Step 4:Press and hold down button S until the LED indicator of remote flash once
Step 5:Immediately click any number of 1-6(e.g. 6)(here the numbers mean
6 scenes can be saved for the selected zone) , LED lights connected with the RF
receiver flicker once means the color/scene was saved successfully.
Recall the saved colors/scenes
Step 2:Choose and click one or multiple paired zone numbers(e.g. zone 3)
56
23 1
R G B
4
Step 1:Click ON/OFF button to activate the remote
Step 3:Click button S
Step 4:Click any numbers 1-6(e.g. 6)(here the numbers means the 6 scenes
saved for selected zone) to recall the saved scene
If you use multiple receivers, you have two choices:
Option 1: have all the receivers in the same zone, like zone 1
Lea rni ng Ke y
RF LED R ec ei ve r
Zone 1
Option 2: have each receiver in a different zone, like zone 1, 2, 3 or 4
Zone 1 Zone 2 Zone 3
RF remote
RF remote
Lea rni ng Ke y
RF LED Rec ei ve r
Lea rni ng Ke y
RF LED R ec ei ve r
Lea rni ng Ke y
RF LED Rec ei ve r
Lea rni ng Ke y
RF LED R ec ei ve r

www.lumo.ae
LU6Z-28WI19
Built-in 10 color changing modes are as follows:
Mode 1: Any two colors of RGB mix fade-in & fade-out
Mode 2: RGB three colors mix fade-in & fade-out
Mode 3: RGB three colors mix fade-out & fade-in
Mode 4: RGB flash
Mode 5: RGB three colors fade-in & fade-out successively
Mode 6: RGB three colors fade-in successively
Mode 7: RGB three colors fade-out successively
Mode 8: RGB three colors jump changing successively
Mode 9: R&B two colors mix fade (R in B out), then G fade-in, then R&B mix fade (R out B in), then G fade-out
Mode 10: B fade-out, then G&B mix fade (G out B in), then R&G mix fade (R out G in), then R fade-in
How to stop running mode of single color LED light caused by RGBW sender interference:
1. When pairing single color LED light to a single color remote, it might be interfered and paired by nearby
RGBW senders, which might control the single color light into running mode. The running mode can not be
stopped by the paired single color remote or by delete pairing.
2. Then we need this remote, and pair the remote to the receiver via above “Pair with RF receiver(Method 2)”,
then touch the color wheel to stop the running mode.
3. Then delete pairing and pair the receiver to the single color remote again, it can be controlled by the remote
again.
