lumz LUCCI BL-16A-J-W9-30 Series User manual

110
80
100
800
80
8
100
10
64
SCREW
ANCHOR
BOLT
BASE
PLATE
NUT
WASHER
!
1
3
2
CONNECTOR
SCREW
we brighten up your life
LUMZ PTE LTD

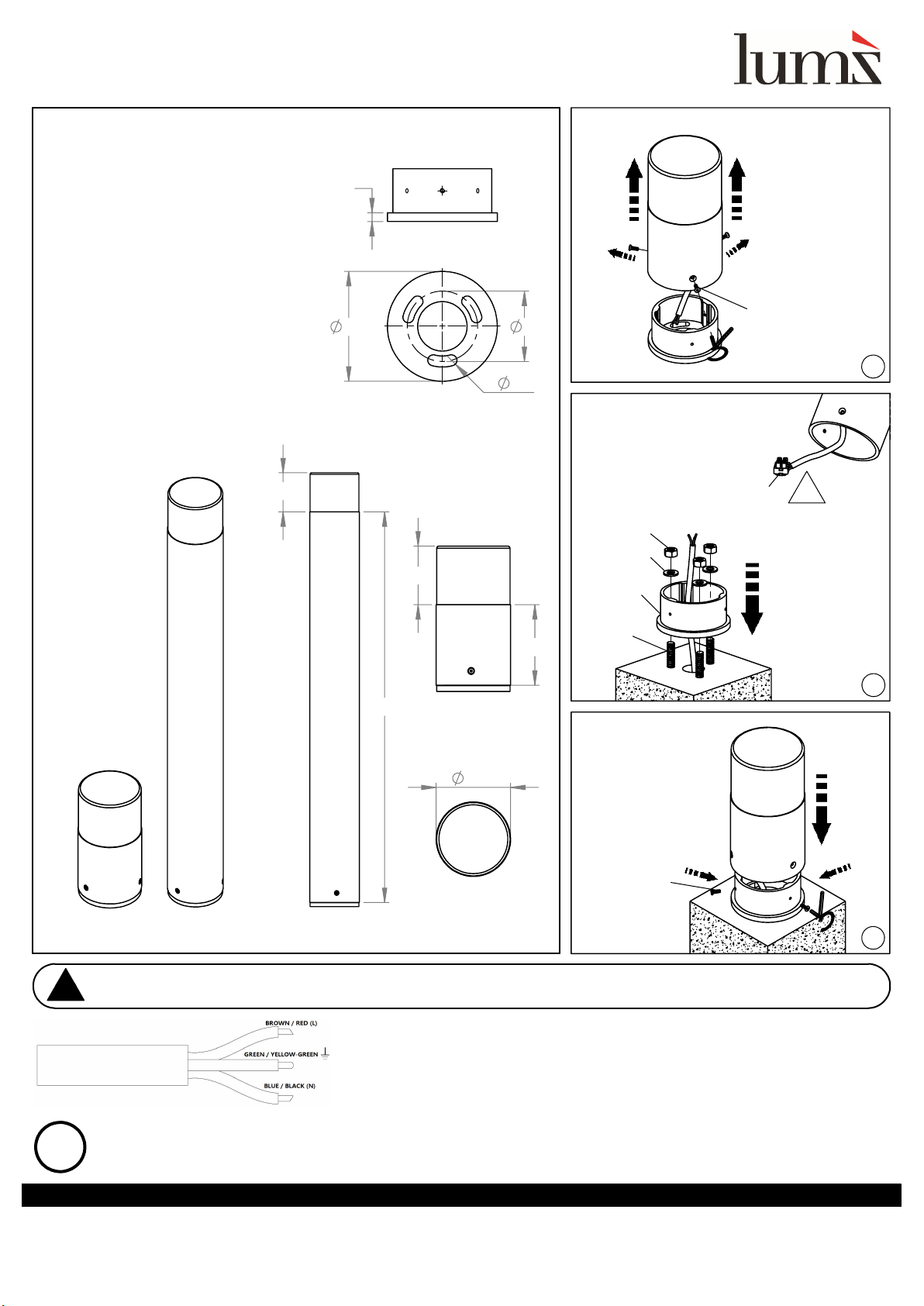

INSTALLATION MANUAL
LUCCI BOLLARD
Factory:
No.14, Jalan Anggerik Mokara 31/44, Kota Kemuning Seksyen 31,
40460 Shah Alam, Selangor, Malaysia.
Tel: [phone]
Fax: [phone]
Email: [email protected]
o
o
o
o
o
o
o
Housing made of aluminium
Impact resistance tempered glass lens
Mounting holder with 3 fixing holes
Operating temperature: -20°C~+40°C.
LED lifetime up to 50,000 hours
Voltage range: 100 - 240 VAC ~ 50 /60 Hz
Wattage: 9 W
PRODUCT DESCRIPTION & DIMENSION
IP 65 IK 08 CLASS I WITH INTERGRAL DRIVER
WARNING
!
MAKE SURE POWER IS DISCONNECTED UNTIL INSTALLATION OF PRODUCT IS COMPLETELY FINISHED.
FAILURE TO DO SO COULD RESULT IN ELECTRICAL SHOCK CAUSING SERIOUS INJURY OR DEATH.
BL-16A-J-W9-30-xx
BL-16A-J-W9-40-xx
DESCRIPTION
MODEL:
Connect wires from the luminaire to AC power as follows:
1. Connect BLUE / BLACK wire to the NEUTRAL wire.
2. Connect GREEN / YELLOW-GREEN wire to the GROUND or EARTH wire.
3. Connect BROWN / RED wire to the LIVE wire.
INSTALLATION
!
WIRING INSTALLATION
Note: 2m length cable input provided
Singapore Office (HQ Sales & Marketing):
1 Coleman Street #10-06, The Adelphi,
179803, Singapore.
Tel: [phone]
[email protected]
www.lumzlighting.com
LUCCI BOLLARD/INSTALLATION MANUAL/REV.0
1/2
Connect all wires from the luminaire to AC power using a connector.
Make sure all wiring connections are tight so that no bare wires are visible.
Good connections may avoid tripping from happening.
BL-17A-J-W9-30-xx
BL-17A-J-W9-40-xx
BASE PLATE DIMENSION
Fix luminaire back
to base plate with
screws.
Make sure all
screws fix tightly.
# Recommended
Anchor Bolts:
NOT ≥ Ø8mm
Remove all three
screws from
luminaire to
separate base
plate for
installation.
Connect wires with connector.
# Make sure power is
disconnected before
installation

ANCHOR
BOLT
BASE
PLATE
NUT
WASHER
SCREW
POLE
BASE PLATE
POLE
LUMINAIRE
SCREW
POLE
BASE PLATE
CONNECTOR
5
!
POLE
LUMINAIRE
2
3
41
we brighten up your life
LUMZ PTE LTD
INSTALLATION MANUAL
LUCCI BOLLARD
Factory:
No.14, Jalan Anggerik Mokara 31/44, Kota Kemuning Seksyen 31,
40460 Shah Alam, Selangor, Malaysia.
Tel: [phone]
Fax: [phone]
Email: [email protected]
INSTALLATION
Singapore Office (HQ Sales & Marketing):
1 Coleman Street #10-06, The Adelphi,
179803, Singapore.
Tel: [phone]
[email protected]
www.lumzlighting.com
LUCCI BOLLARD/INSTALLATION MANUAL/REV.0
2/2
Fix luminaire back
to pole by rotate it.
Make sure it is fix
tightly.
# Recommended Anchor Bolts:
NOT ≥ Ø8mm
Remove all three
screws from pole
to separate base
plate for
installation.
# Make sure power is disconnected before installation
Connect wires with connector.
Remove luminaire
by rotate to
separate pole for
wiring installation.
Fix pole back to
base plate with
screws provided.
Make sure all
screws fix tightly.
