INTRODUCTION
Congratulations, you have purchased a Luoov . You are now the owner of a portable and eco-friendly mode of
transport that brings incredible fun. Integrated with state of the art motor technology, Luoov brings to
the streets an experience and convenience that was never available before.
Setting aside dated conventions, Luoov focuses on what is essential to the design of a truly sustainable
transport unit that functions in today’s urban areas. Combining high performance with low consumption, the
luoov Cruiser allows you to travel up to 30 Km /18 Mile on one full charge. Its lightweight design and
compact dimensions make the Falcon the perfect commuting tool to wherever you go. Simply pick up your
board and step into a taxi, bus, train, or indoor places.
Skateboarding shares with surfing, snowboarding and other activities a similarity that riders experience
freedom and excitement when they move through space. Developed on a longboard cruiser, Luoov is
foremost a city transport unit and distinguishes itself with features such as its advanced braking system and
cruise control, giving the rider more control over his vehicle and ensuring the safety of other people as well.
We would like to suggest riders read through this users’ manual, to ensure that you fully understand how to
properly set-up and use your Luoov and general common senses to apply when riding in public.
The general rule to follow: Ride with caution and style, and enjoy your Luoov riding experience!

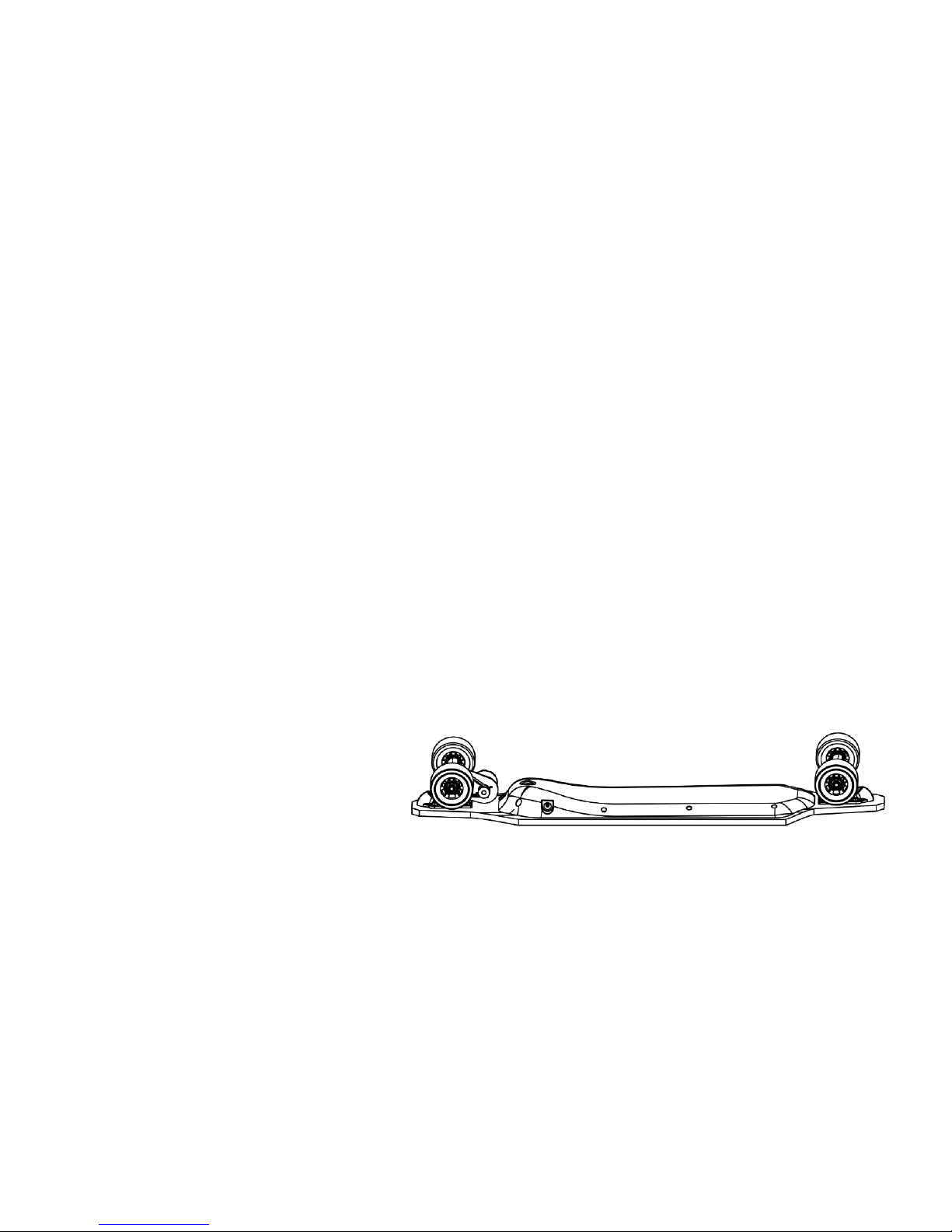

GEAR
THE DECK THE BATTERY
charge port
power switch
power status
indicator
1.
2.
3.
1
2.3
3
Luoov’s sleek, low profile multi-cell
ba ttery pack is located under the
deck.
the battery flexible, enables it to
bend with deck while riding.
The Luoov features a 7-ply
Canadian hard rock maple deck
cold pressed to concave. The
deck has the quality that a
rider looks for in a regular board,
flexible, durable, and strong.
WinPower latest technology makes
4
ECU/ cooling device
4

4
THE TRUCKS
START
2
3 4
1
kingpin nut
baseplate nut
THE MOTOR
THE WHEELS
axle nut
bearing
WINPOWER placed the brushless 1200
watt motor on your Luoov Cruiser.
The strong acceleration and
stable power output provides
reliable riding
experience.
The Luoov`s 83mm*52mm, 78A, 80%
rebound wheels provide traction and
stability on an array of surfaces,
turning the Luoov into an reliable urban
Connecting the wheels to the deck
are two magaluma gravity casting
trucks.
WINPOWER developed the trucks on 7inch
classics ones, and made improvement
(For more on the truck tool page)
transport system.
on turning performance under high
speed.

5
THE CONTROLLER
A key feature of the Luoov is definitely
its sleek, pocket-sized, wireless controller
which allows you to intuitively control its
movements by simply sliding the throttle /
brake (1) up and down.
Once the controller and the board is
powered on, they will make an auto signal
START button / headlight button
1.
throttle / brake
2.
horn button
3.
match.
1.
2.
4.
3.
4. mini USB port
5.
5. board battery indicator
6. controller battery indicator
6.
7. controller charging indicator
7.

THE CONTROLLER OPERATION
Hold button A for 3 seconds to turn on the remote controller.
Under working state, hold button A for 4 seconds to turn it off.
Once powered ON, the indicator 6 will show controller's battery reserve.
Green, yellow, red lights means 100/60/30 percentage of battery reserve.
If both the board and controller are powered ON and synchronized, you can
control the board now. Push the throttle forward to accelerate and push
backward to brake.
When going forward, press the throttle to switch into cruise control mode
at 15km/h speed. Push the throttle to cancel the cruise mode.
1.2
1.1
2.1
2.2
3.1
POWER SWITCH
Charge the controller with the USB cable. During charging, indicator 7 will
give red light. When fully charged, the red light will turn to green.
5.1
HEADLIGHT / HORN
RIDING CONTROL
CONTROLLER POWER
INDICATOR
2.3
When powered ON and rest, press the throttle to lock the controller, and
press again to unlock.
BOARD POWER
INDICATOR
Once powered ON, the indicator 5 will show board's battery reserve.
Green, yellow, red lights means 100/60/30 percentage of battery reserve.
4.1
If both the board and controller are powered ON and synchronized, press button A
to turn on the headlight and press button B to blow the horn.
CHARGING
6

7
5
1
2
4
3
hex tool
phillips tool
nut tool
kingpin nut tool
axle nut tool
1.
2.
3.
4.
5.
THE TRUCK TOOL
Regular maintenance is needed to keep the
Luoov's maximum performance.
(for more info on maintenance please check
page 14)
Make sure the cruiser is not obstructed by dirt,
and all hardwares are properly tightened.
Your Falcon comes with a tool for hardware
adjustment.
In general, make sure all parts are screwed
up properly, with the exception of the king-
pin nut that can be adjusted to your riding
style.
Tightening the kingpin will give a more stable,
rigid ride. Loosening the kingpin nut will make the
board more maneuverable and reduces the diameter
of your turning radius, allowing sharper turns.

8
charge status
indicator*
THE CHARGER
THE USB
Use the USB to connect the wireless
controller to any computer or any other USB
port for recharging purposes.
The Luoov's charger is used to fully
recharge the board and the controller's
batteries in 2 to 3 hours (depends on
power reserve and ambient temprature)
A full battery givs a maximum riding range
of 30km / 18miles (depends on weight, road
conditions, riding style, etc...).
Adapter will be in package

9CHARGE SETUP
To ensure a healthy battery life,
recharge the battery for 6 hours
straight before first use.
Charge lead
depending
on sales area
Make sure the battery is used up
before first times of charging.
This will condition the battery
and gives better long term performance.
* Only charge the battery when environ
-ment tempreture is higher than 5 Celsius
degree.
***Do not make the board work when charging.
Attention:

SYNCING CONTROLLER AND BOARD
10
Every Luoov Cruiser is connected with its controller through a unique radio frequency.
You will hear beep sounds after turning on the Luoov Cruise and its controller.
The matching is completed when the beep finished.

THE LUOOV FEATURES 2 RIDING MODES: NORMAL MODE - WITH A LIMITED SPEED OF 30 KM/H OR 18.6 MPH), AND
CRUISE CONTROL - WITH A MAXIMUM SPEED OF 20 KM/H OR 12.5 MPH.
THE LUOOV WILL TAKE YOU UP INCLINES OF UP TO 20 DEGREE, AND REAL PERFORMANCE DEPENDS ON RIDER'S
WEIGHT, RODE CONDITION, AND THE CHOSED RIDING MODE.
THE LUOOV FEATURES A REGENERATIVE BRAKING SYSTEM (RBS) THAT RECYCLES POWER USED WHEN BRAKING
TO RECHARGE THE BATTERY. BE AWARE THAT RBS PERFORMANCE VARIES WITH THE RIDER'S WEIGHT AND OTHER
CONDITIONS.
AT JUST 6 KG / 13.2 LBS, THE LUOOV IS LIGHTWEIGHT AND PORTABLE WHICH WORKS IN COMBINATION WITH AN
ARRAY OF PUBLIC TRANSPORTATION.
11
TO FULLY CHARGE THE LUOOV'S BATTERY, A 2 TO 3 HOURS' CHARGE TIME FROM A STANDARD A/C POWER SOURCE
IS NEEDED. TO FULLY CHARGE THE WIRELESS CONTROLLER A CHARGE TIME OF ABOUT 60 MINUTES FROM ANY USB
PORT IS NEEDED.
FEATURES
2
***Do not ride at low speed when uphill.

12
SPECFICATIONS
BOARD
Deck Material: Canadian Hard Rock Maple
Deck Dimensions: 915mm*215mm
Wheel Material: Polyurethane
Wheel Size: 83mm diameter / 52mm width
Battery Type: Li-ion
Battery Capacity: 8 AH
Battery Cell Quantity: 6 pcs
Battery Charging Time: 2-3 hours (depending on ambient temperature)
Motor Type: Brushless Direct Current
Motor Power: 1200W
Transmission Model: Synchronous Belt Drive
Board Weight: 13.2lbs / 6kg
PERFORMANCE
Max. User Weight: 100kg / 220bs
Max. Range: 18mi / 30km
High Speed Mode Max.: 18.6mph / 30km/h
Cruise Control Mode Max.: 12.4mph / 20km/h
CHARGER
Input: AC 100-240V / 50-60HZ / 1.2A Max.
Output: 25.2V / 2A
Charge Indicator: Red when charging /
Green when charged
CONTROLLER
Material: ABS Plastic
Dimensions: 125*41*33mm
Weight: 60g
Battery Type: Lithium
Battery Capacity: 240mAH
Battery Charging Time: 60 minutes
Wireless Connection: 2.4GHz

13
ABOUT THE SAFETY GUIDELINES
BEFORE RIDING THE LUOOV, IT IS STRONGLY ADVISED TO READ THROUGH AND FOLLOW ALL TIPS, INSTRUCTIONS AND WARNINGS
LISTED UNDERNEATH. THIS CAN REDUCE THE RISKS THAT COMES WITH USING A PERSONAL ELECTRONIC TRANSPORTER (PET) // IT
SHOULD BE CLEAR THAT READING THIS MANUAL WILL ONLY REDUCE AND NOT ELIMINATE THE RISK INHERENT TO USING A PERSON-
AL ELECTRIC TRANSPORT (PET) // IF YOU EXCEED THE ABILITY OF YOURSELF OR YOUR CRUISER BY RIDING OVER OBSTACLES OR
OTHER UNSUITABLE SURFACES, THIS MIGHT POTENTIALLY LEAD TO COLLISIONS OR FALLS THAT MAY CAUSE SERIOUS OR FATAL
INJURY, OR THE DAMAGING OF YOUR LUOOV CRUISER.
NEW RIDERS
FIRST TIME USING A LUOOV? START BY RIDING IN THE LOW SPEED MODE // INEXPERIENCED RIDERS ARE BEST TO FIRST PRACTICE
IN A SPACIOUS, NON TRAFFIC ZONE // INEXPERIENCED RIDERS SHOULD BE ASSISTED BY A MORE EXPERIENCED RIDER // DO NOT
LET NEW RIDERS OPERATE THE LUOOV OUTSIDE OF YOUR SUPERVISION UNLESS THEY HAVE READ THIS GUIDE // YOU SHOULD NOT
ALLOW ANYONE TO STEP ONTO YOUR CRUISER FOR THE FIRST TIME UNLESS YOU ARE THERE TO PROTECT HIM // ASSIST NEW RIDERS
UNTIL THEY ARE COMFORTABLE WITH THE BASIC OPERATION OF THE LUOOV CRUISER.
RIDER PROFILE
THE LUOOV IS DESIGNED FOR HUMAN RIDERS // THE LUOOV IS DESIGNED FOR RIDERS 14 YEARS AND ABOVE // THE LUOOV
IS DESIGNED FOR RIDERS UNDER 100 KG / 220 LBS // THE LUOOV IS NOT DESIGNED FOR CARGO TRANSPORTATION //
THE LUOOV IS DESIGNED FOR RIDERS IN GOOD PHYSICAL HEALTH // DO NOT RIDE THE LUOOV WHEN SICK // AS WITH ANY OTHER
PERSONAL ELECTRIC TRANSPORTATION DEVICE, YOU MUST BE MENTALLY ALERT TO SAFELY RIDE AN LUOOV // THE LUOOV IS
NOT DESIGNED FOR TANDEM USE, DO NOT TAKE ANY PASSENGERS WITH YOU ON THE FALCON // DO NOT TAKE A CHILD IN YOUR ARMS
OR IN A CHILD CARRIER WHILE RIDING // DO NOT RIDE UNDER THE INFLUENCE OF DRUGS OR ALCOHOL // DO NOT ATTEMPT TO
RIDE IF YOU CAN NOT COMPLY FULLY WITH THE INSTRUCTIONS AND WARNING IN THIS GUIDE
SAFETY WARNINGS AND TIPS

14
RIDER TIPS
WHILE RIDING KEEP YOUR BACK STRAIGHT AND USE YOUR ARMS TO MAINTAIN BALANCE // BENDING YOUR KNEES LOWERS YOUR
BODY'S CENTER OF GRAVITY WHICH INCREASES STABILITY // SHIFT YOUR BODY WEIGHT TO THE FRONT WHEN ACCELERATING //
SHIFT YOUR BODY WEIGHT TO THE BACK WHEN BRAKING // TO TURN / CARVE, DISPLACE YOUR BODY WEIGHT AND EXERT PRESSURE
ON THE HEEL AND TOE SIDES OF THE BOARD // YOUR TURNING RADIUS DEPENDS ON THE AMOUNT OF PRESSURE YOU EXERT ON
THE SIDE OF THE BOARD: MORE PRESSURE MEANS SHARPER TURNING // CARVING WILL SLOW DOWN YOUR SPEED AND MAKES FOR
AN ENERGY EFFICIENT WAY OF BRAKING // BE MINDFUL WHEN TURNING / CARVING AT HIGH SPEED // YOU CAN ADJUST MANEU-
VERABILITY BY TIGHTENING OR LOOSENING THE KINGPIN NUTS // ADJUST YOUR RIDING STYLE WHEN RIDING AT NIGHT OR IN
CONDITIONS WITH LOW VISIBILITY // ADAPT YOUR SPEED TO YOUR RIDING SKILL AND ENVIRONMENT // DO NOT RIDE WHEN
INTOXICATED // BEWARE THAT WET, FROZEN, OILY OR UNPAVED SURFACES ARE UNSUITED FOR RIDING ON // BEWARE THAT
BRAKING DISTANCES VARY ACCORDING TO SURFACE TEXTURE, HUMIDITY, TEMPERATURE, ETC... // AVOID RIDING OVER GUTTERS,
THIS MIGHT DAMAGE THE BOARD // DO NOT EXPOSE FALCON TO WATER: DO NOT RIDE WHEN RAINING, DO NOT RIDE THROUGH
PUDDLES // ALWAYS WEAR PROTECTIVE GEAR WHEN RIDING // ALWAYS WEAR A HELMET WHEN RIDING // USE AN APPROVED
SKATEBOARD, BICYCLE OR FULL FACE MOTORCYCLE HELMET THAT PROPERLY FITS WITH THE CHIN STRAP SECURELY FASTENED //
USE DIRECT HAND CONTACT WHEN OPERATING THE HANDHELD REMOTE, WEARING GLOVES OR AN UNUSUAL GRIP MIGHT INTER-
FERE WITH YOUR ABILITY TO ACCURATELY USE THE CONTROLS // DO NOT WEAR LOOSE CLOTHING THAT CAN GET STUCK IN THE
WHEELS OR DRIVE BELT // BE AWARE THAT A STRONG ELECTROMAGNETIC FIELD IN YOUR AREA MIGHT INTERFERE WITH THE
FUNCTION OF THE REMOTE CONTROLLER // BRAKE WHEN GOING DOWNHILL TO MODERATE YOUR SPEED // TAKING ON INCLINES
OVER 20% MIGHT OVERHEAT THE ECU AND CAUSE INTERMITTENT POWER LOSS OR EVEN SHUT DOWN THE ECU // DO NOT RIDE
FALCON DOWNHILL MORE THAN 2% TO AVOID ECU OVERHEATING // REGULAR SHORT BURST OF FULL POWER AND BRAKING HEAVILY
WILL DRAIN THE BATTERY FASTER THAN RIDING AT A MODERATE CONSISTENT SPEED // BEWARE OF WHEEL STOPS THAT CAN
OCCUR WHEN THE FALCON'S WHEELS ENCOUNTER AN OBSTACLE OR TERRAIN CHANGE THAT PREVENT THEM FROM MOVING, THIS WILL
BRING THE FALCON TO AN ABRUPT STOP AND ARE LIKELY TO CAUSE A FALL // NEVER RIDE ON STAIRS, ELEVATORS OR THROUGH
REVOLVING DOORS // DO NOT ATTEMPT JUMPS OR OTHER STUNTS, THIS MIGHT LEAD TO INJURY OR DEATH AND MIGHT DAMAGE
YOUR FALCON CRUISER // ALWAYS BE ALERT AND AWARE OF YOUR SURROUNDINGS WHEN RIDING

15
RIDING OUTSIDE OF YOUR PRIVATE PROPERTY
ABIDE BY THE LAWS AND REGULATIONS IN YOUR STATE OR COUNTRY // RESPECT OTHER DRIVERS AND PEDESTRIANS ON THE ROAD
// AVOID RIDING ON BUSY ROADS AND CROWDED AREAS // ADJUST YOUR SPEED WHEN RIDING ON THE SIDEWALK // DO NOT
PARK YOUR CRUISER IN A WAY THAT BLOCKS PEOPLE OR TRAFFIC AS IT CREATES A SAFETY ISSUE // CROSS ROADS AT DESIGNATED
CROSSWALKS OR SIGNALED INTERSECTIONS // DO NOT JAYWALK / RIDE // WHEN RIDING WITH OTHER LUOOV RIDERS, PLEASE
KEEP A SAFE DISTANCE FROM EACH OTHER AND OTHER TRANSPORT DEVICES // WHEN RIDING WITH OTHER LUOOV RIDERS YOU
SHOULD NOT RIDE SIDE-BY-SIDE UNLESS THERE IS PLENTY OF ROOM LEFT FOR PEDESTRIANS AND OTHER POTENTIAL TRAFFIC //
IDENTIFY AND KEEP A SAFE DISTANCE FROM HAZARDS AND OBSTACLES ON THE ROAD // DO NOT RIDE YOUR LUOOV ON PRIVATE
PROPERTY (INSIDE OR OUTSIDE) UNLESS YOU HAVE OBTAINED PERMISSION TO DO SO // MAINTAIN CONTROL OF YOUR EQUIPMENT
STORAGE AND MAINTENANCE
DO FREQUENT MAINTENANCE CHECKS: BEFORE RIDING MAKE SURE ALL SCREWS ARE TIGHT AND YOUR LUOOV IS IN PERFECT WORK-
ING ORDER // CLEAN THE BOARD'S BEARINGS REGULARLY // TO CLEAN THE WHEELS IT IS ADVISED TO REMOVE THEM FROM THE
AXLE // TURN OFF LUOOV AND WIRELESS CONTROLLER WHEN NOT IN USE // CHOOSE A COOL ENVIRONMENT TO STORE THE
LUOOV AND ITS CHARGER // KEEP YOUR BATTERY FULLY CHARGED WHEN NOT IN USE // RECHARGE THE BATTERY IN A WELL VENTI-
LATED AREA // DO NOT RECHARGE THE BATTERY IN AN AREA THAT MIGHT GET WET YOUR LUOOV OR ITS CHARGING UNITS
// DO NOT LEAVE LUOOV CHARGING UNATTENDED // KEEP CHILDREN AWAY FROM FALCON WHEN CHARGING // DISCONNECT
BATTERIES FROM CHARGE ONCE IT IS FULLY CHARGED // STOP USE OF THE PRODUCT OR CHARGING UNIT IF ANY WIRES ARE WORN OR
DAMAGED // DO NOT MODIFY THE ELECTRICAL CONTROLS OR WIRING // ONLY USE A MOTOR, BATTERY OR CHARGING UNIT
SUPPLIED OR APPROVED BY LUOOV // DO NOT USE THE LUOOV'S BATTERY TO POWER ANY OTHER EQUIPMENT

16
BATTERY SAFETY
LITHIUM-ION BATTERIES CAN EXPLODE OR CAUSE A FIRE IF THEY ARE USED INCORRECTLY OR IF THEY ARE DEFECTIVE. THEREFORE,
YOU ARE RECOMMENDED TO READ THE FOLLOWING INSTRUCTIONS VERY CAREFULLY:
- EACH TIME BEFORE USING THE BATTERY, CAREFULLY CHECK THE BATTERY PACK AND IN PARTICULAR THE PROTECTIVE SEAL/
MAKE SURE THAT IT IS UNDAMAGED AND INTACT. IF IN DOUBT, TAKE THE BATTERY TO A CHEMICAL WASTE DISPOSAL FACILITY
AND/OR CONTACT YUNEEC CUSTOMER SUPPORT IMMEDIATELY.
- ALWAYS HANDLE THE BATTERY WITH CARE. NEVER DROP THE BATTERY.
- STORE THE BATTERY IN A SAFE AND DRY PLACE AND KEEP THE BATTERY AWAY FROM ALL METAL OBJECTS.
- NEVER EXPOSE THE BATTERY TO TEMPERATURES ABOVE 100 DEGREES CELSIUS.
- ONLY USE OFFICIAL WINPOER LUOOV CHARGERS THAT ARE SPECIALLY DESIGNED FOR USE WITH LITHIUM-ION BATTERIES.
- WHEN CHARGING BATTERIES, KEEP THE CHARGER AWAY FROM HIGHLY FLAMMABLE MATERIALS OR PRODUCTS AND NEVER LEAVE
THE CHARGER UNATTENDED WHEN IN USE.
- WHEN CHARGING THE CHARGER CAN GET HOT. DO NOT PLACE THE CHARGER ON DAMAGABLE SURFACES.
- IF YOU ARE NOT PLANNING ON USING THE BATTERY FOR ABOUT 6 MONTHS OR LONGER, FIRST CHARGE IT FULLY AND THEN
RECHARGE IT ONCE A YEAR. THIS IS BECAUSE A LITHIUM-ION BATTERY THAT HAS BEEN LEFT EMPTY FOR TOO LONG CAN NO
LONGER BE CHARGED.

17
TROUBLESHOOTING
Check if the boar d is activated on. When turning on the board you should
hear beeps and its status indicator light should come on.
Check if the controller is powered ON. When turning ON the controller, its
indicator light should come on.
If both the board and controller are powered ON, and the wireless controller's
indicator light is not flashing, it means the board and controller are not
synchronized.
If both board and controller are powered ON, and the controller's indicator
light is on but you don`t hear a beep and the board does not work, turn off
the board and turn it on again.
If the board and controller are synchronized and the controller's failed to
make the board work, it means the board's or controller's battery is low and
1.2
1.1
1.3
1.4
1.5
MY BOARD DOESN`T
START
Check if the board is in cruise control mode. If so, move the controller's
speed mode switch to fun ride mode.
If during your ride the cruiser's speed going down gradually, followed by a
stop feeling, it means the board's batteryis low and needs to be recharged.
2.1
2.2
MY BOARD IS MOVING
AT LOW SPEED...
needs to be recharged.

1
light is flashing, followed by a red flashing light and accom-
panied by vibration, it means the board's battery is low and
needs to be recharged.
panied by vibration, it means the controller's battery is low
and needs to be recharged.
If during your ride the board stops and the controller's blue
light is flashing one to four times, followed by one yellow flash
this the board stops again, please contact the E-GO customer
service.
battery is overheated. Let it cool down for 10 minutes and retry.
If after this the board stops again, please contact the E-GO
3.1
3.2
3.3
3.4
3.5
MY BOARD STOPS
AUTOMATICALLY
18
If during your ride the board stops and the board's indicator light is off,
it means the board's battery is running out and needs to be recharged.
If during your ride the board stops and the controller's indicator light is off,
it means the controller's battery is running out and needs to be recharged.
If during your ride the board stops and both the board and controller's indicator
lights are on, it means the board's ECU is overheated. Wait for a second
and let it cool down, then restart the board.
If during your ride the board stops and both the board system and controller
are still working, check the synchronizing belt if there is dirt stuck between
belt and gear.
If the board stops during your ride up a inclination, it means that the board
is over loaded and should not be used on the inclination.
3.1
3.2
3.3
3.4
3.5
MY BOARD STOPS
AUTOMATICALLY
Check if the USB cable is well connected to the controller and the charge
port and if the board is powered on. If the connection is good and the controller
is charging, the controller's light will turn on.
5.1
MY CONTROLLER
DOESN'T CHARGE
Check if the charge cable is connected to the board and if the charger is
connected to a standard A/C power source. If the connection is good and
the board is charging, the charger's battery status indicator will turn red.
When fully charged it should turn green.
4.1
MY BOARD DOESN'T
CHARGE
