5th Wheel M1 User manual

The text and logo of 5TH WHEEL are trademarks or registered trademarks of enterprises affiliated with Invanti. Other company,
product or service names mentioned may be trademarks or registered trademarks of their respective owners.
The illustrations and function descriptions in this user manual are for illustration purposes and reference only, and the products
are subject to the real product. The mentioned technical performance indicators are based on the specific experimental
environment, and the actual indicators may vary depending on the setting and environment. This product needs to be used
with mobile phones or other smart devices. The realization of all functions of this product requires network support, with the
network fee being subject to the supplier’s service rate. This product is only used to assist safety management and cannot
replace other safety measures. Do not use this product for any illegal purpose. Some services are provided and supported by
third parties, which may change at any time. Invanti does not provide any guarantee for third-party services. Please read the
terms of the third-party service and privacy policy carefully before use.
User's Manual of 5TH WHEEL Electric Scooter M1
The picture is for reference only.
Before using the product, please read this manual.
V1.0 IMPORTANT! Read carefully and keep for future reference.
Original Instructions
Use Camera or QR Scanner to Scan
Or Visit: https://5thwheel.life/pages/contact-us
© 2022 Invanti (Beijing) Technology Co., Ltd all rights reserved.

Contents
1.Safety Precautions
2.About the Product
3.Product Display
4.Assembly Guide
5.Unfolding/Folding/Carrying
6.Riding and Parking
7.Control System
8.Indication Descriptions
9.About Charging
10.About the Battery and Charger
11.App Descriptions
12.Care & Maintenance
13.Troubleshooting
14.Product Specifications
15.Authentication
2
9
11
12
13
16
17
20
22
22
24
26
27
29
30
Welcome
Thank you for choosing the 5TH WHEEL Electric Scooter M1(hereinafter referred to as M1).
Enjoy the pleasure brought by M1.
1
* Please read and know the instructions described in the user manual carefully before
using the electric scooter and keep it for future reference.
Please do not dispose of this product casually, it needs to be disposed of in accordance
with local recycling regulations.

Please read the following instructions carefully before use.
1 Safety Precautions
2
1.M1 is designed for and can only be used by adults.
Besides, do not ride it with anyone else, including children.
3.Please ride M1 in accordance with the local laws. And do
not ride it in unsafe or illegal places.
4.Please practice riding M1 in the open space for the first use
and avoid riding it on the traffic line. After knowing its operation
completely, you can ride it on the road in accordance with the
local laws.
2.Please wear a safety helmet and other protective equipment
when riding M1.
5.Do not engage in any dangerous actions or ride M1 without
both hands gripping the handles. And keep your feet on the
scooter.
8.Do not ride it in an environment below 23℉.
6. Do not try to cross bumps higher than 3cm (0.39inch) directly,
which may overturn M1 and cause injury to the user or damage to
the scooter. And avoid riding through potholes lower than 3cm
(0.39inch) as far as possible.
7.For your riding safety, please control the speed within
15.5mph. Please try to avoid riding at night. If you are riding
at night, please turn on the lights and control the speed at
9.3mph or below.
-5℃
3cm
3

45

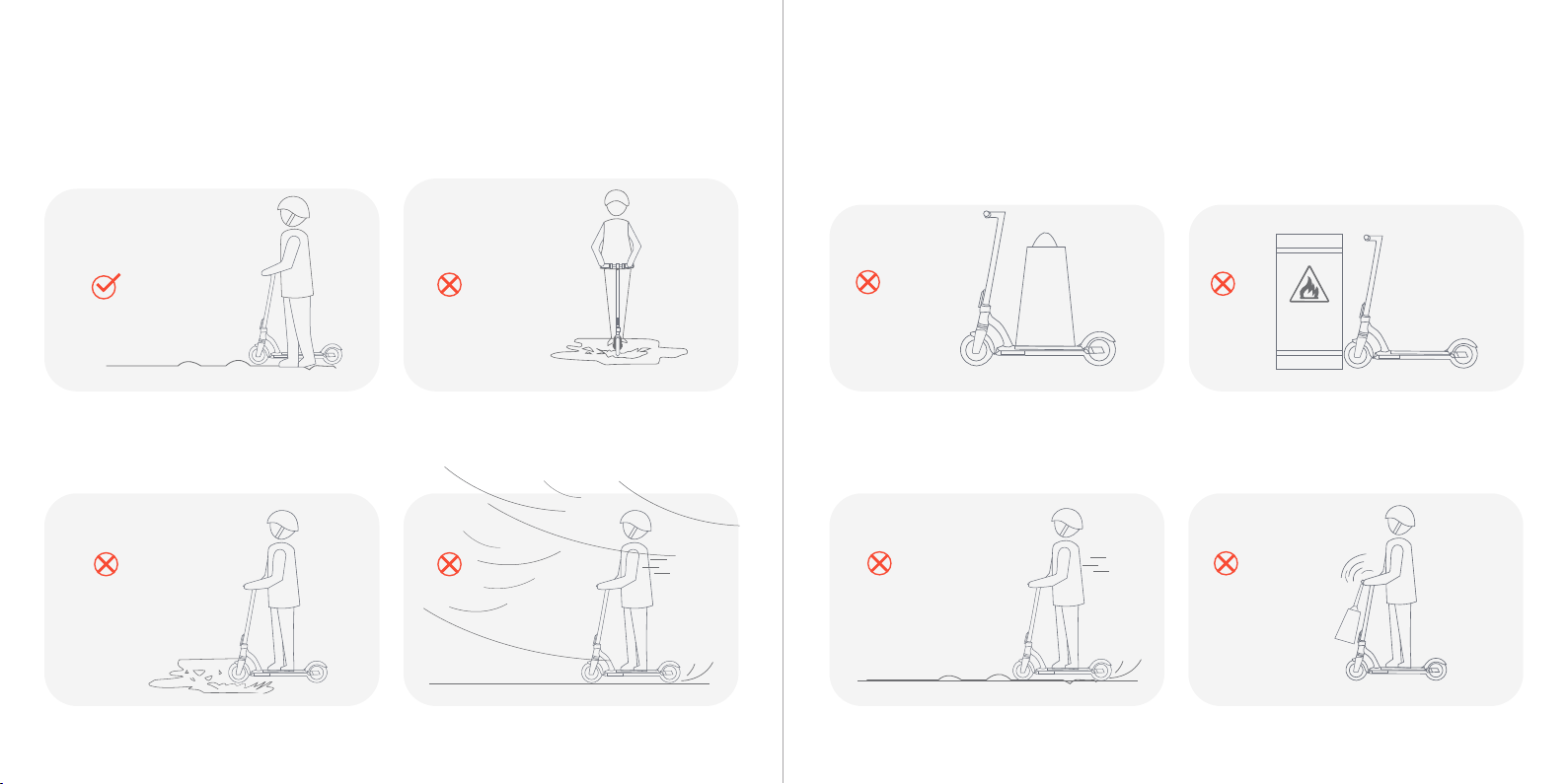

11. Do not immerse M1 in puddles deeper than 4cm
(1.57 inches) to avoid damages to the electrical part
due to water inflow.
10. Do not ride it on slippery roads (such as roads covered
with ice, oil, etc.).
9.When riding on the uneven road surface or poor road
condition, please slow down and ride carefully or get off the
scooter to pass through.
12.In rainy, snowy, windy and other bad weather, please
do not ride it to avoid damages caused by unnecessary
factors.
16. Do not any load attached to the handlebar which will
affect the stability of the vehicle.
15.M1 is a special riding product. Please ride it on a flat
road without potholes.
13.The user should ride it in accordance with the
relevant instructions described in the user manual.
Anything placed on the product should not be heavier
than the max weight capacity of M1.
14.Please avoid riding it or placing it in an environment
with too high or too low temperature. Please do not
place M1 near combustibles, so as to avoid fires under
accidental circumstances.
220lbs/100kg
Watch forfires

67
17.Engage the kickstand when the vehicle is not in use；
Flip up the kickstand before use; Do not park the vehicle on
the slope.
20.WARNING Keep plastic covering away
from children to avoid suffocation.
18.The minimun height of the user is 1.4m, while the maximun
height is no more than 2.2m; the maximun age of the user is 70
years old, while the minimun age is no less than 13 years old.
19.Braking performance and friction between the tire and
road deteriorates in wet conditions, so it is harder to control
the speed and easier to lose control. Slow down and brake
early when it is raining.
22.Notify your presence when approaching a pedestrian
or cyclist when you are not seen or heard.
Avoid high traffic areas or overcrowded areas.
21.The user shall take the time to learn the basics of the
practice to avoid any serious accident that can take place in
the first month.
23.Cross the protected passages while walking.In all cases,
take care of yourself and others.
24.Do not divert the use of the vehicle，This vehicle is not
intended for acrobatic use.
≥1.4m

89
Instrument display
Folding fastener
Front wheel
Built-in lithium battery
Charging port
LED headlight
Left brake
Hook
Right thumb accelerator
Power/gear/
headlight ON/OFF button
*The accessories and any additional items which are not approved by the manufacturer shall not be used.
27. In any case, anticipate your trajectory and your speed
while respecting the code of the road, the code of the
sidewalk and the most vulnerable. If any, local special
laws and regulations should be observed during riding of
this product.
25.Eliminate any sharp edges caused by use.
Do not
modify or transform the vehicle, including the steering tube
and sleeve, stem, folding mechanism and rear brake.
26.The user has the obligation to always wear shoes
when riding.
2 About the Product
1. Product Overview

Upright State
Folded State
3 Product Display
11
User Manual
Screw
Screwdriver
Tool Kit
Power Adapter
1
3
1
1
1
Product Contents Quantity
10
Accessories
Manual Screw *3 Screwdriver Power adapterTool kit
Please carefully check whether the items in the packing box are complete and intact.
Note: If you get extra screws, keep them as spares!
User's Ma nual of 5th Whee l Electric S cooter M1
The picture is for reference only.
Before using the pro duct, pleas e read this manua l (including the w arranty c ard).
V1.0 IMPORTANT! Read carefully and keep for future reference.
Original Instructions
5th Wheel Scooter Tool kit

5 Unfolding/Folding/Carrying
13
4 Assembly Guide
（Refer toUnfolding Operations）
1.Unfold the scooter and put the kickstand down. 2.Bring out the lower main line connector.
3.Connect the main line and attach the handlebar
to the stem.
12
4.Tighten the screws with the tools included in
the package and press the power button to
check if it works normally.
open the lock Expand scooter
and fix folding switch
Do not touch the main line
interface during the pulling
process.
Strictly follow the arrow
marks to align the slots
and install the handlebar.
Use the tool included in
the package
to tighten the screws.
Check the power button
after the completion of
assembly.
3. Righten the body rod and pull up the folding
buckle.
4. Fasten the folding buckle.
1. Press the rear fender with one hand and pull
the body rod upward with the other.
2. Pull up the body lever.

14
2. Folding Operations 3. About Carrying
15
Note: After folding it, carry the scooter with one or both hands.
Minimum load：30kg
Note: For your safety, it is recommended to perform the folding operation after the scooter is powered off.
1.Pull the lock up. 2. Pull the folding buckle outward .
3.Put the reverse head. 4. Adjust the body lever hook to enter the rear
fender clamping slot.

7 Control System
Power Switch Gear Indicator Throttle
Brake Control LED Display
16 17
6 Riding and Parking
1.Choose a suitable place for riding the
scooter.
2.Unfold the scooter by following the
instructions described in the user manual and
wearing protective equipment.
1.Press the Power switch to turn on the scooter.
2.Stand on the pedal with one foot on the ground.
3.Slide the scooter forward and press the throttle
gently downward. And the scooter will move forward
slowly. When riding it smoothly, stand on the pedal
with both feet. The greater you press the throttle
downward, the faster the speed.
Note: For safety, M1 is designed with a non-zero start.
The throttle will take effect only after the scooter
slides forward for a certain distance.
1. Under normal circumstances, if the left
thumb brake is pressed down, the car
immediately cuts off power and brakes. The
greater the pressing angle, the greater the
braking force.
2. In case of emergency, electronic braking
and friction braking can be realized at the
same time by stepping on the rear brake.
Preparations before Riding the Scooter
Starting Riding the Scooter Parking

18 19
Long press the Power switch to turn on/off the scooter,Click the power button to switch the LED light; double click to switch
the gear; triple click to switch the speed unit; four clicks to display the accumulated mileage for 5s.
Press the power button twice quickly to switch the gear. The gear can be set to The pedestrian
mode≤5mph, Level 1 (9mph)，Level 2 (15mph).
After switching on the scooter, click the LED headlight switch to turn it on.
Power Switch
Gear Setting
LED Headlight Switch
Hold the left brake lever to brake. The greater the holding force, the greater the braking force. The indicator will
blinkinng under the condition of braking.
When riding the scooter at a speed faster than 4km/h (2.48 mph), the throttle will get started and take effect. By
pressing the throttle, the user can control the riding speed. (Speed Range: 4-25km/h / 2.48-15mph)
Speed control
Brake control
Emergency Braking
Noise emission
The A-weighted emission sound pressure level of the vehicle in operation is less than 70 dB(A).
In case of emergency, step on the rear brake with your feet, which can realize rear wheel friction braking and electronic
braking at the same time; Under normal circumstances, please do not use the rear emergency brake vigorously in
high-speed driving, so as not to cause riding risk and damage the rear wheels. The company is not responsible for this
damage, and needs to pay for repair.
LED Display
Cruise control
The scooter is not initially configured with the cruise control speed. If necessary, open the app and select the cruise
control speed. When the scooter is running at the constant cruise control speed, the cruise control will be enabled. After
the cruise control is enabled, you can release the thumb accelerator, and the scooter will automatically run forwards at
a constant speed.If you need to cancel the constant speed cruising, press the left thumb electronic brake to cancel the
cruising state. When the speed reaches the set cruising speed again, you can restart the constant speed cruising.
You can set the status of no cruise in the APP to disable the cruise control function.
HeadlightAlert
Cruise
Control
Wireless
Connection
Real-Time Speed
Gear 2
Gear 1
Battery Indicator
Total Mileage
The pedestrian mode

21
20
Error Indication
If there is anything abnormal about the scooter, the warning indicator will flash, with the flashing
value E1-E6 displayed.
Errors Code Solutions
Communication
Fault E1
Brake failure E2
Throttle Failure
Motor Fault
E3
E4
Controller failure E5
Overheated Motor E6
Please check whether the
brake is pressed.
Please check whether the
throttle is pressed.
Check whether the motor
and controller wire is
connected correctly.
Press and release the brake to reset the brake.
If it is open-circuit or short-
circuited, please replace the
connecting wire.
Replace the brake handle.
Replace the throttle.
Press and release the throttle to reset the throttle.
If it is open-circuit or short-
circuited, replace the connecting
wire.
If it is not connected correctly, please adjust and connect the motor and the
controller correctly.
If the motor temperature is too high, please wait for the motor to
cool to the appropriate working temperature.
If the motor temperature is normal, check whether the connecting
wire of the controller is short-circuited. If it is short-circuited,
please replace the connecting wire.
If the controller is damaged, please replace the controller.
Check whether the motor
temperature is too high.
Please check whether the taillight is on. If it is off, it means that the power supply is insufficient.
Please replace the controller or the LED display. If it is on, please check whether the connecting
wire between the controller and the LED display is open-circuit.
If not, please check whether the
connecting wire between the
brake and the LED display is
short-circuited or open-circuit.
If not, please check whether the
connecting wire between the
throttle and the LED display is
short-circuited or open-circuit.
If it is connected correctly, please disconnect the connecting wire
and measure whether the internal resistance between the
three-phase wires of the motor is within a reasonable range,
generally within 0.1Ω-1Ω. If it exceeds the range, the motor needs
to be replaced.
8 Indication Description
Automatic cruise indication:
Start Shut down
When automatic cruise is turned on, the
indicator will be on for a long time.
When automatic cruise is turned off,
turn off the indicator.
Headlamp status indication:
Start Shut down
When the headlight setting is turned on,
the indicator will be on for a long time.
Turn off the indicator when the headlight
setting is turned off.
Third gear indication:
First gear Second gear Third gear
The first gear is open The second gear is open The third gear is open

2322
The lithium battery provided by the company can be recharged for at least 800times, and more than 1,000
times under normal circumstances. Please charge full battery for the first time before using it. The battery
can be charged at anytime, and there is no any damage to charge it frequently. Meanwhile, please don’t
forget to charge it per 3 months if you don’t use it for along term.
Battery
The dedicated charger provided by the company has a function of charging protection .When the battery is
100% charged, the charger will be powered off automatically. The charging time is about 4-5 hours. Damage to
the battery arising from water, collision and other abnormal factors is excluded from the warranty policy.
1. Open the rubber and insert the plug into the hole;
2. Insert another plug of the charger into the electric outlet;
3. When the indicator lamp is red, it shows the battery being charged; When the lamp turns green, the battery
is finished charging.
4. Please shut down and keep away from water before charging.
5. Only use the specified charger for charging.
6. Warning: Please be careful not to get electric shock.
Charger
Press the brake in the running process to enable the kinetic energy recovery system and convert part of kinetic
energy into electrical energy to be stored and used. The kinetic energy recovery system can enhance the
experience of emergency braking. At the same time, the recovered kinetic energy can help increase the
endurance. Changes in the power are displayed simultaneously.
Kinetic energy recovery
Charging instructions
③Insert the rubber
plug and fix it after
charging.
②Plug in the charger.
Step 1. Open the rubber plug and insert the charger into the charging
port on the scooter.
Step 2. Insert another end of the charger into the power outlet.
Step 3. When charging, the red indicator on the charger will light up.
When the indicator turns green, it means that the scooter is now fully
charged.
①Open the rubber plug.
9 About Charging
10 About the Battery and Charger
M1 electric scooter is equipped with a special lithium battery and a special smart charger. The scooter
and its accessories have a special number. Do not use chargers of other brands, nor should other types
of products be charged with the charger of our company. The company will not be responsible for the
accessories damaged by misuse.

24 25
11 Instructions for APP
connect
Single mileage
Current speed
Battery indicator
Speed gear Lock the car
Safe Driving
Vehicle self-inspection
Headlight
Speed unit
Cruise control
Total mileage
Adjustment and
Repair
*The actual content shall
be subject to the app
display interface
Special note: about the
locking function,
It can only ensure that the
vehicle cannot run normally
Due to the light weight of
the whole vehicle and
The whole vehicle is
composed of mechanical
parts
It can be removed with
corresponding tools
To ensure that the vehicle is
not stolen,
Please park your vehicle in
sight
Enclosed or added
machinery and Fixtures
5TH WHEEL App Manual Operation
1. Please scan the QR code with your mobile phone,
or search for “5thWheel” in the App market to
download and install the App.
2. Open the 5thWheel App, and please register/log
in to the 5thWheel account according to the App
guidelines for the first use. And then, enter the App
homepage, click “+” in the upper right corner
and “Add Device”. After that, move your mobile
phone close to the device, and the App will
automatically scan the device.
IOS
5thWheel App
In the event that you have installed 5thWheel App,
please make sure that it is the latest version.
Please keep your mobile phone Bluetooth and device in
the state of “On”, and try again in case of failure to
scan the device.
No manual operation is required in case of registering an account of 5TH WHEEL and completing the
minimalist connection. The device card will be displayed on the homepage of the 5TH WHEEL App.
3. After scanning the device successfully, please
click “Connect” to successfully add the device
as prompted by the interface.
Connect
正在搜索可用设备...
add manully Scan code to add
Connect
Elect ric scooter
Scanning
After adding the device successfully, the device will be
displayed on the homepage of 5thWheelApp. And then,
click the device card to enter the control interface to
control the device.
4. If you encounter any problems when using the product,
please feel free to contact us through the following methods
or scan the QR code to get a quick response and a satisfactory
solution.
Add Device
Use Camera or QR Scanner to Scan
Or Visit: https://5thwheel.life/pages/contact-us

12 Care & Maintenance 13 Troubleshooting
26 27
1.The display screen is black.
If there is any problem with the scooter, please try to solve it in the following ways.
Cause: The exposure time in the sun is too long.
Solution: Please place the scooter in a dark environment for a period of time and it will return to normal.
2.The value is inconsistent with the actual value.
Cause: The parameter setting is incorrect or missing.
Solution: Long press the Power switch to shut down the scooter, and then short press the Power switch to restart it.
3.The displayed value is dim.
Cause: The battery connection is loose, or there is no battery power left.
Solution: Turn off the scooter and restart it. If the problem remains, please contact the customer service via
https://5thwheel.life/pages/contact-us
5.Braking Distance 2.5m
The braking distance of this product is measured under the conditions of 75kg loading, 24℃ temperature,
55%-65% humidity, 2.9 bar tire pressure and asphalt pavement.
4.The product cannot work normally.
a. Please make sure that it is powered on.
b. Check whether there is battery power left by viewing the display screen.
c. Check whether the left brake and rear brake are in place.
d. Check whether all ports and power cables are connected accurately.
If all the above steps are checked and the product still cannot work normally, please contact us via
https://5thwheel.life/pages/contact-us
For maintenance, add a small amount of white grease or lubricant to the folded part once every six months.
Check the scooter once every three months for screw loosening. Tighten the loose screw.
If you see stains on the scooter's body, wipe them off with a damp cloth. If the stains won't scrub off, put on some
toothpaste, and brush them with a toothbrush, then wipe them off with a damp cloth.
Do not clean the scooter with alcohol, gasoline, kerosene or other corrosive and volatile chemical solvents to
prevent dire damage. Do not wash the scooter with a high-pressure water spray. During cleaning, make sure that the
scooter's turned off, the charging cable is unplugged, and the rubber flap is closed as water leakage may result in
electric shock or other major problems.
Avoid leaving scooter under direct sunlight or in severly humind places for a long time.
Keep the scooter clean.
Regularly check the tightening of the various bolted elements, in particular the wheel axles, the folding system, the
steering system and the brake shaft.
Lubrication
Storage and daily maintenance
Cleaning Recommendations
When you get the electric scooter for the first time, please fully charge the battery before using the scooter.
The battery can be charged at any time to ensure the power supply. It will not be damaged during charging.
When not in use, the battery needs to be charged once every three months.
Battery
*Laboratory data
Routine Inspection
1. Before riding, please confirm the folding mechanism is locked;
2. Please check whether the tires are badly worn. Please contact the local authorized dealer if they needs to be replaced;
3. Please check whether the wear condition of the brake pad affects the use of the brake system. If so, please
contact the local authorized dealer to deal with the problem；
4. The screws used in this product are self-tightened screws. Please note that the effect may be gone after several
times of tightening.

29
WEEE needs to properly dispose of and recycle the product. This sign indicates that the product should not be disposed of
together with other domestic waste throughout the EU.
Therefore, in order to prevent possible harm of uncontrolled waste treatment to the natural environment or human health,
it is necessary to recycle it and promote the sustainable reuse of material resources. To recycle the used product, use the
return and collection system or contact the retailer who can use the product for environmentally safe recycling.
Batteries or battery compartments are marked in accordance with the European Directive 2006/66/EC and the amendment
2013/56/EU on batteries and accumulator cells and scrap batteries and accumulator cells.
The directive applies to the recycling framework of waste batteries and accumulator cells throughout the EU. The label on
the battery indicates that the battery should not be discarded, but recycled at the end of its service life according to the
directive.
According to the European Directive 2006/66/EC and the amendment 2013/56/EU, batteries and accumulator cells are
labeled to indicate that they will be collected separately and recycled at the end of their service life. The label on the battery
may also contain the chemical symbols of the relevant metals in the battery (Pb, Hg and Cd). Users should not dispose of
batteries and accumulator cells as garbage, but use the collection framework available to customers to recycle and dispose
of batteries and accumulator cells. With the engagement of users, it is important to minimize any potential impact of
batteries and accumulator cells on the environment and human health due to the presence of potentially hazardous
substances.
Before placing electrical and electronic equipment (EEE) into a waste collection stream or waste collection facility, users of
equipment containing batteries and/or accumulator cells must remove these batteries and accumulator cells for separate
collection.
Restriction of Hazardous Substances in Electrical and Electronic Equipment (RoHS) Directive.
The products and parts (cables, wires, etc.) of Invanti (Beijing) Technology Co., Ltd comply with the requirements of
directive 2011/65/EU on restricting the use of certain hazardous substances in electrical and electronic equipment ("RoHS
recasting" or "RoHS 2")
15 Authentication
Applicable model: M1
The EU Compliance Statement is as follows:
EU Battery Recycling Information:
The product has passed the ANSI/CAN /UL-2272 certification of the CSA.
The battery complies with the UN/DOT 38.3.
According to the Federal Communications Commission (FCC) Compliance Statement as follows:
The product complies with part 15 of the FCC rules, and the operation must meet the following two conditions: (1) the
product should not cause harmful interference, and (2) the product must accept any received interference, including
interference that may lead to accidental operation. Any change or modification not expressly approved by the responsible
party may make void the user’s right to operate the product.
28
14 Product Specifications
Parameter
Dimension
Weight
Status
Approx. 41 x 19 x 41 inches
Main parameters
Motor brake + Foot brake+Drum brake
4-5h
12.4-13.7mile (Maximum endurance: Under full power, 75kg load,
ambient temperature 23-25℃, and driving at a constant speed on flat
hardened road at 60% of the maximum speed. The actual endurance
varies according to weight, temperature and road conditions.)
Approx. 41 x 19x 17 inches
Travel Distance
Applicable Terrain Stable and smooth road surface, with bumps less than
2cm and depressions less than 3cm
Tire Damping
8-Inch Rubber Tire
Damping System
IP54
Approx. 15%
Speed, Mileage, Gear
LED high-brightness headlight
250W
Parameters about
Charging
36V-6AH
Charger Rated
Input Voltage 100V-240VAC 50/60Hz
Folded: L x W x H
Max Load 220lbs
Max Speed 15mph
Tires
Net weight
Upright: L x W x H
Product name
Dustproof and
Waterproof Grade
Braking System
LED display
Lighting system
Motor power
Charging time
Lithium battery
Approx. 30.8lbs
5TH WHEEL Electric Scooter M1
Model 5LCHM11U
Max Incline

3130
5TH WHEEL is a registered trademark of Invanti (Beijing) Technology Co., Ltd (hereinafter referred to as "Invanti"), which is
authorized to be used by Solowii (Beijing) Technology Development Co., Ltd. Android and Google Play are trademarks of
Google Inc. and the App Store is the service mark of Apple Inc. Their respective owners reserve the trademark rights
mentioned in this user manual.
The products involved in the registered trademark of 5TH WHEEL are protected by relevant patent laws. For relevant patent
information, please visit the website:https://5thwheel.life/.
In this user manual, we make our utmost to describe all the instructions and functions of the M1 electric scooter. With
constant updates and iteration, the M1 electric scooter received may be slightly different from the product features shown
in this manual. For more information, please visit the Apple App Store (iOS) to download the App.
Please note that Invanti has developed products with many functions and different models of products, and some of the
functions mentioned here may not be applicable to the product or equipment received. The manufacturer reserves the right
to change the design and function of the M1 electric scooter and documents without notice.
2021 Invanti (Beijing) Technology Co., Ltd all rights reserved.
If you encounter any problems when using the product, please feel free to contact us through the following methods or scan
the QR code to get a quick response and a satisfactory solution.
Email Address: [e-mail]
Contact Us
Trademark and Legal Statements
Get Customer Service
Use Camera or QR Scanner to Scan
Or Visit: https://5thwheel.life/pages/contact-us
