Luxaire LX Series Quick start guide

Johnson Controls Ducted Systems
Luxaire Technical Guide: LX Series TCD2B
Models - 13.4 SEER2 Split-System Air
Conditioner - Single-Phase
R-410A - 1.5 to 5 Nominal Ton
York International Corporation, 5005 York
Drive, Norman, OK 73069
2022-11-04
6268887-LTG-A-1122
Supersedes: nothing

2 Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase
Johnson Controls Ducted Systems

Contents
ContentsDescription........................................................................................................................................................ 7
Certification.......................................................................................................................................................7
Warranty summary.......................................................................................................................................... 7
Features.............................................................................................................................................................8
Nomenclature...................................................................................................................................................9
Physical and electrical data.............................................................................................................................9
Physical and electrical data notes......................................................................................................10
Illustration of dimensions............................................................................................................................. 11
Dimensions..................................................................................................................................................... 11
Dimensions data notes....................................................................................................................... 11
System charge table.......................................................................................................................................12
System charge A-coil data notes........................................................................................................12
Charging..........................................................................................................................................................13
Air handler capacity....................................................................................................................................... 13
Air handler capacity data notes......................................................................................................... 17
Coil only capacity............................................................................................................................................17
Coil only capacity data notes..............................................................................................................18
Furnace capacity - 1.5 ton..............................................................................................................................19
Furnace capacity - 2 ton.................................................................................................................................22
Furnace capacity - 2.5 ton..............................................................................................................................27
Furnace capacity - 3 ton.................................................................................................................................34
Furnace capacity - 3.5 ton..............................................................................................................................41
Furnace capacity - 4 ton.................................................................................................................................50
Furnace capacity - 5 ton.................................................................................................................................58
Furnace capacity data notes......................................................................................................................... 62
Applications and accessories........................................................................................................................63
Sound power rating....................................................................................................................................... 64
Mechanical specifications..............................................................................................................................64
Typical installation..........................................................................................................................................65
Typical field wiring......................................................................................................................................... 67
Alternative installation clearances............................................................................................................... 68
Performance data - 1.5 ton........................................................................................................................... 68
Condenser only performance data - 1.5 ton.................................................................................... 68
Condenser only performance data notes............................................................................................... 68
Cooling performance data - 1.5 ton.................................................................................................. 69
Cooling performance data notes............................................................................................................. 69
Multipliers for determining the performance with other indoor sections...................................69
Cool multiplier air handler - 1.5 ton.................................................................................................. 69
Cool multiplier furnace - 1.5 ton........................................................................................................ 70
Johnson Controls Ducted Systems
Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase 3

Performance data - 2 ton.............................................................................................................................. 74
Condenser only performance data - 2 ton....................................................................................... 74
Condenser only performance data notes............................................................................................... 74
Cooling performance data - 2 ton..................................................................................................... 75
Cooling performance data notes............................................................................................................. 75
Multipliers for determining the performance with other indoor sections...................................75
Cool multiplier air handler - 2 ton......................................................................................................75
Cool multiplier furnace - 2 ton........................................................................................................... 77
Performance data - 2.5 ton........................................................................................................................... 82
Condenser only performance data - 2.5 ton.................................................................................... 83
Condenser only performance data notes............................................................................................... 83
Cooling performance data - 2.5 ton.................................................................................................. 83
Cooling performance data notes............................................................................................................. 84
Multipliers for determining the performance with other indoor sections...................................84
Cool multiplier air handler - 2.5 ton.................................................................................................. 84
Cool multiplier furnace - 2.5 ton........................................................................................................ 85
Performance data - 3 ton.............................................................................................................................. 92
Condenser only performance data - 3 ton....................................................................................... 92
Condenser only performance data notes............................................................................................... 92
Cooling performance data - 3 ton..................................................................................................... 93
Cooling performance data notes............................................................................................................. 93
Multipliers for determining the performance with other indoor sections...................................93
Cool multiplier air handler - 3 ton......................................................................................................93
Cool multiplier furnace - 3 ton........................................................................................................... 95
Performance data - 3.5 ton......................................................................................................................... 103
Condenser only performance data - 3.5 ton.................................................................................. 103
Condenser only performance data notes............................................................................................. 103
Cooling performance data - 3.5 ton................................................................................................ 104
Cooling performance data notes........................................................................................................... 104
Multipliers for determining the performance with other indoor sections.................................104
Cool multiplier air handler - 3.5 ton................................................................................................ 104
Cool multiplier furnace - 3.5 ton...................................................................................................... 106
Performance data - 4 ton............................................................................................................................ 115
Condenser only performance data - 4 ton..................................................................................... 115
Condenser only performance data notes............................................................................................. 115
Cooling performance data - 4 ton................................................................................................... 116
Cooling performance data notes........................................................................................................... 116
Multipliers for determining the performance with other indoor sections.................................116
Cool multiplier air handler - 4 ton................................................................................................... 116
Cool multiplier furnace - 4 ton......................................................................................................... 118
Performance data - 5 ton............................................................................................................................ 126
Condenser only performance data - 5 ton..................................................................................... 126
Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase4
Johnson Controls Ducted Systems

Condenser only performance data notes............................................................................................. 126
Cooling performance data - 5 ton................................................................................................... 127
Cooling performance data notes........................................................................................................... 127
Multipliers for determining the performance with other indoor sections.................................127
Cool multiplier air handler - 5 ton................................................................................................... 127
Cool multiplier furnace - 5 ton......................................................................................................... 128
5Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase
Johnson Controls Ducted Systems

6 Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase
Johnson Controls Ducted Systems

Description
The TCD2B models are part of our successful 13.4 SEER2 Regional Minimum Efficiency in the
northern United States and Canada. These outdoor units are specifically designed to be matched
with our residential indoor coils, furnaces, and air handlers to provide a complete system solution.

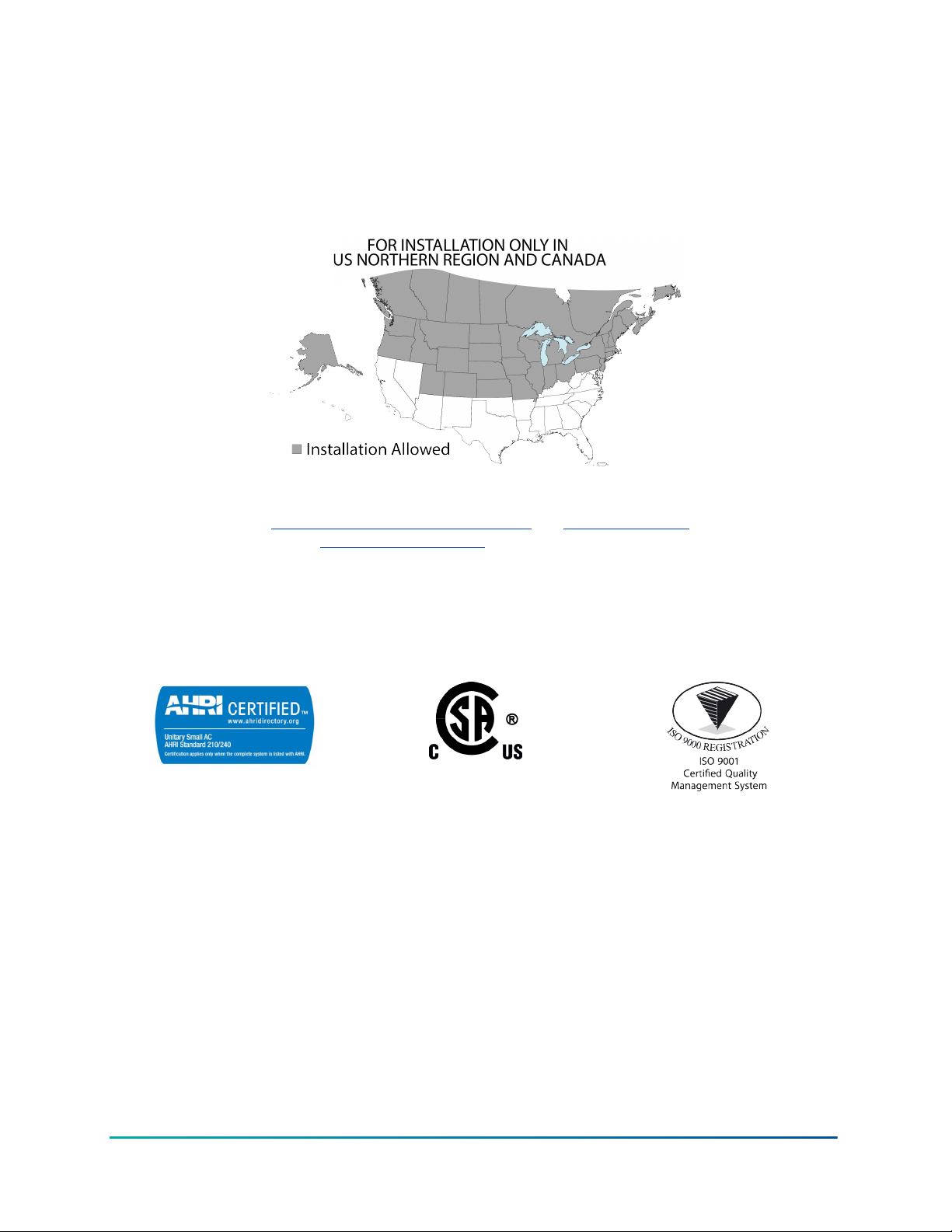

Figure 1: Installation map
Due to continuous product improvement, specifications are subject to change without notice.
Visit us on the web at www.simplygettingthejobdone.com andwww.luxaire.com.Additional rating
information can be found at www.ahridirectory.org.
This document is only for distribution use - it is not to be used at point of retail sale.
Certification
Warranty summary
Standard 5-year limited parts warranty.
Standard 10-year limited compressor warranty.
Extended 10-year limited parts warranty when product is registered online within 90 days of
purchase for replacement or closing for new home construction.
Warranty does not apply to R-22 models, three-phase models, or Internet sales.
See the limited warranty certificate in the User's Information Manual for details.
7Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase
Johnson Controls Ducted Systems

Features
•Small footprint - Minimum footprint for easier handling, transportation, and installation.
•Easier installation - Independent panels provide quick access for unit setup. Installation
time is reduced by easy power and control wiring access. Select indoor matches with factory-
mounted TXVs are available for quicker system installation. The filter-drier is shipped loose for
installation in the field. The unit is factory-charged for 15 ft refrigeration piping. The small base
dimension and reduced unit clearances make for easier retrofits.
•Accessible information - QR code on unit provides quick access to technical documents and
warranty information.
•Durable finish - The coated steel wire fan guard, coated external fasteners, and pre-
treated G90-equivalent galvanized steel chassis components resist corrosion and rust creep.
Champagne colored powdercoat paint further protects external panels.
•Quality coils - The high efficiency microchannel aluminum coil is manufactured using an
improved material system, providing reliable performance and small unit size.
•Rugged coil protection - Coils are protected from mechanical damage by a proven stamped
steel coil guard design.
•Protected compressor - Compressors are protected internally by a high-pressure relief valve
and a temperature sensor, and externally by the system high-pressure switch.
•Reliable operation - Ball bearing fan motors provide superior performance in extreme
temperatures.
•Environmentally friendly - CFC-free R-410A refrigerant delivers environmentally friendly
performance with zero ozone depletion.
•Top discharge - Warm air is blown up, away from the structure and any landscaping, allowing
compact location on multi-unit applications.
•Low operating sound levels - Developed using CFD and FEA tools, the sturdy cabinet and top
design provides sound performance of 76 dBA or lower. Compatible accessories for further
sound reduction are also available.
•Better service access - Diagonal base valves with open access for low-loss fittings, single
panel access to the electrical controls, swing out control box for full corner access, and
removable fan guard allow easy access for unit maintenance.
•Agency listed - Safety certified by CSA to UL 1995/CSA 22.2. Performance certified to ANSI/
AHRI Standard 210/240 in accordance with the Unitary Small Equipment certification program.
Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase8
Johnson Controls Ducted Systems

Nomenclature
Table 1: Nomenclature
Brand T T = as manufactured
Product type C C = air conditioner
Nominal series efficiency and staging D2 D2 = 13.4 (SEER2 - US northern region)
Refrigerant B B = R-410A
18 = 1.5 ton
24 = 2 ton
30 = 2.5 ton
36 = 3 ton
42 = 3.5 ton
48 = 4 ton
Nominal unit capacity (MBH) 18
60 = 5 ton
Staging S S = single-stage
T = two-stage
M = modulating
V = variable capacity
Refrigerant B B = R-410A
Voltage (voltage-phase-hertz) 2 2 = 208/230-1-60
1 = first generationGeneration (major revision) 1
2 = second generation
Factory option S S = standard (no options)
A = style AStyle letter (minor revision)
not used for ordering
A
B = style B
Physical and electrical data
Table 2: Physical and electrical data
Outdoor unit model TCD2B18S21S TCD2B24S21S TCD2B30S21S TCD2B36S21S TCD2B42S21S TCD2B48S21S TCD2B60S21S
Unit supply voltage 208/230 V, 1 phase, 60 Hz
Normal voltage
range (V)1
187 to 252
Minimum circuit
ampacity (A)
8.9 11.3 15.3 19.6 21.1 25.7 29.1
Maximum
overcurrent device
(A)2
15 15 25 30 35 45 50
Minimum
overcurrent device
(A)3
15 15 20 20 25 30 30
Compressor type4Rotary Rotary Scroll Scroll Scroll Scroll Scroll
Compressor rated
load
6.5 8.4 11.7 14.7 15.9 19.5 22.2
Compressor locked
rotor
33.0 53.0 71.3 75.0 112.3 130.0 128.0
Crankcase heater No No No No No No No
9Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase
Johnson Controls Ducted Systems

Table 2: Physical and electrical data
Outdoor unit model TCD2B18S21S TCD2B24S21S TCD2B30S21S TCD2B36S21S TCD2B42S21S TCD2B48S21S TCD2B60S21S
Factory external
discharge muffler
No No No No No No No
HS kit required with
TXV
No No No No No No No
HS Kit Part Number
(S1-2SA067*****)5
22006 22006 10106 10106 10106 10106 10106
Fan diameter (in.) 18 18 18 22 22 24 26
Fan motor type PSC PSC PSC PSC PSC PSC PSC
Fan motor rated HP 1/8 1/8 1/8 1/4 1/4 1/4 1/4
Fan motor rated load
(A)
0.7 0.7 0.7 1.3 1.3 1.3 1.3
Fan motor nominal
RPM
1075 1075 1075 850 850 850 850
Fan motor nominal
CFM
2150 2575 2575 2875 3350 3550 4300
Coil face area (sq. ft) 11.07 12.45 12.45 13.83 17.37 18.74 23.40
Coil rows deep 1 1 1 1 1 1 1
Coil fins per inch 23 23 23 23 23 23 23
Liquid refrigeration
piping outdoor unit
(field-installed)
3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor refrigeration
piping outdoor unit
(field-installed)6
3/4 3/4 3/4 3/4 7/8 7/8 1 1/8‡
Unit charge (lb-oz)73-3 3-4 3-4 4-3 4-15 4-11 5-9
Charge (oz/ft) 0.62 0.62 0.62 0.62 0.67 0.67 0.75
Operating weight (lb) 120 135 130 150 195 200 230
Physical and electrical data notes
1. Rated in accordance with AHRI Standard 110-2012, utilization range A.
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4. Rotary compressor models are limited to an equivalent length of refrigeration piping of 100 ft
with no exceptions.
5. Refer to the Hard Start Kit Accessory Installation Manual for the hard start kit part number for
each model. The hard start kit is a field installed accessory.
6. For applications with non-standard vapor line sizes, refer to the Applications and accessories
section.
7. The unit charge is correct for the outdoor unit, smallest matched indoor unit, and 15 ft
of refrigerant tubing. For tubing lengths other than 15 ft, add or subtract the amount of
refrigerant, using the difference in actual refrigeration piping length (not the equivalent
length) multiplied by the per foot value.
‡ The adapter fitting must be field installed for the required 1 1/8 in. refrigeration piping.
Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase10
Johnson Controls Ducted Systems

Illustration of dimensions
Figure 2: Unit dimensions
Dimensions
Table 3: Dimensions
Dimensions (in.) Refrigerant connection
service valve size (in.)
Outdoor unit
model
A B C Liquid Vapor
TCD2B18S21S 30 24 24
TCD2B24S21S 33 1/4 24 24
TCD2B30S21S 33 1/4 24 24
TCD2B36S21S 30 29 1/4 29 1/4
3/4
TCD2B42S21S 36 1/4 29 1/4 29 1/4
TCD2B48S21S 33 1/4 35 1/4 31 3/4
7/8
TCD2B60S21S 36 1/4 38 34 1/4
3/8
7/8‡
Dimensions data notes
‡ The adapter fitting must be field-installed for the required 1 1/8 in. refrigeration piping.
• All dimensions are in inches and are subject to change without notice.
• The overall height is from the bottom of the base pan to the top of the fan guard.
• The overall length and width include screw heads.
11Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase
Johnson Controls Ducted Systems

System charge table
Table 4: System charge
Outdoor unit model TCD2B18S21S TCD2B24S21S TCD2B30S21S TCD2B36S21S TCD2B42S21S TCD2B48S21S TCD2B60S21S
Required indoor
metering device1,2
BA1 BA1 BA1 BC1 BC1 BC1 BC1
Indoor coil
model3,4,5
Additional charge (oz)
JHETB18B 2 — — — — — —
JHETB24C — 3 — — — — —
JHETB30D — — 6 — — — —
JHETB36D — — 6 0 — — —
JHETC36D — — 6 0 — — —
JHETC42F — — — — 2 — —
JHETC48G — — — — — 5 —
JHETD48G — — — — — 5 —
JHETC60H — — — — — — 6
JHETD60H — — — — — — 6
JHVTB18B 2 — — — — — —
JHVTB24C — 3 — — — — —
JHVTB36D — — 6 0 — — —
JHVTC36D — — 6 0 — — —
JHVTC42F — — — — 2 — —
JHVTD42F — — — — 2 — —
JHVTC48G — — — — — 5 —
JHVTD48G — — — — — 5 —
JHVTC60H — — — — — — 6
JHVTD60H — — — — — — 6
XAF/XAU/XAHA18A 0 — — — — — —
XAFB18A 0 — — — — — —
XAF/XAU/XAHA24B 2 0 — — — — —
XAF/XAHB24B 2 0 — — — — —
XAFA30D — — 6 — — — —
XAF/XAHC30C — 3 0 — — — —
XAF/XAU/XAHB30C — 3 0 — — — —
XAFA30D — — 6 — — — —
XAF/XAU/XAHB36D — — 6 0 — — —
XAFB36E — — — 2 — — —
XAF/XAHC36D — — 6 0 — — —
XAF/XAU/XAHC42E — — — 2 0 — —
XAF/XAHD42E — — — 2 0 — —
XAF/XAU/XAHC48F — — — — 2 0 —
XAF/XAHD48F — — — — 2 0 —
XAF/XAU/XAHC60G — — — — — 5 0
XAF/XAU/XAHD60G — — — — — 5 0
XAF/XAHC60H — — — — — — 6
XAF/XAU/XAHD60H — — — — — — 6
Some of the combinations shown in the above System Charge table require Advanced Main Air Circulating Fan indoor
product. For approved coil only matches, please see the Coil only capacity table.
System charge A-coil data notes
1. For applications requiring a TXV, use S1-1TVM*** series kit.
2. A TXV kit must be used with these indoor units to obtain system performance.
Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase12
Johnson Controls Ducted Systems

3. Systems matched with furnaces or air handlers not equipped with blower-off delays may
require blower time delay.
4. Do not use XAF/XAU coils in horizontal applications. Do not use XAH coils in upflow/downflow
applications.
5. Charge adders shown above do not indicate that coils are rated for every application. Refer
to the Performance data tables for actual performance for specified system matches. Obtain
certified system ratings from http://www.ahridirectory.org.
Charging
1. Check the factory unit charge listed on the unit nameplate to verify the refrigerant charge
for the outdoor unit, the smallest matched indoor unit, and the 15 ft of interconnecting
refrigeration piping.
2. Verify the indoor metering device and additional charge required for the specific matched
indoor unit in the system using Table 4.
3. Add additional charge for the amount of interconnecting refrigeration piping greater than 15
ft at the rate specified in Table 2.
4. For installations requiring additional charge, weigh in refrigerant for the specific matching
indoor unit and actual refrigeration piping length.
5. After weighing in the charge adders for the matched indoor unit and refrigeration piping,
verify the system operation against the temperatures and pressures in the charging chart
for the outdoor unit. Locate the charging charts on the outdoor unit and in the Service Data
Application Guide on www.simplygettingthejobdone.com. Follow the subcool or superheat
charging procedure in the Installation Manual according to the type of indoor metering device
in the system, and allow 10 min after each charge adjustment for the system operation to
stabilize. Record the charge adjustment made to match the charging chart.
6. Permanently stamp the unit nameplate with the total system charge defined as follows: total
system charge = base charge (as shipped) + charge adder for matched indoor unit + charge
adder for actual refrigeration piping length + charge adjustments to match the charging
chart.
Air handler capacity
Table 5: Air handler capacity
Outdoor unit model Air handler model Air handler
width (in.)
Indoor coil model Rated CFM Net cool
(MBH)
Sens cool
(MBH)
SEER2 EER2
TCD2B18S21S EBE15A 19.6 XAF/XAUA24B 725 18.00 13.90 14.00 12.00
TCD2B18S21S EBE15A 19.6 XAHA18A 725 18.00 13.80 13.75 11.75
TCD2B18S21S EBE15A 19.6 XAHA24B 725 18.00 13.90 14.00 12.00
TCD2B18S21S JHETB18BXXS2N1 17.5 — 650 18.00 13.30 15.00 12.50
TCD2B18S21S JHVTB18BXXC2N1 17.5 — 725 18.00 13.80 15.00 12.50
TCD2B18S21S JMET08BS2N1 17.5 XAFB18A 650 18.00 12.90 16.00 13.00
TCD2B18S21S JMET08BS2N1 17.5 XAFB18A 725 18.00 13.70 15.00 12.50
TCD2B18S21S JMET08BS2N1 17.5 XAFB24B 650 18.00 13.00 16.00 13.00
TCD2B18S21S JMET08BS2N1 17.5 XAFB24B 725 18.00 13.80 15.00 12.50
TCD2B18S21S JMET08BS2N1 17.5 XAHB24B 700 18.00 13.70 15.00 12.50
TCD2B18S21S JMET12BS2N1 17.5 XAFB18A 575 17.80 12.30 16.00 13.00
TCD2B18S21S JMET12BS2N1 17.5 XAFB18A 650 18.00 13.30 14.75 12.25
TCD2B18S21S JMET12BS2N1 17.5 XAFB24B 575 17.80 12.30 16.00 13.00
TCD2B18S21S JMET12BS2N1 17.5 XAFB24B 675 18.00 13.50 15.00 12.50
TCD2B18S21S JMET12BS2N1 17.5 XAHB24B 650 18.00 13.30 15.00 12.50
13Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase
Johnson Controls Ducted Systems

Table 5: Air handler capacity
Outdoor unit model Air handler model Air handler
width (in.)
Indoor coil model Rated CFM Net cool
(MBH)
Sens cool
(MBH)
SEER2 EER2
TCD2B18S21S JMVT12BC2N1 17.5 XAFB18A 650 18.00 12.90 16.00 13.00
TCD2B18S21S JMVT12BC2N1 17.5 XAFB18A 725 18.00 13.80 14.75 12.25
TCD2B18S21S JMVT12BC2N1 17.5 XAFB24B 650 18.00 13.00 16.00 13.00
TCD2B18S21S JMVT12BC2N1 17.5 XAFB24B 725 18.00 13.80 15.00 12.50
TCD2B18S21S JMVT12BC2N1 17.5 XAHB24B 725 18.00 13.80 15.00 12.50
TCD2B24S21S EBE15A 19.6 XAF/XAUA24B 725 24.00 16.90 14.75 12.50
TCD2B24S21S EBE15A 19.6 XAF/XAUB30C 775 24.00 17.50 15.25 13.00
TCD2B24S21S EBE15A 19.6 XAFB24B 750 24.00 17.00 15.00 12.75
TCD2B24S21S EBE15A 19.6 XAFC30C 775 24.00 17.50 15.25 13.00
TCD2B24S21S EBE15A 19.6 XAHA24B 725 24.00 16.90 14.75 12.50
TCD2B24S21S EBE15A 19.6 XAHB24B 750 24.00 17.00 15.00 12.75
TCD2B24S21S EBE15A 19.6 XAHB30C 750 24.00 17.30 15.25 13.00
TCD2B24S21S EBE15A 19.6 XAHC30C 775 24.00 17.50 15.25 13.00
TCD2B24S21S JHETB18BXXS2N1 17.5 — 725 24.00 16.90 14.75 12.25
TCD2B24S21S JHETB24CXXS2N1 17.5 — 750 24.00 17.30 15.00 12.50
TCD2B24S21S JHVTB18BXXC2N1 17.5 — 775 24.00 17.20 14.75 12.25
TCD2B24S21S JHVTB24CXXC2N1 17.5 — 800 24.00 17.70 15.00 12.50
TCD2B24S21S JMET08BS2N1 17.5 XAF/XAUB30C 850 24.00 17.40 16.00 13.00
TCD2B24S21S JMET08BS2N1 17.5 XAF/XAUB30C 725 24.00 17.10 15.00 12.50
TCD2B24S21S JMET08BS2N1 17.5 XAFB24B 825 24.00 16.90 15.75 12.75
TCD2B24S21S JMET08BS2N1 17.5 XAFB24B 725 24.00 16.80 14.75 12.25
TCD2B24S21S JMET08BS2N1 17.5 XAHB24B 700 24.00 16.70 14.50 12.25
TCD2B24S21S JMET08BS2N1 17.5 XAHB30C 700 24.00 17.00 15.00 12.50
TCD2B24S21S JMET12BS2N1 17.5 XAF/XAUB30C 850 24.00 17.40 16.00 13.00
TCD2B24S21S JMET12BS2N1 17.5 XAF/XAUB30C 800 24.00 17.60 15.00 12.50
TCD2B24S21S JMET12BS2N1 17.5 XAFB24B 850 24.00 17.10 15.75 12.75
TCD2B24S21S JMET12BS2N1 17.5 XAFB24B 775 24.00 17.20 14.75 12.25
TCD2B24S21S JMET12BS2N1 17.5 XAHB24B 775 24.00 17.20 14.50 12.25
TCD2B24S21S JMET12BS2N1 17.5 XAHB30C 775 24.00 17.50 15.00 12.50
TCD2B24S21S JMET12CS2N1 21.0 XAFC30C 850 24.00 17.40 16.00 13.00
TCD2B24S21S JMET12CS2N1 21.0 XAFC30C 950 24.00 18.70 15.00 12.50
TCD2B24S21S JMET12CS2N1 21.0 XAHC30C 925 24.00 18.50 14.75 12.25
TCD2B24S21S JMET16CS2N1 21.0 XAFC30C 850 24.00 17.40 16.00 13.00
TCD2B24S21S JMET16CS2N1 21.0 XAFC30C 950 24.00 18.70 15.00 12.50
TCD2B24S21S JMET16CS2N1 21.0 XAHC30C 925 24.00 18.50 15.00 12.50
TCD2B24S21S JMVT12BC2N1 17.5 XAF/XAUB30C 800 24.00 17.10 16.00 13.00
TCD2B24S21S JMVT12BC2N1 17.5 XAF/XAUB30C 825 24.00 17.80 15.00 12.50
TCD2B24S21S JMVT12BC2N1 17.5 XAFB24B 850 24.00 17.10 15.75 12.75
TCD2B24S21S JMVT12BC2N1 17.5 XAFB24B 825 24.00 17.50 14.50 12.25
TCD2B24S21S JMVT12BC2N1 17.5 XAHB24B 775 24.00 17.20 14.50 12.25
TCD2B24S21S JMVT12BC2N1 17.5 XAHB30C 825 24.00 17.80 15.00 12.50
TCD2B24S21S JMVT16CC2N1 21.0 XAFC30C 950 24.00 18.00 16.00 13.00
TCD2B24S21S JMVT16CC2N1 21.0 XAFC30C 900 24.00 18.30 15.00 12.50
TCD2B24S21S JMVT16CC2N1 21.0 XAHC30C 825 24.00 17.80 15.00 12.50
TCD2B24S21S JMVT17CC2N1 21.0 XAFC30C 900 24.00 17.70 16.00 13.00
TCD2B24S21S JMVT17CC2N1 21.0 XAFC30C 800 24.00 17.60 15.00 12.50
TCD2B24S21S JMVT17CC2N1 21.0 XAHC30C 800 24.00 17.60 15.00 12.50
TCD2B30S21S EBE15A 19.6 XAF/XAUB30C 925 28.80 21.00 14.00 12.00
TCD2B30S21S EBE15A 19.6 XAF/XAUB36D 900 28.80 20.60 14.00 12.00
TCD2B30S21S EBE15A 19.6 XAFC30C 925 28.80 21.00 14.00 12.00
TCD2B30S21S EBE15A 19.6 XAHB30C 900 28.80 20.80 13.75 11.75
TCD2B30S21S EBE15A 19.6 XAHB36D 875 28.80 20.40 13.75 11.75
TCD2B30S21S EBE15A 19.6 XAHC30C 900 28.80 20.80 13.75 11.75
TCD2B30S21S EBE15A 19.6 XAHC36D 900 28.80 20.60 14.00 12.00
TCD2B30S21S JHETB30DXXS2N1 17.5 — 950 29.40 21.40 14.50 12.00
TCD2B30S21S JHETB36DXXS2N1 17.5 — 1200 29.80 23.20 14.00 11.75
TCD2B30S21S JHETC36DXXS2N1 21.0 — 800 28.60 19.70 14.75 12.25
TCD2B30S21S JHVTB36DXXC2N1 17.5 — 850 28.60 20.00 14.50 12.00
TCD2B30S21S JHVTC36DXXC2N1 21.0 — 1050 29.80 22.20 14.75 12.25
TCD2B30S21S JMET12BS2N1 17.5 XAF/XAUB30C 800 28.60 20.00 14.75 12.25
TCD2B30S21S JMET12BS2N1 17.5 XAF/XAUB36D 1175 29.80 23.00 14.25 12.00
TCD2B30S21S JMET12BS2N1 17.5 XAHB30C 1150 29.60 23.40 14.00 11.75
TCD2B30S21S JMET12CS2N1 21.0 XAFC30C 950 29.40 21.60 14.75 12.25
Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase14
Johnson Controls Ducted Systems

Table 5: Air handler capacity
Outdoor unit model Air handler model Air handler
width (in.)
Indoor coil model Rated CFM Net cool
(MBH)
Sens cool
(MBH)
SEER2 EER2
TCD2B30S21S JMET12CS2N1 21.0 XAHC30C 925 29.20 21.40 14.50 12.00
TCD2B30S21S JMET12CS2N1 21.0 XAHC36D 925 29.20 21.00 14.75 12.25
TCD2B30S21S JMET16CS2N1 21.0 XAFC30C 950 29.40 21.60 14.75 12.25
TCD2B30S21S JMET16CS2N1 21.0 XAHC30C 925 29.20 21.40 14.75 12.25
TCD2B30S21S JMET16CS2N1 21.0 XAHC36D 900 29.20 20.80 14.75 12.25
TCD2B30S21S JMVT12BC2N1 17.5 XAF/XAUB30C 825 28.60 20.20 14.75 12.25
TCD2B30S21S JMVT12BC2N1 17.5 XAF/XAUB36D 825 28.60 19.90 14.75 12.25
TCD2B30S21S JMVT12BC2N1 17.5 XAHB30C 900 29.20 21.20 14.50 12.00
TCD2B30S21S JMVT12BC2N1 17.5 XAHB36D 875 29.00 20.60 14.50 12.00
TCD2B30S21S JMVT16CC2N1 21.0 XAFC30C 900 29.20 21.20 14.75 12.25
TCD2B30S21S JMVT16CC2N1 21.0 XAHC30C 900 29.20 21.20 14.75 12.25
TCD2B30S21S JMVT16CC2N1 21.0 XAHC36D 975 29.40 21.40 14.75 12.25
TCD2B36S21S EBE15A 19.6 XAF/XAUB36D 1075 35.80 25.80 13.75 11.75
TCD2B36S21S EBE15A 19.6 XAF/XAUC42E 1075 36.00 26.00 14.00 11.75
TCD2B36S21S EBE15A 19.6 XAFB36E 1050 35.80 25.60 13.75 11.75
TCD2B36S21S EBE15A 19.6 XAFC36D 1075 35.80 25.80 13.75 11.75
TCD2B36S21S EBE15A 19.6 XAHB36D 1025 35.40 25.20 13.75 11.50
TCD2B36S21S EBE15A 19.6 XAHC36D 1075 35.80 25.80 13.75 11.75
TCD2B36S21S EBE15A 19.6 XAHC42E 1075 36.00 26.00 13.75 11.75
TCD2B36S21S JHETB36DXXS2N1 17.5 — 1200 36.00 26.80 14.25 11.75
TCD2B36S21S JHETC36DXXS2N1 21.0 — 1175 36.00 26.60 14.50 12.00
TCD2B36S21S JHVTB36DXXC2N1 17.5 — 1000 35.40 25.00 14.25 12.00
TCD2B36S21S JHVTC36DXXC2N1 21.0 — 1050 36.00 25.60 14.75 12.25
TCD2B36S21S JMET12BS2N1 17.5 XAF/XAUB36D 1250 36.00 26.40 14.75 12.50
TCD2B36S21S JMET12BS2N1 17.5 XAF/XAUB36D 1175 36.00 26.60 14.25 12.00
TCD2B36S21S JMET12BS2N1 17.5 XAFB36E 1250 36.00 26.40 14.75 12.50
TCD2B36S21S JMET12BS2N1 17.5 XAFB36E 1150 36.00 26.40 14.25 12.00
TCD2B36S21S JMET12BS4N1 17.5 XAF/XAUB36D 1225 36.00 27.00 14.25 11.75
TCD2B36S21S JMET12BS4N1 17.5 XAFB36E 1225 36.00 27.20 14.25 11.75
TCD2B36S21S JMET12CS2N1 21.0 XAF/XAUC42E 1100 36.00 25.20 15.50 12.75
TCD2B36S21S JMET12CS2N1 21.0 XAF/XAUC42E 1125 36.00 26.20 14.75 12.25
TCD2B36S21S JMET12CS2N1 21.0 XAFC36D 1100 36.00 25.20 15.50 12.75
TCD2B36S21S JMET12CS2N1 21.0 XAFC36D 1100 36.00 26.00 14.50 12.00
TCD2B36S21S JMET12CS2N1 21.0 XAHC36D 1100 36.00 26.00 14.50 12.00
TCD2B36S21S JMET12CS2N1 21.0 XAHC42E 1100 36.00 26.00 14.50 12.00
TCD2B36S21S JMET12CS4N1 21.0 XAF/XAUC42E 1000 35.60 25.00 14.75 12.25
TCD2B36S21S JMET12CS4N1 21.0 XAFC36D 1000 35.60 25.00 14.50 12.00
TCD2B36S21S JMET12CS4N1 21.0 XAHC36D 975 35.40 24.60 14.50 12.00
TCD2B36S21S JMET12CS4N1 21.0 XAHC42E 975 35.40 24.60 14.50 12.00
TCD2B36S21S JMET16CS2N1 21.0 XAF/XAUC42E 1100 36.00 25.20 15.50 12.75
TCD2B36S21S JMET16CS2N1 21.0 XAFC36D 1075 35.80 25.00 15.50 12.75
TCD2B36S21S JMET18DS2N1 24.5 XAFD42E 1075 36.00 25.00 15.50 12.75
TCD2B36S21S JMVT12BC2N1 17.5 XAF/XAUB36D 1025 35.60 24.40 15.25 12.75
TCD2B36S21S JMVT12BC2N1 17.5 XAF/XAUB36D 975 35.40 24.60 14.50 12.00
TCD2B36S21S JMVT12BC2N1 17.5 XAFB36E 1100 36.00 25.40 15.25 12.75
TCD2B36S21S JMVT12BC2N1 17.5 XAFB36E 975 35.40 24.60 14.50 12.00
TCD2B36S21S JMVT12BC2N1 17.5 XAHB36D 975 35.40 24.80 14.25 12.00
TCD2B36S21S JMVT16CC2N1 21.0 XAF/XAUC42E 1025 35.60 24.40 15.50 12.75
TCD2B36S21S JMVT16CC2N1 21.0 XAF/XAUC42E 1050 36.00 25.60 14.75 12.25
TCD2B36S21S JMVT16CC2N1 21.0 XAFC36D 1025 35.60 24.40 15.50 12.75
TCD2B36S21S JMVT16CC2N1 21.0 XAFC36D 975 35.40 24.60 14.75 12.25
TCD2B36S21S JMVT16CC2N1 21.0 XAHC36D 975 35.40 24.60 14.75 12.25
TCD2B36S21S JMVT16CC2N1 21.0 XAHC42E 1050 36.00 25.60 14.75 12.25
TCD2B36S21S JMVT17CC2N1 21.0 XAF/XAUC42E 1050 35.80 24.60 15.50 12.75
TCD2B36S21S JMVT17CC2N1 21.0 XAFC36D 1050 35.80 24.60 15.50 12.75
TCD2B36S21S JMVT20DC2N1 24.5 XAFD42E 1150 36.00 25.60 15.50 12.75
TCD2B42S21S EBE15A 19.6 XAF/XAUC42E 1275 41.00 30.80 14.25 12.25
TCD2B42S21S EBE15A 19.6 XAF/XAUC48F 1300 41.50 31.00 14.50 12.25
TCD2B42S21S EBE15A 19.6 XAFD42E 1300 41.50 31.40 14.50 12.25
TCD2B42S21S EBE15A 19.6 XAFD48F 1300 41.50 31.00 14.50 12.25
TCD2B42S21S EBE15A 19.6 XAHC42E 1250 41.00 30.60 14.25 12.25
TCD2B42S21S EBE15A 19.6 XAHC48F 1300 41.50 31.00 14.50 12.25
TCD2B42S21S EBE15A 19.6 XAHD42E 1275 41.00 30.80 14.25 12.25
15Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase
Johnson Controls Ducted Systems

Table 5: Air handler capacity
Outdoor unit model Air handler model Air handler
width (in.)
Indoor coil model Rated CFM Net cool
(MBH)
Sens cool
(MBH)
SEER2 EER2
TCD2B42S21S EBE15A 19.6 XAHD48F 1300 41.50 31.00 14.50 12.25
TCD2B42S21S JHETC42FXXS2N1 21.0 — 1325 40.50 30.40 14.25 12.00
TCD2B42S21S JHVTC42FXXC2N1 21.0 — 1250 40.00 29.20 14.50 12.25
TCD2B42S21S JHVTD42FXXC2N1 24.5 — 1225 40.00 29.00 14.75 12.25
TCD2B42S21S JMET12CS2N1 21.0 XAF/XAUC42E 1250 41.00 29.40 15.25 12.75
TCD2B42S21S JMET12CS2N1 21.0 XAF/XAUC42E 1300 40.50 30.60 14.25 12.00
TCD2B42S21S JMET12CS2N1 21.0 XAF/XAUC48F 1275 41.00 29.20 15.25 12.75
TCD2B42S21S JMET12CS2N1 21.0 XAF/XAUC48F 1325 40.50 30.20 14.25 12.00
TCD2B42S21S JMET12CS2N1 21.0 XAHC48F 1325 40.50 30.20 14.25 12.00
TCD2B42S21S JMET16CS2N1 21.0 XAF/XAUC42E 1275 41.00 29.60 15.25 12.75
TCD2B42S21S JMET16CS2N1 21.0 XAF/XAUC42E 1550 42.00 33.80 14.25 12.20
TCD2B42S21S JMET16CS2N1 21.0 XAF/XAUC48F 1300 41.50 29.80 15.25 12.75
TCD2B42S21S JMET16CS2N1 21.0 XAF/XAUC48F 1575 42.00 33.60 14.25 12.20
TCD2B42S21S JMET16CS2N1 21.0 XAHC48F 1575 42.00 33.60 14.25 12.20
TCD2B42S21S JMET18DS2N1 24.5 XAFD42E 1225 41.00 29.00 15.50 12.75
TCD2B42S21S JMET18DS2N1 24.5 XAFD42E 1550 41.00 32.80 14.25 11.75
TCD2B42S21S JMET18DS2N1 24.5 XAFD48F 1225 41.00 28.80 15.50 12.75
TCD2B42S21S JMET18DS2N1 24.5 XAFD48F 1575 41.00 32.60 14.25 11.75
TCD2B42S21S JMET18DS2N1 24.5 XAHD48F 1550 41.00 32.40 14.25 11.75
TCD2B42S21S JMVT16CC2N1 21.0 XAF/XAUC42E 1300 41.50 30.00 15.25 12.75
TCD2B42S21S JMVT16CC2N1 21.0 XAF/XAUC42E 1200 40.00 29.20 14.50 12.25
TCD2B42S21S JMVT16CC2N1 21.0 XAF/XAUC48F 1300 41.50 29.60 15.50 12.75
TCD2B42S21S JMVT16CC2N1 21.0 XAF/XAUC48F 1200 40.00 29.00 14.50 12.25
TCD2B42S21S JMVT16CC2N1 21.0 XAHC42E 1200 40.00 29.20 14.50 12.00
TCD2B42S21S JMVT16CC2N1 21.0 XAHC48F 1200 40.00 28.80 14.75 12.25
TCD2B42S21S JMVT17CC2N1 21.0 XAF/XAUC42E 1200 41.00 29.00 15.25 12.75
TCD2B42S21S JMVT17CC2N1 21.0 XAF/XAUC42E 1200 40.00 29.20 14.50 12.25
TCD2B42S21S JMVT17CC2N1 21.0 XAF/XAUC48F 1200 41.00 28.60 15.50 12.75
TCD2B42S21S JMVT17CC2N1 21.0 XAF/XAUC48F 1200 40.00 29.00 14.50 12.25
TCD2B42S21S JMVT17CC2N1 21.0 XAHC42E 1200 40.00 29.20 14.25 12.00
TCD2B42S21S JMVT17CC2N1 21.0 XAHC48F 1200 40.00 28.80 14.75 12.25
TCD2B42S21S JMVT20DC2N1 24.5 XAFD42E 1350 41.50 30.40 15.50 12.75
TCD2B42S21S JMVT20DC2N1 24.5 XAFD42E 1250 40.00 29.60 14.50 12.25
TCD2B42S21S JMVT20DC2N1 24.5 XAFD48F 1350 41.50 30.00 15.50 12.75
TCD2B42S21S JMVT20DC2N1 24.5 XAFD48F 1250 40.00 29.20 14.75 12.25
TCD2B42S21S JMVT20DC2N1 24.5 XAHD42E 1250 40.00 29.60 14.50 12.25
TCD2B42S21S JMVT20DC2N1 24.5 XAHD48F 1250 40.00 29.20 14.75 12.25
TCD2B48S21S EBE15A 19.6 XAF/XAUC48F 1575 46.50 34.20 13.40 11.00
TCD2B48S21S EBE15A 19.6 XAF/XAUC60G 1600 47.50 35.00 13.50 11.25
TCD2B48S21S EBE15A 19.6 XAF/XAUD60G 1600 47.50 35.00 13.50 11.25
TCD2B48S21S EBE15A 19.6 XAFD48F 1600 47.00 34.80 13.40 11.00
TCD2B48S21S EBE15A 19.6 XAHC48F 1575 46.50 34.20 13.40 11.00
TCD2B48S21S EBE15A 19.6 XAHC60G 1325 47.00 32.20 13.50 11.25
TCD2B48S21S EBE15A 19.6 XAHD48F 1575 46.50 34.20 13.40 11.00
TCD2B48S21S EBE15A 19.6 XAHD60G 1575 47.50 34.80 13.50 11.25
TCD2B48S21S JHETC48GXXS2N1 21.0 — 1575 48.00 34.80 14.25 12.00
TCD2B48S21S JHETD48GXXS2N1 24.5 — 1375 47.50 32.80 14.50 12.00
TCD2B48S21S JHVTC48GXXC2N1 21.0 — 1325 47.50 32.40 14.50 12.00
TCD2B48S21S JHVTD48GXXC2N1 24.5 — 1400 48.00 33.40 14.50 12.00
TCD2B48S21S JMET12CS2N1 21.0 XAF/XAUC48F 1325 46.50 31.80 14.25 12.00
TCD2B48S21S JMET12CS2N1 21.0 XAF/XAUC60G 1350 47.50 32.60 14.25 12.00
TCD2B48S21S JMET12CS2N1 21.0 XAHC48F 1325 46.50 31.80 14.25 12.00
TCD2B48S21S JMET12CS2N1 21.0 XAHC60G 1350 47.50 32.60 14.50 12.00
TCD2B48S21S JMET16CS2N1 21.0 XAF/XAUC48F 1575 47.50 34.60 14.00 11.75
TCD2B48S21S JMET16CS2N1 21.0 XAF/XAUC60G 1600 48.00 35.20 14.25 12.00
TCD2B48S21S JMET16CS2N1 21.0 XAHC48F 1575 47.50 34.60 14.00 11.75
TCD2B48S21S JMET16CS2N1 21.0 XAHC60G 1600 48.00 35.20 14.25 12.00
TCD2B48S21S JMET18DS2N1 24.5 XAF/XAUD60G 1575 48.00 34.80 14.25 12.00
TCD2B48S21S JMET18DS2N1 24.5 XAFD48F 1575 48.00 34.80 14.25 12.00
TCD2B48S21S JMET18DS2N1 24.5 XAHD48F 1550 47.50 34.40 14.25 11.75
TCD2B48S21S JMET18DS2N1 24.5 XAHD60G 1550 48.00 34.60 14.25 12.00
TCD2B48S21S JMVT16CC2N1 21.0 XAF/XAUC48F 1400 47.00 32.80 14.25 12.00
TCD2B48S21S JMVT16CC2N1 21.0 XAF/XAUC60G 1400 48.00 33.40 14.50 12.00
Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase16
Johnson Controls Ducted Systems

Table 5: Air handler capacity
Outdoor unit model Air handler model Air handler
width (in.)
Indoor coil model Rated CFM Net cool
(MBH)
Sens cool
(MBH)
SEER2 EER2
TCD2B48S21S JMVT16CC2N1 21.0 XAHC48F 1400 47.00 32.80 14.25 12.00
TCD2B48S21S JMVT16CC2N1 21.0 XAHC60G 1400 48.00 33.40 14.50 12.00
TCD2B48S21S JMVT17CC2N1 21.0 XAF/XAUC48F 1400 47.00 32.80 14.25 12.00
TCD2B48S21S JMVT17CC2N1 21.0 XAF/XAUC60G 1400 48.00 33.40 14.50 12.00
TCD2B48S21S JMVT17CC2N1 21.0 XAHC48F 1400 47.00 32.80 14.25 12.00
TCD2B48S21S JMVT17CC2N1 21.0 XAHC60G 1400 48.00 33.40 14.50 12.00
TCD2B48S21S JMVT20DC2N1 24.5 XAF/XAUD60G 1325 47.50 32.40 14.50 12.00
TCD2B48S21S JMVT20DC2N1 24.5 XAFD48F 1325 46.50 31.80 14.25 12.00
TCD2B48S21S JMVT20DC2N1 24.5 XAHD48F 1325 46.50 31.80 14.25 12.00
TCD2B48S21S JMVT20DC2N1 24.5 XAHD60G 1325 47.50 32.40 14.50 12.00
TCD2B60S21S JHETC60HXXS2N1 21.0 — 1575 55.50 39.00 14.00 11.75
TCD2B60S21S JHETD60HXXS2N1 24.5 — 1575 55.50 39.00 14.00 11.75
TCD2B60S21S JHVTC60HXXC2N1 21.0 — 1525 55.00 38.50 14.00 11.75
TCD2B60S21S JHVTD60HXXC2N1 24.5 — 1575 55.50 39.00 14.00 11.75
TCD2B60S21S JMET16CS2N1 21.0 XAF/XAUC60G 1600 55.50 39.00 13.75 11.50
TCD2B60S21S JMET16CS2N1 21.0 XAFC60H 1600 55.50 39.50 14.00 11.75
TCD2B60S21S JMET16CS2N1 21.0 XAHC60G 1600 55.50 39.00 13.75 11.50
TCD2B60S21S JMET16CS2N1 21.0 XAHC60H 1600 55.50 39.50 14.00 11.75
TCD2B60S21S JMET18DS2N1 24.5 XAF/XAUD60G 1575 55.50 39.00 14.00 11.75
TCD2B60S21S JMET18DS2N1 24.5 XAF/XAUD60H 1575 55.50 39.00 14.00 11.75
TCD2B60S21S JMET18DS2N1 24.5 XAHD60G 1550 55.50 39.00 14.00 11.75
TCD2B60S21S JMET18DS2N1 24.5 XAHD60H 1575 55.50 39.00 14.00 11.75
TCD2B60S21S JMVT16CC2N1 21.0 XAF/XAUC60G 1600 55.50 39.00 13.75 11.75
TCD2B60S21S JMVT16CC2N1 21.0 XAFC60H 1600 55.50 39.50 14.00 11.75
TCD2B60S21S JMVT16CC2N1 21.0 XAHC60G 1600 55.50 39.00 13.75 11.75
TCD2B60S21S JMVT16CC2N1 21.0 XAHC60H 1600 55.50 39.50 14.00 11.75
TCD2B60S21S JMVT17CC2N1 21.0 XAF/XAUC60G 1600 55.50 39.00 13.75 11.50
TCD2B60S21S JMVT17CC2N1 21.0 XAFC60H 1600 55.50 39.50 14.00 11.75
TCD2B60S21S JMVT17CC2N1 21.0 XAHC60G 1600 55.50 39.00 13.75 11.75
TCD2B60S21S JMVT17CC2N1 21.0 XAHC60H 1600 55.50 39.50 14.00 11.75
TCD2B60S21S JMVT20DC2N1 24.5 XAF/XAUD60G 1550 55.50 39.00 14.00 11.75
TCD2B60S21S JMVT20DC2N1 24.5 XAF/XAUD60H 1550 55.50 39.00 14.00 11.75
TCD2B60S21S JMVT20DC2N1 24.5 XAHD60G 1550 55.50 39.00 14.00 11.75
TCD2B60S21S JMVT20DC2N1 24.5 XAHD60H 1550 55.50 39.00 14.00 11.75
Air handler capacity data notes
• Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and
ANSI/AHRI Standard 210/240.
• The cooling MBH is based on 80°F entering air temperature, 50% relative humidity (RH), and
rated airflow.
• The energy efficiency ratio (EER2) is the total cooling output in BTUs at 95°F outdoor ambient
divided by the total electric power in watt-hours at those conditions.
• The seasonal energy efficiency ratio (SEER2) is the total cooling output in BTUs during a
normal annual usage period for cooling divided by the total electric power input in watt-hours
during the same period.
• A cell with no value means not applicable.
Coil only capacity
Table 6: Coil only capacity
Outdoor unit
model
Indoor coil
model
Indoor coil
width (in.)
CFM range Rated CFM Net cool (MBH) Sens cool (MBH) SEER2 EER2
TCD2B18S21S XAF/XAUA24B 14.5 450—750 600 18.00 13.30 13.40 11.25
17Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase
Johnson Controls Ducted Systems

Table 6: Coil only capacity
Outdoor unit
model
Indoor coil
model
Indoor coil
width (in.)
CFM range Rated CFM Net cool (MBH) Sens cool (MBH) SEER2 EER2
TCD2B18S21S XAFB18A 17.5 450—750 600 18.00 13.20 13.40 11.25
TCD2B18S21S XAFB24B 17.5 450—750 600 18.00 13.30 13.40 11.25
TCD2B18S21S XAHA18A 14.5 450—750 600 18.00 13.20 13.40 11.25
TCD2B18S21S XAHA24B 14.5 450—750 600 18.00 13.30 13.40 11.25
TCD2B18S21S XAHB24B 17.5 450—750 600 18.00 13.30 13.40 11.25
TCD2B24S21S XAF/XAUB30C 17.5 600—1000 800 24.00 18.10 13.50 11.50
TCD2B24S21S XAFB24B 17.5 600—1000 800 24.00 17.70 13.20 11.50
TCD2B24S21S XAFC30C 21.0 600—1000 800 24.00 18.10 13.50 11.50
TCD2B24S21S XAHA24B 14.5 600—1000 800 24.00 17.70 13.20 11.50
TCD2B24S21S XAHB24B 17.5 600—1000 800 24.00 17.70 13.20 11.50
TCD2B24S21S XAHB30C 17.5 600—1000 800 24.00 18.10 13.50 11.50
TCD2B24S21S XAHC30C 21.0 600—1000 800 24.00 18.10 13.50 11.50
TCD2B30S21S XAF/XAUB36D 17.5 800—1200 1000 28.80 21.60 13.40 11.25
TCD2B30S21S XAFC30C 21.0 800—1200 1000 28.80 22.00 13.40 11.25
TCD2B30S21S XAHB30C 17.5 800—1200 1000 28.80 22.00 13.40 11.25
TCD2B30S21S XAHB36D 17.5 800—1200 900 28.60 20.80 13.40 11.25
TCD2B30S21S XAHC30C 21.0 800—1200 1000 28.80 22.00 13.40 11.25
TCD2B30S21S XAHC36D 21.0 800—1200 1000 28.80 21.60 13.40 11.25
TCD2B36S21S XAF/XAUC42E 21.0 1000—1400 1150 35.40 26.40 13.40 11.25
TCD2B36S21S XAFB36E 17.5 1000—1400 1100 35.40 26.20 13.40 11.25
TCD2B36S21S XAFC36D 21.0 1000—1400 1150 35.40 26.40 13.40 11.25
TCD2B36S21S XAHC36D 21.0 1000—1400 1150 35.40 26.40 13.40 11.25
TCD2B36S21S XAHC42E 21.0 1000—1400 1150 35.40 26.40 13.40 11.25
TCD2B42S21S XAF/XAUC48F 21.0 1200—1600 1400 41.00 31.80 13.50 11.50
TCD2B42S21S XAFD42E 24.5 1200—1600 1400 41.00 32.20 13.50 11.50
TCD2B42S21S XAFD48F 24.5 1200—1600 1400 41.00 31.80 13.50 11.50
TCD2B42S21S XAHC48F 21.0 1200—1600 1400 41.00 31.80 13.50 11.50
TCD2B42S21S XAHD42E 24.5 1200—1600 1275 40.50 30.80 13.50 11.50
TCD2B42S21S XAHD48F 24.5 1200—1600 1400 41.00 31.80 13.50 11.50
TCD2B48S21S XAF/XAUC60G 21.0 1400—1800 1525 47.50 34.60 13.40 11.00
TCD2B48S21S XAF/XAUD60G 24.5 1400—1800 1525 47.50 34.60 13.40 11.00
TCD2B48S21S XAFD48F 24.5 1400—1800 1525 47.00 34.40 13.40 11.00
TCD2B48S21S XAHC48F 21.0 1400—1800 1525 47.00 34.40 13.40 11.00
TCD2B48S21S XAHC60G 21.0 1400—1800 1525 47.50 34.60 13.40 11.00
TCD2B48S21S XAHD48F 24.5 1400—1800 1525 47.00 34.40 13.40 11.00
TCD2B48S21S XAHD60G 21.0 1400—1800 1525 47.50 34.60 13.40 11.00
TCD2B60S21S XAF/XAUD60G 24.5 1520—1920 1725 55.50 40.50 13.40 11.00
TCD2B60S21S XAF/XAUD60H 24.5 1520—1920 1725 55.50 41.00 13.40 11.00
TCD2B60S21S XAFC60H 21.0 1520—1920 1725 55.50 41.00 13.40 11.00
TCD2B60S21S XAHC60G 21.0 1520—1920 1725 55.50 40.50 13.40 11.00
TCD2B60S21S XAHC60H 21.0 1520—1920 1725 55.50 41.00 13.40 11.00
TCD2B60S21S XAHD60G 21.0 1520—1920 1600 55.50 39.50 13.40 11.00
TCD2B60S21S XAHD60H 24.5 1520—1920 1700 55.50 40.50 13.40 11.00
Coil only capacity data notes
• For rated condition information, see Air handler capacity data notes.
• SEER2: requires a blower time delay unless a standard furnace is equipped with one.
• A cell with no value means not applicable.
• PSC furnaces use coil only ratings.
Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase18
Johnson Controls Ducted Systems

Furnace capacity - 1.5 ton
Table 7: Furnace capacity
Outdoor unit
model
Furnace model Furnace
width (in.)
Indoor coil model Rated
CFM
Net cool
(MBH)
Sens
cool
(MBH)
SEER2 EER2
TCD2B18S21S LP9C060B12MP13C 17.5 XAFB18A 550 17.80 12.50 14.25 12.00
TCD2B18S21S LP9C060B12MP13C 17.5 XAFB24B 550 18.00 12.70 14.50 12.25
TCD2B18S21S LP9C060B12MP13C 17.5 XAHB24B 600 18.00 13.10 14.25 12.00
TCD2B18S21S LP9C080B12MP13C 17.5 XAFB18A 625 18.00 13.20 14.25 12.00
TCD2B18S21S LP9C080B12MP13C 17.5 XAFB24B 575 18.00 12.90 14.50 12.25
TCD2B18S21S LP9C080B12MP13C 17.5 XAHB24B 575 18.00 12.90 14.50 12.25
TCD2B18S21S LPLC080B12MP13C 17.5 XAFB18A 625 18.00 13.20 14.00 12.00
TCD2B18S21S LPLC080B12MP13C 17.5 XAFB24B 625 18.00 13.30 14.50 12.00
TCD2B18S21S LPLC080B12MP13C 17.5 XAHB24B 625 18.00 13.30 14.25 12.00
TCD2B18S21S TL8E060A12UH11 14.5 XAF/XAUA18A 675 18.00 13.50 14.25 12.00
TCD2B18S21S TL8E060A12UH11 14.5 XAF/XAUA24B 675 18.00 13.60 14.50 12.25
TCD2B18S21S TL8E060A12UH11 17.5 XAFB18A 700 18.00 13.70 14.25 12.00
TCD2B18S21S TL8E060A12UH11 17.5 XAFB24B 700 18.00 13.70 14.50 12.25
TCD2B18S21S TL8E060A12UH11 14.5 XAHA18A 675 18.00 13.50 14.25 12.00
TCD2B18S21S TL8E060A12UH11 14.5 XAHA24B 675 18.00 13.60 14.50 12.25
TCD2B18S21S TL8E060A12UH11 17.5 XAHB24B 700 18.00 13.70 14.50 12.25
TCD2B18S21S TL9E060B12UH11 17.5 XAFB18A 700 18.00 13.70 14.00 11.75
TCD2B18S21S TL9E060B12UH11 17.5 XAFB24B 725 18.00 14.00 14.25 12.00
TCD2B18S21S TL9E060B12UH11 17.5 XAHB24B 500 17.80 12.20 14.25 12.00
TCD2B18S21S TM8E040A12MP11 14.5 XAF/XAUA18A 700 18.00 13.70 14.25 12.00
TCD2B18S21S TM8E040A12MP11 14.5 XAF/XAUA24B 550 18.00 12.70 14.50 12.25
TCD2B18S21S TM8E040A12MP11 17.5 XAFB18A 725 18.00 13.80 14.50 12.25
TCD2B18S21S TM8E040A12MP11 17.5 XAFB24B 725 18.00 13.90 14.75 12.25
TCD2B18S21S TM8E040A12MP11 14.5 XAHA18A 700 18.00 13.70 14.25 12.00
TCD2B18S21S TM8E040A12MP11 14.5 XAHA24B 550 18.00 12.70 14.50 12.25
TCD2B18S21S TM8E040A12MP11 17.5 XAHB24B 575 18.00 12.80 14.75 12.25
TCD2B18S21S TM8E060A12MP11 14.5 XAF/XAUA18A 625 18.00 13.20 14.50 12.25
TCD2B18S21S TM8E060A12MP11 14.5 XAF/XAUA24B 625 18.00 13.20 14.75 12.25
TCD2B18S21S TM8E060A12MP11 17.5 XAFB18A 575 18.00 12.80 14.50 12.25
TCD2B18S21S TM8E060A12MP11 17.5 XAFB24B 725 18.00 13.90 14.75 12.25
TCD2B18S21S TM8E060A12MP11 14.5 XAHA18A 700 18.00 13.70 14.25 12.00
TCD2B18S21S TM8E060A12MP11 14.5 XAHA24B 600 18.00 13.10 14.50 12.25
TCD2B18S21S TM8E060A12MP11 17.5 XAHB24B 625 18.00 13.20 14.75 12.25
TCD2B18S21S TM8E080B12MP11 17.5 XAFB18A 725 18.00 13.90 14.25 12.00
TCD2B18S21S TM8E080B12MP11 17.5 XAFB24B 525 18.00 12.50 14.50 12.25
TCD2B18S21S TM8E080B12MP11 17.5 XAHB24B 525 18.00 12.50 14.50 12.25
TCD2B18S21S TM8E100B12MP11 17.5 XAFB18A 650 18.00 13.30 14.50 12.25
TCD2B18S21S TM8E100B12MP11 17.5 XAFB24B 650 18.00 13.40 14.75 12.25
TCD2B18S21S TM8E100B12MP11 17.5 XAHB24B 625 18.00 13.20 14.50 12.25
TCD2B18S21S TM8V060A12MP12C 14.5 XAF/XAUA18A 650 18.00 13.30 14.25 12.00
TCD2B18S21S TM8V060A12MP12C 14.5 XAF/XAUA24B 575 18.00 12.90 14.50 12.25
TCD2B18S21S TM8V060A12MP12C 17.5 XAFB18A 650 18.00 13.30 14.50 12.25
TCD2B18S21S TM8V060A12MP12C 17.5 XAFB24B 650 18.00 13.40 14.75 12.25
TCD2B18S21S TM8V060A12MP12C 14.5 XAHA18A 650 18.00 13.40 14.25 12.00
TCD2B18S21S TM8V060A12MP12C 14.5 XAHA24B 650 18.00 13.40 14.50 12.25
TCD2B18S21S TM8V060A12MP12C 17.5 XAHB24B 650 18.00 13.40 14.50 12.25
TCD2B18S21S TM8V080B12MP12C 17.5 XAFB18A 625 18.00 13.20 14.00 12.00
TCD2B18S21S TM8V080B12MP12C 17.5 XAFB24B 625 18.00 13.30 14.50 12.00
TCD2B18S21S TM8V080B12MP12C 17.5 XAHB24B 625 18.00 13.30 14.25 12.00
19Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase
Johnson Controls Ducted Systems

Table 7: Furnace capacity
Outdoor unit
model
Furnace model Furnace
width (in.)
Indoor coil model Rated
CFM
Net cool
(MBH)
Sens
cool
(MBH)
SEER2 EER2
TCD2B18S21S TM8Y060A12MP11 14.5 XAF/XAUA18A 625 18.00 13.20 14.25 12.00
TCD2B18S21S TM8Y060A12MP11 14.5 XAF/XAUA24B 625 18.00 13.20 14.50 12.25
TCD2B18S21S TM8Y060A12MP11 17.5 XAFB18A 625 18.00 13.20 14.25 12.00
TCD2B18S21S TM8Y060A12MP11 17.5 XAFB24B 650 18.00 13.40 14.75 12.25
TCD2B18S21S TM8Y060A12MP11 14.5 XAHA18A 625 18.00 13.20 14.25 12.00
TCD2B18S21S TM8Y060A12MP11 14.5 XAHA24B 550 18.00 12.70 14.50 12.25
TCD2B18S21S TM8Y060A12MP11 17.5 XAHB24B 625 18.00 13.20 14.50 12.25
TCD2B18S21S TM8Y080B12MP11 17.5 XAFB18A 650 18.00 13.30 14.50 12.25
TCD2B18S21S TM8Y080B12MP11 17.5 XAFB24B 650 18.00 13.40 14.75 12.25
TCD2B18S21S TM8Y080B12MP11 17.5 XAHB24B 650 18.00 13.40 14.75 12.25
TCD2B18S21S TM9E026A08MP12 14.5 XAF/XAUA18A 550 17.80 12.60 13.75 11.75
TCD2B18S21S TM9E026A08MP12 14.5 XAF/XAUA24B 550 18.00 12.80 14.25 12.00
TCD2B18S21S TM9E026A08MP12 17.5 XAFB18A 550 17.80 12.60 13.75 11.75
TCD2B18S21S TM9E026A08MP12 17.5 XAFB24B 550 18.00 12.80 14.25 12.00
TCD2B18S21S TM9E026A08MP12 14.5 XAHA18A 550 17.80 12.60 13.75 11.75
TCD2B18S21S TM9E026A08MP12 14.5 XAHA24B 550 18.00 12.80 14.25 12.00
TCD2B18S21S TM9E026A08MP12 17.5 XAHB24B 550 18.00 12.80 14.25 12.00
TCD2B18S21S TM9E040A10MP12 14.5 XAF/XAUA18A 525 17.60 12.20 13.75 11.75
TCD2B18S21S TM9E040A10MP12 14.5 XAF/XAUA24B 475 17.70 12.00 14.25 12.00
TCD2B18S21S TM9E040A10MP12 17.5 XAFB18A 550 17.80 12.50 14.00 12.00
TCD2B18S21S TM9E040A10MP12 17.5 XAFB24B 550 18.00 12.70 14.25 12.00
TCD2B18S21S TM9E040A10MP12 14.5 XAHA18A 525 17.60 12.20 13.75 11.75
TCD2B18S21S TM9E040A10MP12 14.5 XAHA24B 475 17.70 12.00 14.25 12.00
TCD2B18S21S TM9E040A10MP12 17.5 XAHB24B 550 18.00 12.70 14.25 12.00
TCD2B18S21S TM9E060A10MP12 14.5 XAF/XAUA18A 525 17.70 12.30 14.00 12.00
TCD2B18S21S TM9E060A10MP12 14.5 XAF/XAUA24B 675 18.00 13.60 14.25 12.00
TCD2B18S21S TM9E060A10MP12 17.5 XAFB18A 525 17.70 12.30 14.00 12.00
TCD2B18S21S TM9E060A10MP12 17.5 XAFB24B 700 18.00 13.80 14.25 12.00
TCD2B18S21S TM9E060A10MP12 14.5 XAHA18A 675 18.00 13.60 14.00 11.75
TCD2B18S21S TM9E060A10MP12 14.5 XAHA24B 675 18.00 13.60 14.25 12.00
TCD2B18S21S TM9E060A10MP12 17.5 XAHB24B 525 18.00 12.50 14.25 12.00
TCD2B18S21S TM9E060B12MP12 17.5 XAFB18A 550 17.80 12.50 14.00 12.00
TCD2B18S21S TM9E060B12MP12 17.5 XAFB24B 550 18.00 12.70 14.25 12.00
TCD2B18S21S TM9E060B12MP12 17.5 XAHB24B 550 18.00 12.70 14.25 12.00
TCD2B18S21S TM9E080B12MP12 17.5 XAFB18A 600 18.00 13.00 14.25 12.00
TCD2B18S21S TM9E080B12MP12 17.5 XAFB24B 600 18.00 13.10 14.50 12.25
TCD2B18S21S TM9E080B12MP12 17.5 XAHB24B 575 18.00 12.90 14.50 12.25
TCD2B18S21S TM9V040A10MP12C 14.5 XAF/XAUA18A 525 17.60 12.20 13.75 11.75
TCD2B18S21S TM9V040A10MP12C 14.5 XAF/XAUA24B 525 17.90 12.50 14.25 12.00
TCD2B18S21S TM9V040A10MP12C 17.5 XAFB18A 525 17.70 12.30 13.75 11.75
TCD2B18S21S TM9V040A10MP12C 17.5 XAFB24B 525 18.00 12.60 14.25 12.00
TCD2B18S21S TM9V040A10MP12C 14.5 XAHA18A 525 17.60 12.20 13.75 11.75
TCD2B18S21S TM9V040A10MP12C 14.5 XAHA24B 525 17.90 12.50 14.00 12.00
TCD2B18S21S TM9V040A10MP12C 17.5 XAHB24B 525 17.90 12.50 14.25 12.00
TCD2B18S21S TM9V060B12MP12C 17.5 XAFB18A 550 17.80 12.50 14.25 12.00
TCD2B18S21S TM9V060B12MP12C 17.5 XAFB24B 550 18.00 12.70 14.50 12.25
TCD2B18S21S TM9V060B12MP12C 17.5 XAHB24B 600 18.00 13.10 14.25 12.00
TCD2B18S21S TM9V080B12MP12C 17.5 XAFB18A 625 18.00 13.20 14.25 12.00
TCD2B18S21S TM9V080B12MP12C 17.5 XAFB24B 575 18.00 12.90 14.50 12.25
TCD2B18S21S TM9V080B12MP12C 17.5 XAHB24B 575 18.00 12.90 14.50 12.25
TCD2B18S21S TM9Y040A10MP11 14.5 XAF/XAUA18A 575 18.00 12.90 13.75 11.50
Luxaire Technical Guide: LX Series TCD2B Models - 13.4 SEER2 Split-System Air Conditioner - Single-Phase20
Johnson Controls Ducted Systems
