TECHNICAL GUIDE
LX SERIES
SPLIT SYSTEM AIR CONDITIONERS
13 SEER – R-410A – 3 PHASE
2.5 THRU 6.3 NOMINAL TONS
MODELS: TCJD30 THRU 76 (3)
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at
www.upgnet.com and www.luxaire.com
Additional rating information can be found at:
www.ahridirectory.org
WARRANTY SUMMARY*
Standard 1-Year limited parts warranty.
Standard 5-Years limited compressor warranty.
*Does not apply to R-22 models or internet sales.
See Limited Warranty certificate in User's Information Manual for details.
®
DESCRIPTION
The 13 SEER Series unit is the outdoor part of a versatile cli-
mate system. It is designed with a matching indoor coil compo-
nent from Johnson Controls Unitary Products. Available for
typical applications this climate system is supported with acces-
sories and documents to serve specific functions.
FEATURES
• Small Footprint - Extremely lightweight with a compact foot-
print, it is a perfect fit for any application.
•Quality Condenser Coils - The coil is constructed of alumi-
num microchannel tubing and enhanced aluminum fins for
reduced size and increased efficiency.
•Coil Protection - Coils are protected from damage by a slot-
ted, stamped steel coil guard and secondary polymer mesh.
•Optional Factory E-Coat - Available coated coil on select
models.
•Protected Compressor - Compressors are protected inter-
nally by a high pressure relief valve and a temperature sen-
sor, and externally by the system high pressure switch. A
factory installed liquid line filter-drier further protects the
compressor against moisture and debris.
•Environmentally Friendly Refrigerant - The next genera-
tion refrigerant R-410A delivers environmentally friendly per-
formance with zero ozone depletion.
•Durable Finish - The cabinet is made of G90-equivalent gal-
vanized steel, finished in a durable titanium colored powder-
coat. The coated steel wire fan guard and pre-treated,
galvanized steel chassis components resist corrosion and
rust creep.
•Lower Installed Cost - Installation time and costs are
reduced by easy power and control wiring connections. The
unit is factory charged for a 15-foot lineset. The small base
dimension means less space is required on the ground or
roof.
•Top Discharge - Warm air from the top mounted fan is blown
up, away from the structure and any landscaping. This
allows compact location on multi-unit applications.
•Low Operating Sound Levels - The upward air flow carries
the normal operating noise away from the living area. The
rigid top panel effectively isolates any motor sound. Isolator
mounted compressor and the condenser coil muffle the nor-
mal fan motor and compressor operating sounds.
•Low Maintenance - Long life, permanently lubricated motor-
bearings need no annual servicing.
•Easy Service Access - Fully exposed refrigerant connec-
tions and a single panel covering the electrical controls make
for easy servicing of the unit.
•Secured Service Valves - Secured, re-usable service
valves are provided on both the liquid and vapor sweat con-
nections for ease of evacuating and charging.
•Agency Listed -Safety certified by CSA to UL 1995 / CSA
22.2. Performance certified to ANSI/AHRI Standard 210/240
in accordance with the Unitary Small Equipment certification
program.

700678-LTG-E-0415
2Johnson Controls Unitary Products

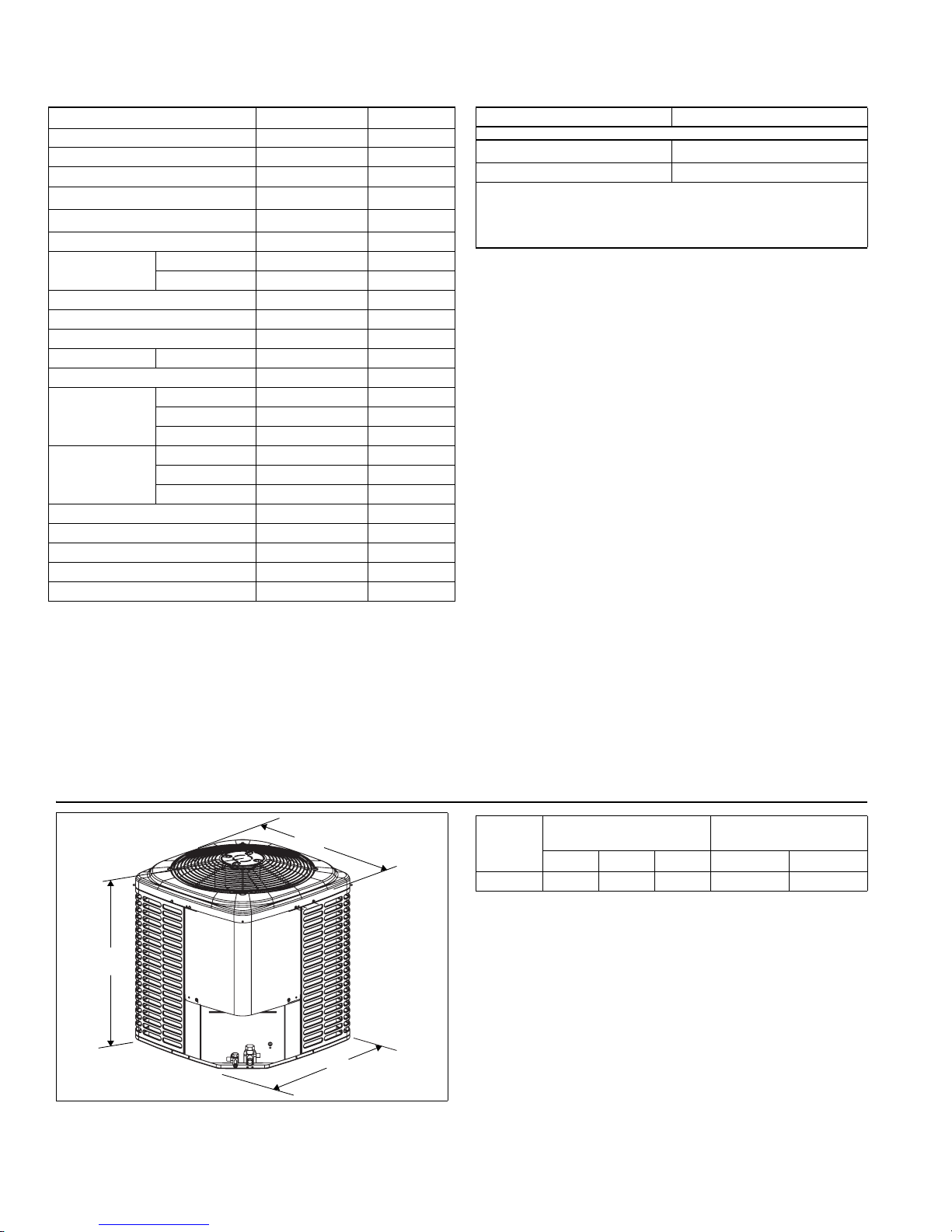

All dimensions are in inches and are subject to change without notice.
Overall height is from bottom of base pan to top of fan guard.
Overall length and width include screw heads.

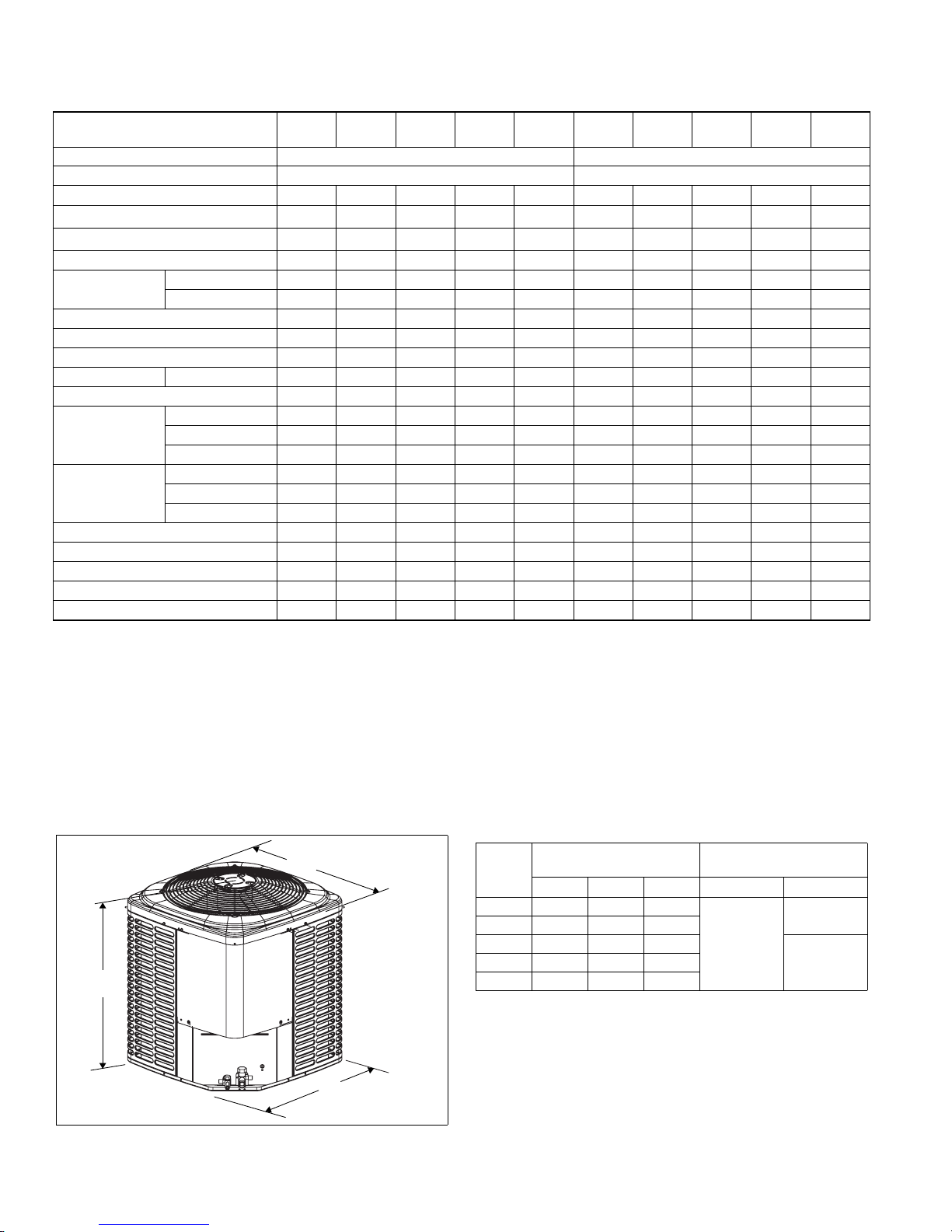

Physical and Electrical Data
MODEL TCJD30
S43S3(E) TCJD36 S43S3(E) TCJD42 S43S4(E) TCJD48 S43S3(E) TCJD60 S43S4(E) TCJD30 S44S3(E) TCJD36 S44S3(E) TCJD42 S44S4(E) TCJD48 S44S3(E) TCJD60 S44S4(E)
Unit Supply Voltage 208-230V, 3 60Hz 460V, 3 60Hz
Normal Voltage Range 1187 to 252 432 to 504
Minimum Circuit Ampacity 11.6 12.3 15.4 15.5 21.5 6.0 6.4 7.3 7.2 10.5
Max. Overcurrent Device Amps 215 20 25 25 35 15 15 15 15 15
Min. Overcurrent Device Amps 315 15 20 20 25 15 15 15 15 15
Compressor Type Recip Recip Recip Recip Scroll Recip Recip Recip Recip Scroll
Compressor Amps Rated Load 8.1 8.6 11.1 11.2 16.0 4.2 4.5 5.2 5.1 7.8
Locked Rotor 63 68 68 88 110 30 34 34 44 52
Crankcase Heater No No No No No No No No No No
Factory External Discharge Muffler No No No Yes No No No No Yes No
FactoryExternalCheckValve NoNoNoNoNoNoNoNoNoNo
Fan Motor Amps Rated Load 1.4 1.5 1.5 1.5 1.5 0.8 0.8 0.8 0.8 0.8
Fan Diameter Inches 17.5 22.0 22.0 22.0 24.0 17.5 22.0 22.0 22.0 24.0
Fan Motor Rated HP 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 Nominal RPM 1100 850 850 850 850 1100 850 850 850 850
Nominal CFM 2050 3200 3050 2950 3400 2050 3200 3050 2950 3400
Coil Face Area Sq. Ft. 9.60 13.07 14.16 14.16 18.68 9.60 13.07 14.16 14.16 18.68 RowsDeep 1111111111
Fins / Inch 23 23 23 23 23 23 23 23 23 23
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed) 3/4 3/4 7/8 7/8 7/8 3/4 3/4 7/8 7/8 7/8
Unit Charge (Lbs. - Oz.) 43 - 14 4 - 9 4 - 10 4 - 9 5 - 8 3 - 14 4 - 9 4 - 10 4 - 9 5 - 8
Charge Per Foot, Oz. 0.62 0.62 0.67 0.67 0.67 0.62 0.62 0.67 0.67 0.67
Operating Weight Lbs. 131 145 164 173 220 131 145 164 173 220
Models with “E” on the end of the model number have E-Coated coils.
1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit, and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or subtract
the amount of refrigerant, using the difference in actual lineset length (not equivalent length) multiplied by the per foot value.
B
C
A
Unit
Model
Dimensions
(Inches) Refrigerant Connection Service Valve Size
A B C Liquid Vapor
30 28-1/4 24 24
3/8
3/4
36 28-1/4 29-1/2 29-1/2
42 30-1/4 29-1/2 29-1/2 7/848 30-1/4 29-1/2 29-1/2
60 32-1/4 34 34

700678-LTG-E-0415
Johnson Controls Unitary Products 3
PROCEDURES:
1. Unit factory charge listed on the unit nameplate includes refrigerant for the outdoor unit, the smallest matched indoor unit, and 15 feet of interconnecting line tubing.
2. Verify the TXV or orifice and additional charge required for specific matched indoor unit in the system using the above table.
3. Add additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in Physical and Electrical Data Table.
4. For indoor matches requiring additional charge, the refrigerant needs to be weighed in for specific matched indoor unit and actual lineset length.
5. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + charge adder for matched indoor unit +
charge adder for actual lineset length.
System Charge for Various Matched Systems
Outdoor Unit TCJD30S4(3,4)S3(E) TCJD36S4(3,4)S3(E) TCJD42S4(3,4)S4(E) TCJD48S4(3,4)S3(E) TCJD60S4(3,4)S4(E)
Required Orifice or TXV 1,2
1. For applications requiring a TXV use S1-1TVM*** series kit.
2. Approved orifice(s) shipped with outdoor unit.
0.061/4F1 0.065/4G1 0.073/4G1 0.073/4H1 0.084/4J1
Indoor Unit 3,4,5
3. Systems matched with furnaces or air handlers not equipped with blower-off delays may require blower Time Delay Kit S1-2FD06700224.
4. PC coils cannot be used in downflow or horizontal applications. FC coils cannot be used in horizontal applications.
5. Refer to Cooling Performance Data tables for actual system performance for specified system matches.
Additional Charge, oz
AHE30B 0––––
AHE36C 20–––
AHE42D – 8 10 – –
AHE48D ––90–
AHE60D – – 14 – 4
AHR30B 0––––
AHR36B 20–––
AHR42C – 8 10 – –
AHR48D ––90–
AHR60D – – 15 – 4
AHV30B 0––––
AHV36C 60–––
AHV42D 18 10 10 – –
AHV48D – 10 9 3 –
AHV60D – – 13 8 4
FC/MC/PC32 0––––
FC/MC/PC35 0––––
FC/MC/PC37 20–––
FC/MC/PC43 200––
FC/MC/PC48 – 8 10 4 –
FC/MC/PC60 ––900
FC/MC62 – –14– 4
FC64 – – 23 – 11
UC48 –844–
UC60 ––900
Some of the combinations shown in the above System Charge table require Advanced Main Air Circulating Fan indoor product. For approved coil
only matches, please see the “COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils” table.
FOOTNOTES:

700678-LTG-E-0415
4Johnson Controls Unitary Products
PROCEDURES:
1. Unit factory charge listed on the unit nameplate includes refrigerant for the
outdoor unit, the smallest matched indoor unit, and 15 feet of interconnect-
ing line tubing.
2. The required TXV is factory mounted on the Indoor Unit.
3. Add additional charge for the amount of interconnecting line tubing greater
than 15 feet at the rate specified in Physical and Electrical Data Table.
4. For indoor matches requiring additional charge, the refrigerant needs to be
weighed in for specific matched indoor unit and actual lineset length.
5. Permanently mark the unit nameplate with the total system charge. Total
System Charge = Base Charge (as shipped) + charge adder for matched
indoor unit + charge adder for actual lineset length.
All dimensions are in inches and are subject to change without notice.
Overall height is from bottom of base pan to top of fan guard.
Overall length and width include screw heads.
Physical and Electrical Data
MODEL TCJD76S43S3 TCJD76S44S3
Unit Supply Voltage 208-230V, 3 60Hz 460V, 3 60Hz
Normal Voltage Range 1
1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.
187 to 252 432 to 504
Minimum Circuit Ampacity 30.2 14.4
Max. Overcurrent Device Amps 2
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent
protection.
50 25
Min. Overcurrent Device Amps 3
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcur-
rent protection.
35 15
Compressor Type Scroll Scroll
Compressor Amps Rated Load 22.4 10.6
Locked Rotor 149 75
Crankcase Heater No No
Factory External Discharge Muffler No No
Factory External Check Valve No No
Fan Motor Amps Rated Load 2.2 1.2
Fan Diameter Inches 22 22
Fan Motor Rated HP 1/3 1/3
Nominal RPM 1100 1100
Nominal CFM 4300 4300
Coil Face Area Sq. Ft. 23.75 23.75
Rows Deep 1 1
Fins / Inch 23 23
Liquid Line Set OD (Field Installed) 1/2 1/2
Vapor Line Set OD (Field Installed) 1-1/8 1-1/8
Unit Charge (Lbs. - Oz.) 4
4. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit,
and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or
subtract the amount of refrigerant, using the difference in actual lineset length
(not equivalent length) multiplied by the per foot value.
10 - 4 10 - 12
Charge Per Foot, Oz. 1.18 1.18
Operating Weight Lbs. 247 247
System Charge for Various Matched Systems
Outdoor Unit TCJD76S4(3,4)S3
Indoor Coil 1
1. Refer to Cooling Performance Data tables foractual system performance for
specified system matches.
Additional Charge, oz
NH-07 0
Some of the combinations shown in the above System Charge table
require Advanced Main Air Circulating Fan indoor product. For
approved coil only matches, please see the “COOLING CAPACITY -
Upflow, Downflow & Horizontal Furnaces and Coils” table.
FOOTNOTES:
B
C
A
Unit
Model
Dimensions
(Inches) Refrigerant Connection Service Valve Size
A B C Liquid Vapor
76 40-1/4 34 34 1/2 1-1/8

700678-LTG-E-0415
Johnson Controls Unitary Products 5
COOLING CAPACITY - With Air Handler Coils
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER AC WITH AIR HANDLERS
TCJD30S4(3,4)S3(E)
AHE30B 17.5 – 985 29.4 21.4 14.00 11.75
AHE36C 21.0 – 1000 30.2 22.0 14.75 12.25
AHR30B 17.5 – 1095 29.4 22.2 13.00 11.00
AHR36B 17.5 – 1060 29.8 22.0 13.00 11.00
AHV30B 17.5 – 1000 29.0 21.3 13.50 11.50
AHV36C 21.0 – 895 29.0 20.9 14.50 12.00
AHV42D 24.5 – 1080 30.0 22.8 14.75 12.25
MV12B 17.5 FC/MC35B 1000 29.0 21.6 14.00 12.00
MV12B 17.5 FC/MC43B 1000 29.0 21.6 14.00 12.00
MV16C 21.0 FC/MC35C 1000 30.0 21.6 14.00 12.00
MV16C 21.0 FC/MC43C 1000 30.0 21.6 14.00 12.00
MX12BN21 17.5 FC/MC35B 975 29.4 21.7 14.25 12.00
MX12BN21 17.5 FC/MC43B 975 29.6 22.1 14.50 12.25
MX16CN21 21.0 FC/MC35C 1000 29.4 21.7 14.30 12.20
MX16CN21 21.0 FC/MC43C 950 29.6 21.5 14.95 12.50
TCJD36S4(3,4)S3(E)
AHE36C 21.0 – 1190 35.6 25.4 14.25 12.00
AHE42D 24.5 – 1180 35.8 25.8 14.50 12.25
AHR36B 17.5 – 1245 34.6 24.6 13.00 11.00
AHR42C 21.0 – 1230 35.6 25.4 13.00 11.25
AHV36C 21.0 – 1215 35.8 25.8 13.75 12.00
AHV42D 24.5 – 1180 36.0 25.8 14.50 12.25
AHV48D 24.5 – 1155 35.6 25.2 14.50 12.25
MV12B 17.5 FC/MC43B 1225 35.4 25.2 14.00 11.75
MV12D 24.5 FC/MC48D 1135 35.0 25.4 14.00 12.00
MV16C 21.0 FC/MC43C 1200 36.0 25.4 14.00 12.00
MV16C 21.0 FC/MC48C 1200 36.0 25.4 14.00 12.00
MV20D 24.5 FC/MC48D 1200 36.0 25.6 14.00 12.00
MX12BN21 17.5 FC/MC43B 1125 35.0 24.5 13.75 12.00
MX12DN21 24.5 FC/MC48D 1125 35.4 25.3 14.50 12.50
MX16CN21 21.0 FC/MC43C 1200 35.4 25.5 14.10 12.25
MX16CN21 21.0 FC/MC48C 1200 35.6 25.7 14.15 12.35
MX20DN21 24.5 FC/MC48D 1200 36.0 26.1 14.50 12.75
TCJD42S4(3,4)S4(E)
AHE42D 24.5 – 1385 42.0 30.6 14.25 12.00
AHE48D 24.5 – 1385 42.0 30.4 14.00 12.00
AHE60D 24.5 – 1390 42.0 31.0 14.50 12.00
AHR42C 21.0 – 1485 42.0 30.8 13.00 11.00
AHR48D 24.5 – 1320 41.0 28.8 13.00 11.00
AHR60D 24.5 – 1350 42.0 30.2 13.00 11.00
AHV42D 24.5 – 1385 42.0 30.2 13.75 11.75
AHV48D 24.5 – 1300 41.5 29.1 14.00 12.00
AHV60D 24.5 – 1340 42.0 30.2 14.00 12.00
MV16C 21.0 FC/MC43C 1380 42.0 30.2 14.00 12.00
MV16C 21.0 FC/MC48C 1400 42.0 30.4 13.75 11.75
MV16C 21.0 FC60C 1400 42.0 30.0 13.75 11.50
MV20D 24.5 FC/MC48D 1470 42.0 31.0 14.25 12.00
MV20D 24.5 FC/MC60D 1400 42.0 30.2 14.00 11.75
MV20D 24.5 FC/MC62D 1400 42.0 30.8 14.00 12.00
For Notes See Page 6.

700678-LTG-E-0415
6Johnson Controls Unitary Products
— = Not applicable.
MA Modular Air Handlers use Coil Only Ratings.
*Denotes IEER rating, not SEER - IEER (Integrated Energy Efficiency Ratio) measures part-load cooling performance due to local occupancy schedules, building con-
struction, building location and ventilation requirements in accordance with ANSI/AHRI 340/360 (units rated at or above 65,000 BTU [19,000 W]).
TCJD42S4(3,4)S4(E)
MV20D 24.5 FC64D 1400 42.0 30.8 14.50 12.25
MX16CN21 21.0 FC/MC43C 1400 41.5 30.0 13.75 11.75
MX16CN21 21.0 FC/MC48C 1400 42.0 30.2 13.80 11.85
MX16CN21 21.0 FC60C 1400 42.0 30.0 13.80 11.80
MX20DN21 24.5 FC/MC48D 1375 42.5 30.4 14.25 12.00
MX20DN21 24.5 FC/MC60D 1375 42.0 30.2 14.25 12.00
MX20DN21 24.5 FC/MC62D 1400 42.5 31.0 14.50 12.25
MX20DN21 24.5 FC64D 1400 44.0 32.0 14.75 12.50
TCJD48S4(3,4)S3(E)
AHE48D 24.5 – 1600 47.0 34.6 13.75 11.50
AHR48D 24.5 – 1610 48.0 34.6 13.00 11.00
AHV48D 24.5 – 1585 47.5 34.0 13.25 11.50
AHV60D 24.5 – 1570 48.0 35.0 13.50 12.00
MV16C 21.0 FC/MC48C 1600 48.0 35.0 13.50 12.00
MV16C 21.0 FC60C 1625 47.5 34.6 13.50 11.50
MV20D 24.5 FC/MC48D 1600 48.0 35.0 13.50 12.00
MV20D 24.5 FC/MC60D 1600 48.0 35.0 13.50 12.00
MX16CN21 21.0 FC/MC48C 1600 48.5 35.0 13.65 11.75
MX16CN21 21.0 FC60C 1600 48.5 34.6 13.25 11.75
MX20DN21 24.5 FC/MC48D 1525 48.5 34.8 14.00 12.00
MX20DN21 24.5 FC/MC60D 1525 49.0 35.0 14.00 12.25
TCJD60S4(3,4)S4(E)
AHE60D 24.5 – 1835 56.5 41.1 13.50 11.50
AHR60D 24.5 – 1620 55.0 39.1 13.00 11.00
AHV60D 24.5 – 1635 55.0 39.1 13.50 11.50
MV20D 24.5 FC/MC60D 1845 55.5 39.6 13.25 11.25
MV20D 24.5 FC/MC62D 1855 56.0 40.6 13.25 11.25
MV20D 24.5 FC64D 1855 57.5 42.1 13.75 11.50
MX20DN21 24.5 FC/MC60D 1725 55.0 38.7 13.70 11.50
MX20DN21 24.5 FC/MC62D 1750 56.0 40.2 13.95 11.75
MX20DN21 24.5 FC64D 1750 57.5 41.7 14.25 12.10
TCJD76S43S3 NH-07 – – 2600 74.0 53.3 12.60 * 11.20
TCJD76S44S3 NH-07 – – 2600 74.0 52.5 12.80 * 11.20
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ANSI/AHRI Standard 210/240.
Cooling MBH based on 80°F entering air temperature, 50% RH (Relative Humidity), and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTUs at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTUs during a normal annual usage period for cooling divided by the total electric power input in
watt-hours during the same period.
1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER AC WITH AIR HANDLERS

700678-LTG-E-0415
Johnson Controls Unitary Products 7
MA Modular Air Handlers use Coil Only Ratings.
PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings.
COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings)
UNIT MODEL
COIL CFM RANGE
(MIN.-MAX.)
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER 1EER
TOTAL SENS.
13 SEER AC COIL ONLY RATINGS
TCJD30S4(3,4)S3(E)
FC/MC/PC32 14.5 800-1200 1000 29.0 21.0 13.00 11.00
FC/MC/PC35 17.5,21.0 800-1200 1000 29.0 21.0 13.00 11.00
FC/MC/PC37 14.5 800-1200 1000 29.0 21.0 13.00 11.00
FC/MC/PC43 17.5,21.0 800-1200 1000 29.0 21.0 13.00 11.00
TCJD36S4(3,4)S3(E)
FC/MC/PC37 14.5 1000-1400 1200 35.0 24.8 13.00 11.00
FC/MC/PC43 17.5,21.0 1000-1400 1200 35.0 24.8 13.00 11.00
FC/MC/PC48 21.0,24.5 1000-1400 1200 35.0 24.8 13.00 11.00
UC48 21.0,24.5 1000-1400 1200 35.0 24.8 13.00 11.00
TCJD42S4(3,4)S4(E)
FC/MC/PC43 17.5,21.0 1200-1600 1400 41.5 29.8 13.00 11.00
FC/MC/PC48 21.0,24.5 1200-1600 1400 42.0 30.0 13.00 11.00
FC/MC/PC60 21.0,24.5 1200-1600 1400 41.5 29.6 13.00 11.00
FC/MC62 24.5 1200-1600 1400 42.0 30.4 13.00 11.00
FC64 24.5 1200-1600 1400 42.0 30.8 13.25 11.25
UC48 21.0,24.5 1200-1600 1400 42.0 30.0 13.00 11.00
TCJD48S4(3,4)S3(E)
FC/MC/PC48 21.0,24.5 1400-1800 1600 48.0 34.4 13.00 11.00
FC/MC/PC60 21.0,24.5 1400-1800 1600 48.0 34.4 13.00 11.00
UC48 21.0,24.5 1400-1800 1600 48.0 34.4 13.00 11.00
UC60 21.0,24.5 1400-1800 1600 48.0 34.4 13.00 11.00
TCJD60S4(3,4)S4(E)
FC/MC/PC60 21.0,24.5 1600-2000 1800 55.0 39.1 13.00 11.00
FC/MC62 24.5 1600-2000 1800 55.5 40.1 13.00 11.00
FC64 24.5 1600-2000 1800 57.5 42.1 13.50 11.25
UC60 21.0,24.5 1600-2000 1600 53.5 37.0 13.00 10.75
1. Requires a S1-2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.
COOLING CAPACITY - With High Efficiency Motor Furnaces
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2
TCJD30S4(3,4)S3(E)
T*(8,L)V*A12 14.5 FC/MC/PC32A 1045 29.2 21.8 13.20 11.00
T*(8,L)V*A12 14.5 FC/MC/PC37A 980 29.8 21.8 13.80 11.50
T*(8,L)V*B12 17.5 FC/MC/PC35B 995 29.6 21.4 14.00 11.50
T*(8,L)V*B12 17.5 FC/MC/PC43B 990 30.0 22.0 14.00 12.00
T*(8,L)V*C16 21.0 FC/MC/PC35C 1025 29.6 22.0 14.00 12.00
T*(8,L)V*C16 21.0 FC/MC/PC43C 990 30.0 22.1 14.00 12.00
T*(8,L)V*C20 21.0 FC/MC/PC35C 1080 30.0 22.4 14.00 12.00
T*(8,L)V*C20 21.0 FC/MC/PC43C 1000 30.0 22.1 14.00 12.00
T*9(C,V)*B12 17.5 FC/MC/PC35B 1045 29.4 22.0 13.50 11.50
T*9(C,V)*B12 17.5 FC/MC/PC43B 1035 30.0 22.0 13.80 11.50
T*9(C,V)*C16 21.0 FC/MC/PC35C 1005 29.6 22.0 14.00 12.00
T*9(C,V)*C16 21.0 FC/MC/PC43C 1030 30.0 22.0 14.00 12.00
T*9(C,V)*C20 21.0 FC/MC/PC35C 985 29.6 22.0 14.00 12.00
T*9(C,V)*C20 21.0 FC/MC/PC43C 995 30.0 22.1 14.00 12.00
TM8X060A12MP11 14.5 FC/MC/PC32A 1025 28.8 21.3 13.05 11.00
TM8X060A12MP11 14.5 FC/MC/PC37A 1025 29.0 21.7 13.35 11.30
TM8X080B12MP11 17.5 FC/MC/PC35B 950 28.8 20.7 14.00 11.50
TM8X080B12MP11 17.5 FC/MC/PC43B 975 29.6 21.9 14.25 12.00
For notes see Page 17.

700678-LTG-E-0415
8Johnson Controls Unitary Products
TCJD30S4(3,4)S3(E)
TM8X080C16MP11 21.0 FC/MC/PC35C 975 29.6 21.7 14.25 12.00
TM8X080C16MP11 21.0 FC/MC/PC43C 950 29.4 21.5 14.25 12.00
TM8X100C16MP11 21.0 FC/MC/PC35C 975 29.6 21.7 14.25 12.00
TM8X100C16MP11 21.0 FC/MC/PC43C 950 29.4 21.5 14.25 12.00
TM8X100C20MP11 21.0 FC/MC/PC35C 1000 29.4 21.7 14.25 12.00
TM8X100C20MP11 21.0 FC/MC/PC43C 1000 29.6 22.1 14.50 12.00
TM8X120C20MP11 21.0 FC/MC/PC35C 1000 29.4 21.7 14.25 12.00
TM8X120C20MP11 21.0 FC/MC/PC43C 1000 29.6 22.1 14.50 12.00
TM9E060B12MP11 17.5 FC/MC/PC35B 950 28.8 20.7 14.00 11.85
TM9E060B12MP11 17.5 FC/MC/PC43B 950 29.2 21.3 13.80 11.75
TM9E080B12MP11 17.5 FC/MC/PC35B 950 28.8 20.7 14.00 11.85
TM9E080B12MP11 17.5 FC/MC/PC43B 950 29.2 21.3 13.80 11.75
TM9E080C16MP11 21.0 FC/MC/PC35C 1000 29.4 21.7 14.00 12.00
TM9E080C16MP11 21.0 FC/MC/PC43C 1000 29.6 22.1 14.25 12.00
TM9E100C16MP11 21.0 FC/MC/PC35C 1000 29.4 21.7 14.00 12.00
TM9E100C16MP11 21.0 FC/MC/PC43C 1000 29.6 22.1 14.25 12.00
TM9E100C20MP11 21.0 FC/MC/PC35C 1000 29.0 21.3 13.25 11.25
TM9E100C20MP11 21.0 FC/MC/PC43C 1000 29.4 21.7 13.80 11.65
TM9X060B12MP11 17.5 FC/MC/PC35B 950 28.8 20.7 14.00 11.85
TM9X060B12MP11 17.5 FC/MC/PC43B 950 29.2 21.3 13.80 11.75
TM9X080B12MP11 17.5 FC/MC/PC35B 950 28.8 20.7 14.00 11.85
TM9X080B12MP11 17.5 FC/MC/PC43B 950 29.2 21.3 13.80 11.75
TM9X080C16MP11 21.0 FC/MC/PC35C 1000 29.4 21.7 14.00 12.00
TM9X080C16MP11 21.0 FC/MC/PC43C 1000 29.6 22.1 14.25 12.00
TM9X100C16MP11 21.0 FC/MC/PC35C 1000 29.4 21.7 14.00 12.00
TM9X100C16MP11 21.0 FC/MC/PC43C 1000 29.6 22.1 14.25 12.00
TM9X100C20MP11 21.0 FC/MC/PC35C 1000 29.0 21.3 13.25 11.25
TM9X100C20MP11 21.0 FC/MC/PC43C 1000 29.4 21.7 13.80 11.65
TMLX060A12MP11 14.5 FC/MC/PC32A 1025 28.8 21.3 13.05 11.00
TMLX060A12MP11 14.5 FC/MC/PC37A 1025 29.0 21.7 13.35 11.30
TMLX080B12MP11 17.5 FC/MC/PC35B 950 28.8 20.7 14.00 11.50
TMLX080B12MP11 17.5 FC/MC/PC43B 975 29.6 21.9 14.25 12.00
TMLX080C16MP11 21.0 FC/MC/PC35C 975 29.6 21.7 14.25 12.00
TMLX080C16MP11 21.0 FC/MC/PC43C 950 29.4 21.5 14.25 12.00
TMLX100C16MP11 21.0 FC/MC/PC35C 975 29.6 21.7 14.25 12.00
TMLX100C16MP11 21.0 FC/MC/PC43C 950 29.4 21.5 14.25 12.00
TMLX100C20MP11 21.0 FC/MC/PC35C 1000 29.4 21.7 14.25 12.00
TMLX100C20MP11 21.0 FC/MC/PC43C 1000 29.6 22.1 14.50 12.00
TMLX120C20MP11 21.0 FC/MC/PC35C 1000 29.4 21.7 14.25 12.00
TMLX120C20MP11 21.0 FC/MC/PC43C 1000 29.6 22.1 14.50 12.00
L*(8,L)C*A12 14.5 FC/MC/PC32A 1045 29.2 21.8 13.20 11.00
L*(8,L)C*A12 14.5 FC/MC/PC37A 980 29.8 21.8 13.80 11.50
L*(8,L)C*B12 17.5 FC/MC/PC35B 995 29.6 21.4 14.00 11.50
L*(8,L)C*B12 17.5 FC/MC/PC43B 990 30.0 22.0 14.00 12.00
L*(8,L)C*C16 21.0 FC/MC/PC35C 1025 29.6 22.0 14.00 12.00
L*(8,L)C*C16 21.0 FC/MC/PC43C 990 30.0 22.1 14.00 12.00
L*(8,L)C*C20 21.0 FC/MC/PC35C 1080 30.0 22.4 14.00 12.00
L*(8,L)C*C20 21.0 FC/MC/PC43C 1000 30.0 22.1 14.00 12.00
L*9C*B12 17.5 FC/MC/PC35B 1045 29.4 22.0 13.50 11.50
L*9C*B12 17.5 FC/MC/PC43B 1035 30.0 22.0 13.80 11.50
For notes see Page 17.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

700678-LTG-E-0415
Johnson Controls Unitary Products 9
TCJD30S4(3,4)S3(E)
L*9C*C16 21.0 FC/MC/PC35C 1005 29.6 22.0 14.00 12.00
L*9C*C16 21.0 FC/MC/PC43C 1030 30.0 22.0 14.00 12.00
L*9C*C20 21.0 FC/MC/PC35C 985 29.6 22.0 14.00 12.00
L*9C*C20 21.0 FC/MC/PC43C 995 30.0 22.1 14.00 12.00
TCJD36S4(3,4)S3(E)
T*(8,L)V*A12 14.5 FC/MC/PC37A 980 33.8 23.0 13.50 11.00
T*(8,L)V*B12 17.5 FC/MC/PC43B 1210 35.2 25.2 13.50 11.00
T*(8,L)V*C16 21.0 FC/MC/PC43C 1205 35.6 25.4 14.00 11.50
T*(8,L)V*C16 21.0 FC/MC/PC48C 1210 36.0 26.0 14.00 12.00
T*(8,L)V*C16 21.0 UC48C 1210 34.6 24.8 13.50 11.50
T*(8,L)V*C20 21.0 FC/MC/PC43C 1190 35.6 25.4 14.00 12.00
T*(8,L)V*C20 21.0 FC/MC/PC48C 1155 36.0 26.1 14.00 12.00
T*(8,L)V*C20 21.0 UC48C 1155 34.8 24.8 14.00 11.50
T*9(C,V)*B12 17.5 FC/MC/PC43B 1200 35.2 25.2 13.50 11.00
T*9(C,V)*C16 21.0 FC/MC/PC43C 1240 35.4 25.2 13.50 11.50
T*9(C,V)*C16 21.0 FC/MC/PC48C 1195 36.0 26.0 14.00 11.50
T*9(C,V)*C16 21.0 UC48C 1195 34.6 24.8 13.50 11.50
T*9(C,V)*C20 21.0 FC/MC/PC43C 1200 35.6 25.4 14.00 11.50
T*9(C,V)*C20 21.0 FC/MC/PC48C 1330 36.0 26.5 14.00 11.50
T*9(C,V)*C20 21.0 UC48C 1305 35.0 25.6 13.30 11.00
T*9(C,V)*D20 24.5 FC/MC/PC48D 1240 36.0 26.2 14.00 12.00
T*9(C,V)*D20 24.5 UC48D 1240 34.8 25.0 13.80 11.50
TM8X060A12MP11 14.5 FC/MC/PC37A 1125 34.8 24.3 13.30 11.50
TM8X080B12MP11 17.5 FC/MC/PC43B 1175 34.8 24.3 13.30 11.50
TM8X080C16MP11 21.0 FC/MC/PC43C 1150 35.0 24.7 14.00 12.00
TM8X080C16MP11 21.0 FC/MC/PC48C 1150 35.2 25.1 14.00 12.00
TM8X080C16MP11 21.0 FC/MC/PC48D 1175 35.2 25.1 14.00 12.25
TM8X080C16MP11 21.0 UC48C 1150 35.2 25.1 14.00 12.00
TM8X080C16MP11 21.0 UC48D 1175 35.2 25.1 14.00 12.25
TM8X100C16MP11 21.0 FC/MC/PC43C 1150 35.0 24.7 14.00 12.00
TM8X100C16MP11 21.0 FC/MC/PC48C 1150 35.2 25.1 14.00 12.00
TM8X100C16MP11 21.0 FC/MC/PC48D 1175 35.2 25.1 14.00 12.25
TM8X100C16MP11 21.0 UC48C 1150 35.2 25.1 14.00 12.00
TM8X100C16MP11 21.0 UC48D 1175 35.2 25.1 14.00 12.25
TM8X100C20MP11 21.0 FC/MC/PC43C 1200 35.4 25.5 13.80 12.00
TM8X100C20MP11 21.0 FC/MC/PC48C 1200 35.8 25.7 14.00 12.25
TM8X100C20MP11 21.0 FC/MC/PC48D 1200 35.8 25.7 14.00 12.25
TM8X100C20MP11 21.0 UC48C 1200 35.2 25.1 13.75 12.00
TM8X100C20MP11 21.0 UC48D 1200 35.2 25.1 13.75 12.00
TM8X120C20MP11 21.0 FC/MC/PC43C 1200 35.4 25.5 13.80 12.00
TM8X120C20MP11 21.0 FC/MC/PC48C 1200 35.8 25.7 14.00 12.25
TM8X120C20MP11 21.0 FC/MC/PC48D 1200 35.8 25.7 14.00 12.25
TM8X120C20MP11 21.0 UC48C 1200 35.2 25.1 13.75 12.00
TM8X120C20MP11 21.0 UC48D 1200 35.2 25.1 13.75 12.00
TM9E060B12MP11 17.5 FC/MC/PC43B 1125 34.8 24.3 13.25 11.50
TM9E080B12MP11 17.5 FC/MC/PC43B 1125 34.8 24.3 13.25 11.50
TM9E080C16MP11 21.0 FC/MC/PC43C 1175 35.0 24.5 13.75 11.75
TM9E080C16MP11 21.0 FC/MC/PC48C 1150 35.2 24.9 13.75 12.00
TM9E080C16MP11 21.0 FC/MC/PC48D 1175 35.0 24.9 13.75 12.00
TM9E080C16MP11 21.0 UC48C 1150 35.0 25.1 13.75 12.00
TM9E080C16MP11 21.0 UC48D 1175 35.0 25.1 13.75 12.00
For notes see Page 17.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

700678-LTG-E-0415
10 Johnson Controls Unitary Products
TCJD36S4(3,4)S3(E)
TM9E100C16MP11 21.0 FC/MC/PC43C 1175 35.0 24.5 13.75 11.75
TM9E100C16MP11 21.0 FC/MC/PC48C 1150 35.2 24.9 13.75 12.00
TM9E100C16MP11 21.0 FC/MC/PC48D 1175 35.0 24.9 13.75 12.00
TM9E100C16MP11 21.0 UC48C 1150 35.0 25.1 13.75 12.00
TM9E100C16MP11 21.0 UC48D 1175 35.0 25.1 13.75 12.00
TM9E100C20MP11 21.0 FC/MC/PC43C 1150 35.0 24.5 13.75 12.00
TM9E100C20MP11 21.0 FC/MC/PC48C 1150 35.2 24.9 13.75 12.00
TM9E100C20MP11 21.0 FC/MC/PC48D 1175 35.2 25.1 13.75 12.00
TM9E100C20MP11 21.0 UC48C 1150 35.2 25.1 13.75 12.00
TM9E100C20MP11 21.0 UC48D 1175 35.2 25.1 13.75 12.00
TM9E120D20MP11 24.5 FC/MC/PC48D 1175 35.2 25.1 14.00 12.00
TM9E120D20MP11 24.5 UC48D 1175 35.2 25.1 14.00 12.00
TM9X060B12MP11 17.5 FC/MC/PC43B 1125 34.8 24.3 13.25 11.50
TM9X080B12MP11 17.5 FC/MC/PC43B 1125 34.8 24.3 13.25 11.50
TM9X080C16MP11 21.0 FC/MC/PC43C 1175 35.0 24.5 13.75 11.75
TM9X080C16MP11 21.0 FC/MC/PC48C 1150 35.2 24.9 13.75 12.00
TM9X080C16MP11 21.0 FC/MC/PC48D 1175 35.0 24.9 13.75 12.00
TM9X080C16MP11 21.0 UC48C 1150 35.0 25.1 13.75 12.00
TM9X080C16MP11 21.0 UC48D 1175 35.0 25.1 13.75 12.00
TM9X100C16MP11 21.0 FC/MC/PC43C 1175 35.0 24.5 13.75 11.75
TM9X100C16MP11 21.0 FC/MC/PC48C 1150 35.2 24.9 13.75 12.00
TM9X100C16MP11 21.0 FC/MC/PC48D 1175 35.0 24.9 13.75 12.00
TM9X100C16MP11 21.0 UC48C 1150 35.0 25.1 13.75 12.00
TM9X100C16MP11 21.0 UC48D 1175 35.0 25.1 13.75 12.00
TM9X100C20MP11 21.0 FC/MC/PC43C 1150 35.0 24.5 13.75 12.00
TM9X100C20MP11 21.0 FC/MC/PC48C 1150 35.2 24.9 13.75 12.00
TM9X100C20MP11 21.0 FC/MC/PC48D 1175 35.2 25.1 13.75 12.00
TM9X100C20MP11 21.0 UC48C 1150 35.2 25.1 13.75 12.00
TM9X100C20MP11 21.0 UC48D 1175 35.2 25.1 13.75 12.00
TM9X120D20MP11 24.5 FC/MC/PC48D 1175 35.2 25.1 14.00 12.00
TM9X120D20MP11 24.5 UC48D 1175 35.2 25.1 14.00 12.00
TMLX060A12MP11 14.5 FC/MC/PC37A 1125 34.8 24.3 13.30 11.50
TMLX080B12MP11 17.5 FC/MC/PC43B 1175 34.8 24.3 13.30 11.50
TMLX080C16MP11 21.0 FC/MC/PC43C 1150 35.0 24.7 14.00 12.00
TMLX080C16MP11 21.0 FC/MC/PC48C 1150 35.2 25.1 14.00 12.00
TMLX080C16MP11 21.0 FC/MC/PC48D 1175 35.2 25.1 14.00 12.25
TMLX080C16MP11 21.0 UC48C 1150 35.2 25.1 14.00 12.00
TMLX080C16MP11 21.0 UC48D 1175 35.2 25.1 14.00 12.25
TMLX100C16MP11 21.0 FC/MC/PC43C 1150 35.0 24.7 14.00 12.00
TMLX100C16MP11 21.0 FC/MC/PC48C 1150 35.2 25.1 14.00 12.00
TMLX100C16MP11 21.0 FC/MC/PC48D 1175 35.2 25.1 14.00 12.25
TMLX100C16MP11 21.0 UC48C 1150 35.2 25.1 14.00 12.00
TMLX100C16MP11 21.0 UC48D 1175 35.2 25.1 14.00 12.25
TMLX100C20MP11 21.0 FC/MC/PC43C 1200 35.4 25.5 13.80 12.00
TMLX100C20MP11 21.0 FC/MC/PC48C 1200 35.8 25.7 14.00 12.25
TMLX100C20MP11 21.0 FC/MC/PC48D 1200 35.8 25.7 14.00 12.25
TMLX100C20MP11 21.0 UC48C 1200 35.2 25.1 13.75 12.00
TMLX100C20MP11 21.0 UC48D 1200 35.2 25.1 13.75 12.00
TMLX120C20MP11 21.0 FC/MC/PC43C 1200 35.4 25.5 13.80 12.00
TMLX120C20MP11 21.0 FC/MC/PC48C 1200 35.8 25.7 14.00 12.25
For notes see Page 17.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

700678-LTG-E-0415
Johnson Controls Unitary Products 11
TCJD36S4(3,4)S3(E)
TMLX120C20MP11 21.0 FC/MC/PC48D 1200 35.8 25.7 14.00 12.25
TMLX120C20MP11 21.0 UC48C 1200 35.2 25.1 13.75 12.00
TMLX120C20MP11 21.0 UC48D 1200 35.2 25.1 13.75 12.00
L*(8,L)C*A12 14.5 FC/MC/PC37A 980 33.8 23.0 13.50 11.00
L*(8,L)C*B12 17.5 FC/MC/PC43B 1210 35.2 25.2 13.50 11.00
L*(8,L)C*C16 21.0 FC/MC/PC43C 1205 35.6 25.4 14.00 11.50
L*(8,L)C*C16 21.0 FC/MC/PC48C 1210 36.0 26.0 14.00 12.00
L*(8,L)C*C16 21.0 UC48C 1210 34.6 24.8 13.50 11.50
L*(8,L)C*C20 21.0 FC/MC/PC43C 1190 35.6 25.4 14.00 12.00
L*(8,L)C*C20 21.0 FC/MC/PC48C 1155 36.0 26.1 14.00 12.00
L*(8,L)C*C20 21.0 UC48C 1155 34.8 24.8 14.00 11.50
L*9C*B12 17.5 FC/MC/PC43B 1200 35.2 25.2 13.50 11.00
L*9C*C16 21.0 FC/MC/PC43C 1240 35.4 25.2 13.50 11.50
L*9C*C16 21.0 FC/MC/PC48C 1195 36.0 26.0 14.00 11.50
L*9C*C16 21.0 UC48C 1195 34.6 24.8 13.50 11.50
L*9C*C20 21.0 FC/MC/PC43C 1200 35.6 25.4 14.00 11.50
L*9C*C20 21.0 FC/MC/PC48C 1330 36.0 26.5 14.00 11.50
L*9C*C20 21.0 UC48C 1305 35.0 25.6 13.30 11.00
L*9C*D20 24.5 FC/MC/PC48D 1240 36.0 26.2 14.00 12.00
L*9C*D20 24.5 UC48D 1240 34.8 25.0 13.80 11.50
TCJD42S4(3,4)S4(E)
T*(8,L)V*B12 17.5 FC/MC/PC43B 1270 41.0 28.8 13.25 11.25
T*(8,L)V*C16 21.0 FC/MC/PC43C 1390 42.0 30.2 13.50 11.50
T*(8,L)V*C16 21.0 FC/MC/PC48C 1330 42.0 29.8 13.50 11.50
T*(8,L)V*C16 21.0 FC/MC/PC48D 1330 42.0 29.8 13.50 11.50
T*(8,L)V*C16 21.0 FC/MC/PC60D 1420 42.0 30.0 13.50 11.50
T*(8,L)V*C16 21.0 FC/MC62D 1420 42.0 30.6 13.50 11.50
T*(8,L)V*C16 21.0 FC/PC60C 1420 42.0 30.0 13.50 11.50
T*(8,L)V*C16 21.0 FC64D 1420 42.0 30.8 14.25 12.00
T*(8,L)V*C16 21.0 UC48C 1435 42.0 30.2 13.50 11.50
T*(8,L)V*C16 21.0 UC60C 1420 42.0 30.0 13.50 11.50
T*(8,L)V*C20 21.0 FC/MC/PC43C 1450 42.0 30.6 13.25 11.25
T*(8,L)V*C20 21.0 FC/MC/PC48C 1410 42.0 30.2 13.75 11.50
T*(8,L)V*C20 21.0 FC/MC/PC48D 1410 42.0 30.2 13.75 11.50
T*(8,L)V*C20 21.0 FC/MC/PC60D 1340 42.0 30.2 13.75 11.75
T*(8,L)V*C20 21.0 FC/MC62D 1365 42.0 30.8 14.00 11.75
T*(8,L)V*C20 21.0 FC/PC60C 1340 42.0 30.2 13.75 11.75
T*(8,L)V*C20 21.0 FC64D 1410 42.0 30.8 14.25 12.00
T*(8,L)V*C20 21.0 UC48C 1410 42.0 30.2 13.75 11.75
T*(8,L)V*C20 21.0 UC60C 1410 42.0 30.0 13.50 11.50
T*9(C,V)*C16 21.0 FC/MC/PC43C 1360 42.0 30.0 13.25 11.25
T*9(C,V)*C16 21.0 FC/MC/PC48C 1395 42.0 30.4 13.50 11.50
T*9(C,V)*C16 21.0 FC/MC/PC48D 1395 42.0 30.4 13.50 11.50
T*9(C,V)*C16 21.0 FC/MC/PC60D 1445 41.5 29.8 13.00 11.00
T*9(C,V)*C16 21.0 FC/MC62D 1445 42.0 30.6 13.25 11.00
T*9(C,V)*C16 21.0 FC/PC60C 1445 41.5 29.8 13.00 11.00
T*9(C,V)*C16 21.0 FC64D 1445 42.0 30.8 13.50 11.50
T*9(C,V)*C16 21.0 UC48C 1395 42.0 30.2 13.50 11.50
T*9(C,V)*C16 21.0 UC60C 1445 41.5 29.6 13.00 11.00
T*9(C,V)*C20 21.0 FC/MC/PC43C 1395 42.0 30.0 13.25 11.25
T*9(C,V)*C20 21.0 FC/MC/PC48C 1430 42.0 30.4 13.25 11.25
For notes see Page 17.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

700678-LTG-E-0415
12 Johnson Controls Unitary Products
TCJD42S4(3,4)S4(E)
T*9(C,V)*C20 21.0 FC/MC/PC48D 1430 42.0 30.4 13.25 11.25
T*9(C,V)*C20 21.0 FC/MC/PC60D 1445 42.0 29.8 13.25 11.25
T*9(C,V)*C20 21.0 FC/MC62D 1445 42.0 30.6 13.50 11.25
T*9(C,V)*C20 21.0 FC/PC60C 1445 42.0 29.8 13.25 11.25
T*9(C,V)*C20 21.0 FC64D 1445 42.0 30.8 13.75 11.75
T*9(C,V)*C20 21.0 UC48C 1430 42.0 30.2 13.25 11.25
T*9(C,V)*C20 21.0 UC60C 1445 41.5 29.8 13.00 11.25
T*9(C,V)*D20 24.5 FC/MC/PC48D 1450 42.0 30.2 13.50 11.50
T*9(C,V)*D20 24.5 FC/MC/PC60D 1445 42.0 30.0 13.50 11.50
T*9(C,V)*D20 24.5 FC/MC62D 1455 42.0 30.6 13.50 11.50
T*9(C,V)*D20 24.5 FC64D 1455 42.0 30.6 14.00 11.75
T*9(C,V)*D20 24.5 UC48D 1450 42.0 30.2 13.50 11.50
T*9(C,V)*D20 24.5 UC60D 1445 41.5 29.8 13.25 11.25
TM8X080C16MP11 21.0 FC/MC/PC43C 1350 41.0 29.2 13.45 11.65
TM8X080C16MP11 21.0 FC/MC/PC48C 1325 41.5 29.4 13.60 11.70
TM8X080C16MP11 21.0 FC/MC/PC48D 1350 42.0 30.2 13.80 11.85
TM8X080C16MP11 21.0 FC/MC/PC60D 1375 42.0 29.8 13.75 11.80
TM8X080C16MP11 21.0 FC/MC62D 1350 42.0 30.8 13.85 11.85
TM8X080C16MP11 21.0 FC/PC60C 1350 42.0 29.8 13.75 11.75
TM8X080C16MP11 21.0 FC64D 1375 43.5 31.8 14.25 12.15
TM8X080C16MP11 21.0 UC48C 1325 40.5 29.0 13.45 11.50
TM8X080C16MP11 21.0 UC48D 1350 40.5 29.0 13.25 11.25
TM8X080C16MP11 21.0 UC60C 1350 41.0 29.2 13.55 11.65
TM8X080C16MP11 21.0 UC60D 1375 41.0 29.2 13.25 11.25
TM8X100C16MP11 21.0 FC/MC/PC43C 1350 41.0 29.2 13.45 11.65
TM8X100C16MP11 21.0 FC/MC/PC48C 1325 41.5 29.4 13.60 11.70
TM8X100C16MP11 21.0 FC/MC/PC48D 1350 42.0 30.2 13.80 11.85
TM8X100C16MP11 21.0 FC/MC/PC60D 1375 42.0 29.8 13.75 11.80
TM8X100C16MP11 21.0 FC/MC62D 1350 42.0 30.8 13.85 11.85
TM8X100C16MP11 21.0 FC/PC60C 1350 42.0 29.8 13.75 11.75
TM8X100C16MP11 21.0 FC64D 1375 43.5 31.8 14.25 12.15
TM8X100C16MP11 21.0 UC48C 1325 40.5 29.0 13.45 11.50
TM8X100C16MP11 21.0 UC48D 1350 40.5 29.0 13.25 11.25
TM8X100C16MP11 21.0 UC60C 1350 41.0 29.2 13.55 11.65
TM8X100C16MP11 21.0 UC60D 1375 41.0 29.2 13.25 11.25
TM8X100C20MP11 21.0 FC/MC/PC43C 1350 41.0 29.2 13.50 11.70
TM8X100C20MP11 21.0 FC/MC/PC48C 1350 42.0 30.2 13.80 11.85
TM8X100C20MP11 21.0 FC/MC/PC48D 1400 42.0 30.2 13.85 11.85
TM8X100C20MP11 21.0 FC/MC/PC60D 1400 42.0 30.0 13.80 11.80
TM8X100C20MP11 21.0 FC/MC62D 1400 42.0 30.8 13.95 11.95
TM8X100C20MP11 21.0 FC/PC60C 1375 42.0 29.8 13.80 11.80
TM8X100C20MP11 21.0 FC64D 1400 43.5 31.8 14.25 12.20
TM8X100C20MP11 21.0 UC48C 1350 40.5 29.0 13.50 11.55
TM8X100C20MP11 21.0 UC48D 1400 41.5 30.0 13.25 11.50
TM8X100C20MP11 21.0 UC60C 1375 41.0 29.2 13.60 11.65
TM8X100C20MP11 21.0 UC60D 1400 41.0 29.2 13.25 11.25
TM8X120C20MP11 21.0 FC/MC/PC43C 1350 41.0 29.2 13.50 11.70
TM8X120C20MP11 21.0 FC/MC/PC48C 1350 42.0 30.2 13.80 11.85
TM8X120C20MP11 21.0 FC/MC/PC48D 1400 42.0 30.2 13.85 11.85
TM8X120C20MP11 21.0 FC/MC/PC60D 1400 42.0 30.0 13.80 11.80
For notes see Page 17.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

700678-LTG-E-0415
Johnson Controls Unitary Products 13
TCJD42S4(3,4)S4(E)
TM8X120C20MP11 21.0 FC/MC62D 1400 42.0 30.8 13.95 11.95
TM8X120C20MP11 21.0 FC/PC60C 1375 42.0 29.8 13.80 11.80
TM8X120C20MP11 21.0 FC64D 1400 43.5 31.8 14.25 12.20
TM8X120C20MP11 21.0 UC48C 1350 40.5 29.0 13.50 11.55
TM8X120C20MP11 21.0 UC48D 1400 41.5 30.0 13.25 11.50
TM8X120C20MP11 21.0 UC60C 1375 41.0 29.2 13.60 11.65
TM8X120C20MP11 21.0 UC60D 1400 41.0 29.2 13.25 11.25
TM9E080C16MP11 21.0 FC/MC/PC48C 1400 41.5 29.8 13.10 11.30
TM9E080C16MP11 21.0 FC/MC/PC48D 1400 41.5 29.8 13.05 11.25
TM9E080C16MP11 21.0 FC/MC/PC60D 1400 41.5 29.6 13.10 11.25
TM9E080C16MP11 21.0 FC/MC62D 1400 41.5 30.4 13.15 11.30
TM9E080C16MP11 21.0 FC/PC60C 1400 41.5 29.6 13.05 11.20
TM9E080C16MP11 21.0 FC64D 1400 43.0 31.4 13.50 11.60
TM9E100C16MP11 21.0 FC/MC/PC48C 1400 41.5 29.8 13.10 11.30
TM9E100C16MP11 21.0 FC/MC/PC48D 1400 41.5 29.8 13.05 11.25
TM9E100C16MP11 21.0 FC/MC/PC60D 1400 41.5 29.6 13.10 11.25
TM9E100C16MP11 21.0 FC/MC62D 1400 41.5 30.4 13.15 11.30
TM9E100C16MP11 21.0 FC/PC60C 1400 41.5 29.6 13.05 11.20
TM9E100C16MP11 21.0 FC64D 1400 43.0 31.4 13.50 11.60
TM9E100C20MP11 21.0 FC/MC/PC43C 1325 41.0 29.0 13.50 11.60
TM9E100C20MP11 21.0 FC/MC/PC48C 1325 41.5 29.4 13.55 11.65
TM9E100C20MP11 21.0 FC/MC/PC48D 1350 42.0 30.2 13.80 11.75
TM9E100C20MP11 21.0 FC/MC/PC60D 1350 42.0 29.8 13.75 11.75
TM9E100C20MP11 21.0 FC/MC62D 1350 42.0 30.8 13.80 11.75
TM9E100C20MP11 21.0 FC64D 1350 43.5 31.8 14.20 12.15
TM9E100C20MP11 21.0 UC48C 1325 40.5 29.0 13.40 11.45
TM9E100C20MP11 21.0 UC48D 1350 40.5 29.0 13.25 11.25
TM9E100C20MP11 21.0 UC60D 1350 41.0 29.2 13.25 11.25
TM9E120D20MP11 24.5 FC/MC/PC48D 1325 41.5 29.4 13.70 11.75
TM9E120D20MP11 24.5 FC/MC/PC60D 1325 41.5 29.1 13.70 11.70
TM9E120D20MP11 24.5 FC/MC62D 1325 41.5 29.8 13.75 11.75
TM9E120D20MP11 24.5 FC64D 1325 43.0 30.8 14.20 12.10
TM9E120D20MP11 24.5 UC48D 1325 40.5 29.0 13.55 11.60
TM9E120D20MP11 24.5 UC60D 1325 41.0 29.2 13.65 11.70
TM9X080C16MP11 21.0 FC/MC/PC48C 1400 41.5 29.8 13.10 11.30
TM9X080C16MP11 21.0 FC/MC/PC48D 1400 41.5 29.8 13.05 11.25
TM9X080C16MP11 21.0 FC/MC/PC60D 1400 41.5 29.6 13.10 11.25
TM9X080C16MP11 21.0 FC/MC62D 1400 41.5 30.4 13.15 11.30
TM9X080C16MP11 21.0 FC/PC60C 1400 41.5 29.6 13.05 11.20
TM9X080C16MP11 21.0 FC64D 1400 43.0 31.4 13.50 11.60
TM9X100C16MP11 21.0 FC/MC/PC48C 1400 41.5 29.8 13.10 11.30
TM9X100C16MP11 21.0 FC/MC/PC48D 1400 41.5 29.8 13.05 11.25
TM9X100C16MP11 21.0 FC/MC/PC60D 1400 41.5 29.6 13.10 11.25
TM9X100C16MP11 21.0 FC/MC62D 1400 41.5 30.4 13.15 11.30
TM9X100C16MP11 21.0 FC/PC60C 1400 41.5 29.6 13.05 11.20
TM9X100C16MP11 21.0 FC64D 1400 43.0 31.4 13.50 11.60
TM9X100C20MP11 21.0 FC/MC/PC43C 1325 41.0 29.0 13.50 11.60
TM9X100C20MP11 21.0 FC/MC/PC48C 1325 41.5 29.4 13.55 11.65
TM9X100C20MP11 21.0 FC/MC/PC48D 1350 42.0 30.2 13.80 11.75
TM9X100C20MP11 21.0 FC/MC/PC60D 1350 42.0 29.8 13.75 11.75
For notes see Page 17.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

700678-LTG-E-0415
14 Johnson Controls Unitary Products
TCJD42S4(3,4)S4(E)
TM9X100C20MP11 21.0 FC/MC62D 1350 42.0 30.8 13.80 11.75
TM9X100C20MP11 21.0 FC64D 1350 43.5 31.8 14.20 12.15
TM9X100C20MP11 21.0 UC48C 1325 40.5 29.0 13.40 11.45
TM9X100C20MP11 21.0 UC48D 1350 40.5 29.0 13.25 11.25
TM9X100C20MP11 21.0 UC60D 1350 41.0 29.2 13.25 11.25
TM9X120D20MP11 24.5 FC/MC/PC48D 1325 41.5 29.4 13.70 11.75
TM9X120D20MP11 24.5 FC/MC/PC60D 1325 41.5 29.1 13.70 11.70
TM9X120D20MP11 24.5 FC/MC62D 1325 41.5 29.8 13.75 11.75
TM9X120D20MP11 24.5 FC64D 1325 43.0 30.8 14.20 12.10
TM9X120D20MP11 24.5 UC48D 1325 40.5 29.0 13.55 11.60
TM9X120D20MP11 24.5 UC60D 1325 41.0 29.2 13.65 11.70
TMLX080C16MP11 21.0 FC/MC/PC43C 1350 41.0 29.2 13.45 11.65
TMLX080C16MP11 21.0 FC/MC/PC48C 1325 41.5 29.4 13.60 11.70
TMLX080C16MP11 21.0 FC/MC/PC48D 1350 42.0 30.2 13.80 11.85
TMLX080C16MP11 21.0 FC/MC/PC60D 1375 42.0 29.8 13.75 11.80
TMLX080C16MP11 21.0 FC/MC62D 1350 42.0 30.8 13.85 11.85
TMLX080C16MP11 21.0 FC/PC60C 1350 42.0 29.8 13.75 11.75
TMLX080C16MP11 21.0 FC64D 1375 43.5 31.8 14.25 12.15
TMLX080C16MP11 21.0 UC48C 1325 40.5 29.0 13.45 11.50
TMLX080C16MP11 21.0 UC48D 1350 40.5 29.0 13.25 11.25
TMLX080C16MP11 21.0 UC60C 1350 41.0 29.2 13.55 11.65
TMLX080C16MP11 21.0 UC60D 1375 41.0 29.2 13.25 11.25
TMLX100C16MP11 21.0 FC/MC/PC43C 1350 41.0 29.2 13.45 11.65
TMLX100C16MP11 21.0 FC/MC/PC48C 1325 41.5 29.4 13.60 11.70
TMLX100C16MP11 21.0 FC/MC/PC48D 1350 42.0 30.2 13.80 11.85
TMLX100C16MP11 21.0 FC/MC/PC60D 1375 42.0 29.8 13.75 11.80
TMLX100C16MP11 21.0 FC/MC62D 1350 42.0 30.8 13.85 11.85
TMLX100C16MP11 21.0 FC/PC60C 1350 42.0 29.8 13.75 11.75
TMLX100C16MP11 21.0 FC64D 1375 43.5 31.8 14.25 12.15
TMLX100C16MP11 21.0 UC48C 1325 40.5 29.0 13.45 11.50
TMLX100C16MP11 21.0 UC48D 1350 40.5 29.0 13.25 11.25
TMLX100C16MP11 21.0 UC60C 1350 41.0 29.2 13.55 11.65
TMLX100C16MP11 21.0 UC60D 1375 41.0 29.2 13.25 11.25
TMLX100C20MP11 21.0 FC/MC/PC43C 1350 41.0 29.2 13.50 11.70
TMLX100C20MP11 21.0 FC/MC/PC48C 1350 42.0 30.2 13.80 11.85
TMLX100C20MP11 21.0 FC/MC/PC48D 1400 42.0 30.2 13.85 11.85
TMLX100C20MP11 21.0 FC/MC/PC60D 1400 42.0 30.0 13.80 11.80
TMLX100C20MP11 21.0 FC/MC62D 1400 42.0 30.8 13.95 11.95
TMLX100C20MP11 21.0 FC/PC60C 1375 42.0 29.8 13.80 11.80
TMLX100C20MP11 21.0 FC64D 1400 43.5 31.8 14.25 12.20
TMLX100C20MP11 21.0 UC48C 1350 40.5 29.0 13.50 11.55
TMLX100C20MP11 21.0 UC48D 1400 41.5 30.0 13.25 11.50
TMLX100C20MP11 21.0 UC60C 1375 41.0 29.2 13.60 11.65
TMLX100C20MP11 21.0 UC60D 1400 41.0 29.2 13.25 11.25
TMLX120C20MP11 21.0 FC/MC/PC43C 1350 41.0 29.2 13.50 11.70
TMLX120C20MP11 21.0 FC/MC/PC48C 1350 42.0 30.2 13.80 11.85
TMLX120C20MP11 21.0 FC/MC/PC48D 1400 42.0 30.2 13.85 11.85
TMLX120C20MP11 21.0 FC/MC/PC60D 1400 42.0 30.0 13.80 11.80
TMLX120C20MP11 21.0 FC/MC62D 1400 42.0 30.8 13.95 11.95
TMLX120C20MP11 21.0 FC/PC60C 1375 42.0 29.8 13.80 11.80
For notes see Page 17.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

700678-LTG-E-0415
Johnson Controls Unitary Products 15
TCJD42S4(3,4)S4(E)
TMLX120C20MP11 21.0 FC64D 1400 43.5 31.8 14.25 12.20
TMLX120C20MP11 21.0 UC48C 1350 40.5 29.0 13.50 11.55
TMLX120C20MP11 21.0 UC48D 1400 41.5 30.0 13.25 11.50
TMLX120C20MP11 21.0 UC60C 1375 41.0 29.2 13.60 11.65
TMLX120C20MP11 21.0 UC60D 1400 41.0 29.2 13.25 11.25
L*(8,L)C*B12 17.5 FC/MC/PC43B 1270 41.0 28.8 13.25 11.25
L*(8,L)C*C16 21.0 FC/MC/PC43C 1390 42.0 30.2 13.50 11.50
L*(8,L)C*C16 21.0 FC/MC/PC48C 1330 42.0 29.8 13.50 11.50
L*(8,L)C*C16 21.0 FC/MC/PC48D 1330 42.0 29.8 13.50 11.50
L*(8,L)C*C16 21.0 FC/MC/PC60D 1420 42.0 30.0 13.50 11.50
L*(8,L)C*C16 21.0 FC/MC62D 1420 42.0 30.6 13.50 11.50
L*(8,L)C*C16 21.0 FC/PC60C 1420 42.0 30.0 13.50 11.50
L*(8,L)C*C16 21.0 FC64D 1420 42.0 30.8 14.25 12.00
L*(8,L)C*C16 21.0 UC48C 1435 42.0 30.2 13.50 11.50
L*(8,L)C*C16 21.0 UC60C 1420 42.0 30.0 13.50 11.50
L*(8,L)C*C20 21.0 FC/MC/PC43C 1450 42.0 30.6 13.25 11.25
L*(8,L)C*C20 21.0 FC/MC/PC48C 1410 42.0 30.2 13.75 11.50
L*(8,L)C*C20 21.0 FC/MC/PC48D 1410 42.0 30.2 13.75 11.50
L*(8,L)C*C20 21.0 FC/MC/PC60D 1340 42.0 30.2 13.75 11.75
L*(8,L)C*C20 21.0 FC/MC62D 1365 42.0 30.8 14.00 11.75
L*(8,L)C*C20 21.0 FC/PC60C 1340 42.0 30.2 13.75 11.75
L*(8,L)C*C20 21.0 FC64D 1410 42.0 30.8 14.25 12.00
L*(8,L)C*C20 21.0 UC48C 1410 42.0 30.2 13.75 11.75
L*(8,L)C*C20 21.0 UC60C 1410 42.0 30.0 13.50 11.50
L*9C*C16 21.0 FC/MC/PC43C 1360 42.0 30.0 13.25 11.25
L*9C*C16 21.0 FC/MC/PC48C 1395 42.0 30.4 13.50 11.50
L*9C*C16 21.0 FC/MC/PC48D 1395 42.0 30.4 13.50 11.50
L*9C*C16 21.0 FC/MC/PC60D 1445 41.5 29.8 13.00 11.00
L*9C*C16 21.0 FC/MC62D 1445 42.0 30.6 13.25 11.00
L*9C*C16 21.0 FC/PC60C 1445 41.5 29.8 13.00 11.00
L*9C*C16 21.0 FC64D 1445 42.0 30.8 13.50 11.50
L*9C*C16 21.0 UC48C 1395 42.0 30.2 13.50 11.50
L*9C*C16 21.0 UC60C 1445 41.5 29.6 13.00 11.00
L*9C*C20 21.0 FC/MC/PC43C 1395 42.0 30.0 13.25 11.25
L*9C*C20 21.0 FC/MC/PC48C 1430 42.0 30.4 13.25 11.25
L*9C*C20 21.0 FC/MC/PC48D 1430 42.0 30.4 13.25 11.25
L*9C*C20 21.0 FC/MC/PC60D 1445 42.0 29.8 13.25 11.25
L*9C*C20 21.0 FC/MC62D 1445 42.0 30.6 13.50 11.25
L*9C*C20 21.0 FC/PC60C 1445 42.0 29.8 13.25 11.25
L*9C*C20 21.0 FC64D 1445 42.0 30.8 13.75 11.75
L*9C*C20 21.0 UC48C 1430 42.0 30.2 13.25 11.25
L*9C*C20 21.0 UC60C 1445 41.5 29.8 13.00 11.25
L*9C*D20 24.5 FC/MC/PC48D 1450 42.0 30.2 13.50 11.50
L*9C*D20 24.5 FC/MC/PC60D 1445 42.0 30.0 13.50 11.50
L*9C*D20 24.5 FC/MC62D 1455 42.0 30.6 13.50 11.50
L*9C*D20 24.5 FC64D 1455 42.0 30.6 14.00 11.75
L*9C*D20 24.5 UC48D 1450 42.0 30.2 13.50 11.50
L*9C*D20 24.5 UC60D 1445 41.5 29.8 13.25 11.25
For notes see Page 17.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

700678-LTG-E-0415
16 Johnson Controls Unitary Products
TCJD48S4(3,4)S3(E)
T*(8,L)V*C16 21.0 FC/MC/PC48C 1565 48.0 35.0 13.30 11.00
T*(8,L)V*C16 21.0 FC/PC60C 1600 48.0 35.0 13.30 11.00
T*(8,L)V*C20 21.0 FC/MC/PC48C 1640 48.0 35.0 13.20 11.00
T*(8,L)V*C20 21.0 FC/PC60C 1625 48.0 35.0 13.50 11.50
T*9(C,V)*C16 21.0 FC/MC/PC48C 1590 48.0 34.6 13.10 11.00
T*9(C,V)*C16 21.0 FC/PC60C 1590 48.0 35.2 13.10 11.00
T*9(C,V)*C20 21.0 FC/MC/PC48C 1655 48.0 34.8 13.20 11.00
T*9(C,V)*C20 21.0 FC/PC60C 1655 48.0 35.2 13.10 11.00
T*9(C,V)*D20 24.5 FC/MC/PC48D 1645 48.0 35.2 13.20 11.00
T*9(C,V)*D20 24.5 FC/MC/PC60D 1615 48.0 35.0 13.20 11.00
TM8X080C16MP11 21.0 FC/MC/PC48C 1525 48.0 34.2 13.30 11.00
TM8X080C16MP11 21.0 FC/PC60C 1525 48.0 34.4 13.30 11.00
TM8X100C16MP11 21.0 FC/MC/PC48C 1525 48.0 34.2 13.30 11.00
TM8X100C16MP11 21.0 FC/PC60C 1525 48.0 34.4 13.30 11.00
TM8X100C20MP11 21.0 FC/MC/PC48C 1550 48.0 34.4 13.20 11.50
TM8X100C20MP11 21.0 FC/MC/PC60D 1575 48.5 34.6 13.30 11.50
TM8X100C20MP11 21.0 FC/PC60C 1550 48.5 34.6 13.25 11.50
TM8X120C20MP11 21.0 FC/MC/PC48C 1550 48.0 34.4 13.20 11.50
TM8X120C20MP11 21.0 FC/MC/PC60D 1575 48.5 34.6 13.30 11.50
TM8X120C20MP11 21.0 FC/PC60C 1550 48.5 34.6 13.25 11.50
TM9E100C20MP11 21.0 FC/MC/PC48C 1500 47.5 33.8 13.10 11.25
TM9E120D20MP11 24.5 FC/MC/PC48D 1525 48.0 34.2 13.20 11.50
TM9E120D20MP11 24.5 FC/MC/PC60D 1550 48.5 34.6 13.20 11.50
TM9X100C20MP11 21.0 FC/MC/PC48C 1500 47.5 33.8 13.10 11.25
TM9X120D20MP11 24.5 FC/MC/PC48D 1525 48.0 34.2 13.20 11.50
TM9X120D20MP11 24.5 FC/MC/PC60D 1550 48.5 34.6 13.20 11.50
TMLX080C16MP11 21.0 FC/MC/PC48C 1525 48.0 34.2 13.30 11.00
TMLX080C16MP11 21.0 FC/PC60C 1525 48.0 34.4 13.30 11.00
TMLX100C16MP11 21.0 FC/MC/PC48C 1525 48.0 34.2 13.30 11.00
TMLX100C16MP11 21.0 FC/PC60C 1525 48.0 34.4 13.30 11.00
TMLX100C20MP11 21.0 FC/MC/PC48C 1550 48.0 34.4 13.20 11.50
TMLX100C20MP11 21.0 FC/MC/PC60D 1575 48.5 34.6 13.30 11.50
TMLX100C20MP11 21.0 FC/PC60C 1550 48.5 34.6 13.25 11.50
TMLX120C20MP11 21.0 FC/MC/PC48C 1550 48.0 34.4 13.20 11.50
TMLX120C20MP11 21.0 FC/MC/PC60D 1575 48.5 34.6 13.30 11.50
TMLX120C20MP11 21.0 FC/PC60C 1550 48.5 34.6 13.25 11.50
L*(8,L)C*C16 21.0 FC/MC/PC48C 1565 48.0 35.0 13.30 11.00
L*(8,L)C*C16 21.0 FC/PC60C 1600 48.0 35.0 13.30 11.00
L*(8,L)C*C20 21.0 FC/MC/PC48C 1640 48.0 35.0 13.20 11.00
L*(8,L)C*C20 21.0 FC/PC60C 1625 48.0 35.0 13.50 11.50
L*9C*C16 21.0 FC/MC/PC48C 1590 48.0 34.6 13.10 11.00
L*9C*C16 21.0 FC/PC60C 1590 48.0 35.2 13.10 11.00
L*9C*C20 21.0 FC/MC/PC48C 1655 48.0 34.8 13.20 11.00
L*9C*C20 21.0 FC/PC60C 1655 48.0 35.2 13.10 11.00
L*9C*D20 24.5 FC/MC/PC48D 1645 48.0 35.2 13.20 11.00
L*9C*D20 24.5 FC/MC/PC60D 1615 48.0 35.0 13.20 11.00
For notes see Page 17.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2

700678-LTG-E-0415
Johnson Controls Unitary Products 17
PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings.
ACCESSORIES & APPLICATIONS
Refer to Price Manual for specific model numbers.
Long Lineset Applications - For installations with more than
75' of equivalent lineset length, refer to the current version of
the Piping Application Guide 247077-UAD-H-0209, available
in the Application Bulletins section on UPGnet.
Off Cycle Timer Delay - Provides a 5-minute off cycle to pre-
vent rapid recycling of the compressor.
TXV Kits - S1-1TVM series thermal expansion valves precisely
meter refrigerant for optimum performance over a wide range of
conditions. See System Charge table for TXV part number for
each model.
Low Ambient Pressure Switch Kit (S1-2LA06700424) -
Allows the use of air conditioning at low outdoor ambient tem-
peratures down to +20°F (-7°C). For use with single-stage
models containing R-410A refrigerant only.
Thermostats - Compatible thermostat controls are available
through accessory sourcing. For optimum performance and
installation, refer to the UPGNET “Low Voltage Wiring Diagram”
document to select and apply controls.
TCJD60S4(3,4)S4(E)
T*(8,L)C*C20 21.0 FC/MC/PC60D 1600 54.0 37.6 13.25 11.25
T*(8,L)C*C20 21.0 FC/MC62D 1620 55.0 39.1 13.50 11.25
T*(8,L)C*C20 21.0 FC64D 1630 57.0 40.6 14.00 11.75
T*(8,L)C*C20 21.0 UC60C 1605 54.0 37.6 13.25 11.25
T*(8,L)V*C20 21.0 FC/MC/PC60D 1600 54.0 37.6 13.25 11.25
T*(8,L)V*C20 21.0 FC/MC62D 1620 55.0 39.1 13.50 11.25
T*(8,L)V*C20 21.0 FC64D 1630 57.0 40.6 14.00 11.75
T*(8,L)V*C20 21.0 UC60C 1605 54.0 37.6 13.25 11.25
T*9(C,V)*C20 21.0 FC/MC62D 1655 55.0 39.1 13.25 11.00
T*9(C,V)*C20 21.0 FC64D 1655 57.0 40.6 13.50 11.25
T*9(C,V)*D20 24.5 FC/MC62D 1630 55.0 39.1 13.25 11.00
T*9(C,V)*D20 24.5 FC64D 1630 57.0 40.6 13.50 11.50
TM8X080C16MP11 21.0 FC64D 1550 56.0 39.2 13.25 11.25
TM8X100C16MP11 21.0 FC64D 1550 56.0 39.2 13.25 11.25
TM8X100C20MP11 21.0 FC64D 1600 56.5 39.7 13.50 11.50
TM8X120C20MP11 21.0 FC64D 1600 56.5 39.7 13.50 11.50
TM9E100C20MP11 21.0 FC64D 1550 56.0 39.2 13.25 11.25
TM9E120D20MP11 24.5 FC64D 1525 56.0 39.2 13.25 11.25
TM9X100C20MP11 21.0 FC64D 1550 56.0 39.2 13.25 11.25
TM9X120D20MP11 24.5 FC64D 1525 56.0 39.2 13.25 11.25
TMLX080C16MP11 21.0 FC64D 1550 56.0 39.2 13.25 11.25
TMLX100C16MP11 21.0 FC64D 1550 56.0 39.2 13.25 11.25
TMLX100C20MP11 21.0 FC64D 1600 56.5 39.7 13.50 11.50
TMLX120C20MP11 21.0 FC64D 1600 56.5 39.7 13.50 11.50
L*(8,L)C*C20 21.0 FC/MC/PC60D 1600 54.0 37.6 13.25 11.25
L*(8,L)C*C20 21.0 FC/MC62D 1620 55.0 39.1 13.50 11.25
L*(8,L)C*C20 21.0 FC64D 1630 57.0 40.6 14.00 11.75
L*(8,L)C*C20 21.0 UC60C 1605 54.0 37.6 13.25 11.25
L*9C*C20 21.0 FC/MC62D 1655 55.0 39.1 13.25 11.00
L*9C*C20 21.0 FC64D 1655 57.0 40.6 13.50 11.25
L*9C*D20 24.5 FC/MC62D 1630 55.0 39.1 13.25 11.00
L*9C*D20 24.5 FC64D 1630 57.0 40.6 13.50 11.50
1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
2. High Efficiency Motor Furnaces have B.O.D (Blower on Delay) standard.
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
FURNACE COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM NET MBH SEER EER
TOTAL SENS.
13 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES2
Application Limits
Maximum Lineset Equivalent Length 75 Ft
Outdoor Ambient Temperature Limits
Cooling Operation Maximum DB 115°F
Minimum DB 50°F

700678-LTG-E-0415
18 Johnson Controls Unitary Products
SOUND POWER RATINGS
Rated in accordance with ARI Standard 270.
TYPICAL INSTALLATION
TYPICAL FIELD WIRING
Model Octave Band Sound Power Level (db re. 1-pW)
63 125 250 500 1000 2000 4000 8000 dBA
30S43 72 73 70 68 68 65 60 53 73
30S44 72 74 69 68 68 67 60 54 73
36S43 73 73 69 70 72 68 67 62 76
36S44 73 76 69 70 72 66 65 62 75
42S43 72 78 68 68 71 67 61 59 75
42S44 72 73 69 70 71 68 61 58 75
48S43 73 75 70 69 73 68 60 60 76
48S44 72 78 69 71 72 69 63 60 76
60S43 69 72 71 70 72 66 60 56 74
60S44 68 72 70 68 68 65 61 57 73
76S43 72 75 69 71 74 69 68 65 77
76S44 72 74 68 70 74 69 66 65 77
60” OVERHEAD
CLEARANCE
MINIMUM 18” SERVICE
ACCESS CLEARANCE
ON ONE SIDE
WEATHERPROOF
DISCONNECT
SWITCH
THERMOSTAT
10” CLEARANCE
AROUND PERIMETER
CONTROL
ACCESS
TO INDOOR COIL
NEC CLASS 1 WIRING
NEC CLASS 2 WIRING
TO FURNACE OR
AIR HANDLER
TERMINAL BLOCK
SEAL OPENING(S) WITH
NOTES:
ALL OUTDOOR WIRING MUST BE WEATHERPROOF.
MINIMUM 24” UNIT TO UNIT CLEARANCE.
ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES
POWER WIRING
CONTACTOR
TERMINALS
COIL
GND.
LUG
CYRGW
YRGW
POWER WIRING
CONTROL WIRING
FACTORY WIRING
24 VOLT CONTROL WIRING
MINIMUM 18 GA. WIRE
(NEC CLASS 2) FURNACE OR AIR HANDLER TERMINAL BLOCK
ROOM THERMOSTAT
CONDENSING UNIT
TERMINAL W IS ONLY
REQUIRED ON SYSTEMS
WITH HEAT.
*
*

700678-LTG-E-0415
Johnson Controls Unitary Products 19
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
Continued on next page.
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. TCJD30S4(3,4)S3(E)
INDOOR COIL MODEL NO. FC/MC/PC32
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
ID CFM 800 1000 1200
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
65 T.C. 30.2 33.4 32.8 35.2 36.5 31.7 33.9 33.4 35.5 36.7 33.2 34.3 34.1 35.9 36.9 S.C. 28.9 26.3 22.1 21.6 16.3 30.3 29.5 24.0 23.0 17.4 31.8 32.6 25.9 24.4 18.5
KW 2.18 2.20 2.20 2.21 2.23 2.27 2.28 2.29 2.42 2.32 2.37 2.36 2.38 2.63 2.41
75 T.C. 28.0 30.7 30.0 32.9 34.7 29.7 31.5 30.7 33.3 34.8 31.3 32.4 31.5 33.8 35.0 S.C. 26.9 25.2 20.9 20.7 15.6 28.4 27.6 23.0 22.4 16.7 30.0 30.1 25.1 24.1 17.8
KW 2.36 2.37 2.37 2.40 2.43 2.46 2.47 2.47 2.49 2.53 2.56 2.56 2.56 2.58 2.62
85 T.C. 25.9 28.0 27.2 30.6 32.8 27.7 29.2 28.0 31.2 33.0 29.5 30.5 28.8 31.7 33.1 S.C. 24.8 24.0 19.8 19.8 15.0 26.5 25.8 22.0 21.8 16.1 28.2 27.5 24.3 23.8 17.1
KW 2.54 2.54 2.54 2.59 2.64 2.65 2.65 2.64 2.56 2.73 2.76 2.75 2.74 2.54 2.83
95 T.C. 23.8 25.3 24.5 28.3 31.0 25.7 26.9 25.3 29.0 31.1 27.6 28.6 26.2 29.7 31.3 S.C. 22.8 22.9 18.6 18.9 14.4 24.6 23.9 21.0 21.2 15.4 26.5 25.0 23.5 23.5 16.5
KW 2.72 2.72 2.71 2.78 2.84 2.84 2.83 2.81 2.64 2.94 2.95 2.94 2.92 2.49 3.04
105 T.C. 21.8 23.1 21.7 25.2 27.9 23.4 24.6 22.6 25.8 28.0 25.0 26.1 23.5 26.4 28.1 S.C. 20.9 21.1 17.4 17.7 13.4 22.4 22.2 19.3 19.3 14.5 24.0 23.3 21.3 20.8 15.7
KW 2.91 3.02 2.88 2.96 3.04 3.03 3.08 2.99 2.90 3.14 3.15 3.14 3.10 2.84 3.24
115 T.C. 19.8 21.1 19.1 22.2 25.0 21.2 22.4 19.9 22.7 25.0 22.6 23.6 20.8 23.2 25.0 S.C. 19.0 19.3 16.2 16.7 12.5 20.3 20.5 17.7 17.4 13.7 21.6 21.6 19.2 18.2 14.9
KW 3.10 3.31 3.05 3.14 3.23 3.22 3.33 3.17 3.16 3.33 3.34 3.34 3.29 3.18 3.43
125 T.C. 17.8 19.0 16.4 19.2 22.0 19.0 20.1 17.3 19.6 22.0 20.1 21.2 18.2 20.0 22.0 S.C. 17.1 17.5 15.1 15.6 11.6 18.2 18.7 16.1 15.6 12.9 19.2 20.0 17.1 15.6 14.2
KW 3.28 3.61 3.22 3.31 3.42 3.41 3.57 3.34 3.42 3.52 3.53 3.54 3.47 3.53 3.63
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Air Handlers Coils T.C. S.C. KW
– FC/MC/PC32 1.00 1.00 1.00
– FC/MC/PC35 1.00 1.00 1.00
– FC/MC/PC37 1.00 1.00 1.00
– FC/MC/PC43 1.00 1.00 1.00
AHE30B – 1.01 1.02 0.95
AHE36C – 1.04 1.05 0.94
AHR30B – 1.01 1.06 1.01
AHR36B – 1.03 1.05 1.03
AHV30B – 1.00 1.01 0.96
AHV36C – 1.00 1.00 0.92
AHV42D – 1.03 1.09 0.93
MV12B FC/MC35B 1.00 1.03 0.92
MV12B FC/MC43B 1.00 1.03 0.92
MV16C FC/MC35C 1.03 1.03 0.95
MV16C FC/MC43C 1.03 1.03 0.95
MX12BN21 FC/MC35B 1.01 1.03 0.93
MX12BN21 FC/MC43B 1.02 1.05 0.92
MX16CN21 FC/MC35C 1.01 1.03 0.91
MX16CN21 FC/MC43C 1.02 1.02 0.90

700678-LTG-E-0415
20 Johnson Controls Unitary Products
Furnaces Coils T.C. S.C. KW
T*(8,L)V*A12 FC/MC/PC32A 1.01 1.04 1.01
T*(8,L)V*A12 FC/MC/PC37A 1.03 1.04 0.98
T*(8,L)V*B12 FC/MC/PC35B 1.02 1.02 0.98
T*(8,L)V*B12 FC/MC/PC43B 1.03 1.05 0.95
T*(8,L)V*C16 FC/MC/PC35C 1.02 1.05 0.94
T*(8,L)V*C16 FC/MC/PC43C 1.03 1.05 0.95
T*(8,L)V*C20 FC/MC/PC35C 1.03 1.07 0.95
T*(8,L)V*C20 FC/MC/PC43C 1.03 1.05 0.95
T*9(C,V)*B12 FC/MC/PC35B 1.01 1.05 0.97
T*9(C,V)*B12 FC/MC/PC43B 1.03 1.05 0.99
T*9(C,V)*C16 FC/MC/PC35C 1.02 1.05 0.94
T*9(C,V)*C16 FC/MC/PC43C 1.03 1.05 0.95
T*9(C,V)*C20 FC/MC/PC35C 1.02 1.05 0.94
T*9(C,V)*C20 FC/MC/PC43C 1.03 1.05 0.95
TM8X060A12MP11 FC/MC/PC32A 0.99 1.01 0.99
TM8X060A12MP11 FC/MC/PC37A 1.00 1.03 0.97
TM8X080B12MP11 FC/MC/PC35B 0.99 0.99 0.95
TM8X080B12MP11 FC/MC/PC43B 1.02 1.04 0.94
TM8X080C16MP11 FC/MC/PC35C 1.02 1.03 0.94
TM8X080C16MP11 FC/MC/PC43C 1.01 1.02 0.93
TM8X100C16MP11 FC/MC/PC35C 1.02 1.03 0.94
TM8X100C16MP11 FC/MC/PC43C 1.01 1.02 0.93
TM8X100C20MP11 FC/MC/PC35C 1.01 1.03 0.93
TM8X100C20MP11 FC/MC/PC43C 1.02 1.05 0.94
TM8X120C20MP11 FC/MC/PC35C 1.01 1.03 0.93
TM8X120C20MP11 FC/MC/PC43C 1.02 1.05 0.94
TM9E060B12MP11 FC/MC/PC35B 0.99 0.99 0.92
TM9E060B12MP11 FC/MC/PC43B 1.01 1.01 0.94
TM9E080B12MP11 FC/MC/PC35B 0.99 0.99 0.92
TM9E080B12MP11 FC/MC/PC43B 1.01 1.01 0.94
TM9E080C16MP11 FC/MC/PC35C 1.01 1.03 0.93
TM9E080C16MP11 FC/MC/PC43C 1.02 1.05 0.94
TM9E100C16MP11 FC/MC/PC35C 1.01 1.03 0.93
TM9E100C16MP11 FC/MC/PC43C 1.02 1.05 0.94
TM9E100C20MP11 FC/MC/PC35C 1.00 1.01 0.98
TM9E100C20MP11 FC/MC/PC43C 1.01 1.03 0.96
TM9X060B12MP11 FC/MC/PC35B 0.99 0.99 0.92
TM9X060B12MP11 FC/MC/PC43B 1.01 1.01 0.94
TM9X080B12MP11 FC/MC/PC35B 0.99 0.99 0.92
TM9X080B12MP11 FC/MC/PC43B 1.01 1.01 0.94
TM9X080C16MP11 FC/MC/PC35C 1.01 1.03 0.93
TM9X080C16MP11 FC/MC/PC43C 1.02 1.05 0.94
TM9X100C16MP11 FC/MC/PC35C 1.01 1.03 0.93
TM9X100C16MP11 FC/MC/PC43C 1.02 1.05 0.94
TM9X100C20MP11 FC/MC/PC35C 1.00 1.01 0.98
TM9X100C20MP11 FC/MC/PC43C 1.01 1.03 0.96
TMLX060A12MP11 FC/MC/PC32A 0.99 1.01 0.99
TMLX060A12MP11 FC/MC/PC37A 1.00 1.03 0.97
TMLX080B12MP11 FC/MC/PC35B 0.99 0.99 0.95
TMLX080B12MP11 FC/MC/PC43B 1.02 1.04 0.94
TMLX080C16MP11 FC/MC/PC35C 1.02 1.03 0.94
TMLX080C16MP11 FC/MC/PC43C 1.01 1.02 0.93
TMLX100C16MP11 FC/MC/PC35C 1.02 1.03 0.94
TMLX100C16MP11 FC/MC/PC43C 1.01 1.02 0.93
TMLX100C20MP11 FC/MC/PC35C 1.01 1.03 0.93
TMLX100C20MP11 FC/MC/PC43C 1.02 1.05 0.94
TMLX120C20MP11 FC/MC/PC35C 1.01 1.03 0.93
TMLX120C20MP11 FC/MC/PC43C 1.02 1.05 0.94
L*(8,L)C*A12 FC/MC/PC32A 1.01 1.04 1.01
L*(8,L)C*A12 FC/MC/PC37A 1.03 1.04 0.98
L*(8,L)C*B12 FC/MC/PC35B 1.02 1.02 0.98
L*(8,L)C*B12 FC/MC/PC43B 1.03 1.05 0.95
L*(8,L)C*C16 FC/MC/PC35C 1.02 1.05 0.94
L*(8,L)C*C16 FC/MC/PC43C 1.03 1.05 0.95
L*(8,L)C*C20 FC/MC/PC35C 1.03 1.07 0.95
L*(8,L)C*C20 FC/MC/PC43C 1.03 1.05 0.95
L*9C*B12 FC/MC/PC35B 1.01 1.05 0.97
L*9C*B12 FC/MC/PC43B 1.03 1.05 0.99
L*9C*C16 FC/MC/PC35C 1.02 1.05 0.94
L*9C*C16 FC/MC/PC43C 1.03 1.05 0.95
L*9C*C20 FC/MC/PC35C 1.02 1.05 0.94
L*9C*C20 FC/MC/PC43C 1.03 1.05 0.95
Furnaces Coils T.C. S.C. KW
