LuxeAir DRH20330AS Installation guide

Use, Care, and Installation Guide
Model number:
Serial Number:
DEC19.0201
DRH20330AS

1
SAFETY NOTICE................................................................. 2-3
LIST OF MATERIALS....................................................... 4
INSTALLATION
Ducting Calculation Sheet....................................... 5
Mounting Height & Clearance................................ 6
Ducting Options........................................................... 7
Specications ............................................................... 8
Preparing Electrical.................................................... 9
Preparing Electrical and Ducting.......................... 10
Converting to Air Recirculating Mode................. 11-12
Mounting the Range Hood............................. 13
FEATURES & CONTROLS
Rocker Controls........................................................... 14
MAINTENANCE
Cleaning and Filter Removal.................................. 15
Lights................................................................................ 16
TROUBLESHOOTING................................................................ 17
WIRING DIAGRAMS................................................................... 18
LIST OF PARTS AND ACCESSORIES.............................. 19
WARRANTY.................................................................................... 20
Table of Contents

Important Safety Notice
READ AND SAVE THESE INSTRUCTIONS
2
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITHANY SOLID-STATE CONTROL DEVICE.
WARNING
TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a. Use this unit only in the manner intended by the manufacturer, if you have questions, contact the manufacturer.
b. Beforeservicingorcleaningunit,switchpowero󰀨atservicepanelandlockpaneltopreventpowerfrombeingswitchedonaccidentally.
When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
CAUTION
For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Take care when using cleaning
agents or detergents. Suitable for use in household cooking area.
WARNING
TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:
a. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly
on low or medium settings.
b. AlwaysturnhoodONwhencookingathighheatorwhenamingfood
c. Cleanventilatingfansfrequently.Greaseshouldnotbeallowedtoaccumulateonfanorlter.
d. Use proper pan size. Always use cookware appropriate for the size of the surface element.
e. Keepfan,ltersandgreaseladensurfacesclean.
f. Use high setting on hood only when necessary.
g. Don’t leave hood unattended when cooking.
h. Always use cookware and utensils appropriate for the type of and amount of food being prepared.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF ARANGE TOP FIRE, OBSERVE THE FOLLOWING:
a. SMOTHERFLAMESwithaclose-ttinglid,cookiesheet,ormetaltray,thenturno󰀨theburner.BECAREFULTOPREVENTBURNS.
Iftheamesdonotgooutimmediately,EVACUATEANDCALLTHEFIREDEPARTMENT.
b. NEVER PICK UPA FLAMING PAN – You may be burned.
c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. Thereissmallandcontainedintheareawhereitstarted.
3. Theredepartmentisbeingcalled.
4. Youcanghttherewithyourbacktoanexit
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a. Installationworkandelectricalwiringmustbedonebyqualiedperson(s)inaccordancewithallapplicablecodesandstandards.
Includingre-ratedconstruction.
b. Su󰀩cientairisneededforpowercombustionandexhaustingofgasesthroughtheue(chimney)offuelburningequipmenttoprevent
back-drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National
FireProtectionAssociation(NFPA)andtheAmericanSocietyforHeating,RefrigerationandAirConditioningEngineers(ASHRAE)and
the local code authorities.
c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d. Ducted fans must always vent to the outdoors.
e. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFI
(GroundFaultInterrupterprotectedbranchcircuit).
g. NEVER place a switch where it can be reached from a tub or shower.
h. Makesurethepoweriso󰀨beforeinstalling,wiringormaintenancing.

Important Safety Notice
3
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
NOT FOR USE OVERAN OUTDOOR GRILL.
CAUTION
Toreduceriskofreandtoproperlyexhaustairoutside-Donotventexhaustairintospaceswithinwalls,ceilings,
attics, crawl spaces or garages.
OPERATION
Alwaysleavesafetygrillesandltersinplace.Withoutthesecomponents,operatingblowerscouldcatchontohair,ngers
and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper maintenance.
ELECTRICAL REQUIREMENTS
Important:
Observe all governing codes and ordinances.
It is the customer’s responsibility:
- Tocontactaqualiedelectricalinstaller.
- To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70
latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and
all local codes and ordinances.
Ifcodespermitandaseparategroundwireisused,itisrecommendedthataqualiedelectriciandeterminethatthe
ground path is adequate.
Do not ground to a gas pipe.
Checkwithaqualiedelectricianifyouarenotsuretherangehoodisproperlygrounded.
Do not have a fuse in the neutral or ground circuit.
*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit
protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to
Electrical Diagram on product.
Acablelockingconnector(notsupplied)mightalsoberequiredbylocalcodes.Checkwithlocalrequirements,purchase
and install appropriate connector if necessary.
RH20330AS - 142 Watts, 1.3Amps
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING:
Prop. 65 Warning for California Residents

List of Materials
4
MODELS: RH20330AS
PARTS SUPPLIED
1 - Hood
2 - Aluminum Mesh Filters
2-HalogenLightBulbs(GU10,35W)
1 - 6” Round starting collar
1 - 3-1/4”x10” Rectangular starting collar with damper
1 - Hardware package
HARDWARE PACKAGE CONTENTS
PARTS NOT SUPPLIED
- Ducting, conduit and all installation tools
-Cableconnector(if required by local codes)
- Recirculating kit accessory - RHRK203S
M6 x 1” (4)
M6 x 1-1/2” (4)
M6 x 2” (4)
M3.5 x 12 (10) Wood Screw Washers (4)
Wire Caps (3)
Light Bulb Removal
Suction Cup (1)

5
Installation – Ducting Calculation Sheet
Duct pieces Total
Equivalent number
length x used =
3-1/4” x 10”
Rect.,
straight
1Ft. x( )= Ft.
7”-10” Round,
straight 1Ft. x( )= Ft.
3-1/4” x 10”
Rect.900
elbow
15 Ft. x( )= Ft.
3-1/4” x 10”
Rect.450
elbow
9Ft. x( )= Ft.
3-1/4” x 10”
Rect.900
flat elbow
24 Ft. x( )= Ft.
3-1/4” x 10”
Rect.
wallcap
with damper
30 Ft. x( )= Ft.
3-1/4” x 10”
Rect.to
6” round
transition
5Ft. x( )= Ft.
3-1/4” x 10”
Rect.to
6” round
transition
900elbow
20 Ft. x( )= Ft.
6” Round,
900elbow15 Ft. x( )= Ft.
6” Round,
450elbow 9Ft. x( )= Ft.
Ft.
6” Round,
straight 1Ft. x( )= Ft.
Subtotal column1=
Duct pieces Total
Equivalent number
length x used =
6” Round
wallcap
with damper
30 Ft. x( )= Ft.
Round
wallcap
with damper
30 Ft. x( )= Ft.
7” - 10”
Round,
900elbow
15 Ft. x( )= Ft.
7” - 10”
7” - 10”
Round,
450elbow
9Ft. x( )= Ft.
Ft.
Ft.
Ft.
6” Round,
roof cap 30 Ft. x( )= Ft.
7” - 10”
Round,
roof cap
30 Ft. x( )= Ft.
Subtotal column2=
Subtotal column1=
Total ductwork =
6” roundto
3-1/4” x 10”
rect.
transition
1Ft. x( )= Ft.
6” roundto
3-1/4” x 10”
rect.
transition
900elbow
16 Ft. x( )= Ft.
7” roundto
31/4” x 10”
rect.
transition
8Ft. x( )= Ft.
7” roundto
3-1/4” x 10”
rect.
transition
900elbow
23 Ft. x( )= Ft.
Maximum Duct Length: For satisfactory air movement,
the total duct length should not exceed 100 equivalent feet.

Installation – Mounting Height & Clearance
6
DUCTING
A minimum 6” round or 3-1/4” x 10” rectangular
ductmustbeusedtomaintainmaximumairow
e󰀩ciency.
Always use rigid type metal ducts only. Flexible
ductscouldrestrictairowbyupto50%.
Alsousecalculation(onpage5)tocomputetotal
available duct run when using elbows, transitions
and caps.
ALWAYS, when possible, reduce the number or
transitions and turns. If long duct run is required,
increase duct size.
If turns or transitions are required; install as far
away from hood duct output and as far apart,
between the two as possible.

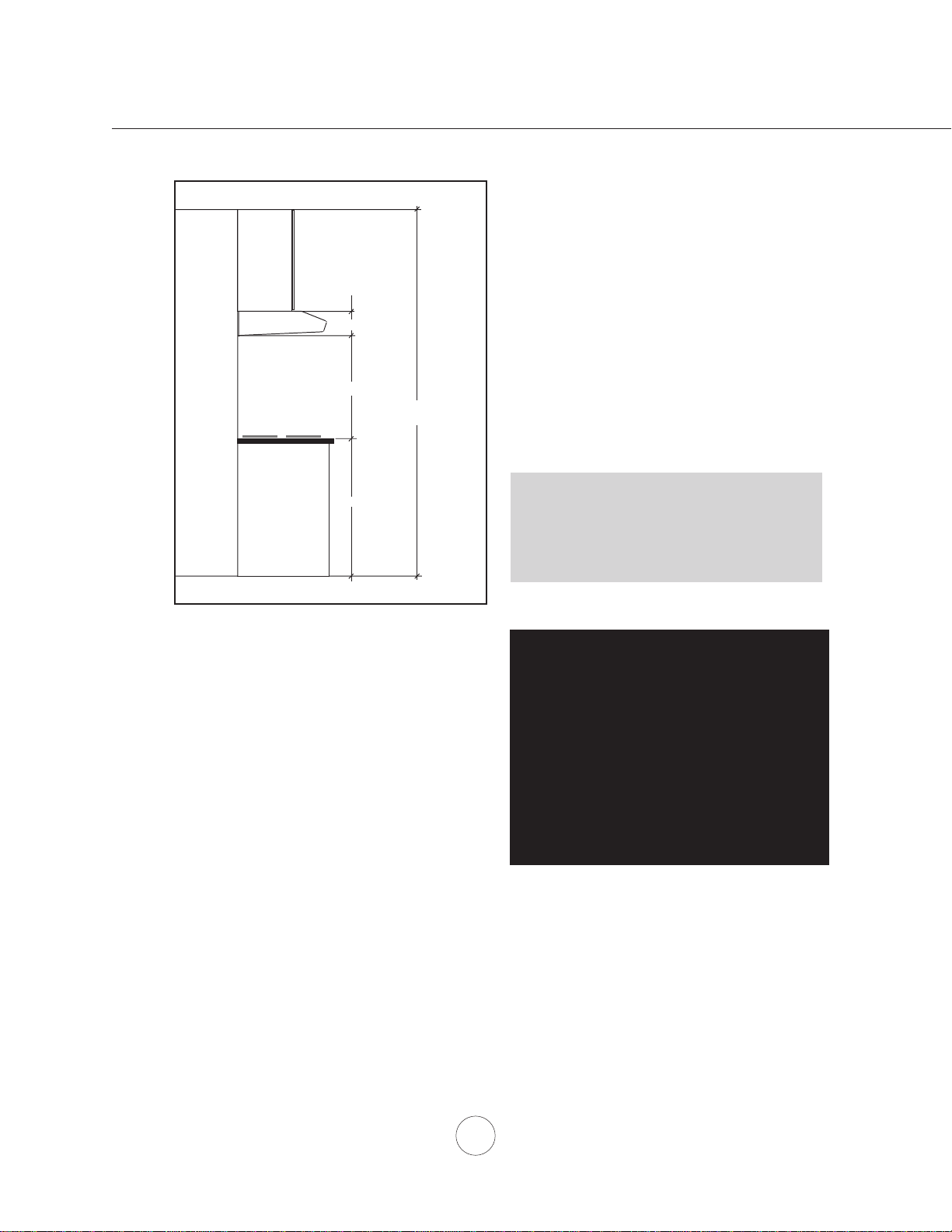

Minimum mount height between range top to hood
bottom should be no less than 24”.
Maximum mount height should be no higher than
32”.
It is important to install the hood at the proper
mounting height. Hoods mounted too low could
resultinheatdamageandrehazard;whilehoods
mounted too high will be hard to reach and will
loseitsperformanceande󰀩ciency.
If available, also refer range manufacturer’s height
clearance requirements and recommended hood
mounting height above range.
Vertical Ducting:
6” Round or 3-1/4”x10” Rect. minimum
Horizontal Ducting:
3-1/4”x10” Rect. minimum
DAMAGE-SHIPMENT / INSTALLATION:
• Please fully inspect unit for damage before
installation.
• If the unit is damaged in shipment, return the
unit to the store in which it was bought for
repair or replacement.
• If the unit is damaged by the customer, repair
or replacement is the responsibility of the
customer.
• Iftheunitisdamagedbytheinstaller(ifother
thanthecustomer),repairofreplacementmust
be made by arrangement between customer
and installer.
36"
96"
Min 24” - Max 32"
5-1/2”

7
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside, unless using the recirculating option.
Use single wall rigid metal ductwork only.
FastenallconnectionswithsheetmetalscrewsandtapealljointswithcertiedSilverTapeorDuctTape.

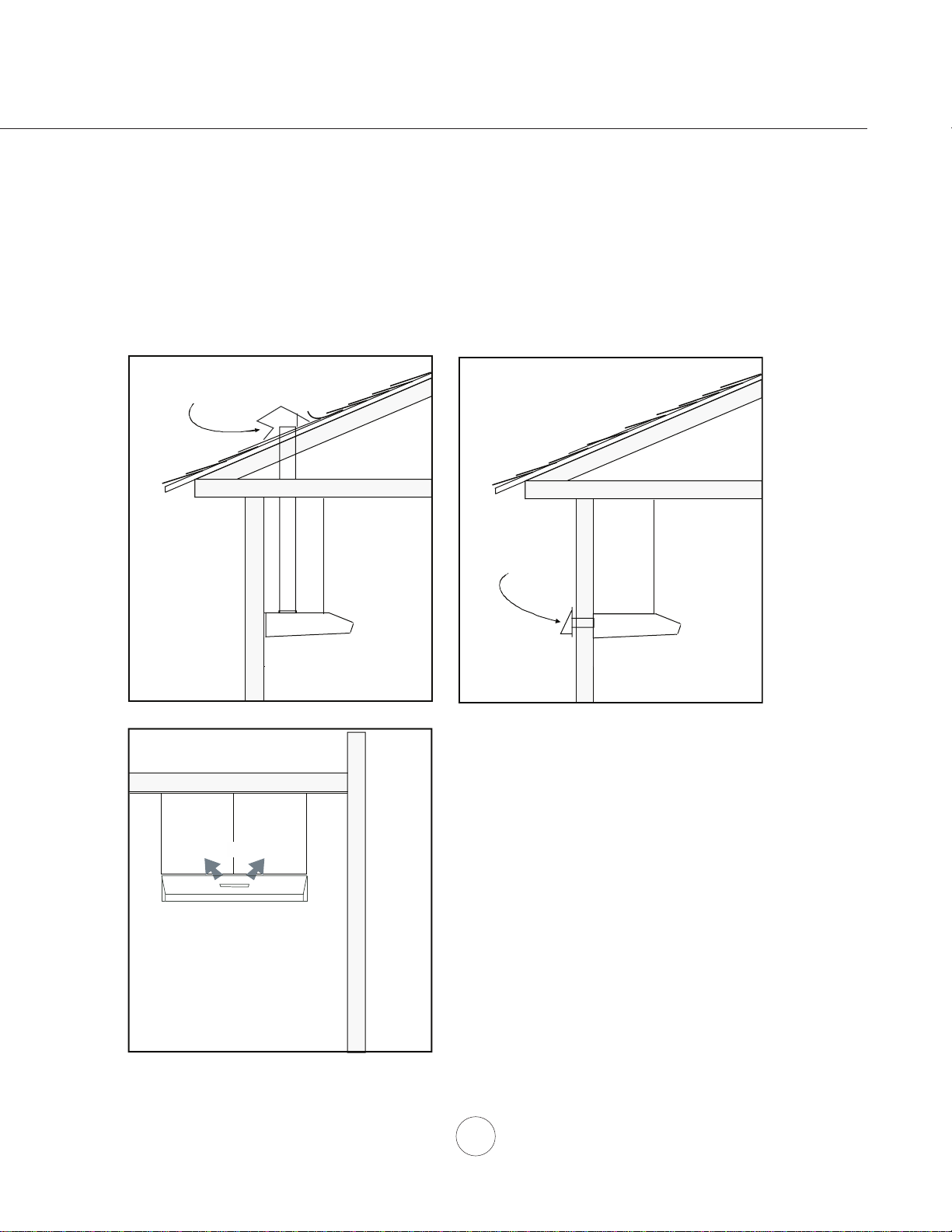

Some Ducting Options
Installation – Ducting Options
Roof Pitch w/
Flashing & Cap
Side wall cap
w/ gravity damper
6” Round or
3-1/4”x10” Rect.
vertical ducting 3-1/4”x10” Rect.
horizontal ducting
Air Recirculating

8
Installation – Specications
elec.
k/o
TOP
6” Round Ducting
BACK SIDE
27 13/16”
2”
8 5/8”
12 3/16”
3/4”
4 3/16”
6”
10”
2 3/4”
5 7/8”
5 7/8”
7/8”
elec.
k/o
10”
3 1/4”
11/16”
29 7/8”
20 3/16”
14 3/8”
3/4”
5 1/2” 3”
19 3/8”
2 1/2”
21.6
2.5
C/L of
6” duct
1 7/16”
Air Recirculating Louver Plate
27 13/16”
2”
8 5/8”
12 3/16”
3/4”
10”
2 3/4”
5 7/8”
elec.
k/o
1 7/16”
Air Recirculating Louver Plate
3 1/4”
TOP
3 1/4”x10” Rect. Ducting

9
ELECTRICAL
WARNING
All Electrical work must by performed by qualied electrician or person with similar technical know
how and background.
For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use
extension cord or adapter plug with this appliance.
Follow national electrical codes or prevailing local codes and ordinances.
Electrical Supply:
This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded
branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/

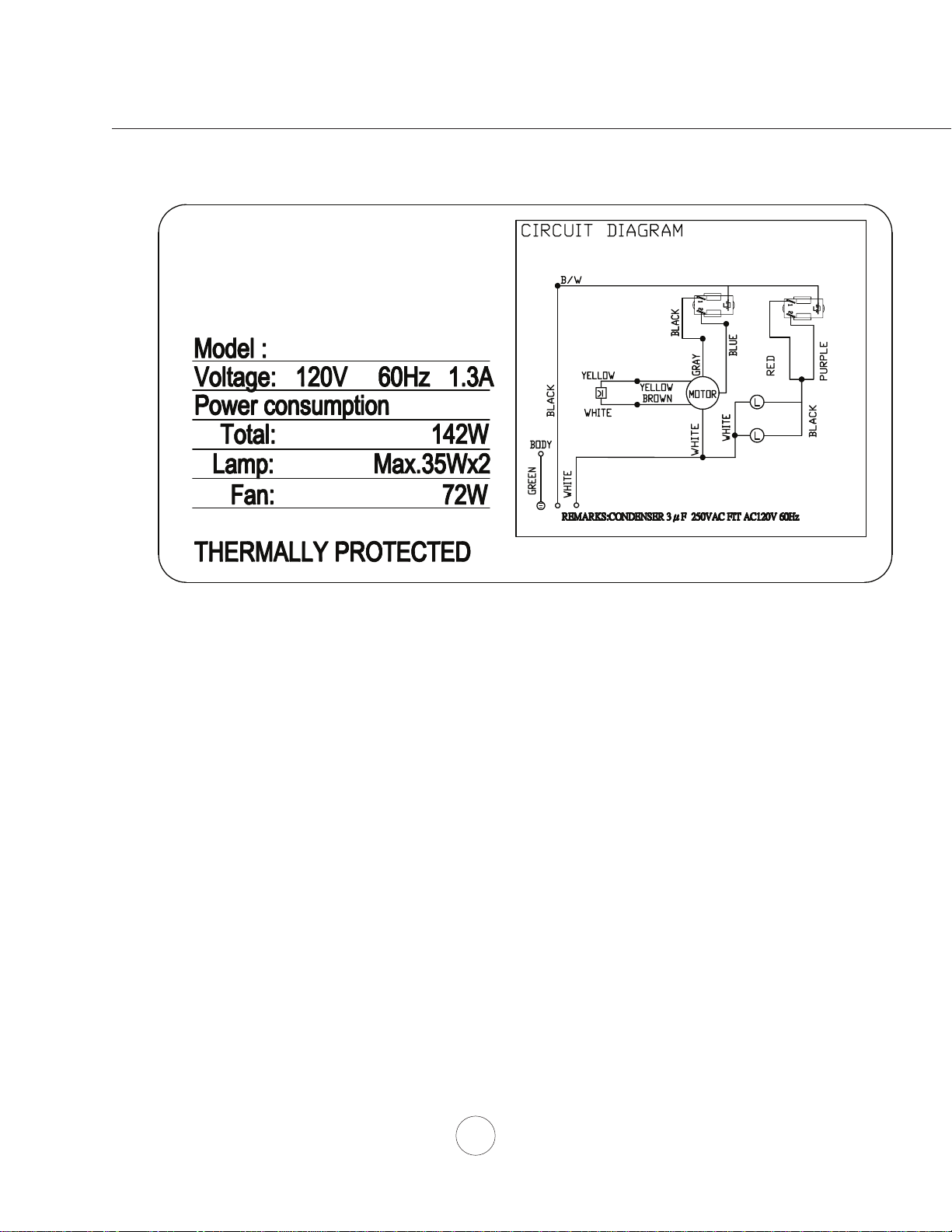

ground. Please also refer Electrical Diagram labeled on product.
RH203 - 142 Watts @ 1.3 Amps
Cable Lock:
Acablelockingconnector(notsupplied)mightalsoberequiredbylocalcodes.Checkwithlocalrequirements
and codes, purchase and install appropriate connector if necessary.
Installation – Preparing Electrical
Cable Lock

1. Remove filters 2. Remove cover from junction box to
gain access to electrical wiring.
3. If using a cable lock, pry open the
desired electrical knockout either on
top or back of hood. Feed the wires
through the cable lock. Some local
codes require the use of a cable lock,
check your local codes.
4. If using hood in air recirculating
mode skip steps 4 and 5.
Pry open desired ducting knock-out
either on top or back of hood.
5. Remove starting collar from inside
hood body and secure 3-1/4” x 10”
rect. starting collar to the top or rear
duct opening using (10) M3.5x12
screws.
5. Remove starting collar from inside
hood body and secure 6” round start-
ing collar to the top duct opening using
(10) M3.5x12 screws.
Installation – Preparing Electrical and Ducting
10

An air recirculating kit (optional) must be
purchased before using hood in recirculat-
ing mode.
1. Secure each of the (2) spring clips to the
safety grille body (A). Do this by inserting
the screw through the spring and into the
clip. Secure each clip to the safety grille
body by using a philips head screwdriver.
2. Insert charcoal filter into charcoal filter
holder (B) and place it over the safety grille
body (A)
3. Secure charcoal filter holder to safety
grill body by lifting up on spring clips and
twisting. The clip should cover the lip of the
charcoal filter holder securely.
4. Remove each screw from recirculating
top plate. Plate is located on top of hood
towards the front.
NOTE: Skip the recirculating preparation pages if you are ducting the air out of your home.
Recirculating preparation
continued on next page
Installation – Converting to Air Recirculating Mode
Recirculating kit - RHRK203S
Replacementlter-RHCF002
11

Installation – Converting to Air Recirculating Mode
12

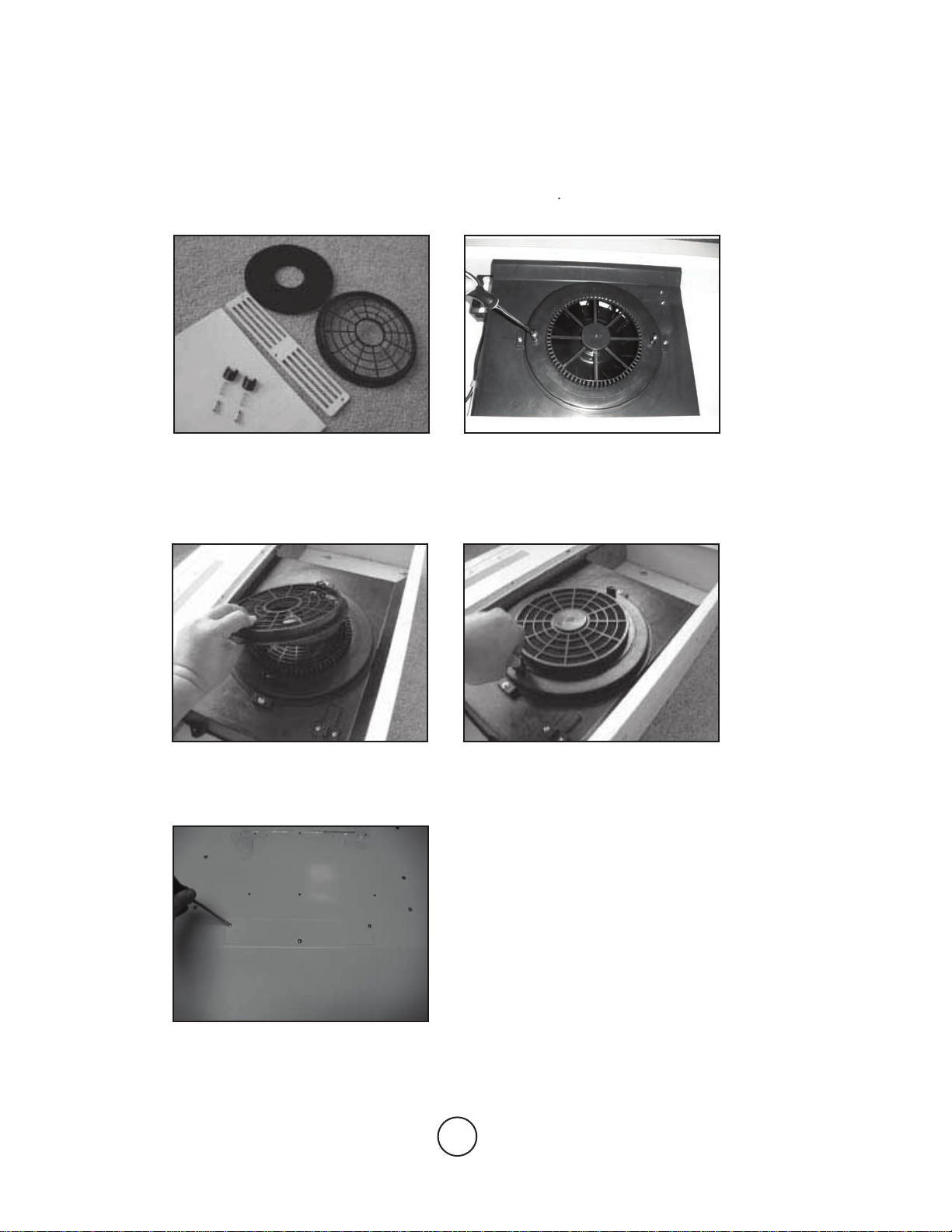

5. Remove each of the 5 screws holding
the (2) interior recirculating panels. 6. Remove (2) interior recirculating panels.
7. Place louvered recirculating plate over
top opening and secure using the screws
previously removed.
NOTE: Skip this page if you are ducting the air out of your home.

13

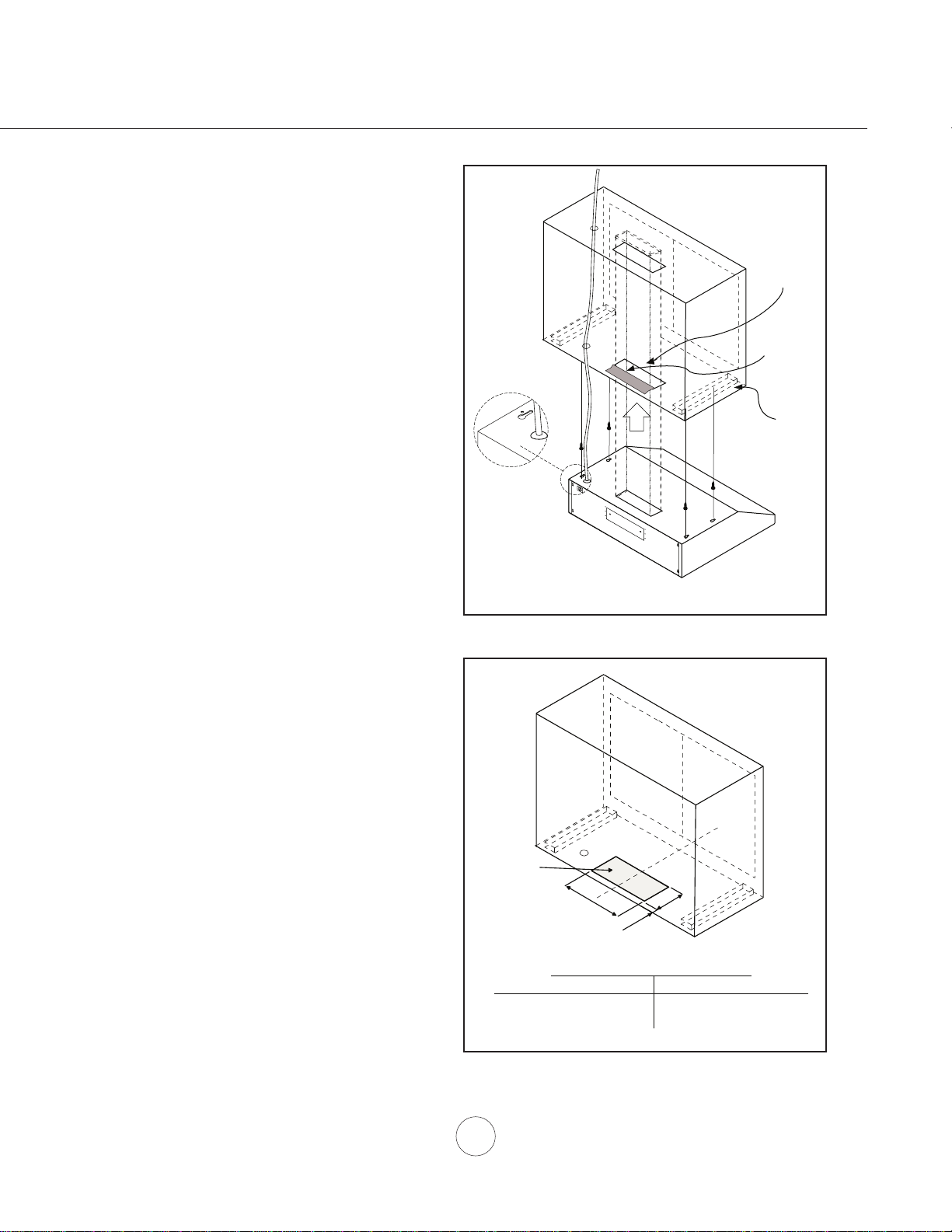

For Mounting Under a Kitchen Cabinet (Fig 1)
1. Selectpreferredductlocation(verticalorhorizontal)if
ducting air out of kitchen. Refer to page 10 for details.
2. Begininstallationbyremovingthelters(ifinstalled).
3. Reinforce cabinet with 1”x2” wood strips if additional
strengthening is required or if cabinets are
framed.
4. Cut out the required openings for duct and electrical
access by following the dimensions on page 8;
make sure the duct opening is large enough to apply
ducttape.Referto(Fig2)forminimumductcutout
dimensions
5. Position range hood in the desired mounting location
andfastenhoodontocabinetwith(4)M6woodscrews
provided.
6. Install electrical.
7. Install duct work and duct tape.
8. Reinstalllters.
9. Power up hood and check for leaks around duct tape.
duct/silver
tape
Duct
opening
cutout
Add 1x2
wood strips
electrical
Fig 1
(Shownasvertical31/4”x10”ducting)
Installation – Mounting the Range Hood
C/L
W
D
Back of
Cabinet
Front o
f
Cabinet
Minimum
duct cut out
6”Round Vertical Ducting
Width : 11”
Depth : 8”
3 1/4”x 10”Rect. Ducting
Width : 11”
Depth : 4 1/2”
Minimum duct cut out dimensions
* Depth dimensions start 1/2”from wall
*1/2”
Fig 2

14
Features & Controls – Rocker Controls
This switch turns the blower on and o and controls the speedselection.
is o, is low speed and is high speed .
is o, is dim and is bright.
Lights Off/Dim/Bright
0
0
0
0
Blower On/Off/Speed Selection Lights Off/Dim/Bright

15
SURFACE MAINTENANCE:
Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent,
or steel wool/scouring pads which will scratch and damage surface. Do not use products containing chlorine
bleach or orange cleaners.
For heavier soil use liquid degreaser.
Aftercleaning,youmayusenon-abrasivestainlesssteelpolish/cleaners,topolishandbu󰀨outthestainless
lusterandgrain.Alwaysscrublightlyusingamicroberorcleancottonclothandwithgrain.
Aluminum Mesh Filters
Thealuminummeshltersareintendedtotrapresidueandgreasefromcooking.Althoughtheltersshould
never need replacing, they are required to be cleaned every 30 days or more often depending on cooking
habits.
Filtersmaybeplacedindishwasheratlowheatorsoakedinhotsoapywater.Dryltersandre-installbefore
using hood.
Removing Aluminum Mesh Filters (Fig 3)
1. Pushinonlterhandles.
2. Pivotfrontoflterdownward.
3. Removelterbypullingawayfromhood.
Maintenance – Cleaning and Filter Removal
Fig 3

16

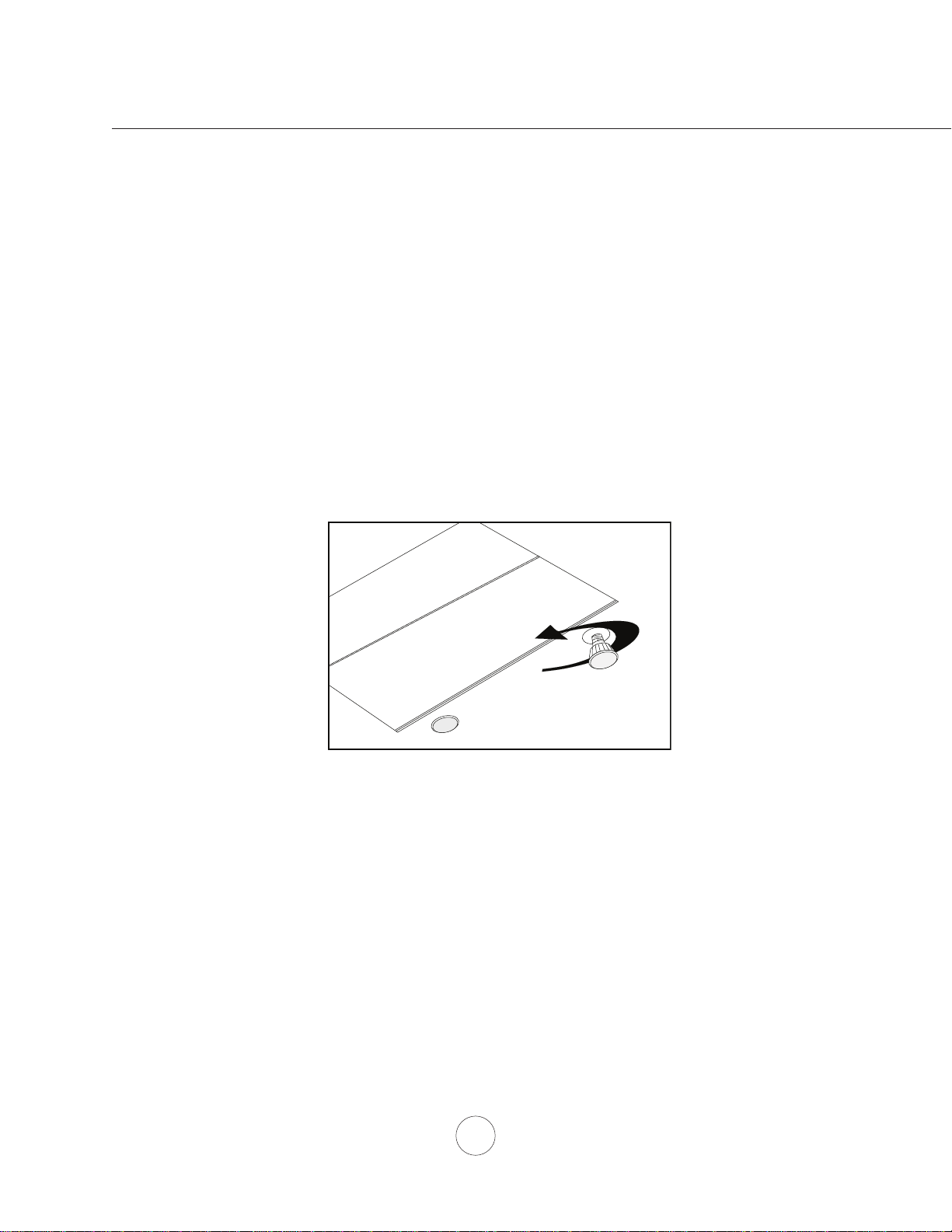

REPLACING LIGHT BULBS
CAUTION: Light bulb becomes extremely hot when turned on.
DO NOT touch bulb until switched o󰀨 and cooled. Touching hot bulbs could cause serious burns.
Makesureallpoweristurnedo󰀨andbulbsarenothot.
Remove by turning bulb counter clockwise. Note: Bulb does not unscrew; it turns 60 degrees, stops and falls
out.
Ifbulbsaredi󰀩culttoturnduetoprolongeduse,rmlyattachtheprovidedglasssuctioncuporusearubber/
latex glove and turn counter clockwise.
Replacementbulbsareavailableatspecialtylightingstores.PurchasetypeMR16(GU-10)35Whalogen.
For part numbers please turn to page 19 of the manual.
Maintenance – Lights
Bottom hood view

Troubleshooting
17
TROUBLESHOOTING PROCEDURES FOR RH203
Issue Cause What to do
After installation,
the unit doesn’t
work.
1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s
power is ON.
2. The power line and the cable locking connector
is not connecting properly. 2. Check the power connection with the unit is connected properly.
3. The switch wirings are disconnected. 3. Make sure the wirings between the switch are
connected properly.
4. The switch board or control board is defective. 4. Change the switch board or control board.
Light works,
but motor is not
turning.
1. The motor is defective, possible seized. 1. Change the motor.
2. The thermally protected system detects if the
motor is too hot to operate and shuts the motor
down.
2. The motor will function properly after the
thermally protected system cool down.
3. Damaged capacitor. 3. Change the capacitor.
4. The motor wire is not connected. 4. Make sure the motor wire is plugged into the
molex connector.
The unit is
vibrating. 1. The motor is not secure in place. 1. Tighten the motor in place.
2. Damaged blower wheel. 2. Change the blower.
3. The hood is not secured in place. 3. Check the installation of the hood.
The motor is
working, but the
lights are not.
1. Defective bulb. 1. Change the bulb.
2. The light bulb is loose. 2. Tighten the light bulb.
3. The wires on the switch are loose. 3. Make sure the wires on switch are connected
properly.
The hood is
not venting out
properly.
1. The hood might be hanging to high from the
cook top. 1. Adjust the distance between the cook top and the bottom of the hood within 24” and 32”
range.
2. The wind from the opened windows or opened
doorsinthesurroundingareaarea󰀨ectingthe
ventilation of the hood.
2. Close all the windows and doors to eliminate
theoutsidewindow.
3. Blockage in the duct opening or duct work. 3. Remove all the blocking from the duct work or
duct opening.
4. The direction of duct opening is against the wind. 4. Adjust the duct opening direction.
5. Using the wrong size of ducting. 5. Change the ducting to correct size.
Metallteris
vibrating. 1.Metallterisloose. 1. Make sure spring on handle still works.
2. Handle does not freely move. 2.Replacemetallter.

Wiring Diagrams
18
RH20330AS
