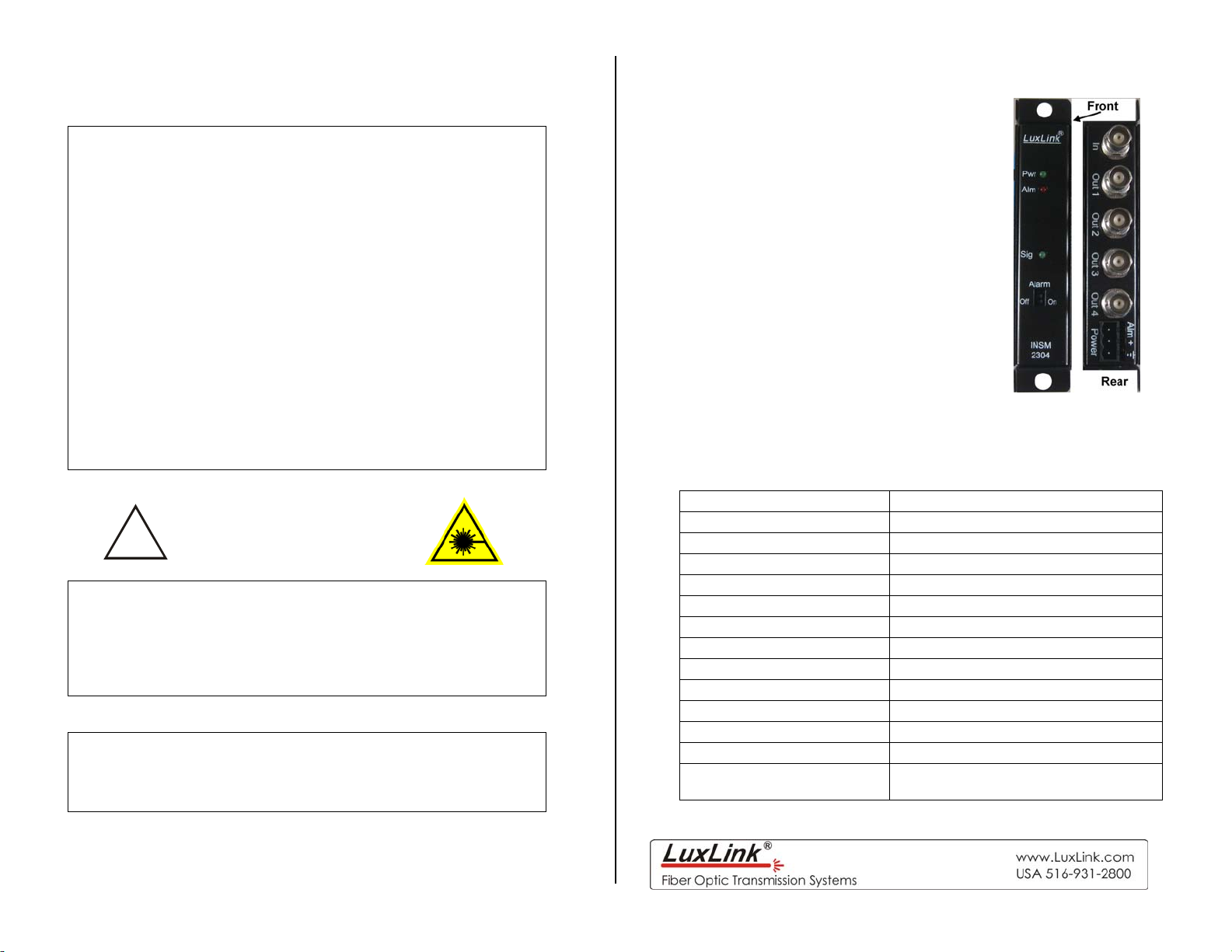

WARRANTY
All fiber optic transmission systems, products and accessories
manufactured by Liteway, Inc. and its subsidiaries are fully tested prior to
shipment and are warranted against defective materials and workmanship
for a period of five full years from the date of the original shipment.
Should a problem occur, a Return Material Authorization Number
(RMA) must be obtained from Liteway Inc. at (516) 931-2800 and the
item returned to Liteway, Inc. 166 Haverford Road, Hicksville, NY
11801, USA, prepaid. Liteway Inc. will then, at its option repair or
replace the defective item.
Liteway, Inc. maximum liability under this warranty is limited to the cost
of the defective item only. No contingent liabilities of any kind are either
assumed or implied.
Any items returned to Liteway, Inc. that have been misused, abused,
damaged, modified, connected or adjusted in any way contrary to the
instructions furnished by Liteway, Inc. or repaired by unauthorized
personnel will not be covered by this warranty. Any non-warranty
repairs required will be quoted at the current rate for such services.
Important Notices
CAUTION! AVOID DIRECT EXPOSURE TO BEAM.
All -7,-8, and -9 Models use laser diodes. These solid-state laser diodes
are located in the optical ports of these units. Laser diodes produce
invisible radiation that may be harmful to human eyes. Never look
directly into the optical port of any fiber optic unit designed to operate
with single-mode optical fiber.
NOT FOR LIFE SUPPORT SYSTEMS
Liteway, Inc. does not authorize or warrant any of its products or
accessories for use in critical life support systems or applications of any
kind.
© Copyright 2017 Liteway, Inc. 115859 Rev H
OPERATING INSTRUCTIONS
RF Signal
Distribution Amplifier
INSM-2304
The INSM-2304 is a distribution amplifier that accepts a RF electrical
input signal and produces four individual electrical output signals for
distribution over four separate coaxial cables.
Technical Specifications
System Bandwidth/channel DC to 100 MHz/ 20Hz to 100 MHz
In/Out Impedance 50 ohms
In/Out Signal Level 1V peak-to-peak
Signal/Noise Ratio 60 dB minimum
Linearity & THD 0.1% typically
Propagation Delay 5 nanoseconds
Output Channel Isolation >40 dB
Offset between outputs < 0.5 ns
Signal Connectors BNC
Number of Outputs 4 channels
MTBF (MIL-HBK-217D) >120,000 Hours
Temperature Range -35º to +75ºC
Power Requirements 11-24 VAC/DC @350 mA
Physical Size (mm) 5.0”(127)L x 1.0” (25.4)W x
3.0”(76)D
All specifications are subject to change without prior notice.
!
Installation Instructions
The diagram below shows the typical installation RF system that uses
the INSM-2304 for RF distribution.
The IRGM-2304 provides four electrical outputs. Multiple IRGM-2004
units may be “daisy-chained” when more than 4 output channels are
required.
Removable Terminal Block Power Connections
Pin Function
1 Alarm output for use with optional Alarm Sensing Unit
ALM-1000. No other connections should be made to this
terminal
2 +11 to 24 DC or AC Volts input
3 AC or DC return (Common to Housing)
Be certain to check all connections, settings and voltages before
applying power
115859 Rev H
Indicator Lights
Indicator Lights when
Pwr Proper power is present.
Alrm The loss of signal alarm is activated and there is
no RF signal present to transmit.
Sig A data signal is being received.
Dip switch #1 is used to turn the alarm function on and off.
Dip switch #2 is used to set the input coupling to AC or DC.
Typical Fiber Optic Distribution System
Fiber Optic
Cable
INST-1301 INSR-1301 ALM-1000
Alarm
Contacts
INSM-2304
RF Signal
Source
Coax
Coax
4 Separate
RF outputs
