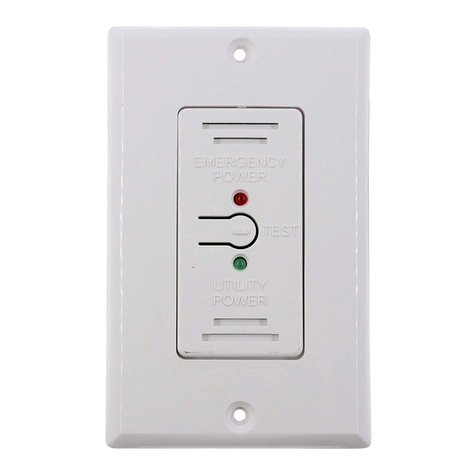

MODEL RRU-UNV INSTALLATION INSTRUCTIONS
1
LVS
LVS, Inc. 2555 Nicholson Street, San Leandro, CA 94577-4216
Phone: 510-352-9600 1-800-982-4587 Fax: 510-352-6707
Web: WWW.LVSCONTROLS.COM
LVS, Inc. warrants to the original purchaser/user for the published warranty period from the date of shipment that should LVS instruments or
equipment prove defecve by reason of improper workmanship or material, LVS will repair or replace the same equipment without charge.
This warranty does not cover defects or malfuncons arising from improper installaon, operaon or repair, or neglect, accident, or abuse. LVS
will honor its warranty provided the equipment has not been physically damaged or improperly installed or connected. To obtain warranty/re-
pair, the defecve product should be shipped freight prepaid within the warranty period to the address below. To the extent permied by
applicable law, all warranes extending beyond repair or replacement as described above are disclaimed, including the implied warranes of
merchantability and fitness for a parcular purpose. Where applicable law prohibits disclaimers or the implied warranes of merchantability
and fitness; those warranes are limited to 12 months from date of shipment. LVS provides a 90 day money back guarantee if equipment
does not perform in accordance with LVS published specificaons. The liability of LVS and its agents under all warranes is limited to repair and
replacement as described herein and under no circumstances shall there be liability for any other kind of loss, damage, or labor, either conse-
quenal or for injury to person or property or otherwise.
5-Year Limited Warranty
1. This product can be used with LED, ballast, tungsten, and general use loads.
2. Make sure all connections are in accordance with the National Electrical Code and local regulations.
3. To reduce the risk of electric shock, disconnect both normal and emergency power supplies before servicing.
4. This product is intended to be used to control indoor and outdoor located loads.
5. An unswitched AC power source is required (120-240VAC/277VAC).
6. Do not install near gas or electric heaters.
7. Do not attempt to service a sealed Emergency Power Control. When malfunctioning, return to the
manufacturer: LVS, Inc. 2555 Nicholson Street, San Leandro, CA 94577.
8. The use of accessory equipment is not recommended by the manufacturer and may cause unsafe condition.
9. Do not use this product for other than its intended use.
10. Servicing should be performed by qualified service personnel.
11. Equipment should be mounted in locations and at heights where it will not readily be subjected to
tampering by unauthorized personnel.
! IMPORTANT SAFEGUARDS !
SAVE THESE INSTRUCTIONS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS
SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:
Electrical Specfications
120-240/277V Sensing Input
Form C (N.O+N.C.) Contact
20 Amp Ballast Load Rating (120-277V)
20 Amp General Use Rating (120-277V)
1200W Incandescent Load Rating (120V)
1500W Incandescent Load Rating (277V)
UL924 Listed (usUL/cUL)
Mechanical Specifications
Mounts in 4-11/16” Junction Box with Extension Box
Use single gang plaster ring or blank cover
Suitable for installation in the plenum
Tested to UL2043 UL94-5VA Plastic Flame Rating
Shipping Weight: 8 oz Color : White
Temperature: -40˚C-65˚C (-40˚F - 149˚F)
Flush Mounted Size: 4-1/2” x 2-3/4” x 1/4”
Body Size: 2-7/8” x 1-3/4” x 1-7/32”
U
L
®
UL924 LISTED
C US
2
Application
In the past, all emergency lights were left on 24 hours a day to meet safety codes. Now you can
specify & install a UL924 Listed Emergency Shunt Relay RRU-UNV, which converts up to 20Aof
normal light fixtures to approved emergency lights. During normal operation, the RRU-UNV switches
designated emergency lights on and off. During a utility power interruption, the RRU-UNV turns desig-
nated emergency lights on, regardless of switch position.
Intended for use with switching and line voltage dimming controls.
What is the difference between an
Emergeny Shunt Relay (RRU) and an Emergency Power Control (EPC)?
An emergency shunt relay requires a dedicated switch/dimmer to control the emergency
lights. In other words, the switch/dimmer must be wired on the emergency power circuit.
An emergency power control allows the same switch/dimmer to control both normal and
emergency lights. In other words, the switch/dimmer can be wired on the normal power
circuit.
Universal Mounting - Unique enclosure permits flush, fixture, plenum or panel mounting.
Recommended Box Size 4-11/16” with extension
(total depth 4” minimum)
Recommended Box Size
4-11/16” with extension
(total depth 4” minimum)
Tested to UL2043,
suitable for installation
in the plenum Conrm body size (2-7/8” x 1-3/4” x 1-7/32”)
will t in xture ballast channel prior
to installation.
Flush Mount Installation Junction Box Installation Fixture Mount Installation
3
Installation
In order to install the RRU in accordance with national/local code requirements, a qualified electrician
should review & understand the installation instructions. Check voltage & current requirements.
Verify & lock out circuit breakers on both regular (utility) power & 24 hour emergency generator or
inverter circuit. Install a self-adhesive 2" x 3" caution label in each fixture or load controlled by an RRU
cautioning that the load is supplied from 2 different power sources, normal & emergency. Review
wiring diagram & connect wires, one at a time, in accordance with the numeric identification. In order
to provide a safe light level, when regular power is interrupted, it is recommended that a minimum of
appproximately 5000 lumen are controlled by a 24 hour emergency circuit & are spaced no farther
than 24' in any direction from each other in a normal 9' white ceiling environment.
Initial Testing and Troubleshooting
In a new installation, where hundreds of devices may be used, each having as many as 14 wires to
be correctly connected, it is important that a fast, convenient method is used to check connections.
In order to test that the wires are connected correctly, without any inconvenience to occupants, do
not turn off regular (utility) power off until you have checked each device as follows:
1) Check that regular branch circuit breaker is connected & utility power is available. Green LED
should be lit. If green LED is not lit, check connections & continuity to branch circuit breaker.
2) Check that emergency branch circuit breaker is connected & emergency power is available.
3) Normal Operation Test: Turn switch or other control device to the “ON” position. Emergency
lights should turn on. Turn room switch or control to the “OFF” position. Emergency lights should
turn off.
4) Emergency Operation Test: Press and hold test button, emergency lights should illuminate at full
brightness until test button is released.
Maintenance
No maintenance is required to keep the RRU functional. However, regular testing should be
performed when the lamps or ballasts have been replaced or when remodeling has taken place.
Single Line Drawings
Normal/Utility
Power Source
Emergency
Power Source
Neutral
Not Shown
On a 20 Amp circuit, 1 emergency power
control (RRU) can control up to 20 Amp of
emergency lighting load, or 20 RRU’s can each
control 1 Amp of emergency lighting load. One
RRU is required per switch leg or zone. DESIGNATED
EMERGENCY
LIGHTS
EMERGENCY
SHUNT
RELAY
LIGHTING CONTROL
DEVICE (SWITCH,
SENSOR, POWER
PACK, RELAY PANEL)
NORMAL
POWER
PANEL
EMERGENCY
POWER
PANEL
UL 1008
Transfer
Switch Or
Equivalent
EMERGENCY
SHUNT RELAY
EMERGENCY
SHUNT RELAY
4
Wiring Diagram #1: A dedicated switch or line voltage dimmer controls emergency lighting in a
space. Upon loss of normal power, the emergency lighting comes on at full brightness regardless of switch
or dimmer position. NOTE: RRU-UNV is not for use with 0-10V DIMMER. Use RRU-X-UNV or EPC-2-D.
#3 BROWN
TEST
UTILITY
POWER
#5 YELLOW
#4
BLUE
EMERGENCY
PANEL
OR
INVERTER EMERGENCY
NEUTRAL EMERGENCY LIGHT(S)
EMERGENCY
HOT
NORMAL
(UTILITY)
PANEL
NORMAL
NEUTRAL
NORMAL
HOT
20A 20A
#2 WHITE
#1 BLACK
SWITCH
OR DIMMER
Wiring Diagram #2: Slave Relay Application - RRU-UNV can be used to switch an auxiliary load
(similar to a lighting contactor) in case your switch is rated <20A or to switch a 277V load from a 120V
switch.
#3 BROWN
TEST
UTILITY
POWER
#5 YELLOW
#4 BLUE
NEUTRAL LOAD
HOT
NEUTRAL
HOT
20A
20A
#2 WHITE
#1 BLACK
SWITCH
CAP OFF
(CAP OFF)
