1. About Multi-Room Music System
HS8328 system is a set of perfect modernized Multi-Room Music System.
In addition to all the functions the traditional household audio should have, this set of system has two
special function: ①Listening different music programs in different rooms. For example: There is the
difference in the music loved by the elderly and young people. In the room in which the elderly will live,
the traditional Chinese opera programs may be played; in the room in which the young people will live,
the pop music may be played. ②The timing point function, i.e. the presetting of the special timing
point and the specific task to be performed at such timing point. For example, set the clock to prompt
you to get up on time in the morning; after the busy work, you will listen to the fresh and sweet
background music at home; when you are listening to the background music in the room, the news at the
timing point is broadcasted on TV; at this moment, you have’v no need to go out of the room to listen such
news at timing point. It will take you a few minutes to preset all above items in the system, and the system
will perform automatically in accordance with your presetting.
The host of this system integrates the functions such as MP3 player, network music, network radio,
zoneer, timer, and pre- and post-power amplifier. In addition to one DVD stereo input and two AUC
auxiliary sound source inputs, and 12 extensible network modules (eight as standard configuration) to the
maximum extent, the system also has 8 zone power output interfaces. This system has a more important
function, i.e. the network module function. If the host is connected to the cable network or wireless router,
it is possible to play the music and listen to the network radio through the mobile phone terminal, so as to
provide the great convenience for the users.
2. Functional Characteristics of System Host
High-quality household Multi-Room Music System.
Simple and unique appearance design, display with TFT true color screen, and full-screen
touch operation.
Support multi-zone music sharing, built-in 8 zone, supporting extension of zone, up to 72 zone
supported.
Abundant program source, up to 16 channels of sound sources supported, external USB,
internal 8G storage, network music, network radio, and external sound source input.
Audio decoder supporting MP3, WMA,APE, FLAC, WAV, and other audio formats.
1 channel of DVD audio input interface, and 2 channels of AUX auxiliary audio input
interface.
The host may be extended to 12 network modules at most.
Support wireless music pushing function, push the music in the smartphones / tablet computer
to the host for playing through the Wi-Fi connection, or push the songs in the network hard

Multi-Room Music System
3
drive to the host for playing.
Support the network radio function, so you’v no need to worry about the poor antenna signal.
Line Out,set to follow the designated zone (any one of the eight zone).
Every zone adopts the stereo output; the rated output power of the zone No.1 is 2×100W, the
rated output power of the zone 2 –zone 8 is 2×30W; in the Extending Power Amplifier, four of
the zone have the rated output power of 2×30W.
Every zone and sound source may be named by the user with the mobile phone software on the
basis of his/her own preference, in order to facilitate the interaction.
Powerful timing control function; You can edit multiple timing points every day on a single or
repeated basis; even control the on-off, volume, network radio, and MP3 playing of every zone
on a timing basis.
The infrared study function, the remote control of the external DVD, TV, AUX, and other
audio equipments.
RJ45 Ethernet interface, which is used to connect the cable network or wireless router, support
iPhone, Android smartphones, tablet computer, and other mobile devices for the purpose of
wireless control.
2 channels of RS485 interfaces, which can be used to connect the control panel by
hand-in-hand method, so as to facilitate the user to control every zone.
RS232 communication interface, which is easily linkable to smart central control system or
smart household system.
Support network timing.
Support online upgrading of firmware.

Multi-Room Music System
4
Description of Appearance and Function of
Host
1. Description of Function of Front Panel
1) USB interface (USB2.0)
It is used to connect external USB device, such as USB flash disk, mobile HDD, or card reader.
2) Power light (POWER)
When turning on the power, this indicator light will be in the normally green on state; when turning
off the power, this indicator light will turn red.
3) Power switch (POWER)
Press this switch to turn on the power, and then press it again to turn off the power.
4) TFT true color display screen
It is used to display the working conditions of the equipment. It is possible to control the host through
the display screen (full touch screen operation).
1234

Multi-Room Music System
5
2. Description of Functions of Rear Panel
1) DVD audio input interface
2) Auxiliary audio input interface
To connect the other sound source equipments
conforming to the interface level standard.
3) Audio signal line output port
To output different audio signals according to
different zone, to connect the external power
amplifier to extend the power
4) Network interface
To connect RJ45 Ethernet interface network
cable, and to connect the Internet or
household LAN
5) Extending PowerAmplifier interface
To connect HS8300 Extending Power
Amplifier for extension of zone
6) Infrared study input
To connect infrared study receiver for leaning
with infrared function
7) Infrared study output
To connect external infrared study emitter to
achieve the control of infrared study
8) RS232 interface
Also known as remote control interface. To
control the function of the equipment through
the central control equipment
9) Control panel interface
To connect HS828R control panel through
RJ45 network cable
10) AC220V/6A power fuse of this equipment
In case of the blowout of the power fuse,
please replace with the fuse in the same
specification
11) AC220V power input interface of this
equipment
When connecting, please connect the power
line to the machine first, and then access to
the grid.
12-19) Audio signal output ports
Output the audio signal from zone 1 to zone 8.
19 12 1314
15
16
17
18 11
2 3 4 1 5 6 7 8 9 10

Multi-Room Music System
5
Description of Connection
1. Schematic Diagram of Line Audio Input & Output Connection
Remark:
The above inputs and outputs shall be connected with the lotus form plug as shown in the
right-handed figure.
Extending power
amplifier
Other sound sources
DVD machine

Multi-Room Music System
6
2. Schematic Diagram of Connection of Router and Extending
PowerAmplifier
1) Connection of router
2) Connection of Extending Power Amplifier
Remark:
The above connection shall be made with T586A network cable; if it is required to extend the
connection line, please make it by the method as shown in the figure below:
HS8300
RJ45 interface
As connection method, the colors from left to right are:
Green & white, green, orange & white, blue;
Blue & white, orange, brown & white, brown
Corresponding one to one between two ends
Spring clip
Back to you
First pin

Multi-Room Music System
7
3. Schematic Diagram of Connection of Infrared study / Control
and RS232 Central Control
1) Connection of infrared study / control
Note: The infrared receiver and emitter shall not be connected to the wrong sockets; or they will
not work!
2) Connection of RS232 central control
Emitter
Receiver
Smart central control
system or smart household
system and other control equipments

Multi-Room Music System
8
4. Schematic Diagram of Connection of Panel Control
Remark: For connection of
input in two channels, either
channel shall be connected
by “hand-in-hand” mode
Infrared remote controller
The line remote controller
in any room is controlled
by the infrared remote
controller

Multi-Room Music System
9
5. Schematic Diagram of Connection of Zone Output
Zone 1~8 adopt the stereo dual-track output. In zone 1, the output power of every track is 100W; in
other zone, the output power of every track is 30W. The connection of zone 1 is exemplified below. The
connection mode of the other zone is completely the same as that of the zone 1. Please pay attention to the
positive and negative electrodes of the loudspeaker.
＋
－
Zone1

Multi-Room Music System
10
Operation Instruction to Host
1. Description of Power-On State and Main Interface
After connecting the system line properly, switch on the power of this equipment, turn on the power
switch on the front panel of the host (Refer to the description of the front panel), and the system enters the
power-on state, which will cost approximately 30 seconds. After that, it will enter the main interface as
shown in the figure below:
The main interface is divided into the three regional functions including Time display, system setting, and
zone control;
Time display: To display the date and time, which shall be modified by the system setting.
System setting: Including 12 functions such as time, language, background, timing, infrared study,
network module setting, line output, network detection, SD/USB program source edition, network
radio edition, other settings, and system upgrading (As shown in figure below).
Setting of 8 zone: To control the sound source and volume of the zone.
Time display
Control of eight zone
Setting

Multi-Room Music System
11
2. Detailed Description of System Setting.
2.1 Setting of time and date

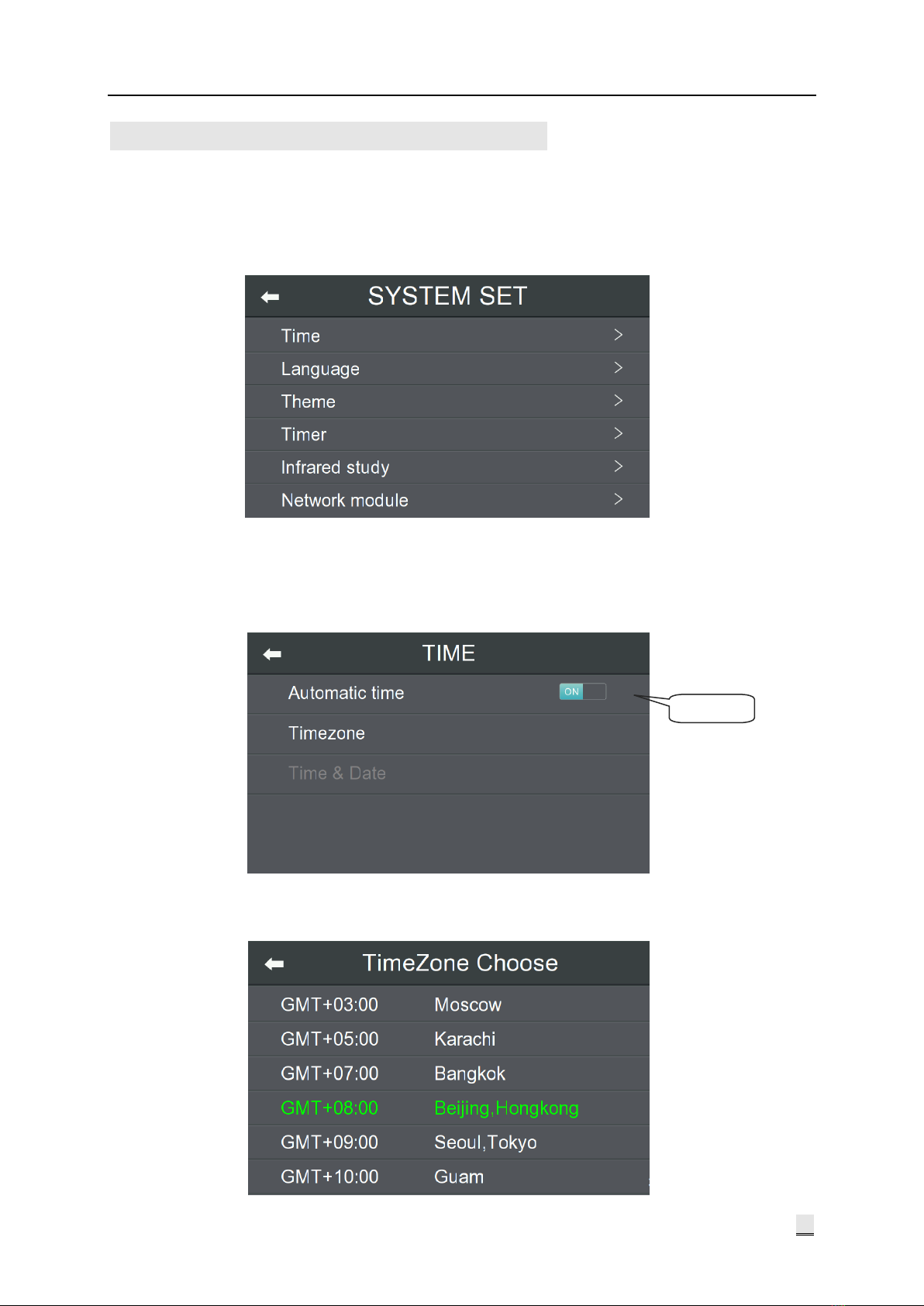

①Touch “system setting icon” to enter the following interface;
②Touch “time” to enter the time setting interface;
③Touch the place as shown in the figure; “ON” indicates that the automatic timing function is
started; “OFF” indicates that the function is shut down. It default to be the switch-on state;
④Touch “time zone setting” to enter the time zone selection interface, so as to select the time zone;
Touch here

Multi-Room Music System
12
⑤Touch “Time and date setting” to enter the time and date setting interface, so as to modify the
time and date.
2.2 Selection of language
Touch “language” to enter the language selection interface, so as to switch the language of host
between Chinese and English.
2.3 Selection of theme
Touch the “theme” to enter the background selection interface. There are five background colors
including red, green, blue, brown and gray and 12 zone diagrams for your switching. When switching,
please select the zone in advance.

Multi-Room Music System
13
2.4 Timing setting
①Touch “timing” to enter the timing setting interface;
②Touch the place as shown in the figure above to enter the timing edition interface.
2.5 Infrared study
Touch “infrared study” to enter the infrared study interface.
Touch here to add
timing point
“ON” indicates that the zone is
opened at timing point; “OFF”
indicates that the zone is closed a
timing point.
Zone selection
Time setting selection
Green indicates invalid timing
point; black indicates that the
timing point is started, and
switched by touching
Adjustment of volume
Source component input

Multi-Room Music System
14
When entering the infrared study operation interface for the first time, it can be seen that the
function buttons of learning displays the dark gray. Finishing the leaning, such functional buttons will
display the bright green. For example, if you want to learn the “play” function of DVD, first touch
the DVD play button as shown on the above figure, the countdown at the bottom will be started; then
align the infrared remote controller of DVD with the infrared receiving receiver module of the host
within 30 seconds and press the play button on the remote controller; when the countdown as shown
in the figure above stops and disappears, and the play button on the panel is lighting, the learning of
the play function is completed (Look the figure below, the interface after the successful learning of
DVD play button). The operation method for learning of other items is the same as that of the “play”
item.
Note 1: AUX1/AUX2 is the auxiliary external sound source interface used to connect any sound
source player. No matter what player is connected with this sound source interface, the infrared study
thereof is able to achieve the control of play/pause, previous song, next song, stop play and other
functions. The operation method for learning of the above functions is the same as that of the DVD
“play” function.
Note 2: Before the infrared study, please ensure the infrared receiving module is connected to the
host correctly!
2.6 Network module setting
Touch the “network module setting” to enter the network module setting interface, to select the
working mode of the network modules (network music and network radio).
The name of the module shall be modified in the “setting – list of sound sources” at the APP side
of the mobile phone.

Multi-Room Music System
15
2.7 Line Output
Touch “line output” to enter the line output interface.
2.8 Network Detection
Touch the “network detection” to enter the network detection interface. In case of the normal
network connection, the IP address allocated will be displayed at the bottom of the screen. If the IP
address is not displayed, it indicates that the host fails to acquire the IP address; at this moment, you
may click “repair network” button to re-acquire IP address.
Note: If it is connected to the router, please ensure that DHCP in the setting of router is open!
Touch the zone to be
followed by the
optional line output

Multi-Room Music System
16
2.9 SD/USB Program Source Edition
Touch “SD/USB program source edition” to enter the song list updating interface, to switch and
change the song list.
You can copy and delete the song in the list as shown in the figure below.
2.10 Network Radio Edition
Touch the “network radio edition” to enter the network radio edition interface, to delete the stored
radio station.

Multi-Room Music System
17
2.11 Other Settings
Touch “other settings” to enter the other settings interface, to adjust backlight intensity and modify
the terminal address setting.
2.12 System Upgrade
Touch the “system upgrade” to enter the system upgrade interface, to implement the online
upgrade of the host, decoding module, and network module.
Open the panel behind
the button to select the
zone to be controlled
