Lyngdorf Audio BW-20 User manual

[Skriv tekst]
LYNGDORF LS-1000 INSTALLATION MANUAL
(working document)
LS-1000
LS-1000 Center
LYNGDORF AUDIO BW-20
INSTALLATION
MANUAL

Lyngdorf Audio BW-20 – Installation manual
2
TABLE OF CONTENTS
COMPLIANCE ..................................................................................................... 3
PRE-INSTALLATION ........................................................................................... 4
INSTALLATION ................................................................................................... 7
BW-20 MOUNTING DIMENSIONS ...................................................................... 8
TECHNICAL SPECIFICATIONS .......................................................................... 9
SERVICE INFORMATION ................................................................................. 10

Lyngdorf Audio BW-20 – Installation manual
3
COMPLIANCE
WEEE
The European Parliament and the Council of the European Union have issued the Waste Electrical and
Electronic Equipment Directive. The purpose of the Directive is to prevent waste of electrical and electronic
equipment and to promote reuse, recycling, and other forms of waste recovery. Steinway Lyngdorf products
and the accessories packed with them are subject to the WEEE Directive. Please dispose of any waste
materials in accordance with your local recycling regulations. Products and equipment which must be
collected for reuse, recycling, and other forms of recovery are marked with the icon of the crossed-out waste
receptacle.
FCC
Steinway Lyngdorf products and accessories comply with parts 15 and 68 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must
accept any interference received, including any interference that may cause undesired operation. Changes or
modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment. Equipment marketed to a consumer must be capable of complying with the
necessary regulations in the configuration in which the equipment is marketed.

Lyngdorf Audio BW-20 – Installation manual
4
PRE-INSTALLATION
Unpacking the BW-20
Carefully remove the BW-20 from the carton and check for shipping damage. Contact both the shipper and
your local Lyngdorf Audio representative immediately if the unit bears any sign of damage from mishandling.
In some cases, it may be necessary to return the equipment to Lyngdorf Audio or an authorized service
provider for repair; therefore, it is recommended that you save your original packing materials. If this unit is
shipped without the original packing, damage could occur and void the warranty.
Inventory
Check to ensure that all necessary product components have been delivered. Report all discrepancies to your
local Lyngdorf Audio representative immediately.
• BW-20
• 4 x mounting feet with spike / floor protector
• 1 x Neutrik speakON cable connector

Lyngdorf Audio BW-20 – Installation manual
5

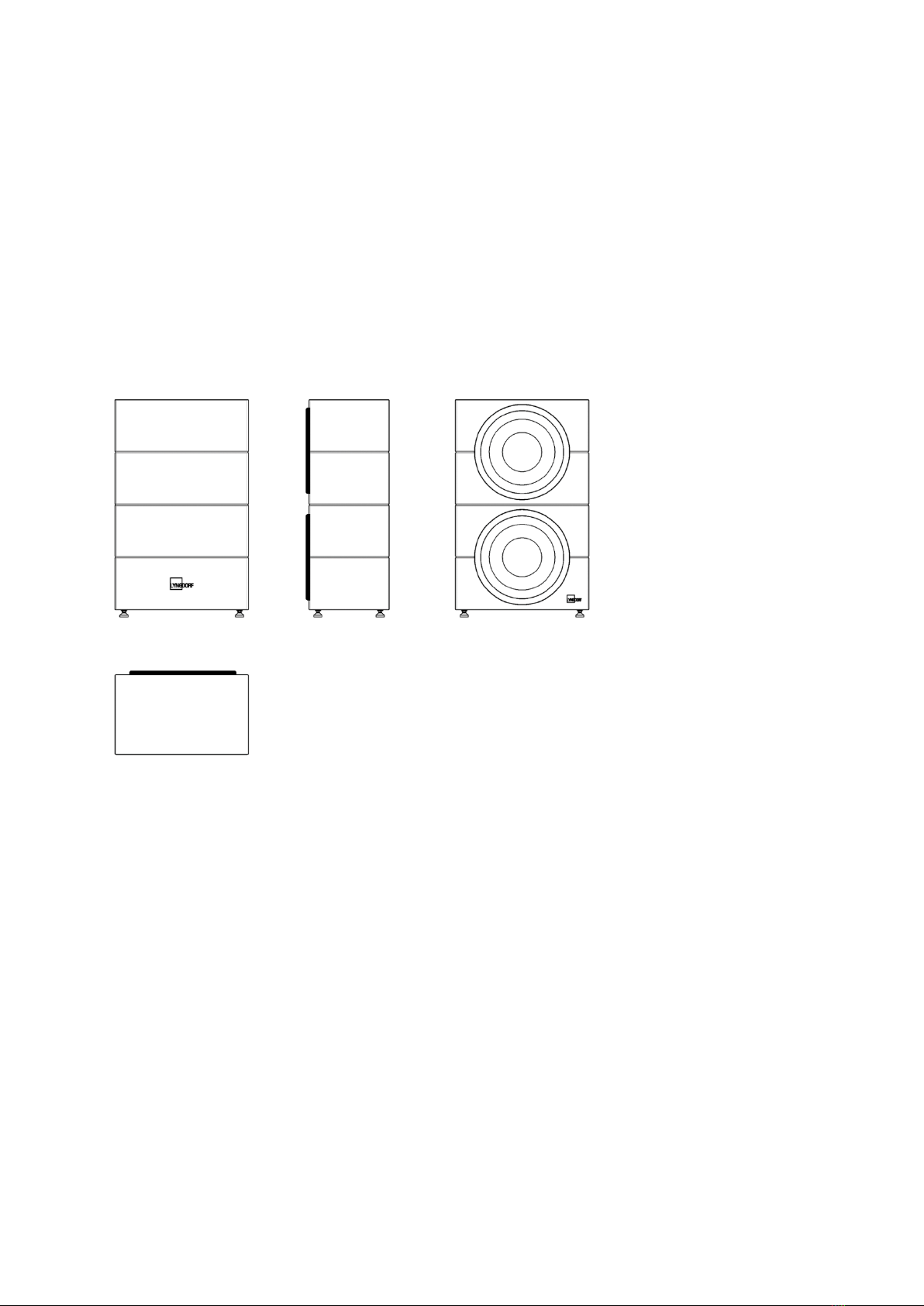

Finding the right placement for the BW-20
The BW-20 is designed as a Boundary Woofer. For the best performance the recommend placement is as close
as possible to boundaries, for example in a room corner or close to the wall. The best placement is inside a
wall cavity with the BW-20 woofers front-firing, in-line with the in-wall speakers. If the BW-20 is placed in the
room, the best placement is with the woofers back-firing, facing the boundary. The BW-20 can also be placed
with the woofers front-firing into the room.
BW-20 in-wall with woofers front-firing into the room

Lyngdorf Audio BW-20 – Installation manual
6

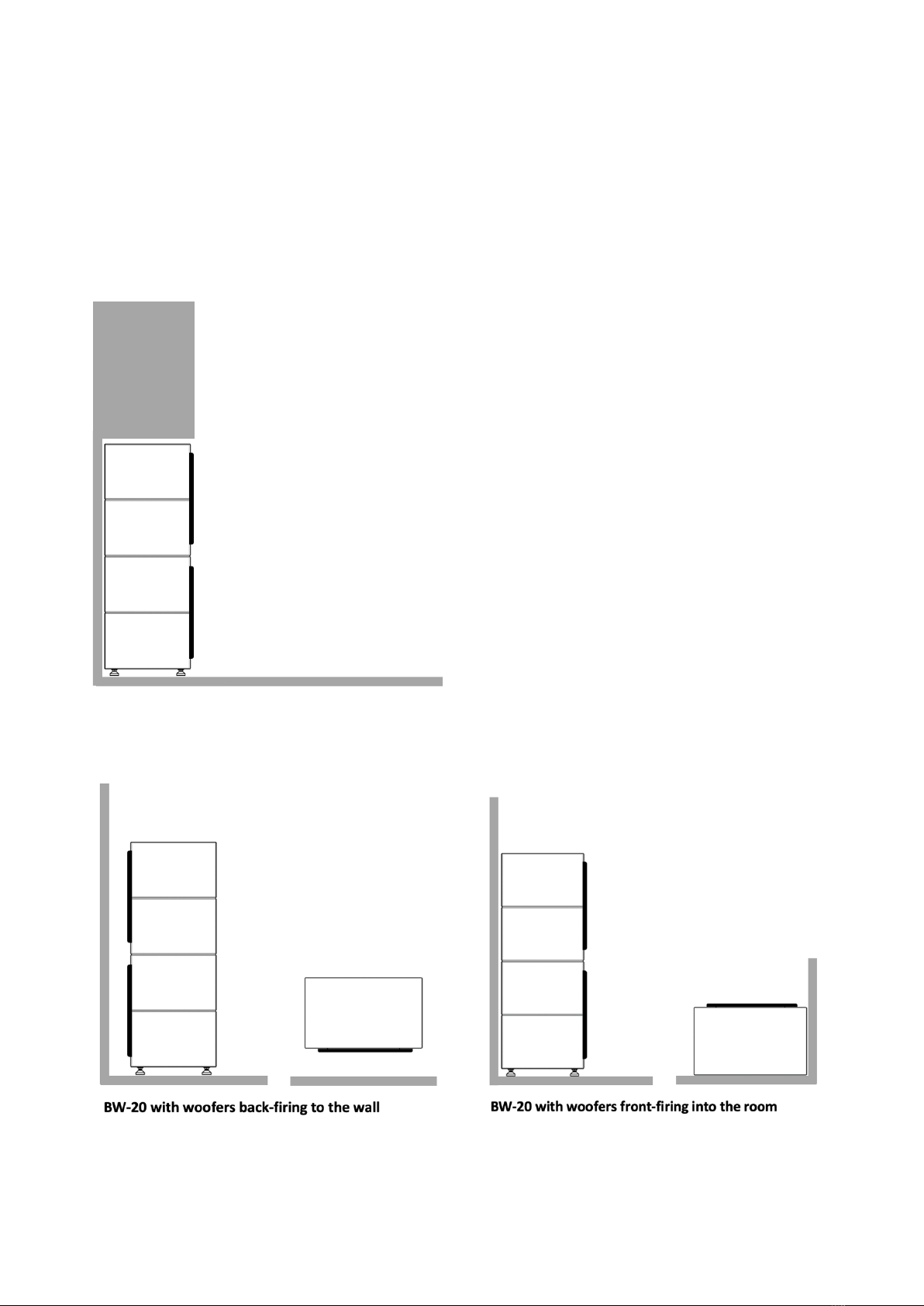

Required space for the BW-20 in the room
If the BW-20 is placed back-firing to a wall, leave a minimum of 50 mm / 2 inch to the wall to allow for the
woofer excursion and soundwaves to emit.
If the BW-20 is placed front-firing into the room, place it as close as possible to the wall. Leave a minimum of
10 mm / 0.4 inch space to the wall so the BW-20 is not making contact, in order to avoid mechanical
resonance. Leave an extra 30 mm / 1.2 inch space in front of the BW-20’s own cabinet to allow for the woofer
excursion.
Required space for the BW-20 in-wall
If the BW-20 is placed front-firing in a wall opening, the minimum space required including mounting feet is:
Width
Height
Depth
BW-20
450 mm / 17.7”
734 mm / 29”
300 mm / 11.8”
Cables
Recommended minimum up to 8m / 50ft: AWG 14/2 or 2-lead 2mm2
Recommended minimum from 8m / 50ft and up: AWG 11/2 or 2-lead 4mm2
Recommended maximum: AWG 10/2 or 2-lead 5mm2

Lyngdorf Audio BW-20 – Installation manual
7
INSTALLATION

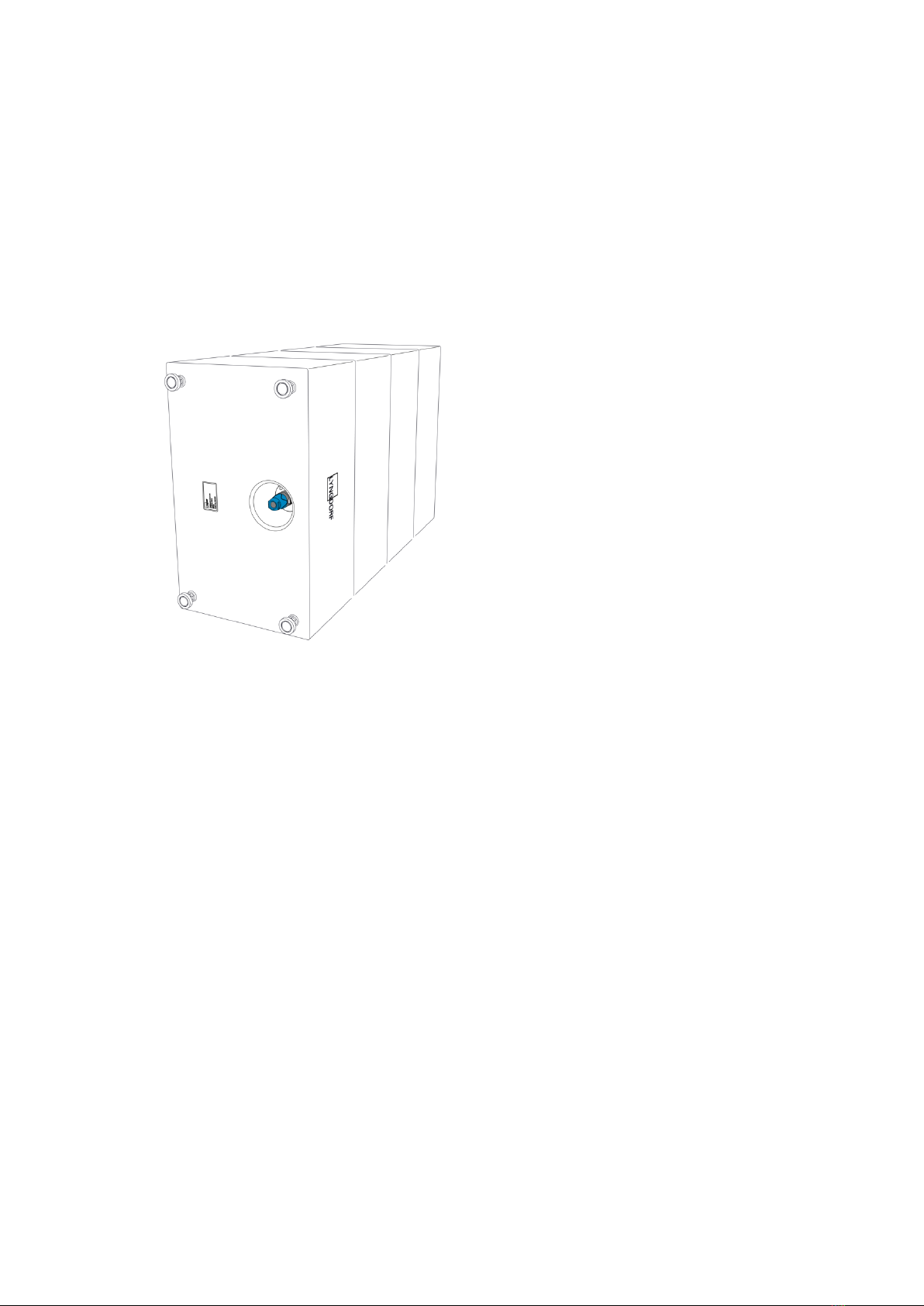

Connect the Loudspeaker Cable
Remove the supplied speakON cable connector inserted at the BW-20 cable port.
Attach and tighten a speaker cable to the speakON cable connector. Make sure the cable ends are securely
tightened and no bare wire is standing out. Plug-in and turn the speakON connector back to the BW-20
speakON connector port.
Place the BW-20
Bring the BW-20 to its upright position in the selected location. Once upright, adjust the four spike feet to
level the BW-20 and achieve optimal stability.
Using the feet of the BW-20
You can either use the attached black floor protectors over the spikes to prevent scratches on the floor, or use
the spike tips to make a firm, almost fixed contact to the ground. Be careful with the spike tips to prevent
damages or injuries.

Lyngdorf Audio BW-20 – Installation manual
8

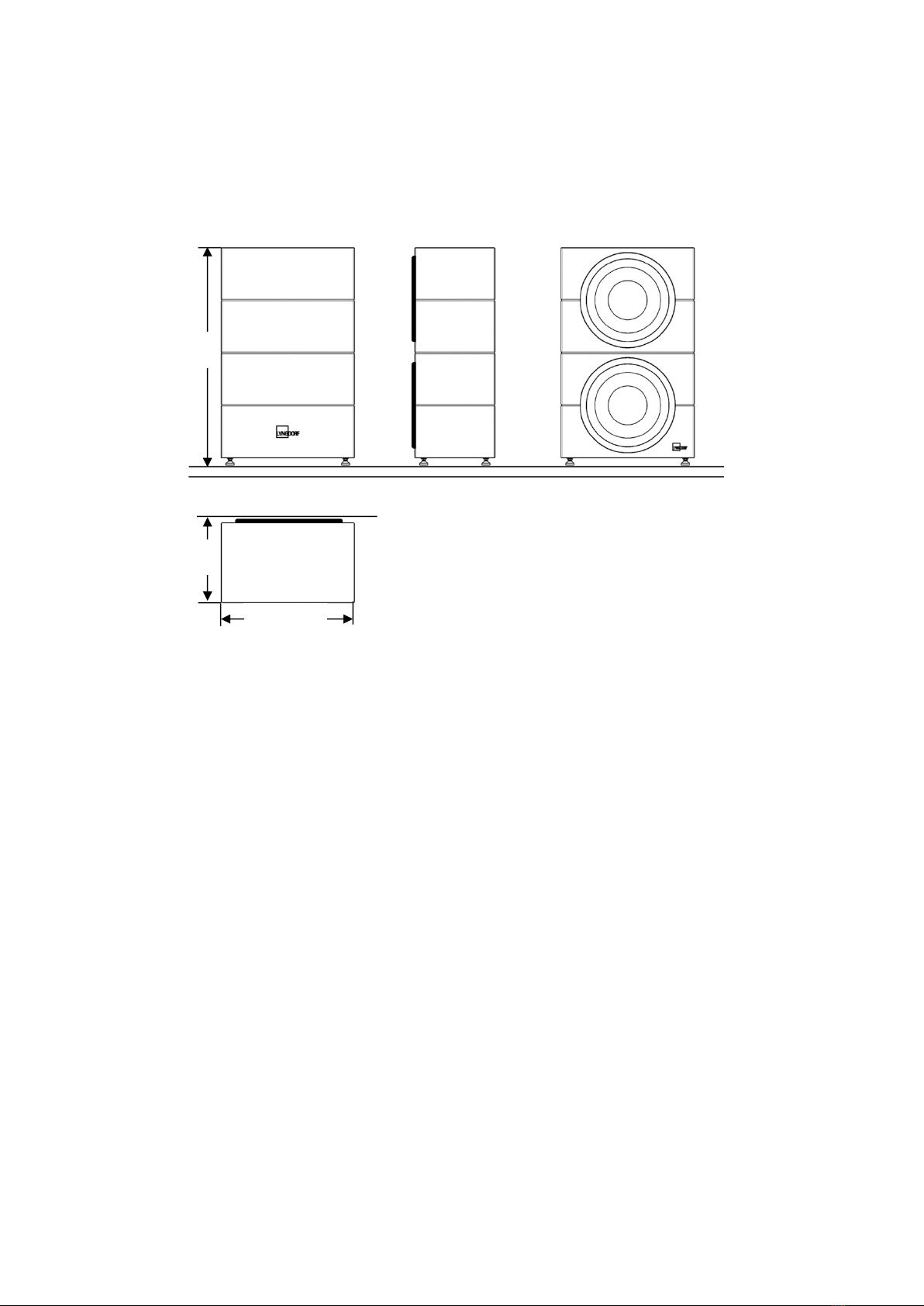

BW-20 MOUNTING DIMENSIONS
Mounting dimensions including spike feet and required woofer excursion.
734 mm / 29”
300 mm / 11.8”
450 mm
/ 17.7”

Lyngdorf Audio BW-20 – Installation manual
9
TECHNICAL SPECIFICATIONS
BW-20
Description: Passive boundary woofer, closed
Woofer: Two 12” long throw +/- 20mm, 67mm voice coil, aluminum cone, double
spider, vented magnet
Enclosure: MDF, closed 64 L net
Frequency range: 19 – 500 Hz (-3 dB)
Frequency extension depending on EQ
Nominal Impedance: 4 Ohm
Power handling: 700 W (IEC)
Maximum SPL: 118 dB
Connections: Neutrik speakON
Mounting: Floor standing
Dimensions (W x H x D): 450 x 710 x 270 mm / 17.7 x 28 x 10.6 inch
(Cabinet without spike feet and woofer excursion)
Weight: 35kg / 77 lb
Finish: Matte black

Lyngdorf Audio BW-20 – Installation manual
10
SERVICE INFORMATION
To obtain warranty service, you must contact your original dealer or the Steinway Lyngdorf distributor of the
region or country where you are located. If you have trouble locating an authorized representative, please
find contact information at www.steinwaylyngdorf.com
Steinway Lyngdorf
Ulvevej 28
DK 7800 Skive
Denmark
In some cases, it may be necessary to return the equipment to Steinway Lyngdorf or an authorized service
provider for repair; therefore, it is recommended that you save your original packing materials. Steinway
Lyngdorf will not be responsible for any damage due to unauthorized packing or shipment in non-original
packing materials. If return is made in authorized packaging, risks are borne by Steinway Lyngdorf. Additional
charges may occur if new packing materials are required for return shipment.
Please check the latest version of this printed manual on our website:
www.steinwaylyngdorf.com

Lyngdorf Audio BW-20 – Installation manual
11
SL AUDIO A/S • ULVEVEJ 28 • 7800 SKIVE • DENMARK • WWW.STEINWAYLYNGDORF.COM
