Lypeak LY-BM010X User manual

1
User Manual

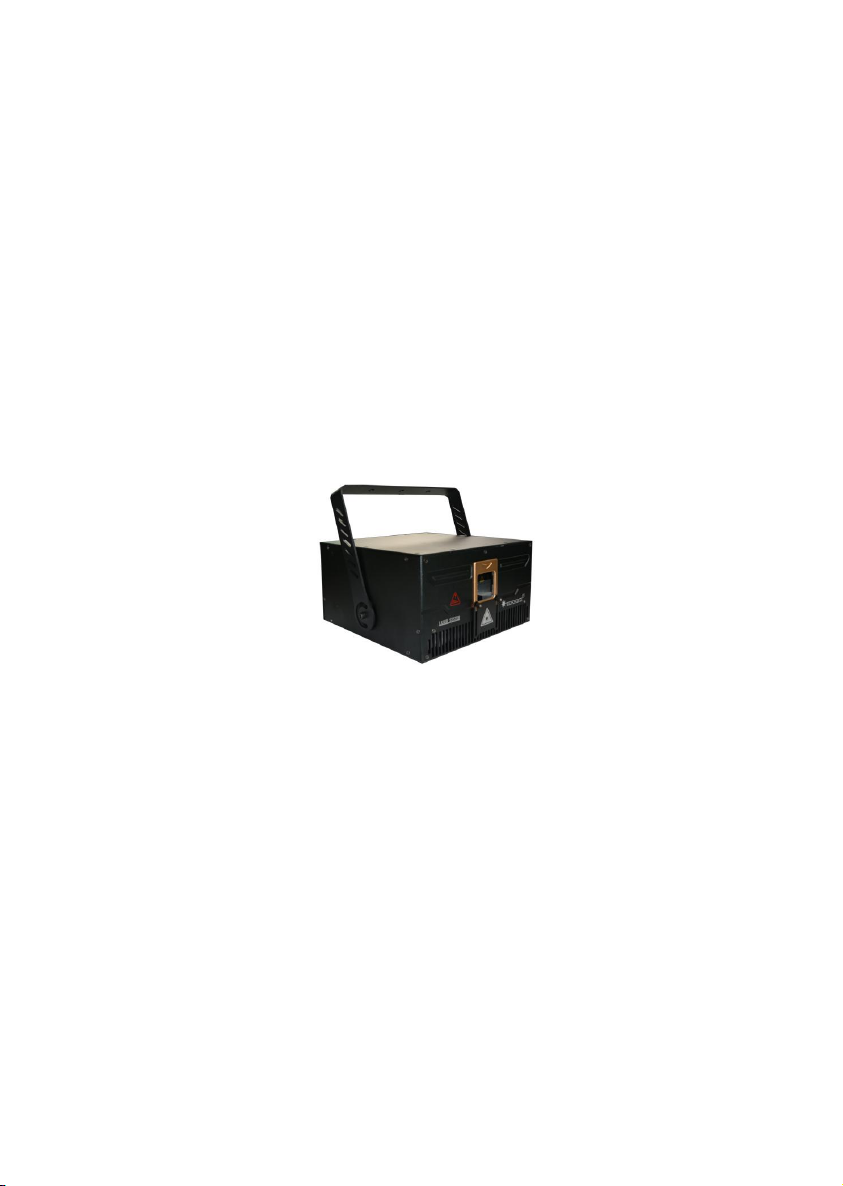

RGB10W full colour animation laser
Please read the instructions carefully before use

2
Parameters:
Rated voltage: AC110-220V 50 ~ 60Hz
Rated power: 110W
Laser power: RGB 10W
Laser light source: Red:3000mw/638nm Green3000mw/520nm
Blue:4000mw/447nm
Laser pattern: 256 laser animation patterns
Modulation signal: TTL modulation (analog modulation)
Scanning system: 30kpps
Scanning angle: plus or minus 25 degrees
Control mode: DMX512, voice control, self-propelled, master-slave mode,
computer ILDA control
Control channel: 16 DMX512 channels
Cooling system: forced cooling by fan
Working environment: Indoor
light body size: 41 * 37 * 30 / cm
carton: 1in1 45x47x38cm NW: 14kg GW: 16.5KG
Function: it can be controlled by pangolin qsfb3 / FB4 or fire phoenix and other laser
software. The ILDA control adopts automatic electronic change-over switch, with
scanning system error protection and laser light closing protection. The machine itself
is equipped with pattern size and inverse adjustment, manual laser electronic lock
switch.

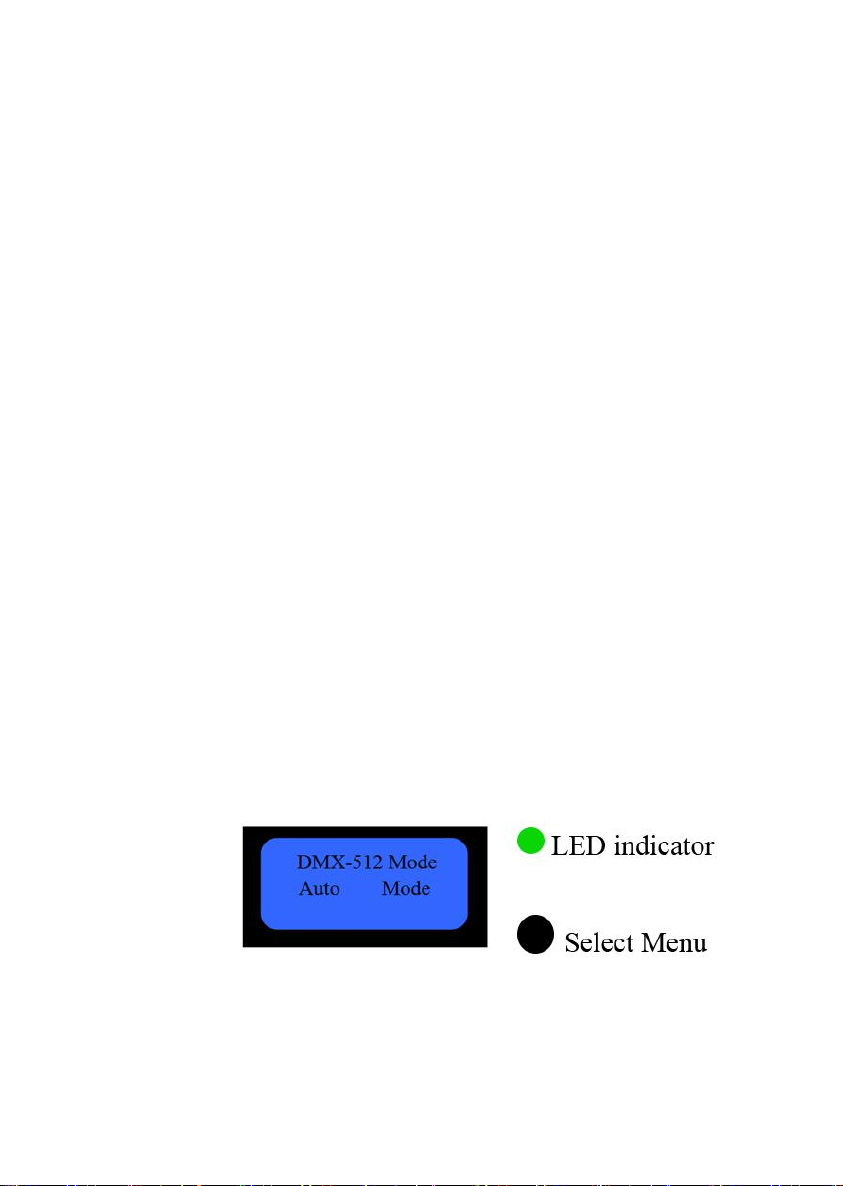

一、LCD displays as follows：
1、LED indicator description

3
Laser Key
Red :slow strobe
Green:Slow strobe
Safety Protected
Red: ON
Green:OFF
DMX And Slave Mode
Red:Fast strobe
Green:Fast strobe
Auto Mode
Red: OFF
Green:Slow strobe
Music Mode
Red: OFF strobe
Green:ON strobe
ILDA Mode
Red: OFF
Green:Fast strobe
2、Select Menu
Rotate left and right to select the required function menu,Press OK / return to the
selected function.
First level menu
Second level menu
Three level menu
1、Function Mode
1、DMX512Mode
2、Auto Mode
3、Music Mode
4、ILDA Mode
2、Show Listing
Choose List
All The List 001
3、Play Show
Choose Show
All The Show 001
4、Play Setup
Play Setup
1、Play Speed
2、Play Mode
1、Play Speed 50%
3、Loop Play
Random Play
5、Address Setup
Address Setup 001
6、Channel Setup
Normal Mode
Expert Mode

4
7、Laser Setup
1、Scanner
1、Scan Rate
2、Color
2、Color Setup/
3、Single colour
RGY
RBP
GBC
RGB
WYPC
3、Laser
3、Laser Type
TTL
Analog
4、Invert Normal
4、Normal /XY
invert X
invert Y
Ainvert XY
5、 Image Size X Y
4、Image Size
Size X
Size Y
6、Position X
Y
6、Position Setup
position X
position Y
8、General Setup
1、Reset Default
1、Reset Default/
Yes
No
2、Safety Protected
2、Safety Protected
Turn ON
Turn OFF
3、Master Setup
3、Master Setup
Turn ON
Turn OFF
4、Back Light
5、Back Light
Normally ON
Delay 15S OFF

5
5、Language
5、Language
Chinese
English
6、Display Setup
6、Display Setup
Rotate 180°
Normal Display
7、About System
7、LaserSystem2.9
三、DMX-512
16CH
CH
value
Introduction
CH1
light
0
Turn off
1～255
Turn on 1-100%
CH2
Red brightness
0～255
0~100%
CH3
Green brightness
0～255
0~100%
CH4
Blue brightness
0～255
0~100%
CH5
Pattern library
and effect Library
0～255
Choose a pattern library and effect library for every 8
values
CH6
Pattern selection
0～255
Choose a pattern effect for every 3 values
CH7
Pattern size
0～255
Pattern big to small
CH8
Rotate Z
1～127
Rotate Z Angle selection
128～255
Rotate Z Speed selection
CH9
zoom
1～127
Zoom size
128～255
Zoom speed
CH10
Horizontal
position
0～255
Value 128 is the middle position，
CH3 1-255 have effective
CH11
Vertical position
0～255
Value 128 is the middle position，

6
CH3 1-255 have effective
CH12
Pattern gradient
1～255
Pattern gradient speed
CH13
scanning speed
0～255
scanning speed
CH14
Horizontal
movement
1～127
Horizontal movement position selection
128～255
Horizontal movement speed selection
CH15
Vertical
movement
1～127
Vertical movement position
128～255
Vertical movement speed
CH16
colour
0~63
Fixed color
64～95
Fixed color / color change effect speed
96～127
Color change effect speed
128～159
Color changing effect speed selection/flowing effect
speed
160～191
Color speed
192～223
Effect of water speed
224～255
Pattern effect speed
●Signal connection and address dialing method：
The controller has DMX512 standard signal output. Connection is through the
"input" and "output" of 3 for XLR complete. Control console Signal to the lamp must
be corresponding lamps 3 pin XLR seat: 1 feet, 2 feet, 3 feet of negative, positive;
otherwise the 2 and 3 (a swap Like the console are not on the two foot). The signal
line length should be within 100M, prevent the signal line is too long to be interfered
by other appliances.

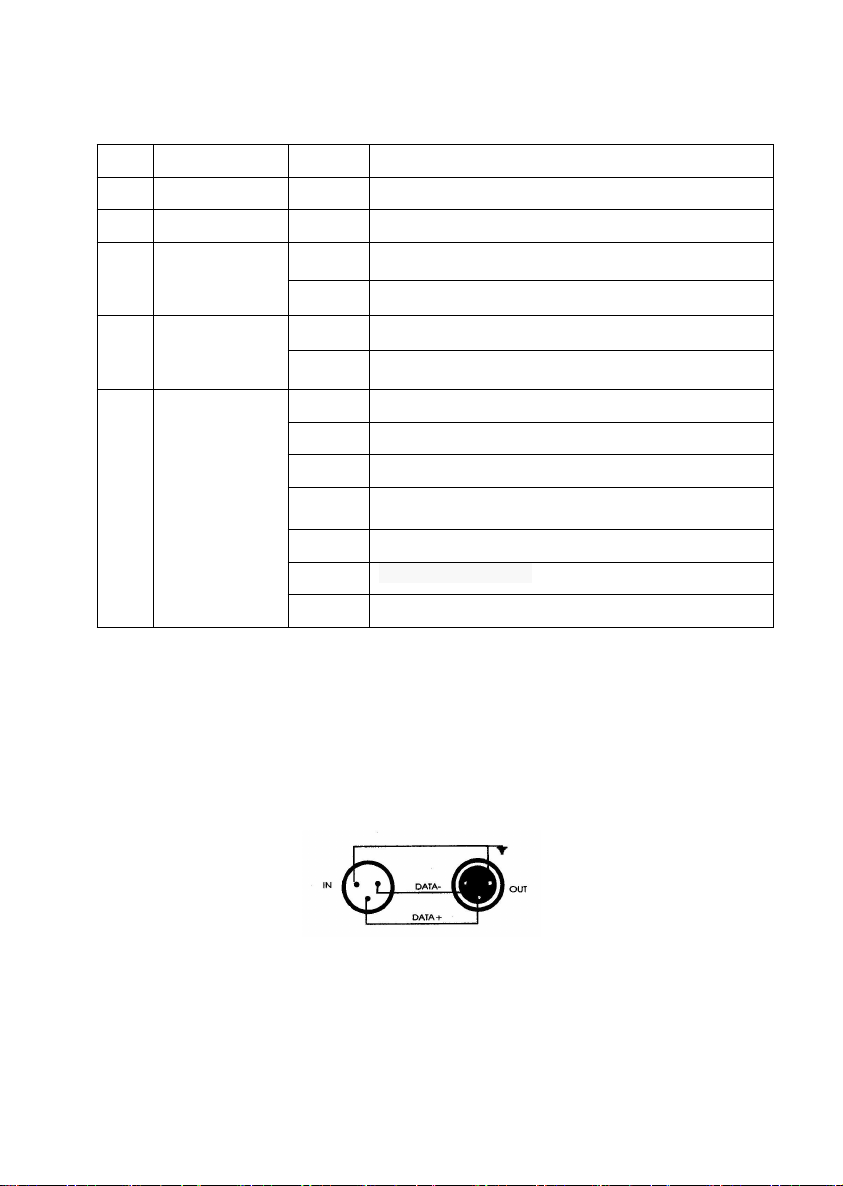

This product adopts 3 core XLR socket (head), the following connection method
for multiple:
Note: Remember the last fixture's output to connect the supplied DMX, DMX
terminator "CANON (Caron interpolation)," about a 120Ω connection between the
plug 2 feet and 3 feet of resistance connected the DMX can effectively avoid signal
reflections DMX512 signal transmission generated in the process.

7

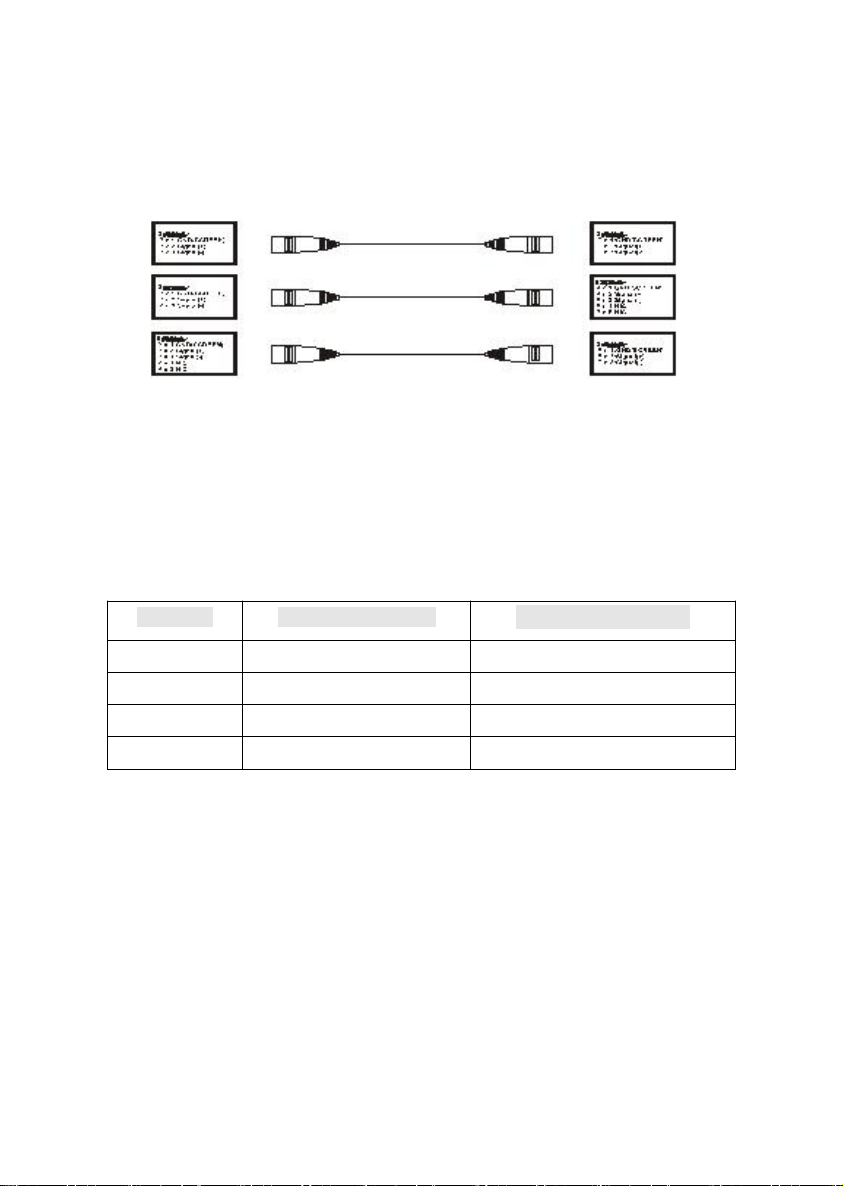

If your DMX-512 signal control station is a 5-pin XLR socket (head), you must
use a 5-pin to 3-pin from the conversion line, specific conversion method as shown
below:
When the console control signal input to the full color animation laser
performance device, all full color animation laser performance device must first set
address code. In order to Role of the corresponding control signal. So, when using any
controller, each lamp must have its own address code. So, in the first lamp address is
set to 1, second sets of lamps address code is set to 13 (the first lamp address codes 1
and 12 channel),Third table lamps set in position 25. And so on (this setting is
required according to control different set, now only with common people).
The specific DMX-512 signal control mode of address code switch is arranged as
below:
The lights
The starting address
Digital display（ON）
1
1
A0.01
2
13
A0.13
3
25
A0.25
┇
┇
┇
ILDA interface control method using the function mode:
The ILDA interface signal line access standard automatically switch to ILDA
interface control mode.
Note: disconnect the power first, then plug the ILDA interface signal lines, so as
not to damage the lamp.
Master slave synchronization function matters needing attention:
1, as the host, the lamp will send DMX-512 signals, you cannot connect to the
DMX-512 console, otherwise it will interfere with each other, not synchronous
operation.
2, a plurality of lamp master-slave synchronous operation, of which only a
mainframe, the other from the machine. Not synchronous operation.

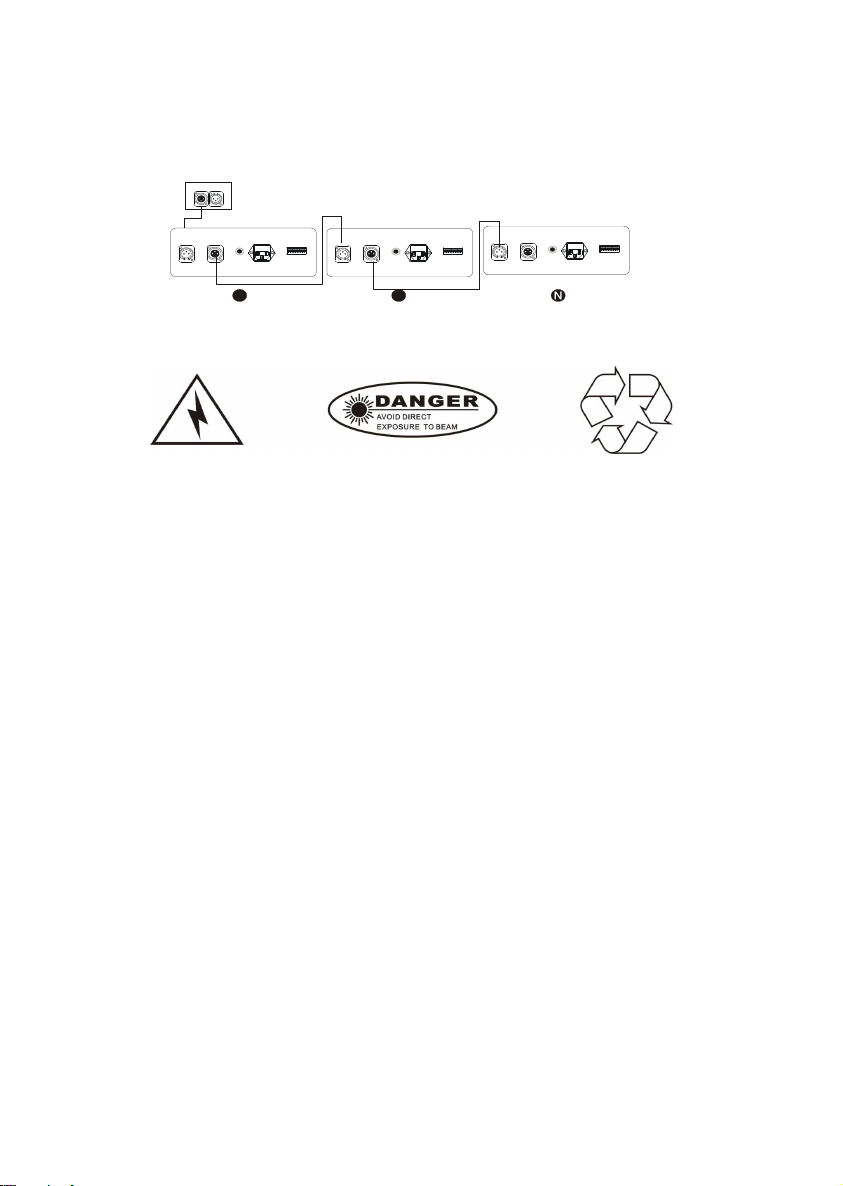

Master slave synchronization connection diagram as follows:

8
D M X 5 1 2 CONTROLLER
I NO U T
O U T
IN PO W ERM I C
2
O U T
IN PO W ERM I C
O U T
IN PO W ERM I C
1
Safety instructions：
! The lighting in the installation and repair of, please confirm the lamp power off.
! Please ensure smooth lamp fan outlet and the surrounding environment with
good ventilation. Do not long-term use of this product in a humid environment.
! The lamps in the indoor use or repair please stop lamp contact water, if used for
outdoor, please do waterproofing measures.
! Installation, operation and repair personnel must be familiar with the
performance of light before the operation, otherwise it will damage the lamp.
! Please do not use different specifications of the power supply voltage and a
laser generator.
! Do not look directly at the laser light source, so as not to damage the eyes.
! Do not use the jitter of the product.
●Maintenance:
1, try to eliminate dust, dirt and oil for laying even into the lamp body, use
of the environment to keep the grating effect series laser performance device
clean;
2, please regularly every month to use glass cleaning agent professional and
lint cleaning mirror so as to ensure that the laser output and maximum brightness
can prolong the service life of the light source.
