Lypeak LY-RGBW01-3 User manual

1
User Manual
RGB full color animation laser light
Product Manual
Thank you for purchasing full color animation laser
light beam case, for your personal safety and the better use
of the product.
Please read this manual carefully before using the press
operating procedures, in order to avoid misuse of personal
safety and caused light damage.

2
●Packing List:
Check in when you open the case of full color animation
laser light beam whether the box has the following items:
••••• full color animation laser light beam of a case
••••• case full color animation laser light beam power line
••••• full color animation laser light beam handle the case
(rings) 1/2/4
••••• case full color animation laser light beam DMX512 signal
line 1
••••• full color animation laser light beam case a manual
● Product and functional effects Introduction:
●Full-color Animation laser light show is part of compliance
with international laser generator using standard
semiconductor laser generator, laser light, long life, high
stability.
●Effect features: Built-in 128 performances of the latest
laser pattern effects features: laser show effects animation
and geometric beam pattern effects can be customized text
/ name and festive animation design, Chinese / English
performances romantic effect, with spatial effect,
projection effect, laser dimming effect, laser strobe effect,
time travel effect, three-dimensional laser effects such as
the latest laser show effects.
●Classic Effect: beam network, Mangmangyunhai, dazzling,
rotate billowing, zoom, 3D laser time tunnel effect and so
on.
●This product with another computer ILDA laser software
interface signals through animation design software

3
design and programming performance / program type!
●Technical parameters:
Rated voltage: AC110-220V
Rated frequency: 50 ~ 60Hz
Rated power: 120W
Laser power: RGB 1W
Laser light source: G: 300MW/520NM R: 500MW/638NM
B: 1200MW/447NM
Laser pattern: 128 laser patterns
Modulation signal: TTL modulation (analog modulation)
Scanning System: Galvanometer Scan 15-25KPPS
Scanning angle: positive and negative 25 degrees
Control mode: DMX512, voice control, self-propelled,
computer ILDA interface control, master-slave mode
Control channel: 12 DMX512 channels
Function: Can be controlled by laser software such as
Pangolin QSFB3/FB4 or Fire Phoenix. The ilda control uses
an automatic electronic transfer switch with scanning
system error protection and laser closed-light protection.
The machine itself comes with a pattern size and inversion
adjustment, manual laser electronic lock switch. Cooling
system: fan forced cooling
Working environment: indoor
Light body size: 26*22*20 /CM
Carton: 1 in 1 : 29X25X23CM
Net weight: 4KG Gross weight: 5KG
1 loaded 2 : 53X31X26CM
gross weight: 11KG

4
一、 LCD digital display panel：
ENTER UP
Exit DOWN
Use touch keys and LCD menu display function, easy to use
menu operations,
Powered automatic loading LaserSystem2.8 software,
After loading the software displays the software version
(Sof-v2.8).
Through UP, DOWN keys to select the function needs.
By ENTER, Exit button to determine the selected function,
return to the previous menu.
LCD features Menu settings：
A menu
B menu
C menu
1、DMX-512
Address 001
0-512
2、Auto
Show 01
01-03
Speed 09
1-9
3、Music
Show 001
01-03
4、Testing
1、Scanner
1、Scanner
2、30KPPS
2、Color
●Single1-7
●RGY
1、RBP
2、GBC
3、RGB
WYCP
DMX-512
Auto

5
3、Size
Size 128
4、Invert XY
Invert
1 NO
2 X
3 Y
4 XY
5、Setting
1、Light
1、ON
2、ON 5S
2、One Beam
1、OFF
2、ON
3、Master
1、OFF
2、ON
4、Default
1、Yes
2、No
●function key operation:
1. Choose DMX512 Function:
Through UP, DOWN button to select DMX-512, Press ENTER button to
enter the DMX-512 function, through UP, DOWN keys to set the address
code 001,013,512, press EXIT to return.
2. Select the self-propelled feature:
Through UP, DOWN keys to select AUTO, Press ENTER button to
enter the self-propelled function, through UP, DOWN keys to select the
effect of self-propelled and other 001,002,003, press EXIT to return.
3, select the voice features:
Through UP, DOWN keys to select Music, Press ENTER button to
enter voice function, through UP, DOWN keys to select the voice effect
O01, O02, O03, etc., press EXIT to return.
4. Select Debug functions:

6
Through UP, DOWN keys to select Testing, press ENTER button to
enter debug function via UP, DOWN keys Scanner, Color, Size, Invert
functions as follows, press EXIT to return
Scanner Sets scanning speed galvanometer lamp:
Through UP, DOWN keys to select Scanner, press ENTER button to
enter (30KPPS), at the same time by UP, DOWN keys to select
10KPPS-30KPPS, press EXIT to return.
Color sets the lamp color mode:
● Through UP, DOWN keys to select Color, press ENTER button to
enter, through UP, DOWN keys to select Single1-7, Single1-7Are seven
kinds of monochrome modes, namely re-election RGY, RBP, GBC, RGB,
WYCP.
5.Choose settings:
Through UP, DOWN keys to select Setting, Press ENTER button to
enter the setting function via UP, DOWN keys to select Light, One Beam,
Master, Default functions are as follows, press EXIT to return.
Light sets the display light functions:
Through UP, DOWN keys to select Light, press ENTER button to enter,
through UP, DOWN keys to select ON (display lit), 5S (display light off
display after 5 seconds), press EXIT to return.
One Beam set whether to open a beam of light protection:
Through UP, DOWN keys to select One Beam, press ENTER button to
enter, through UP, DOWN keys to select OFF (closed beam of light), ON
(open beam of light), press EXIT to return.
Master sets whether to open the host function:
Through UP, DOWN keys to select the SETC, press ENTER button to
enter, through UP, DO WN keys to select OFF (off the host), ON (open
host), press EXIT to return.

7
Default factory setting is restored Function:
Through UP, DOWN keys to select Default, press ENTER button to
enter the default function, by UP, DOWN keys YES (to restore the default),
NO (does not restore the default) the following functions, press EXIT to
return.
DMX512 Channel Description:
Channel
Channel
value
DMX Control content
CH1
Laser lamp light
0～41
Laser lamp light does not
demonstrate effect
Effect of laser
beam automatic
operation
performance
pattern
42～83
Manual control (CH2-CH12
control)
84～125
Self run built-in animation effects
126～167
Self run built-in geometric effect
(CH2-CH12channel control is
invalid)
Acoustic music
trigger
performance
pattern beam
effect
168～209
Voice trigger operation built-in
geometric line beam effect
(CH2-CH12 channel control is
invalid)
210～251
Voice trigger operation built-in
animation effects
(CH2-CH12 channel control is
invalid)
252～255
The built-in voice trigger
operation pattern effect, manual
control (can choose CH2-CH12
channel control pattern effect)

8
CH2
The pattern
selection
0～255
The built-in pattern selection
CH3
Rotation pattern
0～127
The rotation angle selection
128～191
Reverse rotation speed selection
192～255
The positive phase rotation speed
selection
CH4
Pattern Flip
Horizontal
0～127
Flip horizontal position selection
128～255
Flip horizontal speed selection
CH5
Pattern flip
vertical
0～127
Flip vertical position selection
128～255
Flip vertical velocity selection
CH6
Pattern of
horizontal
movement
0～127
Horizontal mobile location
selection
128～255
The horizontal moving speed
selection
CH7
The vertical
movement
pattern
0～127
Vertical mobile location selection
128～255
Vertical movement velocity
CH8
Pattern size
0～63
Size of the pattern choice
Pattern of China "
64～127
Choose from high to low speed
128～191
From small to large speed
selection
192～255
Zoom speed
CH9
Pattern gradually
drawing
0～255
Gradually drawing speed
selection
CH10
Scanningspeed
0～127
Scan speed
Point effect
128～255
The pattern is selected

9
CH11
Color mode
0～24
Fixed color
25～199
Color selection
200～224
Color change effect
225～255
Water color change effect
CH12
Color velocity
0～255
From slow to fast adjusting color
changing speed (used in
conjunction with the CH11
channel)
●Signal connection and address dialing method：
The controller has DMX512 standard signal output. Connection is
through the "input" and "output" of 3 for XLR complete. Control
consoleSignal to the lamp must be corresponding lamps 3 pin XLR seat:
1 feet, 2 feet, 3 feet of negative, positive; otherwise the 2 and 3 (a
swapLike the console are not on the two foot). The signal line length
should be within 100M, prevent the signal line is too long to be interfered
by other appliances.This product adopts 3 core XLR socket (head), the
following connection method for multiple:
Note: Remember the last fixture's output to connect the
supplied DMX, DMX terminator "CANON (Caron interpolation),"
about a 120Ω connection between the plug 2 feet and 3 feet of
resistance connected the DMX can effectively avoid signal
reflections DMX512 signal transmission generated in the

10
process.
If your DMX-512 signal control station is a 5-pin XLR socket
(head), you must use a 5-pin to 3-pin from the conversion line,
specific conversion method as shown below:
3： 3：
3：
5：
3：
5：
When the console control signal input to the full color
animation laser performance device, all full color animation
laser performance device must first set address code. In order
to
Role of the corresponding control signal. So, when using
any controller, each lamp must have its own address code. So,
in the The first lamp address is set to 1, second sets of lamps
address code is set to 13 (the first lamp address codes 1 and
12 channel),
Third table lamps set in position 25. And so on (this
setting is required according to control different set, now only
with common people).
The specific DMX-512 signal control mode of address
code switch is arranged as below:
The lights
The starting address
Digital display（ON）
1
1
A0.01
2
13
A0.13

11
3
25
A0.25
┇
┇
┇
ILDA interface control method using the function mode:
The ILDA interface signal line access standard automatically
switch to ILDA interface control mode.
Note: disconnect the power first, then plug the ILDA interface
signal lines, so as not to damage the lamp.
Master slave synchronization function matters needing
attention:
1, as the host, the lamp will send DMX-512 signals, you cannot
connect to the DMX-512 console, otherwise it will interfere with
each other, not synchronous operation.
2, a plurality of lamp master-slave synchronous operation, of
which only a mainframe, the other from the machine. Not
synchronous operation.

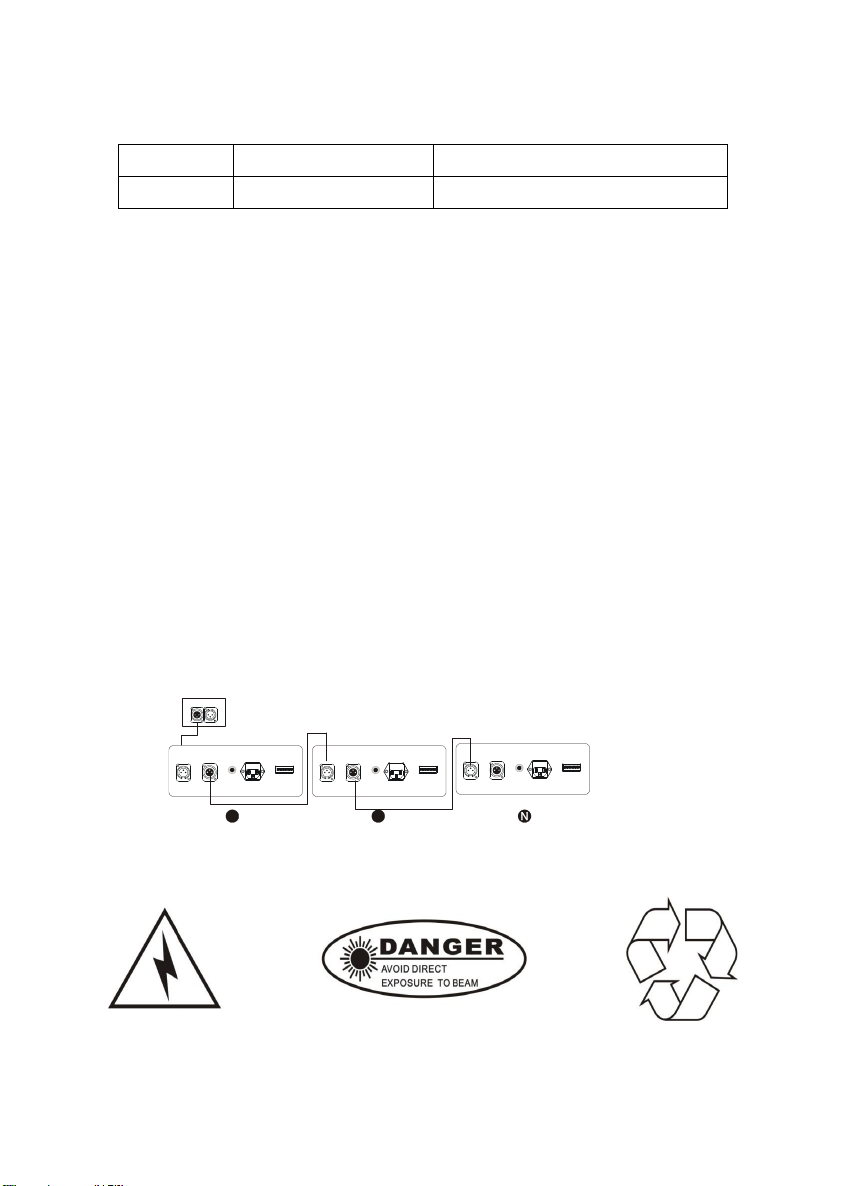

Master slave synchronization connection diagram as follows:
D M X 5 1 2 C O N T RO L L E R
INOU T
OUT
IN PO WERMI C
2
OUT
IN PO WERMIC
OUT
IN PO WERMIC
1
Safety instructions：

12
! The lighting in the installation and repair of, please confirm
the lamp power off.
! Please ensure smooth lamp fan outlet and the surrounding
environment with good ventilation. Do not long-term use of
this product in a humid environment.
! The lamps in the indoor use or repair please stop lamp
contact water, if used for outdoor, please do waterproofing
measures.
! Installation, operation and repair personnel must be familiar
with the performance of light before the operation, otherwise it
will damage the lamp.
! Please do not use different specifications of the power supply
voltage and a laser generator.
! Do not look directly at the laser light source, so as not to
damage the eyes.
! Do not use the jitter of the product.
●Maintenance:
1, try to eliminate dust, dirt and oil for laying even into the
lamp body, use of the environment to keep the grating
effect series laser performance device clean;
2, please regularly every month to use glass cleaning agent
professional and lint cleaning mirror so as to ensure that
the laser output and maximum brightness can prolong the
service life of the light source.
