Installation

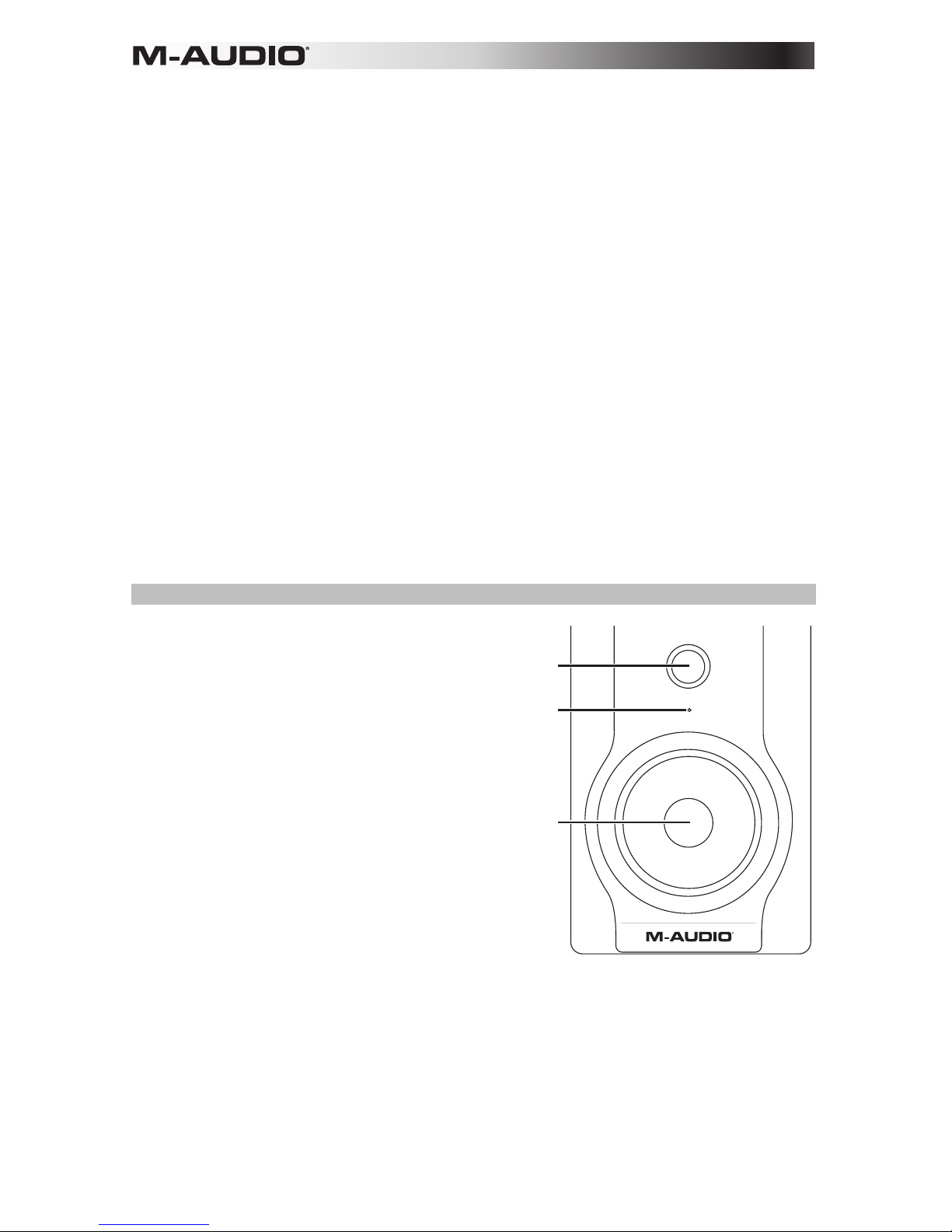

For optimal performance of the BX6 Carbon, please read the following thoroughly and carefully
prior to installation.
Precautions
•Handling: Please do not touch the speaker cones. The BX6 Carbon set is packaged in
the box tightly, so your attention is required when taking the monitors out of the box.
To avoid possible damage to the speaker units, hold both sides of the monitor in order to
pull it out of the box. The speaker cones should not be touched in order to avoid damage
even after they are out of the box.
•Correct Power Operation: Since the BX6 Carbon contains its own amplifier, it must be
connected to a power outlet using the detachable AC cable provided. Before connecting

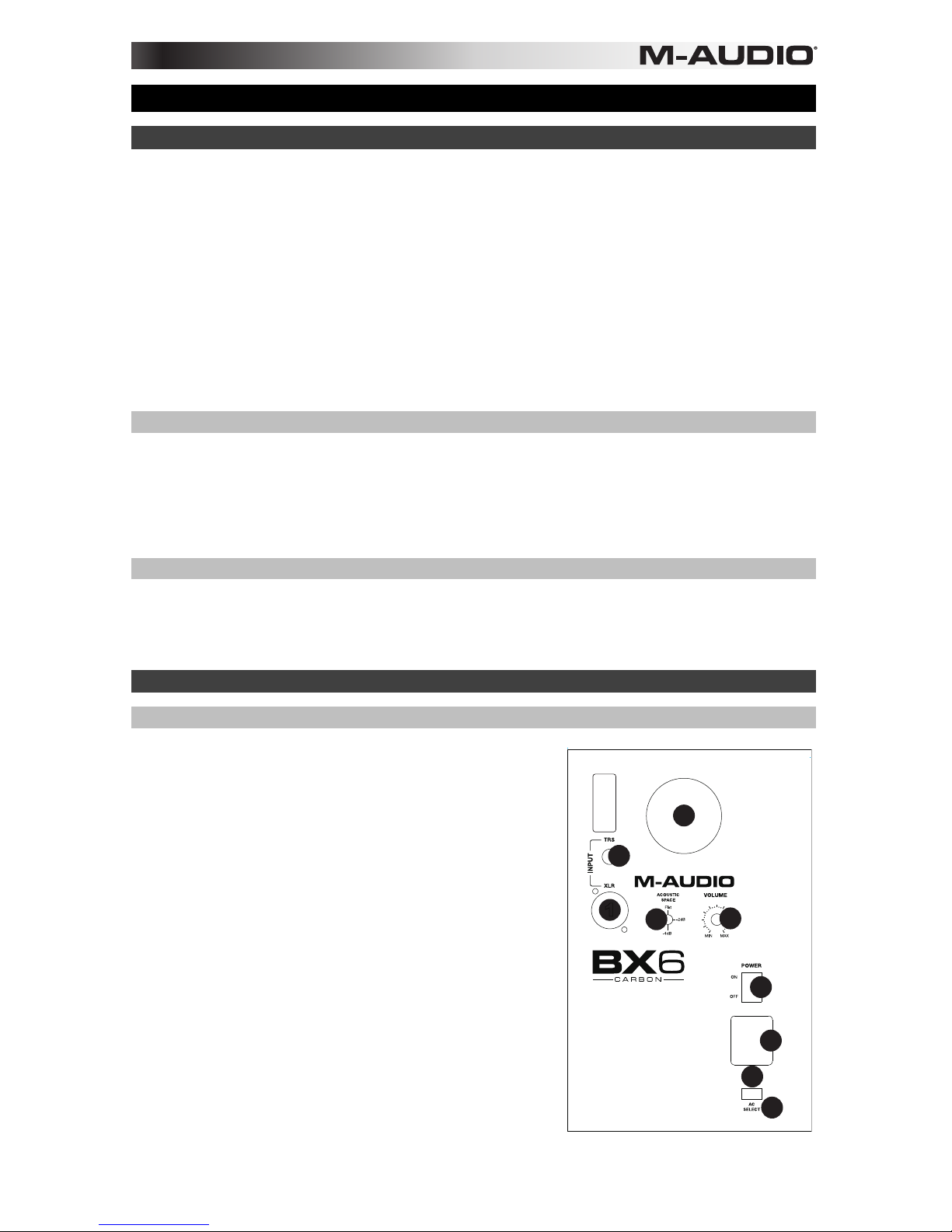

power, please make sure that the Voltage-Select Switch located on the speaker's rear
panel is set to the appropriate position, as described in the rear-panel features list
appearing earlier in this manual.
WARNING! Use of improper Voltage-Select Switch combinations may result in hazardous
conditions and/or damage to speaker components not covered by speaker warranty.
•Connections: You can connect either an XLR balanced cable or TRS
balanced/unbalanced cable from the input of each BX6 Carbon to your corresponding
preamp, computer or game console outputs. We recommend that you use high-quality
balanced or unbalanced cables for input connections. Also, ALWAYS turn off the power of
the BX6 Carbon and turn the volume of the BX6 Carbon down to a minimum before
making the necessary connections.
Setup

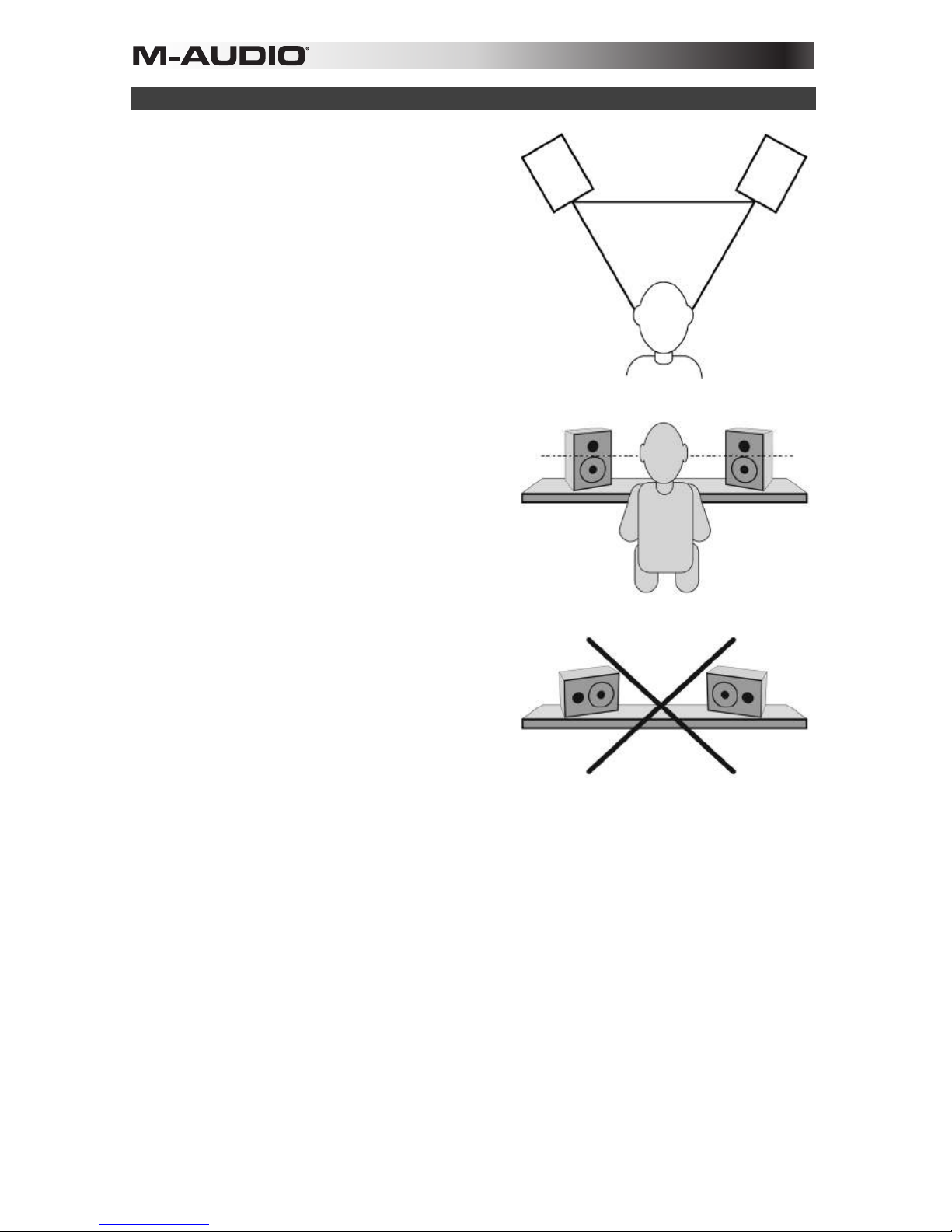

The configuration and placement of your BX6 Carbon monitors on speaker stands or your
desktop workstation may affect the performance of the speakers. Use the following tips to
achieve the best performance out of your BX6 Carbon monitors.
Tip: If possible, place your BX6 Carbon monitors on speaker stands instead of your desktop.
Desks tend to resonate sympathetically at low frequencies and may adversely affect the bass
response of your monitors. If speaker stands are not possible due to space restrictions and you
notice a buildup in bass, try placing the monitors on isolation pads to acoustically de-couple the
monitors from the desk.
XLR Balanced Connection
Assure that the power switch of the BX6 Carbon is turned off and that the volume control of the
BX6 Carbon is turned down to a minimum. Connect the male end of an XLR balanced cable to
the balanced input of the BX6 Carbon (refer to the following diagram for balanced connection).
TRS Balanced/Unbalanced Connection
Assure that the power switch of the BX6 Carbon is turned to off and that the volume control of
the BX6 Carbon is turned down to a minimum. Connect the male end of a TRS balanced or TS
unbalanced cable to the TRS input of the BX6 Carbon (refer to the following diagram for TRS
connection).
Connecting to Preamp or Computer Outputs
Before connecting, make sure the output device's power has been turned off. Plug the XLR
balanced, TRS balanced or TS unbalanced cable to the corresponding output connectors of a
pre‑amplifier, computer or game console.
