MAAX 2007 Elite spas User manual

1
2007
OWNER’S MANUAL

2
Copyrights and Trademarks
©Copyright 2007 MAAX Spas (Arizona), Inc.. All rights reserved. No parts of this
publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by
any means (electronic, mechanical, photocopying, recording or otherwise), without prior
written permission.
Elite Spas™, Powerworks™, Thermo-Lock™, Foot Relief Station™, ClearMaax™,
BackMaax™, AeroMaax™, DuraMaax™ and GRIP™ are registered trademarks of MAAX
Spas.
Disclaimer:
The information in this manual is accurate to the best of MAAX Spas (Arizona), Inc.’s
knowledge. However, MAAX Spas (Arizona), Inc. assumes no responsibility for errors or
omissions. Nor is any liability assumed for damages resulting from use of the information
contained herein. Specifications subject to change without notice. Spas shown at variable
percentage of actual size.
Congratulations on your purchase of an ELITE Spa from MAAX® Spas. Your Owner’s
Manual provides installation, operation and maintenance instructions. Please review it and
keep it for future references.
Save These Instructions
Owner’s Record Information
DatePurchases:
Purchasedfrom:
PhoneNumber:
Installedby:
SerialNumber: Model:

3
IMPORTANT
SAFETY
WARNINGS
NOTE: When installing and using this equipment,
basic safety precautions should always be taken to
reduce the risk of electrical shock, to ensure safe
usage, and to safeguard the user’s health.
(1)
Read and Follow ALL Instructions!!
(2)Ground All Metal and Electrical
Equipment!
(3) A green colored terminal or a terminal marked G,
GR, Ground, Grounding, or the international symbol*
is located on the side of the supply terminal box or
compartment. This terminal must be connected to the
grounding means provided in the electric supply
service panel, using a continuous copper wire
equivalent in size to the circuit conductors supplying
this equipment.
*IEC Publication 417, Symbol 5019.
(4) At least two lugs marked “BONDING LUGS” are
provided on the external surface or on the inside of the
supply terminal box or compartment. Connect the
local common bonding grid (household ground) in the
area of the hot tub or spa to these terminals, using an
insulated or bare copper conductor not smaller than
No. 6 AWG.
(5) All field-installed metal components such as
rails, ladders, drains or similar hardware located within
5 ft. of the spa or hot tub shall be bonded to the
equipment grounding bus with copper conductors not
smaller than No. 6 AWG.
(6) SAVE THESE INSTRUCTIONS.
WARNING: Children should not use spas or hot tubs
without adult supervision
et
AVERTISSEMENT: Ne pas laisser les enfants
utiliser un spa sans surveillance
WARNING: Do not use spas or hot tubs unless all
suction guards are installed to prevent body and hair
entrapment
et
AVERTISSEMENT: Pour éviter que les cheveux ou
une partie du corps puissent être aspirés, ne pas utiliser
un spa si les grilles de prise d’aspiration ne sont pas
toutes en place.
WARNING: People using medications and/or having
an adverse medical history should consult a physician
before using a spa or hot tub
et
AVERTISSEMENT: Les personnes qui prennent des
médicaments ou ont des problèmes de santé devraient
consulter un médecin avant d’utiliser un spa
WARNING: People with infectious diseases should
not use a spa or hot tub
et
AVERTISSEMENT: Les personnes atteintes de
maladies infectieuses ne devraient pas utiliser un spa
WARNING: To avoid injury exercise care when
entering or exiting the spa or hot tub
et
AVERTISSEMENT: Pour éviter des blessures, la
prudence est de mise en entrant et en sortant d’un spa
WARNING: Do not use drugs or alcohol before or
during the use of a spa or hot tub to avoid
unconsciousness and possible drowning
et
AVERTISSEMENT: Pour éviter l’évanouissement et
la noyade éventuelle, évitez de consommer des
drogues et/ou alcool avant ou pendant l’utilisation
d’un spa
WARNING: Pregnant, or possibly pregnant, women
should consult a physician before using a spa or hot
tub
et
AVERTISSEMENT: Les femmes enceintes, que leur
grossesse soit confirmée ou non, devraient consulter
un médecin avant d’utiliser une spa.
WARNING: Water temperature in excess of 100°F
(38º C) may be injurious to your health
et

4
AVERTISSEMENT: Il peut être dangereux pour la
santé de se plonger dans de l’eau à plus de 38º C
WARNING: Before entering the spa or hot tub
measure the water temperature with an accurate
thermometer
et
AVERTISSEMENT: Avant d’utiliser un spa,
mesurez la température de l’eau à l’aide d’un
thermomètre précis
WARNING: Do not use a spa or hot tub immediately
following strenuous exercise
et
AVERTISSEMENT: Ne pas utiliser un spa
immédiatement après un exercice fatigant
WARNING: Prolonged immersion in a spa or hot tub
may be injurious to your health
et
AVERTISSEMENT: L’utilisation prolongée d’un
spa peut être dangereux pour la santé
WARNING: Do not permit electric appliances (such
as a light, telephone, radio, or television) within 5 ft.
(1.5m) of the spa or hot tub
et
AVERTISSEMENT: Ne pas placer d’appareil
électrique (luminaire, téléphone, radio, téléviseur, etc)
à moins de 1,5m du spa
WARNING: Maintain water chemistry in accordance
with manufacturer’s instruction
et
AVERTISSEMENT: La teneur de l’eau en matières
dissoutes doit être conforme aux directives du
fabricant
WARNING: The use of alcohol or drugs can greatly
increase the risk of fatal hyperthermia in hot tubs and
spas
et
AVERTISSEMENT: La consommation d’alcool ou
de drogue augmente considérablement les risques
d’hyperthermie mortelle dans un spa.
HYPERTHERMIA
The causes, symptoms, and effects of hyperthermia
may be described as follows:
Hyperthermia occurs when the internal temperature of
the body reaches a level several degrees above the
normal body temperature of 98.6°F (37º C). The
symptoms of hyperthermia include drowsiness,
lethargy, and an increase in the internal temperature of
the body. The effects of hyperthermia include
(a) unawareness of impending hazard;
(b) failure to perceive heat;
(c) failure to recognize the need to exit spas;
(d) physical inability to exit spa;
(e) fetal damage in pregnant women; and
(f) unconsciousness and danger of drowning.

5
Safety Warnings i,ii
Table of Contents iii
Important Safety Instructions 1
Do’s and Don’ts 2
Hyperthermia 2
Spa Installation 3
Site and Positioning 3
Outdoor Installation 3
Indoor Installation 3
Spa System Components 4
Spa Components 5
Jets and Air Controls 6
Jets 6
Cleaning or Replacing Jets 6
Air Controls 6
Electrical Information 7
Important Safety Instructions 7
Ground-Fault Circuit-Interrupter 7
Installation Options 7
120 volts Installation 7
240 volts Installation 8
Start Up Procedures 9
Priming Your Spa 9
Ozone Operation 9
Turbo Air Boosts 9
Air Massage 9
Powerworks™ 160 Control System
Operating Instructions 10
User’s Pads 10
Temperature Controls 11
Light 11
Standard/Economy/Sleep Modes 11
Filtration Cycles 12
Setting the Time 12
Preset Filter Cycles 12
Changing Filter Cycle 12
Clean Up Cycle 12
Powerworks® 460 Control System
Operating Instructions 13
User’s Pads 13
Temperature Controls 14
Temperature Lock 14
Temperature Unlock 14
Panel Lock 14
Panel Unlock 14
Light 14
Standard/Economy/Sleep Modes 15
Setting Time and filtration Cycles 15
Setting the Time 15
Preset Filter Cycles 15
Changing Filter Cycle 15, 16
Clean Up Cycle 16
Inversion Features 16
Entertainment System (Optional) 17
Powerworks® 760 Control System
Operating Instructions 18
User’s Pads 18
Temperature Controls 19
Temperature Lock 19
Temperature Unlock 19
Panel Lock 19
Panel Unlock 19
Standard/Economy/Sleep Modes 20
Standard Mode 20
Economy Mode 20
Sleep Mode 20
Changing Modes 20
Setting Time and Filtration Cycles 20
Setting the time 20
Preset Filter Cycles 20
Changing Filter Cycle 20, 21
Clean Up Cycle 21
Light 21
Therapy Sequencer 21
Setting Sequencer 22
Sequencing Programs 22
Sequencing Speed 23

6
Entertainment System 23
Inversion Feature 24
Auxiliary Panel 24
Safety Features 25
Automatic Time Outs 25
Common LCD Equipment Messages 25, 26
Common LCD Messages 26
Maintenance 27
Water Chemistry 27
Sanitizing 27
pH Level 27
Water Maintenance with the CleanZone™
Water Treatment System 27
Sanitizing With Ozone 27
Specialty Chemicals 27
Draining Your Spa 28
Filter Maintenance 28
Winterizing 29
Spa Cabinet Care 29
Spa Surface Care and Cleaning 29
Light Bulbs 29
Common Water Problems 30, 31
Common Hardware Problems 32, 33
Spa Soaking Guidelines 34
165 Series System Wiring Diagram 35
167 Series System Wiring Diagram 36
460 Series System Wiring Diagram 37
760 Series System Wiring Diagram 38

7
IMPORTANT
SAFETY
INSTRUCTIONS
Caution: Risk of electrical shock. Read and
follow all instructions.
1. Read and follow all instructions.
2. Save these Instructions.
3. Never allow children to access or use this product
unless closely supervised by an adult at all times.
4. Never connect unit to a power supply with a load
controller.
5. Never operate spa if the suction fittings are broken
or missing.
6. Never replace a suction fitting with one rated less
than the flow rate marked on the original suction
fitting.
The suction fittings in this spa are sized to match the
specific water flow created by the pump. Should the
need arise to replace the suction fittings or the pump,
be sure that the flow rates are compatible.
To avoid/reduce risk of injury and/or
drowning:
1. The water temperature in a spa should never exceed
104°F (40°C). This temperature is considered safe for
a healthy adult. Lower water temperatures are
recommended for young children and elderly adults,
and when spa usage exceeds 10 minutes. Consult your
physician or pediatrician to determine safe temperature
limits.
Notes: Refer to information on hyperthermia
on page 2.
2. Since excessive water temperatures have a high
potential for causing fetal damage during the early
months of pregnancy, pregnant or possibly pregnant
women should check with their physician before
entering spa.
3. Before entering a spa, the user should verify the
water temperature with an accurate thermometer since
the tolerance of water temperature regulating devices
varies.
4. The use of alcohol, drugs, or medications before or
during spa use may lead to unconsciousness with the
possibility of drowning.
5. Persons suffering from obesity or with a medical
history of heart disease, circulatory problems, or
diabetes should consult a physician before using a spa.
6. Persons using medications should consult a
physician before using a spa since some medications
may induce drowsiness while other medications may
affect heart rate, blood pressure, and circulation.
To avoid risk of electrical shock:
1. Only use the wire connector provided on this unit to
connect a minimum No. 6 AWG (5.15 mm2) solid
copper conductor between this unit and any metal
equipment, metal enclosures of electrical equipment,
metal water pipe, or conduit within 5 ft. (1.5m) of the
unit.
2. Install at least 5 ft. (1.5m) from all metal surfaces.
Spa may be installed within 5 feet of a metal surface if
each metal surface is permanently connected by a
minimum No. 6 AWG (5.15mm2) solid copper
conductor attached to the wire connector on the
terminal box that is provided for this purpose.
3. Do not permit any electric appliance, such as a light,
telephone, radio, or television within 5 ft. (1.5m) of a
spa.
NOTE: Check with your state/local code
enforcement officer to determine electrical code
requirements and compliance. Use a qualified
licensed electrician to complete all spa final electric
connections.

8
The electrical supply for this product must include a
suitably rated switch or circuit breaker to open all
ungrounded supply conductors to comply with Section
422-20 of the National Electrical Code (NEC)
ANSI.NFPA 70-1987. This disconnecting means must
be readily accessible for operation but installed at least
5 ft. (1.5m) from the spa as required to comply with
local code requirements. All electrical connections
should comply with Article 680-D of the NEC.
4. Install to provide drainage of compartment for
electrical components.
Do’s and Don’ts
For years of spa enjoyment:
Do :
•Save these instructions!
•Replace the cover immediately after use.
•Keep the cover locked when spa is not in use.
•Be aware of the dangers of a wet and slippery surface.
Use caution when entering and exiting your spa.
•Have a licensed electrician make all final electrical
connections.
•Replace worn, frayed or broken electrical cords.
•Keep the water chemistry correctly balanced.
Untreated spa water will cause problems with your spa
and equipment as well as being a health risk.
• Clean the spa filter monthly or as needed. (See Filter
Maintenance Pg. 17).
•Position the spa so that all sides remain accessible for
maintenance.
•Use a bathing cap for long hair.
•Refer to information on hyperthermia (this page).
•Use only authorized spa care products for the best
performance and to keep the water properly balanced.
Don’t :
• Use the spa at 104°F (40°C) for long periods of time
(more than 30 minutes). See Hyperthermia, this
page.
• Use an extension cord to power your spa.
• Allow anyone to stand on the spa cover. It is not
designed to support weight.
• Power the spa unless it is filled with water to the
water level mark on the Weir door.
• Operate the pump on high speed for extended
periods of time with the cover in place. Extended
operation can cause heat build-up and interfere with
spa operation.
Hyperthermia
The causes, symptoms, and effects of
hyperthermia may be described as follows:
Hyperthermia occurs when the internal temperature of
the body reaches a level several degrees above the
normal body temperature of 98.6ºF (37ºC). The
symptoms of hyperthermia include an increase in the
internal temperature of the body, dizziness, lethargy,
drowsiness, and fainting. The effects of hyperthermia
include (1) failure to perceive heat, (2) failure to
recognize the need to exit spa or hot tub, (3)
unawareness of impending hazard, (4) fetal damage in
pregnant women, (5) physical inability to exit the spa
or hot tub, and (6) unconsciousness resulting in the
danger of drowning.
Warning: The use of alcohol, drugs, or medication
can greatly increase the risk of fatal hyperthermia.

9
Spa Installation
Danger: Electrical shock risk. Install at least 5 ft.
(1,5 m) from all metal surfaces.
The electrical supply for this product must
include a suitably rated switch or circuit breaker to
open all ungrounded supply conductors to comply with
Section 422-20 of the National Electrical Code, ANSI/
NFPA70-1987. The disconnecting means must be
readily accessible but installed at least 5 feet (1.5
meters) from the spa water. All electrical connections
should comply with article 680-D of the NEC.
Site and Positioning
Locate the spa on solid, level foundation or
flooring, keeping in mind the weight of the filled spa
(in excess of 4,000 lbs. on some models). If you have
any doubts about the load bearing ability of your
chosen site, contact an architect or a building
contractor. The entire perimeter of the spa cabinet and
the spa bottom must be evenly supported.
If your spa is installed outdoors, we recommend
that you provide a concrete pad for the spa to rest on
(8ft. x 8ft. x 4” level pad). Failure to provide a level
surface could structurally damage your spa and void
the warranty.
The spa must be installed to allow access for
service and maintenance on all four sides; therefore,
below grade level installation is not recommended.
Outdoor Installation
The following considerations apply when installing
your spa outdoors:
1. Local codes pertaining to fencing.
2. Local electrical and plumbing codes.
3. View from your house.
4. Wind direction.
5. Exposure to sunlight.
6. Location relationship to trees (twigs, leaves
and shade).
7. Dressing and bathroom location.
8. Storage area for maintenance equipment
and chemicals.
9. Location to facilitate adult supervision.
10. Landscaping and nighttime lighting.
11. Accessibility to equipment.
12. Power supply location and foot traffic.
Indoor Installation
The following considerations apply when installing
your spa indoors:
1. Indoor spas promote high humidity. Using either
ventilation fans or commercial grade de-humidifiers
will help to reduce the humidity. Consult your dealer
for details.
2. Floor drains must be provided near the spa to drain
off water that may cause falls and /or water damage.
3. Floor area should be flat with a non-skid finish.
Carpeting is not recommended.
4. Walls, ceilings, woodwork should be made of
materials capable of withstanding high humidity
(redwood, cedar).
5. Be sure floor load bearing capacities are adequate to
support the concentrated spa weight.
6. Spas should be double checked for leaks before
installing to avoid possible water damage. Dealer
installation may include this service.
7. Indoor sunrooms are capable of maintaining high
ambient temperatures which may effect the spa water
temperature. It is NOT recommended that you operate
your filter cycles for longer than 6 hours per day under
these conditions.

10
Spa System Components
A. Filter Skimmer/Weir Door: Removes floating
debris from the water surface, provides a water return
path to equipment, and houses water filter element.
B. Topside Control Panel: Used to control
temperature setting, pump for jets, and light.
C. Air Controls: Increases or decreases air entering
the jets. Close during heating for maximum
efficiency.
D. Diverter Jet: Used to direct the flow of water
from the whirlpool jet to the open seating area jets on
the models 705 and 706 (not shown).
E. Equipment Pack Service Panel (no user
serviceable parts): Spa support system consisting of
2-speed pumps, heater, and associated electrical
controls (not shown).
F. Drain Access: (Adjacent to the equipment service
panel) Spa drain faucets.
G. Digital/Fiber Optic Lighting: Lighting system
that displays multiple colored lights in pre-
programmed random, solid or alternating colors.
H. Manufacturer’s Identification Label: Contains
identification information for warranty service (serial
number, model number, etc.) and electrical
information (ampere rating and ampere requirements).
I. Auxiliary Control: Used to control jet pumps or
stereo functions.
J. «Full-Body Massage Seat ™»: Ultimate relaxation
seat.
K. Stereo/Speakers.
L. Sequencer Controls.

11

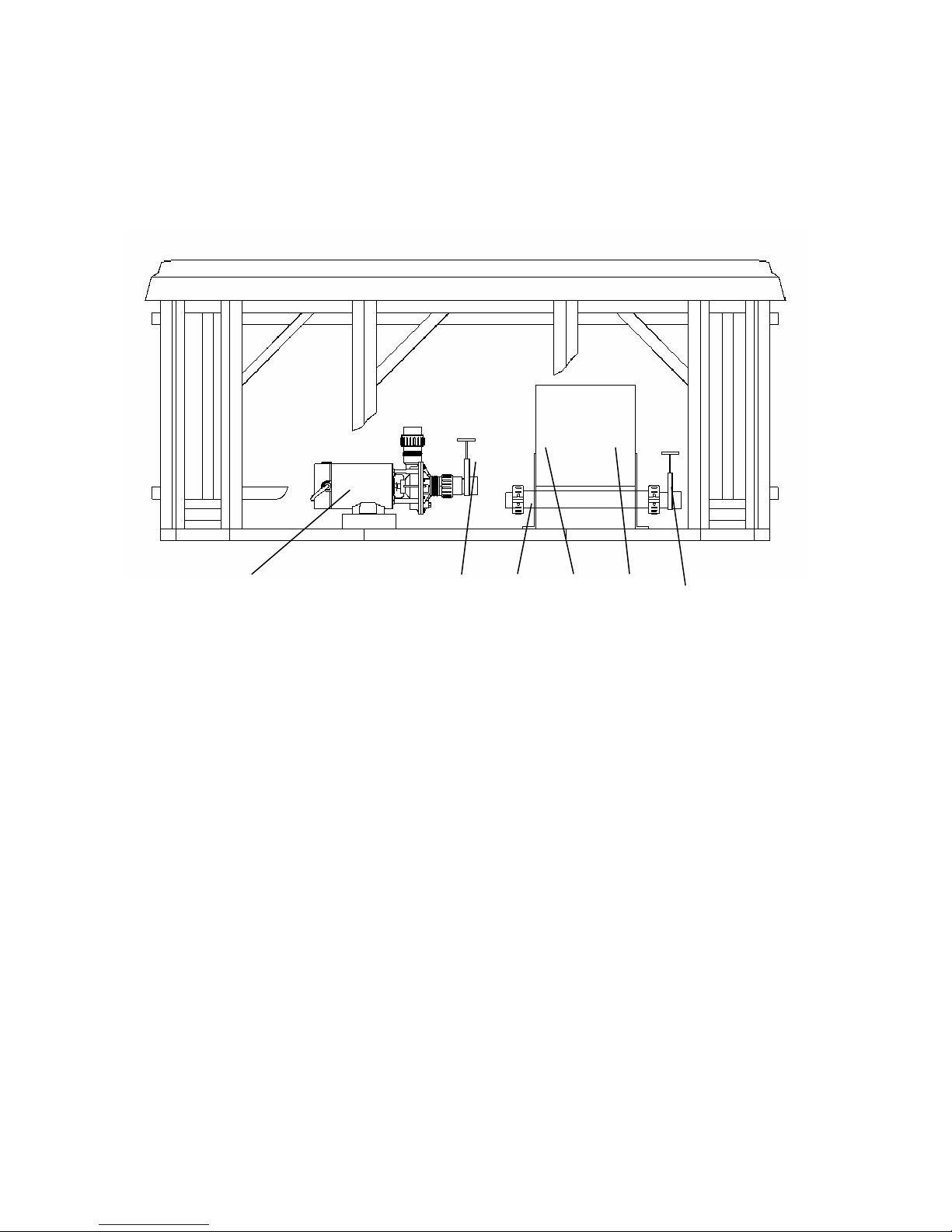

Spa Components
Reference only. Equipment is not always as shown.
A C E B D C
Note: No consumer serviceable parts. Do NOT Attempt to service any of these components yourself.
Contact your dealer for assistance.
A. Pumps : Low speed for efficient water
circulation during filtration and heating; high speed for
maximum action of the jets. Quantity will vary
depending on the model. The pump functions are
activated by topside controls.
B. Warning and Installation Label : Contains
important safety information and installation
instructions.
C. Slice Valve: Used to shut off water flow from the
spa to the equipment while servicing. Quantity will
vary depending on the model. All should be open
during normal operations.
D. Electrical Connections: The electrical plugs for
the units connect here. All existing connections
should be intact.
E. Heater Assembly: Thermostatically controlled and
equipped with an overheat safety shut-off.

12
Jets and Air Control
Jets
All spa jets are individually engineered to provide
a unique hydro-massage. Depending on the model,
your spa will have a combination of the following jets:
Cyclone Therapeutic (XL Cyclone, LS Cyclone,
& Cyclone):
Positioned to focus on large muscle groups, these
jets deliver a concentrated, high volume stream of
water for a deep massage. Each jet is fully
adjustable, allowing users to set the water flow to
the most comfortable setting. The nozzle can be
rotated to target sore muscle areas.
Cyclone Turbo Swirl Jets (XL Cyclone, LS
Cyclone, & Cyclone):
Positioned to focus on muscle tension zones, these
jets deliver a spinning V-shaped water stream for a
gentle, pulsating massage. Each jet is fully
adjustable, allowing users to set the water flow to
the most comfortable setting.
Whirlpool:
Positioned to create overall water circulation, this
mult-purpose, high volume jet provides whirlpool
action throughout the entire spa.
Euro Jets:
Positioned in the footwell or shoulder areas of the
spa, these jets deliver a penetrating massage to
dissolve tension in the lower legs. This jet is the
entry point for ozone produced during the
automatic filtration cycles, and, as such, is not
adjustable.
Note: Ozone production is suspended when other
functions are activated on the control panel by the spa
user.
All full sized jets are adjustable from a fully open to
closed position. It is very important that you NEVER
SHUT ALL FULL SIZED JETS OFF AT ONE
TIME!
Cleaning or Replacing Jets
Hard water can cause calcium/mineral buildup that can
restrict or bind the jets. A jet consists of a face plate
and a nozzle. Rotate these parts weekly and
remove/clean monthly to ensure free movement.
Note: It is not necessary to drain the spa to clean or
remove the jets.
Rotating the jet face plate and nozzle
· Rotate the jet face left and right
(open and closed).
· Return the face plate to the full open position.
· Turn the jets on to high speed.
· Twist the nozzle left and right.
· Rotate the nozzle in the socket.
Note: If the jet insert disengages from the spa
housing, see steps to reinstall below.
Cleaning the jets
To remove the jet insert, use the palm of your
hand to exert pressure on the face of the jet. Turn
counterclockwise until the jet “clicks”. Gently pull the
jet assembly from the housing.
To clean the jet insert and housing, use a
pressurized hose and spray the inside of the jet. Soak
the jet in a diluted spa cleaning solution, rinse. Wipe
the inside of the housing to remove any debris.
To reinstall the jet, line up the tab on the
backside of the barrel with the groove in the body. Use
the palm of your hand to gently tab the jet until it
snaps into position.
Air Controls
The intensity of the jet action can be
controlled by altering the amount of air injected with
water through the jets. Your spa has five air controls
located on the lip of the spa. Each control activates air
to specific jets in the spa allowing you to create
various combinations and levels of jet action to suit
individual preferences.
Turn the control counter-clockwise to turn the
air off and clockwise to turn air on.
Note: Air controls should be closed during heating
cycles for maximum energy efficiency.

13
Electrical Information
Caution: Risk of electrical shock.
Read and follow all instructions.
Important Safety Instructions
All electrical connections to this spa package
MUST be accomplished by a qualified licensed
electrician in accordance with the National
Electrical Code (NEC) and with state/local
electrical codes in effect at the time of installation.
To make spa electrical connections, remove the
exterior equipment access panel, locate the electrical
control box, remove the control box cover and follow
the wiring diagram on the inside of the control box
cover.
Connections should be made using copper
conductors only. Connecting wires, circuit breakers,
or fuses must all be sized to accommodate the Total
Ampere load as specified on the equipment label.
This equipment is designed to operate on
60Hz alternating current only, at 240 volts.
NOTE:
All unions must be hand-tight and all
slice valves must be locked in the OPEN position
before filling or refilling spa! A clip is provided to
help keep the slice valve open. Run spa and check for
union water leaks before reinstalling front panel.
Ground-Fault Circuit Interrupter
A qualified licensed electrician shall connect
the spa to a circuit protected by a GFCI. This is a
requirement by the National Electric Code, article 680-
42, and is also in compliance with Underwriter’s
Laboratories, Inc.
Installation Options
Knockouts are provided in the cabinet base to
bring the conduit to the equipment compartment. If an
alternate electrical service entrance is desired, an
additional hole may need to be drilled.
Certain models might be built for a 120 volts
connection only. All other models can only be
connected to a 240 volts electrical service.
120 Volt Installation
Electrical Requirments :
•120 Volts, 60 Hz, Single Phase, 40 amp. or 20 amp,
3-wires service, (incliding ground.)
Note: The heater can be activated only with the
pump on low speed. Only the spa light can be
operating at the same time without disabling the
heater. See your authorized dealer to select this
option.
Elite Spas installed for 240 volt operation require
a 3-wire, 40 amp., 120 volt sub-feed in non-metallic
pipe to the spa equipment compartment (line 1,
neutral, and ground).
All connections must be done accordingly to the
CSA International regulation (Canadian Standard
Administration).
A green colored terminal (or wire connector
marked “G”, or “GR”, “Grounding”) is provided in the
control box. To reduce the risk of electrical shock,
connect this terminal or connector to the grounding
terminal of your electrical service or supply panel with
a continuous green insulated copper wire equivalent to
the circuit conductor supplying this equipment, but no
smaller than No. 12 AWG. In addition, a second
pressure wire connector is provided on the surface of
the control box for bonding to local ground points. To
reduce the risk of electrical shock, this connector
should be bonded with a No. 6 AWG copper wire to
any metal ladders, water pipes, or any metal within 5
feet of the spa.
• Copper wire is recommended for all electrical
connections.

14
240 Volt installations
Permanently Connected
Models:
Refer to the manufacturer’s nameplate located on
the kick plate to determine you spa’s ampere
requirements.
Electrical Requirements:
240 Volts, 60Hz, Single Phase, 40, 50 or 60 amp. 4-
wire service (line 1, line 2, neutral, and ground),
Note: The heater can be activated only with the
pump on low speed. Only the spa light can be
operating at the same time without disabling the
heater. See your authorized dealer if select this
option.
Spas installed for 240 volt operation require a 4-
wire, 40 or 50 amp. 240 volt sub-feed in non-metallic
pipe to the spa equipment compartment (line 1, line 2,
neutral, and ground).
All connections must be done accordingly to the
CSA International regulation (Canadian Standard
Administration).
A green colored terminal (or wire connector
marked “G”, or “GR”, “Grounding”) is provided in the
control box. To reduce the risk of electrical shock,
connect this terminal or connector to the grounding
terminal of your electrical service or supply panel with
a continuous green insulated copper wire equivalent to
the circuit conductor supplying this equipment, but no
smaller than No. 12 AWG. In addition, a second
pressure wire connector is provided on the surface of
the control box for bonding to local ground points. To
reduce the risk of electrical shock, this connector
should be bonded with a No. 6 AWG copper wire to
any metal ladders, water pipes, or any metal within 5
feet of the spa.
• Copper wire is recommended for all electrical
connections.
•240 Volts, 60Hz, Single Phase, 50 or 60 amp. 4-wire
service (line 1, line 2, neutral, and ground),
Note: The heater can be activated only with
the pump on low speed. Only the spa light can be
operating at the same time without disabling the
heater. See your authorized dealer if select this
option.
Spas installed for 240 volt operation require a 4-
wire, 50 or 60 amp. 240 volt sub-feed in non-metallic
pipe to the spa equipment compartment (line 1, line 2,
neutral, and ground).
De plus, le raccord doit être effectué selon les
normes CSA International (Canadian Standard
Administration).
All connections must be done accordingly to
the CSA International regulation (Canadian Standard
Administration).
A green colored terminal (or wire connector
marked “G”, or “GR”, “Grounding”) is provided in the
control box. To reduce the risk of electrical shock,
connect this terminal or connector to the grounding
terminal of your electrical service or supply panel with
a continuous green insulated copper wire equivalent to
the circuit conductor supplying this equipment, but no
smaller than No. 12 AWG. In addition, a second
pressure wire connector is provided on the surface of
the control box for bonding to local ground points. To
reduce the risk of electrical shock, this connector
should be bonded with a No. 6 AWG copper wire to
any metal ladders, water pipes, or any metal within 5
feet of the spa.
• Copper wire is recommended for all electrical
connections.
Note: Units to be operated at 240 volts must have all
electrical connections made by a qualified licensed
electrician in accordance with the National Electric
Code and state/local codes in effect at the time of
installation.

15
Start Up Procedures
Follow recommendations for site location
and electrical connection. The water line on the
weir door is the level at which the water should be
maintained.
1. Fill the spa through the filter hole to the water
line on the weir door with tap water. Never use
“softened” water in your spa. Softened water
can impact the chemical balance of the water and
lead to degradation of metal plumbing
components.
2. Turn power on to unit at circuit breaker or
disconnect panel.
3. Open the air controls, located on the top lip,
and cycle the jets from high to low. Water should
come from the therapy jets. If water flow is not
established, turn off jets and see Priming Your
Spa (this page).
4. Add chemicals. See Chemical treatment and
Water Maintenance section.
Follow Operating Instructions for your
particular model to set heat to the desired
temperature. Initially, you may find that the spa
requires 12 to 14 hours on 240 Volt installations
to reach temperature. Keep your thermal cover on
the unit and close the air controls to help the
heating process.
Important: Do not operate the spa without full
water flow.
Priming Your Spa
When filling your spa for the first time or, after
draining and refilling the spa, you may need to bleed
air from the system. Should you experience an air-lock
in pump 1, remove the filter basket cover; insert a
garden hose through the center hole of the filter as far
as possible without using force. Hold the hose in place
and turn on the water. This forces water into the pump
and forces the air out.
Ozone Operation
All models in the Elite Series are equipped with
Maax Spas’ CleanZoneTM water treatment system to
assist with your water sanitizing needs. The system is
designed to work in conjunction with an injector
system to maximize the sanitizing effects by fully
mixing the ozone with the water flow.
CleanZoneTM will produce ozone only when
the spa is in a timed filtration cycle. During the filter
cycle, activating other functions will suspend ozone
production for 30 minutes.
Note: Activating the low speed of Pump 1 for a clean-
up cycle will initiate filtration, but not ozone
production, unless the spa enters a timed filter cycle
during the 4 hour period.
Turbo Air Boost
If your spa is equipped with a Turbo Air system, it
will increase the performance and the therapeutic
action of the jets. To turn the Turbo Air system ON
and OFF, touch the BLOWER button.
Note: The Turbo Air blower will shut off
automatically after 15 minutes.
Note: At the star of a filtration cycle, the
blower is activated to purge the lines and ensure
complete filtration. Make sure at least one air control
valve is fully open.
Air Massage
Certain models are equipped with an air massage
system. This function is identical to the Turbo Air
Boost system. Air injectors have been installed to the
bottom of the seats to create a vigorous air and water
massage in the entire spa. To turn the Air massage
ON and OFF, touch the BLOWER button.
Note: The Air massage blower will shut off
automatically after 15 minutes.

16
160 Series Control System

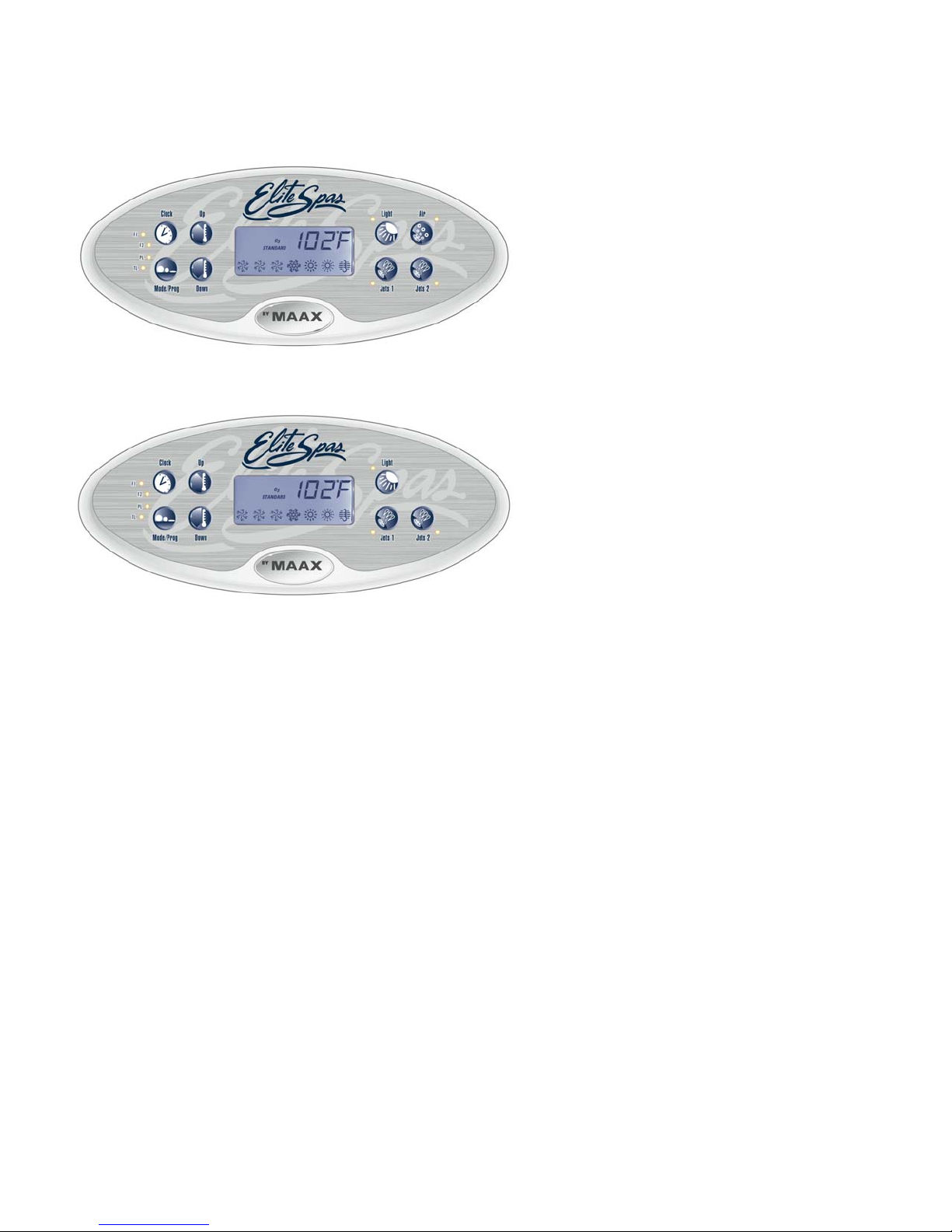

EL173 Topside Control
EL174 Topside Control
Powerworks™ 160 Serie Control
System
The 160 Series Powerworks™ Controls offer you
the ultimate in spa control. The backlit, Liquid Crystal
Display (LCD) displays current temperature, set water
temperature, and operating mode settings. Each feature
is actuated through the control panel pad. Touch the
appropriate button to activate the desired function.
At start up, when power is supplied to the spa, the
controls will operate properly and safely under the
factory settings. The spa will be in Standard mode,
have a temperature setting of 100°F, and a filtration
cycle duration of 2 hours. To fully utilize the unique
capabilities of the control system, it is important to
know how to set the temperature, operate the pumps,
operate the light, adjust the mode setting, and change
the filtration cycle.
User’s Pads
User’s Pads are the buttons located on the topside
control panel and are used to program various spa
functions (i.e., turn on spa light, set temperature, etc.).
The following table defines the buttons:

17
Temperature Controls
The maximum set temperature of the spa is
104°F (40°C) and the minimum set temperature is
80°F (27°C). The display will show the current water
temperature or, if the pump has not been running, two
dashes. If the two dashes are displayed, you must first
start the pump by pressing the “Jets 1” pad. Wait until
the water temperature is displayed (approximately 2
minutes).
The set temperature of your spa may easily be
increased or decreased at any time using the “Temp”
pad. Look at the LED display. Either the actual
temperature or 2 dashes will be displayed. Press the
“Temp” pad; the set temperature will be displayed in
the LCD window. The next touch of the “Temp” pad
will change the set temperature either up or down 1°F.
If you want to increase the temperature and the display
indicates the temperature was increased by 1°F,
continue to press the “Temp” pad until the desired set
temperature is reached.
If you want to decrease the set temperature
and the display indicates the temperature was
increased by 1°F, STOP. Wait a few seconds until the
actual temperature is displayed, then press the “Temp”
pad again. Press it again and the set temperature will
decrease by 1°F. Continue pressing the “Temp” pad
until the desired set temperature is reached.
If the spa is set in STANDARD mode or in a
filtration cycle, increasing the set temperature may
result in activating the heater. Likewise, decreasing
the set temperature may result in turning the heater off.
When the heater is operating, the LED heat indicator
will be lit.
Note: Spas that are wired 120V/20A will not heat
when the pump is on in high speed.
Note: Spas that are wired for 240V/30A will not
heat when Pump #1 is on in high speed, or
when Pump #2 is operating.
JETS
Touch the “Jets 1” pad to activate the
operation of Pump 1. The sequence of the jet action
is:
1 touch = Low Speed
2 touches = High Speed
3 touches = Off
Touch the “Jets 2” pad to activate the
operation of Pump 2. The sequence of the jet action
is:
1 touch = High Speed
2 touches = Off
The low speed operation of Pump 1 is timed to
automatically turn off after four hours of operation.
The high speed operations of Pump 1 and Pump 2 are
timed to automatically turn off after 15 minutes of
operation.
Note: Pump 1 will automatically operate in low
speed whenever the spa is in a filtration cycle or when
it calls for heat. When this automatic activation
occurs, the low speed operation of Pump 1 can not be
turned off; however, all other control functions can be
activated.
Light
Touch the “Light” pad to turn the internal spa
light on or off. The light will automatically turn off
after 1 hour of operation.
Operating Modes
Your spa comes with three primary operating
modes.
Standard Mode maintains the water at the
desired set temperature. Note that the last measured
spa temperature displayed is current only when the
pump has been running for at least 2 minutes. The
LCD window will momentarily display “St” when this
mode is selected.
Economy Mode heats the water to the desired
set temperature ONLY during filter cycles. The LCD
window will display “Ec” when this mode is selected
and the temperature is not current. The LCD window
will alternate between “Ec” and the temperature when
the temperature is current.
Sleep Mode heats the spa to within 20°F
(11°C) of the set temperature only during filter cycles.
The LCD window will display “Sl” when this mode is
selected and the temperature is not current. The LCD
window will alternate between “Sl” and the
temperature when the temperature is current.

18
Changing Modes
To change the operating mode, press the “Temp”
button then the “Light” button. Continue this
sequence until the desired mode is displayed in the
LCD window.
Filtration Cycles
The control system on your spa has been
designed to function properly and safely at 100oF after
connecting the electrical wires and installing the
proper grounds. To take full advantage of the unique
capabilities of your new spa, you should first establish
your filtration cycles.
Preset Filter Cycles
The 160 Series control systems are designed
with two filter cycles. The first filter cycle turns on 6
minutes after power is supplied to the spa. The second
filter cycle turns on 12 hours later. The duration of
each filter cycle is per-set at the factory for two hours,
or a total of 4 hours per day.
Changing Filter Cycle Start Time
The start time of the first filter cycle begins 6
minutes after the set time is established. The set time
is based on the time of day that the spa is powered up.
The set time can only be changed by disconnecting
power from the spa and re-connecting it at the desired
start time. For example, if you want the filter cycle to
begin at 9:00PM, unplug the spa and re-connect it at
8:54PM. The first filter cycle will begin at 9:00PM,
and the second filter cycle will begin 12 hours later at
9:00AM. Each cycle will run for the prescribed
number of hours.
Changing Filter Cycle Duration
The duration of a filter cycle is programmable
for 2, 4, 6, or 8 hours, or for continuous filtration.
Each duration runs once every 12 hours, or twice per
day. For example, a 2 hour cycle will complete once
every 12 hours for a total of 4 hours of filtration per
day. Continuous filtration will run for 24 hours per
day. The amount of time needed to filter your spa will
depend on usage and ambient conditions. You will
need to program your filter cycles based upon your
personal use.
To change the duration of the filter cycles,
touch the “Temp” button then the “Jets 1” button.
Press the “Temp” button to toggle through the
different duration options as shown below. Press the
“Jets 1” button to exit the programming sequence.
F2 2 Hours for each cycle, 4 hours per day
F4 4 hours for each cycle, 8 hours per day
F6 6 hours for each cycle, 12 hours per day
F8 8 hours for each cycle, 16 hours per day
FC Continuous filtration, 24 hours per day
If a change is made to the duration while the
spa is in a filtration cycle, it will take effect
immediately. If a change is made outside a filtration
cycle, it will take effect at the start of the next
scheduled cycle.
Note: If power is interrupted to the spa (disconnected,
power outage, etc), the control will revert to the
default factory settings. Any adjustments to set
temperature filter cycle start time, or filter cycle
duration will need to be reprogrammed.
Note: If your spa is equipped with a second pump, it
will be activated for 15 seconds at the start of each
filtration cycle to clear the water in the pipes and
ensure complete filtration.
Clean Up Cycle
After periods of heavy use, you can manually
start a clean-up cycle by turning Pump 1 on in low
speed. The pump will operate for 4 hours and then
automatically turn off. The heater will also operate
during this period if the controls are set in the Standard
mode.

19
460 Series Control System
If your Topside Control looks like this, your spa
has the following features:
•Internal Lights
•Air Massage (AeroMaax)
•2 Pumps
EL478 Topside Control
If your Topside Control looks like this, your spa
has the following features:
•Internal Lights
•2 Pumps
EL477 Topside Control
Powerworks™ 460 Series Control
System
The Powerworks™ 460 Series Control System offers
you the ultimate in spa control. The backlit, Liquid
Crystal Display (LCD) displays current water
temperature, set point water temperature, time, and
operating mode settings. Each feature of the system is
actuated through a control panel touch pad. Touch the
appropriate pad to activate the desired function.
At start up, when power is supplied to the spa, the
controls will operate properly and safely under the
factory settings. The spa will be in Standard Mode,
have a temperature setting of 100°F, and a filtration
cycle duration of 2 hours. To fully utilize the unique
capabilities of the control system, it is important to
know how to set the temperature, operate the pumps,
operate the light, adjust the mode setting, and change
the filtration cycles.
Note: In event of a power outage or failure, the 460
Series Control System should retain all settings, except
time of day. If settings are lost, re-program per the
instructions in this manual and contact your dealer.
User’s Pads
User’s Pads are the buttons located on the topside
control panel and are used to program various spa
functions (i.e., turn on spa light, set temperature, etc.).
The following table defines the pads:

20
