Mac allister MLMP300H40 User manual

Petrol Lawnmower
125 cm3
Original Instructions – MLMP300H40_GB_V20821
WARNING: Read the instructions before using the product.
MLMP300H40
EAN: 5059340124537
BX220IM
Manufacturer, Fabricant, Prodecent,
Hersteller, Producător, Fabricante:
UK Manufacturer:
3 Sheldon Square London W2 6PX
United Kingdom
EU Manufacturer:
ational Products B.V.
Rapenburgerstraat 175E 1011 VM Amsterdam
The Netherlands
www.diy.com
To view instruction manuals online,

2 3
MLMP300H40 MLMP300H40
Getting Started . . . Getting Started . . .
Safety warnings
Petrol powered lawnmowers safety warnings
IMPORTANT Read carefully before use.
Keep for future reference.
WARNING! Your safety and the safety of others is very important. Of course,
it is not practical or possible to warn you about all the hazards associated
with operating or maintaining this product. At all times you must use your
own good judgment.
Training
1.
Read the instructions carefully. Be familiar with the controls and the proper use
of the product.
2.
Never allow children or people unfamiliar with these instructions to use the product.
Local regulations can restrict the age of the operator.
3. Never mow while people, especially children or pets, are nearby.
4.
Keep in mind that the operator or user is responsible for accidents or hazards
occurring to other people or their property.
5.
The operators must receive a proper training in the use, adjustment and operation
of the product, including prohibited operations.
Preparation
1.
While mowing, always wear protective footwear and long trousers. Do not operate
the product when barefoot or wearing open sandals.
2.
Thoroughly inspect the area where the product is to be used and remove all stones,
sticks, wires, bones, and other foreign objects.
3. WARNING
•
• Refuel outdoors only and do not smoke while refuelling.
•
Add fuel before starting the engine. Never remove the fuel tank cap or add petrol
while the engine is running or when the engine is hot.
• If petrol is spilt, do not attempt to start the engine. Move the product away from
the area of spillage and avoid creating any source of ignition until fuel vapours
have dissipated.
• Replace all fuel tank and container caps securely.
4. Replace faulty silencers.
Let’s
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting Started... 02
Safety information 03
Your product 12
Before you start 16
Quick start 23
In more detail... 25
Product functions 25
Operation 30
Care and maintenance 34
Troubleshooting 41
Recycling and disposal 43
Guarantee 44
EC declaration of conformity 45
Safety information

4 5
MLMP300H40 MLMP300H40
Getting Started . . . Getting Started . . .
20. Do not tilt the product when starting the engine or switching on the engine, except if
the product has to be tilted for starting. In this case, do not tilt it more than necessary
and lift only the part which is away from the operator. Always ensure that both
hands are in the operating position before returning the product to the ground.
21.
Keep hands and feet away from the cutting means at all times and especially when
switching on the engine.
22. Do not put hands or feet near or under rotating parts. Keep clear of the discharge
opening at all times.
23. Never pick up or carry a product while the engine is running.
24.
In case of any situation mentioned below, stop the engine and disconnect the spark
plug connector. Make sure that all moving parts have come to a complete stop:
• before clearing a blockage or unclogging chute,
• before checking, cleaning or working on the product,
• after striking a foreign object. Inspect the product for damage and make repairs
as necessary
• if the product starts to vibrate abnormally (check immediately)
> inspect for damage
> replace or repair any damaged parts
> check for and tighten any loose parts
• whenever you leave the product
• before refuelling
25.
26. Never carelessly touch hot parts of the product. While the product is in operation
and shortly after that, its parts such as the exhaust, engine, and other surfaces
are extremely hot! Risk of burns! Pay attention to the markings on the product.
27.
Make sure that the air vents of the combustion engine are clear. Keep the air vents
free of dust, dirt particles, gases and fumes.
28.
Never start or run the engine indoors. The exhaust fumes are dangerous, containing
carbon monoxide, an odourless and deadly gas. Operate this product only in well-
ventilated outdoor areas.
Maintenance and storage
1.
Follow the maintenance and repair instructions of this product. Never carry out
the engine and product settings. Information about maintenance and repair are
provided in this instruction manual.
2. Keep all nuts, bolts and screws tight to be sure that the product is in safe working
condition.
3.
Improper maintenance or using non-genuine parts not recommended by the
manufacturer may lead to malfunction/failure of the product. Many accidents are
caused by poorly maintained products.
5.
Before using, always visually inspect to see that the blades, blade bolts and cutter
assembly are not worn or damaged. Replace worn or damaged blades and bolts
in sets to preserve balance.
6. CAUTION! Do not touch rotating cutting means.
7. Engine brake (brake clutch): Use the brake clutch to stop the engine. When you
release the clutch, the engine and the blade stop automatically in a few seconds.
To mow, hold the bar in the working position. Before you start to mow, check the
brake clutch several times to be sure that it is working correctly. Ensure that the
brake wire can be smoothly operated (e.g. is not catching or kinking in any way).
Operation
1. fumes can accumulate.
2.
3. or drugs.
4. Avoid operating the product in wet grass, where feasible.
5. Always be sure of your footing on slopes.
6. Walk, never run.
7. Mow across the face of slopes, never up and down.
8. Exercise extreme caution when changing direction on slopes.
9. Do not mow excessively steep slopes, near drop-offs, ditches or embankments.
10. Avoid using the product in bad weather conditions especially when there is a risk
of lightning.
11. Use extreme caution when reversing or pulling the product towards you.
12.
Stop the blade(s) if the product has to be tilted for transportation when crossing
surfaces other than grass, and when transporting the product to and from the
area to be mowed.
13.
Never operate the product with defective guards, shields, or without safety devices,
14. Do not change the engine governor settings or overspeed the engine.
15. Do not alter or tamper with any sealed adjustments for the engine speed control.
16. Do not tamper or disable any product’s safety systems or features.
17.
Ensure and regularly check that all starting interlocks and operator presence
controls are functioning correctly.
18.
Stop the product according to instructions in this manual before leaving the
operator’s position and park it in a safe location.
19.
Start the engine carefully according to instructions and with feet well away from
the blades.
Safety information Safety information

6 7
MLMP300H40 MLMP300H40
Getting Started . . . Getting Started . . .
14. Check regularly for leaks from the fuel tank cap and fuel lines.
15.
16. Do not operate the product if it is leaking fuel. Do not remove the fuel tank cap
while the engine is running.
17. at least 3 metres from the fuelling point before starting the engine.
18.
19. If any fuel spillage occurs during refuelling, use a dry rag to wipe spills and allow
remaining fuel to evaporate before starting the engine again.
20.
If you have spilt fuel on yourself or on your clothes, change your clothes and
wash any part of your body that has come in contact with fuel before starting the
engine again.
21. .
22.
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit the time of operation, use low-
vibration and low-noise operating modes as well as wear personal protective equipment.
Take the following points into account to minimise the vibration and noise exposure risks:
1. Only use the product as intended by its design and these instructions.
2. Ensure that the product is in good condition and well maintained.
3. Use correct attachments for the product and ensure they in good condition.
4. Keep a tight grip on the handles/gripping surfaces.
5.
Maintain this product in accordance with these instructions and keep it well lubricated
(where appropriate).
6.
Plan your work schedule to spread any high vibration tool use across a longer
period of time.
Emergency
Familiarise yourself with the use of this product by means of this instruction
manual. Memorise the safety directions and follow them to the letter. This will
help to prevent risks and hazards.
1.
Always be alert when using this product, so that you can recognise and handle
risks early. Fast intervention can prevent serious injury and damage to property.
2.
Stop the engine and disconnect the spark plug connector if there are
malfunctions.
if necessary, before you operate it again.
3.
accessible.
4. Never store the product with petrol in the tank inside a building where fumes can
5. of vegetative material and excessive grease.
6. Allow the engine to cool before storing in any enclosure.
7. Check the grass catcher frequently for wear or deterioration.
8. If the fuel tank has to be drained, this should be done outdoors.
9. Wear protective gloves when removing and re-assembling the cutting means.
10.
Replace worn or damaged parts for safety. Only use replacement blades and spare
parts recommended by the manufacturer.
11. Ensure that only replacement cutting means of the right type are used.
Fuel handling
1.
Before refuelling, stop the engine, disconnect the spark plug connector and let the
fuel. Never smoke when you are refuelling the product. Do not refuel the product,
2. on the product or its exhaust system. There is a risk of ignition. Remove spilt fuel
carefully from all parts of the product.Any residue which may be present must be
completely removed before the product is operated!
3.
Fuel fumes can ignite. Never use the product in environments where there is a
risk of explosion.
4. Petrol engines produce toxic carbon monoxide exhaust fumes. Breathing carbon
monoxide can cause nausea, fainting or even death.
5. the fuel tank in enclosed spaces, such as basements or sheds. There is a risk of
poisoning and explosion!
6. Avoid skin contact with petrol.
7.
Do not eat or drink, while you are refuelling the product. If you have swallowed petrol
or oil, or if petrol or oil has got into your eyes, then seek medical advice immediately.
8. properly closed.
9.
10. Fuel vapour pressure may build up inside the fuel tank depending on the fuel
used, weather conditions and the venting system. To reduce the risk of burns and
other personal injuries, remove the fuel tank cap carefully to allow any pressure
build-up to release slowly.
11.
12. Do not smoke while operating the product, handling fuel or near fuel.
13.
Ensure the spark plug connector is securely attached.Aloose connector may cause
Safety information Safety information

8 9
MLMP300H40 MLMP300H40
Getting Started . . . Getting Started . . .
Symbols
the following symbols and abbreviations. Familiarise yourself with them to reduce
hazards like personal injuries and damage to property.
kW Kilowatt ml Millilitre
cm3Cubic centimetre g/kWh Gram per kilowatt per hour
/min or min-1 Per minute kg/h Kilogram per hour
mm Millimetre °C Degree Celsius
cm Centimetre dB(A) Decibel (A-rated)
kg Kilogram m/s2Metres per second squared
lLitre
yyWxx
Manufacturing date code; year of manufacturing (yy) and week
of manufacturing (Wxx)
Description of signal words:
DANGER! The signal word that indicates a hazard with a high level of risk
which, if not avoided, will result in death or serious injury.
WARNING! The signal word that indicates a hazard with a medium level of
risk which, if not avoided, could result in death or serious injury.
CAUTION! The signal word that indicates a hazard with a low level of risk
which, if not avoided, could result in minor or moderate injury.
NOTE! Indicates a practical tip, advice or practice not related to
personal injury.
Lock/to tighten or secure. Wear respiratory protection.
Unlock/to loosen. Wear hearing protection.
Wear eye protection.
Note/Remark. Wear protective gloves
(compliant to EN ISO 21420)
Caution/Warning.
Read the instruction manual.
Wear protective, slip-resistant
safety footwear
(compliant to EN ISO 20345)
clothing (compliant to
EN ISO 13688)
WARNING!
must be extinguished with special extinguishing agents! We recommend
We
Residual risks
Even if you are operating this product in accordance with all the safety
requirements, potential risks of injury and damage remain. The following dangers
can arise in connection with the structure and design of this product:
1.
Health defects resulting from vibration emission if the product is used over long
periods of time or not adequately managed and properly maintained.
2.
Injuries and damage to property due to broken application tools or the sudden
impact of hidden objects during use.
3.
4. Burns, if touching hot surfaces.
WARNING!
medical implants! To reduce the risk of serious or fatal injury, we recommend
persons with medical implants to consult their doctor and the medical implant
manufacturer before operating this product!
Safety information Safety information

10 11
MLMP300H40 MLMP300H40
Getting Started . . . Getting Started . . .
Keep handsand feetaway fromsharprotatingparts– riskofinjury!When
cleaning, repairing or inspecting, make sure the cutting means and all
moving parts have stopped. Disconnect the spark plug connector, and
keep the cap away from the plug to prevent accidental starting.
Cutting means continues to rotate after the engine is stopped. Wait until
all components have completely stopped before touching the product.
Pay particular attention when working on the blades!
Objects thrown by the product could hit the operator or other
bystanders. Always ensure that other people and pets remain at a
safe distance from the product when it is in operation. In general,
children must not come near the area where the product is operating.
Release the brake clutch to stop the engine and the cutting means.
Switch the product off and disconnect the spark plug connector
before assembly, cleaning, adjustments, maintenance, storage and
transportation.
Engine manual start, recoil starter.
Keep hands and feet away.
GO STOP
The grass catcher hatch open and close position.
Guaranteed sound power level value in dB.
MLMP300SP40
Designation of the tool
(M_Mac Allister; LM_Lawn Mower; P_Petrol power;
300_engine model code; SP_Self-propelled; 40_Cutting width)
The product complies with the applicable European directives and
an evaluation method of conformity for these directives was done.
Mow across the face of slopes, never up and down.
Do not expose the product to rain or wet conditions.
Do not smoke in the work area, around the product and in the vicinity
Hot surface, do not touch! High temperatures on the product’s surfaces
and structural parts that could cause burns, if they are touched. The
product can also stay hot for a longer period of time after the operation!
Petrol engines produce toxic carbon monoxide exhaust fumes.
Breathing carbon monoxide can cause nausea, fainting or even death.
Do not operate the engine indoors!
Only refuel unleaded petrol!
Add engine oil.
Stop the engine before refuelling the fuel tank. Flammable material.
Inspect the area where the product is to be used and remove all
objects which can be thrown by the product. If objects are hidden
while operating, stop the engine and remove the objects.
Prevent engine malfunction by checking the engine oil level regularly.
Safety informationSafety information

12 13
MLMP300H40 MLMP300H40
Getting Started . . . Getting Started . . .
25 24
24a
24b
24
24d
24e
24c
1. Handle
a. Transportation handle
2. Brake clutch
3. Upper handle bar
4. Lower handle bar
5. Brake wire
6. Side lever (x2)
a. Washer *
b. Bolt *
7. Wire clip
8. Air vents
9. Fuel tank cap
10.
a. Filter *
b. Cover *
11. Primer
12. Water hose connector
13. Spark plug connector
14. Wheel
15.
16. Oil tank cap with dipstick
17. Lever for cutting height adjustment
18. Lower handle bar lock
19.
20. Grass catcher
a. Handle
b. Hatch
21. Starter wire
22. Hook for recoil starter handle
23. Recoil starter handle
24. Cutting means (blade)
a. Spindle
b. Ring
c. Washer
d.
e. Hex bolt
25. Rear discharge chute
26. Mulching insert
a. Unlock button
27. Spark plug wrench
28. Operator’s manual of the
BRIGGS&STRATTON engine
NOTE: Parts marked with *are not shown in this overview. Refer to the
respective section in the instruction manual.
10
1a
14
15
18
20 9
16
1
6
13
19
22
23
8
5
6a
6b
2
3
21
4
11
7
17
12
20a
20b
Your productYour product

14 15
MLMP300H40 MLMP300H40
Getting Started . . . Getting Started . . .
Sound level
> Sound pressure level at operator’s position LpA:80.3 dB(A)
> Uncertainty K: 3 dB(A)
> Sound power level LWA:91.3 dB(A)
> Uncertainty K: 1.9 dB(A)
> Guaranteed sound power level LWA
(acc. to 2000/14/EC amended by 2005/88/EC): 96 dB(A)
Vibration level
> Hand-arm vibration ahw:6.25 m/s2
> Uncertainty K: 1.5 m/s2
The sound values have been determined according to noise test code given in
EN ISO 5395-1 and EN ISO 5395-2, using the basic standards ISO 3744 and ISO 11094.
Wear hearing protection, especially when sound pressure is over 80 dB(A).
The declared vibration value has been measured in accordance with a standard
test method (according to EN ISO 5395-1 and EN ISO 5395-2) and may be used for
comparing one product with another. The declared vibration value may also be used
to evaluate the exposure for the user caused by vibration in advance.
WARNING! Depending on the actual use of the product the vibration values
can differ from the declared total.Adopt proper measures to protect yourself
against vibration exposures. Take the whole work process including times
the product is running under no load or switched off into consideration!
Proper measures include among others regular maintenance and care of
the product and accessories, keeping hands warm, periodical breaks and
proper planning of work processes!

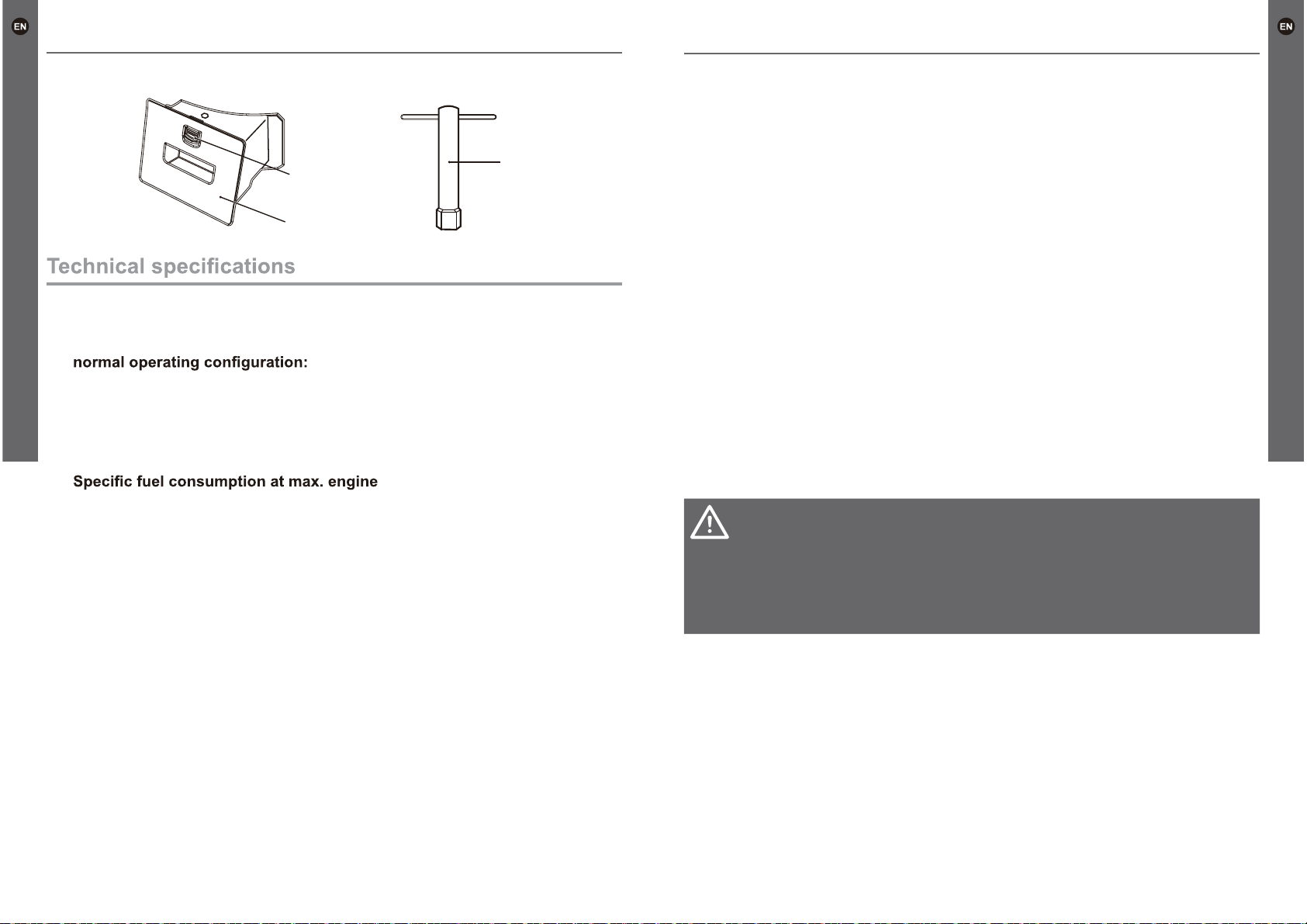

26a
26
27
General
> Dimensions: approx. 125 x 50.5 x 98.5 cm
> Product mass with empty tanks and in the approx. 24 kg
> Fuel tank capacity: 800 ml (cm³)
> Petrol type: #95, unleaded
> Engine oil capacity: 470 ml (cm³)
> Engine oil type: 4-stroke engine oil
(e.g. SAE 10W-30)
>
power: 357 g/kWh
> Fuel consumption at max. engine power: 0.67 kg/h
> Cutting means: blade type: 40 MnB
blade thickness: 3.0 mm
> Cutting width: 41 cm
> Cutting height: 25 - 75 mm
> Grass catcher volume: 50 l
Engine
> Engine model: B&S300E
> Engine type: air cooled, 4-stroke engine
> Engine displacement: 125 cm3
> Maximum operating engine speed
(rotational frequency): 2800 min-1
> Nominal power: 1.7 kW
> Spark plug type: XC92YC / K5RLTC
> Spark plug gap: 0.7-0.8 mm
Your product Your product

16 17
MLMP300H40 MLMP300H40
Getting Started . . . Getting Started . . .
Assembly
WARNING! The product must be fully assembled before the operation!
Do not use a product that is only partly assembled or assembled with damaged
parts!
Follow the assembly instructions step-by-step and use the pictures provided
as a visual guide to assemble the product easily!
Disconnect the spark plug connector (13) from the spark plug! Reconnect
it after assembly.
NOTE: Take care of small parts that are removed during assembly or when
making adjustments. Keep them secure to avoid loss.

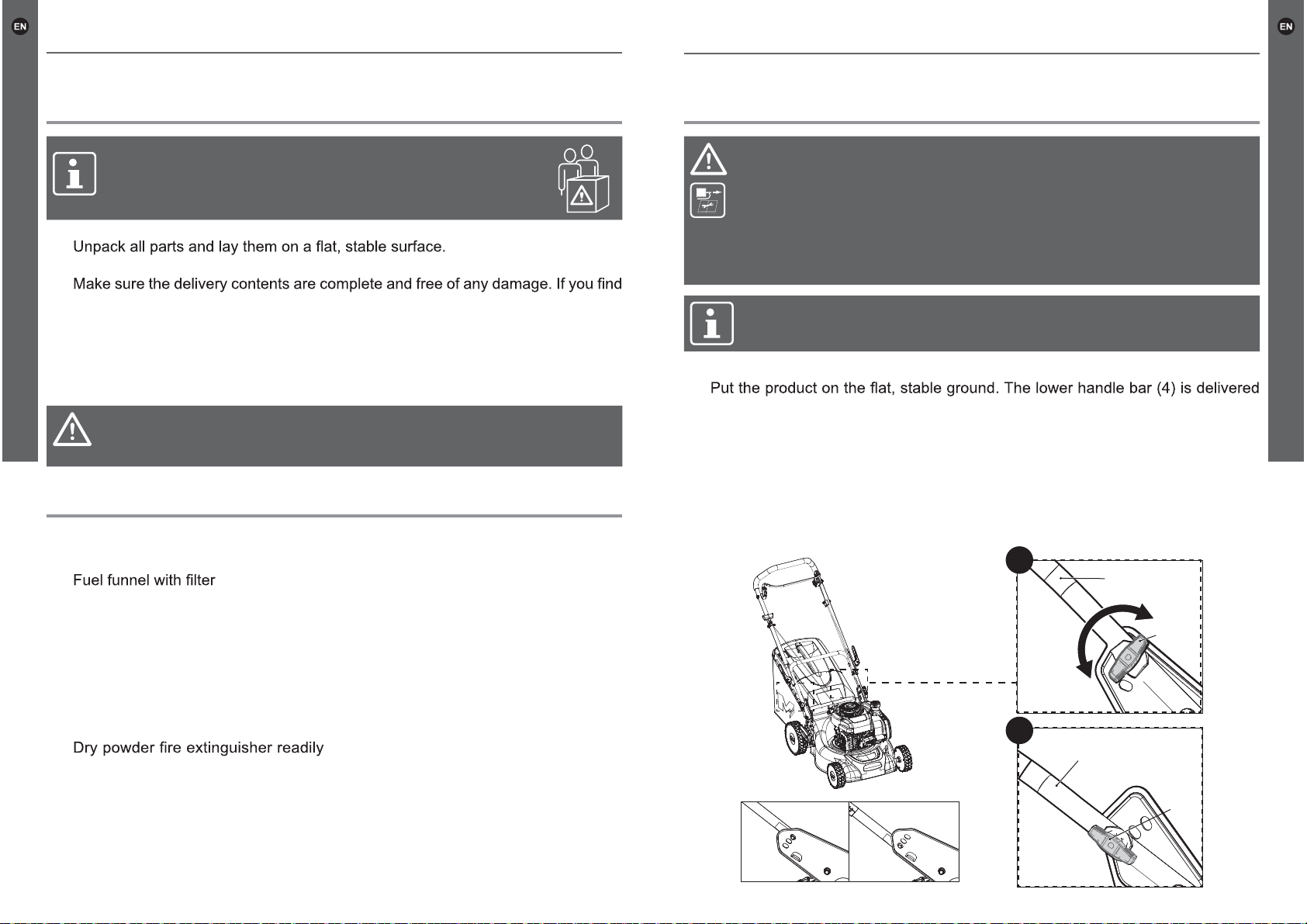

Handle bars
1. in its storage position.
2.
Turn the lower handle bar lock (18) about 90 degrees (Fig. 1). Repeat on the other
side to unlock the lower handle bar (4).
3. Unfold the lower handle bar (4) from storage position to working position.
4.
Align the pin of the handle bar lock (18) with one of the handle support holes.
Turn back the lower handle bar lock (18) and swing the lower handle bar (4) slightly
until the handle bar lock (18) clicks in place. Repeat on the other side to secure
the position of the lower handle bar (4) (Fig. 2).
1
2
4
18
4
18
Unpacking
NOTE: The product is heavy, ask another person for assistance
if required.
1.
2. Remove all packing materials and protective shipping materials, if applicable.
3. that parts are missing or show damage do not use the product and contact your
dealer. Using an incomplete or damaged product represents a hazard to operators
and property.
4.
Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
WARNING! The product and the packaging are not children’s toys! Children
must not play with plastic bags, sheets and small parts! There is a danger
of choking and suffocation!
You will need
(items not supplied)
> Suitable personal protective equipment
>> Suitable engine oil (SAE10W-30)
> Suitable fuel (unleaded petrol)
> Container to collect fuel
> Container to collect oil
> Lubrication oil/grease
> Torque wrench (40-45 Nm)
(advisable items)
> First aid kit
> available
(items supplied)
> Spark plug wrench (27)
> Operator’s manual of the
BRIGGS&STRATTON engine (28)
Before you start Before you start

18 19
MLMP300H40 MLMP300H40
Getting Started . . . Getting Started . . .

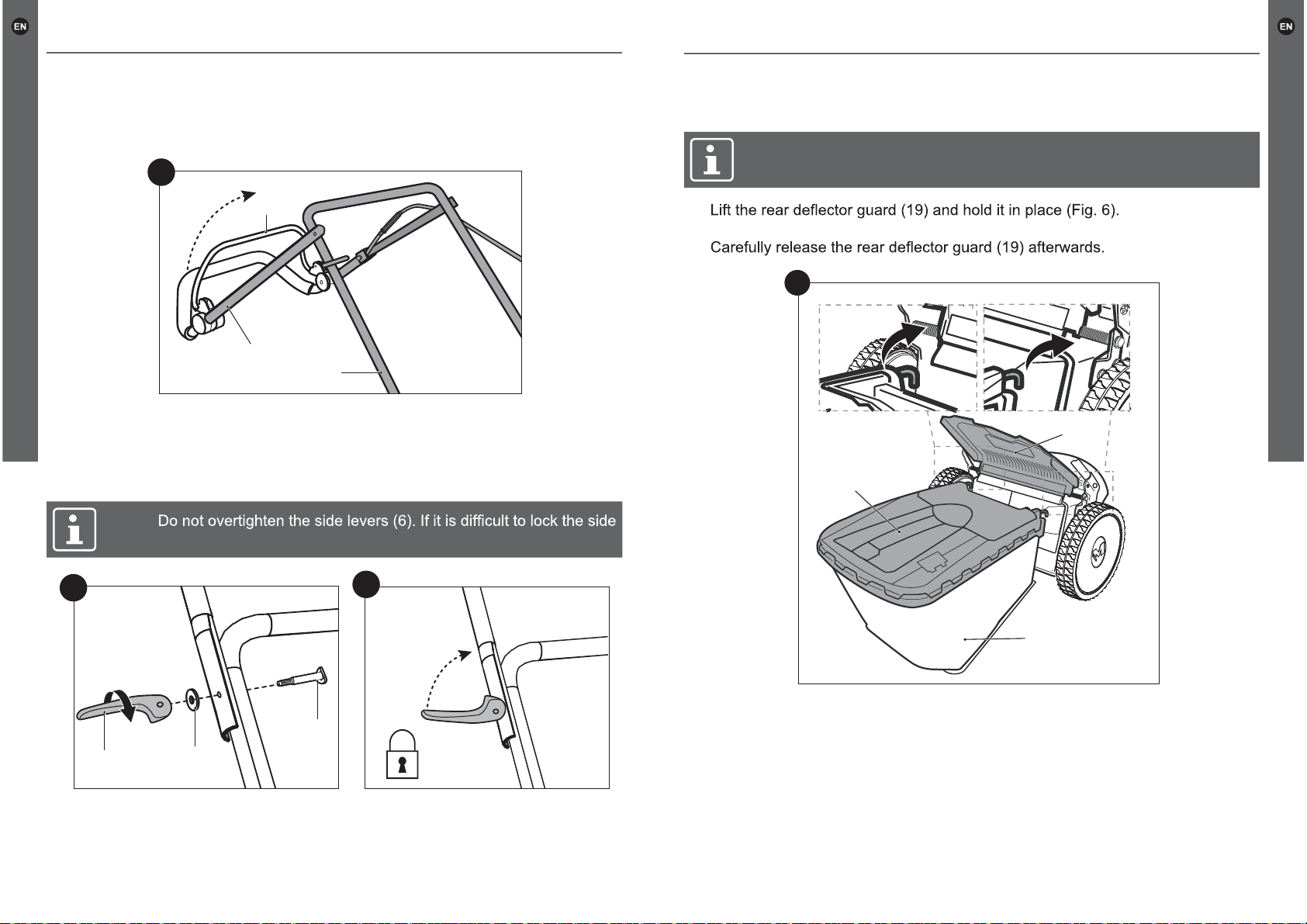

Grass catcher installation
NOTE: Always carry the grass catcher (20) by its handle (20a).
1.
2. Align the hooks of the grass catcher (20) with the rods and hang them onto.
3.
20a
20
6
19
5. Unfold the upper handle bar (3) and hold it with the brake clutch (2) facing upwards.
Align the mounting holes of the upper handle bar (3) and the lower handle bar
(4) (Fig. 3).
3
4
3
2
6. Fix the upper handle bar (3) to the lower handle bar (4) with the side levers (6),
washers (6a) and bolts (6b) through the mounting holes (Fig. 4). Screw in the
side lever (6) clockwise and lock by folding up towards the handle. If side lever
(6) cannot be folded, loosen it and fold again (Fig. 5). If it is too loose, tighten it
by swinging the side lever (6).
NOTE:
lever (6), rotate it in the opposite direction to loosen the connection.
6
45
6a
6b
Before you startBefore you start

20 21
MLMP300H40 MLMP300H40
Getting Started . . . Getting Started . . .
1. sheet under the product.

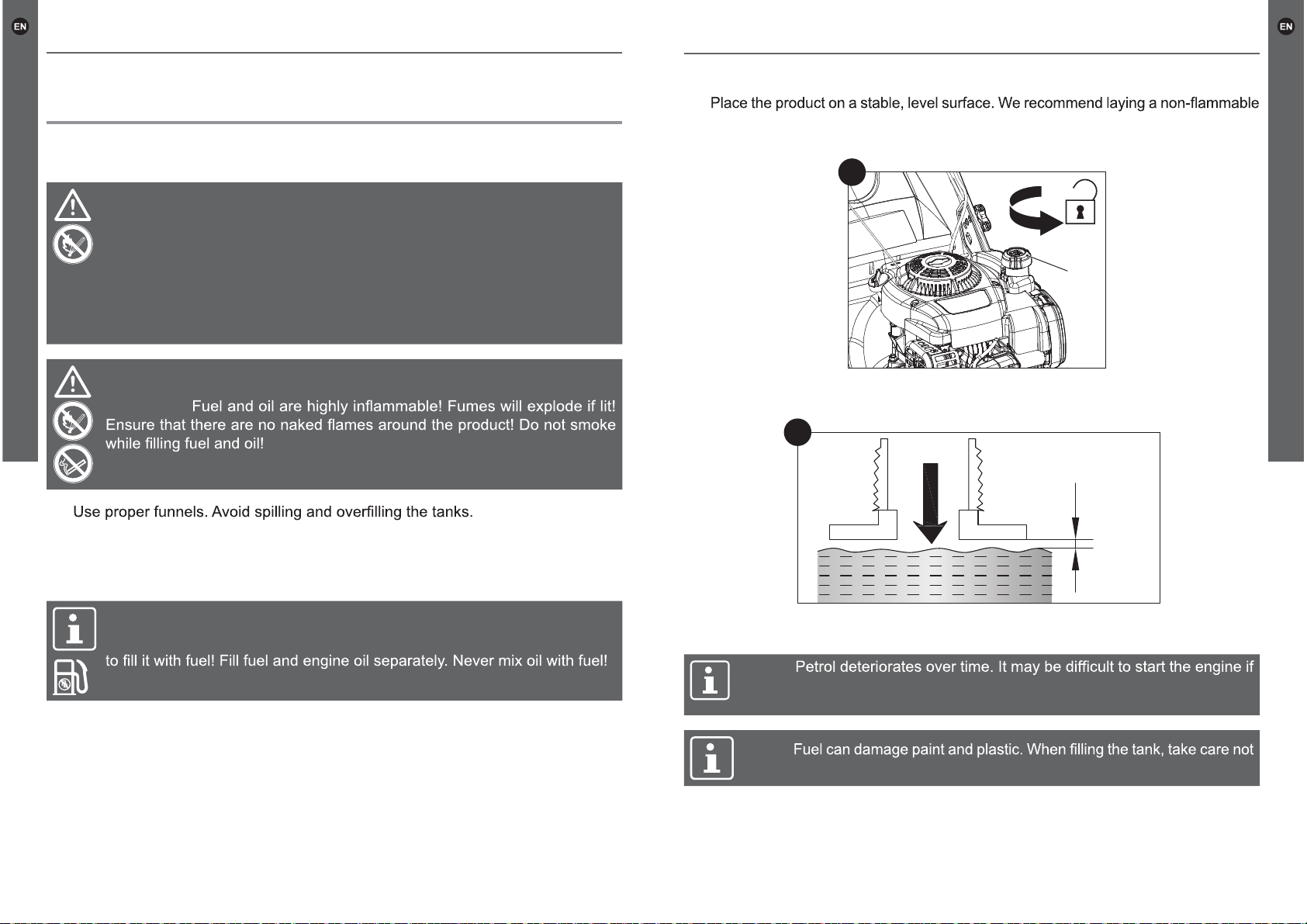

2. Unscrew and remove the fuel tank cap (9) (Fig. 7).
7
9
3. Add suitable fuel into the fuel tank. Leave a minimum 5 mm of space between
the top of the fuel and the inside edge of the tank to allow for expansion (Fig. 8).
8
5 mm
4. Wipe any spilt fuel with a soft cloth and reattach the fuel tank cap (9).
NOTE:
you use petrol which has been kept for more than few days. Empty the fuel
after every use. Run the product dry of fuel in idle before storage.
NOTE:
to spill any fuel. Damages caused by spills are not covered by the guarantee.
Fuel and engine oil
This product is equipped with a 4-stroke engine. Before operation, it is necessary to
add suitable fuel and engine oil separately.
WARNING! This product contains an operator’s manual of the
BRIGGS&STRATTON engine (28). Service the engine with proper petrol
and engine oil as instructed in the separate operator’s manual of the
BRIGGS&STRATTON engine (28).
It is important to read and understand these instructions of the engine and
the equipment.
SAVE THESE ORIGINAL INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING!
>
> Always dispose of fuel, used oil and objects contaminated with them in accordance
with local regulations.
Fuel
NOTE: This product is not supplied with fuel! Before operating, it is essential
> Always use clean, fresh unleaded petrol. Purchase fuel in quantities that can be
used up within 30 days.
> Avoid getting dirt, dust or water in the fuel tank.
Before you startBefore you start

22 23
MLMP300H40 MLMP300H40
Getting Started . . . Getting Started . . .
Operating controls
Brake clutch
Fuel tank cap
case
Spark plug
connector
Oil tank cap
Lever for
cutting height
adjustment
Grass catcher
Recoil starter
handle Air vents
Primer
Engine oil

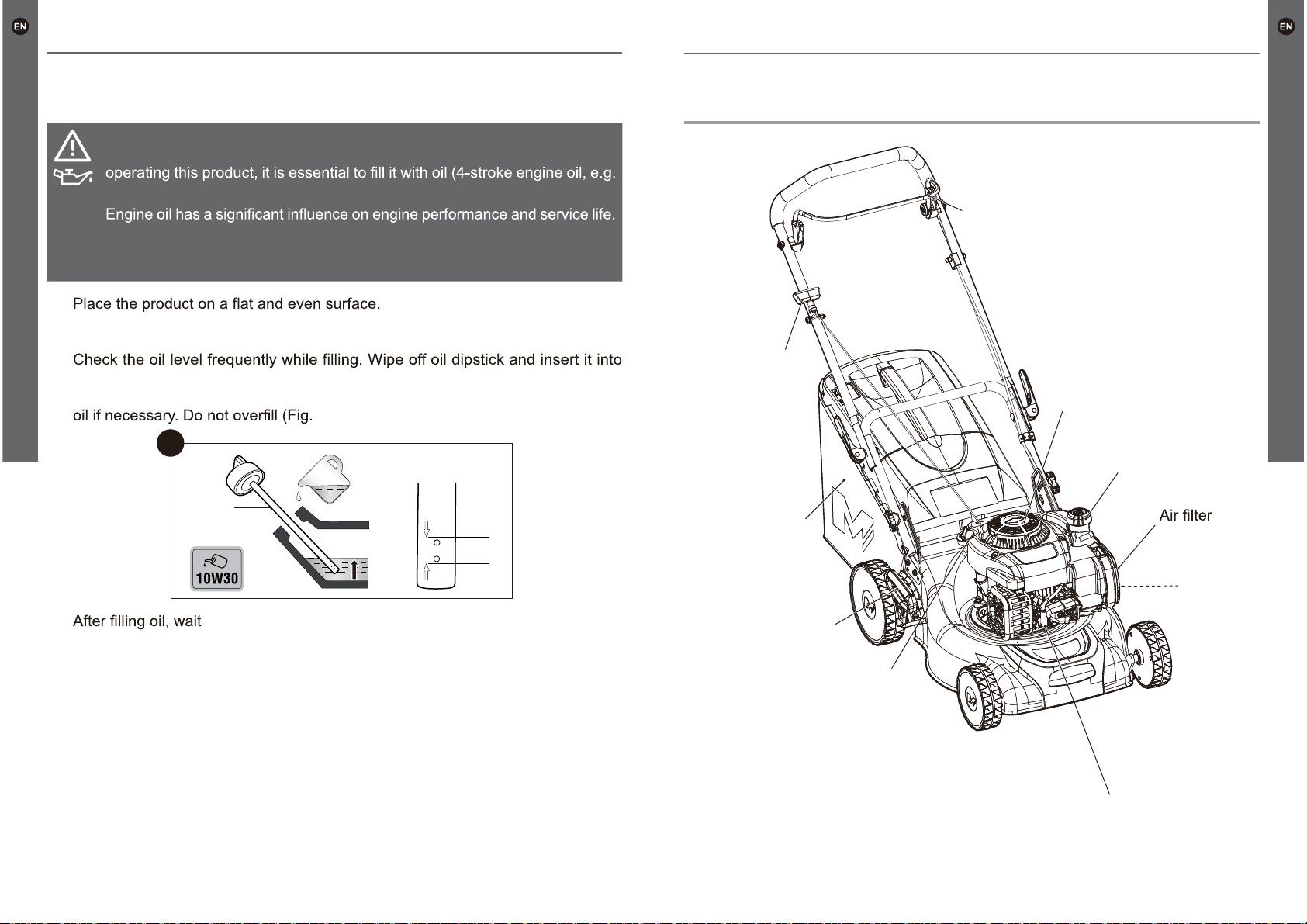

WARNING! This product is not supplied with oil. However, for manufacturing
reasons, it is possible that a small quantity may be in the engine! Before
SAE 10W-30)!
Non-detergent or 2-cycle engine oils will damage the engine and should not
be used - see the separate operator’s manual of the BRIGGS&STRATTON
engine (28).
1.
2. Unscrew and remove the oil tank cap (16).
3. Gradually add good-quality engine oil (SAE 10W-30).Allow the oil to settle.
4. the tank opening without tightening the cap, and then remove the dipstick again.
5. The oil level must be between the oil level markings (approx. 400 ml). Add more
9).
9
5 mm
16
max
min
6. 1 minute and then recheck the oil level.
7. Wipe the spilt oil with a soft cloth and reattach the oil tank cap (16).
Before you start Quick start

24 25
MLMP300H40 MLMP300H40
In more detail . . .
Getting Started . . .
WARNING! This quick start provides only a short overview of how to start
and stop the product! For safe use it is essential to read the entire instruction
Intended use
This petrol lawnmower MLMP300H40 is designated with a power output of 1.7 kW.
1.
The product is intended for mowing grass in domestic gardens only. It must not be
used to mow unusually high, dry or wet grass (e.g. pasture grass) or for shredding
leaves.
2. For safety reasons it is essential to read the entire instruction manual before the
3. This product is intended for private domestic use only, not for any commercial use.
It must not be used for any purposes other than those described.
Handle adjustment
NOTE: There are 3 locking holes on the handle supports of both sides.
Choose one of the holes to lock the lower handle bar (4) according to the
desired height of the handle (1).
1. Turn the lower handle bar lock (18) about 90 degrees (Fig. 10). Repeat on the
other side to unlock the lower handle bar (4).
2.
Adjust the lower handle bar (4) to the desired height by aligning the pin of the
handle bar lock (18) with one of the handle support holes (Fig. 10).
3.
Turn back the lower handle bar lock (18) and swing the lower handle bar (4) slightly
until the handle bar lock (18) clicks in place. Repeat on the other side to secure
the position of the lower handle bar (4) (Fig. 11).
4
10 11
18
4
18
Preparation
Assemble Adjust Add fuel Add oil
Cold start
Press primer 3 to 5
times Pull and hold brake clutch
Pull recoil starter,
repeat until engine
starts Operate
Warm start
Pull and hold
brake clutch
Pull recoil starter,
repeat until engine
starts Operate
Stopping
Release brake
clutch
Storage
Empty fuel tank Empty oil Clean and
maintain Store
Quick start / Product functionsQuick start

26 27
MLMP300H40 MLMP300H40
In more detail . . . In more detail . . .
WARNING! Never twist the starter cord around your hand! Only pull on the
recoil starter handle (23)!
WARNING! Do not suddenly release the recoil starter handle (23)! Allow
the rope to return slowly and in a controlled manner each time it is pulled!
Grass catcher
during operation.
1.

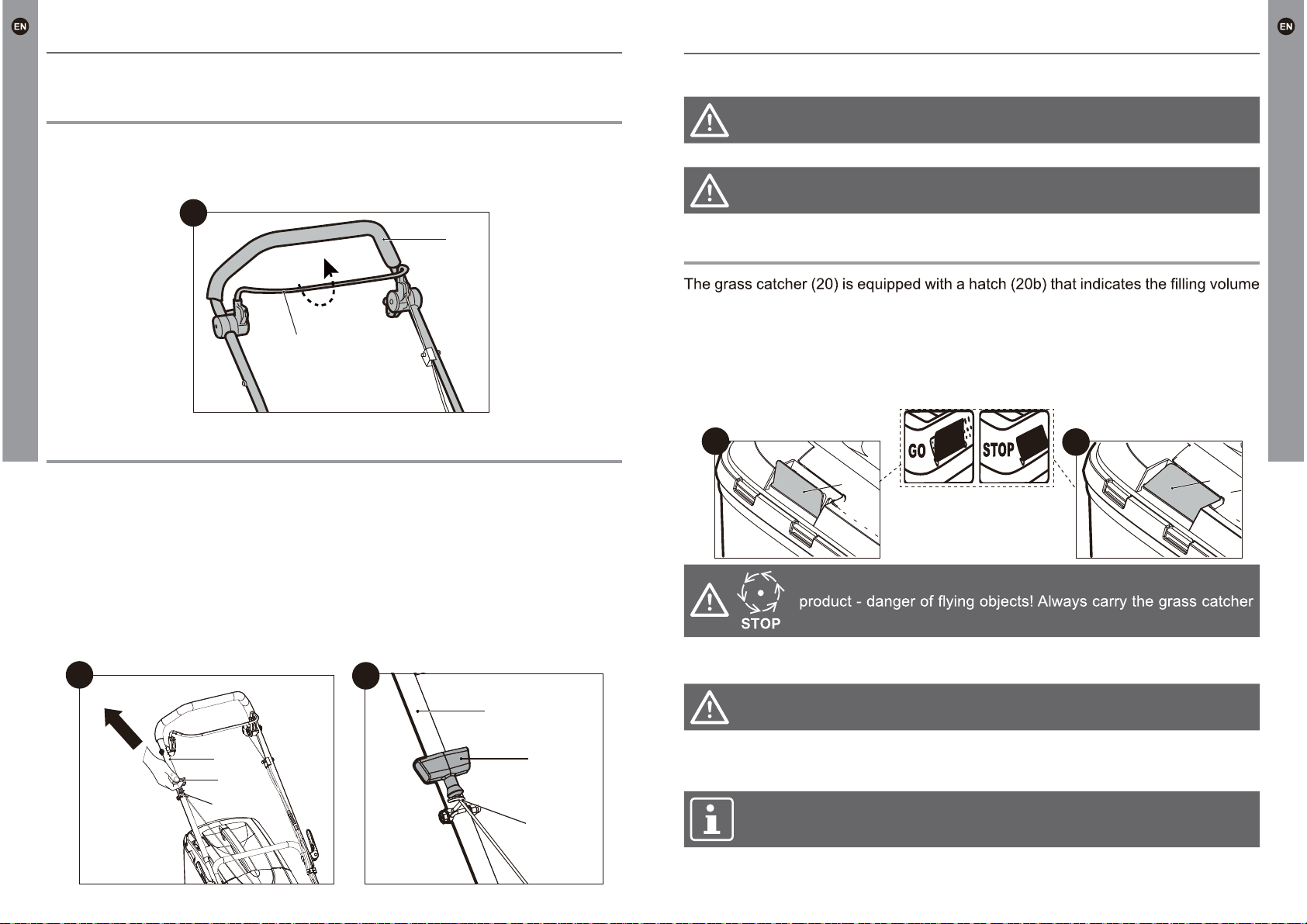

When the hatch (20b) is opened the grass catcher (20) has enough volume left
to collect grass (Fig. 15).
2. When the hatch (20b) is closed the grass catcher (20) is full and must be emptied
(Fig. 16).
20b
15 16
20b
WARNING! Always attach the grass catcher (20) when using this
by its handle (20a).
Emptying
WARNING! Before removing the grass catcher (20) stop the engine and wait
until the blade (24) comes to a complete stop.
Empty the grass catcher (20) frequently during use. Do not wait until it is full. We
recommend emptying when it is 90% full.
NOTE: A full grass catcher (20) reduces the performance of the product.
Brake clutch
1. Pull the brake clutch (2) towards the handle (1) and hold it in position when starting
the engine and during operation (Fig. 12).
2. Release the brake clutch (2) to stop the engine.
12
1
2
Recoil starter
The recoil starter handle (23) is positioned at the top of the engine.
1. Pull the brake clutch (2) towards the handle (1) and hold it in position.
2. Stand behind the handle (1).
3. Place the recoil starter handle (23) onto the hook (22) located on the right-hand
side of the upper handle bar (3) (Fig. 14).
4. Pull the recoil starter handle (23) lightly until you feel resistance then pull it rapidly.
Do it repeatedly until the engine starts (Fig. 13).
5. During operation rest the recoil starter handle (23) onto the hook (22) (Fig. 14).
23
3
22
3
23
22
14
13
Product functionsProduct functions

28 29
MLMP300H40 MLMP300H40
In more detail . . . In more detail . . .
Cutting height adjustment
WARNING! Before adjusting the cutting height, stop the engine and
wait until the blade (24) comes to a complete stop.
This product can be adjusted to 7 different height settings. New or thick grass may
require a higher cutting height and a narrower cutting path.
1.
Pull thelever for cuttingheight adjustment (17) towardsthe wheel (14)(Fig. 19, step1),
and then move it forward or backward to the desired cutting height (Fig. 19, step 2).
2. Release the lever (17) and ensure it engages into place properly.
NOTE: If you are not sure what cutting height should be selected, start with
a maximum height and check the appearance of the lawn after mowing a
small area. Adjust the setting if necessary.
19
1
2
17
WARNING! Ensure that the lever (17) engages between two of the grooves!
1. 19) and hold it in place.
2. Lift the grass catcher hooks off the rods and place the grass catcher (20) on the
ground.
3.
Remove the grass clippings from the rear discharge chute (25) into the grass
catcher (20). Use a proper tool such as a brush.
WARNING! Never use your hands or feet to remove grass clippings from
the rear discharge chute (25)!
4. Empty the grass clippings onto a compost heap.
5.
Grass catcher inspection
During use the grass catcher (20) material is subjected to normal wear and tear.
An excessively worn grass catcher may allow the objects to be thrown towards the
operator. Replace a worn grass catcher to prevent possible injury.
Mulching insert
NOTE: Mulching means cutting and returning the grass clippings to the
evenly back onto the lawn. Under normal conditions, the mulched grass will
biodegrade quickly to provide nutrients to the lawn.
1. insert (26) into the rear discharge chute (25) (Fig. 17). Ensure the unlock button
(26a) snaps in place.
2.
Press the unlock button (26a) to release and remove the mulching insert (26) (Fig. 18).
17 18
26
19
26a
1
2
1
2
25
Product functionsProduct functions

30 31
MLMP300H40 MLMP300H40
In more detail . . . In more detail . . .
Cold start
WARNING! Before starting, place the product on a stable, level surface free
of high grass! Clean the underside of the product!
Start the engine carefully according to instructions. Keep your feet well away
from the blade (24).
Do not tilt the product when starting the engine.
1. Press the primer (11) 3 to 5 times (Fig. 21).
2. Pull the brake clutch (2) towards the handle (1) and hold it in position (Fig. 22).
3. Stand behind the handle (1).
4.
Place the recoil starter handle (23) onto the hook (22) located on the right-hand
side of the upper handle bar (3) (Fig. 24).
5.
Pull the recoil starter handle (23) lightly until you feel resistance then pull it rapidly.
Do it repeatedly until the engine starts (Fig. 23).
6. During operation rest the recoil starter handle (23) onto the hook (22) (Fig. 24).
11
21
1
2
22
23
23
3
23
22
24
3
22
Primer
(11) when starting the product with cold engine (Fig. 20).
11
20
10
General operation tips
1. Before each use:
>
Check the product and accessories for damage and whether they are properly
>> Look around and underneath the product for signs of oil or fuel spill.
> Check each control for proper operation.
> Check blades (24) for wear.
> Make sure that all bolts and screws are tightened.
> 10a) is clean.
2. Always push the product using the handle (1). Keep the handle bar dry and free
from lubricant to ensure safe support.
3.
Ensure that the air vents (8) are always unobstructed and clear. Clean them
if necessary with a soft brush. Blocked air vents may lead to overheating and
damage the product.
4.
Stop the engine immediately if you are disturbed while working by other people
entering the working area. Always let the blades (24) come to a complete stop
before leaving the product unattended.
5. Do not overwork yourself. Take regular breaks to ensure you can concentrate on
the work and have full control over the product.
OperationProduct functions / Operation

32 33
MLMP300H40 MLMP300H40
In more detail . . . In more detail . . .
Stopping
Release the brake clutch (2) to stop the engine and blade (24) (Fig. 25).
25
2
Mowing
NOTE: Avoid mowing when the grass is wet from rain or dew. Wet grass may
form clumps which interfere with the mulching action and reduce runtime.
The best time to mow grass is late afternoon when the grass is dry and the
newly cut area will not be exposed to direct sunlight.
Preparing the product according to required application
Function Grass catcher (20) Mulching insert (26)
Grass collection installed removed
Mulching removed installed
General tips
1.
Make sure that the lawn is clear of stones, sticks, wires or other objects that could
damage the product or its engine.
2.
Do not cut wet grass because it tends to stick to the underbody of the product,
preventing the proper discharge of grass clippings, and it could also cause you
to slip and fall.
3.
Never cut off more than one-third of the total length
of the grass for a healthy lawn. In the autumn, lawns
should only be cut as long as there is growth.
4. Slowly push the product forward.
5.
Mow in slightly overlapping rows. The most effective
pattern for mowing lawns is straight lines along one of
the sides. This keeps the rows even and ensures that
all the lawn is cut without missing any spots (Fig. 26).
26

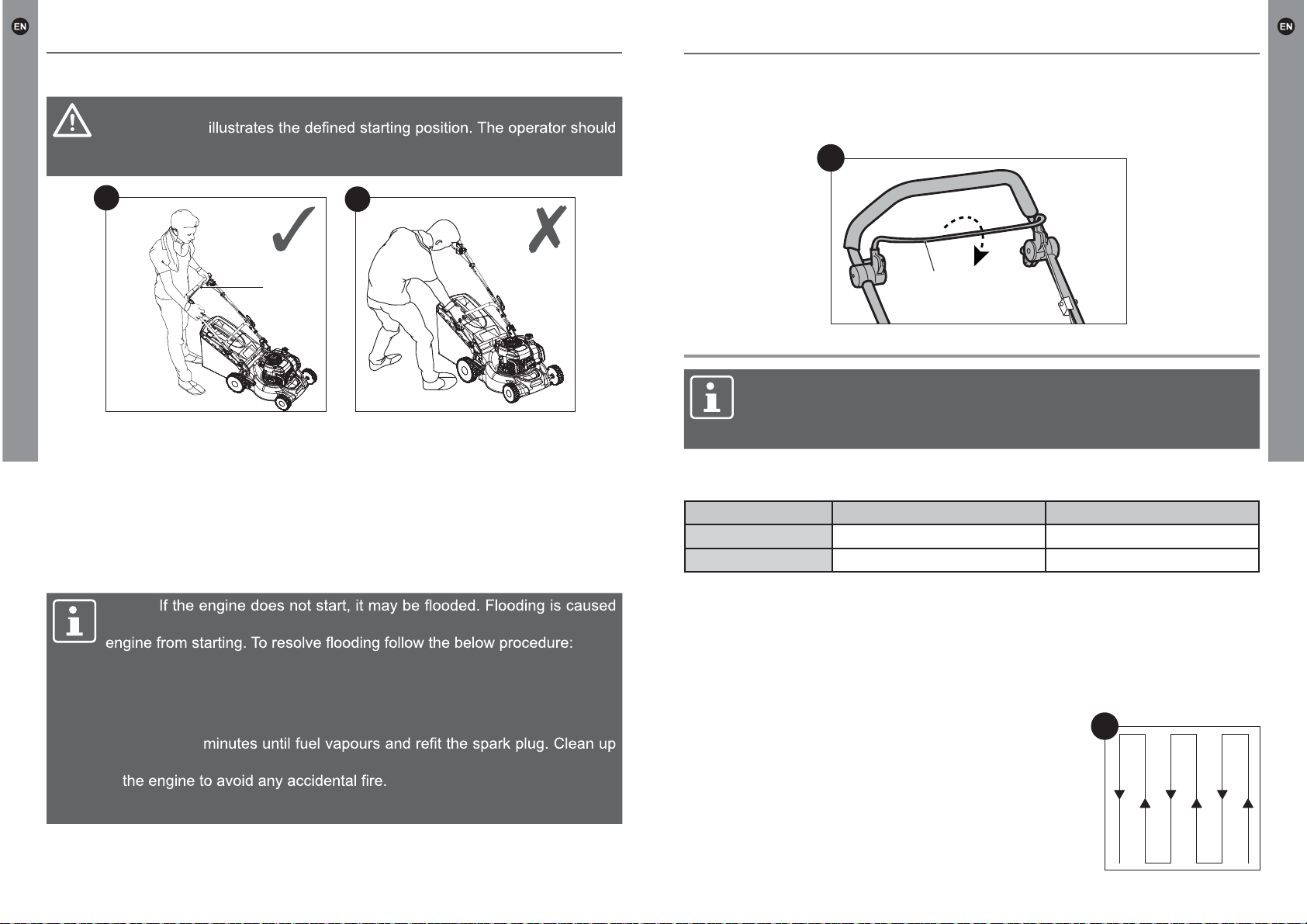

WARNING! The starting position should be as described in the instruction
manual. Fig. A
start the engine behind the handle (1). Do not start the engine while standing
on the side of the product as shown on Fig. B.
AB
1
Warm start
1. Pull the brake clutch (2) towards the handle (1) and hold it in position (Fig. 22).
2. Stand behind the handle (1).
3.
Place the recoil starter handle (23) onto the hook (22) located on the right-hand
side of the upper handle bar (3) (Fig. 24).
4.
Pull the recoil starter handle (23) lightly until you feel resistance then pull it rapidly.
Do it repeatedly until the engine starts (Fig. 23).
5. During operation rest the recoil starter handle (23) onto the hook (22) (Fig. 24).
NOTE:
by too much fuel injected into the combustion chamber and can prevent the
1. Remove the spark plug located under the spark plug connector (13) and
dry it - see the separate operator’s manual of the BRIGGS&STRATTON
engine (28).
2. Wait for 10
any spilt fuel and move the product at least3metres away before starting
3. Start the engine.
OperationOperation

34 35
MLMP300H40 MLMP300H40
In more detail . . . In more detail . . .
Cleaning
1. Clean the product with a slightly damp cloth and mild soap. Use a brush for areas
that are hard to reach.
2. In particular, clean the air vents (8) after every use with a cloth and brush.
3. Remove stubborn dirt with high pressure air (max. 3 bar).
4.
Clean the underbody and cutting means (24) using the water hose connector (12).
NOTE: Do not use chemical, alkaline, abrasive or other aggressive detergents
or disinfectants to clean this product as they might be harmful to its surfaces.
Maintenance
Before and after each use, check the product and accessories for wear and damage.
If required, exchange them for new ones as described in this instruction manual.
Observe the technical requirements.
WARNING! It is required to tip the product when performing the maintenance.
explosion.
NOTE: Always empty the fuel tank and keep the spark plug upside down.
(10a)/spark
After use
1. Stop the engine, disconnect the spark plug connector (13) and let the product cool.
2. Check, clean and store the product as described in the maintenance table.
6. cut a row or two around the circumference of the bed.
7. Pay particular attention when changing direction.
8. Empty the grass catcher (20) regularly.
WARNING! Extensive vibration of the product during operation is an indication
of damage! Stop the engine immediately. The product should be promptly
inspected and repaired!
The golden rules for care
DANGER! Proper maintenance is essential for safe and trouble free operation.
Improper maintenance, or failure to address a problem instantly can cause
a malfunction which can result in serious injury or even death.
WARNING! Stop the engine, disconnect the spark plug connector (13) and
let the product cool before performing inspection, maintenance and cleaning
work!
Do not touch the rotating blade (24).
1. Keep the product clean. Remove debris after each use and before storage.
2. Regular and proper cleaning helps to ensure safe operation and prolongs the life
of the product.
3. Inspect the product before each use for worn and damaged parts. Do not operate
an authorised service centre for repair before using the product again.
WARNING! Only perform repairs and maintenance work according to these
Operation / Care and maintenance Care and maintenance

36 37
MLMP300H40 MLMP300H40
In more detail . . . In more detail . . .
Underbody and cutting means
WARNING! Wear protective gloves when working on the cutting means
(24) and close to it! Use proper tools to remove debris, e.g. a wooden stick!
Never use your bare hands!
Always use original spare parts for replacement. The cutting means (24)
must be replaced by an identical type with the reference number
Do not attach any other type of cutting means (24) !
The replacement of the cutting means (24) should be done by an experienced
operator! Rework or sharpening blades is not recommended unless it is done
NOTE: We strongly recommend jacking the product when performing
inspection and work on the cutting means (24). Avoid tilting the product in
order to prevent fuel and oil leakages.
1.
Keep the underbody and cutting means (24) clean and free of debris. Remove
clippings from the rear discharge chute (25).
2.
Check all nuts and bolts periodically for tightness before the operation. After
prolonged use, especially in sandy soil conditions, the cutting means (24) will
reduced, and the cutting means (24) should be replaced.
3.
Keep the cutting means (24) sharp to ensure a good cutting performance. Replace
a worn or damaged cutting means with a new one of the same type or have it
4. If jacking the product is not possible, tilt it to the right side so that the fuel tank
cap (9) side is up. This helps to prevent fuel leakage and harder starting due to
5. Loosen the hex bolt (24e) anti-clockwise and remove it together with the
24d), washer (24c) cutting means (24), and ring (24b) (Fig. 27).
6.
Replace the cutting means (24) with a new one of the same type. Slide the ring
(24b) into the slot on the spindle (24a 24),
24d) and hex bolt (24e). Tighten the hex bolt clockwise
with 40-45 Nm force to ensure safe operation of the product (Fig. 27).
DANGER! If the cutting means (24) are not torqued properly, they could
become loose and be thrown from the product and seriously hurt or kill the
operator or bystanders.
Maintenance table with schedules
Part To do Before/
after
each
use
First
month
or
5 hours
Every
3 months
or
25 hours
Every
6 months
or
50 hours
Every
year
or
100 hours
Every
2 years
or
250 hours
Engine oil check x
replace x
check x clean x replace x
Spark plug
check/adjust x clean x replace x
Spark plug cap clean x
Fuel tank clean x Fuel tube clean Every 2 years (replace if necessary) Cutting means replace Replace the cutting means (24) after 50 hours of mowing, or 2 years whichever is
sooner regardless of condition.
Care and maintenance Care and maintenance
DAYE 2105200264.

38 39
MLMP300H40 MLMP300H40
In more detail . . . In more detail . . .
12
28
3.
4. When the grass clippings stop coming out of the underbody, stop the engine.
5.
Turn off the water supply and detach the water hose from the water hose connector
(12).
6. Start the engine and let it run for 2 minutes to dry the underbody.
Grass catcher
1.
Inspect the grass catcher (20
2. Clean the grass catcher (20) after operation using water.
3. Let the grass catcher (20) dry thoroughly before storing.
Brake wire
Check the performance of the brake wire (5
to adjust it if necessary.
WARNING! Do not use the product with a defective or loose wire!
NOTE: Replace the cutting means (24) after 50 hours of mowing, or2years
whichever is sooner regardless of condition. If the cutting means (24) is
cracked or damaged, replace it immediately.
7.
Lubricate the cutting means (24) after each use to prolong their life span. Apply
lubrication oil/grease along the edges of the cutting means (24).
24a
24b
24
24d
24e
24c
Torque wrench
(40 - 45 Nm)
27

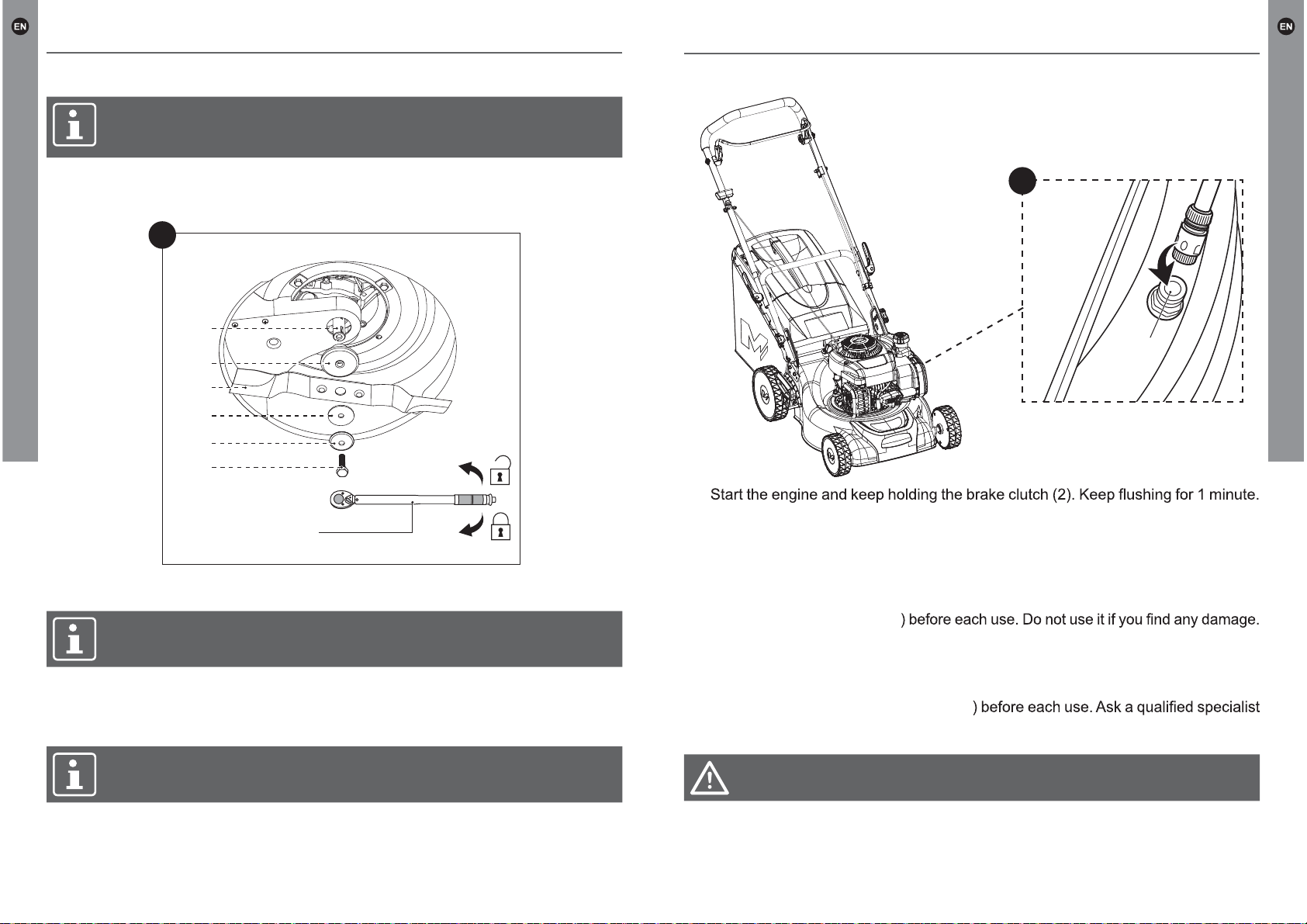

Underbody and cutting means cleaning
NOTE: Do not use pressure washer for cleaning. It may force water to enter
the vital areas of the product.
1. Set the cutting height to the lowest position using the lever (17).
2.
Connect a water hose with a quick connector to the water hose connector (12)
(Fig. 28). Turn on the water supply.
NOTE: A quick connector must be used to connect the water hose and the
connector (12).
Care and maintenanceCare and maintenance
