Mac allister Solo MLM3641-Li User manual

Original Instructions_MNL_MLM3641-Li_V1_211112
WARNING: Read the instructions before using the product!
EN
Cordless lawnmower
36V 41cm SOLO
MLM3641-Li

EN
02
Let’s
Getting started...
In more detail...
get started...
Safety information

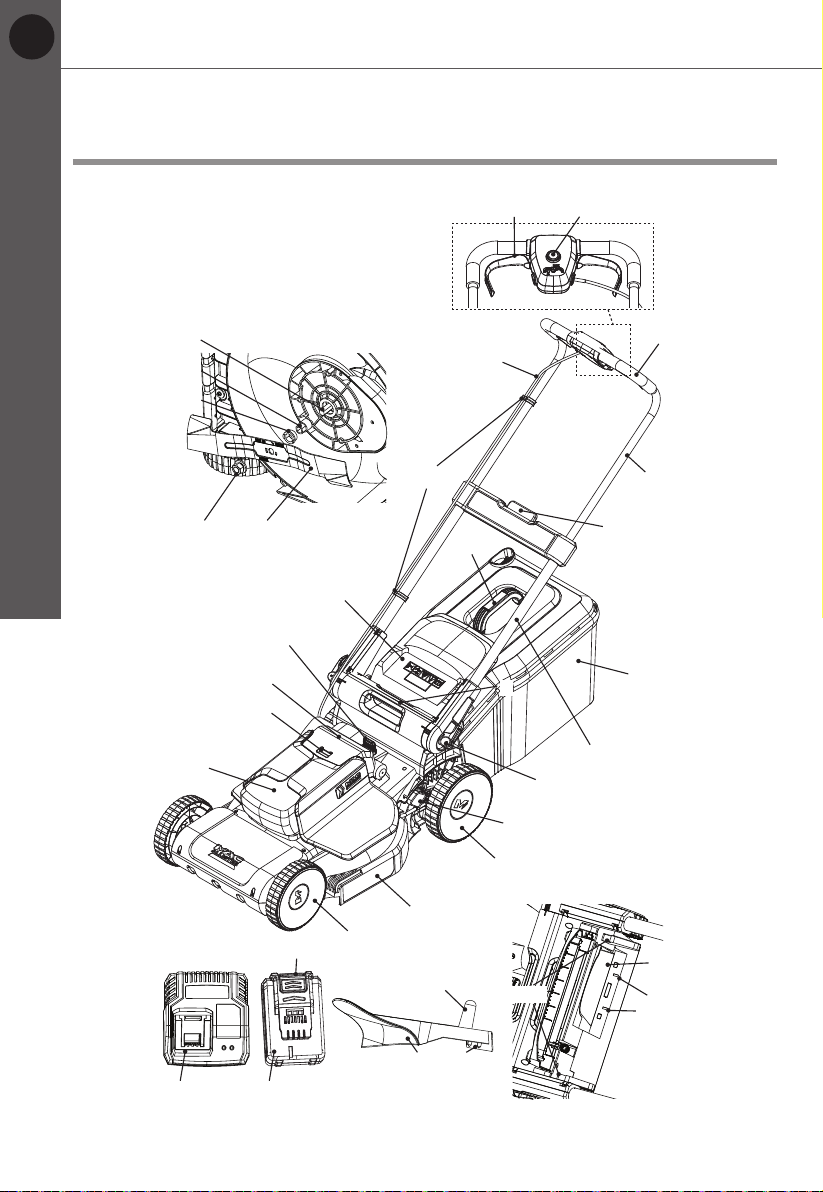

Your product
Before you start
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Guarantee
Technical specications
Declaration of conformity
02
03
14
15
21
22
26
29
32
33
34
36
38
These instructions are for your safety. Please read through them thoroughly
before use and retain them for future reference.

EN
03
Getting started...
MLM3641-Li by MacAllister Safety information
Safety warnings
1. This product is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the product by a
person responsible for their safety.
2. Local regulations may restrict the age of the operator.
3. Children should be supervised to ensure that they do
not play with the product.
4. Cleaning and user maintenance shall not be made by
children without supervision.
1. Read the instructions carefully. Be familiar with the
controls and the proper use of the product.
2. Never allow children, persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge or people unfamiliar with these instructions to
use the product. Local regulations may restrict the age
of the operator.
Electrically powered lawnmower safety warnings
Training
IMPORTANT: Read carefully before use.
Keep for future reference.
WARNING! When using the product the safety
rules must be followed. For your own safety and
that of bystanders please read these instructions
before operating the product. Please keep the
instructions safe for later use.

EN
04
Getting started...
MLM3641-Li by MacAllister
3. Never mow while people, especially children, or pets
are nearby.
4. Keep in mind that the operator or user is responsible
for accidents or hazards occurring to other people or
their property.
Preparation
1. While mowing, always wear substantial footwear
and long trousers. Do not operate the product when
barefoot or wearing open sandals. Avoid wearing
clothing that is loose tting or that has hanging cords
or ties.
2. Thoroughly inspect the area where the product is to be
used and remove all objects which can be thrown by
the product.
3. Before using, always visually inspect to see that the
cutting blade, cutting blade bolts and cutting blade
assembly are not worn or damaged. Replace worn or
damaged cutting blades and bolts in sets to preserve
balance. Replace damaged or unreadable labels.
4. CAUTION! Do not touch a rotating cutting blade.
Operation
1. Operate the product only in daylight or in good articial
light.
2. Avoid operating the product in wet grass, where
feasible.
3. Always be sure of your footing on slopes.
4. Walk, never run.
5. Mow across the face of slopes, never up and down.
6. Exercise extreme caution when changing direction on
slopes.
7. Do not mow excessively steep slopes.
Safety warnings
Safety information

EN
05
Getting started...
MLM3641-Li by MacAllister
8. Use extreme caution when reversing or pulling the
product towards you.
9. Stop the cutting blade(s) if the product has to be
tilted for transportation when crossing surfaces other
than grass, and when transporting the product to and
from the area to be mowed.
10. Never operate the product with defective guards
or shields, or without safety devices, for example
deectors and/or grass catchers, in place.
11. Start the product or switch on the product carefully
according to instructions and with feet well away from
the cutting blade(s).
12. Do not tilt the product when switching on the motor,
except if the product has to be tilted for starting. In this
case, do not tilt it more than absolutely necessary and
lift only the part, which is away from the operator.
13. Do not start the product when standing in front of the
discharge chute.
14. Do not put hands or feet near or under rotating parts.
Keep clear of the discharge opening at all times.
15. Do not transport the product while the power source
is running.
16. Never pick up or carry the product while the safety
key (16) is inserted.
17. Stop the machine, and remove the disabling device.
Make sure that all moving parts have come to a
complete stop
- whenever you leave the product,
- before clearing blockages or unclogging chute,
- before checking, cleaning or working on the product,
- after striking a foreign object. Inspect the product
for damage and make repairs before restarting and
operating the product;
Safety information

EN
06
Getting started...
MLM3641-Li by MacAllister
18. If the product starts to vibrate abnormally (check
immediately)
- inspect for damage,
- replace or repair any damaged parts,
- check for and tighten any loose parts.
Maintenance and storage
1. Disconnect the product from the power supply (i.e.
remove the battery pack and / or safety key) before
checking, cleaning or working on the product and
when it is not in use.
2. Disconnect the product from the power supply (i.e.
remove the battery pack and / or safety key) before
carrying out maintenance or cleaning work.
3. Improper maintenance will lead to malfunction/failure
of the product.
4. Inspect and maintain the product regularly. Keep all
nuts, bolts and screws tight to be sure the product is
in safe working condition.
5. Check the grass catcher frequently for wear or
deterioration.
6. Be careful during adjustment of the product to
prevent entrapment of the fingers between moving
blades and xed parts of the product.
7. Always allow the product to cool before storing.
8. When servicing the blades be aware that, even
though the power source is switched off, the blades
can still be moved.
9. Replace worn or damaged parts for safety. Use only
genuine replacement parts and accessories.
10.Wear strong work gloves when removing and
reassembling the cutting blade.
Safety warnings
Safety information

EN
07
Getting started...
MLM3641-Li by MacAllister
11.Have the product repaired only by an authorised
service centre or similar qualied specialist.
12.When not in use, store the product out of the reach of
children.
Safety warnings for battery pack
1. Recharge the battery pack only with the charger
specified by the manufacturer. A charger that is
suitable for one type of battery pack may create a
risk of re when used with another battery pack.
2. Use the product only with specically designated
battery pack. Use of any other battery packs may
create a risk of injury and re.
3. When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a re.
4. Under abusive conditions, liquid may be ejected
from the battery pack; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally see medical help. Liquid
ejected from the battery may cause irritation or burns.
5. Do not use battery pack that is damaged or
modied. Damaged or modied batteries may exhibit
unpredictable behaviour resulting in re, explosion or
risk of injury.
6. Do not expose a battery pack or tool to fire or
excessive temperature. Continuous intense sunlight,
fire or other heat sources may cause an increased
danger of explosion.
7. Batteries can explode in the presence of a source
of ignition, such as a pilot light. To reduce the risk
of serious personal injury, never use any cordless
Safety information

EN
08
Getting started...
MLM3641-Li by MacAllister
product in the presence of an open ame. An exploded
battery can propel debris and chemicals. If exposed,
ush with water immediately.
8. Follow all charging instructions and do not charge
the battery pack outside the temperature range
specified in the instructions. Charging improperly
or at temperatures outside the specified range may
damage the battery and increase the risk of re.
9. Do not charge battery in a damp or wet location.
Following this rule will reduce the risk of electric shock.
10. Longer life and better performance can be
obtained if the battery is charged when the air
temperature is between 18°C and 24°C. Do not
charge the battery in air temperature below 5°C or
above 40°C. This is important as it can prevent serious
damage to the battery.
11. Remove the battery pack from the product when
not in use.
12. Don’t maintain the battery pack on the charger
when not in use.
13. After extended periods of storage, it may be
necessary to charge and discharge the battery pack
several times to obtain the maximum performance.
14. Do not disassemble the battery and avoid
mechanical damage to the battery. Risk of short
circuit and fumes may be emitted. Ensure fresh air
and seek medical assistance in the event of discomfort.
15. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
16. When disposing of battery pack, keep the battery
pack of different electrochemical systems separate
from each other.
Safety warnings
Safety information

EN
09
Getting started...
MLM3641-Li by MacAllister
Vibration and noise reduction
To reduce the impact of noise and vibration emission,
limit the time of operation, use low-vibration and
low-noise operating modes as well as wear personal
protective equipment.
Take the following points into account to minimise the
vibration and noise exposure risks:
1. Only use the product as intended by its design and
these instructions.
2. Ensure that the product is in good condition and well
maintained.
3. Use correct cutting attachments for the product and
ensure they are in good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these
instructions and keep it well lubricated (where
appropriate).
6. Plan your work schedule to spread any high vibration
tool use across a longer period of time.
Emergency
Familiarise yourself with the use of this product
by means of this instruction manual. Memorise the
safety directions and follow them to the letter. This
will help to prevent risks and hazards.
1. Always be alert when using this product, so that
you can recognise and handle risks early. Fast
intervention can prevent serious injury and damage
to property.
2. Switch the product off and remove the battery
pack if there are malfunctions. Have the product
checked by a qualified professional and repaired, if
necessary, before you operate it again.
Safety information

EN
10
Getting started...
MLM3641-Li by MacAllister
Residual risks
Even if you are operating this product in accordance
with all the safety requirements, potential risks of
injury and damage remain. The following dangers
can arise in connection with the structure and design
of this product:
1. Health defects resulting from vibration emission if the
product is being used over long periods of time or not
adequately managed and properly maintained.
2. Injuries and damage to property due to broken
attachments or the sudden impact of hidden objects
during use.
3. Danger of injury and property damage caused by
ying objects.
Safety warnings
WARNING! This product produces an
electromagnetic eld during operation! This eld
may under some circumstances interfere with
active or passive medical implants! To reduce
the risk of serious or fatal injury, we recommend
persons with medical implants to consult their
doctor and the medical implant manufacturer
before operating this product!
Safety information

EN
11
Getting started...
MLM3641-Li by MacAllister
Symbols
Safety information
On the product, the rating label and within these instructions you will nd among
others the following symbols and abbreviations. Familiarise yourself with them
to reduce hazards like personal injuries and damage to property.
VVolt, (direct current voltage) mAh Milliampere per hour
/min or Per minute °C Degree Celsius
min-1
g Gram kg Kilogram
mm Millimetre m Metre
cm Centimeter l Litre
dB(A) Decibel (A-rated) m/s² Metres per second squared
Lock / to tighten or secure. Unlock / to loosen.
Read the instruction Note / Remark.
manual.
Caution / Warning.
IPX4 Protection against solid foreign bodies as well as against splashed
water from all directions.
xxWyy Manufacturing date code; year of manufacturing (20xx) and week of
manufacturing (Wyy)
Wear hearing protection. Wear eye protection.
Wear a dust mask. Wear protective gloves.
Wear protective, slip-resistant footwear.
Wear tight-tted protective clothes.
Switch the product off and remove battery pack before assembly,
cleaning, adjustments, maintenance, storage and transportation.
This product is of protection class III.
Mow across the face of slopes, never up and down.

EN
12
Getting started...
MLM3641-Li by MacAllister
Symbols
Inspect the area where the product is to be used and remove all
objects which can be thrown by the product. If objects are hidden
while operating stop the motor and remove the object.
Objects thrown by the product could hit the user or other bystanders.
Always ensure that other people and pets remain at a safe distance
from the product when it is in operation. In general, children must not
come near the area where the product is.
Cutting blade continues to rotate after the product is switched off.
Wait until all machine components have completely stopped before
touching the product.
Pay special attention when working on the cutting blade!
Beware of sharp blades. Blades continue to rotate after the motor is
switched off - Remove disabling device before maintenance.
Keep hands and feet away from sharp rotating parts – danger of injury!
When cleaning, repairing, or inspecting, make certain the cutting
blade and all mowing parts have stopped.
Grass catcher is ready for grass collection.
Grass catcher is full, empty it.
Guaranteed sound power level value in 89 dB.
WEEE symbol. Waste electrical products should not be disposed of
with household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.
Crossed out dust bin. Batteries and battery packs should not be
disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or local store for recycling advice.
Do not dispose of battery packs in rivers or immerse in water.
Do not dispose of battery packs in re. They will explode and cause
injury.
Safety information
89

EN
13
Getting started...
MLM3641-Li by MacAllister
Do note expose battery packs to heat in excess of 40 ºC.
Do not charge or store the battery pack in temperatures below 5 °C
(41 °F) and above 40 °C (104°F).
The product complies with the applicable European directives and an
evaluation method of conformity for these directives was done.
UK Conformity Assessed.
Safety information

EN
14
Getting started...
MLM3641-Li by MacAllister
Your product
Your product
2
4
5
6
6a
7
8
9
10
11
12
13
14
15a
15
16
17
18
19
12e 12d
12c
12b
12a
23 22
22c
21a
21 21b
20a
20
20b
13

EN
15
Getting started...
MLM3641-Li by MacAllister
1. Safety switch button
2. Grip handle
3. Start lever (x2)
4. Upper handle bar
5. Lock button for
handle height
6. Grass catcher
a. Carry handle
b. Top cover*
c. Rubber clip (x3)*
d. Supporting rod*
e. Hatch*
7. Lower handle bar
a. Indication line (x3)*
8. Transport handle
a. Indicator*
9. Clamp lever (x2)
10.Lever for cutting
height adjustment
11. Rear wheel (x2)
12.Cutting blade
compartment
a. Spindle
b. Bushing
c. Flange
d. Cutting blade
e. Hex nut
13.Front wheel (x2)
14.Motor housing
15.Battery cover
a. Groove
b. Electrical
contacts*
c. Slot*
16.Safety key
17. Deector guard
18.Wire clip (x2)
19.Inter-connection cord
20.Rear discharge chute
a. Hook (x2)
b. Slot (x2)
21.Mulching insert
a. Handle
b. Spigot (x2)
22.Battery pack
a. Battery capacity
indicators*
b. Battery capacity
button*
c. Release button
23.Charger
NOTE: Parts marked with * are not shown in this overview. Please
refer to the respective part in the instruction manual.
WARNING! The product and the packaging are not children’s toys!
Children must not play with plastic bags, sheets and small parts!
There is a danger of choking and suffocation!
Unpacking
1. Unpack all parts and lay them on a at, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If
you nd that parts are missing or show damage do not use the product but
contact your dealer. Using an incomplete or damaged product represents a
hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
Your product / Before you start

EN
16
Getting started...
MLM3641-Li by MacAllister
You will need
Assembly
(items not supplied)
Suitable personal protective equipment
Suitable wrench
(items supplied)
Grass catcher (6)
Cutting blade (12d)
Mulching insert (21)
Battery pack (22)
Charger (23) and its manual
NOTE: The accessories required depend on the intended application.
Ask your dealer for advice.
NOTE: Take care of small parts that are removed during assembly or
when making adjustments. Keep them secure to avoid loss.
WARNING! The product must be fully assembled before operation!
Do not use a product that is only partly assembled or assembled with
damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the product to battery pack (22) before it is completely
assembled!
Handle assembly
The handle assembly of the upper handle bar (4) and the lower handle bar (7)
is npre-installed on the transport handle (8).
1. Unfold and loosen the clamp levers (9) anti-clockwise on both sides of the
lower handle bar (7), but do not remove them (Fig. 1, step 1).
2. Hold the grip handle (2) with one hand and unfold the handle assembly (Fig.
1, step 2). Make sure that the inter-connection cord (19) run on the upper
side of the upper handle bar (4) and the lower handle bar (7).
3. Secure the handle assembly by folding up the clamp lever (9) towards the
transport handle (8). If clamp lever (9) cannot be folded, loosen it and fold
again. If it is too loose, tighten it by turning the clamp lever (9) clockwise (Fig.
2).
Before you start

EN
17
Getting started...
MLM3641-Li by MacAllister
NOTE: For rst assembly, secure the handle assembly with the clamp
lever (9) in the middle position of the tilt adjustment mechanism by
aligning the indication line (7a) with the indicator (8a) of transport
handle (8). Ensure the handle assembly is assembled on the same
height level on both side.
4. Press down the lock button (5) and hold it in positon (Fig. 3, step 1), then
grasp the grip handle (2) to pull out the upper handle bar (4) (Fig. 3, step 2).
5. Release the lock button (5) and continue to pull out the upper handle bar (4)
all the way until an audible click is heard.
6. Secure the inter-connection cord (19) with two wire clips (18) (Fig. 4). Pull
the inter-connection cord (19) to avoid contact with the rear wheel (11) if
necessary.
Before you start
WARNING! Make sure the clamp levers (9) are properly tightened
before using the product.
9
7
4
2
9
8
2.
1.
1.
Fig. 1
7
4
2
19
9
9
8
8a
7a
Fig. 2
5
4
2
2.
1.
Fig. 3
18
19
11
Fig. 4
Fig. 1
Fig. 4Fig. 3
Fig. 2

EN
18
Getting started...
MLM3641-Li by MacAllister
Assembly
4. Open the deector guard (17) and hold it in position (Fig. 7, step 1).
5. Carry the grass catcher (6) by its carry handle (6a).
6. Align the support with the hooks (20a) and hang the grass catcher onto it
(Fig. 7, step 2).
7. Carefully release the deector guard (17) afterwards.
Grass catcher
1. Clip the three rubber clips (6c) to the supporting rod (6d) of the grass catcher (6)
(Fig. 5).
2. The carry handle (6a) is already preassembled on the top cover (6b) and its
position is rotatable to t the intended use (Fig. 6).
3. The grass catcher (6) is ready for use.
WARNING! Do not attempt to use the product without the grass catcher
attached – danger of flying objects! The motor must be switched off
and the blade must have stopped rotating before you remove the grass
catcher. The grass catcher must be fully assembled with the top part,
bottom part and collection tongue all in position before rst use.
Before you start
6d
6c
Fig. 5
6b
6a
Fig. 6
20a
6a
17
1.
2.
Fig. 7
Fig. 7
6d
6c
Fig. 5
6b
6a
Fig. 6
20a
6a
17
1.
2.
Fig. 7
Fig. 6Fig. 5

EN
19
Getting started...
MLM3641-Li by MacAllister
NOTE: The mulching insert (21) must be removed if the grass catcher
(6) is used.
Before you start
Battery pack
Attaching the battery pack
1. Remove the safety key (16) and keep it avoid loss (Fig. 8, step 1).
2. Hold the groove (15a) and open the battery cover (15) (Fig. 8, step 2).
3. Slide the battery pack (22) into the slot (15c) of battery compartment (Fig. 9,
step 1).
4. Make sure that the electrical contacts (15b) are fully inserted into the battery
pack and that it snaps in place with a click.
5. The battery pack (22) can only be installed in one direction.
6. Close the battery cover (15).
7. Reinstall safety key (16) to its slot (Fig. 9, step 2).
Releasing the battery pack
The battery pack (22) can’t be charged whilst in the mower. Remove the battery
pack (22) from its battery compartment for charging.
NOTE: Always carry the grass catcher (6) by its handle (6a).
Before hooking the grass catcher (6), check if the mulching insert (21)
is in the rear discharge chute (20). Take away the mulching insert (21)
before hooking the grass catcher (6).
1.
2.
16
15
15a
Fig. 8
1. 2.
22
16
15
15c
15b
Fig. 9
Fig. 9Fig. 8

EN
20
Getting started...
MLM3641-Li by MacAllister
Battery pack
Connect battery pack
1. Make sure the start lever (3) is released and safety switch button (1) is not
pressed.
2. Attach the battery pack (22) to the product. Ensure it snaps in place.
3. Insert the safety key (16) into the slot fully.
4. Your product is now ready to be used.
Charging the battery pack
The battery pack (22) for this product has been shipped in a low charge condition.
Charge it fully before rst use.
Refer to the charger instruction manual (MFC36) for the details.
Battery capacity indicators
The battery pack (22) is equipped with the battery capacity indicators (22a)
which are used to give an indication of the battery pack’s remaining capacity.
Press the battery capacity button (22b) to check battery capacity (Fig. 11).
The LEDs will stay lit for approximately 5 seconds.
Before you start
1. Hold the groove (15a) and open the
battery cover (15) (Fig. 10, step 1).
2. Press down the release button (22c)
to unlock the latch of battery pack (22)
(Fig. 10, step 2).
3. Slide out the battery pack (22) from
the battery compartment (Fig. 10,
step 3).
4. Close the battery cover (15).
22c
22 15
15a
1.
2.
3.
Fig. 10
22a 22b 22
76-100%
51-75%
26-50%
5-25%
<5%
Fig. 11
Fig. 11
Fig. 10
