Preparation
4
Assembly
18
Use
26
36
x2
Unleaded
Petrol
SAE10W-30
Engine Oil
[01]
[02] [03]
[04]
[06]
[05]
1
2
3
4
5
6
7
These instructions
are for your safety.
Please read them
thoroughly before
use and retain
for future reference.

Preparation
4
Safety information
01
Training
• Read the instructions carefully.
• Be familiar with the controls and the proper use of the product.
• Never allow children or people unfamiliar with these instructions to use the product. Local regulations can restrict the age of
the operator.
• Never mow while people, especially children, or pets are nearby.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
• The operators must receive proper training in the use, adjustment and operation of the product, including prohibited operations.
02
Preparation
• While mowing, always wear substantial footwear and long trousers. Do not operate the product when barefoot or wearing
open sandals.
• Thoroughly inspect the area where the product is to be used and remove all objects, such as stones, toys, sticks and wires, which
can be thrown by the product.
WARNING!
and do not smoke while refuelling.
• Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is running or when the
engine is hot.
• If petrol is spilled, do not attempt to start the engine but move the product away from the area of spillage and avoid creating any
source of ignition until petrol vapours have dissipated.
• Replace all fuel tank and container caps securely.
• Replace faulty silencers.
• Before using, always visually inspect to see that the cutting devices, cutting device bolts and cutter assembly are not worn or
damaged. Replace worn or damaged cutting devices and bolts in sets to preserve balance.
CAUTION! Do not touch rotating cutting device.
• Engine brake (brake bar (2)): Use the brake bar (2) to stop the engine. When you release the brake bar, the engine and the blade
stop automatically in a few seconds. To mow, hold the bar in the working position. Before you start to mow, check the brake bar (2)
several times to be sure that it is working properly. Ensure that the brake wire (4) can be smoothly operated (i. e. is not catching or
kinking in any way).
03
Operation
•
•
•
• Avoid operating the product in wet grass, where feasible.
• Always be sure of your footing on slopes.
5
• Walk, never run.
• Mow across the face of slopes, never up and down.
• Exercise extreme caution when changing direction on slopes.
• Do not mow excessively steep slopes near drop-offs, ditches or embankments.
• Avoid using the product in bad weather conditions especially when there is a risk of lightning.
• Use extreme caution when reversing or pulling the product towards you.
• Stop the cutting device(s) if the product has to be tilted for transportation when crossing surfaces other than grass, and when
transporting the product to and from the area to be mowed.
• in place.
• Do not change the engine governor settings or overspeed the engine.
• Do not alter or tamper with any sealed adjustments for the engine speed control.
• Do not tamper or disable any lawnmower safety systems or features.
• Ensure and regularly check that all starting interlocks and operator presence controls are properly functioning.
• Stop the product according to instructions in this manual before leaving the operator’s position and park it.
• Disengage all cutting device and drive clutches before starting the engine.
• Start the engine or switch on the engine carefully according to instructions and with feet well away from the cutting device(s).
• Do not tilt the product when starting the engine or switching on the engine, except if the product has to be tilted for starting. In this
case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator.
• Do not start the engine when standing in front of the discharge chute.
• Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
• Never pick up or carry a product while the engine is running.
• Stop the engine and disconnect the spark plug connector, make sure that all moving parts have come to a complete stop and,
the product, after striking a foreign object. Inspect the product for damage and make repairs before restarting and operating the
product, if the product starts to vibrate abnormally (check immediately).
• Stop the engine and disconnect the spark plug connector, make sure that all moving parts have come to a complete stop and,
•
• Never carelessly touch the product, you can burn yourself. While the product is in operation or shortly thereafter, its parts such as
the exhaust pipe, engine, and other surfaces are extremely hot! Pay attention to the markings on the product.
• Make sure that the air intake of the combustion engine is clear. Keep the air intake free of dust, dirt particles, gases and fumes.
Keep hands and feet away from the cutting device at all times and especially when switching on the engine.
04
Maintenance and storage
• Keep all nuts, bolts and screws tight to be sure the product is in safe working condition.
•
• Allow the engine to cool before storing in any enclosure. Clean and maintain the product before storage.
•
• Check the grass catcher frequently for wear or deterioration.
• Replace worn or damaged parts for safety.
• If the fuel tank has to be drained, this should be done outdoors.
• the preset rotary speed or the engine and product settings. Information about maintenance and repair is provided in this
user manual.
• Always replace worn or faulty parts with the genuine parts. Only use the recommended blades and spare parts by
the manufacturer.
• Improper maintenance, using non genuine parts, or removing / modifying safety components may lead to malfunction / failure of
the product and injury of operators. Many accidents are caused by poorly maintained products.

6
05
Fuel handling
• Always switch the product off, disconnect the spark plug connector and let the product cool down before refuelling it. Fuel and fuel
• There is a risk
of ignition. Remove spilled fuel carefully from all parts of the product. Any residue which may be present must have completely
volatilised, before the product is put into operation!
• Never refuel indoors.
• Never use the product in environments where there is a risk of explosion. Exhaust gases and fuel fumes are noxious. Fuel fumes
can ignite.
• or sheds. There is a risk of poisoning and explosion!
• Avoid skin contact with petrol.
• Do not eat or drink, while you are refuelling the product. If you have swallowed petrol or oil, or if petrol or oil has got into your
eyes, then seek the advice of a doctor immediately.
•
•
• Fuel vapour pressure may build up inside the fuel tank depending on the fuel used, weather conditions and the tank venting
system. To reduce the risk of burns and other personal injuries, remove the fuel cap carefully to allow any pressure build up to
release slowly.
•
• Do not smoke while operating the product, handling fuel or near fuel.
• Ensure the spark plug lead is secured; a loose lead may cause electrical arcing that could ignite combustible fumes and cause a
• Check regularly for leaks from the fuel cap and fuel lines.
• before starting the engine.
•
• Do not operate the product if it is leaking fuel. Do not remove the fuel tank cap while the engine is running.
• Use only an approved container.
•
• If any fuel spillage occurs during refuelling, use a dry rag to wipe up spills and allow remaining fuel to evaporate before turning the
engine on again.
• If you have spilt fuel on yourself or on your clothes, change your clothes and wash any part of your body that has come in contact
with fuel before turning the engine on again.
• .
• If the fuel tank is drained, this should be done outdoors.
06
Additional safety warnings for charger
• This charger is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do not play with the charger.
• Cleaning and user maintenance shall not be made by children.
• The power cord cannot be replaced. If the cord is damaged the charger should be scrapped.
• Disconnect the charger from the power supply and allow it to cool down before cleaning, maintenance, storage and transportation.
• Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock. Never
hold the charger under running water. Read the instructions provided in the chapter “Care and maintenance”.
• Before using the charger, read all the instructions and cautionary markings on the charger and battery pack.
• . Only use the charger IS12C with the
• Charge the battery pack indoors only as the charger is designed for indoor use only.
7
• Do not charge non-rechargeable batteries.
• Protect the charger against moisture and wet conditions. There is a danger of electric shock.
• Do not place any object on top of the charger as it could cause overheating.
• Do not place the charger near any heat source.
• electric shock or electrocution. If an extension cord must be used, ensure: pins on plug of extension cord are the same number,
size and shape as those plug on the charger; extension cord is properly wired and in good electrical condition; wire size is a
minimum of 16 AWG to allow forAC ampere rating of the charger.
• Do not use the charger if it has been subjected to a heavy knock, dropped or otherwise damaged in any way. Have the charger
checked and repaired by an authorised service centre.
•
• Disconnect the charger from the power supply before attempting to clean it to reduce the risk of an electric shock. Removing the
battery pack alone does not reduce the risk.
• To reduce the risk of damage to the power cord and plug, always pull the plug rather than the power cord when disconnecting the
charger from power supply.
07
Additional safety warnings for battery pack
• Do not attempt to charge the battery pack with any other charger than the one supplied. The charger and battery pack supplied
• Small leakage of liquid from the battery pack may occur under extreme usage or temperature conditions. However, if the outer
seal is broken and this leakage comes into contact with your skin, wash the affected area quickly with water. If the leakage gets in
• Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks open or cracks,
immediately discontinue its use and do not recharge it.
• Do not store or carry a spare battery pack in a pocket or toolbox or any other place where it may come into contact with metal
• Do not pierce the battery pack with nails, strike the battery pack with a hammer, step on the battery or otherwise subject it to
strong impacts or shocks.
• Protect the battery pack against heat. Do not place the battery pack in direct sunlight or use or store the battery pack inside cars
in hot weather. Doing so may cause the battery pack to generate heat, explode or ignite.
• Never try to charge a battery pack that is cracked or damaged in any other way. There is a danger of electric shock
or electrocution.
08
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes
as well as wear personal protective equipment.
• Take the following points into account to minimise the vibration and noise exposure risks: Only use the product as intended by its
design and these instructions.
• Ensure that the product is in good condition and well maintained.
• Use correct attachments for the product and ensure they are in good condition.
• Keep tight grip on the handles / grip surface.
• Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
• Plan your work schedule to spread any high vibration tool use across a longer period of time.
Emergency
Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them
to the letter. This will help to prevent risks and hazards.
• Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious
injury and damage to property.
• Stop the engine and disconnect the spark plug connector / remove the battery pack if there are malfunctions. Have the product
•
product switch is no longer accessible.

8
WARNING!
Burning fuel must be extinguished with special extinguishing
extinguisher within reach in your work area!
09
Residual risks
Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain.
The following dangers can arise in connection with the structure and design of this product:
• Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed
and properly maintained.
• Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use.
•
• Burns, if touching hot surfaces.
WARNING!
interfere with active or passive medical implants! To reduce
the risk of serious or fatal injury, we recommend persons
with medical implants to consult their doctor and the medical
implant manufacturer before operating this product!
10
Symbols
Familiarise yourself with them to reduce hazards like personal injuries and damage to property.
V~ Volt, (alternating voltage) cm Centimetre
V Volt, (direct current voltage) kg Kilogram
Hz Hertz l Litre
W Watt ml Millilitre
mA Milliampere g/kWh Gram per kilowatt per hour
mAh Milliampere-hour kg/h Kilogram per hour
kW Kilowatt °C Degree Celsius
cm³ Cubic centimetre °F Degree Fahrenheit
/min or min-1 Per minute dB(A) Decibel (A-rated)
mm Millimetre m/s² Metres per second squared
Polarity With fuse
Safety transformer Input
9
Output
Lock / to tighten or secure
Unlock / to loosen. Note / Remark
Caution / Warning. Read the instruction manual.
Wear hearing protection.
Wear eye protection.
Wear a dust mask
Wear protective gloves Wear protective, slip- resistant footwear.
mm.yyyy Manufacturing date code, year of manufacturing (yyyy) and month of manufacturing (mm)
The charger is of protection class II. That means it is equipped with enhanced or double insulation.
Do not expose the product to rain or wet conditions.
Hot surface, do not touch! High temperatures on the product’s surfaces and structural parts that could
cause burns, if they are touched. The product can also stay hot for a longer period of time after operation!
This product produces noxious exhaust fumes. If the product is used improperly, these fumes can lead to
poisoning, a loss of consciousness or death!
Noxious exhaust fumes; do not operate or start the product in indoor rooms!
Check oil level before starting.
Attach the battery pack to the charger and connect the charger to a proper power supply, if the battery pack
is discharged or has a low capacity.

10
Only refuel unleaded petrol!
Add engine oil.
H
L
with running engine.
Switch the product off and disconnect the spark plug connector before assembly, cleaning, adjustments,
maintenance, storage and transportation.
Mow across the face of slopes, never up and down.
Inspect the area where the product is to be used and remove all objects which can be thrown by
the product.
If objects are hidden while operating stop the engine and remove the object.
Keep hands and feet away from sharp rotating parts – danger of injury! When cleaning, repairing, or
inspecting, make certain the cutting device and all mowing parts have stopped. Disconnect the spark plug
cap, and keep the cap away from the plug to prevent accidental starting.
Keep hands and feet away.
Cutting device continues to rotate after the product is switched off. Wait until all machine components have
completely stopped before touching the product.
Pay special attention when working on the cutting device!
Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and
pets remain at a safe distance from the product when it is in operation. In general, children must not come
near the area where the product is.
STOP
Release the brake bar to stop the engine and blade.
Pull the drive bat to engage the wheels.
Guaranteed sound power level value in dB.
11
The product complies with the applicable European directives and an evaluation method of conformity for
these directives was done.
WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or local store for recycling advice.
Crossed out dust bin. Batteries and battery packs should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or local store for recycling advice.
Indoor use only.
Do not dispose of battery packs in rivers or immerse in water.
Do note expose battery packs to heat in excess of 49 °C. Do not charge or store the battery pack in
temperatures below 0 °C (32 °F) and above 45 °C (113 °F).
Approx. 1 h charging time

12

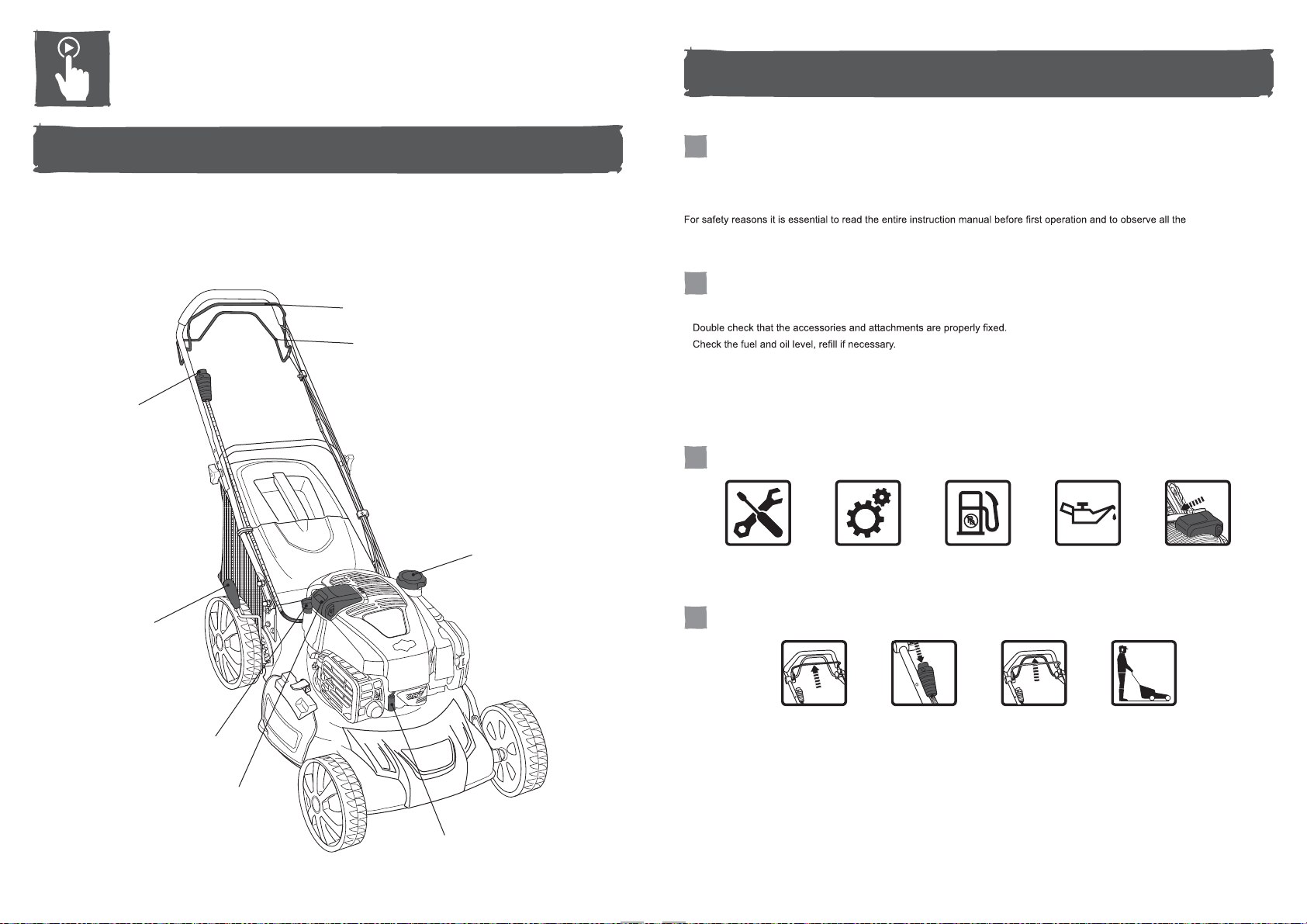

Your product
1
2
3
4
5
6
7
4
5
6
7
3
2
1
8
10
11a
9
24
22
21
20
23
20b
20a
12
11
131415
16
17
18
19
13
27
26
27a
27b
27c
27d
27
27e
27f
25
28a
28 29
30a
31
31a
31b31c
30b
30
30c
30d
32

14
Your product
1. Handle (with gripping surface) 21
2. Brake bar 22 Cord clip
3. Drive bar 23 Electric cord
4. Upper handle bar 24 START button / key
5. Brake wire 25 Rear discharge chute
6. Drive wire 26 Oil drain screw
7. Lower handle bar 27 Cutting device (blade)
a. Handle support (left & right)* a. Spindle
b. Bolt* b. Pin
c. Nut* c. Ring
d. Washer* d. Support
e. Spring washer*
8. Mounting set (x 2) f. Hex bolt
a. Fixing knob* 28 Mulching insert
b. Bolt* a. Unlock button
c. Spacer* 29 Side discharge attachment
9. Wire clip 30 Charger
10. Air vents a. Power cord with plug
11. Fuel tank b. Sliding slots
a. Cap c. Air vents
12. d. Charging status indicator
13. Wheel (RED / GREEN)
14. Spark plug connector 31 Battery pack
a. Spark plug* a. Release button (x 2)
15. b. Battery capacity indicators
16. c. Battery capacity button
a. Locking buckle* 32 Spark plug wrench
17. Battery docking port 33 Briggs & Stratton (B&S) operator´s manual*
18. Oil tank cap
19. Lever for cutting height adjustment
20. Grass catcher
a. Handle
b. Hatch
c. Hook*
d. Rod*
15
NOTE: Parts marked with * are not shown in this
overview. Please refer to the respective section in the
instruction manual.
General
Dimensions approx. 1420x550x1010
Machine mass with empty tanks and in normal approx. 31.1kg
Fuel tank capacity 800ml (cm3)
Petrol type unleaded
Engine oil capacity 470ml (cm3)
Engine oil type 4-stroke engine oil(e.g. SAE10W-30)
371g/kWh
Fuel consumption at max. engine power 0.89kg/h
Cutting device thickness 4mm
Cutting width 46 cm
Cutting height 25-75mm
Grass catcher volume 60L
Engine
Engine model B&S 575iS
Engine type air cooled, 4-stroke engine
Engine displacement 150 cm3
Rated engine speed 2800 min-1
Maximum operating engine speed (rotational frequency) 3600 min-1
Nominal power 2.2 kW
Spark plug type XC92YC
Spark plug gap 0.7 – 0.8 mm
Carburettor 596779
Battery pack
Model no. IS12B
Type Li-Ion
Capacity 1150 mAh
Voltage 10.8 V
Weight approx. 0.29 kg
Charger
Model no. IS12C
Rated input voltage, frequency 100 - 240 V~, 50-60 Hz
Rated input current 0.8 A

16
General
Rated output voltage 12.45 V
Rated output current 2 A
Protection class II
Charging time approx. 1 h
Weight approx. 0.46 kg
Sound level
Sound pressure level at operator position LpA 82.5 dB(A)
Uncertainty K 3 dB(A)
Sound power level LWA 92.4 dB(A)
Uncertainty K 1.79 dB(A)
Guaranteed sound power level LWA (acc. to 2000/14/EC
amended by 2005/88/EC) 96 dB(A)
Vibration level
Hand arm vibration ah,w 7.76 m/s²
Uncertainty K 1.5 m/s²
The sound values have been determined according to noise test code given in EN ISO 5395-1, EN ISO 5395-2 and EN ISO 4871,
using the basic standards ISO 3744 and ISO 11201.
The sound intensity level for the operator may exceed 80 dB(A) and ear protection measures are necessary.
The declared vibration value has been measured in accordance with a standard test method (according to EN ISO 5395-1 and EN
ISO 5395-2) and may be used for comparing one product with another. The declared vibration value may also be used to evaluate
the exposure for the user caused by vibration in advance.
WARNING! Depending on the actual use of the product
the vibration values can differ from the declared total.
Adopt proper measures to protect yourself against vibration
exposures. Take the whole work process including times
the product is running under no load or switched off
into consideration!
Proper measures include among others regular maintenance
and care of the product and accessories, keeping
hands warm, periodical breaks and proper planning of
work processes!
17
Unpacking
NOTE: The product is heavy, ask another person for
assistance if required.
•
• Remove all packing materials and shipping devices if applicable.
• use the product but contact your dealer. Using an incomplete or damaged product represents a hazard to people and property.
• Ensure that you have all the accessories and tools needed for assembly and operation. This also includes suitable personal
protective equipment.
WARNING! The product and the packaging are not children’s
toys! Children must not play with plastic bags, sheets and
small parts! There is a danger of choking and suffocation!
You will need
(items not supplied)
• Suitable personal protective equipment
•
• Suitable engine oil (SAE10W-30)
• Suitable fuel (unleaded petrol)
• Fuel collecting container
• Oil collecting container
• Lubrication oil / grease
• Suitable wrench
• Suitable brush
(items supplied)
• Mulching insert (28)
• Side discharge attachment (29)
• Charger (30)
• Battery pack (31)
• Spark plug wrench (32)
• Briggs & Stratton (B&S)
• operator’s manual (33)

Assembly
18
WARNING! The product must be fully assembled before
operation! Do not use a product that is only partly assembled
or assembled with damaged parts!
Follow the assembly instructions step-by-step and use
the pictures provided as a visual guide to easily assemble
the product!
Disconnect the spark plug connector (14) from the spark plug!
Remove the battery pack (31) from the battery docking port!
Reconnect them after assembly!

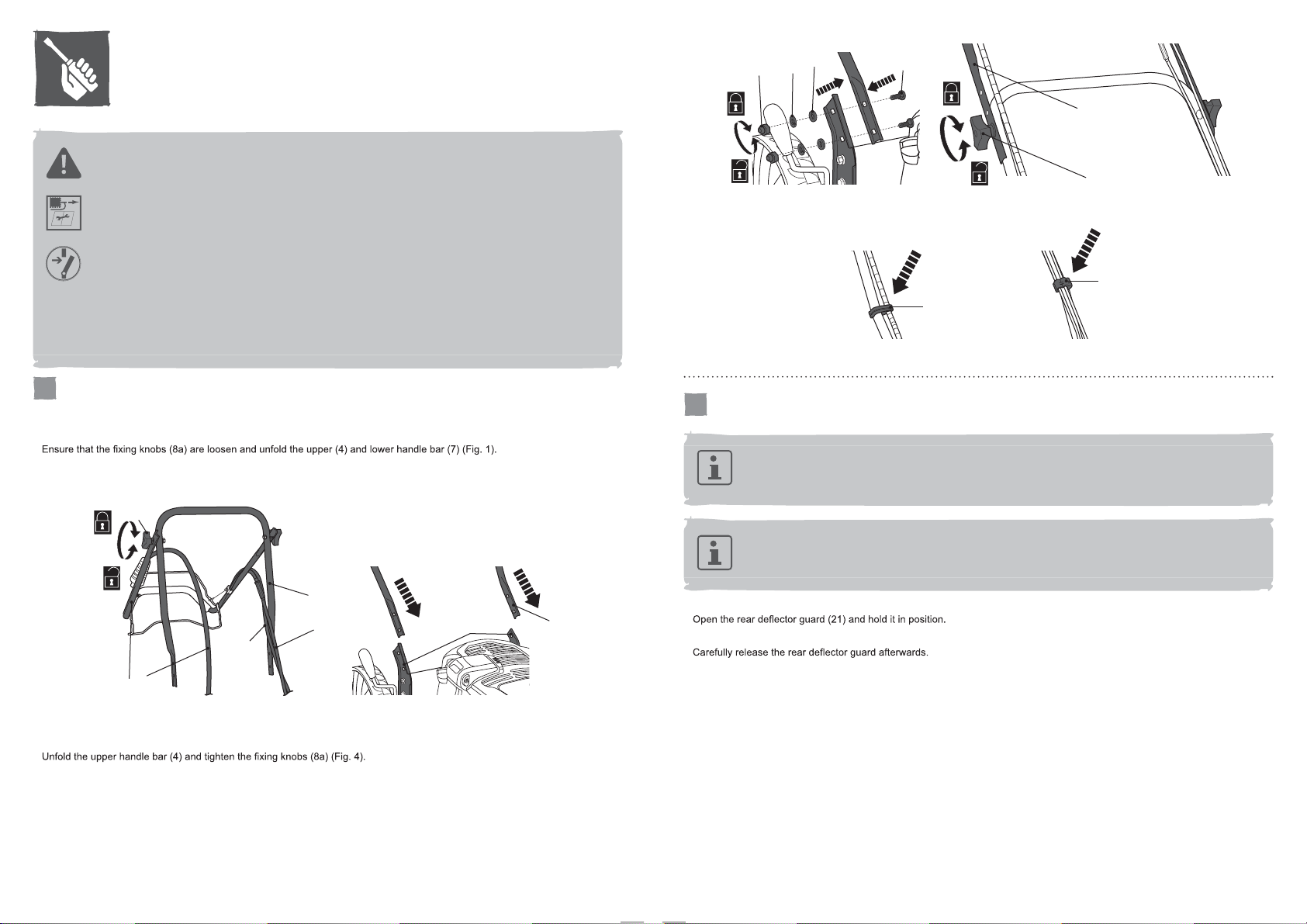

01
Handle bars
• Remove the pre-assembled mounting sets (7b, 7c, 7d, 7e) from the handle supports (7a) and keep them handy.
• Remove the protection covers from the lower handle bar (7).
•
• Make sure the wires (5, 6) and electric cord (23) run on the upper side of the handle bars (4, 7).
• Align the lower handle bar (7) with the handle supports (7a). Make sure the mounting holes in the lower handle bar are aligned
with those in the supports (Fig. 2).
Fig. 1 Fig. 2
8a
423
56
7
7
7a
• Fix the lower handle bar (7) with the mounting sets (7b, 7c, 7d, 7e) to the handle supports (7a). Tighten the nuts (7c) with a
suitable wrench afterward (Fig. 3).
•
1919
Fig. 3 Fig. 4
7b
7d
7e
7c
8a
4
• Fix the wires (5, 6) and electric cord (23) with the clips (9, 22) to both sides of the lower handle bar (7) (Fig. 5).
Fig. 5
22
9
02
Grass catcher
NOTE: Always carry the grass catcher (20) by its
handle (20a).
NOTE: Always remove the mulching insert (28) from the outlet
before hooking the grass catcher.
• Remove the protection covers from the hooks (20c).
•
• Align the hooks (20c) with the rod (20d) to hang it onto it (Fig. 6).
•

20
Fig. 6
20a
20d
20c
21
20
Battery pack
01
Attach / Release
NOTE: The battery pack needs to be woke up if it has not
been used for a while. Before attaching it to the engine, to
wake up a new battery pack, a quick charge of approximately
10 seconds is required.
• Align the battery pack (31) with the sliding slots of the battery docking port (17) and slide the battery pack in to attach it. Ensure
the release buttons (31a) snap in place (Fig. 7).
• Press the release buttons (31a), hold them in position and slide the battery pack (31) from the battery docking port (17) (Fig. 8).
Fig. 7 Fig. 8
31 17
31a
1.
1.
2.
02
Charge
21
WARNING! Always charge in a safe location away from
moisture or heat sources!
• Align and slide the battery pack (31) onto the sliding slots (30b) of the charger (30) all the way to the stop (Fig. 9).
• Connect the charger (30) to the power supply.
• The charging status indicator (RED) (30d) turns on.
• Once charging is done (this normally takes approx. 1 hour, see below “Power / charging status indicators” section for charging
status), disconnect the charger (30) from power supply.
• Remove the battery pack (31) from the charger (30) (Fig. 10).
Fig. 9 Fig. 10
30
30b
31
30
31
NOTE: It is normal for the battery pack and charger to become
warm (but not hot) during the charging process. Depending
on temperature and existing charge level, the actual charging
time may change.
WARNING! Always charge the battery before storage! It is
important to disconnect the charger from the power supply
just-operated product for approximately 15 minutes before
attempting to recharge!
03
Charging status indicators
The indicators (30d) on the charger (30) show the charger status (Fig. 11).

22
Fig. 11
30
30d
Charging status indicator
(RED) (left) Charging status indicator (GREEN) (right) Status
off off Connected to power supply (without
battery pack)
on off Charging
off on
Defective battery
off Battery pack too hot or too cold
04
Battery capacity indicators
Press the button (31c) to check the battery pack capacity (Figs. 12, 13).
Fig. 12
31c
Fig. 13
High capacityLow capacity
23
Fuel & engine oil
• This product is equipped with a 4-stroke engine. Before operation it is necessary to add proper fuel and engine oil separately.
WARNING! This product contains an instruction manual of the
engine. Service the engine with proper petrol and engine oil
as instructed in the separate engine handbook (33)!
It is important to read and understand these instructions of the
engine and the equipment!
SAVE THESE ORIGINAL INSTRUCTIONS FOR
UTURE REFERENCE!
•
•
WARNING!
• Always dispose of fuel, used oil and objects contaminated with them in accordance with local regulations.

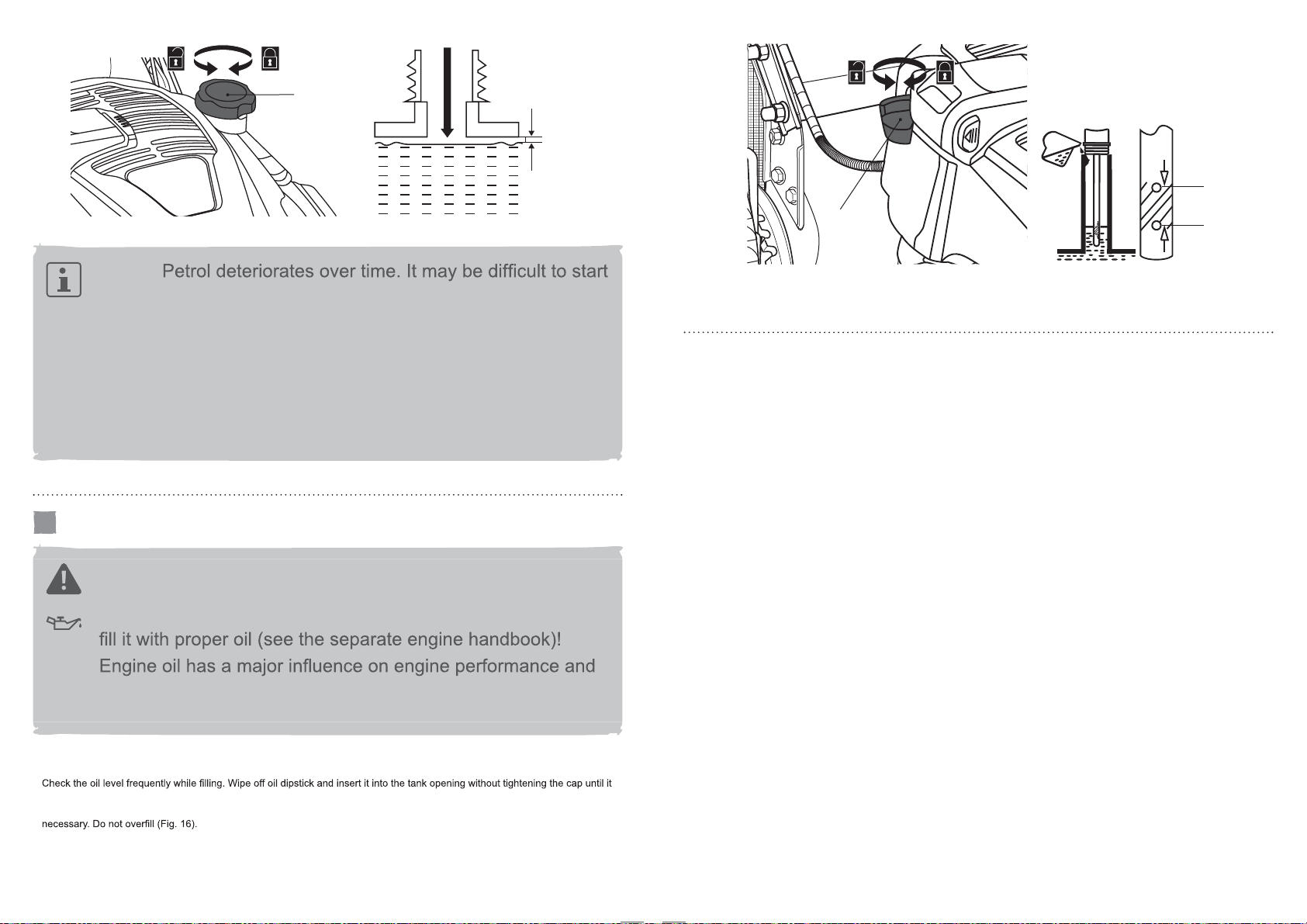

01
Fuel
NOTE: This product is not supplied with fuel! Before operating
oil separately. Never mix oil with petrol.
• Always use clean, fresh unleaded petrol. Purchase fuel in quantities that can be used within 30 days.
• Never mix oil with petrol. Avoid getting dirt, dust or water in the fuel tank.
• Unscrew and remove the fuel tank cap (11a) (Fig. 14).
• tank to allow for expansion (Fig. 15).

24
Fig. 14 Fig. 15
11a
5 mm
NOTE:
the engine if you use petrol which has been kept for more than
30 days.
Towards the end of season, it is advisable to put only as much
fuel in the tank as you need for each use, since it should be
completely used up before storing the product.
Always empty the fuel tank when storing the product for over
30 days.
• Wipe any spilled fuel with a soft cloth and reattach the fuel tank cap (11a).
02
Engine oil
WARNING! This product is not supplied with oil. However, for
manufacturing reasons it is possible that a small quantity may
be in the engine! Before operating this product it is essential to
service life. Non-detergent or 2-cycle engine oils will damage
the engine and should not be used!
• Unscrew and remove the oil tank cap (18).
• Gradually add good-quality engine oil (SAE10W-30).Allow the oil to settle.
• rests on the oil tank; and then remove the dipstick again.
• The oil level must be between the “min” and “max” markings, indicated by the two arrows (approx. 470 ml). Add more oil if
25
Fig. 16
3
4
5
6
7
18
max
min
• After adding oil, wait one minute and then recheck the oil level.
• Wipe spilled oil with a soft cloth and reattach the oil tank cap (18).

26
Use
Operating controls
1
2
3
4
5
6
7
brake bar
drive bar
fuel tank cap
spark plug
connector
battery pack
oil tank cap
lever for
cutting height
adjustment
START
button
27
Operation
01
Intended use
This petrol lawnmower MLMP575SP46 is designated with a power output of 2.2 kW.
The product is intended for mowing grass in domestic gardens only. It must not be used to mow unusually high, dry or wet grass,
e.g. pasture grass; or to shred leaves.
instructions therein.
This product is intended for private domestic use only, not for any commercial trade use. It must not be used for any purposes other
than those described.
02
General operation
• Check the product as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear.
•
•
• Always hold the product by its handle. Keep the handle dry and and free from lubricant to ensure safe support.
• Ensure that the air vents are always unobstructed and clear. Clean them if necessary with a soft brush. Blocked air vents may
lead to overheating and damage the product.
• Release the brake bar immediately if you are disturbed while working by other people entering the working area. Always let the
product come to complete stop before averting.
• Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the product.
03
Set up
Assemble Adjust Add fuel Add oil Attach
battery pack
04
Starting / stopping
Pull brake bar &
hold it in position Press START button, until engine starts Pull drive bar & hold it in position Operate

28
WARNING!
free of high grass! Clean the underside of the deck!
Keep yourself ready! The product will start moving forward
once you hold the drive bar towards the handle!
Start the engine carefully according to instructions. Keep your
feet well away from the blade!
Do not tilt the product when starting the engine!
Before starting, check if the starting key is inside the starting
button (22). If not, insert the starting key into the button.
Cold start / warm start
• Check the engine oil and fuel.
• Attach the battery pack to the engine.
NOTE:
charge of approximately 10 seconds is required.
• Stand behind the handle (1).
• Pull the brake bar (2) against the handle (1) and hold it in position with one hand (Fig. 17, step 1).
• Press the START button (24). Press it for several times, if necessary, until engine starts (Fig. 17, step 2).
• When you are ready to mow, hold the handle (1), keep the brake bar (2) squeezed and then pull the drive bar (3) towards the
handle (1) (Fig. 17, step 3). The product starts moving forward and begins mowing.
Fig. 17
START
START
1.
3.
2.
2
3
1
24
29
NOTE: If the engine does not start, the engine may be
at the wrong time and can prevent a product from starting.
Follow below procedure:
Remove the spark plug (14a) (see the separate engine
handbook) and dry the spark plug. Pull the brake bar against
the handle and hold it in position. Then press the START
button (24) for several times to drain the fuel from the
combustion chamber.
spilled fuel and move the product at least 3 metres (10’) away
the engine to cool down then start the product as described in
section “Cold start / warm start”.
Stopping
Release drive bar Release brake bar
• Release the drive bar (3) to stop the self-propelled function (Fig. 18, step 1).
• Release the brake bar (2) to stop the engine and blade (Fig. 18, step 2).
Fig. 18
START
1.
2. 2
3

30
05
Storage
Remove
battery pack Empty fuel tank Empty oil Clean and maintain Store
WARNING! This quick start provides only a short overview of
how to start and stop the product! For safe use it is essential
06
Handle adjustment
Align the mounting holes and adjust the upper handle bar (4) to a proper height according to your needs (Figs. 19, 20, 21). Secure
the connection with the mounting sets (8) afterward.
• Fig. 19, low position Fig. 20, middle position Fig. 21, high position
1
2
3
4
5
6
7
1
2
3
4
5
6
7
1
2
3
4
5
6
7
trapped (Fig. 22).
Fig. 22
8a
31
07
Brake bar
• Pull the brake bar (2) towards the handle (1) and hold it in position, when starting the engine. Keep it squeezed during operation
(Fig. 23).
• Release the brake bar (2) to stop the engine.
Fig. 23
2
1
08
Drive bar (self-propelled function)
Use the self-propelled function as assistance during operation; the rear wheels are automatically driven by the engine; you do not
need to push the product manually (Fig. 24).
• Pull the drive bar (3) towards the handle (1) to engage the wheels.
• Release the drive bar (3) to disengage the wheels.
Fig. 24
3
1
09
Grass catcher
WARNING! Always carry the grass catcher (20) by its
handle (20a)!
Indicator
•
• When the hatch (20b) is closed, the grass catcher is full and must be emptied (Fig. 26).

32
Fig. 25, open position Fig. 26, closed position
20b
20
Emptying
• Empty the grass catcher (20) frequently during use. Do not wait until it is completely full. We recommend emptying it when it is
half full.
NOTE: A full grass catcher will reduce the performance of
this product.
•
• Lift the hooks (20c) of the grass catcher off the rods (20d).
• Remove the grass clippings from the discharge chute (25) into the grass catcher (20). Use a proper tool such as a brush.
WARNING! Never use your hands or feet to remove grass
clippings from the discharge chute (25)!
• Remove the grass catcher (20).
• Empty the grass clippings onto a compost heap.
•
•
WARNING! Do not attempt to use the product without the
grass catcher attached when collecting grass – danger of
Switch the engine off and wait that the blade had come to a
complete stop before removing the grass catcher!
33
10
Mulching insert
• For mulching work use the insert (28).
NOTE: Mulching means cutting and returning the grass
clippings to the lawn in one step: the grass clippings are cut
Under normal conditions, the mulched grass will biodegrade
quickly to provide nutrients to the lawn.
• (Fig. 27).
• Ensure the unlock button (28a) snaps in place.
• Press the unlock button (28a) downward to disengage and remove the mulching insert (28) (Fig. 28).
Fig. 27 Fig. 28
28
21 25
28a
• Insert the mulching insert (28) into the rear discharge chute (25), make sure the side discharge attachment (29) and grass catcher
• Avoid mowing when the grass is wet from rain or dew. Wet grass may form clumps which interfere with the mulching action and
reduce runtime. The best time to mow grass is late afternoon when the grass is dry and the newly cut area will not be exposed to
direct sunlight.
• Set the cutting height to about one third of the grass blade length, ideally no more than 35 mm at one time for best mulching
performance. If the lawn is overgrown, it may be necessary to increase the cutting height to reduce the pushing effort and prevent
cutting height. Otherwise, make narrower cuts and mow slowly.
• Keep the housing free of built-up grass for best performance. From time to time switch the product off and wait for the blade to
come to a complete stop. Then turn the product on its side. Using an object such as a wooden stick, remove any accumulation of
grass in the blade area. Be careful of the sharp edges of the blade. Clean often after cutting new grass and after every use.
NOTE: Sometimes fuel would leak from the fuel cap and
carburettor. Keep the fuel tank at top position to avoid it.
• Certain types of grass or grass conditions may require an area to be mulched a second time to fully disperse the grass across the
pattern in any way that would cause you to mow downhill.
• Change your cutting pattern from week to week. This will help prevent matting and graining of the lawn.
Grass collection
•
• Empty the grass catcher regularly.

34
11
Side discharge attachment
• Lift and hold the locking buckle (16a) upwards to disengage it.
• hang it onto (Figs. 27, 28).
Fig. 27 Fig. 28
1
2
3
4
5
6
7
29
16 16a
1
2
3
4
NOTE: When using the side discharge function, the grass
clippings are discharged and spread across the ground.
the product.
12
Cutting height adjustment
Adjust the cutting height according to the needs of your lawn. The cutting height depends on the kind of lawn and its actual height.
When mowing high grass, start with the maximum cutting height and make a second cut with lower cutting height. New or thick
grass may require a higher cutting height and a narrower cutting path.
• Pull the lever (19) towards the wheel (13), and then move it forward or backward to the desired cutting height.
• Release the lever (19) and ensure it engages into place properly (Fig. 29).
Fig. 29
1
2
3
4
5
6
7
1.
2.
19
13
WARNING! Ensure that the lever engages between two of
the prongs!
Switch the engine off and wait until the blade had come to a
complete stop before adjusting the cutting height!
35
13
Mowing
• Make sure that the lawn is clear of stones, sticks, wire or other objects that could damage the product or its engine.
• Do not cut wet grass because it tends to stick to the underbody of the product, preventing the proper discharge of grass clippings,
and it could also cause you to slip and fall.
• Never cut off more than one-third of the total length of the grass for a healthy lawn. In the autumn, lawns should only be cut as
long as there is growth.
• Slowly push the product forward.
• Mow in slight overlapping rows. The most effective pattern for mowing lawns is straight lines along
one of the sides. This will keep the rows even and ensures that all the lawn is cut without missing
any spots (Fig. 30).
•
two around the circumference of the bed.
• Pay special attention when changing direction.
• Empty the grass catcher regularly.
• Prepare the product according to required application.
Function Grass catcher Mulching insert Side discharge attachment
Grass collection attached removed removed
Mulching removed inserted removed
Side discharge removed inserted attached
14
After use
• Switch the product off, disconnect the spark plug connector / remove the battery pack and let it cool down.
• Check, clean and store the product as described below.
Fig. 30

36
Care
WARNING! Always switch the product off, disconnect the
spark plug connector / remove the battery pack and let the
product cool down before performing inspection, maintenance
and cleaning work!
DO NOT touch a rotating blade.
• Keep the product clean. Remove debris from it after each use and before storage.
• Regular and proper cleaning will help ensure safe use and prolong the life of the product.
•
WARNING! Only perform repairs and maintenance work
according to these instructions! All further works must be
Product maintenance
Before and after each use, check the product and accessories (or attachments) for wear and damage. If required, exchange them
for new ones as described in this instruction manual. Observe the technical requirements.
WARNING! It requires to tip the product when perform the
maintenance, therefore the fuel tank must be empty or fuel
NOTE: Always empty the fuel tank and keep the spark plug
upside. Otherwise the fuel or engine oil will contaminate the
37
Underbody and cutting device
WARNING! Wear protective gloves when working on the
cutting device and close to it! Use proper tools to remove
debris, e. g. a wooden stick! Never use your bare hands!
Always use original spare parts for replacement. The cutting
263001465. Do not attach any other type of cutting device!
The replacement of the cutting device should be done by
an experienced user! Rework or sharpening blades is not
recommended unless it is done by a repair service or a
NOTE: We strongly recommend jacking the product up when
performing inspection and work on the cutting device. Avoid
tilting the product in order to prevent fuel and oil leakages.
• Keep the underbody and cutting device (27) clean and free of debris. Remove clippings from the rear discharge chute (25).
• Check all nuts and bolts periodically for tightness before operation. After prolonged use, especially in sandy soil conditions, the
cutting device will become worn and lose some of the original shape.
should be replaced.
• Keep the cutting device (27) sharp to ensure a good cutting performance. Replace a worn or damaged cutting device with a new
• device (27), support (27d), ring (27c) and pin (27b) (Fig. 33).
•
NOTE: Replace this cutting device after 50 hours mowing or
2 years whichever is sooner regardless of condition. If the
cutting device is cracked or damaged, you must immediately
replace it with a new one.
• Lubricate the cutting device (27) after each use to prolong the life span of cutting device and product. Apply light machine oil along
the edge of the cutting device.
Tighten the hex bolt clockwise with 40 Nm min,
50 Nm max. to ensure safe operation of your product.

38
27a
27b
27c
27d
27
27e
27f
Grass catcher
•
• Clean the grass catcher (20) after operation using water and mild soap.
• Let the grass catcher dry thoroughly before storing to avoid mildew.
Wires and electric cord
Check the performance of the wires (5, 6) and electric cord (23) before each use.
WARNING! Do not use the product with defective or loose
wires / electric cord!
Engine
NOTE: An instruction manual of the engine is provided with
your product. Follow the engine handbook for maintenance
and care for of engine.
Refer to the B&S operator’s manual for maintaining below parts:
•
• Spark plug
• Fuel
• Engine oil
• Carburettor
•
• Valve play
• Battery pack / charger
Product cleaning
Clean the product with a dry cloth. Use a brush for areas that are hard to reach. In particular clean the air vents (10) after every use
with a cloth and brush. Remove stubborn dirt with high pressure air (max. 3 bar).
39
NOTE: Do not use chemical, alkaline, abrasive or other
aggressive detergents or disinfectants to clean this product as
they might be harmful to its surfaces.
Check for worn or damaged parts. Replace worn parts as necessary or contact an authorised service centre for repair before using
the product again.
Spare parts / Replacement parts
The following parts of this product may be replaced by the consumer. Spare parts are available at an authorised dealer or through
our customer service.
Description
Spark plug (14a) XC92YC
Blade (27) DAYE 263001465
Charger (30) IS12C
Battery pack (31) IS12B
Repair
This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly
Storage
Switch the product off and disconnect the spark plug connector / remove the battery pack.
Clean the product as described above.
Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 °C and 30 °C.
We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to protect it
against dust.
Empty the tank if you are not going to use the product for an extended period of time (more than 30 days) and before storing it for
the winter.
Always remove the battery pack from the engine and charge it before storage.
Transport
Switch the product off and disconnect the spark plug connector / remove the battery pack.
Adjust the cutting height to the highest position as described above.
Attach transportation guards, if applicable.
Always transport the product by its handle (1).
Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
Secure the product to prevent it from slipping or falling over, loss of fuel, damage or injury.
