MadBoy REMIX-10 User manual

REMIX-10
VOL MID TREBLE
BASS MID TREBLE
BASS MID TREBLE EFFECT
EFFECT
VOL 1 VOL 2
MIC 1
MIC 2
MIC 1 MIC 2
BASS
SOURCE
AV1 AV2 51
14 3 2 2 3 4 5
KEY C ONTROL
POWER
MUSIC MICROPHONES
DIGITAL MIXER WITH KEY CONTROL
REMIX-10
OWNER’S MANUAL
WWW.MADBOY-AUDIO.COM
ENGLISH
All manuals and user guides at all-guides.com
all-guides.com

WWW.MADBOY-AUDIO.COM
2
Safety Instructions
All manuals and user guides at all-guides.com

REMIX-10 (1) USER MANUAL (1)
OWNER’S MANUAL
DIGITAL KEY CONTROL WITH MIXER
REMIX-10
WWW.MADBOY-AUDIO.COM ENGLISH
REMIX-10
VOL MID TREBLE
BASS MID TREBLE
BASS MID TREBLE ECHO VOL
ECHO VOL
VOL 1 VOL 2
MIC 1
MIC 2
MIC 1 MIC 2
BASS
SOURCE
AV1AV2 51
14 3 2 2 3 4 5
KEY CONTROL
POWER
MUSIC MICROPHONES
REMIX-10
VOL MID TREBLE
BASS MID TREBLE
BASS MID TREBLE ECHO VOL
ECHO VOL
VOL 1 VOL 2
MIC 1
MIC 2
MIC 1 MIC 2
BASS
SOURCE
AV1 AV2 51
14 3 2 2 3 4 5
KEY CONTROL
POWER
MUSIC MICROPHONES
POWER CABLE (1)

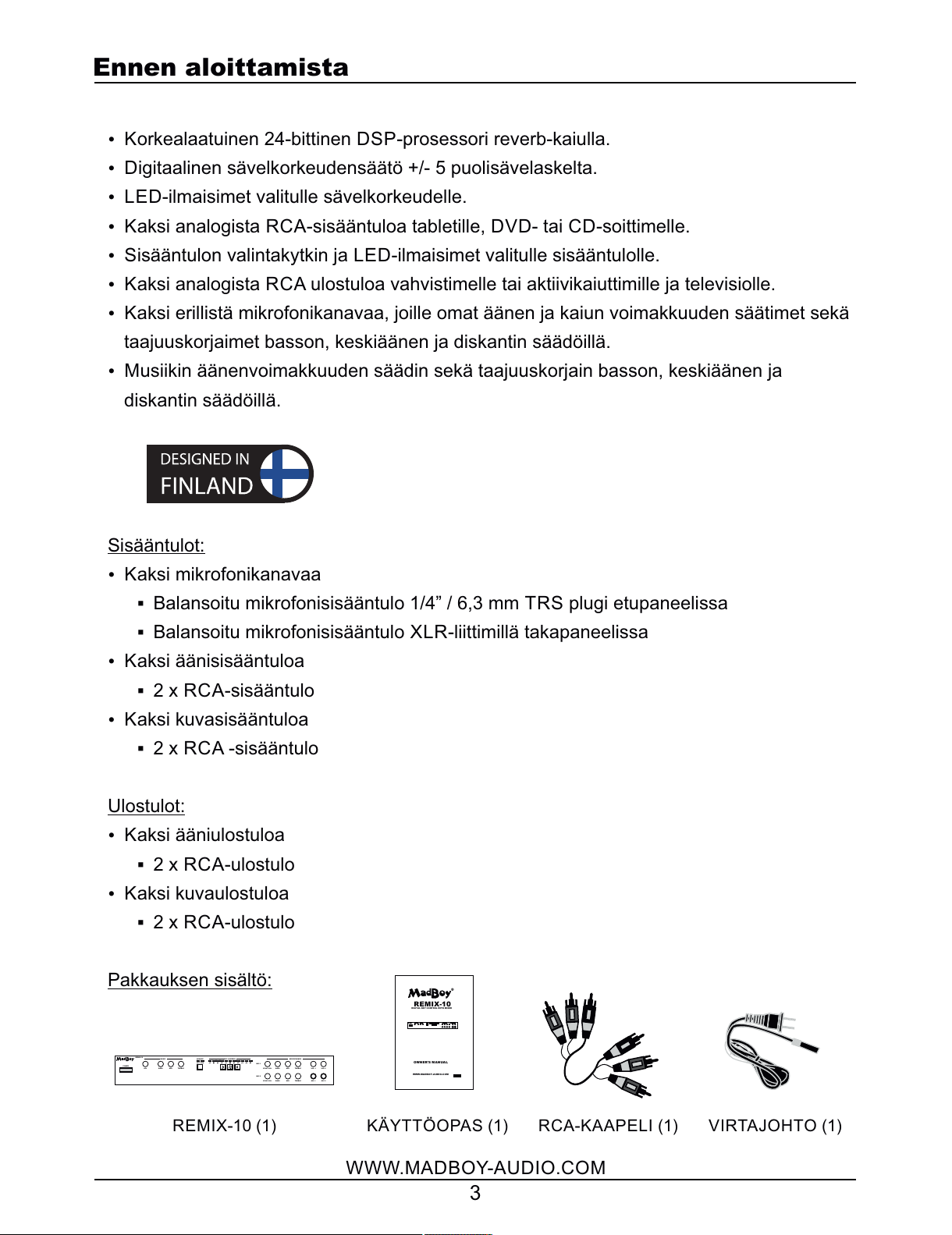

For Geeks
ŸHigh Performance 24-bit DSP Reverb Engine with adjustable effect level.
ŸDigital Key Control +/- 5 semitones.
ŸLED indicators for the currently used key.
ŸTwo analog RCA inputs for connecting DVD / CD player or Tablet.
ŸInput selection for selecting different audio source.
ŸTwo analog RCA outputs for connecting active speakers or amplifier.
ŸTwo microphone inputs with individual volume, 3-band equalizer and effect level controls.
ŸVolume control and 3-band equalizer for music
Inputs
ŸTwo microphone channels
§Balanced 1/4” / 6.3 mm TRS jacks in the front panel
§Balanced XLR connectors in the back panel
ŸTwo audio inputs
§2 x RCA inputs
ŸTwo video inputs
§2 x RCA inputs
Outputs:
ŸTwo audio outputs
§2 x RCA
ŸTwo video outputs
§2 x RCA
Package includes:
RCA CABLE (1)
WWW.MADBOY-AUDIO.COM
3
All manuals and user guides at all-guides.com

REMIX-10
VOL MID TREBLE
BASS MID TREBLE
BASS MID TREBLE EFFECT
EFFECT
VOL 1 VOL 2
MIC 1
MIC 2
MIC 1 MIC 2
BASS
SOURCE
AV1 AV2 51
14 3 2 2 3 4 5
KEY C ONTROL
POWER
MUSIC MICROPHONES
1 2 3456 7
8
#
1. POWER SWITCH: Press this switch to turn the power ON / OFF.
2. MUSIC VOLUME: For adjusting the volume of the music.
3. MUSIC EQUALIZER: Use these to boost or cut the frequencies of the music.
4. INPUT SELECTION: Press to select the input source (AV1 / AV2).
5. KEY CONTROL: For setting the key of the music:
Press button to decrease the key by one semitone.
Press button to reset the key back to normal.
Press button to increase the key by one semitone.
6. MICROPHONE CONTROLS: For adjusting the effect volume and to boost or cut the
frequencies of the microphone.
7. MICROPHONE VOLUME: For adjusting the volume of the microphone.
8. MICROPHONE INPUT (1/4" / 6.3 mm jack): Insert the microphone cable to these
inputs.
WWW.MADBOY-AUDIO.COM
4
Front Panel
Getting Started
All manuals and user guides at all-guides.com

1
POWER IN
AC 100V - 240V, 50/60Hz
AV INPUTS AV OUTPUTS
AV 1
AV 2
L R VIDEO L R VIDEO
MODEL:REMIX-10
WWW.MADBOY-AUDIO.C OM
SERIAL NO.:
MIC 1 MIC 2
BALANCED MIC INPUTS
AC VOLTAGE S ELE CTOR
230V
115V
230V
2 3 4 5
Back Panel
Getting Started
1. BALANCED MIC INPUTS (XLR): For better microphone sound, use these balanced
inputs with balanced microphone cables.
2. AV INPUTS: For connecting DVD / CD player or PC via RCA cable connection.
3. AV OUTPUTS: For connecting to active speakers or amplifier and TV.
4. AC VOLTAGE SELECTOR: For selecting AC voltage (230 V / 115 V).
NOTICE! MAKE SURE THAT THE VOLTAGE IS SET CORRECTLY FOR YOUR
REGION! WRONG VOLTAGE SETTING MAY CAUSE SERIOUS DAMAGE TO
MACHINE AND VOIDS THE WARRANTY!
5. POWER INPUT: Insert the power cable here.
WWW.MADBOY-AUDIO.COM
5
All manuals and user guides at all-guides.com

Getting Connected: Basic Connection Example
Before making any connections, make sure that power is turned OFF from all devices.
The connection can be made according to Basic Connection Example using RCA cable.
RCA cables are color-coded (white, red, yellow) to make the installation easier.
The microphones can be connected to the front panel using balanced or unbalanced 1/4"
microphone plug cable (Fig. 1) or to the back panel using balanced XLR cable (Fig. 2).
See for a detailed connection examples on the page 7-8.
NOTE! Only two
microphones can be
connected simultaneously!
Fig. 1
BALANCED OR
UNBALANCED
MICROPHONE CABLE
(XLR - 1/4" PLUG)
VOL 1 VOL 2
MIC 1 MIC 2
MIC 1 MIC 2
BALANCED MIC I NPUTS
BALANCED
XLR CABLE*
Fig. 2
AV INPUTS AV OUTPUTS
AV 1
AV 2
L R VIDEO L R VIDEO
ACTIVE
SPEAKERS TVDVD PLAYER
DVD PLAYER
Basic Connection Example
*CABLES SOLD SEPARATELY
WWW.MADBOY-AUDIO.COM
6
All manuals and user guides at all-guides.com
all-guides.com

POWER IN
AC 100V - 240V, 50/60Hz
MODEL:REMIX-10
WWW.MADBOY-AUDIO.C OM
SERIAL NO.:
AC VOLTAGE S ELECTOR
230V
115V
230V
MIC 1 MIC 2
BALANCED MIC INPUTS AV INPUTS AV OUTPUTS
AV 1
AV 2
L R VIDEO L R VIDEO
Getting Connected: Connection Examples
WWW.MADBOY-AUDIO.COM
7
1. MFP-1000 karaoke player as an audio source.
MFP-1000 BACK PANEL
VL R
AV INPUTS
AV 1
AV 2
L R VIDEO
L R VIDEO
ACTIVE
SPEAKERS /
AMPLIFIER
RL
AUDIO INPUT
RL
L R
V
TV
VIDEO INPUT
L= LEFT
= RIGHT
= VIDEO
REMIX-10 BACK PANEL
All manuals and user guides at all-guides.com

POWER IN
AC 100V - 240V, 50/60Hz
MODEL:REMIX-10
WWW.MADBOY-AUDIO.C OM
SERIAL NO.:
AC VOLTAGE S ELECTOR
230V
115V
230V
MIC 1 MIC 2
BALANCED MIC INPUTS AV INPUTS AV OUTPUTS
AV 1
AV 2
L R VIDEO L R VIDEO
SUB
L
RL R
L
R
KARAOKE O UTPUT MIXED OUTPUT
HDMI OUTPUT
SURROUND OUTPUT AV OUTPUT
CLAS S 1 LASER P RODUCT
KLASSE 1 LASER PRODUCT
LUOK AN 1 LASER LAITE
KLASS 1 LASER APARAT
MODEL:MFP-2000
WWW.MADBOY-AUDIO.COM
POWER SUPPLY ~100V-240V,
50/60Hz, <15W
SERIAL NO.:
POWER INPUT
AC ~100-240V
50/60Hz 15W
Getting Connected: Connection Examples
WWW.MADBOY-AUDIO.COM
8
1. MFP-2000 karaoke player as an audio source.
AV 1
AV 2
L R VIDEO
AV INPUTS
L R VIDEO
ACTIVE
SPEAKERS /
AMPLIFIER
RL
AUDIO INPUT
RL
L R
V
TV
VIDEO INPUT
V RL
R
L
V
L= LEFT
= RIGHT
= VIDEO
MFP-2000 BACK PANEL
REMIX-10 BACK PANEL
All manuals and user guides at all-guides.com

sleeve =
ground / shield
tip =
hot (+ve)
ring =
cold (-ve)
tip
ring
sleeve
sleeve =
ground / shield
tip =
signal
tip
sleeve
Balanced 1/4" TRS connector
Unbalanced 1/4" TS connector
Balanced XLR connector
12
3
Female Male
21
3
1
2
3
ground / shield
hot (+ve)
cold (-ve)
Pin Signal
WWW.MADBOY-AUDIO.COM
9
Microphone connectors
All manuals and user guides at all-guides.com

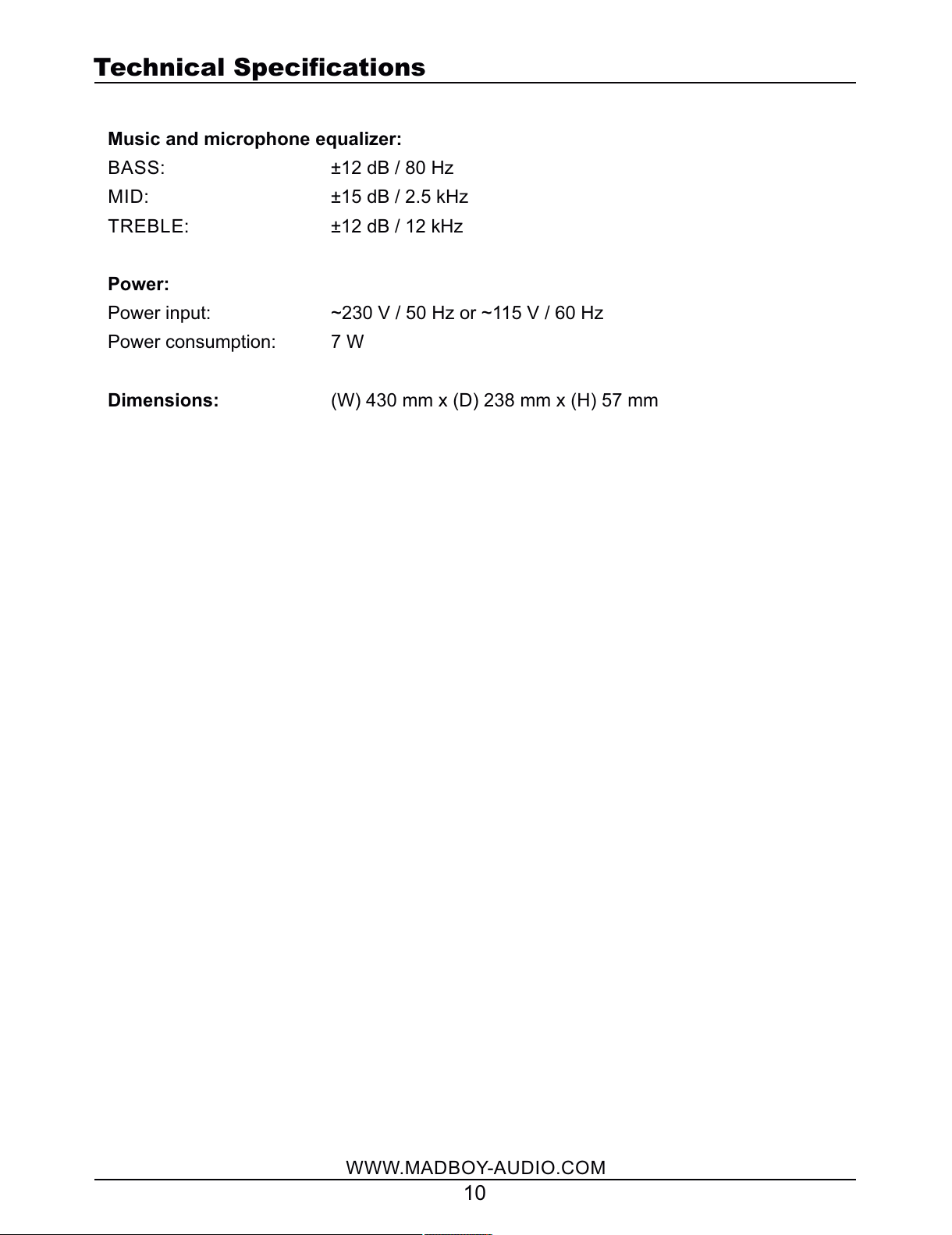

Technical Specifications
