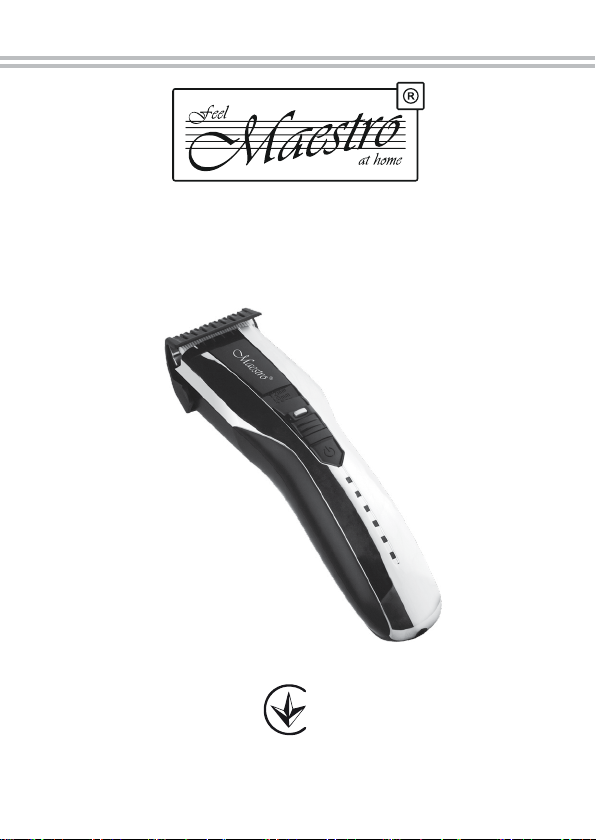

Maestro MR660 User manual

Owner’s manual. Hair clipper set

Manualul proprietarului. 


Model/Модель: MR660
Сerticated in Ukraine
Виріб сертифіковано в Україні
076

2
 1
1
6
9
7 8
2
34 5

3

Functionality, design and conformity to the quality standards
guarantee to you reliability and convenience in use of this device.
Please read and comply with these original instructions prior to the
initial operation of your appliance and store them for later use
of subsequent owners.
These clippers are intended exclusively for the cutting and trimming
of human hair in domestic household.
Under condition of observance of user regulations and
a special-purpose designation, a parts of appliance do not contain
unhealthy substances.

Model MR660
Electrical supply:
Clipper protective class III
Protection class IPX0
EN

Input: AC~ 100-240 V ; 50Hz
Output: DC =4,5В, 1000мА

Battery
Type NiMh
Rated voltage 2,4 V
Battery capacity 1000 mAh

4

Picture1 (page 2)
1. Detachable blade set
2. Adjust blade button (from 0,5 to 2,5 mm)
3. Lock button
4. ON/OFF Switch
5. LED light
6. Switching adaptor (charger)
7. Cleaning brush
8. Oil bottle
9. Attachment combs №1(4-6), №2(7-9), №3(10-12)mm




accumulator
SPECIAL INSTRUCTIONS
WARNING!
DO not use or charge the appliance in the close vicinity of a bath/
shower or a sink lled with water.


NEVER immerse the appliance, cable or charger in any liquid.
DO NOT allow water and moisture on the electrical parts of the
device or charger.
NEVER touch the appliance or charger with wet or damp hands.


5
- DO NOT let children or untrained persons use the
appliance without supervision.
- DO NOT leave the appliance unnecessarily plugged in. Disconnect
the plug from the mains when the appliance is not being used.
- Ensure that the rating of the local power supply tallies completely
with the details given on the rating plate of the device.
- Do not pull on the cable of switching adaptor directly, pull the plug.
- DO NOT leave the appliance exposed to the weather (rain, sun,
etc.).
- DO NOT leave the appliance without supervision when it is
connected to the power supply.
- Close supervision is necessary when the appliance is used near
children.
- Always use the appliance on a dry, level surface.
- Always unplug from the plug socket when not in use and before
cleaning.
- Do not operate the appliance if damaged, after an appliance
malfunctions or it has been damaged in any manner, return to at
authorized service engineer for repair.
- In the interest of safety, regular periodic close checks should be
carried out on the charging cord to ensure no damage is evident.
Should there be any signs that the cord is damaged in the slightest
degree, the entire appliance should be returned be authorized
service engineer.
- Do not let the cord hang over the edge of a table or counter or
touch hot surfaces.
- This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
EN

6
- Children should be supervised to ensure that they do not play with
the appliance.
- Do not place or store appliance where it can fall or be pulled into a
bath or sink.
- Do not use while bathing or in a shower.
- Do not place the appliance on any surface while it is operating.
- Never drop or insert any object into any opening on this appliance
WARNING! Do not use this appliance with a damaged or broken
comb nor with teeth missing from the blades as injury may occur.
Be careful when cutting hair around the ears, do not touch the
knives to the ears. Cover the ears or slightly loosen by the hand
when mowing directly next to them.
- Ensure that the rating of the local power supply tallies completely
with the details given on the rating plate of the charger.
- Before use, make sure certain blades are oiled and aligned
properly.
- Do not cut wet hair, before cutting dry and comb hair.
- Do not cut hair when there are dermatitis.
- Do not use this appliance for grooming pets.
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY. DO NOT
USE THE APPLIANCE FOR ANYTHING OTHER THAN INTENDED
USE.
- Do not use it for commercial purpose.
Actions in extreme situations
- If your device has fallen into water or water has penetrated it,
immediately disconnect it from the mains without contacting the
device itself or the water.
- If there appears smoke, sparkling, strong smell of burning

7
isolation, immediately stop using or charging the device,
disconnect the device from the mains and apply to the
nearest service center.
Operation

- Remove all wrap materials and stickers
- Make sure that all the parts of appliance don’t have damages.

When using the hair trimmer after purchasing or a long storage it
must be charged.
The temperature in the room must be from 5 to 40˚С.
The best environmental temperature for changing is between 15°C
and 35°C.

Do not charge the battery when the temperature in the room is
below 0°C.
Avoid charge the battery under the direct sunlight or near the
source of heat.
Always turn the appliance OFF with the switch before connecting
the accumulator charger.
-Before charging set up the switch to the OFF position.
-Insert the link cord plug to the connector on the hair trimmer case
Pic. 2.1.
-Insert the charger plug to the mains socket Pic. 2.2, the charge
indicator will light up and charging will begin automatically.
EN

8
The Switching adaptor automatically adapts to any worldwide AC
voltage (from 100 to 240V)
Time for complete charge - about 90 minutes.
-After the charging is nished, disconnect the charger from electric
mains and the link cord plug from the hair trimmer.
Once the clipper is completely charged, discharge it through normal
use. Then recharge to
Full capacity. Maximum battery capacity will only be reached after
3-4 charging/discharging cycles.
Note: during charging the cases of the hair trimmer and the
charger become warm. This is normal.
Before using the hair trimmer, make sure that the blades are duly
lubricated and that there is no oil between the teeth.
-Switch the appliance on by pressing the ON/OFF switch
downwards (“ON” position) Picture 3.
Picture 2
2.1 2.2

9
-We recommend to trim a small area rst to familiarize yourself with
the attachment comb.
Note: when the hair trimmer is working, the blades become warm.
This is normal.
To switch the hair trimmer off, press the push button again, the hair
trimmer will go «OFF».

You can easily x the length of hair to be cut from 0,5 to 2,5 mm
with a slider (2/ Picture 1) avoiding the use of adjustable caps.
With this purpose press the lock and move the slider forward or
backward depending on the desired length of the hair cut Picture 4.
EN
3
4

10
To make the hair length longer, move the slider backward in the
direction “from the blades”.
For a shorter haircut move the slider forward in the direction “to the
blades”.

You may adjust the length of the hair to be cut in the range of
4-12mm with combs from the supply package.
To t the selected comb, match the groove on the comb with the
teeth of the xed blade Pic. 5.1 and slip the comb on the hair
trimmer till side locks click Pic. 5.2.
To remove the comb, hold the trimmer with your hand and press
the side lock to release it from the groove on the trimmer case, then
remove the comb from the blades.
Maintenance and care
- The appliance must be cleaned after each use.
WARNING!
Before cleaning, remove the plug of the Switching adaptor from the
Picture 5
5.1 5.2
