MAG FORGE M100R User manual

MAG FORGE M100R
MAG FORGE M100A
PC Case
User Guide
Manuel d’utilisation

MAG FORGE M100R
MAG FORGE M100A
PC Case
User Guide
English

Contents
Accessories�����������������������������������������������������������������������������������������������������������������3
����������������������������������������������������������������������������������������������������������������5
Case Features�������������������������������������������������������������������������������������������������������������7
Side & Front View �������������������������������������������������������������������������������������������������������8
IO Panel�����������������������������������������������������������������������������������������������������������������������9
SSD & HDD Installation ��������������������������������������������������������������������������������������������10
Opening the Left & Right Side Cover������������������������������������������������������������������������11
Motherboard Installation������������������������������������������������������������������������������������������13
Graphics Card Installation����������������������������������������������������������������������������������������14
PSU Installation ��������������������������������������������������������������������������������������������������������15
��������������������������������������������������������������������������������������16
ARGB Fan Connection ����������������������������������������������������������������������������������������������17

3

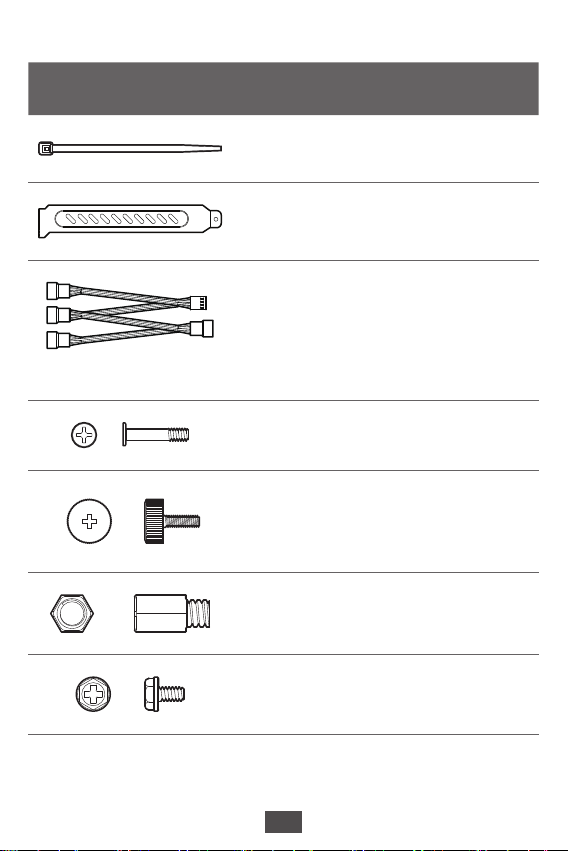

Accessories
Item Name / Q’ty Used for
Cable ties
x5 Cable management
PCIe slot covers
x2 PCI slot protection
(Only for MAG FORGE M100R)
1 to 4 fan splitter cable
x1 Connecting 4 fans
Fan screws
x2 Front 120/140mm fan
Screw #6-32 10mm
x2 Securing drive tray
Screw #6-32 6�5mm
x4 Motherboard stud
Screw #6-32 6mm
x6 PSU / PCIe card

4

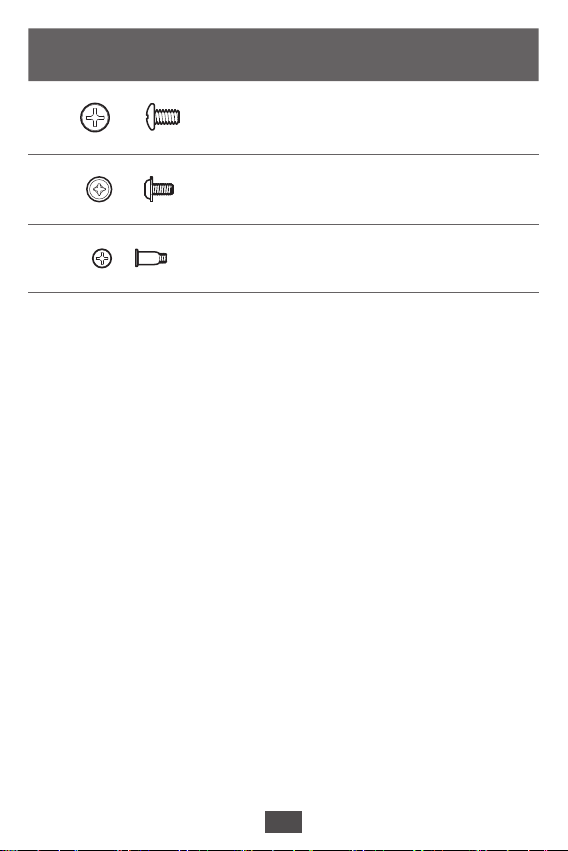

Item Name / Q’ty Used for
Screw #6-32 5mm
x4 3�5” HDD
Screw M3 5mm
x17 Motherboard / SSD
Screw #6-32 4mm
x3 3�5” HDD

5
Size Micro ATX Tower
Fan LED Controller 1 to 6 ARGB (3 pin) Control Board (MAG FORGE M100R)
Pre-Installed Fan
MAG FORGE M100R
Front: 3 x 120mm ARGB fan
Rear: 1 x 120 mm ARGB fan
MAG FORGE M100A
Front: 3 x 120mm Auto RGB fan
Rear: 1 x 120 mm Auto RGB fan
Material
Chassis: Steel (SPCC 0�4/0�45 mm)
Front Bezel: Plastic + Mesh
Right Side Panel: Steel
MAG FORGE M100R
Left Side Panel: Tempered glass
MAG FORGE M100A
Left Side Panel: Transparent acrylic
Dust Filters
Fan Support
Top: 2 x 120 mm
Front: 3 x 120 mm
Rear: 1 x 120 mm
Drive Bays 2 x 2�5” SSD mounting brackets
2 x 3�5” HDD trays
Expansion Slots Supports 4 expansion slots
IO Panel
1 x Power button
1 x Reset button
1 x Power indicator
1 x Mic-in
1 x Audio-out
2 x USB 2�0 Type-A
2 x USB 3�2 Gen1 Type-A
1 x LED switch button
(The LED switch function is only applicable to the MAG FORGE
M100R. )

6
Radiator Support
Top: 120/ 240 mm
Front: 120 / 240 mm
Rear: 120 mm
Clearance
CPU Cooler Height: Max 160mm (6�3 inch)
Graphics Card Length: Max 300 mm (11�81 inch)
PSU Length: ATX 180mm (7�09 inch)
Max 300 mm (11�81 inch) without 3�5” HDD tray installed
Case Dimensions 388(D) x 200(W) x 423(H) mm
15�28(D) x 7�87(W) x 16�65(H) inch
Motherboard Support M-ATX / ITX

7
Case Features

8
200mm 388mm
423mm
373mm

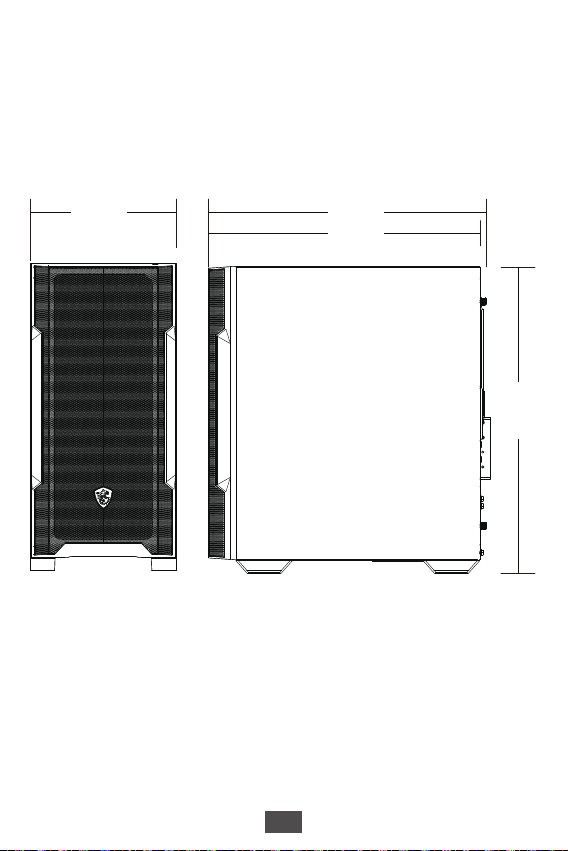

Side & Front View
388mm
200mm
423mm
373mm

9
IO Panel
123 4 5 6 8 7
1� Power button
2� Reset button
3� Power indicator
4� Mic-in
5� Audio-out
6� USB 2�0 Type-A
7� USB 3�2 Gen 1 Type-A
8� LED switch button
The LED switch function is only applicable to the MAG FORGE M100R�
LED switch control description:
seconds, and then the MSI motherboard Mystic Light synchronization mode will be
enabled� Short press once to return the Hub control mode�

10
SSD & HDD Installation

11

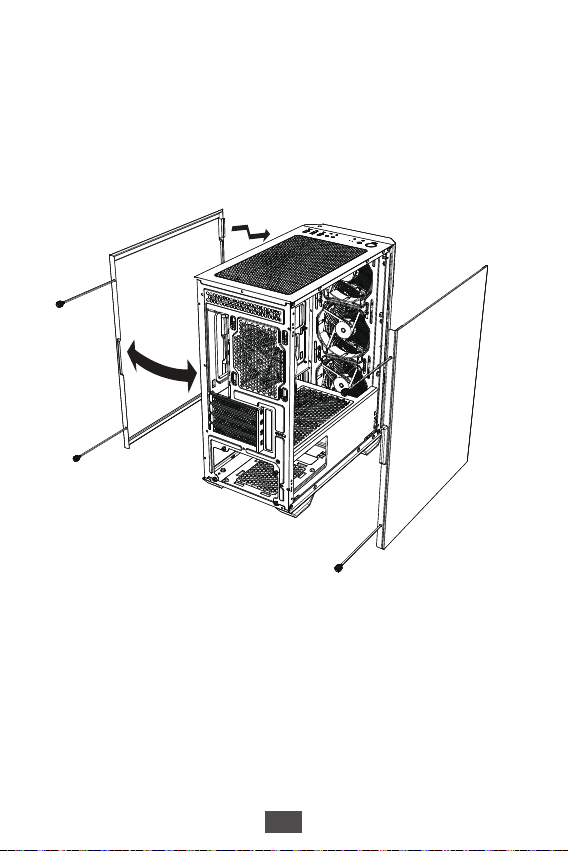

Opening the Left & Right Side Cover
MAG FORGE M100R

12
MAG FORGE M100A

13
Motherboard Installation

14

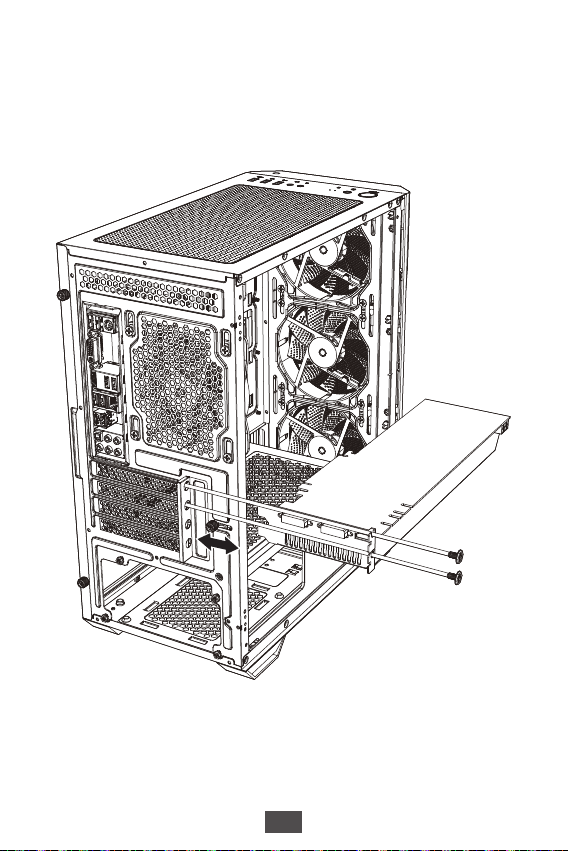

Graphics Card Installation

15

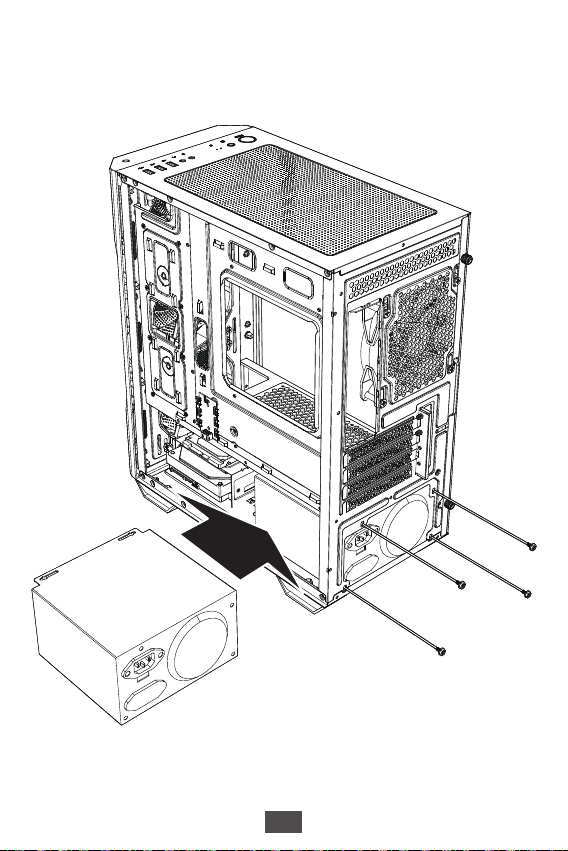

PSU Installation

16
Dimensions (mm) 50 x 30
Support LED Type DC5V Addressable RGB LED
Connectors
1x LED switch connector
1x SATA power connector
1x MSI motherboard JRAINBOW connector
6x 3-pin ARGB LED connectors
+5VData
Ground
(1 short press the
LED switch)
1� Rainbow
2� Seven-color trailing
3� Seven-color gradient
4� Violet
5� White
6� Blue
7� Cyan
8� Green
9� Yellow
10� Red
11� Rainbow breathing
12� Red breathing
13� Yellow breathing
14� Green breathing
15� Cyan breathing
16� Blue breathing
17� White breathing
18� Violet breathing
19� Fixed rainbow
20� Red
21� Yellow
22� Green
23� Cyan
24� Blue
25� White
26� Violet

17

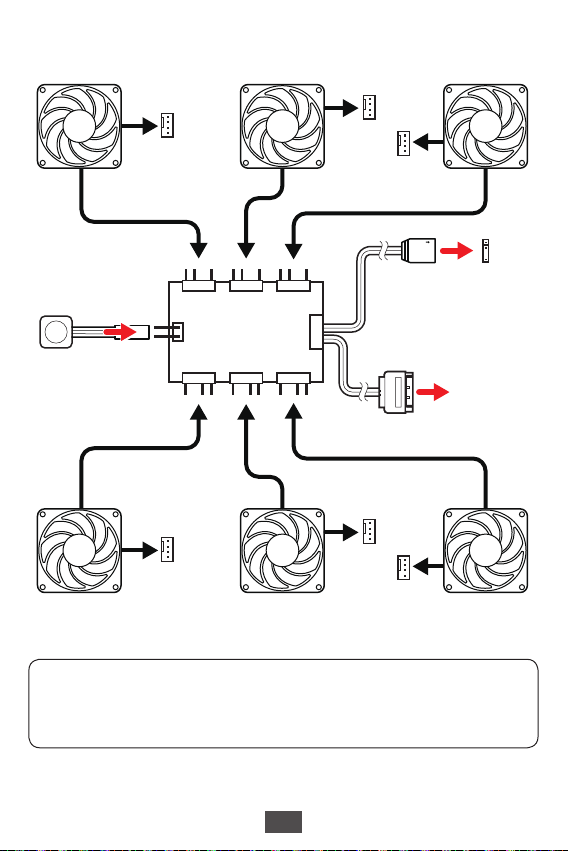

ARGB Fan Connection
Note
Support up to 128 LEDs, Exceeding this limit will lead to overheating, abnormal
color or no light�
(Only for MAG FORGE M100R)
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
SYS_FAN
1 to 6 ARGB
Control Board
ARGB Fan
ARGB Fan
ARGB Fan
ARGB Fan
ARGB Fan
ARGB Fan
Connect to the
MSI motherboard
JRAINBOW connector
LED Switch
SATA Pqwer
