Magicfx CLUBBLOWER Operating manual

®
CLUBBLOWER.
CONFETTI FX PART01955 rev 02-00
USER AND INSTALLATION MANUAL
ENGLISH

2 MAGICFX®CLUBBLOWER —User and Installation Manual
DISCLAIMER
WARNING Read this manual carefully before installing and/or using this
product. Failure to read the manual and to follow the printed
instructions may lead to personal injury and/or damage to the
product.
© 2021 MAGICFX®
All rights reserved.
Nothing from this publication may be copied, reproduced and/or published by
means of printing, photocopying or by any other means, without the prior written
approval of MAGIC FX.
MAGIC FX reserves the right to modify specications stated in this manual.
TRADEMARKS
Any brand names mentioned in this manual are registered trademarks of their
respective owners.
LIABILITY
MAGIC FX accepts no liability for claims from third parties arising from unauthorized
use, use other than that stated in this manual, and use other than in accordance with
the General Conditions registered at the Chamber of Commerce.
We further refer to the General Conditions. These are available on request, free of
charge.
Although considerable care has been taken to ensure a correct and comprehensive
description of all relevant components, the manual may nonetheless contain errors
and inaccuracies.
Should you detect any errors or inaccuracies in the manual, we would be grateful if
you would inform us. This helps us to further improve our documentation.

MAGICFX®CLUBBLOWER —User and Installation Manual 3
TABLE OF CONTENTS
Disclaimer 2
Trademarks 2
Liability 2
Foreword 4
Language 4
Revision table 4
1 Meet the MAGICFX®CLUBBLOWER! 5
1.1 Main parts 6
1.2 Technical data 7
1.3 Productidentication 7
1.4 Accessories 8
1.5 Input & Output 8
2 Blow safely! 9
2.1 General safety rules 9
2.2 Transport 9
2.3 Indoor & Outdoor use 10
2.4 Rigging 10
2.5 Noise level 10
2.6 Safety symbols 10
2.7 Precautions for operation 10
3 Let’s blow! 12
3.1 Install the machine 12
3.2 Mount below a truss 13
3.3 Connect power 14
3.4 Fill with confetti 15
3.5 Time to blow! 16
3.6 Clean up 17
4 Maintenance 18
5 Troubleshooting 18
6 Correct disposal 18
7 EC Declaration of Conformity 19

4 MAGICFX®CLUBBLOWER —User and Installation Manual
FOREWORD
Congratulations! You have bought a great new product from MAGIC FX.
This manual contains all information required for the intended use of the equipment.
Deviation from the described intended use can result in a hazardous situation and/or
property damage.
This manual includes notes and warnings on safe operation of the equipment. These
notes and warnings are accompanied by the following icons. Read them attentively!
DANGER Indicates a hazardous situation that, if not avoided, will result in
death or serious injury. This signal word is to be limited to the most
extreme situations.
WARNING Indicates a hazardous situation that, if not avoided, could result
in death or serious injury.
CAUTION Indicates a hazardous situation that, if not avoided, could result
in minor or moderate injury.
NOTICE Indicates information considered important, but not hazard-
related (e.g. messages relating to property damage).
LANGUAGE
This document contains the original instructions in English. In case you require other
languages please contact MAGIC FX.
REVISION TABLE
Doc nr Revision Date Description Author Approved
PART01955 02-00 30-04-2021 Initial Release NE LL

MAGICFX®CLUBBLOWER —User and Installation Manual 5
1 MEET THE MAGICFX®CLUBBLOWER!
The MAGICFX® CLUBBLOWER is a special eect machine that blows confetti into the air
using a powerful electric blower. Distances up to 7 meters can be reached!
The MAGICFX®CLUBBLOWER is equipped with a especially designed venturi nozzle
and has a confetti hopper. The hopper has a foam roller that automatically doses the
confetti.

6 MAGICFX®CLUBBLOWER —User and Installation Manual
1.1 MAIN PARTS
ANGLE ADJUSTMENT
KNOB
INLET GRILL
OUTPUT NOZZLE
CONFETTI HOPPER LID &
LID LOCK SCREW
HANDLE
ROTATION BRACKET
POWER INPUT
220240Vac
SAFETY EYE
ROTATION BRACKET
MOUNTING HOLES
M10 HEXAGON HEAD BOLT &
WINGNUT

MAGICFX®CLUBBLOWER —User and Installation Manual 7
1.2 TECHNICAL DATA
Product Product Name MAGICFX®CLUBBLOWER
Product Code MFX0504
Product Type CONFETTI FX
Main
Dimensions
Length 548 mm 21.6 in
Width 351 mm 13.9 in
Height 430 mm 17.0 in
Weight Weight 16 kg 35.3 lb
Environment Minimum Temperature 0 °C 32 °F
Maximum Temperature 50 °C 122 °F
Humidity (Relative) 20 % to 90 % (non condensing)
Electrical Voltage Input 210 – 240 Vac
Voltage Frequency 50 – 60 Hz
Power Consumption 1500 W
Power Connector Neutrik®powerCON TRUE1 in
Usage Consumable(s) MAGICFX®CONFETTI
Consumable Consumption Depends on type of confetti, see
Section 1.5.
Technical data

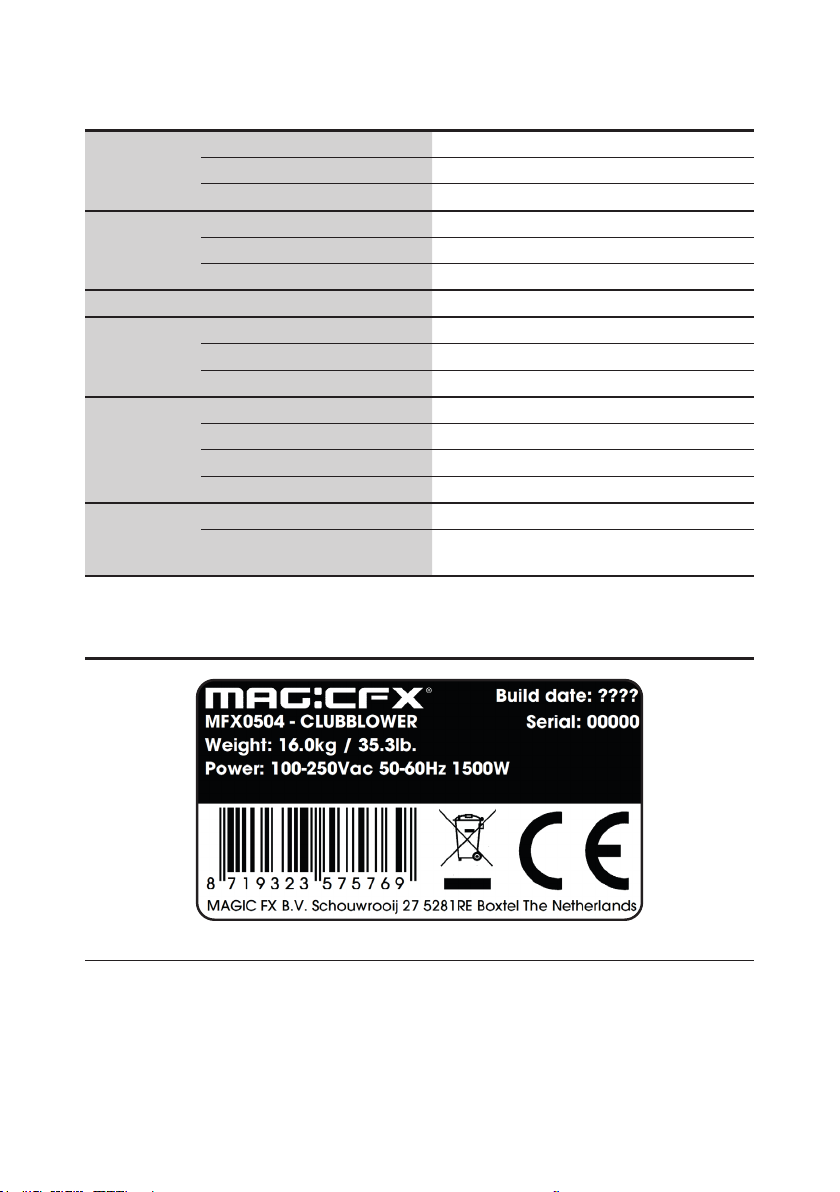

1.3 PRODUCT IDENTIFICATION
Type plate

8 MAGICFX®CLUBBLOWER —User and Installation Manual
1.4 ACCESSORIES
Code Product
MFX0313 SCHUKO TO NEUTRIK® POWERCON TRUE1 - CABLE 1.5 m
MFX3103 Twenty Clamp (20 kg) M10
MFX3106 Half Coupler (100 kg) M10
SPR00119 Safety Steel 60 cm - 25 kg
Accessories
Please contact MAGIC FX for additional possibilities.

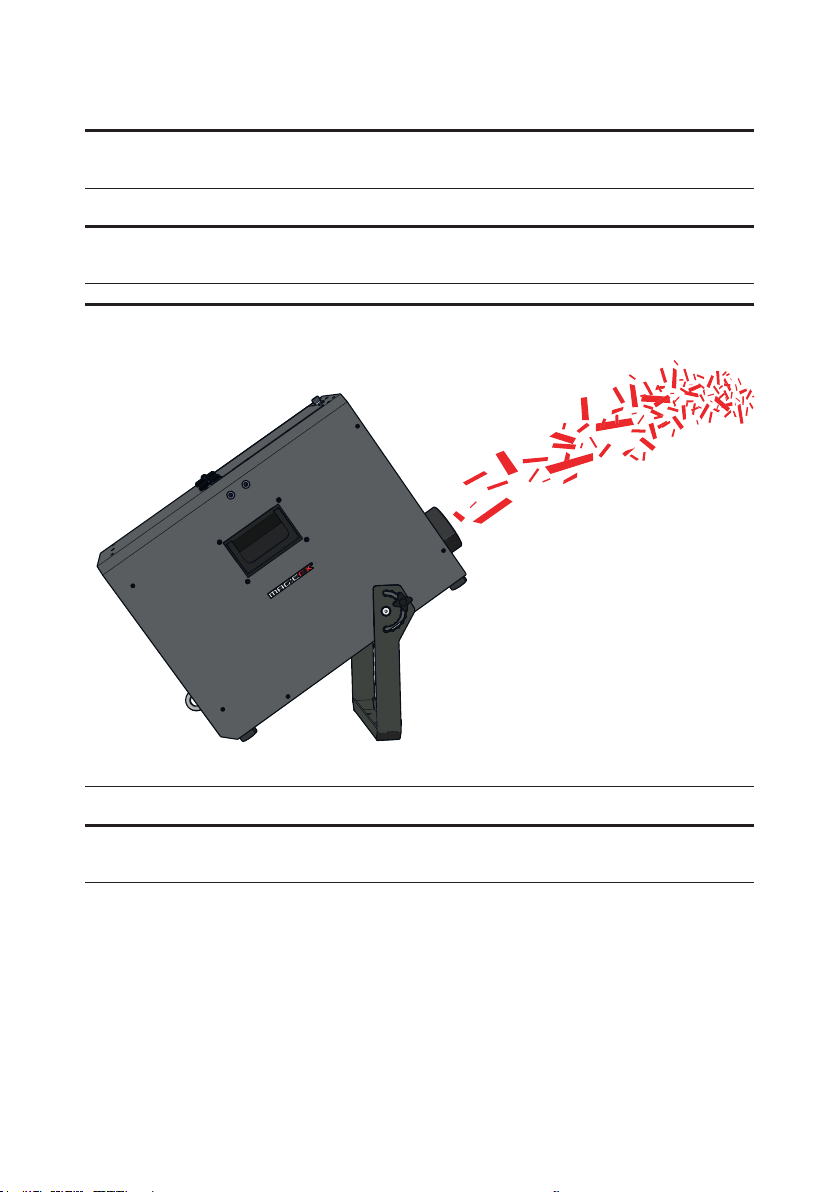

1.5 INPUT & OUTPUT
Product can be put and hung in dierent angles.
The output distance depends on the type of confetti and the set angle. The maximum
load per blast also depends on the type of confetti. Check the following table.
Consumable Shape Max. load
hopper
Max. output
distance at 45° Consumption
MAGICFX®
PAPER
CONFETTI
55x17 mm 1 kg 6 m 19,7  ± 0,5 kg/min
10x10 mm 0,5 kg 6 m 19,7  ± 0,5 kg/min
6x6 mm 0,5 kg 6 m 19,7  ± 0,5 kg/min
Shapes 1 kg 6 m 19,7  ± 0,35 kg/min
Crunch Snow 0,5 kg 5 m 16,4  ± 0,2 kg/min
MAGICFX®
METALLIC
CONFETTI
55x17 mm 2 kg 6 m 19,7  ± 0,7 kg/min
6x6 mm 2 kg 6 m 19,7  ± 0,5 kg/min
Shapes 2 kg 6 m 19,7  ± 1 kg/min
Confetti types and related loads and output
WARNING Using any other objects other then MAGICFX® CONFETTI can lead
to death or serious injury.
NOTICE Wind and other weather circumstances will inuence the output
distance. The given values are estimated values.
NOTICE The estimated consumption values may deviate due the
unpredictable state of confetti placed inside the hopper.

MAGICFX®CLUBBLOWER —User and Installation Manual 9
2 BLOW SAFELY!
The machine has been designed and constructed in such a manner that it can be
used safely. This applies to the use, the circumstances and the regulations as
described in this documentation. Reading this documentation and following the
instructions are therefore necessary for everyone who is authorised to work with the
machine.
The machine must be used in surroundings that:
• Have a stable temperature of between 0 and 50 °C.
• Have a relative humidity degree between 20 % and 90 % (non condensing).
• Are free of dust, corrosive gases and high concentrations of organic vapours.
• Are not situated in the vicinity of a source of vibration.
2.1 GENERAL SAFETY RULES
• Only authorized persons may carry out work with the MAGICFX®CLUBBLOWER.
• Do not use the MAGICFX®CLUBBLOWER if there are people or animals in the
direct output.
• Do not use the MAGICFX®CLUBBLOWER if alterations have been made other
than by or on behalf of MAGICFX®.
• Make sure that children, unauthorized people and animals do not obtain
access to the MAGICFX®CLUBBLOWER.
• Make sure there are no free-standing objects or objects that can be
damaged by the machine within the output distance.
• Make sure that confetti cannot come into contact with
high-voltage lines/power pylons, as this can result in electrocution.
• Do not connect more units to a single electrical circuit than the installed fuse
is able to handle. (Calculate the summed load with the electrical data from
Chapter 1)
• Do not remove any safeguards, safety caps and safety symbols.
• All required safety devices must be in good condition and function properly.
• Ensure sucient lighting of the surroundings.
• Keep the workplace clean.
2.2 TRANSPORT
• Clean the device, make sure there is no confetti le inside the device.

10 MAGICFX®CLUBBLOWER —User and Installation Manual
2.3 INDOOR & OUTDOOR USE
The MAGICFX®CLUBBLOWER is designed for indoor and outdoor use.
WARNING The machine can not be used in rain or other wet conditions with
any uids.
2.4 RIGGING
Please follow the European and national guidelines for safe rigging and trussing.
2.5 NOISE LEVEL
The measured maximum noise level of the product is 80 dB(A) at 1 m distance away.
This level of noise is only reached during the short instances that the output is active.
Please follow the European and national guidelines regarding hearing protection.

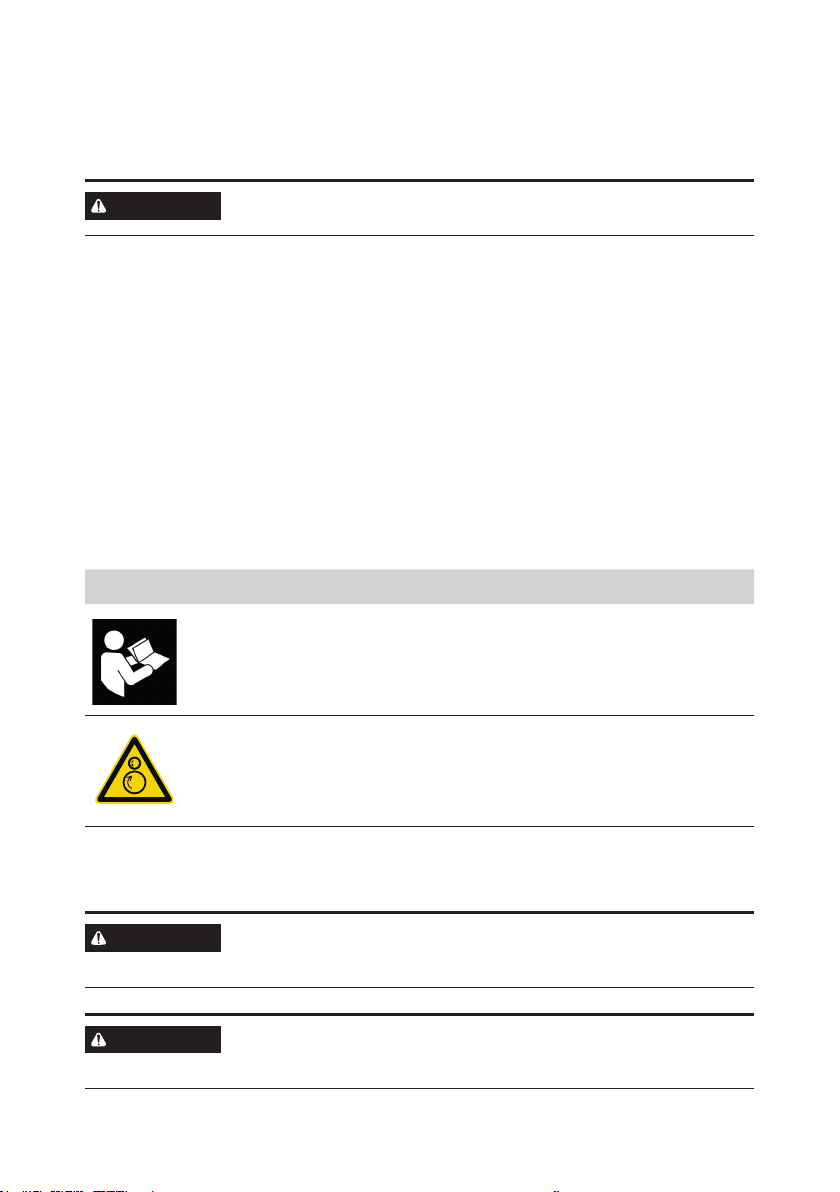

2.6 SAFETY SYMBOLS
Symbol Meaning
Read the manual carefully before use!
Rotating parts, risk of pinch! Keep hands and other body parts
clear.
Safety symbols
2.7 PRECAUTIONS FOR OPERATION
WARNING Using a damaged or an improper installed machine can lead to
death, serious injury or property damage. Always inspect the
machine thoroughly before operation.
WARNING Unauthorized operation of the machine can lead to death,
serious injury or property damage. Never leave the machine
unattended when the machine is ready for use.

MAGICFX®CLUBBLOWER —User and Installation Manual 11
WARNING Do not use the MAGICFX®CLUBBLOWER if alterations have been
made other than by or on behalf of MAGICFX®.
DANGER Make sure that confetti cannot come into contact with high-
voltage lines/power pylons, as this can result in electrocution.
WARNING Missing or obscured safety symbols on the machine can lead to
death, serious injury or property damage. Make sure all safety
symbols are correctly in place and visible, see Section 2.6.
WARNING Make sure there are no objects near the input grill that can block
the air to be sucked in.
WARNING Make sure there are no objects near the output that can be
damaged or overthrown by the MAGICFX®CLUBBLOWER.
WARNING Always keep the output zone as shown in the image below clear
of all people, animals and objects. Not doing so results in death
or serious injury.
30°
1 m

12 MAGICFX®CLUBBLOWER —User and Installation Manual
3 LET’S BLOW!

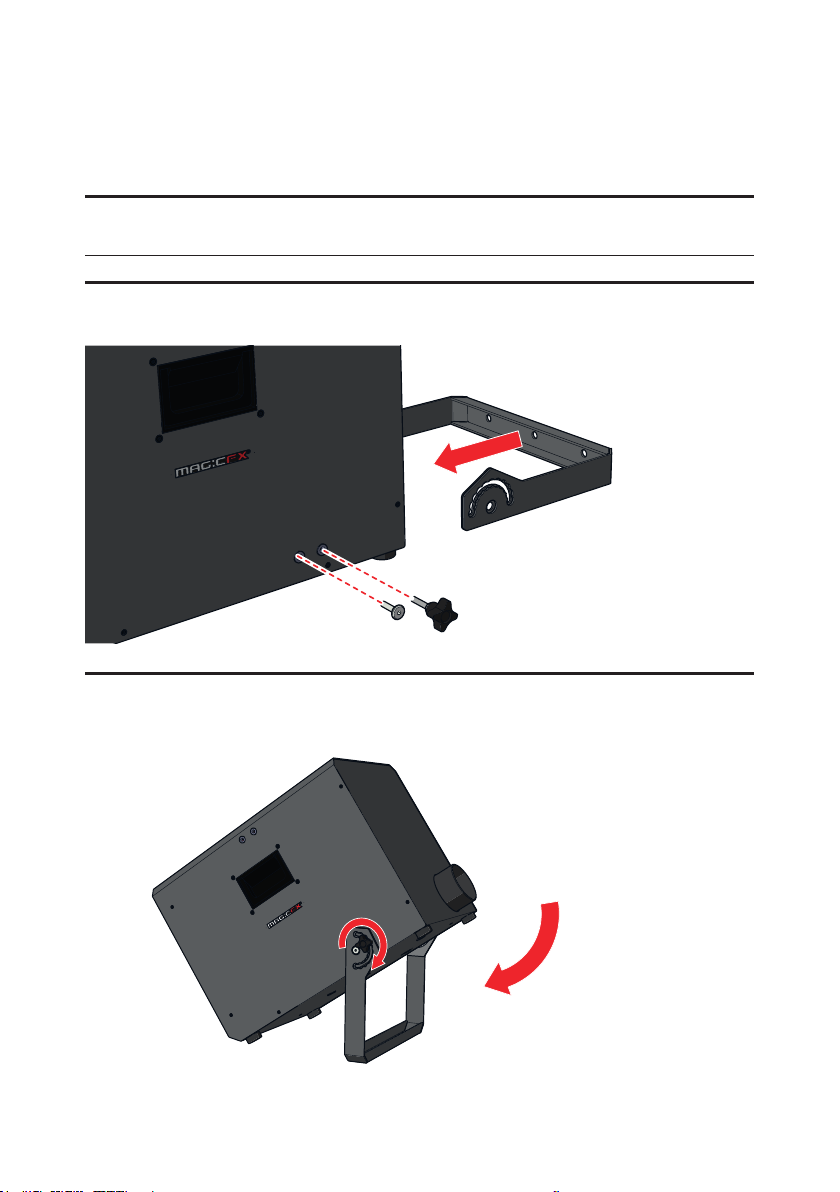

3.1 INSTALL THE MACHINE
1 Place the MAGICFX® CLUBBLOWER on a rm surface.
2 Mount the bracket using the supplied bolts and spacers.
3 Place the MAGICFX®CLUBBLOWER under an angle by rotating the bracket to
the bottom side of the machine and tighten the star knobs on both sides.

MAGICFX®CLUBBLOWER —User and Installation Manual 13

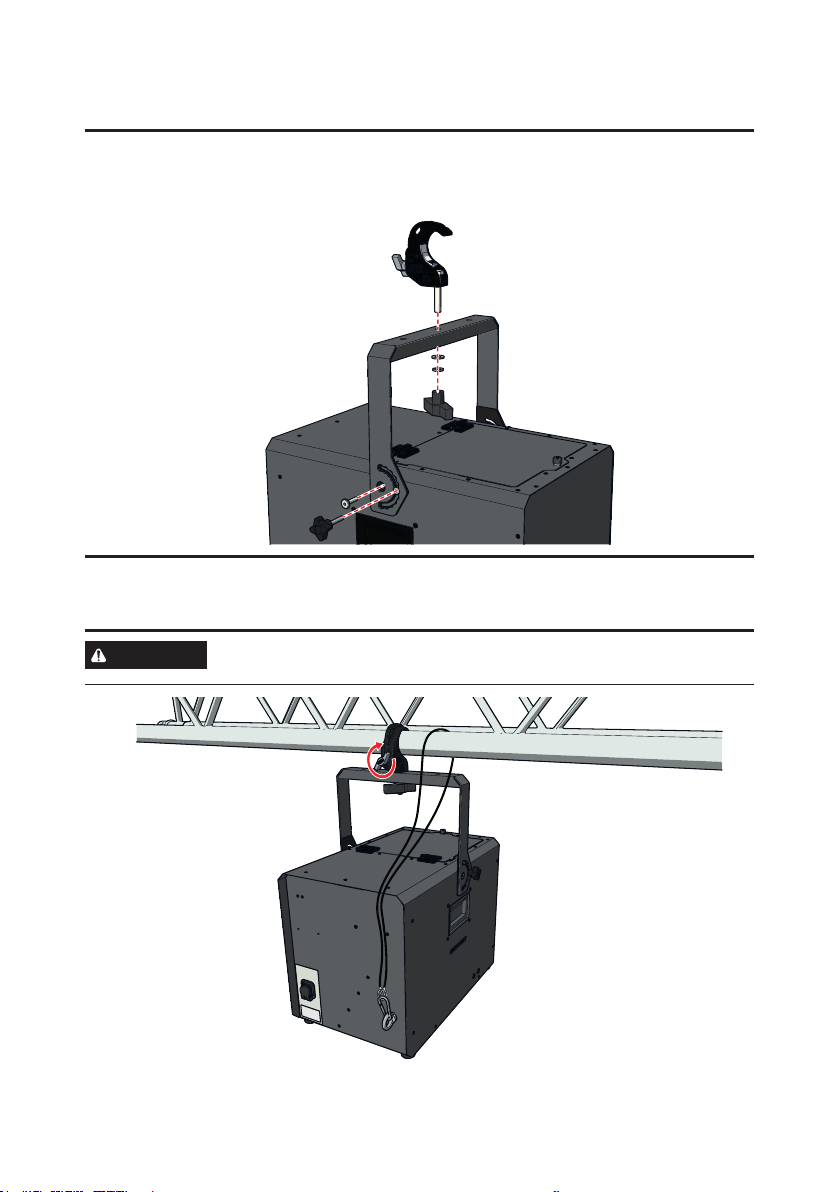

3.2 MOUNT BELOW A TRUSS
1 Mount the bracket on top of the machine and screw a twenty clamp (MFX3103)
on top of the bracket with an M10 bolt, washer, spring washer and lock nut.
2 Mount the twenty clamp on a truss and secure with a certied safety cable.
CAUTION Always mount a certied safety eye according to your national
safety guidelines. We strongly advise to use LOCKTITE® 243.

14 MAGICFX®CLUBBLOWER —User and Installation Manual

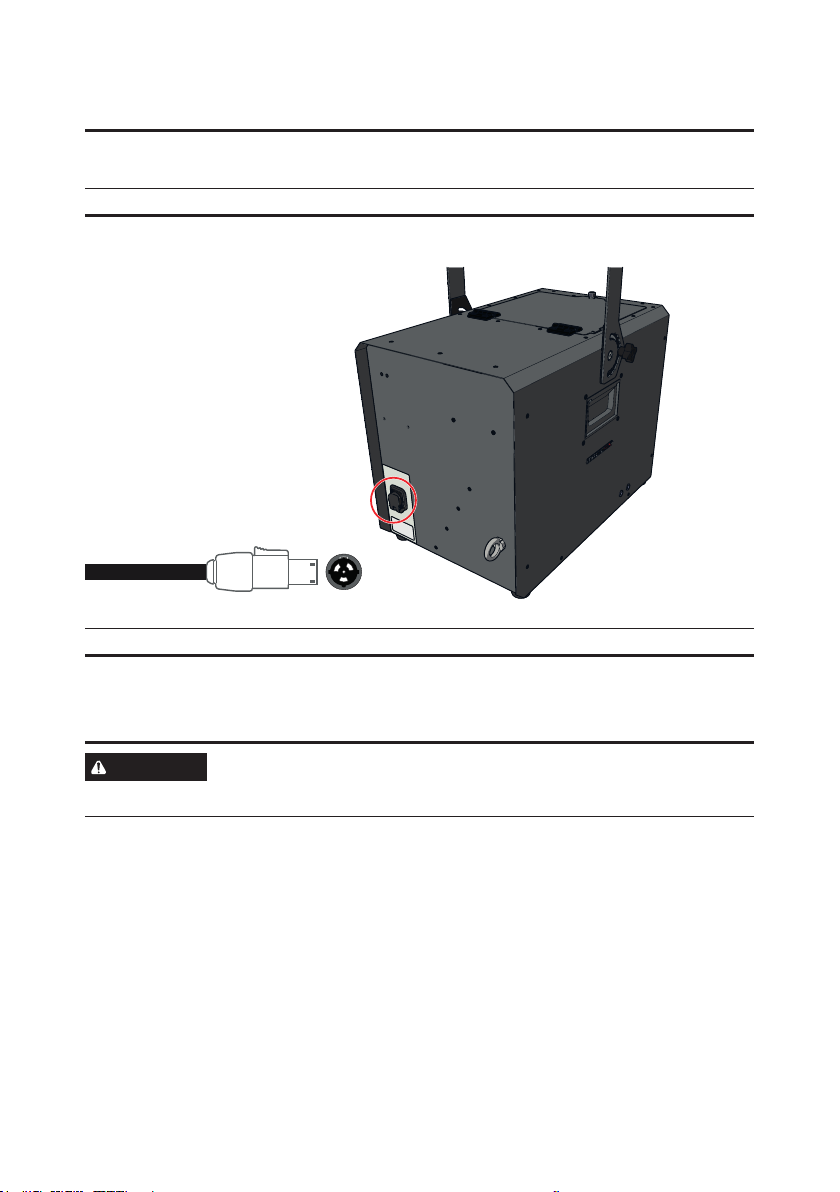

3.3 CONNECT POWER
1 Make sure that the power output on the controller or power switch is disabled.
2 Connect a powerCON TRUE1 power cable to the power input.
PowerCon TRUE1 female
POWER
POWER IN
3 Connect the other end of the powerCON TRUE1 cable to the controller or power
switch.
CAUTION Do not connect more units to a single electrical circuit that the
installed fuse is able to handle. (Calculate the summed load with the
electrical data from Chapter 1)

MAGICFX®CLUBBLOWER —User and Installation Manual 15
3.4 FILL WITH CONFETTI
WARNING Make sure the roller is not turning when lling up the machine
WARNING Always check the hopper for objects other than MAGICFX
Confetti
1 Unlock and open the lid. Fill the hopper with MAGICFX Confetti.
Check Chapter 1.5 for the maximum amount of each type of MAGICFX Confetti
2 Close the lid and lock the panel screw.

16 MAGICFX®CLUBBLOWER —User and Installation Manual
3.5 TIME TO BLOW!
1 Make sure that the direct output is free from persons, animals and objects.
2 When it’s time to shoot, switch the power on.
3 Enjoy the view!
4 To deactivate, switch o the power.

MAGICFX®CLUBBLOWER —User and Installation Manual 17
3.6 CLEAN UP
CAUTION Make sure the power is o and the rollers are not turning when
cleaning up the machine.
1 Disconnect the cables, place the True1 protection cap.
2 Remove any remaining confetti from the hopper and from the outside of the
machine.
4 MAINTENANCE
To achieve the maximum service life of the MAGICFX®CLUBBLOWER you must
regularly clean the MAGICFX®CLUBBLOWER and test if it is functioning correctly.
Contact MAGIC FX if the MAGICFX®CLUBBLOWER is not functioning correctly.
DANGER Do not replace parts yourself; always consult MAGIC FX.
5 TROUBLESHOOTING
Always contact MAGIC FX if any malfunctions or errors occur that cannot be solved
with the instructions as described in this manual.

18 MAGICFX®CLUBBLOWER —User and Installation Manual
6 CORRECT DISPOSAL
This symbol on the product and / or accompanying documents
means that used electrical and electronic products should not
be mixed with general household waste. For proper treatment,
recovery and recycling, please take this product to designated
collection points where it will be accepted free of charge.
Alternatively, in some countries you may be able to return your
products to your local retailer upon purchase of an equivalent
new product.
Disposing of this product correctly will help save valuable resources and prevent any
potential negative e ects on human health and the environment, which could
otherwise arise from inappropriate waste handling.
Please contact your local authority for further details of your nearest designated
collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
your national legislation.

MAGICFX®CLUBBLOWER —User and Installation Manual 19
7 EC DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
According to Annex III A Machinery Directive 2006/42/EC
MAGIC FX B.V. declares as manufacturer and composer of the technical construction file that the
product with the following specifications:
Name machine : CLUBBLOWER®
Type : MFX0504
Voltage : 210-240Vac 50/60Hz
Serial number : on product
Year of construction : on product
Is in conformity with the minimal safety regulations as stated in the following directive(s):
•LVD (2014/35/EU) Low Voltage Directive
•EMC (2014/30/EC) ElectroMagnetic Compatibility
•RoHS (2011/65/EU) Restriction of the use of certain Hazardous Substances
•WEEE (2012/19/EU) Waste Electrical & Electronic Equipment
The following harmonized standards were applied:
•NEN-EN-ISO 12100:2010 Safety of machinery - General principles for design - Risk
assessment and risk reduction.
•NEN-EN-IEC 60204-1:2018, Safety of machinery - Electrical equipment of machines - Part 1:
General requirements.
•NEN-EN-IEC 61000-6-3:2007/A1:2011, Electromagnetic compatibility (EMC) - Part 6-3:
Generic standards - Emission standard for residential, commercial and light-industrial
environments.
Original declaration of conformity
Translation of the original declaration of conformity
Name manufacturer : MAGIC FX B.V.
Address : Schouwrooij 27, 5281 RE BOXTEL
Country : The Netherlands
CEO : B. Veroude
Date : 18-8-2020
Signature :

WWW.MAGICFX.EU
