Magma Rock 'n Roll R10-702 User manual

1■ Outrigger to be suspended from two cleats “a & b”
(Minimum 3’ (1M) apart / maximum 16’ (5M) apart
and a third cleat “c” centered between “a & b”.
Contents of R10-707
Contents of R10-702
Materials required
Fasteners (4)
Depth Control
Line
Retrievel
Line
3'–16'
(1M – 5M)
ba c
Rock ‘n Roll™
•Stabilizer System (R10-702) and
•Outrigger (R10-707)
TM
ASSEMBLY INSTRUCTIONS
2
BULKHEAD
■ Mount boot using appropriate fasteners
near bulkhead. Consult your boat
manufacturer or local shipyard repair
facility for mounting advise on
permanent hull attachments.
Position boot by
referring to
fig. 2, 3, & 4.
■ Apply marine bedding
compound between
boot and hull (Sikaflex
231 or equivalent).
3
BOOT
MARINE
BEDDING
HULL
■ Position boot as shown for optimal operation
of Stabilizer/Outrigger system.
4
2' to 3'
35º - 45º
6" to 12"
®
For boats up to 40,000 lbs. one Rock 'n Roll Boat
Stabilizer is recommended. For boats over 40,000 lbs.
or in situations where more stabilization is required
we recommend two stabilizers.
United States Patent No. 5,263,434
United States Patent No. 5,095,839

5
6■Tying a Bowline Knot
1 2
34pull
ends
until
tight
■ Cleat off rigging lines at cleats
“a & b” so that outrigger is centered
between cleats “a & b”.
Magma recommends that a bowline
knot (refer to fig. 6) be used on all
cleats.
7
■ Connect all outrigger sections
with spring pins so alignment arrows
face up and at each other.
•Set and adjust bowlines so
Outrigger is perpendicular to hull.
•Hull pad rests in boot and outrigger
angles upward.
•Outboard end of outrigger should
be above rail.
2

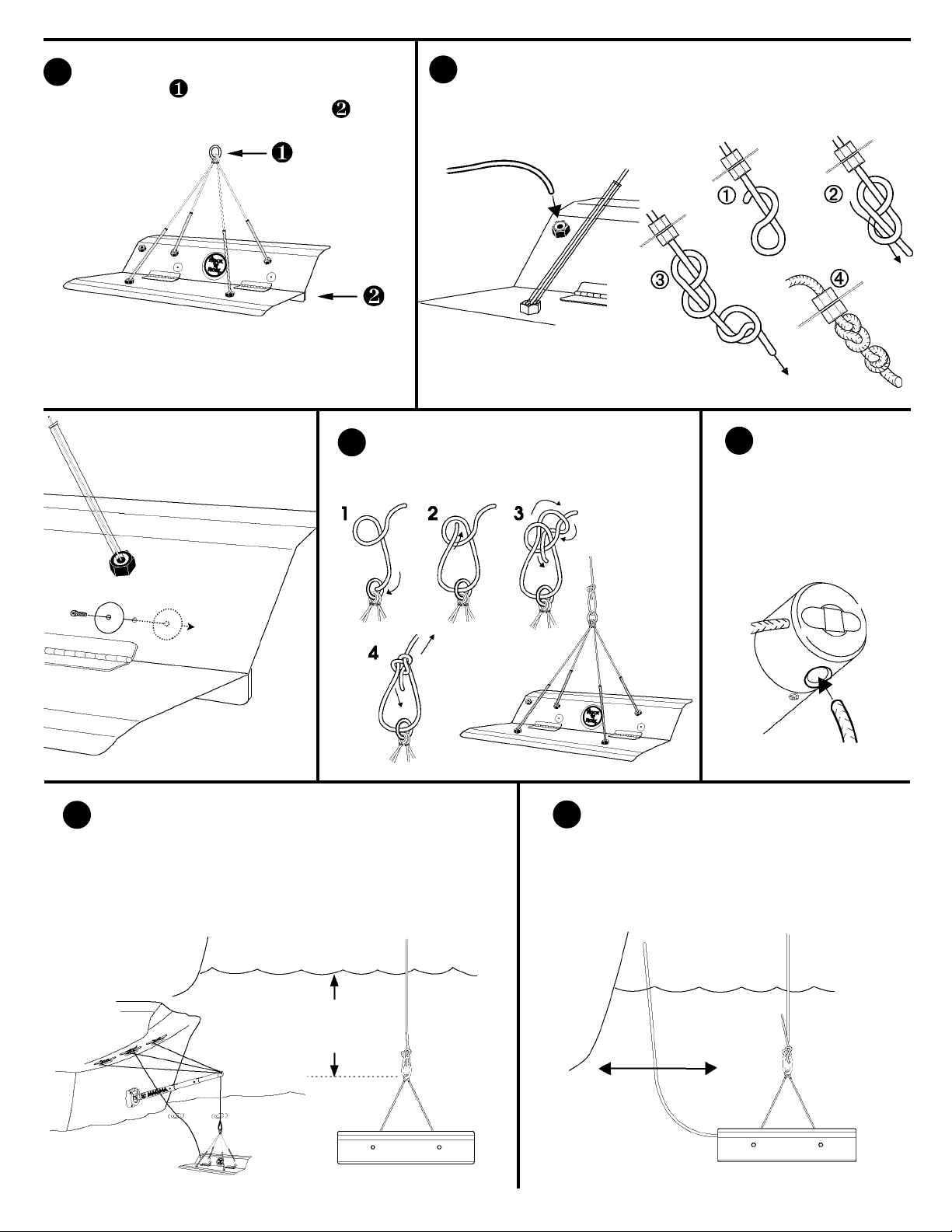

8■ CAUTION: Handle stabilizer with
bridle ring to prevent possible injury from
pinching action between the stops of the
stabilizer wings.
9
■ Insert retrieval line through the attachment hole by entering from
top. Tie a figure 8 knot below leaving a 4" (10cm) tail and tie an
additional single knot on the end for security as shown.
Cleat off other end of line to center cleat “c”.
■ Attach depth control line using a bowline
knot passing through bridle ring of stabilizer
making sure bridle lines are not crossed.
Inspect for line wear before each use.
■ Attach sacrificial zincs
(not included) through
holes as shown
11
10
pull
ends
until
tight
Minimum
Depth
10' (3M)
■ For best performance, retrieval line should be
adjusted tight enough so that the stabilizer remains
6-8 feet from hull but not so tight as to inhibit
stabilizer action.
12 13
6-8 feet
■ Using the depth control line, adjust depth of stabilizer so bridle
ring of stabilizer is at least 10' (3M) below water surface,
preferably 15' to 20' deep, and cleat off at center cleat “c”.
Important: Insure stabilizer never touches ocean floor
■ Thread other end of depth
control line up through
under side of outboard
end of outrigger and cleat
off at center cleat "c".
3

14 ■ Correct positioning from hull
6-8 feet
more than 8 feet
■ Incorrect positioning from hull
too much rope length
Helpful hints
■ If lines rub on rail, use chafe guards.
■ Rinse with fresh water before stowing.
■ Leave all lines pre-set, coil individually
with rubber bands.
■ Stow in bag as shown.
60-706 0505
MAGMA PRODUCTS INC.
3940 PIXIE AVENUE, LAKEWOOD, CA 90712 • USA
TEL: [phone]
www.MagmaProducts.com • e-mail: [email protected]
15 ■ Before cutting any lines, allow at least 2' (60cm) of extra line.
Then tape, cut and burn.
2'
(60cm)
®
