Golden LAUNCH STANDARD User manual

17611 East St, North Fort Myers, FL 33917
[phone]
GoldenMarineSystems.com GoldenBoatLifts.com
REVISION A
PUBLISHED 10/18/2020
INSTALLATION
MANUAL
MODELS:
-STANDARD
-EXTRA WIDE
KAYAK LIFT

2
TABLE OF CONTENTS
TABLE OF CONTENTS............................................................................. 2
INTRODUCTION & FEATURES............................................................... 2
SAFETY REQUIREMENTS....................................................................... 3
SPECIFICATIONS………………………….………………………………………………………….4
PART IDENTIFICATION TABLE..............................................................5
REQUIRED PARTS & HARDWARE .......................................................5
GENERAL ASSEMBLY ............................................................................ 7
KAYAK LAUNCH MOUNT LOCATION ................................................... 7
ATTACH CRADLE..................................................................................... 8
ATTACH GRAB RAIL ............................................................................... 9
ATTACH KAYAK LAUNCH BUNK .........................................................10
MOUNT KAYAK LAUNCH ......................................................................11
REFERENCE NOTES .............................................................................12
INTRODUCTION
We at Golden are proud to introduce the Kayak Launch to our
line of lifts.
The Kayak Launch is designed to easily lower small vessels
into the water directly off a seawall or dock.
This mounted lift is manufactured with T-6 marine grade
aluminum and stainless-steel hardware. This lift is ideal for
freshwater and saltwater applications and requires no shore
power.
The Kayak Launch was intentionally engineered to minimize
the space needed to operate the lift, making it extremely
versatile for many applications.
All non-adjustable components for the Kayak Lift are welded
together, decreasing premature loosening of parts.
We use only eco-friendly biodegradable fluid. It is 100 %
water soluble and meets the strict guidelines of the US Fish
& Wildlife Service as non-toxic.
FEATURES
•Simple Installation.
•Available in 5 and 7 Step.
•Welded Aluminum Frame / Stainless Steel Cables.
•4′or 6′Travel Distance options Available.
•Adjustable Bunks for Varying Kayak Width.
•Adapts to Fluctuating Water Levels.
•Brake Winch Controls Up-And-Down Movement.
•Grab Rails Provide Stability During Boarding.
•Standard and XW Models Support Kayaks Up To 250
Pounds.
•Heavy Duty Models Support Kayaks Up To 350 Pounds.
•5 Step Launch Models
o5-STEP STANDARD: W/ 4′TRAVEL, 6′BUNKS,
34”CLEAR ENTRY
oXW5-STEP: W/ 4′TRAVEL, 6′BUNKS, 43″
CLEAR ENTRY
o5-STEP HEAVY DUTY: W/ 3′TRAVEL, 6′
BUNKS, 56”CLEAR ENTRY
•7 Step Launch Models
o7-STEP STANDARD: W/ 6′TRAVEL, 6′BUNKS,
43”CLEAR ENTRY
oXW7-STEP: W/ 6′TRAVEL, 6′BUNKS, 43″
CLEAR ENTRY
o7-STEP HEAVY DUTY: W/ 5′TRAVEL, 6′
BUNKS, 56″CLEAR ENTRY
KAYAK LIFT

3
SAFETY
SAFETY INFORMATION (READ THOROUGHLY)
The KAYAK BOAT LIFT was designed, tested and certified to be
installed in the recommended area approved by certified and
approved personnel under the specific installation and
operation guidelines laid out in the installation and operation
manuals issued by GOLDEN BOAT LIFTS.
Note: Any installation or operation methods outside the
guidelines described within the manual(s) mentioned above
will void the product warranty.
Note: It is recommended that a trained professional install the
Kayak Launch.
Note: Before beginning installation of the Kayak Launch,
please ensure that the area selected for installation meets all
local and state guidelines and regulations.
Note: To avoid damage to the Kayak Launch and/or personal
injury/death, carefully follow each step outlined in the
manual(s).
Note: Before beginning installation of the Kayak Launch, clear
adequate space around the installation site so that all parts,
hardware, and tools can be laid out in a safe and organized
fashion.
When completing the steps outlined in this Installation Manual,
please ensure that only proper handling and lifting techniques
are used to transport parts to desired locations. In some
circumstances, machinery may be required to move individual
parts.
The Kayak Launch comes with mechanical winch that operates
using rotating gears. Please keep extremities away from
winch to ensure bodily harm or damage to winch does not
occur.
After completing the steps outlined in the KAYAK
INSTALLATION MANUAL, the Kayak Launch should be ready to
operate.
Note: Before operation, it is important to verify that every step
outlined in the KAYAK INSTALLATION MANUAL.
To operate the Kayak Launch, please reference the KAYAK
LAUNCH OPERATING MANUAL.
Note: Never Exceed the maximum capacity of the lift.
Note: Never go under the lift or vessel, especially when the lift
is in the raised position. Never operate a lift while on the lift
or inside the vessel.
Note: It is recommended that the Kayak Launch be raised to
the upward position when not in use.
SAVE THESE SAFETY INSTRUCTIONS
FOR FUTURE REFERENCE
WARNING
!
!
MOVING PARTS HAZARD
Failure to follow this warning can result in personal injury or
death and/or damage to the Kayak Launch.
The Kayak Launch has moving parts while in operation. To avoid
bodily harm and/or damage to the Kayak Launch, ensure the lift
is operated from the dock or seawall, and never on the lift or
vessel.
Note: Never operate a lift while on the lift or
inside the vessel.
caution
!
!
HEAVY OBJECTS
Failure to follow this warning can result in personal injury or
death and/or damage to the Kayak Launch.
The Kayak Launch has heavy parts. To avoid bodily harm and/or
damage to the Kayak Launch, ensure that proper handling and
lifting techniques are used.
SAVE THESE INSTRUCTIONS

4
SPECIFICATIONS
KAYAK LAUNCH 5-STEP 7-STEP
STANDARD
•WEIGHT:
≈
100 lbs.(45 kg)
•
MAX CAPACITY: 250 lbs. (114 kg)
•
MAX HEIGHT: 74-1/4”
•
TRAVEL DISTANCE: 4’
•
BUNK LENGTH: 6’
•WEIGHT:
≈
118 lbs. (54 kg)
•
MAX CAPACITY: 250 lbs. (114 kg)
•
MAX HEIGHT: 98-1/4”
•
TRAVEL DISTANCE: 6’
•
BUNK LENGTH: 6’
XW (EXTRA WIDE)
•WEIGHT:
≈
102 lbs. (46 kg)
•
MAX CAPACITY: 250 lbs. (114 kg)
•
MAX HEIGHT: 74-1/4”
•
TRAVEL DISTANCE: 4’
•
BUNK LENGTH: 6’
•WEIGHT:125 lbs. (57 kg)
•
MAX CAPACITY: 250 lbs. (114 kg)
•
MAX HEIGHT:98-1/4”
•
TRAVEL DISTANCE: 6’
•
BUNK LENGTH: 6’

5

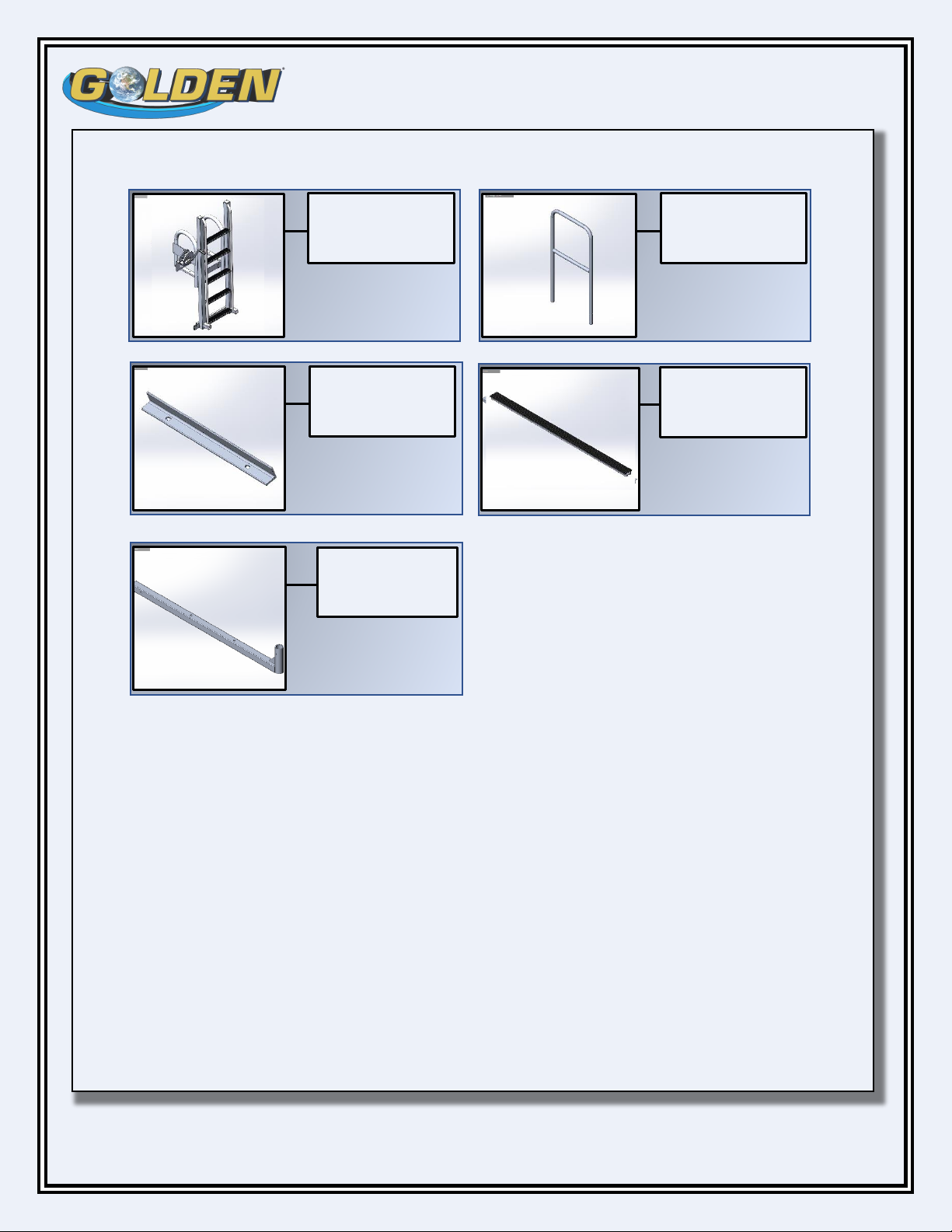

PART IDENTIFICATION
Ladder Assembly
QTY: ( 1 )
Under Dock Support
QTY: ( 2 )
**Optional
Grab Rail
QTY: ( 1 )
PN: GBL-KAYAK-SX-GR-W
Cradle
QTY: ( 2 )
PN: GBL-KAYAK-S-CRDL-W
PN: GBL-01-0270
Bunk
QTY: ( 2 )
PN: GBL-KAYAK-SX-BNK-A
PN: GMI-01-0317

6

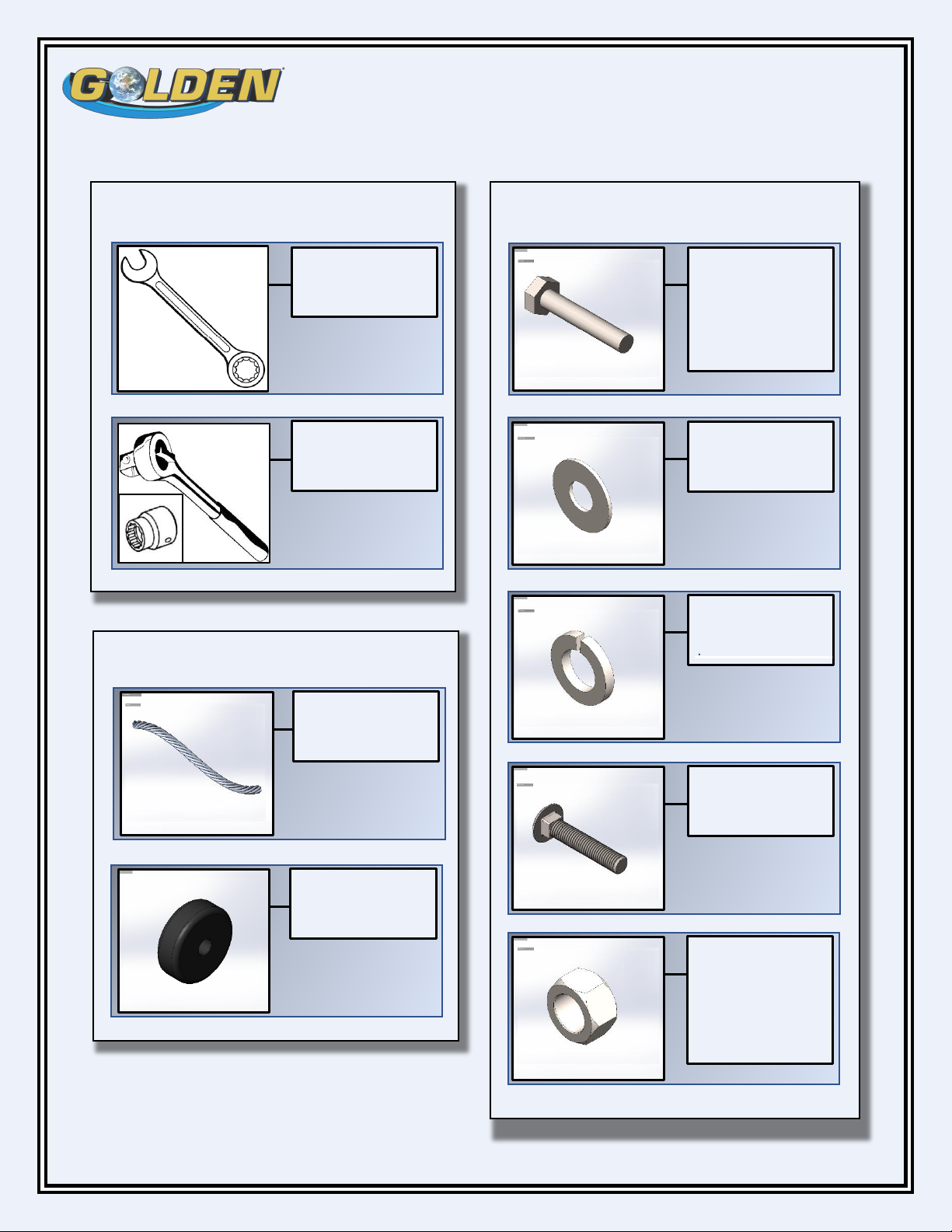

HARDWARE
REQUIRED TOOLS
7/16” Open End Wrench
9/16” Open End Wrench
3/8” Drive Ratchet
7/16” Socket
9/16” Socket
Hex Bolt QTY:
1/4” X 2-1/2” (2)
3/8” X 2-1/2” (2)
Washer QTY:
1/4” (4)
3/8” (12)
Lock Washer QTY:
3/8” (4)
PN:GBL-KAYAK-SX-HRL-W
Carriage Bolt QTY:
3/8” X 4” (4)
Hex Nut QTY:
3/8” (4)
Lock Nut
1/4" (2)
3/8” (2)
REPLACEMENT PART(S)
3/16” Braided Cable
5-Step: 20’
7-Step: 25’
Kayak Internal Roller
QTY Supplied: (8)
PN: GMI-03-0013

7
GENERAL ASSEMBLY INSTRUCTIONS
1. Please read all instruction provided before starting
the installation of the Kayak Launch Lift.
2. It is recommended that the Kayak Launch Lift is
installed by trained professionals only.
3. Please ensure that there is an appropriate area
cleared in order to lay out all components, parts,
and applicable tools to ensure there is nothing
missing or damaged before starting installation
process.
KAYAK LAUNCH MOUNT LOCATION
NOTE: Inspect all pulleys, verifying all cables are laying
evenly in grooves.
NOTE: Inspect all bolted structures to ensure they are
secure.
1. Using the mounting holes, shown in Figure 1, at the
bottom of the Ladder Assembly as a template, mark
the location of the holes on the sea wall or dock
where the Kayak Launch Lift will be installed.
NOTE: If mounting to dock: ensure holes being drilled are
not directly on dock stringers.
2. Using appropriate drill, predrill Kayak Lift mounting
holes into base structure.
NOTE: Before mounting the ladder to the base but AFTER
predrilling the holes in the selected base, many installers
will complete the entire Kayak Lift assembly before
bolting the ladder to the selected base.
REQUIRED PARTS
Ladder Assembly
QTY: ( 1 )
Figure 1

8

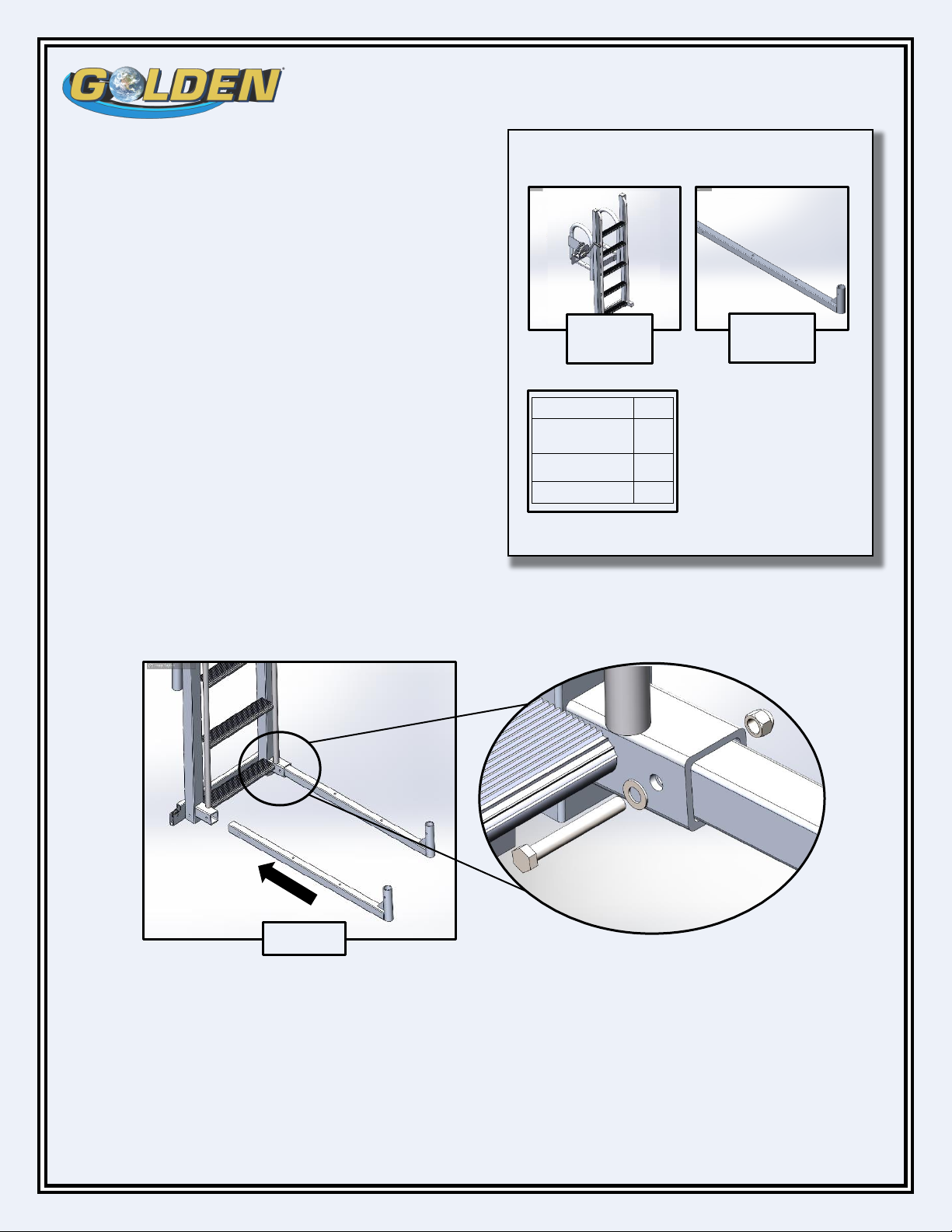

ATTACH CRADLES
NOTE: It is recommended to use more than one person for
this step to ensure the lift stays upright at all times.
1. With the ladder assembly standing straight up, slide
the Cradle into the cradle support located at the
bottom of the ladder assembly as shown in Figure 2
ensuring the holes are aligned.
2. Attach one (1) 3/8" Washer to one (1) 3/8” x 3” Hex
Bolt and insert it into the cradle mount hole. Slip a
3/8" Lock Washer, 3/8" Washer and 3/8" Hex Nut
onto the protruding end of the bolt and hand tighten.
Repeat for remaining cradle.
REQUIRED PARTS
HARDWARE
QTY:
3/8” X 2-1/2" Hex
Bolt
2
3/8" Lock Nut
2
3/8" Washer
2
Cradle
QTY: ( 2 )
Ladder
QTY: ( 1 )
Figure 2

9
ATTACH GRAB RAIL
NOTE: It is recommended to use more than one person for
this step to ensure the lift stays upright at all times.
1. Align the two (2) ends of the Grab Rail so they are in
line with the cylindrical ends of the Cradles and
insert fully as shown in Figure 3.
2. Attach one (1) 1/2" Washer to one (1) 1/2” x 2-1/2” Hex
Bolt and insert it into the Grab Rail mounts. Slip a
1/2" Lock Washer, 1/2" Washer and 1/2" Hex Nut onto
the protruding end of the bolt and hand tighten.
Repeat for remaining end of the Grab Rail.
REQUIRED PARTS
HARDWARE
QTY:
1/4” x 2-1/2" Hex
Bolt
2
1/4" Lock nut
2
1/4" Washer
4
Grab Rail
QTY: ( 1 )
Figure 3

10

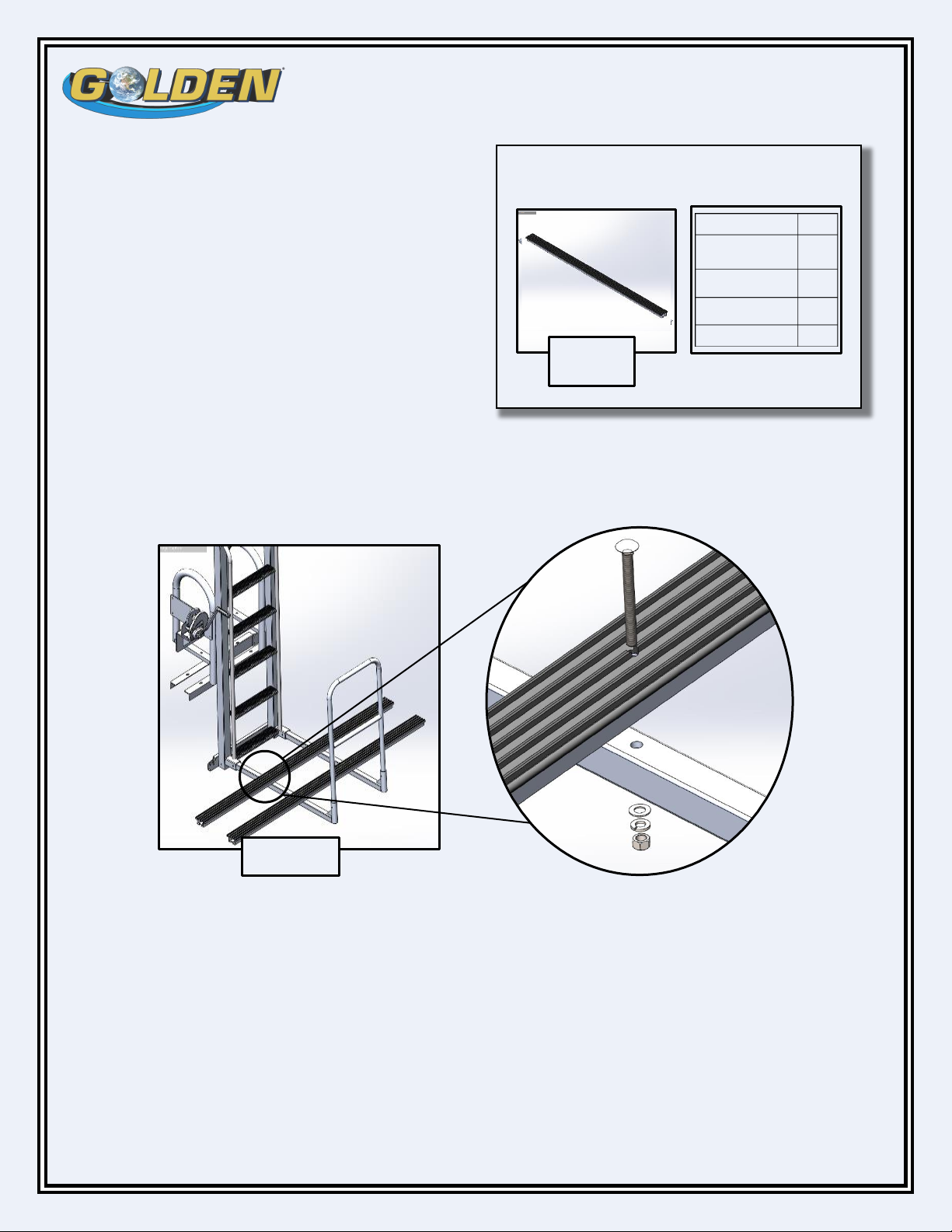

ATTACH KAYAK BUNKS
NOTE: It is recommended to use more than one person for
this step to ensure the lift stays upright at all times.
1. Align the two (2) holes in each bunk with the
mounting holes in each cradle as shown in Figure 4.
NOTE: Ensure the rubber side of the Bunks are oriented
upward.
2. Attach one (1) 3/8" Washer to one (1) 3/8” x 2-1/2” Hex
Bolt and insert it into the top of the Bunk and through
the Cradle. Slip a 3/8" Lock Washer, 3/8" Washer and
3/8" Hex Nut onto the protruding end of the bolt and
hand tighten. Repeat three more times.
REQUIRED PARTS
HARDWARE
QTY:
3/8” x 4" Carriage
Bolt
4
3/8" Hex Nut
4
3/8" Lock Washer
4
3/8" Washer
4
Kayak Bunk
QTY: ( 2 )
Figure 4

11
NOTE: Before proceeding, please ensure all previous
steps were completed to avoid product or bodily damage.
NOTE: Before proceeding to the next step, fully tighten
all hardware, fully securing the kayak Launch.
NOTE: It is recommended to use lifting equipment to move
the assembled Kayak launch Lift.
MOUNTING KAYAK LAUNCH
(Seawall)
1. Carefully realign the Kayak Launch mounting holes
with the predrilled holes created on page 7.
2. Insert ********** bolts into Kayak mounting holes and
tighten using appropriate tool.
MOUNTING KAYAK LAUNCH
(Dock)
1. Carefully realign the Kayak Launch mounting holes
with the predrilled holes created on page 7.
2. Insert ********** bolts into Kayak mounting holes,
exposing the protruding ends of the bolts on the
underside of the dock as shown in Figure 5.
NOTE: Bolts must extend past the stringers on the
underside of the dock.
3. With the Ladder Rungs oriented so the open ends are
facing each other, as shown in figure 7, slide them
up against the bottom of the dock stringers, making
sure the protruding bolts are aligned with the
Ladder Rung mounting holes.
NOTE: It is required that the Ladder Rungs run
perpendicular to the stringers as shown in Figures 6 & 7.
If the stringers run parallel to the ladder, rotate the
Ladder Rungs 90° in respect to the figures shown below.
NOTE: Verify all hardware is securely fastened and that
the Winch, Pulleys, and Cable are all still aligned
properly.
NOTE: Verify that there is nothing obstructing the
movement of the Kayak Launch; use the Winch to test the
movement of the lift.
Figure 5
Figure 6
Figure 7
REQUIRED PARTS (Seawall)
HARDWARE
QTY:
*Not Included*
N/A
Under Dock Support
QTY: 2
REQUIRED PARTS (Dock)
HARDWARE
QTY:
*Not Included*
N/A

12
REFERENCE NOTES
Kayak Launch Lift Model: Standard
INSTALLATION PROVIDER: ___________________________________________________ INSTALLATION DATE: _________________________
INSTALLATION ADDRESS: _______________________________________________________________________________________________________
INSTALLATION CHECKLIST:
STEP
DATE/TIME
INITIAL
NOTES
SAFETY REQUIREMENTS
PART IDENTIFICATION TABLE
REQUIRED PARTS & HARDWARE
KAYAK LAUNCH MOUNT LOCATION
ATTACH CRADLE
ATTACH GRAB RAIL
ATTACH KAYAK LAUNCH BUNKS
MOUNT KAYAK LAUNCH
FINAL HARDWARE/ OPERATION CHECK
I, _____________________________________, hereby verify that all guidelines and procedures were read and followed to the best of my
ability.
SIGNATURE : ____________________________________________ DATE OF COMPLETION: _____________________________
