MGA 800
USER MANUAL
All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without the prior written
Magma Mekatronik may modify the information and the images without any prior notice.
EN
3MGA 800
TR
ANGLE GRINDER
AVUÇ TAŞLAMA
EN 60745-1 EN 60745-2-3 EN 55014-2
EN 55014-1 EN 61000-3-2
EN
4
www.magmaweld.comUSER MANUAL | KULLANIM KILAVUZU
MGA 800
1
1.1
2
2.1
2.2
2.3
2.4
3
3.1
3.2
3.3
3.4
3.5
4
4.1
CONTENTS
SAFETY PRECAUTIONS
TECHNICAL INFORMATION
Technical Data
OPERATION
Wheel Guard Installation
Disc Grinding Wheel Assembly
Switch Operation
Operation
MAINTENANCE AND SERVICE
Grinding Wheel
Screw
Carbon Brush
Cleaning
Power Cord
ANNEX
Spare Part List
5
9
10
10
10
11
12
12
12
12
12
13
Contents
EN
5
www.magmaweld.com USER MANUAL | KULLANIM KILAVUZU
MGA 800
SAFETY PRECAUTIONS
Be Sure To Follow All Safety Rules In This Manual!
• Read all safety warnings and instructions.
and/or serious injury.
• The term “power tool” in all of the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
• Save all warnings and instructions for future reference.
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of
dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not
matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• Stay alert, watch what you are doing and use common sense when operating a
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and / or battery pack, picking up or carrying the tool.
have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or
a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in
moving parts.
• If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection can
Explanation Of Safety
Information
Work Area Safety
Electrical Safety
Personal Safety
Safety Precautions
EN
6
www.magmaweld.comUSER MANUAL | KULLANIM KILAVUZU
MGA 800
Power Tool Use and Care
Service
• Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool
accidentally.
• Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tool’s operation.
If damaged, have the power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could
replacement parts. This will ensure that the safety of the power tool is maintained.
Safety Instruction for Angle Grinders
• This power tool is intended to function as a grinder, sander, wire brush or cut- off tool.
and/or serious injury.
• Operations such as polishing is not recommended to be performed with this power tool.
personal injury.
manufacturer. Just because the accessory can be attached to your power tool, it does not
assure safe operation.
• The security line speed of grinding wheel must be at least 80m/s.
• The outside diameter and the thickness of your accessory must be within the capacity
controlled.
the spindle of the power tool. Accessories with arbor holes that do not match the mounting
hardware of the power tool will run out of balance, vibrate excessively and may cause loss
of control.
• Do not use a damaged accessory. Before each use inspect the accessory such as abrasive
wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for
loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install
an undamaged accessory. After inspecting and installing an accessory, position yourself
and bystanders away from the plane of the rotating accessory and run the power tool at
maximum no-load speed for one minute. Damaged accessories will normally break apart
during this test time.
goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and
workshop apron capable of stopping small abrasive or work piece fragments. The eye
operation. Prolonged exposure to high intensity noise may cause hearing loss.
Safety Warnings
Common for Grinding,
Sanding, Wire Brushing,
and Abrasive Cutting-Off
Operations
Safety Precautions
EN
7
www.magmaweld.com USER MANUAL | KULLANIM KILAVUZU
MGA 800
Kickback and Related
Warnings
Grinding and Abrasive
Cutting-Off Operations:
resist kickback forces. Always use auxiliary handle, if provided, for maximum control
reactions or kickback forces, if proper precautions are taken.
• Never place your hand near the rotating accessory. Accessory may kickback over your
hand.
• Do not position your body in the area where power tool will move if kickback occurs.
Kickback will propel the tool in direction opposite to the wheel’s movement at the point of
snagging.
• Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the
accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating
accessory and cause loss of control or kickback.
• Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create
designed for the selected wheel. Wheels for which the power tool was not designed cannot
• The guard must be securely attached to the power tool and positioned for maximum
safety, so the least amount of wheel is exposed towards the operator. The guard helps to
protect operator from broken wheel fragments and accidental contact with wheel.
• Wheels must be used only for recommended applications. For example: do not grind with
the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side
forces applied to these wheels may cause them to shatter.
• Do not use worn down wheels from larger power tools. Wheel intended for larger power
tool is not suitable for the higher speed of a smaller tool and may burst.
• Keep bystanders a safe distance away from work area. Anyone entering the work area
• Hold power tool by insulated gripping surfaces only, when performing an operation where
the cutting accessory may contact hidden wiring or its own cord. Cutting accessory
contacting a “live” wire may make exposed metal parts of the power tool “live” and shock
the operator.
• Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or
snagged and your hand or arm may be pulled into the spinning accessory.
• Never lay the power tool down until the accessory has come to a complete stop.
The spinning accessory may grab the surface and pull the power tool out of your control.
• Do not run the power tool while carrying it at your side. Accidental contact with the
spinning accessory could snag your clothing, pulling the accessory into your body.
• Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the
materials.
may result in electrocution or shock.
Safety Precautions
Additional Safety Warnings
Cutting-Off Operations:
• Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to
twisting or binding of the wheel in the cut and the possibility of kickback or wheel
breakage.
• Do not position your body in line with and behind the rotating wheel. When the wheel, at
the point of operation, is moving away from your body, the possible kickback may propel
the spinning wheel and the power tool directly at you.
• When wheel is binding or when interrupting a cut for any reason, switch off the power tool
and hold the power tool motionless until the wheel comes to a complete stop. Never
attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise
kickback may occur. Investigate and take corrective action to eliminate the cause of wheel
binding.
EN
8
www.magmaweld.comUSER MANUAL | KULLANIM KILAVUZU
MGA 800
Application
cutting concrete, stone, brick and other building materials and their products.
Read the manual
Warning
Double insulation
Wear ear protection
Wear dust mask
Do not dispose of old appliances in the household garbage
Wear eye protection
Keep your hands and feet away from all
Explanation Of Safety
Symbols
Safety Precautions
• Do not restart the cutting operation in the work piece. Let the wheel reach full speed and
carefully reenter the cut. The wheel may bind, walk up or kickback if the power tool is
restarted in the work piece.
kickback. Large work pieces tend to sag under their own weight. Supports must be placed
under the work piece near the line of cut and near the edge of the work piece on both sides
of the wheel.
• Use extra caution when making a “pocket cut” into existing walls or other blind areas. The
protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause
kickback.
EN
9
www.magmaweld.com USER MANUAL | KULLANIM KILAVUZU
MGA 800
TECHNICAL INFORMATION
1.1 Technical Data
TECHNICAL DATA
Model
Rated Power Input
Max Wheel Diameter
Rated Voltage
Rated Speed
Net Weight
UNIT
V
d/min
kg
W
mm
Technical Information
MGA 800
MGA 800
900
115
220~240
11000
50/60
1.6
EN
10
www.magmaweld.comUSER MANUAL | KULLANIM KILAVUZU
MGA 800
2.1 Wheel Guard Installation
2.2 Disc Grinding Wheel Assembly
OPERATION
Loosen the fastening screws on the guard, position guard on spindle neck so
that the notches on guard line up with the keys on the spindle neck. Then fasten
the screw tightly.
When you need to adjust the angle of the guard, you should slightly loosen the
screw and rotate guard to desired angle, and then tighten the fastening screws
again.
Be sure the power is disconnected before installing or removing wheel guard.
Placing BACKING FLANGE and GRINDING WHEEL on the
spindle, then thread on the LOCK NUT and tighten NUT by
wrench while pressing down the SELF-LOCK DEVICE to hold
the spindle lock in.
TO REMOVE: Reverse procedure.
Be sure the power is disconnected before installing or removing wheel guard.
SCREW
GRINDING WHEEL
LOCK NUT
SPINDLE
BACKING FLANGE SELF-LOCK
DEVICE
2.3 Switch Operation
After switching off, the appliance continued to run on for a few seconds. Wait
until the abrading disc has come to a stop before laying the appliance down.
1. Set the On/Off switch to position (1) to switch the appliance on.
2. Set the On/Off switch to position (0) to switch the appliance off.
Be sure the self-lock device is free before using the appliance. ON OFF
SWITCH
Operation
EN
11
www.magmaweld.com USER MANUAL | KULLANIM KILAVUZU
MGA 800

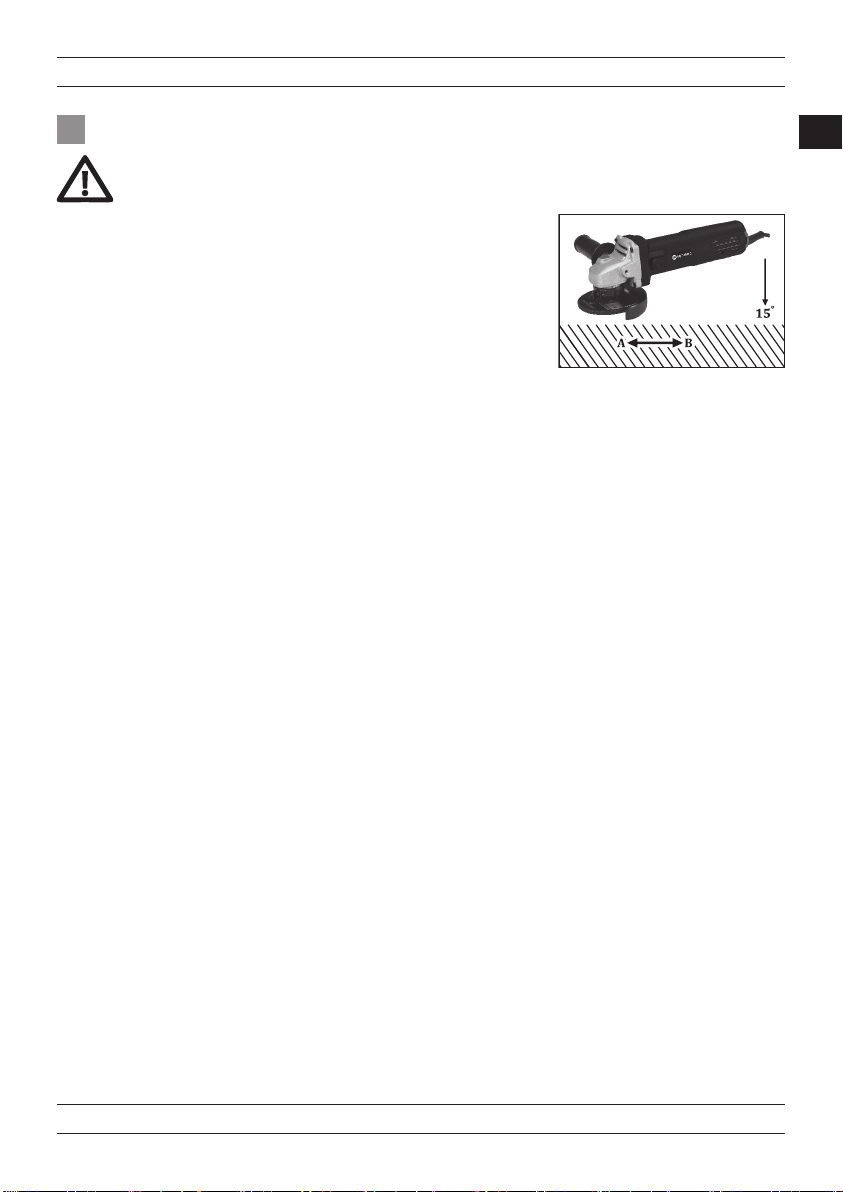

2.4 Operation
Normally, when grinding, keep a 15°-30° angle between the wheel and the
work piece.
Please Do not operate at the direction at B when using a new grinding wheel.
Otherwise, the piece will be cut off.
When the grinding wheel edge turns rounded, you can operate in any
direction, both A or B.
Be sure the power is disconnected before installing or removing wheel guard.
Operation
EN
12
www.magmaweld.comUSER MANUAL | KULLANIM KILAVUZU
MGA 800
MAINTENANCE AND SERVICE
When the grinding wheel wear and tear to the limit or there has been damage, cracks, deformation, or other defect,
it should be replaced promptly.
Regularly check every parts of the tool whether screw is loose, the loose one should be tightened promptly.
The vent must be kept clean and should be cleaned regularly and when it’s blocked.
Regularly check the power cord for scratched, damaged, plug for cracks or other defects, if the problems occur, they
should be an immediate repair.
Regularly check and replace carbon brushes. When the carbon brushes wear
to the limits, it must be replaced promptly. If there are two carbon brushes,
they should be replaced together. Keeping carbon brushes clean and sliding
freely within the brush holder.
3.1 Grinding Wheel
3.2 Screw
3.3 Carbon Brush
3.4 Cleaning
3.5 Power Cord
LIMIT LINE
4mm
Maintenance and Service
EN
13
www.magmaweld.com USER MANUAL | KULLANIM KILAVUZU
MGA 800
4.1 Spare Part List
ANNEX
Annex
EN
14
www.magmaweld.comUSER MANUAL | KULLANIM KILAVUZU
MGA 800
NO
Screw
608 Bearing O Ring
608 Bearing
Pin Cap
Somun
Spring
Pinion
1
12
21
30
4
15
24
33
10
19
28
7
18
27
36
37
2
13
22
31
3
14
23
32
5
16
25
34
11
20
29
8
9
6
17
26
35
607 Bearing
Screw
Rear Cover
Screw
Coil Spring
Switch Pull Rod
Armature
Pin
Cord Anchorage
Head Shell
607 Bearing Cover
Carbon Brush
Filter Screen
Stator
Switch Button
Filter Screen
607 Bearing Dust Proof Plate
Self Locking Pin
Cord Guard
Self Locking Pin O Ring
Screw
Needle Bearing
Wheel
Fan Shroud
Brush Holder
Screw
608 Bearing Plate
Screw
Switch
Power Cord
4.1 Spare Part List
DEFINITION
Annex
Y832000101
Y832000104
Y832000107
Y832000102
Y832000105
Y832000103
Y832000106
Y832000110
Y832000118
Y832000124
Y832000113
Y832000120
Y832000127
Y833000101
Y832000115
Y832000121
Y832000129
Y832000111
Y834000101
Y832000125
Y833000102
Y834000102
Y832000128
Y832000109
Y832000117
Y832000123
Y832000116
Y832000122
Y832000130
Y832000131
Y832000112
Y832000119
Y832000126
Y832000108
Y832000114
Y834000103
Y833000103
MATERIAL CODE
EN
15
www.magmaweld.com USER MANUAL | KULLANIM KILAVUZU
MGA 800
Plum Snap Ring
Front Cover O Ring
Spindle
6201 Bearing
Front Cover
Screw
Inner Flange
Wheel Guard
Outer Flange
Stator Housing
6201 Bearing Dust Proof Plate
DEFINITION
Annex
Y832000132
Y832000135
Y832000138
Y832000133
Y832000136
Y832000134
Y832000137
Y832000142
Y832000140
Y832000141
Y832000139
NO
38
41
47
44
39
50
51
42
48
45
43
MATERIAL CODE
16
www.magmaweld.com
TR
USER MANUAL | KULLANIM KILAVUZU
MGA 800
1
1.1
2
2.1
2.2
2.3
2.4
3
3.1
3.2
3.3
3.4
3.5
4
4.1
TEKNİK BİLGİLER
KULLANIM BİLGİLERİ
BAKIM VE ARIZA BİLGİLERİ
Vida
EKLER
17
21
22
22
22
23
24
24
24
24
24
25
İçindekiler
İÇİNDEKİLER
17
www.magmaweld.com
TR
USER MANUAL | KULLANIM KILAVUZU
MGA 800
yaralanmaya neden olabilir.
yaralanmaya neden olabilir.
riski artar.
Güvenlik Kuralları
GÜVENLİK KURALLARI
Güvenlik Bilgilerinin
18
www.magmaweld.com
TR
USER MANUAL | KULLANIM KILAVUZU
MGA 800
yaralanmalara neden olabilir.
olabilecektir.
neden olabilir.
neden olabilir.
Güvenlik Kuralları
19
www.magmaweld.com
TR
USER MANUAL | KULLANIM KILAVUZU
MGA 800
Güvenlik Kuralları
itecektir.
neden olur.
patlayabilir.
20
www.magmaweld.com
TR
USER MANUAL | KULLANIM KILAVUZU
MGA 800
olabilecek nesneleri kesebilir.
Güvenlik Kuralları
Uygulama
Semboller
Table of contents
Languages:
Other Magmaweld Grinder manuals
Popular Grinder manuals by other brands
Central Pneumatic
Central Pneumatic 33171 Assembly and operating instructions
Central Pneumatic
Central Pneumatic 53177 Assembly and operating instructions
Powerplus
Powerplus POWXQ5102 instruction manual
BLACK DECKER
BLACK DECKER G720P Original instructions
Far Tools
Far Tools AGC 115 Original manual translation
Duratech
Duratech GRINDMASTER 512 manual
