Magmaweld MGH 1600 User manual
MGH 1600
(+90) 444 93 53
magmaweld.com
info@magmaweld.com (+90) 538 927 12 62
USER MANUAL
All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without the prior written
Magma Mekatronik may modify the information and the images without any prior notice.
EN
TR
ANGLE GRINDER
AVUÇ TAŞLAMA
3MGH 1600
EN 60745-1 EN 60745-2-3 EN 55014-2
EN 55014-1 EN 61000-3-2
EN
4
www.magmaweld.comUSER MANUAL | KULLANIM KILAVUZU
MGH 1600
1
1.1
2
2.1
2.2
2.3
2.4
3
3.1
3.2
3.3
3.4
3.5
4
4.1
CONTENTS
SAFETY PRECAUTIONS
TECHNICAL INFORMATION
Technical Data
OPERATION
Wheel Guard Installation
Disc Grinding Wheel Assembly
Switch Operation
Operation
MAINTENANCE AND SERVICE
Grinding Wheel
Screw

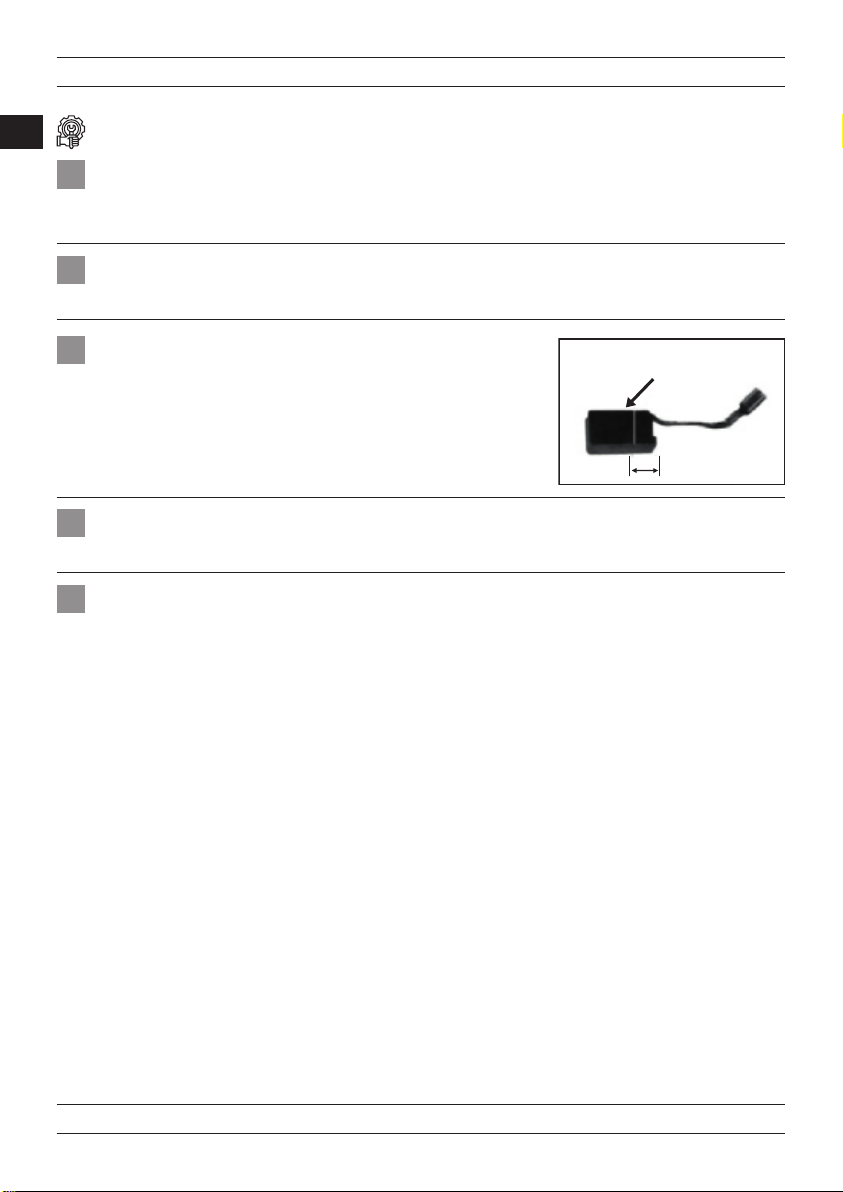

Carbon Brush
Cleaning
Power Cord
ANNEX

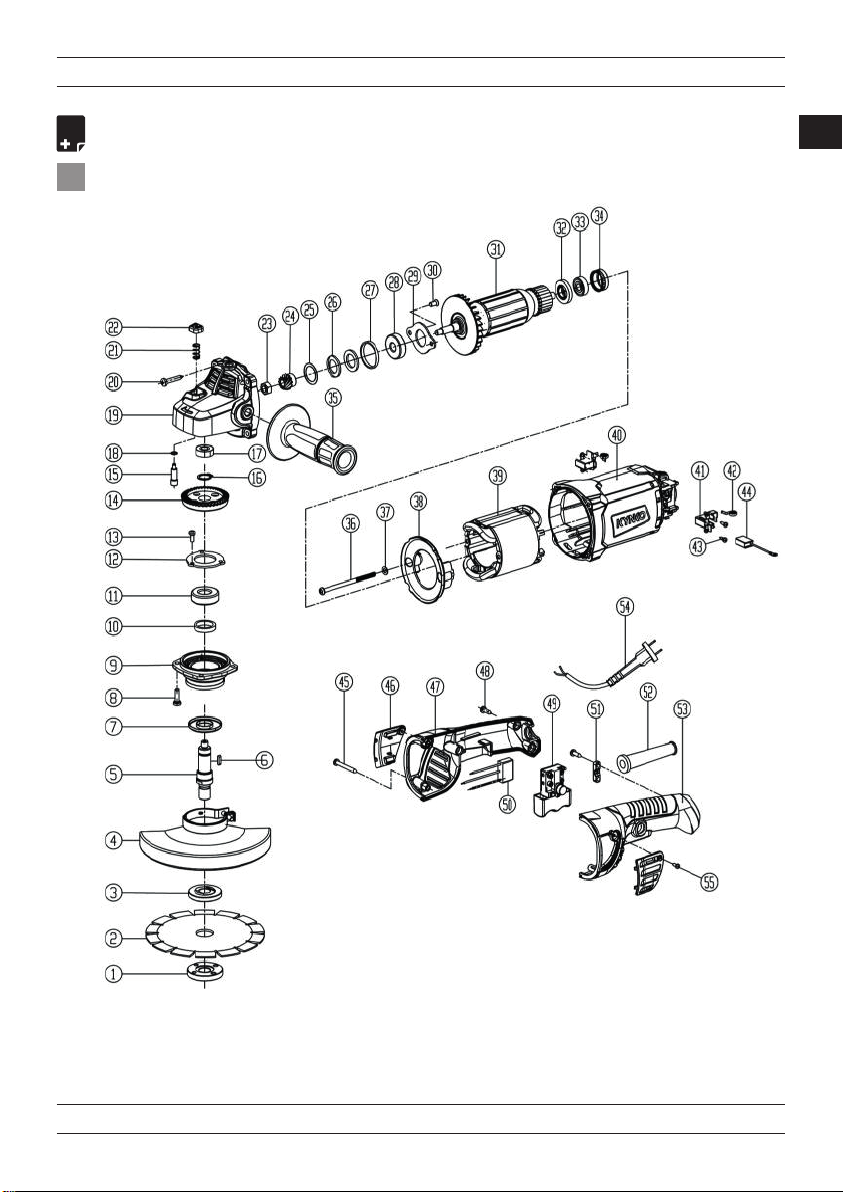

Spare Part List
Contents
5
9
10
10
10
11
12
12
12
12
12
13
EN
5
www.magmaweld.com USER MANUAL | KULLANIM KILAVUZU
MGH 1600 Safety Precautions
SAFETY PRECAUTIONS
Be Sure To Follow All Safety Rules In This Manual!
• Read all safety warnings and instructions.
and/or serious injury.
• The term “power tool” in all of the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
• Save all warnings and instructions for future reference.
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of
dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not
matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• Stay alert, watch what you are doing and use common sense when operating a
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and / or battery pack, picking up or carrying the tool.
have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or
a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in
moving parts.
• If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection can
Explanation Of Safety
Information
Work Area Safety
Electrical Safety
Personal Safety
EN
6
www.magmaweld.comUSER MANUAL | KULLANIM KILAVUZU
MGH 1600
Power Tool Use and Care
Service
• Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool
accidentally.
• Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tool’s operation.
If damaged, have the power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could
replacement parts. This will ensure that the safety of the power tool is maintained.
Safety Instruction for Angle Grinders
• This power tool is intended to function as a grinder, sander, wire brush or cut- off tool.
and/or serious injury.
• Operations such as polishing is not recommended to be performed with this power tool.
personal injury.
manufacturer. Just because the accessory can be attached to your power tool, it does not
assure safe operation.
• The security line speed of grinding wheel must be at least 80m/s.
• The outside diameter and the thickness of your accessory must be within the capacity
controlled.
the spindle of the power tool. Accessories with arbor holes that do not match the mounting
hardware of the power tool will run out of balance, vibrate excessively and may cause loss
of control.
• Do not use a damaged accessory. Before each use inspect the accessory such as abrasive
wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for
loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install
an undamaged accessory. After inspecting and installing an accessory, position yourself
and bystanders away from the plane of the rotating accessory and run the power tool at
maximum no-load speed for one minute. Damaged accessories will normally break apart
during this test time.
goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and
workshop apron capable of stopping small abrasive or work piece fragments. The eye
operation. Prolonged exposure to high intensity noise may cause hearing loss.
Safety Warnings
Common for Grinding,
Sanding, Wire Brushing,
and Abrasive Cutting-Off
Operations
Safety Precautions
EN
7
www.magmaweld.com USER MANUAL | KULLANIM KILAVUZU
MGH 1600
Kickback and Related
Warnings
Grinding and Abrasive
Cutting-Off Operations:
resist kickback forces. Always use auxiliary handle, if provided, for maximum control
reactions or kickback forces, if proper precautions are taken.
• Never place your hand near the rotating accessory. Accessory may kickback over your
hand.
• Do not position your body in the area where power tool will move if kickback occurs.
Kickback will propel the tool in direction opposite to the wheel’s movement at the point of
snagging.
• Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the
accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating
accessory and cause loss of control or kickback.
• Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create
designed for the selected wheel. Wheels for which the power tool was not designed cannot
• The guard must be securely attached to the power tool and positioned for maximum
safety, so the least amount of wheel is exposed towards the operator. The guard helps to
protect operator from broken wheel fragments and accidental contact with wheel.
• Wheels must be used only for recommended applications. For example: do not grind with
the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side
forces applied to these wheels may cause them to shatter.
• Do not use worn down wheels from larger power tools. Wheel intended for larger power
tool is not suitable for the higher speed of a smaller tool and may burst.
• Keep bystanders a safe distance away from work area. Anyone entering the work area
• Hold power tool by insulated gripping surfaces only, when performing an operation where
the cutting accessory may contact hidden wiring or its own cord. Cutting accessory
contacting a “live” wire may make exposed metal parts of the power tool “live” and shock
the operator.
• Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or
snagged and your hand or arm may be pulled into the spinning accessory.
• Never lay the power tool down until the accessory has come to a complete stop.
The spinning accessory may grab the surface and pull the power tool out of your control.
• Do not run the power tool while carrying it at your side. Accidental contact with the
spinning accessory could snag your clothing, pulling the accessory into your body.
• Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the
materials.
may result in electrocution or shock.
Safety Precautions
Additional Safety Warnings
Cutting-Off Operations:
• Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to
twisting or binding of the wheel in the cut and the possibility of kickback or wheel
breakage.
• Do not position your body in line with and behind the rotating wheel. When the wheel, at
the point of operation, is moving away from your body, the possible kickback may propel
the spinning wheel and the power tool directly at you.
• When wheel is binding or when interrupting a cut for any reason, switch off the power tool
and hold the power tool motionless until the wheel comes to a complete stop. Never
attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise
kickback may occur. Investigate and take corrective action to eliminate the cause of wheel
binding.
EN
8
www.magmaweld.comUSER MANUAL | KULLANIM KILAVUZU
MGH 1600
Application
cutting concrete, stone, brick and other building materials and their products.
Read the manual
Warning
Double insulation
Wear ear protection
Wear dust mask
Do not dispose of old appliances in the household garbage
Wear eye protection
Keep your hands and feet away from all
Explanation Of Safety
Symbols
Safety Precautions
• Do not restart the cutting operation in the work piece. Let the wheel reach full speed and
carefully reenter the cut. The wheel may bind, walk up or kickback if the power tool is
restarted in the work piece.
kickback. Large work pieces tend to sag under their own weight. Supports must be placed
under the work piece near the line of cut and near the edge of the work piece on both sides
of the wheel.
• Use extra caution when making a “pocket cut” into existing walls or other blind areas. The
protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause
kickback.
EN
9
www.magmaweld.com USER MANUAL | KULLANIM KILAVUZU
MGH 1600
TECHNICAL INFORMATION
1.1 Technical Data
TECHNICAL DATA
Model
Rated Power Input
Max Wheel Diameter
Rated Voltage
Rated Speed
Net Weight
UNIT
V
d/min
kg
W
mm
Technical Information
MGH 1600
MGH 1600
1600
125
220~240
9000
3.2
50/60
EN
10
www.magmaweld.comUSER MANUAL | KULLANIM KILAVUZU
MGH 1600
SCREW
GUARD
GRINDING WHEEL
LOCK NUT
SPINDLE
BACKING FLANGE SELF-LOCK
DEVICE
ON / OFF BUTTON
2.1 Wheel Guard Installation
2.2 Disc Grinding Wheel Assembly
OPERATION
Loosen the fastening screws on the guard, position guard on spindle neck so
that the notches on guard line up with the keys on the spindle neck. Then fasten
the screw tightly.
When you need to adjust the angle of the guard, you should slightly loosen the
screw and rotate guard to desired angle, and then tighten the fastening screws
again.
Be sure the power is disconnected before installing or removing wheel guard.
Placing BACKING FLANGE and GRINDING WHEEL on the
spindle, then thread on the LOCK NUT and tighten NUT by
wrench while pressing down the SELF-LOCK DEVICE to hold
the spindle lock in.
TO REMOVE: Reverse procedure.
Be sure the power is disconnected before installing or removing wheel guard.
2.3 Switch Operation
After switching off, the appliance continued to run on for a few seconds. Wait
until the abrading disc has come to a stop before laying the appliance down.
1. Set the On/Off switch to position (1) to switch the appliance on.
2. Set the On/Off switch to position (0) to switch the appliance off.
Be sure the self-lock device is free before using the appliance.
Operation
EN
11
www.magmaweld.com USER MANUAL | KULLANIM KILAVUZU
MGH 1600
15 ~ 30�
2.4 Operation
Normally, when grinding, keep a 15°-30° angle between the wheel and the
work piece.
Please Do not operate at the direction at B when using a new grinding wheel.
Otherwise, the piece will be cut off.
When the grinding wheel edge turns rounded, you can operate in any
direction, both A or B.
Be sure the power is disconnected before installing or removing wheel guard.
Operation
EN
12
www.magmaweld.comUSER MANUAL | KULLANIM KILAVUZU
MGH 1600
LIMIT LINE
4mm
MAINTENANCE AND SERVICE
When the grinding wheel wear and tear to the limit or there has been damage, cracks, deformation, or other defect,
it should be replaced promptly.
Regularly check every parts of the tool whether screw is loose, the loose one should be tightened promptly.
The vent must be kept clean and should be cleaned regularly and when it’s blocked.
Regularly check the power cord for scratched, damaged, plug for cracks or other defects, if the problems occur, they
should be an immediate repair.
Regularly check and replace carbon brushes. When the carbon brushes wear
to the limits, it must be replaced promptly. If there are two carbon brushes,
they should be replaced together. Keeping carbon brushes clean and sliding
freely within the brush holder.
3.1 Grinding Wheel
3.2 Screw
3.3 Carbon Brush
3.4 Cleaning
3.5 Power Cord
Maintenance and Service
EN
13
www.magmaweld.com USER MANUAL | KULLANIM KILAVUZU
MGH 1600
4.1 Spare Part List
ANNEX
Annex
EN
14
www.magmaweld.comUSER MANUAL | KULLANIM KILAVUZU
MGH 1600
Outer Flange
Wheel Guard
Dust-Proof Sheet
Spindle
Inner Flange
Key
1
12
21
30
4
15
24
33
10
19
28
7
18
27
36
37
13
22
31
3
14
23
32
5
16
25
34
11
20
29
8
9
6
17
26
35
6202VV Bearing
Screw
6200VV Bearing Cover
Gear
Hex Nut
608 Bearing Dust-Proof Sheet
Front Cover
608 Bearing
Wool Chip
Front Handle
Bearing Cover
Self-Locking Spring
Screw
Self-Locking Pin
Pinion Gear
608SS Bearing
Wool Chip
Gear Box
6200VV Bearing
Self-Locking O Ring
Rubber Ring
Screw
No.5 Washer
Screw
Self-Locking Cap
Armature
Screw
Washer
608 Bearing Guard
NO
4.1 Spare Part List
DEFINITION
Annex
Y832000201
Y832000204
Y832000207
Y832000202
Y832000205
Y832000203
Y832000206
Y832000211
Y832000220
Y832000229
Y832000214
Y832000223
Y832000231
Y832000209
Y832000217
Y832000226
Y832000234
Y832000212
Y832000221
Y833000201
Y832000215
Y832000224
Y832000232
Y832000210
Y832000219
Y832000228
Y832000218
Y832000227
Y832000235
Y832000213
Y832000222
Y832000230
Y832000208
Y832000216
Y832000225
Y832000233
MATERIAL CODE
EN
15
www.magmaweld.com USER MANUAL | KULLANIM KILAVUZU
MGH 1600
Fan Shroud
Brush Holder
Carbon Brush
Stator
Coil Spring
Stator Housing
Screw
38
49
54
41
47
52
44
39
50
55
51
56
40
42
48
53
45
46
43
Screw
Left Handle
Switch
Power Cord
Right Brush Cover
Right Handle
Cord Guard
Capacitor
Cord Clip
Screw
Left Brush Cover
Screw
NO DEFINITION
Annex
Y832000236
Y832000238
Y832000246
Y834000201
Y832000248
Y833000202
Y834000203
Y832000239
Y832000247
Y832000237
Y832000245
Y832000240
Y833000203
Y832000244
Y834000202
Y832000242
Y832000243
Y832000241
Y832000249
MATERIAL CODE
16
www.magmaweld.com
TR
USER MANUAL | KULLANIM KILAVUZU
MGH 1600
1
1.1
2
2.1
2.2
2.3
2.4
3
3.1
3.2
3.3
3.4
3.5
4
4.1
TEKNİK BİLGİLER
KULLANIM BİLGİLERİ
BAKIM VE ARIZA BİLGİLERİ
Vida
EKLER
17
21
22
22
22
23
24
24
24
24
24
25
İçindekiler
İÇİNDEKİLER
17
www.magmaweld.com
TR
USER MANUAL | KULLANIM KILAVUZU
MGH 1600 Güvenlik Kuralları
yaralanmaya neden olabilir.
yaralanmaya neden olabilir.
riski artar.
GÜVENLİK KURALLARI
Güvenlik Bilgilerinin
18
www.magmaweld.com
TR
USER MANUAL | KULLANIM KILAVUZU
MGH 1600
yaralanmalara neden olabilir.
olabilecektir.
neden olabilir.
neden olabilir.
Güvenlik Kuralları
19
www.magmaweld.com
TR
USER MANUAL | KULLANIM KILAVUZU
MGH 1600
Güvenlik Kuralları
itecektir.
neden olur.
patlayabilir.
20
www.magmaweld.com
TR
USER MANUAL | KULLANIM KILAVUZU
MGH 1600
olabilecek nesneleri kesebilir.
Güvenlik Kuralları
Uygulama
Semboller
Table of contents
Languages:
Other Magmaweld Grinder manuals
Popular Grinder manuals by other brands
MasterForce
MasterForce 15A Operator's manual
Far Tools
Far Tools TX 150B Original manual translation
Henry Tools
Henry Tools 49 RA General safety and maintenance manual
Far Tools
Far Tools KH 125D Original manual translation
Makita
Makita 9005B Parts Breakdown
Meister
Meister MWS1100-125 Translation of the original instructions
