Magna Telemotive AG blue PiraT Mini User manual

blue PiraT Mini
User Guide
Version 2.4.1 / 21.09.2016

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 2 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
Table of contents
1LICENSE AGREEMENT.....................................................................................................4
2PRODUCT LIABILITY.........................................................................................................5
3Overview ............................................................................................................................6
4System requirements........................................................................................................7
4.1 Further manuals.........................................................................................................8

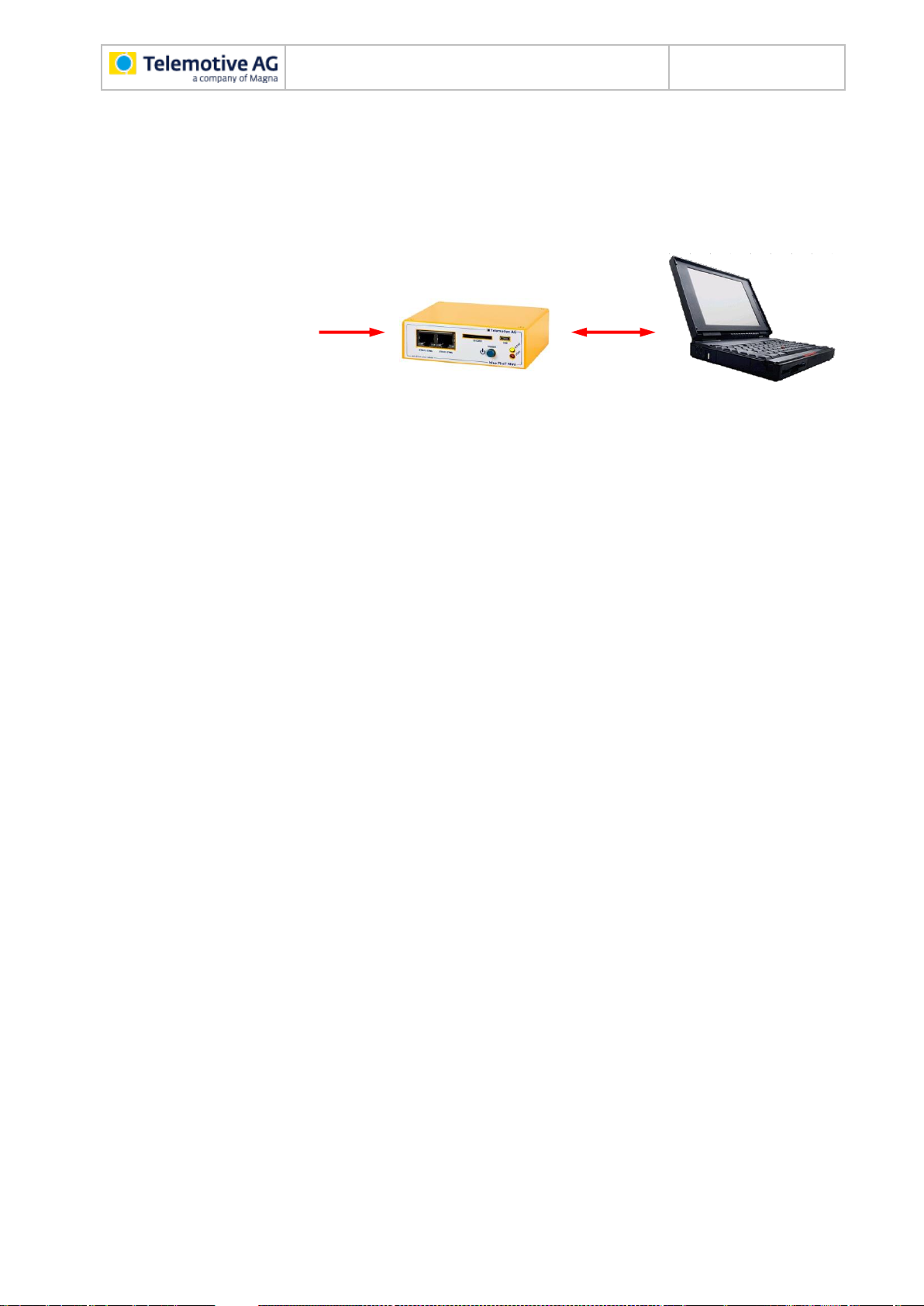

5The blue PiraT Mini system...............................................................................................9
5.1 Accessories..............................................................................................................10
5.2 Additional features by optional licenses....................................................................11
6The blue PiraT mini data logger .....................................................................................12

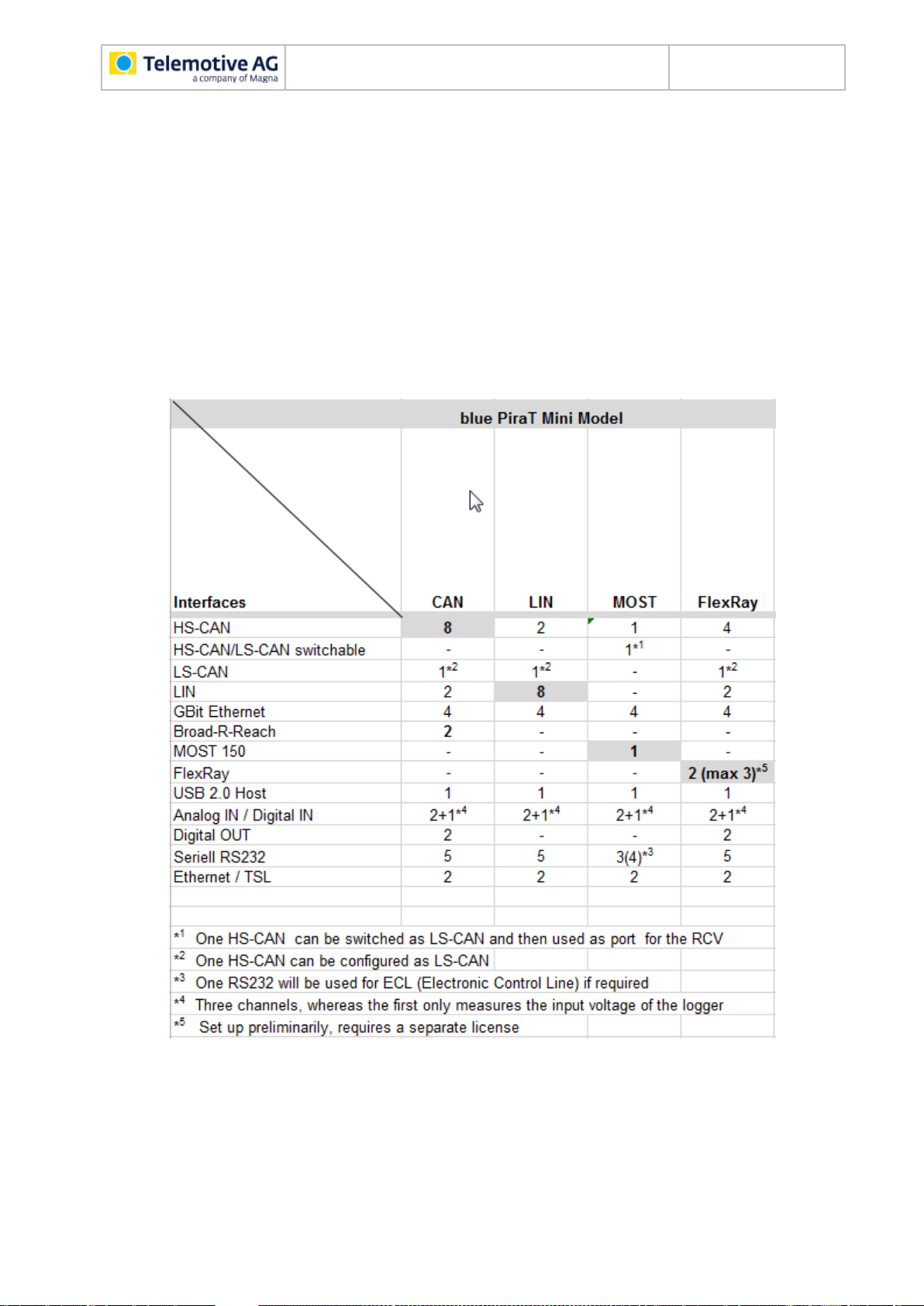

6.1 Model versions of blue PiraT Mini.............................................................................12
6.2 Front side.................................................................................................................13
6.3 Rear side..................................................................................................................13
7Controls and ports ..........................................................................................................14

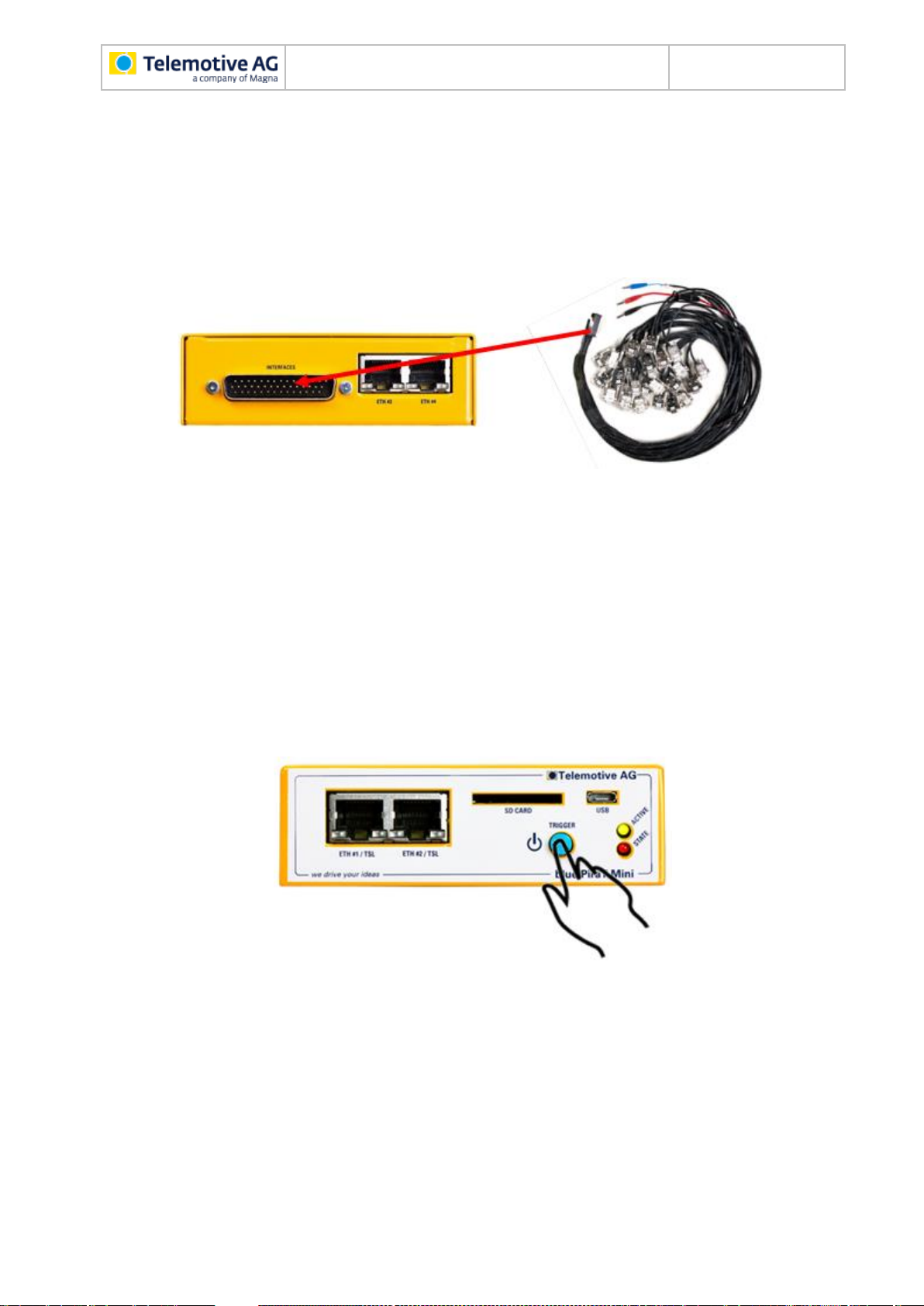

7.1 ON / Trigger button...................................................................................................14
7.1.1 Resetting the logger to factory settings............................................................14
7.2 LEDs........................................................................................................................15
7.2.1 ACTIVE-LED (green).......................................................................................15
7.2.2 STATE-LED (red)............................................................................................15
7.3 ETH #1 / TSL and ETH #2 / TSL ..............................................................................15
7.4 Micro-USB port.........................................................................................................16
7.5 SD card slot..............................................................................................................17
7.6 ETH #3 and ETH #4.................................................................................................18
7.7 Multifunction connector 44-pol SUB-D HD................................................................18
7.8 Multifunction connector 15-pol SUB-D......................................................................18
7.9 MOST150 interface..................................................................................................19
7.10 Default network settings...........................................................................................19
7.10.1 Resetting the network settings..................................................................19
8Starting the blue PiraT Mini ............................................................................................20
8.1 Download and installation of the Telemotive System Client......................................21
9Adapter cables.................................................................................................................23
9.1 blue PiraT Mini cable set CAN..................................................................................23
9.2 blue PiraT Mini cable set LIN....................................................................................24
9.3 blue PiraT Mini cable set MOST150.........................................................................24
9.4 blue PiraT Mini cable set FlexRay ............................................................................25
9.5 Note for serial measurements...................................................................................26
9.6 Adapter cable for Remote Control Voice (RCV)........................................................26
10 Logging data....................................................................................................................27
10.1 Setting markers........................................................................................................27
10.1.1 Setting marker with an extern push button................................................27
10.2 Time stamp ..............................................................................................................28
10.3 Standby mode..........................................................................................................29
10.4 Memory space and level...........................................................................................30
10.4.1 Status Logger: OK....................................................................................30
10.4.2 Status Logger: WARN..............................................................................30
10.4.3 Status Logger: RING................................................................................30
10.4.4 Status Logger: MEM.................................................................................31
10.4.5 Status Logger: NoSync.............................................................................32
10.4.6 Status Logger: ERROR ............................................................................32
11 Interfaces .........................................................................................................................33
11.1 CAN .........................................................................................................................33
11.1.1 High Speed and Low Speed operating modes..........................................33

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 3 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
11.1.2 CAN data with 29 Bit identifiers ................................................................33
11.1.3 Recording contents...................................................................................34
11.1.4 Sending CAN messages...........................................................................34
11.1.5 LS-CAN and using a RC / RCV ................................................................34
11.2 LIN 35
11.2.1 LIN data blocks and time stamps..............................................................35
11.2.2 LIN transceiver.........................................................................................35
11.2.3 Special frames and states ........................................................................35
11.3 Serial (RS232)..........................................................................................................36
11.3.1 Segmentation of the serial data................................................................36
11.3.2 RS232 transceiver....................................................................................36
11.4 FlexRay....................................................................................................................36
11.5 Analog / Digital Input ................................................................................................37
11.6 Digital Output............................................................................................................37
11.7 Ethernet....................................................................................................................37
11.7.1 Supported protocols .................................................................................37
11.8 MOST150.................................................................................................................39
11.9 ECL..........................................................................................................................39
12 Conversion of recorded traces.......................................................................................40
12.1 Conversion format overview.....................................................................................40
13 Service and safety instructions......................................................................................41
13.1 Safety advice............................................................................................................41
14 Data sheet........................................................................................................................43
15 Pin assignments and harnesses ....................................................................................46
15.1 Pin assignment - 44-pol SUB-D HD connector at blue PiraT Mini CAN ....................46
15.2 Pin assignment - 44-pol SUB-D HD connector at blue PiraT Mini LIN ......................48
15.3 Pin assignment - 15-pol SUB-D connector at blue PiraT Mini MOST........................49
15.4 Pin assignment - 44-pol SUB-D HD connector at blue PiraT Mini FlexRay...............50
16 Abbreviations ..................................................................................................................52
17 List of figures...................................................................................................................54
18 List of tables....................................................................................................................55
19 Contact.............................................................................................................................56

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 4 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
1 LICENSE AGREEMENT
Please read the license agreement of this license contract carefully, before you install the soft-
ware. By the installation of the software you agree to the conditions of this license contract.
This software-license agreement, in the following called “license”, contains all rights and re-
strictions for final users that regulate the use of the accompanying software, operating instruc-
tions and other documents, in the following called as “software”.
1. This license contract is an agreement between licensor and licensee, who is being licensed to
use the named software.
2. Licensee acknowledges that this is only a limited nonexclusive license. This means, that the li-
censee has no right to allocate sublicenses. Licensor is and remains the owner of all titles, rights
and interests in the software.
3. The software is a copyright property of the Telemotive AG. The program or parts of it may not be
further licensed to third parts, rented, sold or be further marketed in any form without explicit writ-
ten approval by Telemotive AG. The user may neither change the software and their compo-
nents, nor modify, nor redevelop or decompile otherwise in any form.
4. This software is subject to no warranty. This software is sold as is, without any warranty. If at any
time, a user changes his system, we hold no responsibility to change our software to make it
work again.
5. This license permits licensee to install the software on more than one computer system, as long
as the software will not be used on more than one computer system simultaneously. Licensee will
not make copies of the software or allow copies of the software to be made by others, unless au-
thorized by this license agreement. Licensee may make copies of the software for backup pur-
poses only. Licensee is not entitled to transmit or to transfer the software or its rights from this
license agreement.
6. Licensor is not liable to licensee for any damages, including compensatory, special, incidental,
exemplary, punitive or consequential damages, connected with or resulting from this license
agreement or licensee’s use of this software.
7. Licensee agrees to defend and indemnify licensor and hold licensor harmless from all claims,
losses, damages, complaints or expenses connected with or resulting from licensee’s business
operations.
8. Licensor has the right to terminate this license agreement and licensee’s right to use this software
upon any material breach by licensee. The duration of the license contract is indefinitely deter-
mined.
9. Licensee agrees to return all copies of the software to licensor or to destroy them upon termina-
tion of the license contract.
10. This license agreement replaces and supersedes all prior negotiations, dealings and agreements
between licensor and licensee regarding this software.
11. This license contract is subject to German law.
12. If a regulation of this license contract is void by law, the validity of the remaining regulations is not
affected. If there is such a regulation it will be replaced by a valid, according to the legal regula-
tions and enforceable regulation with similar intention and similar economic consequence.
13. The license contract is effective by delivery of the software of the licensor to the licensee and/or
by usage of the software by the licensee. This license contract is also valid without licensor’s sig-
nature.
14. The license automatically goes out if the licensee does not agree to the license regulations de-
scribed here or offend against the license regulations of this license contract. With ending the li-
cense contract the licensee is obliged to extinguish or to destroy the software and all copies of it
no matter if installed or stored on disk or to hand all of it back to Telemotive AG.
15. The licensee is liable for all damages caused to the licensor by the violation of these license
regulations.

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 5 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
2 PRODUCT LIABILITY
For all offers, sales and supplies the following conditions apply exclusively, even if the buyer,
orderer and suchlike prescribes other conditions. Alterations are only valid, if they are agreed in
writing.
1. The technical documentation is part of the products. The product liability and the product guaran-
tee will be excluded, if contents and in particular the safety references and instructions of the
documentation are not considered.
2. The products do belong to the group of test tools. By application of the equipment a disturbance
of the tested system cannot be completely excluded. For this reason, the warranty of a perfectly
functioning system cannot be taken over by the manufacturer. Application of the product takes
place at one’s own risk.
3. The liability of the substitution of damages according to §1 product liability law is expressly ex-
cluded in the context of §9 product liability law, as far as compelling legal terms do not provide
anything else.
4. In no event will the producer be liable for any indirect, incidental, special or consequential dam-
ages, including loss of profits, loss of revenues, loss of data, loss of use, any other economic ad-
vantage or damage caused by pretensions of third party towards the customer out of this
agreement, under any theory of liability, whether in an action in contract, strict liability, tort (includ-
ing negligence) or other legal or equitable theory.
5. The burden of proof is with the customer.
6. The Telemotive AG does ensure the legal warranty according to German law. Except for warran-
ties expressly set forth in this agreement, any and all products are delivered “as is” and the pro-
ducer makes and the customer receives no additional express or implied warranties. The
producer hereby expressly disclaims any and all other warranties of any kind or nature con-
cerning the products, whether express or implied, including without limitation, any warranty of ti-
tle, merchantability, quality, accuracy or fitness for a particular purpose or the customer’s
purpose. The producer expressly disclaims any warranties that may be implied from usage of
trade, course of dealing or course of performance. Except for the express warranties stated in
this agreement the products are provided with all faults and the entire risk of unsatisfactory quali-
ty, performance, accuracy. The possible effort is with the customer. The producer does not war-
rant that the products will operate without interruption or be error free.
7. The Telemotive AG is justified to exchange defective goods against homogeneous acceptable
ones or to eliminate the fault within an appropriate period. In this case a demand for redhibitory
action or reduction of price expires. Warranty claims presuppose a due notice of defects.
8. Resale, transfer, donation, exchanges or the rental of the offered products at third party is permit-
ted without clearance of the Telemotive AG.
9. German Law is deemed to be as legal basis.
© by Telemotive AG, 2016
Subject to errors and to technical changes as part of product improvement.

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 6 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
3 Overview
This user guide describes the administration of the newest generation of blue PiraT data logger
of the Telemotive AG, called blue PiraT Mini.
This user guide describes hardware and interfaces as well as the general functions of the blue
PiraT Mini. The configuration and converting of the logged trace data is described in the user
guide of the Telemotive System Client.
This document refers to firmware version 02.04.01 and the Telemotive System Client from
version 2.4.1. Some features depending on model and feature license or may not be available
in older versions.
Software updates and user guides for other, optional, licensed enhancements are available in
the Telemotive ServiceCenter. (Please find the address under Contact at the last page.)
To ensure the most reliable operation of your system as possible, please make sure to use al-
ways current firmware and software versions.
Index

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 7 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
4 System requirements
Control Unit
A Windows based Laptop or PC is needed to configure the devices of Telemotive AG by
Telemotive System Client. It also allows to save the recorded data and to use them offline
later.
Telemotive System Client
The software client is used for configuring the data logger as well as downloading the recorded
data or convert these into your needed file format. An firmware update can be performed by the
Telemotive System Client too to ensure that your devices are always up to date.
blue PiraT Mini
The communication between bus systems and control units is monitored and relevant data can
be recorded very precisely with the data logger of Telemotive AG. The collected data are stored
to the logger and can be downloaded via Ethernet to a PC.
The blue PiraT Mini is smallest data logger in the world with an outstanding functional scope. It
offers a wide range of interfaces, stable temperature behavior, very low energy consumption,
four GBit Ethernet ports, and much more. Different blue PiraT Mini can be flexibly expanded to
one cluster and therefore handled very easily by using Telemotive System Link.
License
For some additional features an installed license is required. Settings for licensed features can
be performed with a valid license only.
If you need a license for your logger, please contact our sales department (please find the ad-
dress under contact at the last page).

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 8 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
4.1 Further manuals
Beside this user guide we offer the main manuals for our client as well as for the different data
logger generations in our ServiceCenter at https://sc.telemotive.de/bluepirat.
User manual for the Telemotive System Client
https://sc.telemotive.de/4/uploads/media/TelemotiveSystemClient_UserManual.pdf
User manual for blue PiraT2 / blue PiraT2 5E
https://www.telemotive.de/4/uploads/media/blue_PiraT2_UserManual.pdf
User manual for blue PiraT Mini
https://www.telemotive.de/4/uploads/media/blue_PiraT_Mini_UserManual.pdf
User manual for Remote Control Touch
https://sc.telemotive.de/4/uploads/media/RCTouch_UserGuide.pdf
User manual for blue PiraT Remote
https://sc.telemotive.de/4/uploads/media/blue_PiraT_Remote_UserGuide.pdf
For having an easy access if necessary, the most important manuals are linked in the client
under the menu item [Help] and are reachable easily from there.
Figure 4.1: links to the manuals
Our licensed enhancements have own manuals which are stored in the ServiceCenter too. You
will find a list of these enhancements in the user manuals in the chapter Additional features by
optional licenses.
Index

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 9 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
5 The blue PiraT Mini system
The blue PiraT Mini is a data logger, which offers the following interfaces, depending on the
model:
Figure 5.1: Interface (overview)
The data logger can be mounted in a vehicle and due to his large storage capacity of the hard
drive of currently approx. 50 GB usable space, the blue PiraT Mini is able to support extensive
test runs. After the data has been gathered it has to be downloaded via Ethernet. For the down-
load and the conversion of the logging data the Telemotive System Client is available.
For the available conversion options to various trace file formats please have a look at chapter
12.1 Conversion format overview. The blue PiraT Mini is available with different features (see
chapter 5.2
Ethernet
8x HS-CAN
1x LS-CAN
8x LIN
1x MOST150
3x FlexRay a/b
5x Serial
1x ECL
2x Broad-R-Reach®
4x GB Ethernet/TSL
1x USB 2.0 Device/Host
2x Analog/Digital IN
2x Digital OUT
1x SD card

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 10 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
Additional features by optional licenses).
The blue PiraT Mini is designed to create minimum interference with the vehicle’s bus systems
and interfaces. The data logger listens to the data traffic without operating as a bus node.
Additionally to the data recording functionality, the blue PiraT Mini provides online data pro-
cessing functions:
simple CAN and MOST filters
custom-defined messages can trigger the setting of markers
5.1 Accessories
There are various accessories available for the blue PiraT Mini data logger:
various adapter cables
the Remote Control Voice, which additionally allows recording of voice note
licenses which enhance the functionality of the blue PiraT Mini
mounting bracket
Please contact Telemotive sales for more information about these accessories.
Manuals are available from the Telemotive ServiceCenter.

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 11 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
5.2 Additional features by optional licenses
Additional features can be activated by purchasing and installing licenses. Licenses can be or-
dered at our sales team. You find the user guides for these additional features in the Telemotive
ServiceCenter. Currently the following licensed features are available.
Feature
Description
Complex Triggers
Certain events (e.g., conditions on CAN-signals) can be programmed to be
a trigger for certain actions (e.g., display of a message on the Remote Con-
trol or send a CAN message).
The standard configuration of the data logger contains 2 complex triggers.
This license allows configuring up to 50 complex triggers.
Remote Control
Monitor
display of configurable CAN, LIN, FlexRay, analog and digital signals at the
Remote Control
Diagnostic Log and
Trace
logging of Diagnostic Log and Trace (DLT) messages over Ethernet or se-
rial (restricted) connections
Camera Link
video recording via video server or network cameras
WLAN
supporting wireless LAN
(802.11, 802.11a, 802.11n), (802.11ac from FW 02.04.01)
GPS logging
tracking of GPS data (in the moment blue PiraT2 Ver. 1.x only)
Measurements with CCP
CAN Calibration Protocol
Measurements with XCP
Universal Measurement and Calibration Protocol
Currently the functionality for Ethernet (XCP on Ethernet) and the CAN-bus
(XCP on CAN) are available.
MOST150 Streaming
logging MOST150 synchronous/isochronous data
Signal Based Filtering
The feature Signal Based Filtering provides the possibility to extract pre-
configured signals directly from the recorded CAN, LIN, FlexRay, analog
and digital messages with an adjustable sampling frequency. These filtered
signals can be stored directly to the logger and extract automatically in a
MDF, CSV or TMT file.
Telemotive Live View
showing CAN signals in a HTML-5 compatible browser on mobile devices
like smartphones, tablets or laptops over Wi-Fi (licensed feature) or Ether-
net
The enhanced version has no limitation to mobile devices or signals which
can be shown.
BroadR-Reach
logging
recording of data over BroadR-Reach Ethernet.
(Note: Just available for blue PiraT Mini CAN)
MLBevo
The license Connected-Gateway MLBevo enables the recording of data of
the ATOP control unit MLBevo via USB to the Telemotive data logger and
convert these data with the Telemotive System Client.
(from FW 02.03.01)
Telemotive Download
Terminal
Telemotive Download Terminal allows an automatization of configured
tasks for a defined group of devices.
(from FW 02.03.01)
TPE
TPE = Telemotive Performance Extension
Increasing the logging rate for Ethernet data up to 100Mbit/s
(from FW 02.04.01)
Test automatisation
Interface for connecting to test automation tools.
At the moment, the sending of CAN messages is supported.
(from FW 02.04.01)
Table 5.1: Additional features by optional licenses
Index

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 12 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
6 The blue PiraT mini data logger
6.1 Model versions of blue PiraT Mini
The blue PiraT Mini is manufactured in various model versions to offer a wide range of connec-
tivity in relation to the available interfaces. So an optimal utilization is ensured, depending on
the existing bus systems.
The table below shows, which busses will be supported from the different models of blue PiraT
Mini. Please consider that the using of Broad-R-Reach or TSL reduces the quantity of available
Gbit Ethernet interfaces.
Table 6.1: Versions of the blue PiraT Mini data logger

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 13 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
6.2 Front side
The blue PiraT Mini has two 1-Gbit-Ethernet-ports at the front side (ETH #1 / TSL und ETH #2
/ TSL).
On the front side there are also the [ON / Trigger] button as well as LEDs for ACTIVE and
STATE, a Micro-USB-connector and the receptacle for SD cards.
Figure 6.1: Front panel of the blue PiraT Mini
6.3 Rear side
On the rear side are two more 1-Gbit-Ethernet ports (ETH #3 and ETH #4) and the 44-pol SUB-
D HD multifunctional main connector for power supply and some of the [Interfaces].
Figure 6.2: Rear side of the blue PiraT Mini CAN / LIN / FlexRay
On the rear side of blue PiraT Mini MOST the multifunctional main connector for power supply
and some of the interfaces are realized with a 15-pol SUB-D connector. Additional you’ll find at
the MOST logger a MOST150 connector.
Figure 6.3: Rear side of the blue PiraT Mini MOST
Index

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 14 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
7 Controls and ports
This chapter describes the usage of the controls and ports on the front and rear side of the blue
PiraT Mini.
7.1 ON / Trigger button
The [ON / Trigger] button on the front panel is used for these actions:
Function
Device status
Handling
Start device
out of action
Push the [ON / Trigger] button.
Wake up device
in standby mode
Push the [ON / Trigger] button.
Set Marker
in operational state
Push the [ON / Trigger] button.
Shut down device
(to standby mode)
in operational state
Push and hold the [ON / Trigger] button.
(about 3 to 5 seconds)
Reset network settings
back to default settings
in standby mode
Start the device.
Push and hold the [ON / Trigger] button,
until the STATE-LED flashes red twice.
(~ 15 seconds)
Shut down device and start it again, to
set the settings.
Table 7.1: Overview of the functions of the [ON / Trigger] button
Note: The [ON / Trigger] button has set a debouncing time of 335 ms.
7.1.1 Resetting the logger to factory settings
Beside the possibility to reset the network settings, the blue PiraT Mini offers the possibility to
reset the device to factory respectively delivery status, if the logger is in error state and there’s
no chance to connect to the logger any more (even after a network reset).
Warning:
Due to the reset to factory settings all data and licenses on the logger will be deleted.
Needed licenses have to be installed on the logger again after this operation.
An actual firmware version has to be flashed after this procedure. This is signaled by the
STATE-LED and a failure message “FC_FW_UPDATE” at the client.
To reset the logger to factory settings the logger has to be unplugged from power supply.
While you connect the logger with the power supply, press the [ON / Trigger] button, until both
LEDs are pulsing.
Note:
If you do nothing, the logger tries to startup normally, in case of the button was pressed
by mistake during plug in.
During the short phase, in which the LEDs are pulsing (for about 10 seconds), quickly press
many times the [ON / Trigger] button, until both LEDs are blinking alternately.
The device starts to reset itself to factory settings. This operation will take some minutes. The
blue PiraT Mini will switch off after that automatically.

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 15 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
7.2 LEDs
The blue PiraT Mini has two LEDs ACTIVE and STATE on his front side. They can have the
following states.
7.2.1 ACTIVE-LED (green)
State
Meaning
Off
Device is off or in standby mode.
On
Device has started up and can be reached by the client.
Blinking
Device is starting up.
Pulsing
Device goes to standby mode.
Table 7.2: ACTIVE-LED
Maybe these states are overlain by a fast blinking when there is traffic on one of the active inter-
faces (accept protocol based Ethernet logging).
If an internal or external marker is set, the ACTIVE-LED flashes with full energy for a short time.
7.2.2 STATE-LED (red)
State
Meaning
Off
No bug, normal operational status
On
Device is in error state.
If the device is still reachable by the client, the error and some hints to solve this
issue can be found in the bug reporter.
blinking
Overload of the data logger; maybe loss of data
Information about lost data can be found in the bug reporter.
blinking
When using external media:
The external media is identified.
pulsing
Disk space full
Table 7.3: STATE-LED
7.3 ETH #1 / TSL and ETH #2 / TSL
The network ports at the front side, ETH #1 / TSL and ETH #2 / TSL, are for the communication
between logger and client as well as for logging data.
Further they can be used to combine blue PiraT Mini and blue PiraT2 data logger to a combined
TSL (Telemotive System Link) and synchronize these loggers.
Warning: Don’t connect ETH #1 and ETH #2 directly to each other.
Index

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 16 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
7.4 Micro-USB port
The front Micro-USB port can be used in the host-mode.
It can be used for logging data to an external media or for connecting a Wi-Fi module to the log-
ger. Wi-Fi can be used to get access to the logger over the client or to use the feature Telemo-
tive Live View.
USB storage:
The USB storage has to be formatted in the FAT32 file format. You could connect USB flash
drives and external hard drive up to a maximal supply current of 500 mA. External power sup-
plies must not be connected to the hard disk.
If the USB memory is pulled in the operational state, the following problems exists:
The logger is in an undefined state and will not record any data.
Only after rebooting the device behaves as expected.
The data on the USB memory can then be unreadable when it is removed during a write
operation.
If you turn off the blue PiraT Mini with the [ON / Trigger] button, you have 5 seconds to remove
the medium before the logger can be reawakened.
Note:
Telemotive AG recommends the testing of every external storage before using it in a
measurement. We suggest that especially USB devices with USB 3.0 are sometimes not
recognized by the system.

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 17 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
7.5 SD card slot
The blue PiraT Mini offers the possibility to store data parallel to a removable media as SD
card or USB device. The configuration of this feature is described in the Telemotive System
Client user guide.
The removable media must be formatted with FAT32 with a storage capacity of at least 4 GB.
The following SD cards have been tested with the blue PiraT Mini and released for use:
Manufacturer
Description
Size
Type
SanDisk
Extreme PRO
64 GB
SDXC
Transcend
Ultimate Speed
16 GB
SDHC
Transcend
Ultimate Speed
32 GB
SDHC
Transcend
Ultimate Speed
64 GB
SDXC
Kingston
SDA3
16 GB
SDHC
Kingston
SD10VG2
32 GB
SDHC
Intenso
3431470
32 GB
SDHC
Intenso
3431490 Professional
64 GB
SDXC
Hama
Class 10 45 Mbps
16 GB
SDHC
Hama
Class 10 45 Mbps
64 GB
SDXC
Extrememory
Performance Class 6
16 GB
SDHC
Extrememory
HyPerformance Class 10
32 GB
SDHC
SanDisk
Extreme
32 GB
SDHC
Table 7.4: Compatible SD cards
If the removable media is detected by the logger, the red State LED starts flashing.
A write-protected SD memory card will be indicated by the permanent illumination of the red
STATE LED.
In addition, the write protection will be highlighted in the network logger window of the Telemo-
tive System Client with a red labelled exclamation mark and an entry in the bug report
FC_MS_READ_ONLY” with a corresponding note.
Then shut down the bP Mini, unlock the SD card, reinsert it and reboot the device.
Attention:
Removing the SD card without prior shutdown may result in the loss of all recorded data.
If the SD card is pulled in the operational state, the following problems exists:
The logger is in an undefined state and will not record any data.
Only after rebooting the device behaves as expected.
The data on the SD card can then be unreadable when the SD card is removed during a
write operation.
If you turn off the blue PiraT Mini with the [ON / Trigger] button, you have 5 seconds to remove
the disk before the logger can be reawakened.

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 18 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
7.6 ETH #3 and ETH #4
The network ports at the rear side, ETH #3 and ETH #4, can be used for logging data.
Warning: Don’t connect ETH #3 and ETH #4 directly to each other.
7.7 Multifunction connector 44-pol SUB-D HD
At blue PiraT Mini CAN / LIN / FlexRay this connector has these functions, depending on the
logger model:
Power supply KL 30 and KL 31
Clamp 15 KL 15
High Speed CAN HS-CAN
Low Speed CAN / Remote Control LS-CAN
LIN LIN
FlexRay FR x Ch A / Ch B
Serial RS232
Analog-Digital IN KFZ ANA IN / KFZ ANA COM
Digital OUT KFZ DIG OUT
Broad-R-Reach®KFZ BRR
The pinning is described in chapter 15 Pin assignments and harnesses
Notice:
The logger is protected against reverse polarity of the power supply. But devices which
are connected to the logger can be damaged when the logger is connected in the wrong
way.
7.8 Multifunction connector 15-pol SUB-D
At blue PiraT Mini MOST this connector has these functions:
Power supply KL 30 and KL 31
High Speed CAN HS-CAN
Low Speed CAN / Remote Control LS-CAN
Serial RS232
Analog-Digital IN KFZ ANA IN / KFZ ANA COM
Digital OUT KFZ DIG OUT
The pinning is described in chapter 15 Pin assignments and harnesses

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 19 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
7.9 MOST150 interface
The MOST150 interface is a standard 2 + 0 connector for MOST fiber optic.
Important:
Maybe the MOST150 connector can’t be plugged when the 15-pol SUB-D connector is not
locked.
If the MOST connector is not used, the jack must be covered with a terminating plug.
This prevents the sensitive fiber optic contacts from getting dirty. It also makes sure that
the data logger does not start up unintentionally when, e.g., strong sunlight falls onto the
optical contacts.
7.10 Default network settings
Important:
The loggers default setting is “DHCP server”and has to be connected by an Ethernet
cable to your computer system. You can download the Telemotive System Client by typ-
ing this IP address into your web browser: http://192.168.0.233
7.10.1 Resetting the network settings
If you have no access to the logger any more please follow the instructions of chapter 7.1 ON /
Trigger button to reset the network settings.
Reset network settings
back to default settings
in standby mode
Start the device.
Push and hold the [ON / Trigger] button,
until the STATE-LED flashes red twice.
(~ 15 seconds)
Shut down device and start it again, to
set the settings.
Index

blue PiraT Mini
User Guide
Datum: 21.09.2016
Seite 20 von 56
blue_PiraT_Mini_UserManual_V2.4.1.doc
8 Starting the blue PiraT Mini
Connect the blue PiraT Mini to the vehicle battery or a power supply via the power harness
(red/Vbat/+/clamp 30 and black/GND/-/clamp 31).
Connect the Gigabit-Ethernet-port ETH #1 / TSL with the Ethernet port of your computer by us-
ing a Ethernet cable. (Note: By default the blue PiraT Mini is configured as DHCP server.)
Figure 8.1: Power connection
When the power supply is switched on, the logger will start automatically when you plug in the
power supply.
Is the blue PiraT Mini in standby mode please press the [ON / Trigger] button to start the de-
vice.
To switch off the blue PiraT Mini please press the [ON / Trigger] button for about 5 seconds till
the green ACTIVE-LED starts pulsing.
The boot sequence takes about 15 seconds, until the logger is reachable by the Telemotive
System Client. Data logging is starting much earlier.
Figure 8.2: Switching on the blue PiraT Mini
