GenesisULTRA
Communication / Music System
Installation and Operation Manual
Table of Contents
Important Safety Instructions: …………………………..…… 2
System Notes & Preventive Maintenance: ……………….… 3
Troubleshooting Guide………………………………………... 4 & 5
MagnaCoil™ Headset & MagnaPlug™ Instructions: ….….. 6, 7

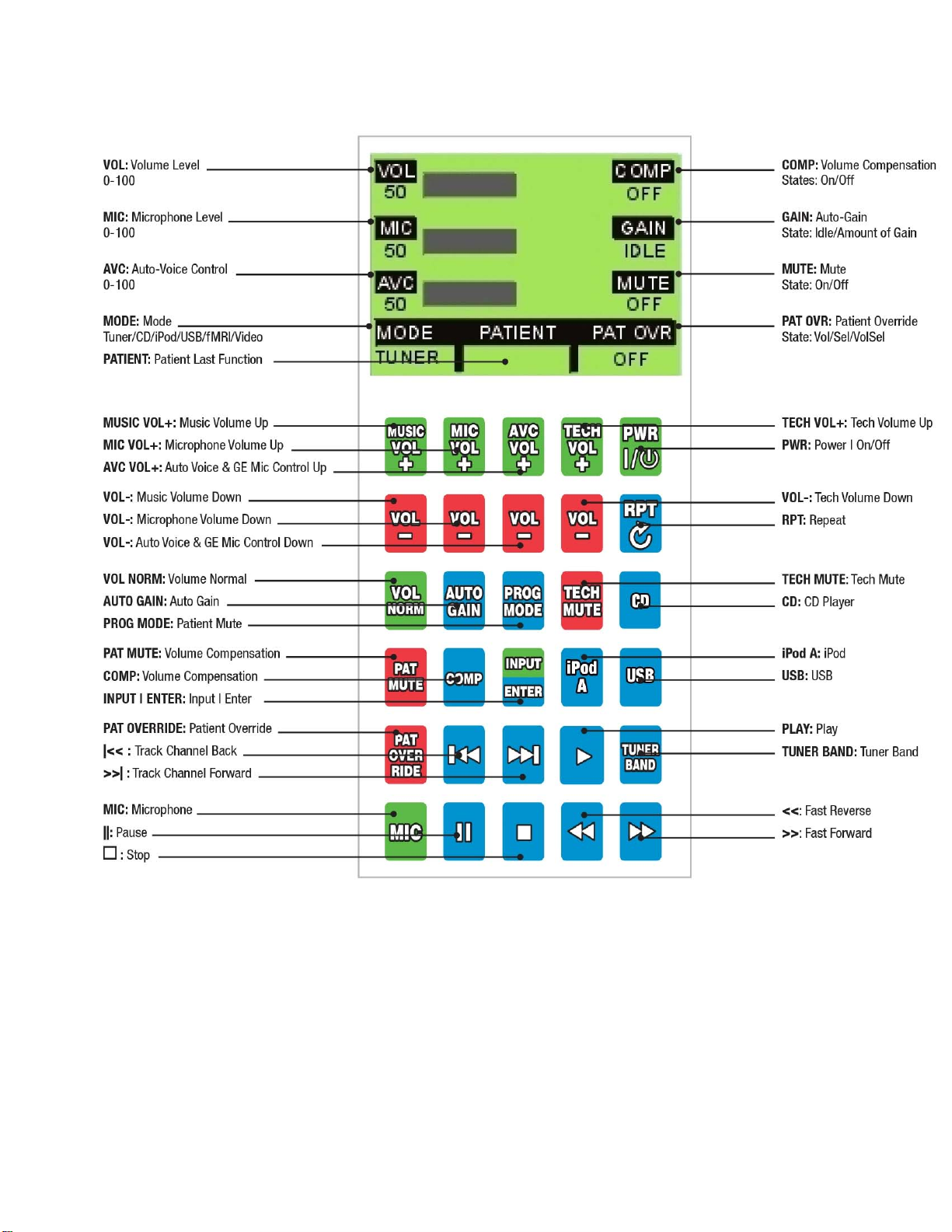

Technologist Control Unit Operation: …………………….…. 8, 9 &10
Pre-Installation & System Parts List: …………………….…. 11

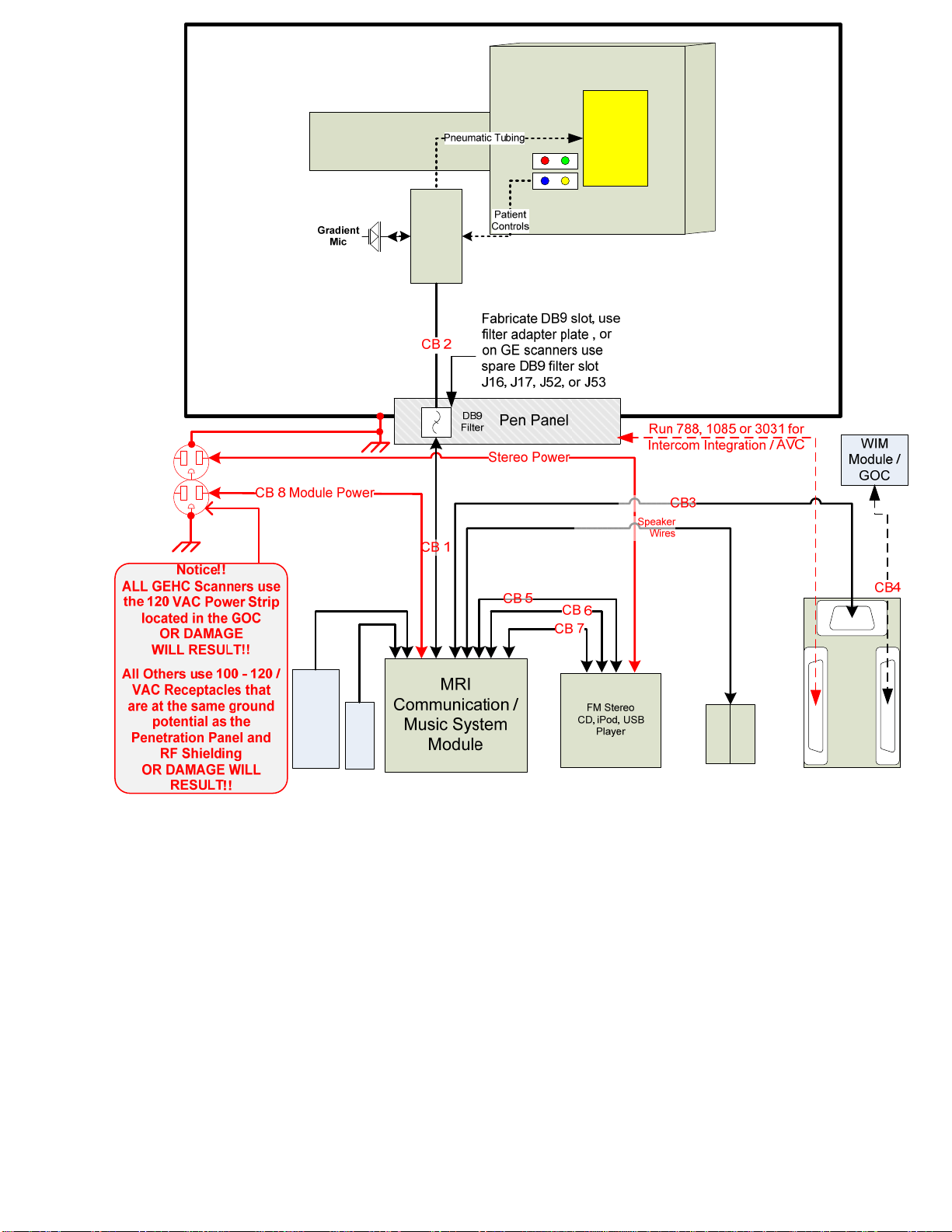

Genesis ULTRA Installation and Connections: ………….… 12,13,14&15
Rear Panel: ………………………………………………….… 16
Component Locations and Wiring Pictorial: …….............… 17
Addendum: Genesis Ultra Install/User Manual
EXTERNAL DEVICE CONNECTIONS FOR SYSTEMS WITHOUT AUDIO INPUT ON
STEREO
Appendix A page 18
Magnacoustics Inc.
1995 Park Street
Atlantic Beach NY 11509
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t
2|
Important Safety Instructions
CAUTION
ThisinstallationmanualisintendedforQualifiedFieldServiceEngineers.Ifyouarenot
thoroughlyfamiliarwithALLMRISAFETYREQUIREMENTS,Magnacousticsrecommendsthat
youDONOTATTEMPTTHISINSTALLATION!
1)Readtheseinstructions.
2)Keeptheseinstructions.
3)Heedallwarnings.
4)Followallinstructions.
5)Donotusethisapparatusnearwater.
6)Cleanonlywithadrycloth.
7)Donotblockanyventilationopenings.Installinaccordancewiththemanufacturer’sinstructions.
8)Donotinstallnearanyheatsourcessuchasradiators,heatregisters,stoves,orotherapparatusesthatproduce
heat.
9)Donotdefeatthesafetypurposeofthepolarizedorgrounding‐typeplug.Apolarizedplughastwobladeswith
onewiderthantheother.Agrounding‐typeplughastwobladesandathirdgroundingprong.Thewidebladeor
thethirdprongisprovidedforyoursafety.Iftheprovidedplugdoesnotfitintoyouroutlet,consultanelectrician
forreplacementoftheobsoleteoutlet.
10)Protectthepowercordfrombeingwalkedonorpinched,particularlyatplugs,conveniencereceptacles,and
thepointwheretheyexitfromtheapparatus.
11)Onlyuseattachments/accessoriesspecifiedbythemanufacturer.
12)Useonlywithacart,stand,bracket,ortablespecifiedbythemanufacturer,orsoldwiththeapparatus.When
acartisused,usecautionwhenmovingthecart/apparatuscombinationtoavoidinjuryfromtip‐over.
13)Unplugthisapparatusduringlightningstormsorwhenunusedforlongperiodsoftime.
14)Referallservicingtoqualifiedservicepersonnel.Servicingisrequiredwhentheapparatushasbeendamaged
inanyway,suchaspower‐supplycordorplugisdamaged,liquidhasbeen spilledorobjectshavefallenintothe
apparatus,theapparatushasbeenexposedtorainormoisture,doesnotoperatenormally,orhasbeendropped.
15)Warning‐thisequipmentisnotwaterproof.Topreventafireorshockhazard,donotplaceanycontainer
filledwithliquidnearthisequipment(suchasavaseorflowerpot)orexposeittodripping,splashing,rainor
moisture.
Warning:ThisequipmenthasbeencertifiedtocomplywiththelimitsforaClassBcomputingdevice,pursuantto
SubpartJofPart15ofFCCRules.OnlyperipheralscertifiedtocomplywiththeClassBlimitsmaybeattachedto
thisequipment.Operationwithnon‐certifiedperipheralsislikelytoresultininterference.Thisequipment
generatesandusesradiofrequencyenergyandifnotinstalledandusedproperly,thatis,instrictaccordancewith
themanufacturer’sinstructions,maycauseinterference.Ithasbeentypetestedandfoundtocomplywiththe
limitsforaClassBcomputingdeviceinaccordancewiththespecificationsinSubpartJofPart15ofFCCRules,
whicharedesignedtoprovidereasonableprotectionagainstsuchinterference.
:ThepowerswitchonthisunitwillnotcompletelyshutoffallpowerfromtheACoutlet.Sincethepowercord
servesasthemaindisconnectdevicefortheunit,youwillneedtounplugitfromtheACoutlettoshutdownall
thepower.Therefore,makesuretheunithasbeeninstalledsothatthepowercordcanbeeasilyunpluggedfrom
theACoutletincaseofanaccident.Toavoidfirehazard,thepowercordshouldalsobeunpluggedfromtheAC
outletwhenleftunusedforalongperiodoftime(forexampleiffacilitywillnotbeinoperationforafewweeks)
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t 3|
System Notes
Our MagnaLink™ and MagnaCoil™ Pneumatic Stethoscope Style Headsets attenuate gradient noise to
patient’s ears by 30dB (NRR) Tested per ANSI standard and comply with the GEHC MR Operators Guide.
Active volume compensation (Auto Gain) changes volume automatically to help mask MR gradient sounds.
Patient volume and music selection controls with voice feedback for maximum comfort and versatility.
Built-in intercom allows the Technologist to communicate directly with the patient even while the scan is in
progress.
Complete FM stereo, CD, iPod and USB interface.
Built-in interface for AutoVoice and intercom integration for all GE and Hitachi MRIs.
Built-in Patient Ready Signal (PRS) to signal technologist the patients’ readiness for the scan to begin.
Built-in interface for fMRI.
Built-in interface audio portion of Video.
Preventive Maintenance
EXTERNAL INTERCONNECT CAUTION: Because we use the Scan Room Shielding as our ground
reference, any auxiliary connections to the stereo that are at a different ground potential may also cause
system damage, interference in the scanner and a 60 cycle hum from the speakers or patient headset. Do
not connect any external Antenna or Audio input to the stereo without the proper isolation.
1. Radio Shack Ground Loop Isolator Catalog # 270-054 with the proper phono to 3.5mm stereo adapter
and Radio Shack Catalog # 274-883 or appropriate adapter must be used.
2. A 75 to 300 ohm adapter in series with the any external antenna source must be used.
POWER CONNECTION CAUTION:
1. Please ensure that all low voltage connections are complete before connecting the AC power cords.
2. Please do not make or break any connections to our equipment while the AC plugs are live / connected
to power or damage will result!!
3. To preserve RF integrity in the scan room we float our ground from the penetration panel.
4. Please ensure that the module and stereo AC plugs are connected to outlets that are at the same
Ground Potential as the Scanner or Damage to our Equipment and or poor SNR performance will
result!!
CD-ROM USE NOTE:
1. CD-ROM media is subject to deterioration, just like any other material. CD-ROMs are made of many
layers, and the materials used in these layers change over time, depending on when they were made
and how they age. Depending on susceptibility, wear, and environment, various layers of a CD-ROM
may undergo oxidation; hydrolysis or mechanical stress, leading to damage that will cause the CD-
ROM to skip in your favorite song or not to play at all.
2. It’s nearly impossible to prevent the accumulation of dust, scratches and scuffs from occurring,
especially with frequent use; the resulting accumulation can mean either a skip in your favorite music
track, or not playing at all. To get the best performance from your CD-ROMs, keep them and the optical
pickup mechanism clean. Whenever possible, discs should be stored in their case. Dirty CD-ROMs can
also transfer dust or debris on the optical pickup mechanism by centrifugal force. CD-ROMs should be
cleaned every week or sooner based on usage and if used in a dusty environment or the system has
trouble reading them clean more often.
a. To clean the CD disk, purchase a Maxell CD-335 Scratch Repair / Cleaner Kit Model: CD-335
available from RadioShack Catalog #: 5501660. These are also available from Amazon.
b. To clean the CD optical pickup mechanism, purchase a Maxell CD-340 CD Lens Cleaner Model:
CD-340 from RadioShack Catalog #: 55016610. These are also available from Amazon.
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t 4|
Troubleshooting Guide
Symptom: Low Volume to Patients Ears
Diagnostic Observation 1: Determine which type of headset is being used.
Cause / Corrective Action 1: The MagnaCoil™ Headset and MagnaLink™ Headset System provides the
patient with 30dB of attenuation (NRR) tested per ANSI standard and complies with GE Healthcare’s MR -
Safety Guide Operator Manual, Revision 7. Use of any other headset will cause a drastic reduction of
volume as well as creating a potential health risk to the patient by not providing sufficient hearing
protection. If this does not correct the issue please contact Magnacoustics Customer Support.
Diagnostic Observation 2: Check to be sure the clear siamese tubing has not been extended or kinked.
Cause / Corrective Action 2: Do not add additional tubing, each additional foot reduces the SPL by
approximately 3dB and affects the sound quality. (Follow Step “27” in the Installation and Connections
instructions for proper placement). When positioned in the correct location, extra tubing is not necessary.
If the tubing has become kinked try to un-kink or contact Magnacoustics Customer Support.
____________________________________________________________________________________
Symptom: Patient Can’t Hear Music
Diagnostic 1: Check to be sure there is output from the stereo in Tech area.
Cause / Corrective Action 1: Make sure power to stereo is turned on, the Tech Mute is not on and you
are on the correct input. If this does not correct the problem contact Magnacoustics Customer Support.
____________________________________________________________________________________
Symptom: Patient Can’t Hear Technologists Speak from our Mic
Diagnostic Observation 1: Check Microphone Volume
Cause / Corrective Action 1: Raise or lower Mic volume using the Mic+ or Mic- keys on the Tech unit. If
this does not correct the issue please contact Magnacoustics Customer Support.
Diagnostic Observation 2: Check batteries
Cause / Corrective Action 2: Some models use batteries, check the underside of Microphone for
batteries and replace with new unused batteries. If this does not correct the issue please contact
Magnacoustics Customer Support.
Diagnostic Observation 3: Make sure the microphone is not in mute mode.
Cause / Corrective Action 3: There is a mute switch on the microphone, be sure it is in the off position. If
this does not correct the issue please contact Magnacoustics Customer Support.
Diagnostic Observation 4: Confirm the microphone is plugged into the rear of the Genesis Module (J4)
Cause / Corrective Action 4: Go to the rear of the Genesis Module and check location (J4), be sure the
microphone is plugged in. If this does not correct the issue please contact Magnacoustics Customer
Support.
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t 5|
Troubleshooting Guide - continued
____________________________________________________________________________________
Symptom: Can’t Hear from Technologists Speakers
Diagnostic Observation 1: No sound to Technologist Speakers.
Cause / Corrective Action 1: Check the display on the keypad; make sure Tech mute is "Off" If this does
not correct the issue check the speaker connection, be sure speaker wires are connected to properly (Step
“4 “& “5” in the Installation and Connections instructions). If this does not work please contact
Magnacoustics Customer Support.
____________________________________________________________________________________
Symptom: Patient Can’t Hear Technologists Speak from Scanner Mic
Diagnostic Observation 1: Check Microphone Volume
Cause / Corrective Action 1: AVC volume level is displayed on the keypad, to raise or lower volume
level, depress the AVC VOL+ or AVC VOL- keys on the keypad. If this does not correct the issue please
contact Magnacoustics Customer Support.
Diagnostic Observation 2: Check communication from keyboard to Genesis system
Cause / Corrective Action 2: When depressing the keyboard mic, check that AVC is flashing under the
mode on the Technologist control unit, if it is not flashing AVC while depressing the keyboard mic. If it is
not flashing please contact Magnacoustics Customer Support.
____________________________________________________________________________________
Symptom: Technologist Control Unit not working properly
Diagnostic Observation 1: Inspect for traumatized buttons or white tubing.
Cause / Corrective Action 1: Contact Magnacoustics Customer Support for replacements.
Diagnostic Observation 2: Buttons and white tubing looks ok.
Cause / Corrective Action 2: Check to be sure the patient override is off (If vol, sel or vol/sel is located on
in the “PAT OVR” box (page 12), this means the patient is being locked out from controlling the volume
and selection. Toggle the Red PAT OVERRIDE button until “PAT OVR” box indicates OFF.
____________________________________________________________________________________
Symptom: Patient Volume Controls not working properly
Diagnostic Observation: Tech unit does not respond to any commands
Cause / Corrective Action: Re-boot system, by turning rocker switch “J12” off for 10 seconds then back
on. If this does not correct the issue please contact Magnacoustics Customer Support.
____________________________________________________________________________________
Symptom: CD not working properly
Corrective Action: Refer to CD USE NOTE under Preventative Maintenance on page 3. If this does not
correct the issue please contact Magnacoustics Customer Support.
____________________________________________________________________________________
Magnacoustics Customer Support can be reached
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t 6|
MagnaCoil™Headset & MagnaPlug™Instructions
The MagnaCoil™ Headset System provides the patient with 30dB of attenuation (NRR) tested per
ANSI standard and complies with GE Healthcare’s MR Safety Guide Operator Manual, Revision 7
requirements.
Because your MRI can produce sound pressure levels that may cause hearing damage, GE
Healthcare requires that the Technologist ensure a proper fit of all hearing protection devices.
Please refer to the detailed instructions below.
MagnaCoil™Headset & MagnaPlug™Instructions

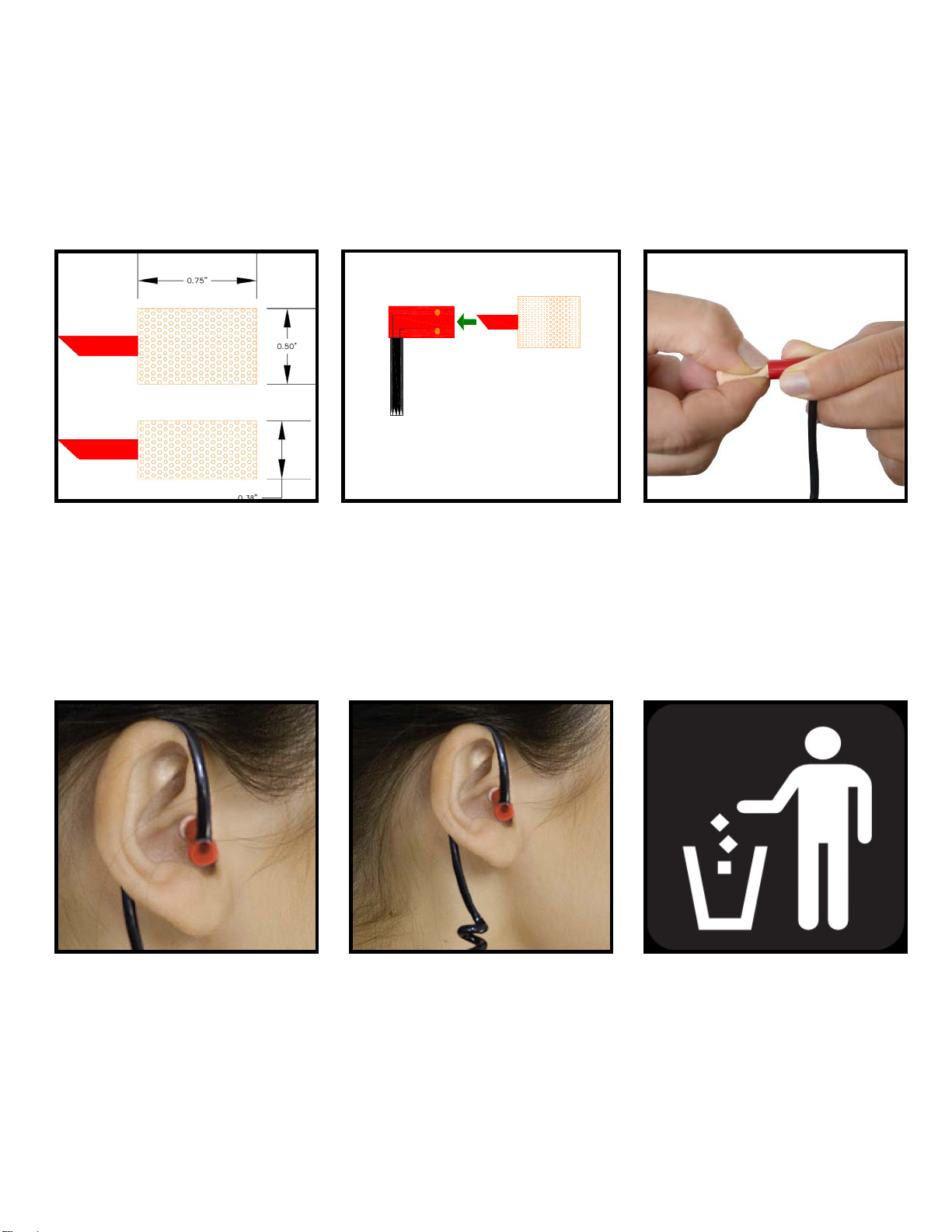

1. There are two sizes of
MagnaPlugs available:
MagnaPlug .75” X .50” for
average size ear canals
MagnaPlug Mini .75” X .38”
for smaller than average size
ear canals
2. Please identify what size
MagnaPlug is required for
the patient then insert them
with a twisting motion into
the Magna MagnaCoil™
Couplers.
3.Hold the MagnaCoil™Coupler
in one hand Using your thumb
and first finger on your other
hand gently start rolling the
MagnaPlug smaller, increasing
the pressure until you reach the
smallest size possible. Avoid
pinching / folding.
4. There are a left and right side
Coupler, insert the
appropriate side with the
MagnaPlug into the patient’s
ear-canal. Hold in place
about 10 ~ seconds for the
foam to expand before
releasing.
5. Then loop the tubing over the
top of the ear. For best
performance please insert the
MagnaPlug into the patient’s
ear-canal as depicted above.
The deeper the plug is inserted
the more attenuation they will
provide.
6. After the scan is completed,
remove the headset by pulling on
the Red Couplers & discard the
MagnaPlugs. Do not attempt to
reuse them, they are a
disposable item. Ear infections
are spread very easily.
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t 7|
7. There is a very good and informative YouTube Video titled “Fitting Foam Earplugs”. Please review
for help with the proper technique for the insertion of foam earplugs into the ear canal.
http://www.youtube.com/watch?v=MvG5oVW6FCo
NOTICE;
1. Only use the Magnacoustics MagnaCoil™& MagnaLink™ System with your Magnacoustics
System.
a. This will ensure your patients hearing protection with all coils in addition to allowing your
system to meet and / or exceed GE Healthcare’s attenuation requirements.
2. Use of any other headset with your Magnacoustics MRI Music System will NOT work and may
cause serious patient safety issues.
3. The Magnacoustics MagnaCoil™& MagnaLink™ System was designed for Magnacoustics
Systems Only.
a. Use on other non-Magnacoustics Systems may cause serious patient safety issues.
4. When removing the headset by pull on the Red Couplers or damage to the tubing may ensue.
5. Modifying or tampering with these headsets in any way might cause them to not provide the
correct Noise Reduction Rating (NRR) and is prohibited.
6. Any modification or failure to comply with the instructions by the user will void the warranty and
shift all liability for potential damages to the said user.
7. If in doubt about the headsets efficacy please contact Magnacoustics customer support at 1-800-
637-2282
Technologist Control Unit Operation
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t 8|
Terminology: TCU = Technologist Control Unit
1: To turn Genesis MRI Music ON from TCU push the Green Power button (located on the top right
corner).
2: To adjust Technologist’s Speaker Music Level depress the Green TECH VOL+ and the Red
VOL– (located to the left of the Power button) for UP and Down respectively. The Stereo will show
the level. To Mute the Technologist’s Speakers depress the Violet TECH MUTE button (located
under the Red VOL- button). The “ON” will flash on the mid right side of the display in the MUTE
box.
3: On power up the microprocessor sets VOL, Mic, and AVC level for patients wherever it was left
when the system was turned off. The number equals the percentage of volume and the horizontal
bar gives a quick visual representation.
4: Depressing the Green Mic button (located on bottom left corner) will allow you to override music
and talk to the patients. Level can be adjusted buy depressing Green Mic VOL+, or the Red VOL-,
for UP and Down respectively. A good starting point is 50. When Mic button is depressed you will
see “Mic” on the lower left “MODE” box of the display.
5: When the AVC (intercom integration) input has triggered from depressing the Mic button on your
GE Intercom (providing the intercom integration kit was installed) the Display will show AVC in the
lower left “MODE” box, and the music to the patient will be interrupted. The AVC level and the
console intercom level will control the level to the patients (it’s a good idea adjust the AVC and,
leave the console set the same for a Patient without Headsets.) A good starting point is 50 but no
two MRIs are the same.
6: Depressing the Red PAT OVERRIDE button (located above the Mic button) will toggle thru locking
out the patient from adjusting the VOL, SEL, VOL SEL, or OFF. This will also be displayed on the
lower right “PAT OVR” box.
7: We recommend getting in the habit of depressing the Red PAT MUTE button (located above PAT
OVERRIDE button) after each patient (this way when you are setting up a new patient they will be
able to hear you, if the music is on they probably can’t.)
8: Depressing the Green VOL NORM button (located above VOL OFF button) will raise Volume for
the Patients to 20. This preset is a good starting point and can be adjusted in program mode
described in step 14.
9: Depressing Red MUSIC VOL- button (located above the VOL NORM button) will lower Volume for
the Patients, and depressing the Green MUSIC VOL+ (located above the MUSIC VOL- button)
will raise Volume for the Patients.
10: The Genesis has a feature called AUTO GAIN this provides the ability to automatically adjust
volume level of music to Patients dependent on the amount gradient noise being created by MRI.
Technologist Control Unit Operation
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t 9|
11: Depending on how loud the Scan Sequence is the AUTO GAIN can be turned on and off by
depressing the Blue AUTO GAIN button (located under the Red Mic VOL- button). The AUTO GAIN
setting can be seen on the upper left corner of the display in the “GAIN” box (Off, Idle, Low, Med,
and High). When the AUTO GAIN is active you can also see an ^ to the left of the VOL BAR
indicating that it has adjusted the MUSIC LEVEL to the Patient. The percentage can be adjusted to
5%, 10%, 15%, 20%, or 25% per stage in the PROGRAM MODE STEP 14.
12: Depressing the Blue COMP button (located under the Blue AUTO GAIN button) will provide a more
even flow of Music to the Patient, by raising the lows and lowering the highs.
13: All the other buttons control the Stereo.
14: Depressing the Blue “PROGRAM” button (located below the red AVC VOL- button) will put the
system in “Program Mode. Depressing the MUSIC VOL+ and VOL- button toggle up and down
through the Menu respectively. Depressing the Blue / Green INPUT/ENTER button (located bellow
the Blue PROGRAM button) will toggle the options in the menu that is highlighted. Depressing the
PROGRAM button again will memorize any changes you have made and exit the Program Mode.
(Use Page 8 for visual reference of button locations)
BOLD text indicates the Default Settings.
Tree of programming options:
1.Equalizer: YOKE 1 YOKE 2 MAGNAMUFF MagnaLink FLAT
2. Gain Increment: 5% 10% 15% 20% 25%
3. Gain Dwell Time: 2Sec 4Sec 6Sec
4. Initialization: TUNER VIDEO FMRI USB iPod CD
5. Volume Norm Set: 20 30 40 50
6. Volume Gain Set: LOW NORM HIGH
7. Bass: LOWEST LOW NORM HIGH HIGHEST
8. Treble: LOWEST LOW NORM HIGH HIGHEST
9. Contrast: MIN 2, 3,4,5,6 7, NORM 9,10,11, 12,13,14, MAX
10. Keypad Click: NORM OFF
11. Ambient MIC Level Set
12. Scan MIC Level Set
13. Boot Mode Norm Diagnostic
14. FMRI Pulse High Pulse Low High Held Low Held
15. IR Remote Sony-US/IP
16. IR Remote Dwell 1Sec 2Sec 3Sec 4Sec
17. Restore Defaults
18. Muting IR ON IR OFF
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t
10 |
Technologist Control Unit Operation
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t
11 |
Pre-Installation
Mean Time to Install
Allow 3 man-hours for unpacking, installation, checking and setting up of Genesis ULTRA MRI
Communication / Music System.
Additional time may be required when difficult ducting of cables is encountered.
Recommended service tools for installation:
1. Nut Driver set
2. Pliers
3. Screw Drivers
4. Razor Knife
6. Electrical Tape
7. 100 ft. Electrical Snake (fish tape)
System Parts List
Genesis ULTRA is supplied complete with all necessary cables to simplify quick installation.
After unpacking, check for the following items:
1. FM Stereo, CD, with iPod Interface.
2. One FM antenna.
3. Two Speakers.
4. One Transducer Module (houses connections for Headset, Patient Volume control,
Patient selection control, and Mic connection for Active volume stabilization.)
5. Gradient noise sensing Mic (with 10 ft. cable for AGC.)
6. One Clear Siamese Headset tubing to (Link Transducer to Headset.)
7. One MagnaLink™ Headset and 200 pairs of MagnaPlugs™ Standard (earplugs).
8. One MagnaCoil™ Headset and 10 pair sample of MagnaPlugs™ Mini (earplugs).
9. Patient volume control Red and Green buttons.
10.Patient selection control Blue and Yellow buttons.
11.CB1 - 90 ft. DB9 Female to Male DB9 Cable (Links Genesis Ultra module to Penetration
Panel.)
12.CB2 - 50ft. DB9 Female to Female DB9 Cable (Links from Penetration Panel to
Transducer.)
13.CB3 - 10ft. DB9 to Male AMP Cable (Links Breakout Box to Genesis Ultra module.)
14.CB4- 3ft DB25 to DB25 Cable (links Breakout Box to AutoVoice board.)
15.CB5- 6ft stereo 3.5mm (links audio from the Stereo to Genesis Ultra module.)
16.CB6- 6ft 4 conductor cables (links the speaker terminals on the Stereo to speaker
terminals on the Genesis Ultra module.
17.CB7- 6ft mono 3.5mm (links IR commands from the Genesis Ultra module to the Stereo)
18.CB8- 6ft AC Adapter Cable (connects the AC Outlet to the Switched, Voltage Selectable,
and Fused AC Receptacle on the rear of Genesis Ultra module.)
19.AutoVoice Breakout Box (intercom integration box.)
20.DB9 RF Filter (attaches to penetration panel.)
21.DB9 RF Filter adapter plate (to be used on MRIs that do not have a spare DB9 slot.)
22.Technologist Control Unit (System Remote Control.)
23.Gradient noise sensing Mic (with 10ft. cable for AGC)
24. (5) Zip Ties and 5 mounting pads to dress cables.
25.Stereo remote control.
26.Intercom Mic.
27.Genesis Ultra Module.
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t
12 |
Genesis ULTRA Installation and Connections
Refer to Stereo Manual for Illustrations and identification of controls.
CAUTION
Ensure that AC cords from the Stereo and Genesis Ultra module are not connected to
power source until all connections are completed. Also ensure that the power entry
receptacle is set up for your voltage 110 / 220
Use Page 16 & 17 for J# Illustrations
1: Place Genesis Ultra module and as close to operator’s console as possible, the floor is
permissible. Place the Stereo on the work station or as close as possible.
2: Place Technologist Control Unit on operator’s console and connect cable from
Technologist Control Unit to J8 on the rear of Genesis Ultra module.
3: Place the speakers on the floor beside the console or other suitable location out of the
way.
4: Connect speaker cables from the speakers to lower terminals marked “SPK 1 AUDIO
OUT” on the Genesis Ultra module. Observe polarity.
5: Connect one side of cable “CB6” 6ft 4-conductor cable to the speaker terminals on the
back of the stereo Red and Black to Left Red and Black, Green and White to Right Black
and Red respectively, the other side of cable “CB6” to the upper terminals of marked
”SPK1 AUDIO IN on the Genesis Ultra module. Follow the same colors and polarity as
you did with the Stereo.
6: Connect one cable CB5 6ft stereo 3.5mm to J1 IN AUDIO on the rear of Genesis Ultra
module, and the other side of CB5 to the rear of the stereo marked J1 Audio.
7: Connect one side of CB7 mono 3.5mm to J7 IR OUT on Genesis Ultra module the other
side to on the rear of the stereo market J7 IR.
Caution: CB5 and CB7 look alike, please do not misconnect! If they are connected wrong
the patient will only hear music on one channel (CB5 goes to J1 and CB7 goes to J7)
8: Place the Intercom Mic on the Operators Console and plug the cable into J4 on the rear of
Genesis Ultra module. Make sure the MIC slide switch on stalk is turned on.
If you are installing the Intercom Integration Kit follow steps 9 – 13, if not go to step 14
9: Connect the round AMP end of “CB3” 10ft. DB9 to Male AMP Cable to J5 on the rear of
Genesis Ultra module.
10: Connect the DB9 end of “CB3” to the DB9 on the AutoVoice Breakout Box.
11: For Horizon LX locate Run 788 and remove the DB25 from J7 on the WIM Module and
connect to the DB25 on the AutoVoice Breakout Box, then connect “CB4” to the other
DB25 on AutoVoice Breakout Box, and connect the other end of “CB4” to J7 on the WIM
Module.
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t
13 |
Genesis ULTRA Installation and Connections - continued
For Excite or newer systems go to step 13, For MR750 go to step 14
12: For Excite or newer systems locate Run 1085 labeled OW1-A21-J7 and remove the DB25
from J7 on the Wim Module and connect to the DB25 on the AutoVoice Breakout Box, then
connect “CB4” to the other DB25 on AutoVoice Breakout Box, and connect the other end of
“CB4” to J7 on the WIM Module.
13: For MR750 systems locate Run 3031 and remove the DB25 from J7 on the Audio Board in
the GOC and connect to the DB25 on the AutoVoice Breakout Box, then connect one side
of cable “CB4” to the other DB25 on AutoVoice Breakout Box, and connect the other end of
“CB4” to J7 on the Audio Board.
14: Connect the female side of cable “CB8” 6ft AC Adapter Cable to J12 on the rear of
Genesis Ultra module. Ensure that the power entry receptacle is set up for proper
voltage either 110 or 220 default is 110. CAUTION: Please ensure that all connections
are complete before connecting AC power cord.
15: Connect FM and optional AM Antenna if used to the Stereo. Please Reference Antenna
Connections in the Stereo Instructions for proper installation.
16: For GE MRI’s remove block off plate from J16, J17, J52 or J53, at penetration panel. All
others use supplied kit or fabricate a DB9 slot for filter as required.
17: Install RF filter with female toward computer room.
18: Locate existing electrical conduit between control console and computer room.
CAUTION: Assistance may be necessary to ensure Trauma free installation of cable CB1
19: Route and install Cable “CB1” (90 ft. DB9 Male to Female) with Female connector toward
Genesis Ultra module and Male toward penetration panel.
20: Connect “CB1” Male to the RF filter.
21: Zip tie cable “CB1” to existing supports, or cables from penetration panel to provide strain
relief.
22: Connect Female end of cable “CB1” to J11 on the rear of Genesis Ultra module.
23: From the scan room side of penetration panel, connect cable “CB2” (50ft. DB9 Female to
Female) to the RF filter you installed on penetration panel.
24: Zip tie cable “CB2” to existing cables from penetration panel to provide strain relief.
25: Route cable “CB2” on opposite side of the cold head (if used) to the front of the MRI
utilizing existing conduits.
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t
14 |
Genesis ULTRA Installation and Connections - continued
26: Leave approximately 12” of cable “CB2” protruding from the front center of the MRI
directly above the table docking mechanism for a service loop, or alongside the base of the
gantry. It is important to locate the end of “CB2” as close as possible to the front center of
the bore.

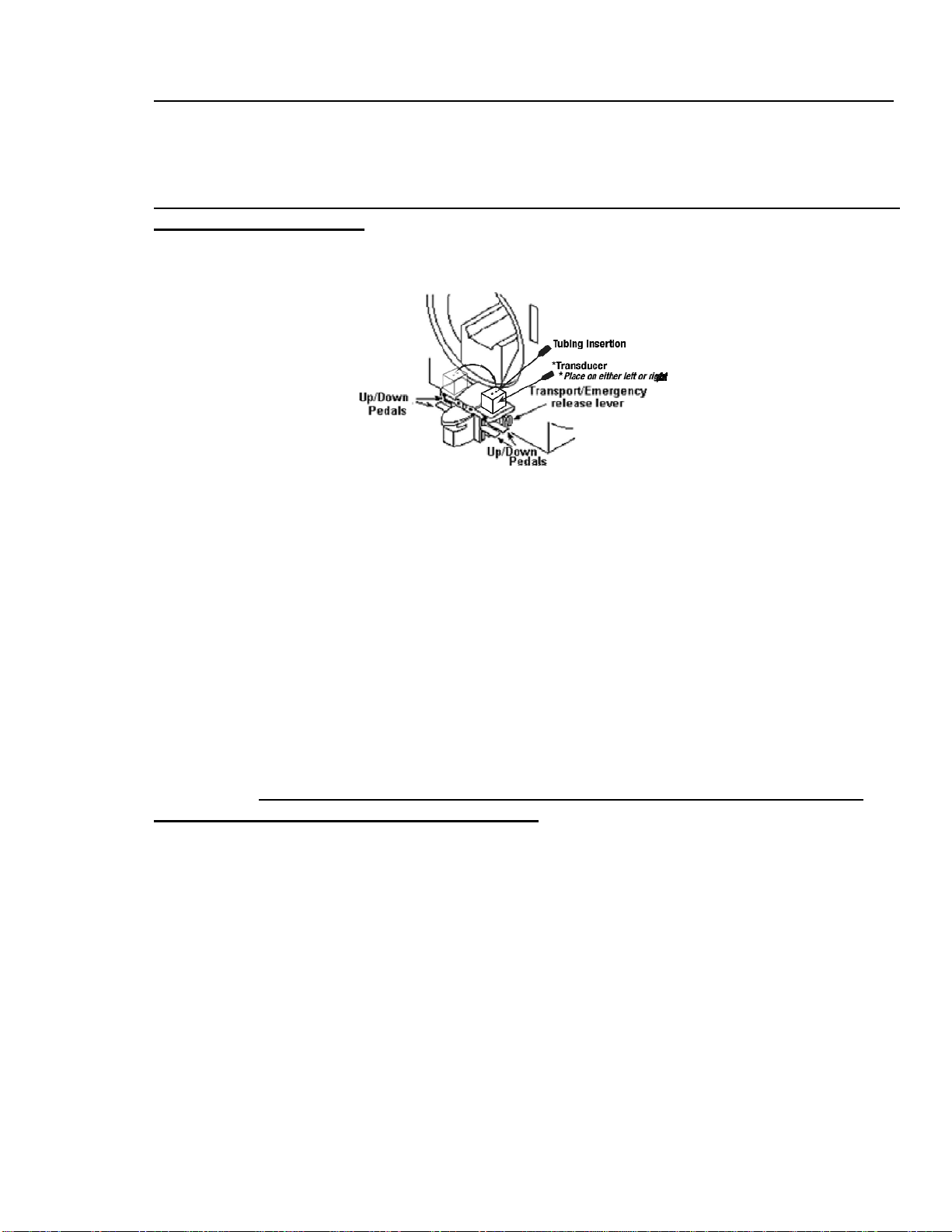

27: For all MRI’s it is very important to locate the Transducer as close as possible to the
front center of the bore. For all GE MRI’s locate the Transducer either side of the
pedestal above the Up / Down height control peddles as pictured below. Connect cable
“CB2” to the Transducer.
28: There are 4 very sensitive pressure actuated switches for the patient controls located in the
Transducer. During shipping sometimes pressure or vacuums can build in the controls
causing erroneous operation of the patient volume and mode selection buttons.
Therefore it is good practice to let the Controls and Transducer become acclimated to the
scan room environment for a few hours or until the temperature stabilizes then;
a. Vent the patient controls to the atmosphere by momentarily removing the white tubing
one pair at a time and reconnecting them to the nipples on the Transducer observing
polarity for proper synchronization.
29: Insure that the Gradient noise sensing Mic is connected to the BNC connection on the side
of Transducer. Place the Mic anywhere in the general area. Secure with the provided
mounting pad and zip tie.
30: Connect the clear Siamese Headset tubing to the brass tubes protruding from the top of
Transducer. Do not add any additional tubing length to this system, doing so will
adversely affect performance and reliability.
31: Connect the Headset to Siamese tubing.
Power Connection Caution:
1. Please ensure that all low voltage connections are complete before connecting the AC
power cords.
2. Please do not make or break any connections to our equipment while the AC plugs are
live / connected to power or damage will result!!
3. To preserve RF integrity in the scan room we float our ground from the penetration panel.
4. Please ensure that the module and stereo AC plugs are connected to outlets that are at
the same Ground Potential as the Scanner or Damage to our Equipment and or poor
SNR performance will result!!
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t
15 |
Genesis ULTRA Installation and Connections - continued
32: Connect power cord from Stereo to AC 100-120V / AC receptacle located at operators’
console. GE sites us power from the GOC, Hitachi Sites us 100V system power.
33: Connect the plug side of “CB8” to AC 100-120V / AC receptacle located at operators’
console. GE sites us power from the GOC, Hitachi Sites us 100V system power.
34: Look at the front panel of the Genesis and ensure the all-8 red LED’s are lit under Circuit A
Power and Circuit B Power. If not, unplug the AC power cords and contact Magnacoustics
35: Press the green Power Button on the TCU a self-test will complete and the system should
power up in Tuner mode. (It may be necessary to adjust the FM antenna to get better
reception. Please keep in mind that if the MRI is located in the basement or if most of the
transmitting Radio stations are separated by the Scan Room RF Shielding, some form of
auxiliary or external antenna might be required.
36: After making sure the Stereo is playing ok (with Tuner, iPod or CD selected). Depress the
Green VOL NORM button and go into the Scan Room to ensure there is music playing
from the Headsets. (If you have help depress the Green Mic button speak into the
supplied Mic (make sure the Mic mute switch is off) to ensure intercom operation.
Auto Gain Calibration Procedure
37: In order to calibrate the Microprocessor for AUTO GAIN Function it will be necessary to
program the Ambient and Full Scan SPL levels, the please follow this procedure;
a. Depress the Blue PROG MODE button once.
b. Depress the MUSIC VOL- button to toggle down till 11. Ambient MIC Set is highlighted.
c. Depress the INPUT/ENTER button once and then again allowing the Auto Gain Mic to
capture the SPL in the room with the scanner idle.
d. Depress the MUSIC VOL- once to highlight 12. SCAN MIC Level Set depress the
INPUT/ENTER once.
e. Set up a Phantom and start the Scanner for and average scan (Full Scan Level).
f. Depress the INPUT/ENTER one more time to capture the SPL in the room with the
scanner active.
g. Depress the Blue PROG MODE once (which will store the two extremes) and let the
Microprocessor calculate how much Auto Gain in necessary.
EXTERNAL INTERCONNECT CAUTION: Because we use the Scan Room Shielding as our
ground reference, any auxiliary connections to the stereo that are at a different ground potential
may also cause system damage, interference in the scanner and a 60 cycle hum from the
speakers or patient headset. Do not connect any external Antenna or Audio input to the stereo
without the proper isolation.
a. Radio Shack Ground Loop Isolator Catalog #: 270-054 with the proper phono to 3.5mm
stereo adapter and Radio Shack Catalog # 274-883 or appropriate adapter must be used.
b. A 75 to 300 ohm adapter in series with the any external antenna source must be used with
one wire only.
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t
16 |
Rear Panel Genesis ULTRA
J1= Audio Input from Stereo
J2= fMRI Input
J3= Video Input
J4= MIC Input
J5= AVC Input
J6= fMRI trigger output
J7= IR Output to Stereo/TTL PRS output
F1, F2, F3, & F4= 4.0 A SB J11 ISO T5.0 A
J8= Tech Unit Connector
J9= RS 232 Spare
J10= RS 232 Spare
J11= To Transducer “CB1”
J12= AC Receptacle 5 amp SB
SPK1= Speaker Junction for Mute
SPK2= Spare Speaker Junction
Component Locations and Wiring Pictorial
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t
17 |
AUTOVOICE
BREAK-OUT BOX
SCAN ROOM
MRI
Pneumatic
Transducer
MagnaCoil™
or
MagnaLink™
Headset
Technologist
Control
Unit
Patient Mic
Speakers
Speakers
QR 127 Magnacoustics Inc™ © 2014 1-800-637-2282 (inside USA) 516-239-0042 (outside USA) rev-t
18 |
1995ParkStreet,AtlanticBeach,NY11509
(516)239‐0042∙(800)637‐2282∙Fax(516)239‐0775
Appendix A
Addendum: Genesis Ultra Install/User Manual
EXTERNAL DEVICE CONNECTIONS FOR SYSTEMS WITHOUT AUDIO INPUT ON
STEREO
1. ExternaldevicesaretobeconnecteddirectlyintotheJ3IN‐Videoinputlocatedontherearpanelofthe
GenesisModule.
2. Iftheexternaldevicedoesnothavespeakers,thetechnologistwillnotbeabletohearwhatthepatientis
listeningtoandanexternalsetofspeakerswithaheadsetoutputisrecommended.
3. Example:Bose®‐Companion®2SeriesIIIMultimediaSpeakerSystem(AvailableatBestBuy,Part# SKU:
8864513) Also available at Amazon.com
4. Connectthespeakerstotheoutputoftheexternaldevice(ex:satellitereceiver)thenplugtheheadset
outputfromthespeakersintoJ3IN‐VideoinputontherearoftheGenesisModule.
5. UsermustselectinputmodefromtheTechnologistcontrolunitbydepressingtheinput/enterkeyuntil
Videoisdisplayedinthemodeboxlocatedinthelowerleftcornerofthekeypad.
6. Pleasenote:ToswitchbacktoStereoinput,depresstheinput/enterkeyuntilTunerorCDisdisplayedin
themodeboxlocatedinthelowerleftcornerofthekeypad.
7. Pleasenote:agroundloopisolatorisrequiredwhenconnectinganyexternaldevicesasindicatedinthe
usermanual.Pleaseseebelow:
EXTERNAL INTERCONNECT CAUTION: Because we use the Scan Room Shielding as our
ground reference, any auxiliary connections to the stereo that are at a different ground potential
may also cause system damage, interference in the scanner and a 60 cycle hum from the
speakers or patient headset. Do not connect any external Antenna or Audio input to the stereo
without the proper isolation.
3. Pyle Part# PLGI35T 3.5 mm/1/8-Inch Stereo Audio Ground Loop Isolator (Amazon.com)
4. A 75 to 300 ohm adapter in series with the any external antenna source must be used.
POWER CONNECTION CAUTION:
5. Please ensure that all low voltage connections are complete before connecting the AC
power cords.
6. Please do not make or break any connections to our equipment while the AC plugs are live /
connected to power or damage will result!!
7. To preserve RF integrity in the scan room we float our ground from the penetration panel.
8. Please ensure that the module and stereo AC plugs are connected to outlets that are at the
same Ground Potential as the Scanner or Damage to our Equipment and or poor SNR
performance will result!!
Other manuals for Genesis ULTRA
2
Table of contents
Other Magnacoustics Media Converter manuals
