MagnaTex 3575 Series Manual

MAGNATEX®3575 Series
®
Operation &
Maintenance Manual
Mechanical Seal
ANSI Process Pumps
3575 IOM R6
Phone: [phone]
[email protected] Fax: [phone]
www.magnatexpumps.com
CALL TOLL FREE 877-742-2878 FOR SALES AND SUPPORT Return to BurtProcess.com

SECTION A
GENERAL INFORMATION
TABLE OF CONTENTS
SECTION B
A.1 Preface …………………………………………………………………………………………………….…………….… 1
A.2 Specifications …………………………………………………………………………………………………………..… 2
A.3 Receiving and Inspecting the Pump ……………………………………………………………………….… 3
PUMP INSTALLATION
B.1 Foundation and Baseplate Alignment ………………………………………..…………………….……… 4
B.2 Alignment ………………………………………………………………………………………………..…………….… 6
SECTION C
PREPARATION FOR STARTUP
C.1 Checking Rotation ……………………………………………………………………..……………………………… 7
C.2 Checking Impeller Clearance …………………………………………………………….……………………… 7
SECTION D
PUMP STARTUP
D.1 Starting the Pump ………………………………………………………………………………….………………… 8
D.2 Operating a Magnatex 3575 Pump at Reduced Capacity ............................................. 9
SECTION E
PUMP DISASSEMBLY
E.1 Recommended Spare Parts …………………………………………………….……………………………… 10
E.2 Required Tools ……………………………………………………………………………….…………….………… 11
E.3 Disassembly ………………………………………………………………………………………….………………… 11
SECTION
PUMP ASSEMBLY
F.1 Bearing Frame Assembly ……………………………………………………………….…………….…………… 13
F.2 Rotating Element Assembly ……………………………………………………………….………………..…… 13
SECTION G
PUMP DRAWINGS
G.1 Dimensional Drawing, Magnatex 3575 Series Pump …………………..………….……………… 15
G.2 Sectional Drawing, Magnatex 3575S …………………………………..…………….…………………… 16
G.3 Sectional Drawing, Magnatex 3575M ……………………………………………………….…………… 17
G.4 Sectional Drawing, Magnatex 3575L ………………………….……………………………..…………… 18
G.5 Exploded Drawing, Magnatex 3575S ………………………………..……………………….…………… 19
G.6 Exploded Drawing, Magnatex 3575M …………………………………….……………………………… 20
G.7 Exploded Drawing, Magnatex 3575L …………………………………………….………..……………… 21
SECTION H
PUMP PARTS
H.1 Modular Interchangeability ……………………………………………………………….…..……………… 22
H.2 Parts List and Materials of Construction …………………………………………………..…….……… 25
SECTION I
MAINTENANCE, OPERATIONS AND REBUILD CHECKLIST
I.1 Operations checks …………………………………………………………………….……………….…………….. 26
I.2 Impeller Clearance Settings ……………………………………………………………………………………… 27
I.3 Rebuild checks ……………………………………………………………………………….……………………... 29
3575 IOM R6

1
3575 IOM R6
SECTION A
GENERAL INFORMATION
A.1 PREFACE
Magnatex 3575 Series ANSI Pump is a horizontal overhung, end suction and top discharge with an open
impeller, which meets the requirements of ANSI B73.1, fabricated with the best materials and
continuous inspection.
With correct installation, periodic inspection, correct usage and careful maintenance, this pump will
yield a long satisfactory service life.
WARNING
Before performing pump maintenance always make sure power to the driver is locked out.
Consult either the pump manufacturer or an authorized dealer before changing the pump
operation conditions from those under which it was sold.
Never operate the pump without its coupling guard installed.
Do not use heat to remove impeller or to disassemble the pump, trapped liquid may cause an
explosion.
Do not operate the pump without proper safety devices installed.
Always make sure both the discharge valve and the suction valve are open before operating the
pump.
Always prime the pump before starting.
Piping should not be forced to make connection with the pump.
When the system is pressurized, neither vent nor drain valves should be opened, nor should any
plugs be removed.
Never operate below minimum recommended flow.

2
3575 IOM R6
A.2 SPECIFICATIONS
VOLUTE: The volute is top centerline with a fully confined gasket. The foot support is used for maxi-
mum resistance to misalignment and distortion from piping loads.
However it is important not to impart piping loads on to the pump.
IMPELLER: The impeller is fully open and threaded to the shaft. The threads are sealed by a Teflon
O- ring.
Never rotate the pump counter clockwise as the impeller can unscrew and rub on the casing.
STUFFING BOX COVER: Machined for mechanical seal or conventional packing.
FRAME ADAPTER:The ductile iron frame adapter has a machined rabbet fit to the seal chamber /
stuffing box cover and a precision dowel pin fit to the bearing frame.
BEARING FRAME: Of rigid iron construction. No machining is required to convert from oil to grease or
oil mist lubrication. Flood oil lubrication is standard. The oil level is viewed through a sight glass. The
power end is sealed with an Inpro “VBX” labyrinth seal.
SHAFT: Manufactured from 4140 steel with an adjustable bearing and a bolt type roll pin on the shaft
end. The 316SS shaft (also available) does not require a sleeve.
BEARING SUPPORT: Is Constructed of ductile iron, it is rigid and has grooves and openings for oil
lubrication, grease or oil mist.
OUTBOARD BEARING: Angularly locked and connected to the shaft and housing to ideal with thrust
loads.
INBOARD BEARING: Its rigid, simple design, adequate for high RPM, also requires little attention in
service.
NAMEPLATE INFORMATION: Each pump has a nameplate that provides information about the
pump, such as pump model, size impeller diameter, construction material, serial number, etc., (Fig 1).
The nameplate is located on the bearing frame. When ordering spare parts you will need to identify
pump model, size, serial number and the item number of required parts.
Fig 1

3
3575 IOM R6
A.3 RECEIVING AND INSPECTING THE PUMP
Please inspect the pump as soon as it is received and check that everything is in order. File any claims
with the transportation company. This is a weighty pump; lifting equipment must be able to adequately
support the entire assembly (Fig 2, 3).
DANGER
STORAGE REQUIREMENTS
Proper storage of your MAGNATEX pump will insure that it is ready for service when needed.
GENERAL RULE: Pumps with corrosive fluid application; the process side of the pump should be drained
and flushed with water and blown dry using low pressure air flow. After pump is dry a suitable rust
preventative should be applied to the interior of the process side of the pump, whenever idle for periods
in excess of (1) month or less for humid environments.
For oil lubricated pumps the used oil should be drained and the reservoir filled with fresh oil to the nor-
mal operating level. Pumps with sealed grease-lubricated bearings do not require any special attention.
SHORT TERM STORAGE: No special steps are required if the pump is stored indoors in a temperature
controlled environment, for less that (6) months. Follow general rule, and rotate the pump shaft several
times every 3 months.
LONG TERM STORAGE: In excess of (6) months, all machined surfaces and bearing must be treated with a
rust preservative. Rotation of the shaft will be required every 3 months. Refer to coupling and driver
manufacturer to comply with their recommended long term storage procedures. Unit must be stored in
a covered and dry location. For specific recommendations regarding your storage conditions contact
MAGNATEX Pumps.

4
3575 IOM R6
SECTION B
PUMP INSTALLATION
A pump should be located near the supply of liquid and have adequate space for operation, maintenance
and inspection.
B.1 FOUNDATION AND BASEPLATE ALIGNMENT
FOUNDATION
Baseplate mounted pumps are normally grouted on a concrete foundation, which has been poured on a
solid footing; foundation bolts commonly used are J – type and sleeve – type. Both designs permit
movement for final bolt adjustment.

5
3575 IOM R6

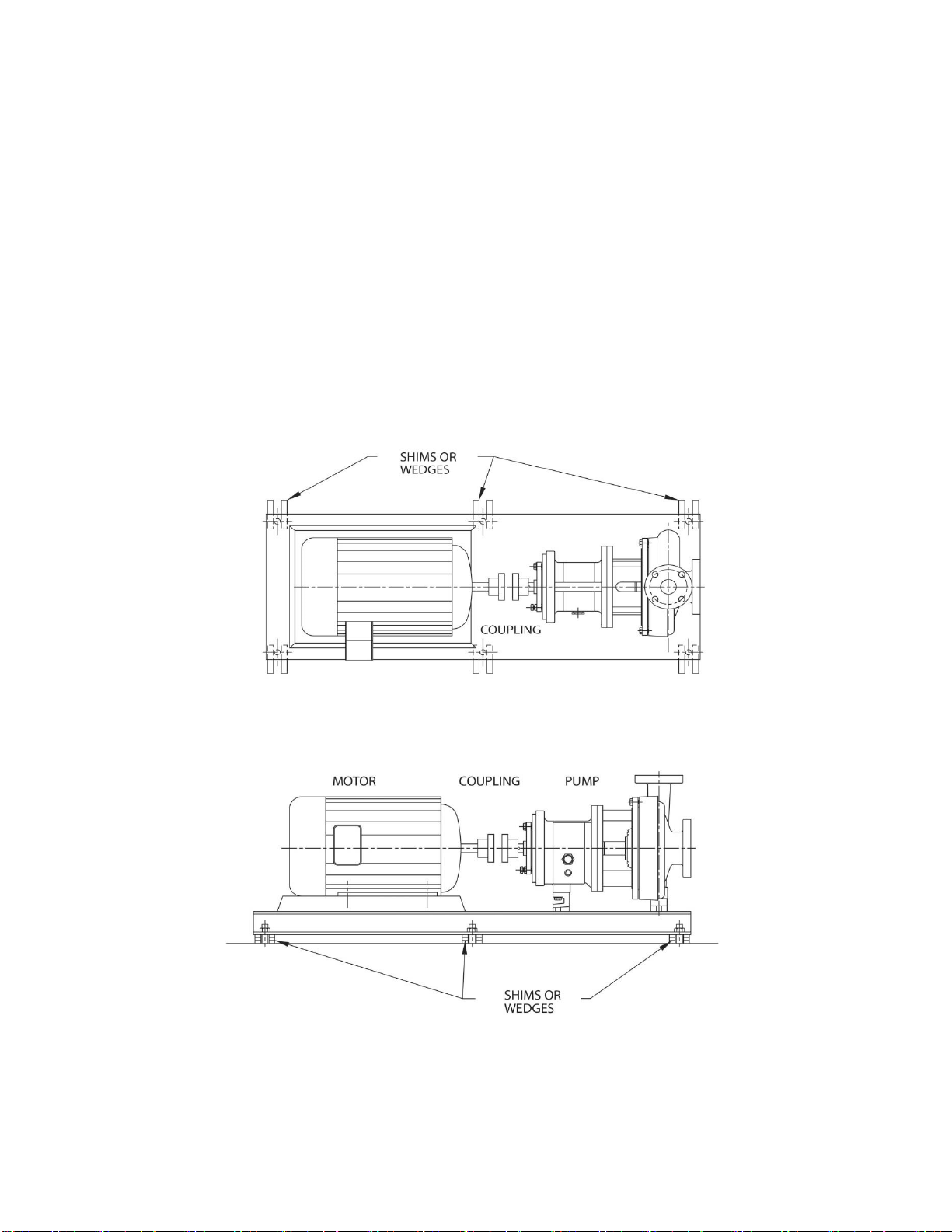

LEVEL BASEPLATE
A. Place one set of wedges or shims on each side of every foundation bolt. The wedges should
extend between ¾” and 1 ½” above foundation to allow for adequate grouting.
B. Remove liquid and / or debris from anchor bolt holes/sleeve before grouting. If the sleeve type
bolts are being used, fill the sleeves with packing or rags to prevent grout from entering.
C. Lower Baseplate on to foundation bolts.
D. Level Baseplate to within 1/8” over length of the Baseplate and to within 1/16” over the width
of the base by adjusting the wedges.
E. Hand tighten the bolts.
Fig. 6
Fig. 7

6
3575 IOM R6
B.2 ALIGNMENT
INITIAL ALIGNMENT CHECKS: (Done prior to operation)
Check before grouting the Baseplate to be sure correct alignment is possible.
Check after Baseplate is grouted to see if grouting process has altered alignment.
After pipes are connected, check to see if strained connections have altered alignment. If so,
eliminate piping strain to achieve optimal alignment.
FINAL ALIGNMENT:
Alignment should be checked after first run when both pump and driver are at operating
temperature.
Alignment should be checked periodically in accordance with plant operating procedures.
Good alignment should be checked periodically in accordance with plant operating procedures.
Good alignment is achieved when the dial indicator readings are 0.002 in or less.

7
3575 IOM R6
SECTION C
PREPARATION FOR START‐UP
DANGER
Make sure driver power is locked out.
Failure to lock out driver power may result in serious physical injury.
C.1 ROTATION CHECK
CAUTION
Serious damage may result if pump is run in the wrong rotation.
1. Make sure spacer element is removed from the coupling hubs and that the hubs are securely
fastened to shafts.
2. Connect driver power and JOG driver just long enough to determine direction of rotation.
Rotation must correspond to arrow on bearing housing.
3. Open disconnect for driver power source.
4. Re-connect coupling halves with spacer coupling element and re-install coupling guard.
C.2 CHECK IMPELLER CLEARANCE
Before starting the pump the impeller clearance must be checked. The pump efficiency is maintained
when the proper impeller clearance is set. Impeller front clearance is factory set to predetermined
limits.
Minimum values for different temperatures appear in the following table. The impeller clearance
adjustments are necessary to prevent the impeller from contacting the casing due to differential
expansion at higher operating temperatures. See section I.2 for impeller clearance setting.
IMPELLER
CLEARAN
C
ES
FOR
S
E
RVICE
TEMPERATURES
SERVICE
TEMPERATURE °F (°C)
MAGNATEX 3575 S
inches (mm.)
MAGNATEX 3575 M & L
inches (mm.)
MAGNATEX 3575 XL
inches (mm.)
To 200 °F ( 93°C ) 0.005” (0.13 mm) 0.008” (0.20 mm) 0.010” (0.26 mm)
250 °F ( 93°C ‐121°C ) 0.007” (0.18 mm) 0.010” (0.26 mm) 0.010” (0.26 mm)
300 °F ( 121°C ‐149°C ) 0.009” (0.23 mm) 0.010” (0.26 mm) 0.019” (0.48 mm)
350 °F (149°C ‐177°C ) 0.011” (0.28 mm) 0.010” (0.26 mm) 0.021” (0.53 mm)

8
3575 IOM R6
MAGNATEX
3575
SERIES
OIL SUMP CAPACITY
Model oz. ml.
3575S 16 475
3575M 42 1250
3575L 48 1425
3575XL 96 2850
SECTION D PUMP
START‐UP D.1
CAUTION
Pump has been shipped without oil in the bearing housing
in compliance with US DOT regulat ions.
Add oil to the bearing housing (oil lubricated pumps only!) prior to operation.
Serious damage may result if pump is run without adequate lubrication.
LUBRICATION
Bearing lubrication is very important for the best service life of the pump. Regular oil changes
and lubrication analysis is part of the best maintenance practices for optimum reliability. As
operating conditions vary frequency of re-lubrication can be modified based upon operating
records for the specific pump service.
Recommended lubricants:
OIL: ISO VG68 High Quality turbine oil. Maintain oil temperature
between 122°F (50°C) and 180°F (82°C) for normal operation. For
operation with pumped liquids above 350°F (177°C) use finned oil
cooler. Contact Magnatex Pumps Inc. with any questions.
Suitable oil brands:
Shell – Tellus Oil 68 Royal Purple – SYNFILM VG68 Synth.
Chevron – GTS Oil 68 Exxon – Terrestic EP 68
GREASE: NLGI No.2, sodium or lithium based. Approximate volume of grease per bearing in cubic
centimeters: 1-2 cc for 3575S; 2-3 cc for 3575M/L; and 3-4 cc for 3575XL.
Suitable grease brands:
Exxon Mobil – Mobil Polyrex EM Shell – Shell Dolium R
Chevron – Chevron SRI Exxon Mobil – Mobillith SHC 100
STARTING PUMP
1. Add oil to pump bearing housing via breather port (breather must be removed) until level shows
in the sight glass at the middle of the gauge window. Allow the level to settle out before adding
additional oil. Do not overfill!
2. Ensure that suction valve and any recirculation or cooling lines have been opened.
3. Completely close or partially open discharge valve as determined by system conditions. Never
open discharge valve more than 25% on startup.
4. Start driver. Observe pressure gauges. Stop driver if discharge pressure is not attained quickly.
Allow about 10 seconds for the system liquid levels to settle and attempt to re-start. If pump still
does not come up to pressure, vent all high point vents, re-prime pump and attempt to restart.
5. Open discharge valve slowly until the desired flow is obtained. If normal levels of vibration,
bearing temperature and noise are exceeded, shut the pump down and resolve the problems.

9
3575 IOM R6
6. To prevent damage resulting from cavitation or recirculation always operate the pump at or
near the rated conditions.
7. If the specific gravity is greater than originally assumed or the rated flow rate is exceeded the
driver could overload. The following table shows minimum recommended flows.
8. Always change capacity by regulating the valve in the discharge line. Never throttle flow from
the suction side, which can cause cavitation and serious damage to the pump.
D.2 OPERATING MAGNATEX 3575 PUMP AT REDUCED CAPACITY
CAUTION
Do not operate pump below minimum rated flows or with suction and/or discharge valve
closed. These conditions could cause an explosive hazard due to vaporization of pumped liquid
and can rapidly lead to pump failure and physical injury.
MINIMUM RECOMMENDED FLOW FOR MAGNATEX 3575 SERIES PUMPS
GPM (M3hr) MAXIMUM IMPELLER DIAMETER, WATER AT 60°F
SIZES MODEL
60HZ
3500 RPM
50HZ
2900 RPM
60HZ
1750 RPM
50HZ
1450 RPM
60HZ
1180 RPM
60HZ
880 RPM
1 x 1‐1/2 ‐ 6
MAGNATEX
3575S
16 3.6 13.3 1.1 6 1.4 5 1.1
1‐1/2 x 3 ‐ 6 29 6.6 9 2.1 15 1.1 2 0.5
2 x 3 ‐ 6 62 14.1 52 11.8 16 3.6 13.3 3.0
1 x 1‐1/2 ‐ 8 32 7.3 13 2.9 8 1.1 2 0.5
1‐1/2 x 3 ‐ 8
MAGNATEX
3575
M & L
40 9.1 33 7.5 10 2.3 8.3 1.9
3 x 4 ‐ 7 113 25.7 94 21.3 36 8.2 30 6.8
2 x 3 ‐ 8 56 12.7 46 10.5 14 3.2 12 2.7
3 x 4 ‐ 8G 137 31.1 114 25.8 64 14.5 53 12.0
1 x 2 ‐ 10 40 9.1 22 4.9 8 1.8 6.6 1.5
1‐1/2 x 3‐10 75 17.1 62 14.1 16 3.6 13 3.0
2 x 3 ‐ 10 125 28.4 104 23.6 30 6.8 25 5.6
3 x 4 ‐ 10 200 45.4 166 37.7 46 10.5 38 8.7
3 x 4 ‐ 10H N/A N/A 180 40.9 149 33.9 80 18.2
4 x 6 ‐ 10H N/A N/A 472 107.3 391 88.9
188
42.7
1‐1/2 x 3 ‐13 180 40.9 150 33.9 45 10.2 38 8.5 26 5.9
2 x 3 ‐ 13 312 70.9 259 58.8 60 13.6 50 11.4 40 9.2
3 x 4 ‐ 13 400 90.9 332 75.3 288 65.5 239 54.2 150 15.2
4 x 6 ‐ 13 N/A N/A 456 103.6 378 85.9 222 50.5
6 x 8 ‐ 13
MAGNATEX
3575XL
N/A N/A 792 180.0 656 149.1 390 88.6
8 x 10 ‐ 13 N/A N/A 1360 309.1 1127 256.1 660 150.0
6 X 8 - 15 N/A N/A 1095 248.9 907 206.2 580 131.8
8 x 10 ‐ 15 N/A N/A N/A N/A 1550 352.3 920 209.1
8 x 10 ‐ 15G N/A N/A 2200 500.0 1823 414.3 1180 268.2 894 203.2
8 x 10 – 16H N/A N/A 2850 647.7 2361 536.7 1600 363.6 900 204.5
8 x 10 - 17 N/A N/A 2150 488.6 1781 404.9 1120 254.5 840 190.9

10
3575 IOM R6
SECTION E
PUMP DISASSEMBLY
CAUTION
To Prevent Injury
Power to the driver should be locked out to prevent accidental startup.
Pump operator should be familiar with all safety precautions.
Protective equipment should always be worn in case pump is handling fluids that are hazardous
and/or toxic.
Proper lifting methods should be employed when handling pump components.
Heavy work gloves should be worn when handling impellers as they have sharp edges.
Suction and discharge valves should remain open during operation.
All replacement parts should be available (see below).
E.1 RECOMMENDED SPARE PARTS
• Impeller
• Shaft sleeve
• Shaft
• Outboard bearing
• Inboard bearing
• Inboard labyrinth seal
• Outboard labyrinth seal
• Bearing lock washer
• Volute gasket
• O- Ring bearing housing
• Gasket – frame to adapter
• Stuffing box packing
• O- Ring impeller

11
3575 IOM R6
E.2 REQUIRED TOOLS
• Wrenches 7/16”, ½”, 9/16”, ¾”, 7/8”, and 15/16”
• Screwdriver
• Pliers
• Rubber mallet
• Allen wrenches
• Snap-ring pliers
• Micrometer
• Dial indicator
• Bearing puller
• Brass drift punch
• Lifting sling
• Induction bearing heater
• Torque wrench
• Heavy work gloves
•Cleaning agents
• Feeler gauges
E.3 DISASSEMBLY
Step 1 ‐ Drain all liquid from pump and flush if necessary. Disconnect all auxiliary piping and
tubing.
Step 2 ‐ Remove coupling guard and disconnect coupling.
Step 3 ‐ If oil-lubricated; drain oil from bearing frame by removing bearing frame drain plug.
(Oil should be saved for analysis to assist preventative maintenance.)
Replace plug after oil is drained.
Step 4 ‐ Remove casing bolts and frame foot bolts.
Step 5 ‐ Carefully remove back pull-out assembly (requires assistance).
Step 6 ‐ Remove jack screws.
Step 7 ‐ Remove volute gasket and discard. (Replace with new gasket during re-assembly.)
Step 8 ‐ Frame adapter should be secured to workbench.
Step 9 ‐ Remove coupling hub.

12
3575 IOM R6
Step 10 ‐ Removal of impeller:
DANGER
Wear heavy work gloves to prevent injury from sharp edges!
Impeller rotates freely:
oSlide shaft wrench over the shaft and key.
oLooking from the impeller end of the shaft, rotate the impeller clockwise,
raising the wrench off the work surface.
oNow turn it quickly back the other way, banging the wrench handle on the
workbench or a solid block until impeller comes loose.
Impeller does not rotate:
oUse strap wrench to apply torque in counter clockwise direction while shaft
wrench handle rests against the work surface. A wooden block and mallet may be
used to provide impact to loosen the impeller.
Step 11 ‐ Remove volute gasket and discard. (Replace with new gasket during re-assembly.)
Step 12 ‐ Remove seal chamber/stuffing box cover.
Step 13 ‐ Remove seal gland/packing stuffing box
Step 14 ‐ Remove the shaft sleeve.
Step 15 ‐ Remove packing and lantern ring from the stuffing box cover (only
pumps with packing).
Step16 ‐ Remove the frame adapter by removing the dowel pins and bolts.
Step 17 ‐ Discard gaskets (replace with new ones during reassembly).
Step 18 ‐ Remove inboard labyrinth oil seal
Step 19 ‐ Disassemble power end
oRemove clamp screws, and begin to tighten jack screws to start the housing out
of the bearing frame.
oSlide shaft assembly out of bearing frame.
oRemove the jack screw with nuts.
oRemove bearing housing O-Ring and bearing retaining snap ring.
oRemove bearing housing from shaft.
oFrom the bearing housing, remove the outboard labyrinth seal and O-Rings.
oFrom the shaft, remove the bearing locknut and washer, inboard bearing, and
outboard bearing.
Step 20 ‐ Remove all plugs from bearing frame, unbolt the feet, and remove.

13
3575 IOM R6
SECTION F
PUMP ASSEMBLY
All pumps parts should be inspected before reassembly. Check that all parts are clean before
assembly.
F.1 ASSEMBLY OF BEARING FRAME
Step 1 –Install all threaded plugs in bearing frame (sight oiler plug, for oil mist connection plug,
oil fill plug, oil drain plug, relief plug and oil cooler inlet and outlet plugs.
Step 2 –Install bearing frame foot and bolts, hand tighten.
F.2 ASSEMBLY OF ROTATING ELEMENT
Step 1 –For the models 3575S and 3575M: Install outboard bearing on shaft. Coat internal
surfaces of bearings with lubricant that will be used in the pumps operations.
The inboard bearing is installed with the shield away from impeller.
For model 3575L: Install outboard bearing on shaft. For proper installation please check
SKF catalog. Coat the internal surfaces of bearings with lubricant that will be used in
pump operation.
Step 2 –Place lock washer on shaft and tang of lock washer in keyway of shaft.
Step 3 –Thread locknut onto shaft. Tighten locknut until tight. Bend washer tang aligning with
slot of lock washer into the slot of locknut.
Step 4 –For models 3575S and 3575M: Place bearing retaining ring for impeller end to
outboard bearing. This bearing retaining ring is grooved; the flat face should be towards
outboard bearing.
For the model 3575L: Place bearing clamp ring over shaft (Note orientation).
Step 5 –Install inboard bearing on shaft. Before installing, coat internal surfaces of the bearings
with the lubricant to be used in pump operation.
Step 6 –Install a new O-ring in bearing housing.
Step 7 –Coat outside of outboard bearing and inside of bearing housing with oil.
Step 8 –Install the shaft/bearing assembly in the bearing housing.
Step 9 –For model 3575S and 3575M: Secure the retaining ring in groove. Check that the groove
in the bearing frame is not blocked by the retaining ring.
Step 10 –Check that the shaft turns freely.

14
3575 IOM R6
Step 11 –Before installing the outboard labyrinth seal, make sure that the grooved edges on the
shaft are smooth in order to protect outboard labyrinth seal packing.
Step 12 –Install outboard labyrinth seal in bearing housing with packing adjustment type “O”.
The groove for oil drainage must be oriented downwards.
Step 13 –Lubricate the outer track of the bearing housing, the inboard bearing and inner track
of the bearing frame with the oil to be used during the pump operation.
Step 14 –Install shaft assembly into frame. Check that the shaft turns freely.
Step 15 –Position the bearing housing in the bearing frame. Align the word “top” the upper
portion of the bearing frame. Tighten the leveling screws and nuts by hand.
Step 16 –Once the rotating element is installed in the bearing frame, place a dial indicator on
the end of the shaft. Move shaft forward and backward to check axial movement.
MAGNATEX 3575 SERIES SHAFT END PLAY in. (mm)
3575S 3575M 3575L 3575XL
Double row
min
max
0.0011(.028)
0.0019(.047)
0.0013(.033)
0.0021(.054)
N/A
0.0014(.036)
0.0023(.058)
Duplex
min
max
0.0007(.01
2
)
0.0010(.026)
0.0009(.02
2
)
0.0012(.030)
0.0010(.026)
0.0015(.038)
0.0010(.02
6
)
0.0015(.038)
Step 17 – Check shaft/sleeve run out. Install the shaft sleeve, if used, and then hand tighten
impeller. Rotate shaft 360 degrees. Disassemble and determine cause if the total
indicator reading is greater than 0.002 in.
Step 18 – Check frame face run out. Rotate shaft so indicator rides along the fit for 360 °.
If the total indicator reading is more than 0.001 in (0.025 mm) disassemble and troubleshoot.
Step 19 – Install the gasket on the frame.
Step 20 – Install the frame adapter onto frame assembly aligning bolt holes and dowel locations
with the frame.
Step 21 – Install dowel pins and bolts.
Step 22 – Check adapter to determine if the total indicator reading is within tolerance.
Step 23 – Install inboard labyrinth oil seal into adapter/bearing frame in the 6 o’clock position.

15
3575 IOM R6
SECTION G
PUMP DRAWINGS
G.1 DIMENSIONAL DRAWING MAGNATEX 3575 SERIES PUMPS
GENERAL DIMENSION
FRAME SIZE
ANSI DESIGNATION
DISCHARGE SIZE
SUCTION SIZE
A B C D E F BORE WEIGHT
DIMENSIONS
IN
INCHES
(CENTIMETER
S
)
LBS (kgs.)
MAGNATEX
3575S
1x 1
-1/2
–
6
AA
1
1
.
5
6.5 (16.5) 13.5
(34.3)
4
(10.2)
5.25
(13.3)
7.25
(18.5)
6
(15.2)
.625
(1.58)
84
(3
8
)
1-1/2 x 3 – 6 AB 1.5 3 42 (92)
2 x 3 – 6 2 3 43 (95)
1 x 1-1/2 – 8 AA 1 1.5 .563
(1.43)
45 (100)
1-1/2 x 3 – 8 A8 1.5 3 49 (108)
MAGNATEX
3575M
&
3575L
3 x 4 – 7 A70 3 4 11 (28.0)
19.5
(49.5)
8.25
(21.0)
12.5
(31.8)
9.75
(24.7)
.625
(1.58)
100 (220)
2 x 3 – 8 A60 2 3 9.5 (24.2) 200 (91)
3 x 4 – 8 A70 3 4 11 (28.0) 200 (100)
3 x 4 – 8G A70 3 4
1 x 2 – 10 A05 1 2 8.5 (21.6) 220 (91)
1-1/2 x 3 –10 A50 1.5 3 220 (100)
2 x 3 –10 A60 2 3 9.5 (24.2) 230 (104)
3 x 4–10 A70 3 4 11 (28.0) 265 (120)
3 x 4 – 10H A40 3 4 12.5 (31.8)
10 (25.4)
305 (138)
4 x 6 – 10 A80 4 6 13.5 (34.3) 305 (138)
4 x 6 – 10H A80 4 6
1
-1/2
x 3
–
13
A20
1
.
5
3
10
.
5
(26
.
7)
245
(1
1
1)
2 x 3 – 13 A30 2 3 11.5 (29.2) 275 (125)
3 x 4 – 13 A40 3 4 12.5 (31.8) 330 (150)
4 x 6 – 13 A80 4 6 13.5 (34.3)
.
563
(1.43) 405 (184)
MAGNATEX
3575XL
6 x 8 – 13 A90 6 8 16 (40.6)
27.9
(70.8)
6
(15.2)
14
.
5
(36.8)
18
.
75
(47.6)
16
(40.6)
.875
(2.22)
560 (254)
8 x 10 – 13 A100 8 10 18 (45.7) 670 (304
6 x 8 – 15 A110 6 8 610 (277)
8 x 10 – 15 A120 8 10 19 (48.3) 740 (336)
8 x 10 – 15G A129 8 10 322 (710)
NOTE: For models note shown contact Magnatex Pumps Inc.

16
3575 IOM R6
G.2 SECTIONAL DRAWING, MAGNATEX 3575S
SUCT I O N
FLANGE
1
08
3
70
3
70
B
4
08L
3
70
H

17
3575 IOM R6
G.3 SECTIONAL DRAWING, MAGNATEX 3575M
3
70
H
3
33

18
3575 IOM R6
G.4 SECTIONAL DRAWING, MAGNATEX 3575L
3
70
H
3
33
