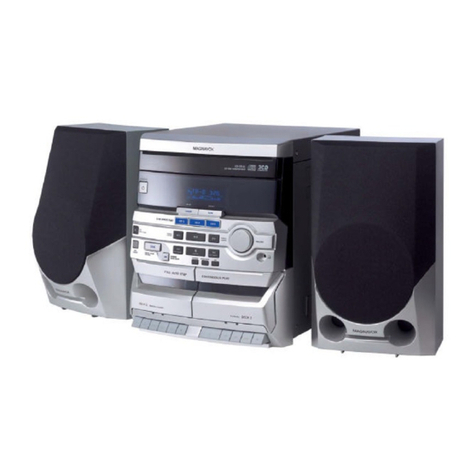

Magnavox MM435M User manual

MODEL: MM435M
PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
OWNER'S MANUAL
3-PIECES CD SHELF SYSTEM
with Digital PLL AM/FM Stereo Radio and
Bluetooth®Wireless Technology
Size: 148.5(W) x 210(H)mm (A5)

WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.
The users manual or instruction manual for an
intentional or unintentional radiator shall caution
the user that changes or modifications not
expressly approved by the party responsible for
compliance could void the user's authority to
operate the equipment. In cases where the manual
is provided only in a form other than paper, such
as on a computer disk or over the Internet, the
information required by this section may be
included in the manual in that alternative form,
provided the user can reasonably be expected to
have the capability to access information in that
form.

5

6
LOCATION OF CONTROLS
1
2
14 15 16 17 18 19
20 21 22 23
3 4 5 6 7 8 9 10 11 12 13
24
25
26

7
1. CD DOOR 14.
(Next/Skip Forward) Button
2. CD Door OPEN (Close) Area 15.
■(Stop) Button
POWER Button.3 16.

(Play/Pause) Button
4. FUNCTION Button 17.
5. REPEAT Button 18.
6. PROG (Program) Button 19.
DIMMER Button
7. 20.
8. LCD Display 21.
9.
n
22.
10.
VOLUME Control Knob
23.
11. 24.
12. 25.
DBBS (Dynamic Bass Boost System) Control Knob
13.
(Previous/Skip Backward) Button
26.
1. FM Wire Antenna 3.
SPEAKER OUT R (Right) Jack
2.
SPEAKER OUT L (Left) Jack
4. AC Power Cord
1 2 3 4
SNOOZE Button
MUTE Button
AL SET (Alarm Set) Button
SLEEP Button
AL ON/OFF (Alarm On/Off) Button
(Set) ButtonTIME
MEM- Button
MEM+ Button
MEMORY Button
POWER Indicator
Remote Receiver
AUX-IN Port

8
1.  (Play/Pause) Button 2. (Next/Skip Forward) Button
3. (Previous/Skip Backward) Button 4. ■(Stop) Button
5. REPEAT Button 6. Battery Holder
Battery Door
1
2
5
3
4
6

9
CONNECTION:
Connect the small plug from the Left and Right Speaker Boxes to the SPEAKER OUT
L & R Jacks on the rear of main unit as the illustrated below:
POWER SOURCE:
Main Unit:
Unwind the AC power cord and extend it to its full length. Insert the AC plug of the
cord into any convenient AC 120V~; 60Hz household outlet as the illustrated below:
Right Speaker Box Left Speaker Box
