Magnifying America Patriot 7 FHD User manual

Corporate Headquarters
2125 SW Highway 484
Ocala FL 34473
1-800-364-1608
Fax: [phone]
www.magnifyingamerica.com
Patriot 7 FHD
User Manual

Congratulations……………………..4
Features……………………………...4-5
Packaging content…….……………5
Technical specifications…………...6
Product structure …………………..7
Use introduction…………………….8
1. Install SD card (NOT SUPPLIED)…….8
2. Charge battery……..………………8
3. Power on and power off…………..8-9
4. Use digital video magnifier……….9
Functions……………………………..10
1. Color mode switch…………………10
2. Zoom rate adjustment……………..10
3. Touch screen operation (optional)10-12
4. Far lens and near lens switch…….12
5. Image freeze and unfreeze…...…..12
6. Reading line………………………13-14
7. Storage and playback……………14-15
8. Voice control (optional)…………….16
9. Voice memo…………………………17
10.Flashlight……………………………17
11.Memory function…………………...18
12.Power saving………………………18
13.Low battery tips……………………19
14.Handwriting………………………...19
15.Connecting to TV…………………..20
16.Connecting to computer………..20-21

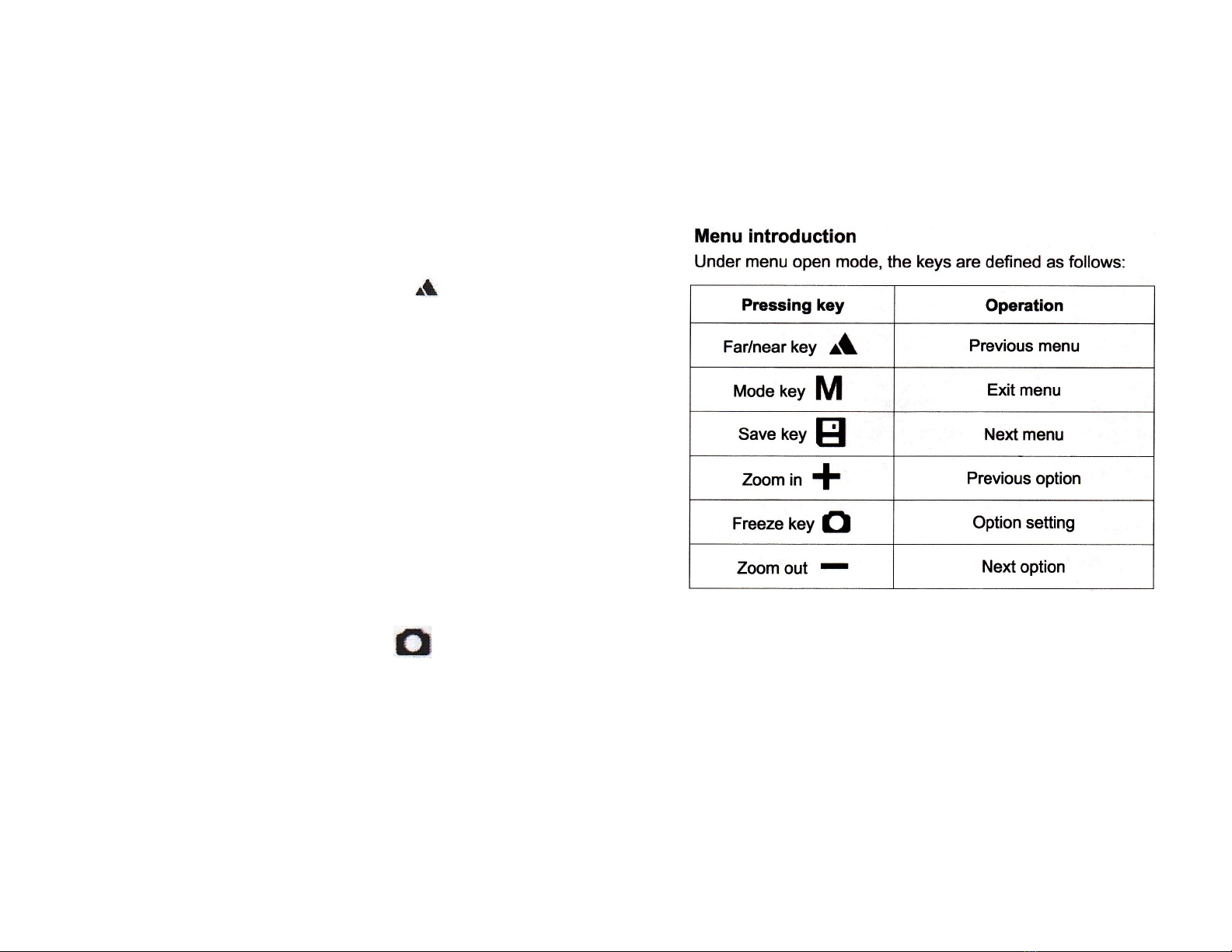

Menu instruction……………………21
1. Setting menu……………………..22

•LCD brightness adjustment…………22
•White LED brightness adjustment….22
•Beep volume adjustment……………22
•Touch screen on and off (optional)…23
•Voice control on and off (optional)…23
•Date and time setting………………..23
•Color mode setting…………………..24
2. Playback menu……………………..24
•Delete current voice memo…………24
•Delete all voice memos……………..25
•Delete current photo………………...25
•Delete all photos…………………….25
•Format disk…………………………..26
3. Information menu………………….26
•Battery power display……………….26
•File information display……………..26
•Disk information display…………….27
•Version information display…………27

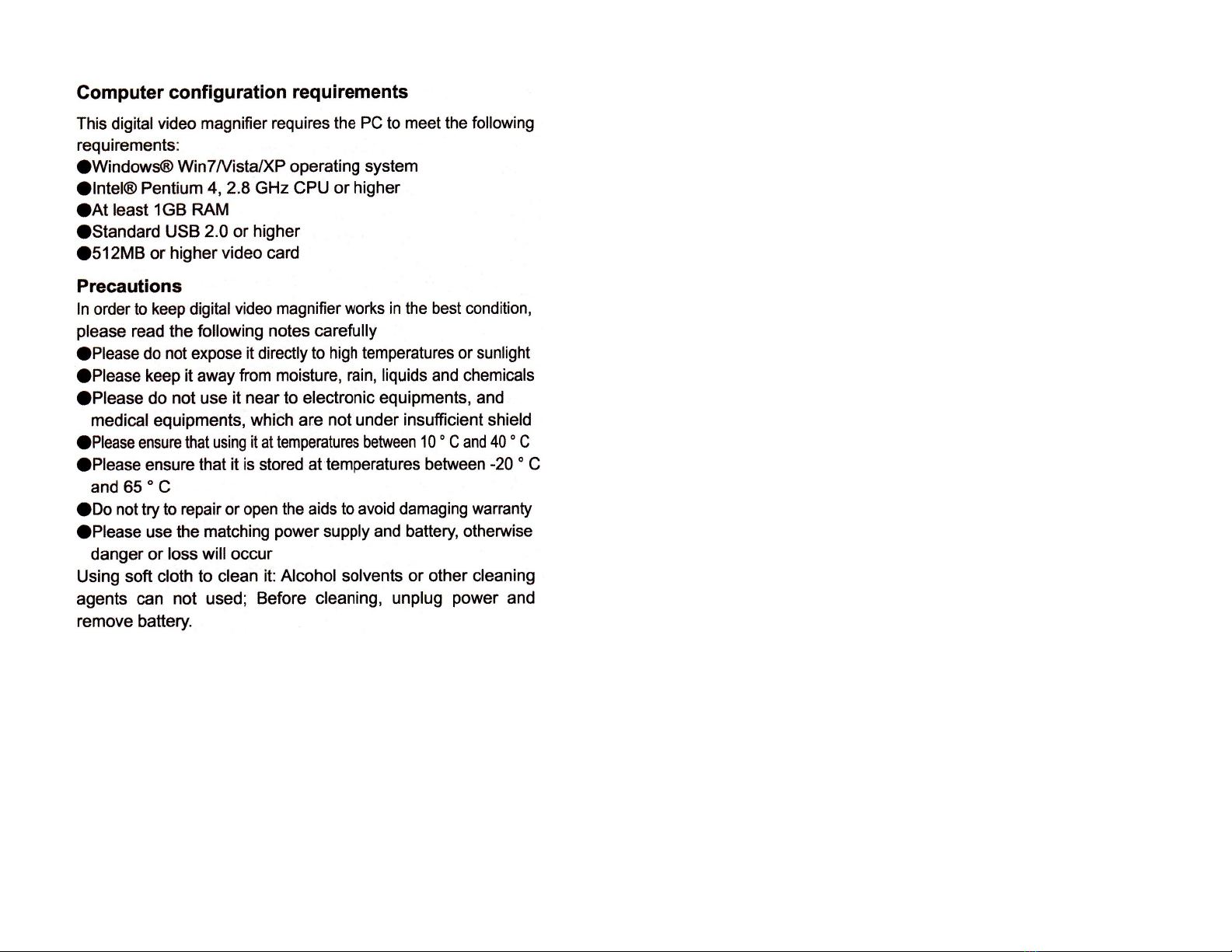

Computer configuration requirements
Precautions…………………………….28
Problems/Solutions…………………..29

Page 4
Congratulation
Thank you very much for your purchase of the
Patriot 7 FHD portable video magnifier!
Please read this user manual to get a better
understanding of all the features packed into
this very powerful digital magnifier.
Features
•1080P30(far lens)*720P60 (near lens), no
lag, no smear, fluent HD
•Professional image processing DSP to
restore colors and details
•7.0 large anti-glare screen, 1024x600
resolution, high definition
•Touch screen, Support picture-in-picture,
zoon and out and drag gestures (optional)
•Custom-made high-end lens, large filed
angle and extended depth of field, more text
•Dual lens auto-focus
•4Mega pixels camera, HD storage and play-
back of pictures and text.
•2x-32x magnification
•Portable
•26 color modes
•Freeze capability - convenient to take a
closer look
•Image zoom panning function; Image zoom
can be moved up and down, easy to read
•Reading line function and auxiliary continu-
ous reading text
•Voice control is a simple operation and easy
to use for the visually impaired (optional)
Page 29

Page 28
WARNING:
DO NOT USE THE PATRIOT 7” FHD WHILE
CHARGING! WHITE SURFACE IS HOT DO
NOT TOUCH!
Page 5
•Voice prompts is easy to use
•Voice memo is available for noting picture
content by voice
•Large icons, clear and concise
•Adjustable backlight, White LED light with
adjustable brightness
•SD storage card (optional) can expand stor-
age (NOT included)
•Memory function can automatically save the
user all the last settings and remember the
user’s last settings
•AV and HDMI 1080i60 connecting to HD TV
to provide clearer images
•Type-c USB interface is available, both posi-
tive and negative inserts are available
•Flashlight can supply temporary lighting
•The lens is strategically centered
•Four hours of continuous use on full battery
•Auto shut down after 3 minutes of no use.
Package content
Digital video magnifier
HDMI cable
Video output cable
USB cable
DCIN charging cable
Power adapter
User Guide
Carrying case
Lens cloth

Page 6
Technical specification
•Screen size: 7.0 HD colorful LCD screen
(1024*600)
•Pixel size: 4mega pixel (far focus lens), 4
mega pixel (near focus lens)
•Zoom rate: 2X to 32X magnification
•Color combination modes: 26
•Dual lens
•Touch screen
•Adjustable LED light
•Last settings stored
•Image freeze
•Line marker
•Playback
•SD card supported (NOT included)
•Flashlight function
•TV output: AV and HDMI
•Voice control
•Voice prompt
•Voice memo
•Bracket handle
•Over 4 hours battery life
•Battery capacity: 5200mAH high-capacity
chargable lithium battery
•Dimension: 150mm(length)x84mm(width)x
30mm(hight)
•Weight: 17.4oz
Page 27

Page 26
Page 7

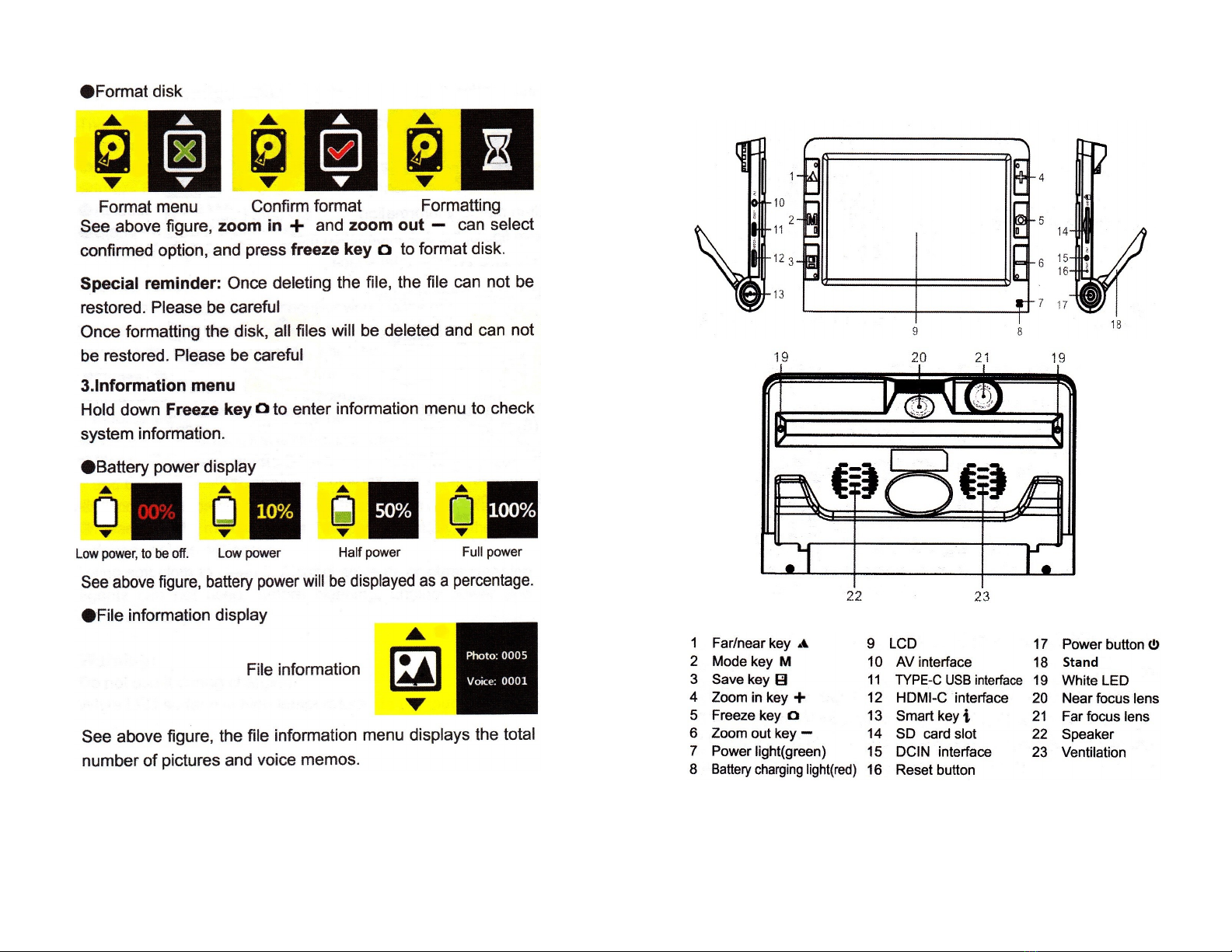

Product Structure

Page 8
Use introduction
1. Install SD card
(NOT INCLUDED)
•Insert SD card to
its slot up con-
necting finger
•Push SD card
and it will click in
place
2. Charge battery
•Connecting video magnifier to adapter by USB
cable or DCIN cable
•Connecting adapter to AC power
•Charging light (red light) is on when charging
•Charging light (red light) will be off when fully
charged
•Please charge the battery fully before the first use
•When battery symbol flashes low—charge unit
Warning: While charging, keep unit well ventilated to
avoid overheating.
3. Power on and power off
Page 25

Page 24
Page 9

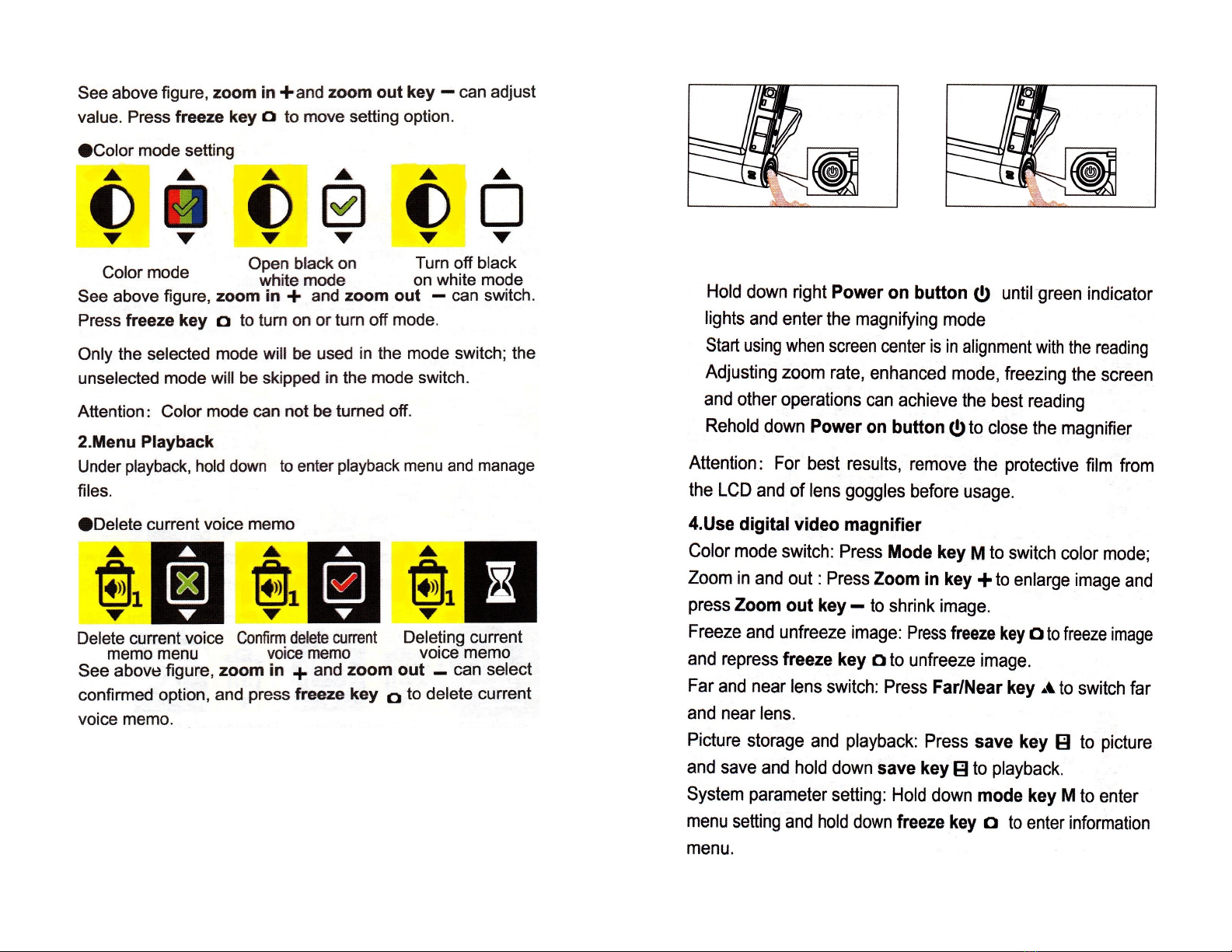

Hold down right Power
button to power on unit.
Hold down right Power
button to power off unit.

Page 10

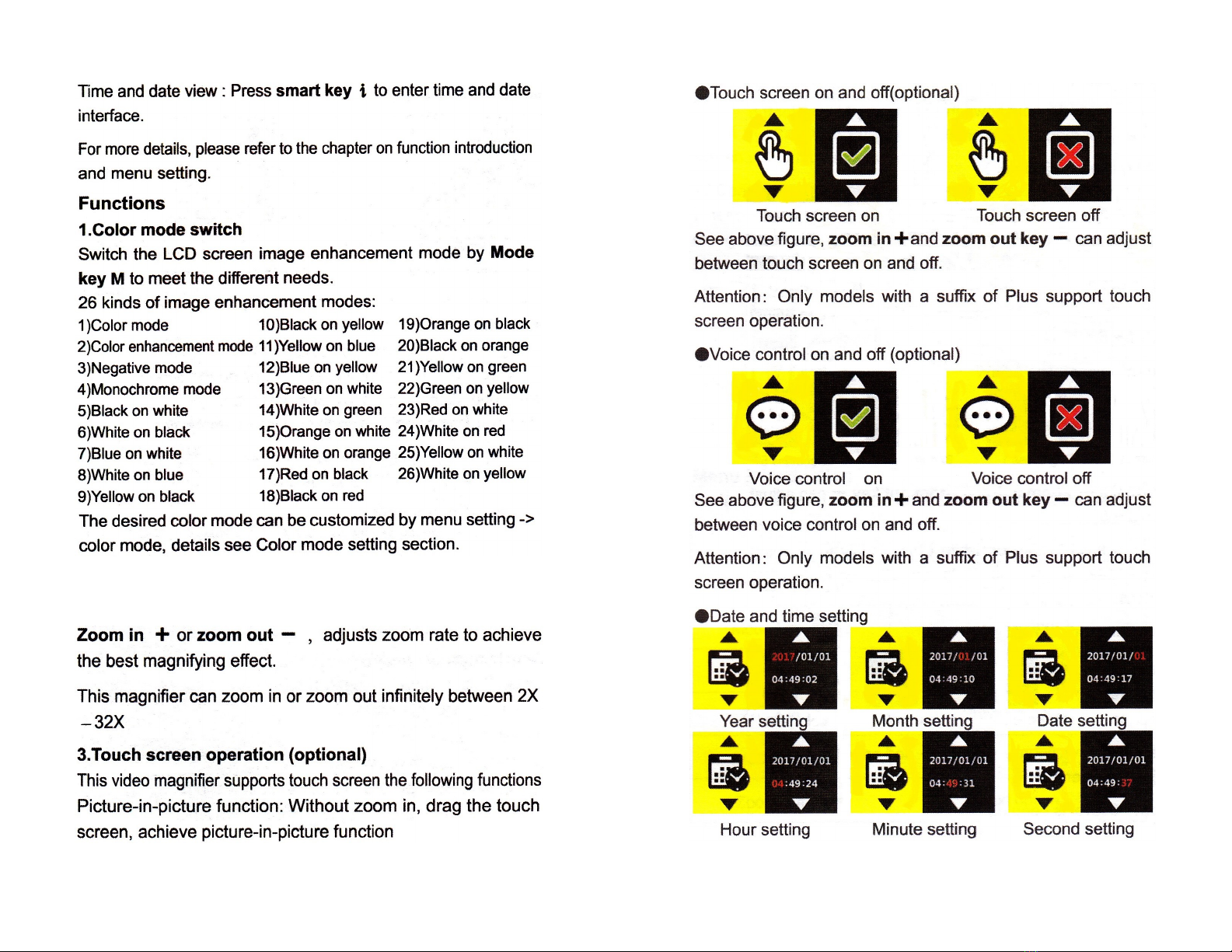

2. Zoom rate adjustment
Page 23

Page 22
Page 11

Page 12
Attention:
The touch screen must be kept clean in order
for it to respond correctly. Please use the origi-
nal charger, any other charger used with the
unit may cause the unit to malfunction. Only
models with a suffix of PLUS support touch
screen operation.
4. Far lens and near lens switch symbol
Switch Far/Near key to see near or far. Far
and scenes are the same symbol.
Near lens uses: Newspapers, books, prescrip-
tion bottles, signatures, cellular phones, tab-
lets, bank statements and much more.
Far lens uses: Blackboards, bus stop sign,
road signs, distance menus and much more.
When the camera light is too dark, there will be
a low light message on the screen.
5. Image freeze and un-freeze
Press the freeze symbol in order to enhance
an image close up. Press the freeze symbol to
un-freeze the image to return to normal
Viewing.
Page 21
Connect the provided USB cable to the com-
puter and the USB-C end to the Patriot 7FHD.
The computer will recognize the device’s stor-
age and allow for playback of the saved pic-
tures and voice memo files on the computer.

Page 20
15. Connecting to TV
Connect Patriot 7FHD to TV with Av video ca-
ble to get a bigger display.
Connect Patriot 7FHD to TV with HDMI cable
to get a more clearer and larger image.
When the Patriot 7FHD is connected to the TV,
the LCD screen will automatically turn off.
16. Connecting to computer
Page 13

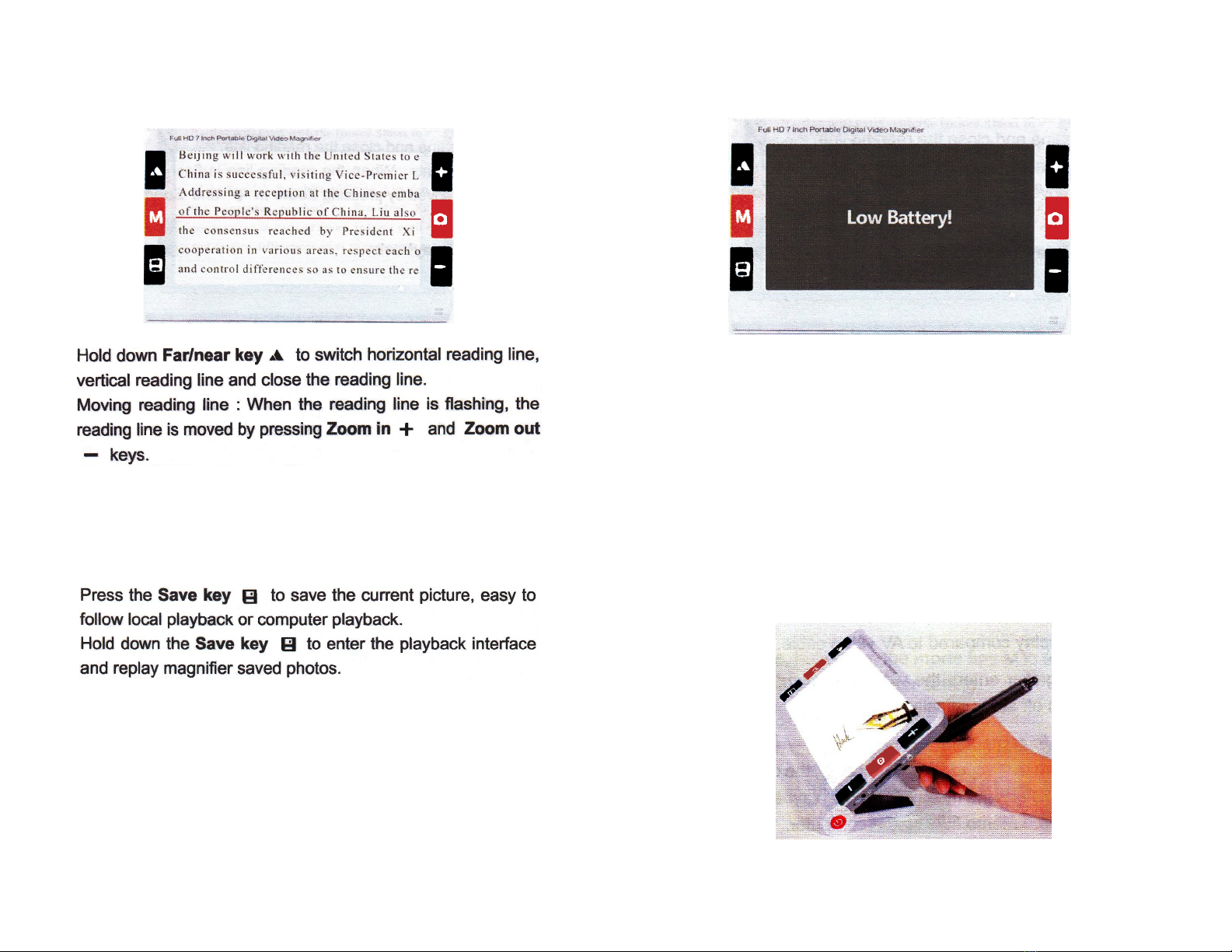

6. Reading line
Reading lines are useful to position the reading
material and enable the user to follow the sen-
tence.
Horizontal reading line
Vertical reading line

Page 14
Turn off the reading line
7. Storage and playback
Page 19
13. Low battery
Low battery function: Screen will display the
Low Battery! when battery needs to be
charged along with the power button flashing.
Plug the Patriot 7FHD into the charger for a
minimum of 4 hours. The unit can be used
while charging.
14. Handwriting
The Patriot 7FHD supports handwriting func-
tion. Open the stand, keep it upright to write.

Page 18
11. Memory function
After powering unit off, memory function will
save all the last settings automatically.
12. Power saving
The video magnifier has an intelligent power
saving function. When no key operation and
the screen rests for 1 minute, the unit will enter
the sleep state automatically. The screen
shows the battery power level and the current
date and time.
While in automatic sleep mode, press any key
to wake up magnifier. No operation after 2
minutes, it will shut down automatically to save
power.
Page 15

Page 16
8. Voice control (Optional)
The unit has voice control function and can be
controlled by voice using corresponding voice
command. Instructions are as follows:
Page 17
9. Voice memo
Under playback mode:
Press freeze key, make voice memo on the
current picture, noting content of the photo by
voice memo. The voice memo will automati-
cally play when the photo is opened.
Press freeze key to stop recording when narra-
tion is completed.
Attention:
Voice recording can be deleted and added with
the above same simple steps.
10. Flashlight
Flashlight plays the role of temporary lighting
for a video magnifier. Turn on flashlight: Under
off status, Hold down freeze key and press
power button, flashlight is on.
Mode switch: freeze key switches bright, slow
flash, flash, gradient, close.
Brightness adjustment: Zoom in (+) or zoom
out (-) can brighten or dim light brightness
(except for the gradient mode).
Turn off flashlight: Hold down power button.
